我是靠谱客的博主体贴狗，这篇文章主要介绍NETDMIS5.0节点程序2023，现在分享给大家，希望可以做个参考。

图形化测量过程的显示，编辑，执行，语法检测等相关功能。
在这里插入图片描述
在新建工作区或新建程序时默认显示如上图红色框内的程序节点。如果使用了影像测量/点激光测量的功能，则默认显示节点中多一项关于复合校正的节点。如果当前没有可选择的测头则新建后程序中没有测头节点。测量时选择测头，测量元素等测量者的操作过程就被记录到节点程序界面。
在这里插入图片描述

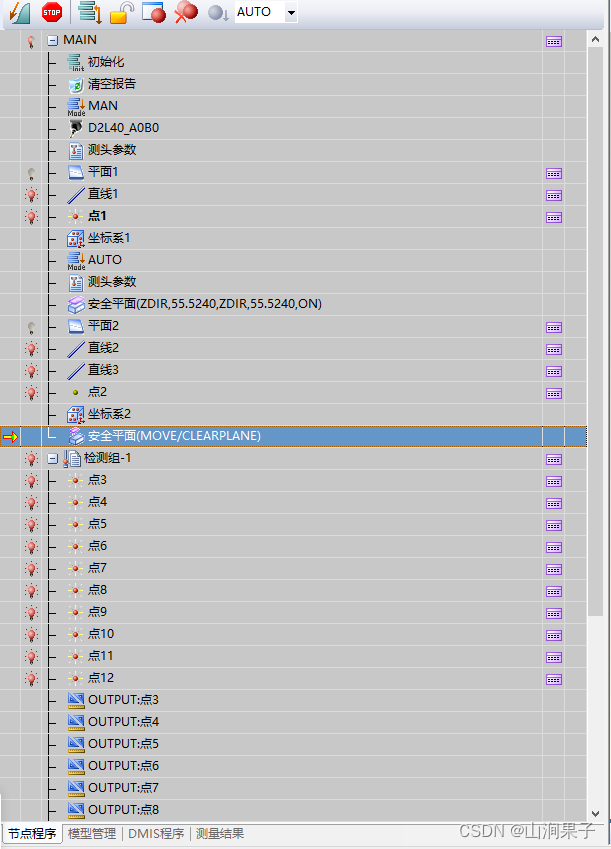

节点程序界面有 3 列显示，第一列显示断点、书签和插入符号；第二列灯泡列，点击灯泡改变亮灭，灯泡亮结果图形和标签能显示在 CAD 窗口中，灯泡灭结果图形和标签隐藏不显示；第三列节点名称列，显示测量操作过程，可以点击右键选择多种操作功能。

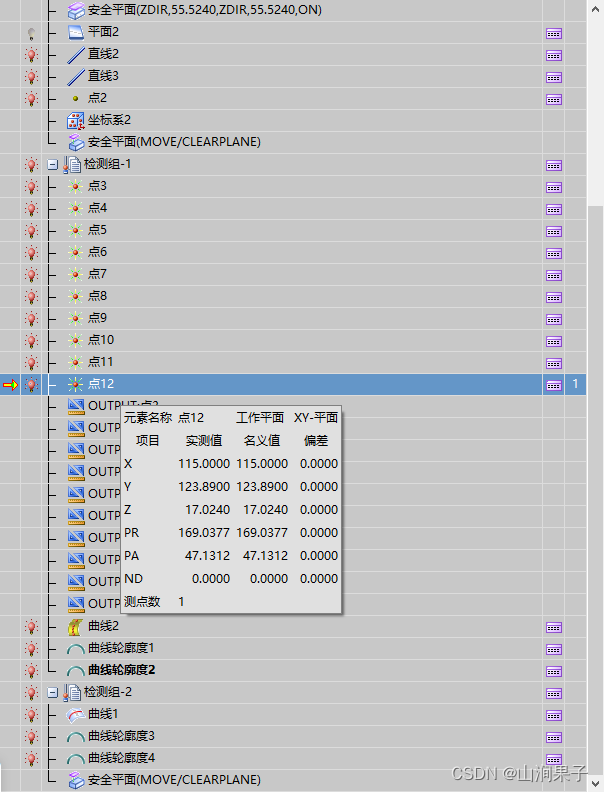

在未运行程序的状态下，鼠标放在程序节点上第三列，会显示对应的信息（例如元素或公差显示结果信息，测头显示半径信息）
在这里插入图片描述

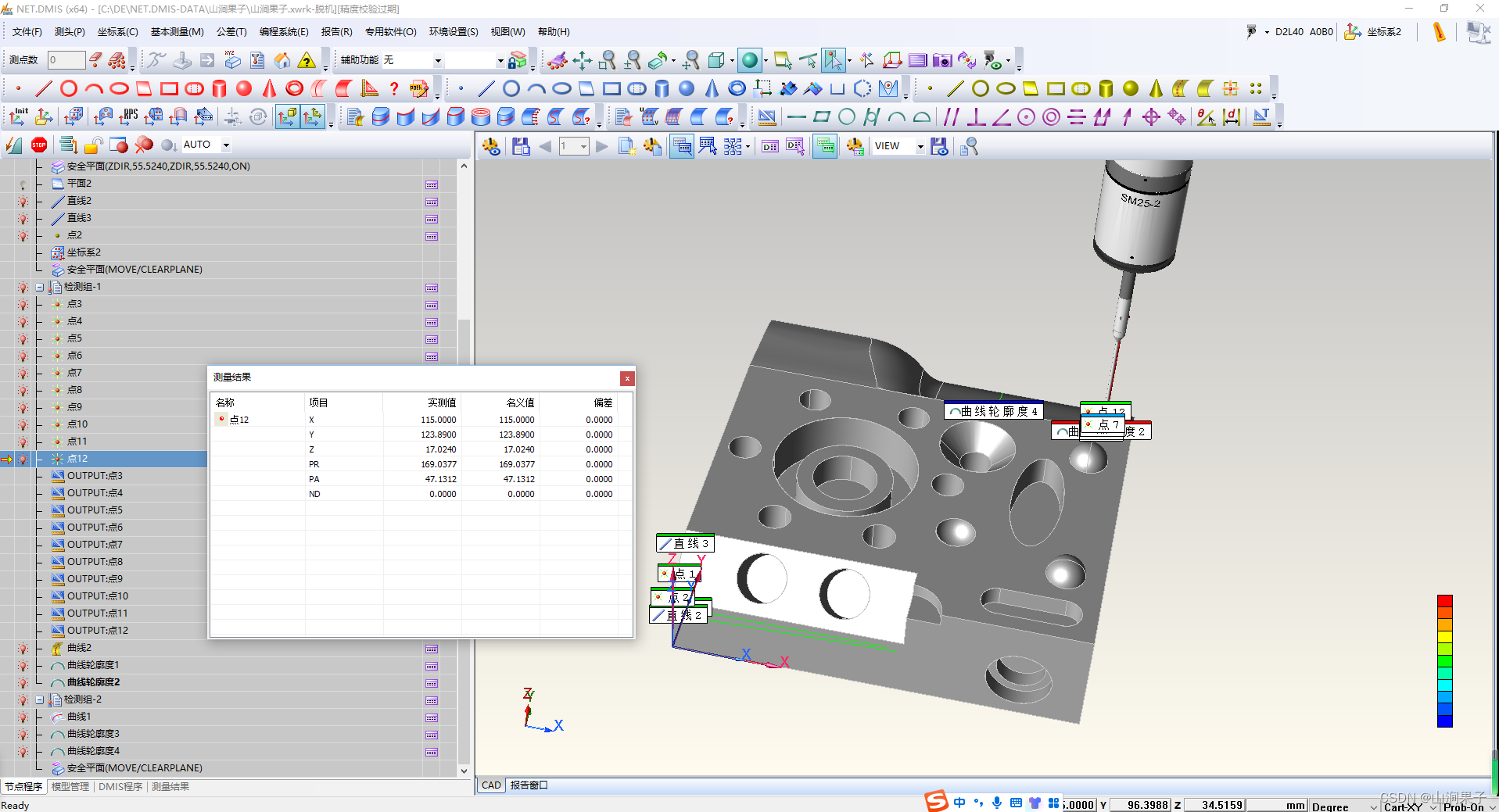

在元素和公差节点的第三列双击左键，会弹出一个测量结果界面，显示对应元素或公差的结果。在该界面打开状态下，单击左键选中其它元素或公差，会再添加结果显示，如果双击左键选中其它元素或公差，则如同第一次打开一样，只显示一个结果。
在这里插入图片描述

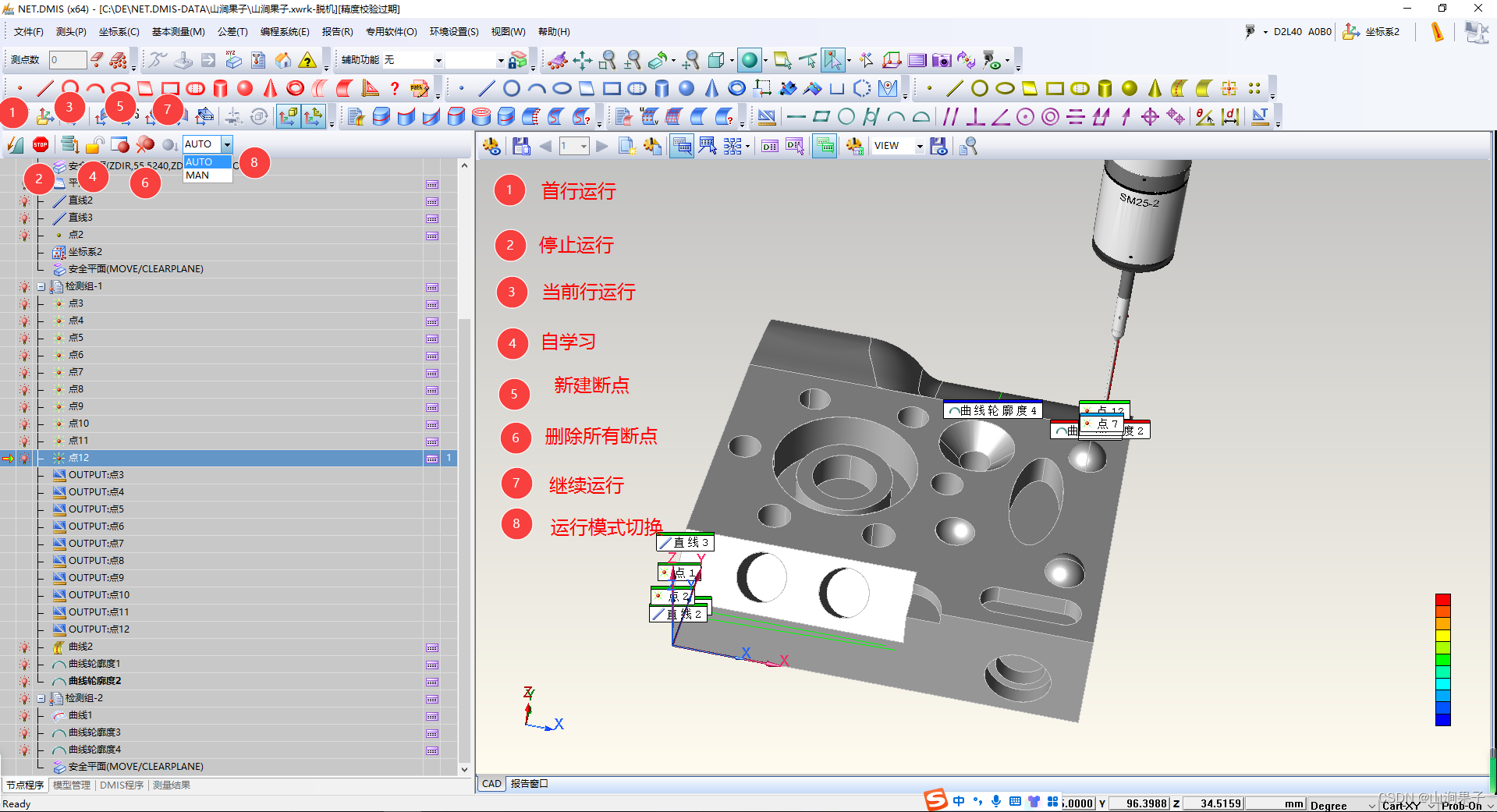

工具条介绍如下

在这里插入图片描述

鼠标放在此处时会弹出相应的提示

首行运行：点击后，程序从开始执行到结束，与鼠标选中行位置无关。运行完成后鼠标选中行位置不变，仍是之前选中的位置,插入符号在程序结束位置。运行中间点击停止或异常停止鼠标选中位置也不变，插入符号在停止位置。程序运行中第一列显示表示当前运行的节点。

当前行运行：点击后，程序是从鼠标选中行位置开始执行，鼠标所在位置测头与当前测头不一致时，执行软件会弹出提示，操作者选择是否改变测头后，才能继续运行。鼠标所在位置坐标系与当前坐标系不一致，执行时软件自动回调坐标系确保运行正确。运行完成后鼠标选中行位置不变，插入符号在程序结束位置。运行中间点击停止或异常停止鼠标选中位置也不变，插入符号在停止位置。程序运行中第一列显示表示当前运行的节点。

停止运行：点击后程序停止运行。

自学习：新建工作区锁子打开，是自学习状态；打开工作区锁子关闭，是取消自学习状态。在取消自学习状态下，程序能自学习，自学习的程序是注释状态。

停止运行：点击后程序停止运行。

程序运行模式， “ MAN” 手动模式， “ AUTO” 自动模式。

节点程序界面右键功能介绍

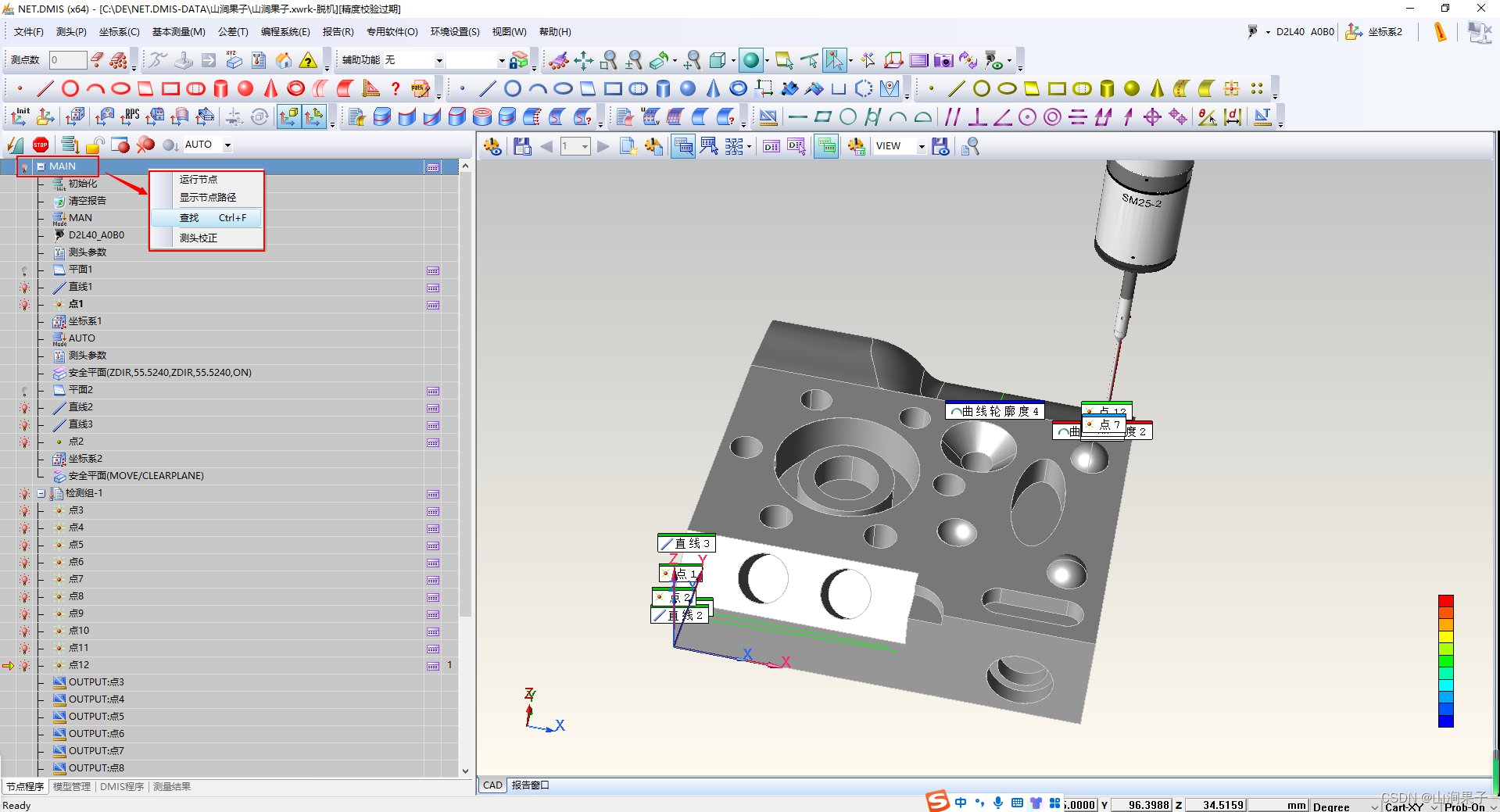

在主节点 MAIN 右键弹出如下菜单：

在这里插入图片描述

运行节点：全部运行程序。

显示节点路径：显示所有的路径。

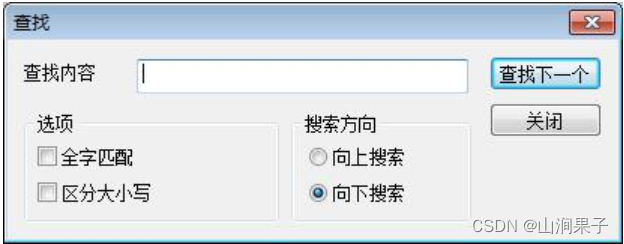

查找：在程序节点名称中查找，点击后弹出对话框，输入要找的内容，点击【查找下一个】。

在这里插入图片描述
测头校正：检查程序中的测头文件、测针角度是否存在。测头文件不存在自动打开测头装配界面。测头文件存在但角度不存在打开测头校正界面，并自动添加不存在的角度。

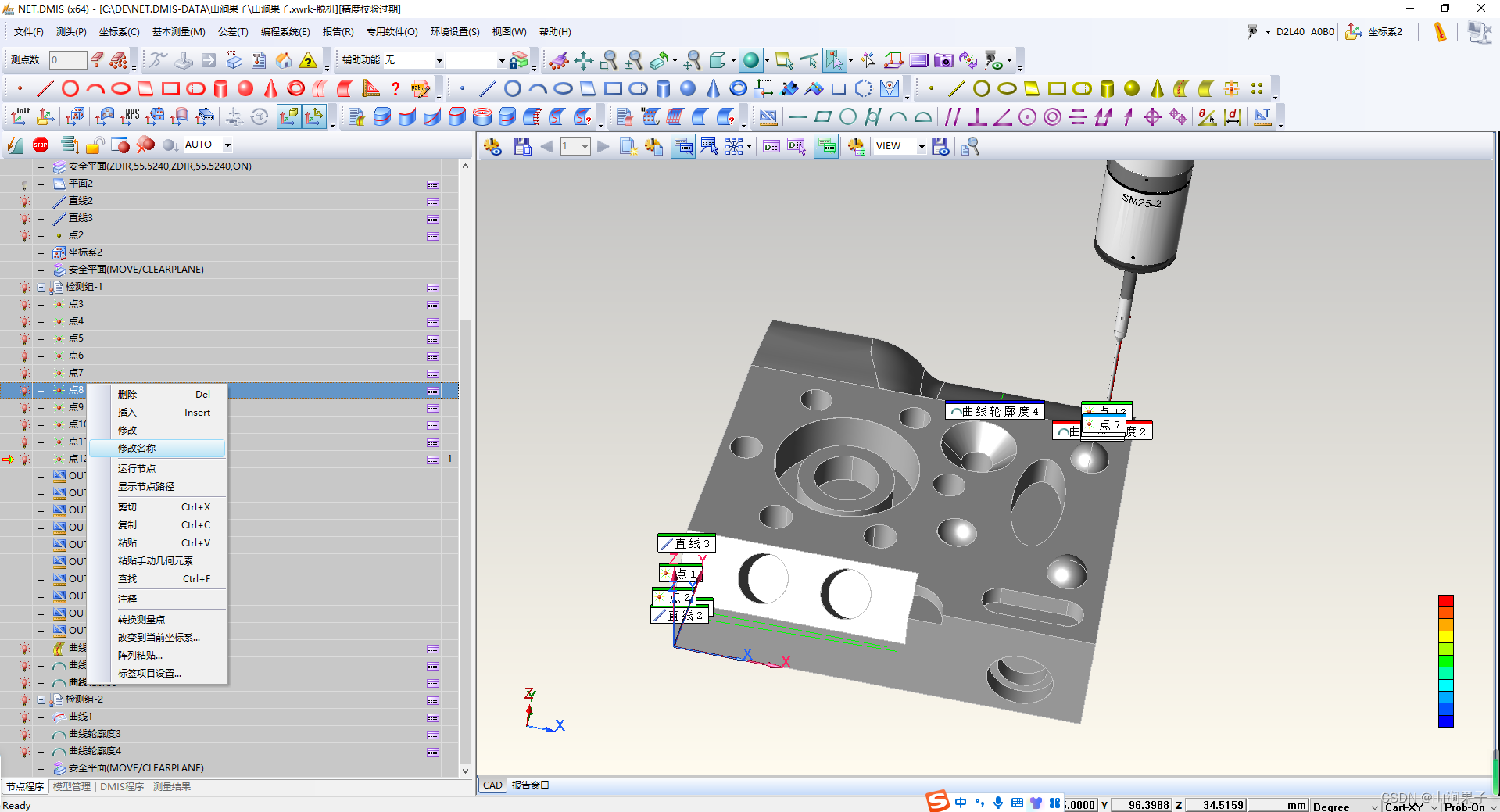

鼠标在一个程序节点上点右键时，会弹出如下提示，节点类型不同右键内容会有所不同。

也可以按住 Shift 选中多个节点使用右键功能。在取消自学习状态的状态下，有些功能灰显不能使用。
在这里插入图片描述
删除：可以同时删除元素和公差节点的程序和结果，删除坐标系节点的程序和坐标系。

插入：鼠标右键点击程序中一个节点，弹出选项列表，鼠标左键点击【插入】即将当前插入位置改变到该节点，且插入符号改变到该节点对应行，插入程序时，程序插在所选节点的后面。且当前坐标系、工作平面状态、测头补偿状态会恢复到当前插入位置状态。新建或打开工作区，插入位置默认在程序最后。运行程序中间会自动跟随程序运行改变位置，程序停止在哪一节点，显示在哪一节点。

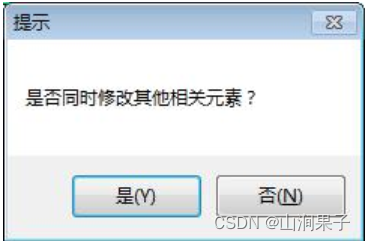

修改：对当前节点的参数进行修改，点击后插入符号先改变到修改位置。若是几何元素节点、运动参数等有操作界面的会弹出原界面修改，若是参数指令、下拉选项等相关的修改，点修改后会弹出可选项选择后直接改变。如果修改了元素、公差等节点的结果名称，则会弹出在这里插入图片描述
提示，选【是】，后面使用该结果名称的程序中该结果名称都改变，选择【否】则不改变。按住 Ctrl，并左键双击程序节点也可以修改。

修改名称：单独修改程序节点名称，在需要修改名称的节点上右键，弹出修改名称界面在这里插入图片描述
也可多选程序节点进行批量修改，元素名称顺延。

运行节点：选中单个或多个节点运行程序。

显示节点路径：选中单个或多个元素点右键中的“ 显示节点路径” 则显示选中元素的路径。

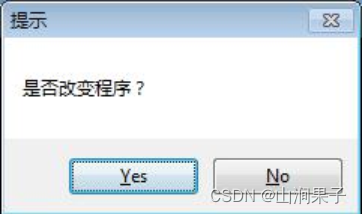

剪切：程序剪切，改变程序的位置，若在不同坐标系之间剪切元素时，会弹出提示在这里插入图片描述
点【是】程序中参数会改变到当前坐标系下，结果也会改变。若是坐标系剪贴，则只是程序改变位置，不做任何改变，执行程序后元素结果才会在新坐标系下显示

复制：复制一个同样的元素程序，可在不同坐标系下复制。复制后元素名称后加-COPY。如果多节点复制，将测量的元素节点和使用该元素进行构造元素或公差评定的节点一起复制，则粘贴后自动将构造元素和公差评定中使用的元素名称一起改变。

粘贴：将复制或剪贴程序节点的粘贴到当前鼠标左键选中节点的后面，且插入位置自动改变到粘贴后的位置处。

粘贴手动几何元素：适用于精建坐标系时将粗建坐标系的手动几何元素一次性复制粘贴，相当于转换测量点重新做元素，若插入的节点上方激活了手动安全平面，则粘贴的手动几何元素中自动添加安全平面指令。

查找：如同在 MAIN 节点上的查找。

注释：可将程序中的部分或单个节点屏蔽，在运行程序时跳跃不执行。如果选中的节点程序是已经注释过的，右键功能中的【注释】为【取消注释】。

转换测量点：转换元素的测量点，可重新生成手动测量元素。
改变到当前坐标系：将选中的元素结果值转换到当前坐标系下。右键点击改变到当前坐标。

系弹出如下图所示界面：在这里插入图片描述
选择元素只改变当前选中的元素到当前坐标系，全部应用是将所有元素都改变到当前坐标系。

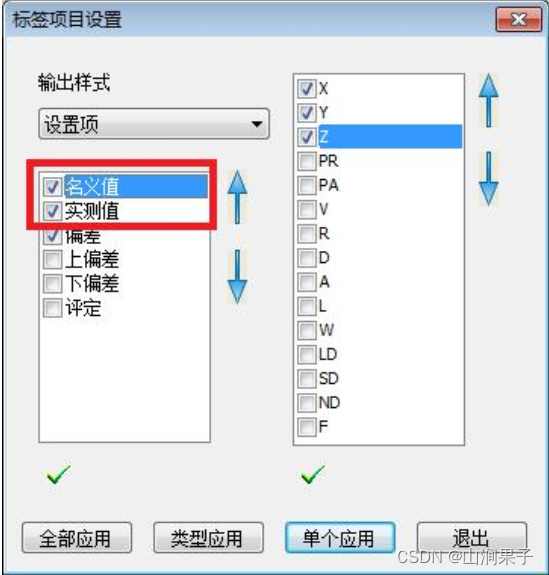

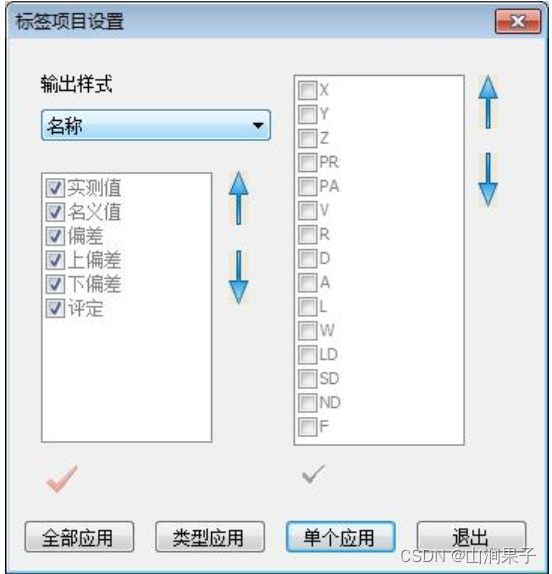

标签项目设置：设置元素标签上要显示的内容。点击右键中的【标签项目设置】会弹出如下窗口：在这里插入图片描述
在输出样式下拉选项中选择样式，选择输出项目及评定选项显示内容，选中项目名称可点击上下箭头改变输出顺序如下图

设置好项目及相关顺序后，点【全部应用】就是结果中的元素都是按此设置生成标签报告，点【类型应用】则将此类型的元素结果标签按此设置生成标签报告。【单个应用】则将此设置应用到所选元素上。标签如下图：

在这里插入图片描述
阵列粘贴：对几何元素、形位公差进行阵列。选中需要阵列元素，右键点【阵列粘贴】，插入符号同时改变到选中的元素节点上，同时弹出如下阵列界面，根据需要设置相关参数，点击【预览】可看到阵列后的效果图，点击【确定】插入新程序。

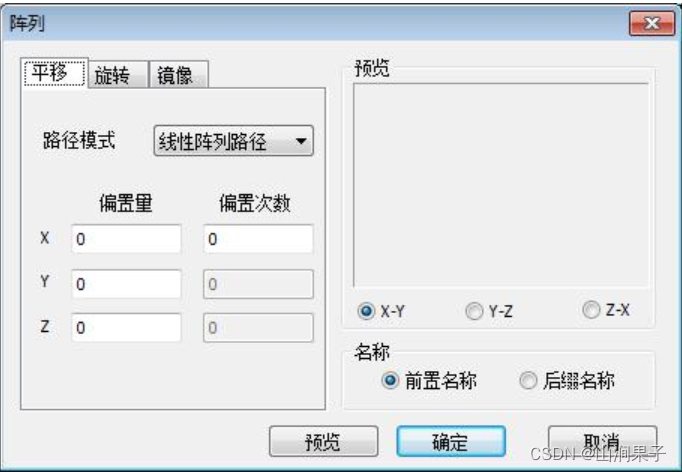

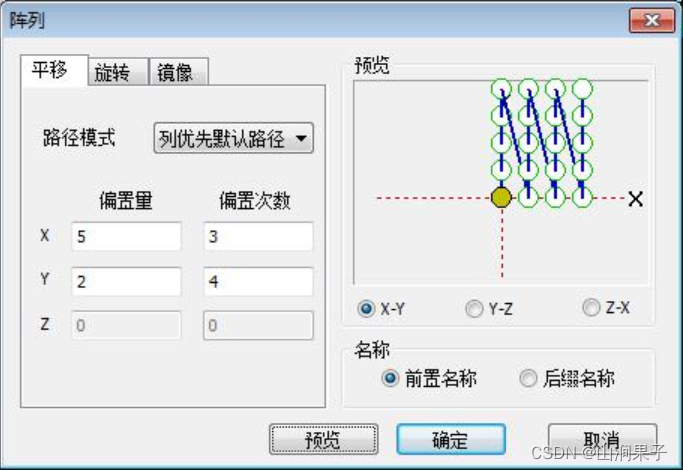

1)平移界面

在这里插入图片描述

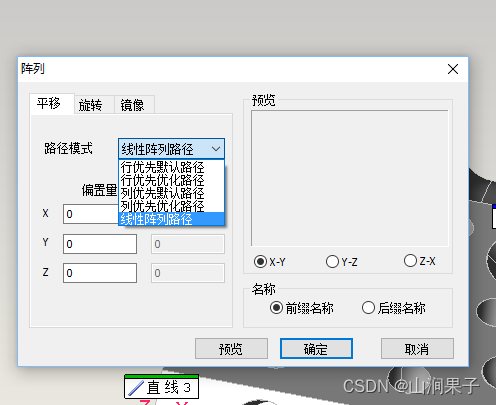

路径模式：平移阵列路径方式的选择，选择不同的路径模式，各轴的偏置量始终是可输入，偏置量输入后偏置次数会显示可用。

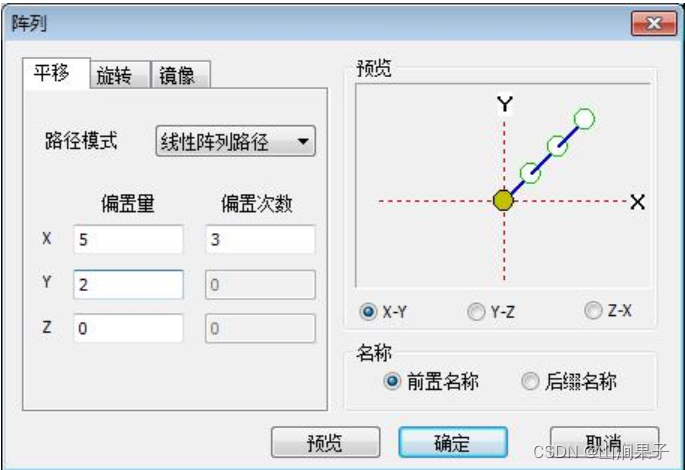

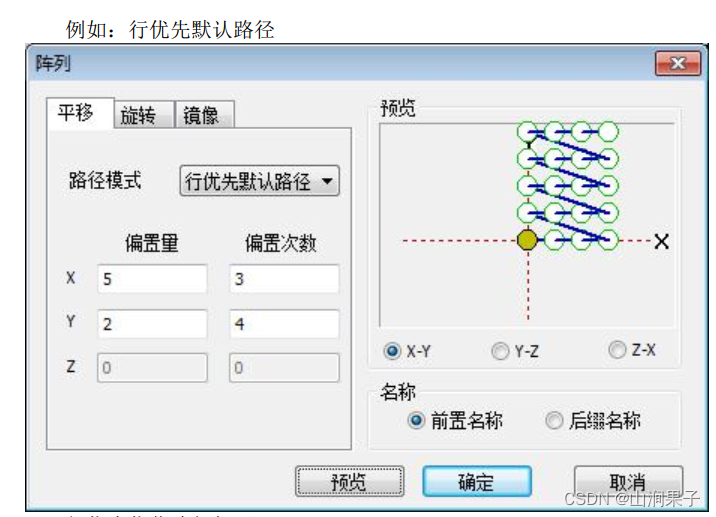

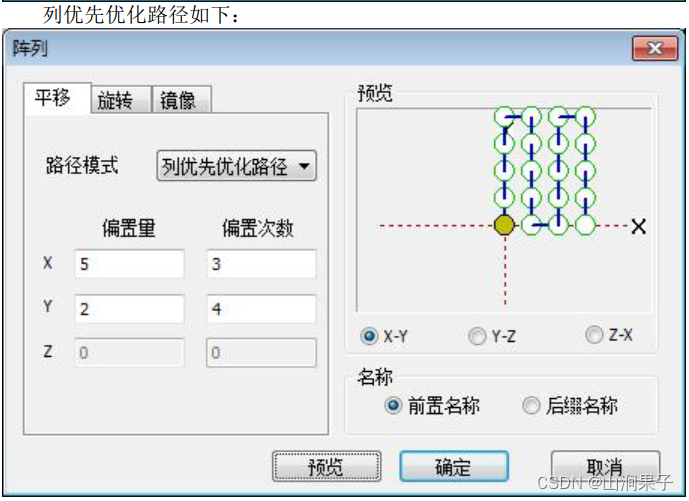

对于行或列优先、默认这四种路径方式，需要上面的偏置次数最少输入两个轴。对于线性阵列路径，偏置量可是单轴，平面或空间，根据需要输入轴的偏置量，偏置次数只需输入一个即可。

在这里插入图片描述

偏置量：相对原点的偏置量，偏置量根据路径模式的选项不同，阵列结果不同。

偏置次数：输入阵列偏置的次数。

前置名称：顺延元素名称序号。如圆 1 阵列粘贴后的元素名称为圆 2。

后缀名称：在原始元素名称后加后缀。如圆 1 阵列粘贴平移后的元素名称为圆 1-L1。

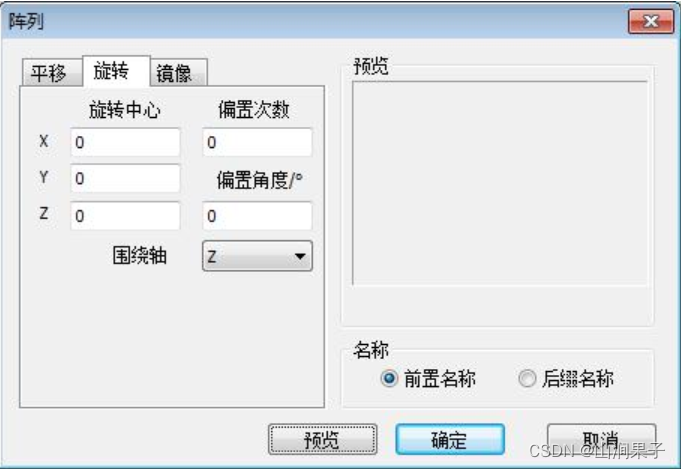

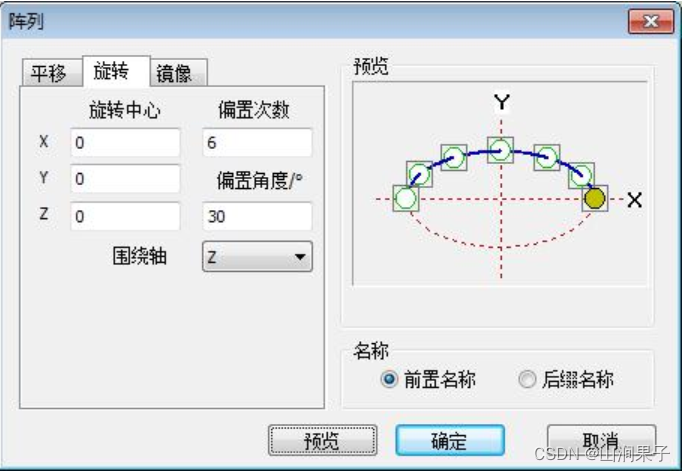

2)旋转阵列界面

在这里插入图片描述
旋转中心：设置旋转阵列的中心，若为（ 0、 0、 0），是绕坐标原点旋转阵列，若不是（ 0、0、 0）则是相对于坐标系原点偏置一个量为中心做旋转阵列。

偏置次数：旋转阵列的阵列次数。

偏置角度：旋转阵列的旋转角度。

围绕轴：选择阵列的围绕轴 X 轴、 Y 轴、 Z 轴。

前置名称：顺延元素名称序号。如圆 1 阵列粘贴后的元素名称为圆 2。

后缀名称：在原始元素名称后加后缀。如圆 1 阵列粘贴旋转后的元素名称为圆 1-AZ1。

例如：绕原点的旋转阵列

在这里插入图片描述

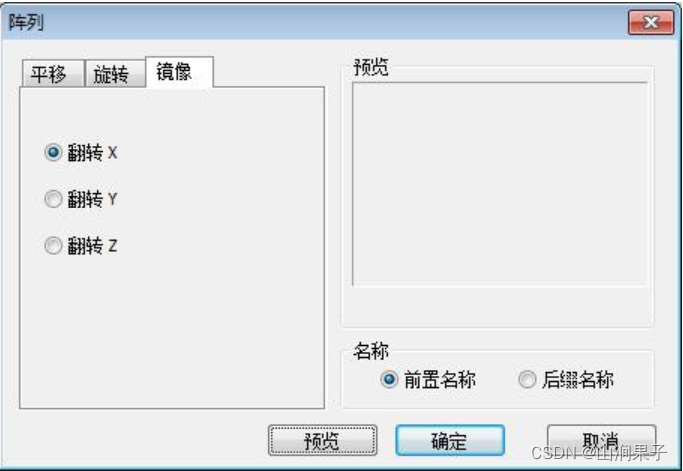

3）镜像阵列界面

镜像：坐标值镜像程序。选择要翻转的轴，点【确定】实现镜像程序。

前置名称：顺延元素名称序号。如圆 1 阵列粘贴后的元素名称为圆 2。

后缀名称：在原始元素名称后加后缀。如圆 1 阵列粘贴镜像后的元素名称为圆 1-MX1。

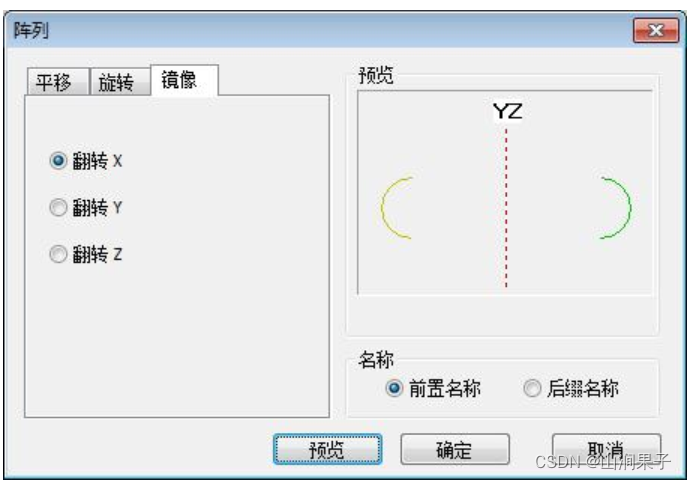

例如：翻转 X 在这里插入图片描述

复制代码

$$ NET_DMIS_20160720
$$ MADE IN DE 2023-1-14 17:37:4
INCLUD/DMIS,'NET_DMIS_DEFINES.DMI'
INCLUD/DMIS,'VARDEFINE'
DMESW/COMAND,'PROBE_VAL/INIT'
UNITS/MM,ANGDEC
D(MACHINE)=DATSET/MCS
DMESW/COMAND,'COORDSYS/ALIGN'
WKPLAN/XYPLAN
PRCOMP/ON
PRCOMP/ON
FEDRAT/POSVEL,MMPS,300.0000
ACLRAT/POSACL,MMPSS,100.0000
FEDRAT/MESVEL,MMPS,20.0000
ACLRAT/MESACL,MMPSS,100.0000
SNSET/RETRCT,2.0000
SNSET/SEARCH,5.0000
SNSET/APPRCH,2.0000
DMESW/COMAND,'SNSET/MANRETRCT,2.0000'
DMESW/COMAND,'REPORT/CLEAR'
MODE/MAN
DID(D2L40)=DEVICE/STOR,'D2L40'
OPEN/DID(D2L40),SNS
S(A0B0)=SNSDEF/PROBE,INDEX,POL,0.0,0.0,0.0000,0.0000,1.0000,189.6500,2.0000
SNSLCT/SA(A0B0)
DMESW/COMAND,'SNSET/MANRETRCT,2.0000'
F(平面1)=FEAT/PLANE,CART,31.43487,41.72659,35.00000,0.00000,0.00000,1.00000
MEAS/PLANE,F(平面1),3
PTMEAS/CART,4.5433,83.0180,36.0000,0.0000,0.0000,1.0000
PTMEAS/CART,7.0807,22.3084,36.0000,0.0000,0.0000,1.0000
PTMEAS/CART,82.6806,19.8534,36.0000,0.0000,0.0000,1.0000
ENDMES
DMESW/COMAND,'CONST/SET_PROJ_VEC,FA(平面1),1'
F(直线1)=FEAT/LINE,UNBND,CART,3.32453,0.00000,17.38310,1.00000,0.00000,0.00000,0.00000,-1.00000,0.00000
MEAS/LINE,F(直线1),2
PTMEAS/CART,3.3245,-1.0000,17.3383,0.0000,-1.0000,0.0000
PTMEAS/CART,64.9007,-1.0000,17.4279,0.0000,-1.0000,0.0000
ENDMES
F(点1)=FEAT/POINT,CART,0,8.179,22.919,-1.00000000,0,0
MEAS/POINT,COMP,DME,F(点1),1
PTMEAS/CART,-1.0000,8.1795,22.9190,-1.0000,0.0000,0.0000
ENDMES
DATDEF/F(平面1),DAT(A_平面1)
D(坐标系1_S)=DATSET/DAT(A_平面1),ZDIR
D(坐标系1_R)=ROTATE/ZAXIS,FA(直线1),XDIR
D(坐标系1_T)=TRANS/XORIG,FA(点1)
D(坐标系1_T)=TRANS/YORIG,FA(直线1)
D(坐标系1_T)=TRANS/ZORIG,FA(平面1)
D(坐标系1_TD)=TRANS/ZORIG,-35.0000
DMESW/COMAND,'COORDSYS/CAD=PART'
SAVE/DA(坐标系1)
MODE/AUTO,PROG,MAN
SNSET/RETRCT,1.0000
SNSET/APPRCH,1.0000
DMESW/COMAND,'CLEARP/ZDIR,55.5240,ZDIR,55.5240,ON'
F(平面2)=FEAT/PLANE,CART,58.924,52.380,35.000,0,0,1.00000000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面2),PLANE,CART,LSTSQR,58.924,52.380,35.000,$
0,0,1.00000000,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,POINTS,'7,4.689,88.328,35.000,0,0,1.00000000,$
2.796,25.863,35.000,0,0,1.00000000,71.996,20.541,35.000,0,0,1.00000000,86.076,8.470,35.000,0,0,1.00000000,$
116.915,48.105,35.000,0,0,1.00000000,92.007,87.920,35.000,0,0,1.00000000,37.986,87.434,35.000,0,0,1.00000000',$
TOUCH,0.300,XYPLAN
F(直线2)=FEAT/LINE,UNBND,CART,2.000,0,14.000,0.99938771,0,0.03498856,0,-1.00000000,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线2),LINE_UNBND,CART,2.000,0,14.000,0.99938771,$
0,0.03498856,66.000,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,0,-1.00000000,0,4,0,0,0,TOUCH,0.300,XYPLAN,$
0,0,LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(直线3)=FEAT/LINE,UNBND,CART,0,15.000,29.000,0,0.99953939,0.03034819,-1.00000000,0,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线3),LINE_UNBND,CART,0,15.000,29.000,0,0.99953939,$
0.03034819,83.254,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,-1.00000000,0,0,4,0,0,0,TOUCH,0.300,XYPLAN,$
0,0,LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(点2)=FEAT/POINT,CART,0.255,-0.221,21.239,0.03497246,0.03032963,-0.99892795
CONST/POINT,F(点2),INTOF,FA(直线2),FA(直线3)
DATDEF/F(平面2),DAT(A_平面2)
D(坐标系2_S)=DATSET/DAT(A_平面2),ZDIR
D(坐标系2_R)=ROTATE/ZAXIS,FA(直线2),XDIR
D(坐标系2_T)=TRANS/XORIG,FA(点2),YORIG,FA(点2)
D(坐标系2_T)=TRANS/ZORIG,FA(平面2)
D(坐标系2_TD)=TRANS/ZORIG,-35.0000
SAVE/DA(坐标系2)
DMESW/COMAND,'MOVE/CLEARPLANE'
DMESW/COMAND,'GROUP/检测组-1,OFF'
F(点3)=FEAT/POINT,CART,115.000,94.735,33.446,0,0.83154452,0.55545811
MEAS/POINT,COMP,DME,F(点3),1
DMESW/COMAND,'MOVE/CLEARPLANE'
PTMEAS/CART,115.000,94.735,33.406,0,0.832,0.555
ENDMES
F(点4)=FEAT/POINT,CART,115.000,97.401,30.482,0.00000000,0.64786271,0.76175712
MEAS/POINT,COMP,DME,F(点4),1
PTMEAS/CART,115.000,97.401,30.482,0.00000000,0.64786271,0.76175712
ENDMES
F(点5)=FEAT/POINT,CART,115.000,100.699,28.228,0,0.48806393,0.87280788
MEAS/POINT,COMP,DME,F(点5),1
PTMEAS/CART,115.000,100.699,28.260,0,0.488,0.873
ENDMES
F(点6)=FEAT/POINT,CART,115.000,104.300,26.492,0.00000000,0.39100268,0.92038954
MEAS/POINT,COMP,DME,F(点6),1
PTMEAS/CART,115.000,104.300,26.492,0.00000000,0.39100268,0.92038954
ENDMES
F(点7)=FEAT/POINT,CART,115.000,108.018,25.017,0,0.35619478,0.93441173
MEAS/POINT,COMP,DME,F(点7),1
PTMEAS/CART,115.000,108.018,25.000,0,0.356,0.934
ENDMES
F(点8)=FEAT/POINT,CART,115.000,111.747,23.570,0,0.37273517,0.92793776
MEAS/POINT,COMP,DME,F(点8),1
PTMEAS/CART,115.000,111.747,23.680,0,0.373,0.928
ENDMES
F(点9)=FEAT/POINT,CART,115.000,115.426,22.001,0.00000000,0.41592575,0.90939858
MEAS/POINT,COMP,DME,F(点9),1
PTMEAS/CART,115.000,115.426,22.001,0.00000000,0.41592575,0.90939858
ENDMES
F(点10)=FEAT/POINT,CART,115.000,119.002,20.211,0,0.48316671,0.87552837
MEAS/POINT,COMP,DME,F(点10),1
PTMEAS/CART,115.000,119.002,20.270,0,0.483,0.876
ENDMES
F(点11)=FEAT/POINT,CART,115.000,122.404,18.111,0,0.56898786,0.82234592
MEAS/POINT,COMP,DME,F(点11),1
PTMEAS/CART,115.000,122.404,18.060,0,0.569,0.822
ENDMES
F(点12)=FEAT/POINT,CART,115.000,123.890,17.024,0.00000000,0.61187077,0.79095775
MEAS/POINT,COMP,DME,F(点12),1
PTMEAS/CART,115.000,123.890,17.024,0.00000000,0.61187077,0.79095775
ENDMES
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点3),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点4),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点5),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点6),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点7),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点8),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点9),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点10),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点11),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点12),TA(点轮廓度)
XTERN
EXTFIL/DMIS,'CURVESURFACE\曲线2.DMI'
ENDXTN
CALL/EXTERN,DMIS,M(CURVE-1275280937)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度1),ELE-NAME/(FA(曲线2)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/1,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,ADATUM/FA(平面2),ARULE/RFS,BDATUM/FA(直线2),BRULE/RFS,$
CDATUM/FA(直线3),CRULE/RFS,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,FILTER-COEF/3,OUT-MINMAX/1,$
OUT-ABS/0'
OUTPUT/FA(曲线2),TA(曲线轮廓度1)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度2),ELE-NAME/(FA(曲线2)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/0,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,$
FILTER-COEF/3,OUT-MINMAX/0,OUT-ABS/0'
OUTPUT/FA(曲线2),TA(曲线轮廓度2)
DMESW/COMAND,'GROUP/检测组-2,OFF'
XTERN
EXTFIL/DMIS,'CURVESURFACE\曲线1.DMI'
ENDXTN
CALL/EXTERN,DMIS,M(CURVE-1275643484)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度3),ELE-NAME/(FA(曲线1)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/0,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,$
FILTER-COEF/3,OUT-MINMAX/0,OUT-ABS/0'
OUTPUT/FA(曲线1),TA(曲线轮廓度3)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度4),ELE-NAME/(FA(曲线1)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/1,SYMMETRICAL/0,FITMETHOD/0,ITERNUM/20,UNIT/0,ADATUM/FA(平面2),ARULE/RFS,BDATUM/FA(直线2),BRULE/RFS,$
CDATUM/FA(直线3),CRULE/RFS,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,FILTER-COEF/3,OUT-MINMAX/0,$
OUT-ABS/0'
OUTPUT/FA(曲线1),TA(曲线轮廓度4)
DMESW/COMAND,'MOVE/CLEARPLANE'

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
$$ NET_DMIS_20160720
$$ MADE IN DE 2023-1-14 17:37:4
INCLUD/DMIS,'NET_DMIS_DEFINES.DMI'
INCLUD/DMIS,'VARDEFINE'
DMESW/COMAND,'PROBE_VAL/INIT'
UNITS/MM,ANGDEC
D(MACHINE)=DATSET/MCS
DMESW/COMAND,'COORDSYS/ALIGN'
WKPLAN/XYPLAN
PRCOMP/ON
PRCOMP/ON
FEDRAT/POSVEL,MMPS,300.0000
ACLRAT/POSACL,MMPSS,100.0000
FEDRAT/MESVEL,MMPS,20.0000
ACLRAT/MESACL,MMPSS,100.0000
SNSET/RETRCT,2.0000
SNSET/SEARCH,5.0000
SNSET/APPRCH,2.0000
DMESW/COMAND,'SNSET/MANRETRCT,2.0000'
DMESW/COMAND,'REPORT/CLEAR'
MODE/MAN
DID(D2L40)=DEVICE/STOR,'D2L40'
OPEN/DID(D2L40),SNS
S(A0B0)=SNSDEF/PROBE,INDEX,POL,0.0,0.0,0.0000,0.0000,1.0000,189.6500,2.0000
SNSLCT/SA(A0B0)
DMESW/COMAND,'SNSET/MANRETRCT,2.0000'
F(平面1)=FEAT/PLANE,CART,31.43487,41.72659,35.00000,0.00000,0.00000,1.00000
MEAS/PLANE,F(平面1),3
PTMEAS/CART,4.5433,83.0180,36.0000,0.0000,0.0000,1.0000
PTMEAS/CART,7.0807,22.3084,36.0000,0.0000,0.0000,1.0000
PTMEAS/CART,82.6806,19.8534,36.0000,0.0000,0.0000,1.0000
ENDMES
DMESW/COMAND,'CONST/SET_PROJ_VEC,FA(平面1),1'
F(直线1)=FEAT/LINE,UNBND,CART,3.32453,0.00000,17.38310,1.00000,0.00000,0.00000,0.00000,-1.00000,0.00000
MEAS/LINE,F(直线1),2
PTMEAS/CART,3.3245,-1.0000,17.3383,0.0000,-1.0000,0.0000
PTMEAS/CART,64.9007,-1.0000,17.4279,0.0000,-1.0000,0.0000
ENDMES
F(点1)=FEAT/POINT,CART,0,8.179,22.919,-1.00000000,0,0
MEAS/POINT,COMP,DME,F(点1),1
PTMEAS/CART,-1.0000,8.1795,22.9190,-1.0000,0.0000,0.0000
ENDMES
DATDEF/F(平面1),DAT(A_平面1)
D(坐标系1_S)=DATSET/DAT(A_平面1),ZDIR
D(坐标系1_R)=ROTATE/ZAXIS,FA(直线1),XDIR
D(坐标系1_T)=TRANS/XORIG,FA(点1)
D(坐标系1_T)=TRANS/YORIG,FA(直线1)
D(坐标系1_T)=TRANS/ZORIG,FA(平面1)
D(坐标系1_TD)=TRANS/ZORIG,-35.0000
DMESW/COMAND,'COORDSYS/CAD=PART'
SAVE/DA(坐标系1)
MODE/AUTO,PROG,MAN
SNSET/RETRCT,1.0000
SNSET/APPRCH,1.0000
DMESW/COMAND,'CLEARP/ZDIR,55.5240,ZDIR,55.5240,ON'
F(平面2)=FEAT/PLANE,CART,58.924,52.380,35.000,0,0,1.00000000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面2),PLANE,CART,LSTSQR,58.924,52.380,35.000,$
0,0,1.00000000,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,POINTS,'7,4.689,88.328,35.000,0,0,1.00000000,$
2.796,25.863,35.000,0,0,1.00000000,71.996,20.541,35.000,0,0,1.00000000,86.076,8.470,35.000,0,0,1.00000000,$
116.915,48.105,35.000,0,0,1.00000000,92.007,87.920,35.000,0,0,1.00000000,37.986,87.434,35.000,0,0,1.00000000',$
TOUCH,0.300,XYPLAN
F(直线2)=FEAT/LINE,UNBND,CART,2.000,0,14.000,0.99938771,0,0.03498856,0,-1.00000000,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线2),LINE_UNBND,CART,2.000,0,14.000,0.99938771,$
0,0.03498856,66.000,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,0,-1.00000000,0,4,0,0,0,TOUCH,0.300,XYPLAN,$
0,0,LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(直线3)=FEAT/LINE,UNBND,CART,0,15.000,29.000,0,0.99953939,0.03034819,-1.00000000,0,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线3),LINE_UNBND,CART,0,15.000,29.000,0,0.99953939,$
0.03034819,83.254,FALSE,FALSE,FALSE,10.000,"CUR",TRUE,FALSE,-1.00000000,0,0,4,0,0,0,TOUCH,0.300,XYPLAN,$
0,0,LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(点2)=FEAT/POINT,CART,0.255,-0.221,21.239,0.03497246,0.03032963,-0.99892795
CONST/POINT,F(点2),INTOF,FA(直线2),FA(直线3)
DATDEF/F(平面2),DAT(A_平面2)
D(坐标系2_S)=DATSET/DAT(A_平面2),ZDIR
D(坐标系2_R)=ROTATE/ZAXIS,FA(直线2),XDIR
D(坐标系2_T)=TRANS/XORIG,FA(点2),YORIG,FA(点2)
D(坐标系2_T)=TRANS/ZORIG,FA(平面2)
D(坐标系2_TD)=TRANS/ZORIG,-35.0000
SAVE/DA(坐标系2)
DMESW/COMAND,'MOVE/CLEARPLANE'
DMESW/COMAND,'GROUP/检测组-1,OFF'
F(点3)=FEAT/POINT,CART,115.000,94.735,33.446,0,0.83154452,0.55545811
MEAS/POINT,COMP,DME,F(点3),1
DMESW/COMAND,'MOVE/CLEARPLANE'
PTMEAS/CART,115.000,94.735,33.406,0,0.832,0.555
ENDMES
F(点4)=FEAT/POINT,CART,115.000,97.401,30.482,0.00000000,0.64786271,0.76175712
MEAS/POINT,COMP,DME,F(点4),1
PTMEAS/CART,115.000,97.401,30.482,0.00000000,0.64786271,0.76175712
ENDMES
F(点5)=FEAT/POINT,CART,115.000,100.699,28.228,0,0.48806393,0.87280788
MEAS/POINT,COMP,DME,F(点5),1
PTMEAS/CART,115.000,100.699,28.260,0,0.488,0.873
ENDMES
F(点6)=FEAT/POINT,CART,115.000,104.300,26.492,0.00000000,0.39100268,0.92038954
MEAS/POINT,COMP,DME,F(点6),1
PTMEAS/CART,115.000,104.300,26.492,0.00000000,0.39100268,0.92038954
ENDMES
F(点7)=FEAT/POINT,CART,115.000,108.018,25.017,0,0.35619478,0.93441173
MEAS/POINT,COMP,DME,F(点7),1
PTMEAS/CART,115.000,108.018,25.000,0,0.356,0.934
ENDMES
F(点8)=FEAT/POINT,CART,115.000,111.747,23.570,0,0.37273517,0.92793776
MEAS/POINT,COMP,DME,F(点8),1
PTMEAS/CART,115.000,111.747,23.680,0,0.373,0.928
ENDMES
F(点9)=FEAT/POINT,CART,115.000,115.426,22.001,0.00000000,0.41592575,0.90939858
MEAS/POINT,COMP,DME,F(点9),1
PTMEAS/CART,115.000,115.426,22.001,0.00000000,0.41592575,0.90939858
ENDMES
F(点10)=FEAT/POINT,CART,115.000,119.002,20.211,0,0.48316671,0.87552837
MEAS/POINT,COMP,DME,F(点10),1
PTMEAS/CART,115.000,119.002,20.270,0,0.483,0.876
ENDMES
F(点11)=FEAT/POINT,CART,115.000,122.404,18.111,0,0.56898786,0.82234592
MEAS/POINT,COMP,DME,F(点11),1
PTMEAS/CART,115.000,122.404,18.060,0,0.569,0.822
ENDMES
F(点12)=FEAT/POINT,CART,115.000,123.890,17.024,0.00000000,0.61187077,0.79095775
MEAS/POINT,COMP,DME,F(点12),1
PTMEAS/CART,115.000,123.890,17.024,0.00000000,0.61187077,0.79095775
ENDMES
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点3),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点4),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点5),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点6),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点7),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点8),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点9),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点10),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点11),TA(点轮廓度)
T(点轮廓度)=TOL/PROFP,-0.0300,0.0300
DMESW/COMAND,'OUTPUT/UNIT,DIMENSION/MM'
DMESW/COMAND,'OUTPUT/UNIT,ANGLE/ANGDEC'
DMESW/COMAND,'OUTPUT/VECTOR,OFF'
OUTPUT/FA(点12),TA(点轮廓度)
XTERN
EXTFIL/DMIS,'CURVESURFACE\曲线2.DMI'
ENDXTN
CALL/EXTERN,DMIS,M(CURVE-1275280937)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度1),ELE-NAME/(FA(曲线2)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/1,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,ADATUM/FA(平面2),ARULE/RFS,BDATUM/FA(直线2),BRULE/RFS,$
CDATUM/FA(直线3),CRULE/RFS,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,FILTER-COEF/3,OUT-MINMAX/1,$
OUT-ABS/0'
OUTPUT/FA(曲线2),TA(曲线轮廓度1)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度2),ELE-NAME/(FA(曲线2)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/0,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,$
FILTER-COEF/3,OUT-MINMAX/0,OUT-ABS/0'
OUTPUT/FA(曲线2),TA(曲线轮廓度2)
DMESW/COMAND,'GROUP/检测组-2,OFF'
XTERN
EXTFIL/DMIS,'CURVESURFACE\曲线1.DMI'
ENDXTN
CALL/EXTERN,DMIS,M(CURVE-1275643484)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度3),ELE-NAME/(FA(曲线1)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/0,SYMMETRICAL/1,FITMETHOD/0,ITERNUM/20,UNIT/0,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,$
FILTER-COEF/3,OUT-MINMAX/0,OUT-ABS/0'
OUTPUT/FA(曲线1),TA(曲线轮廓度3)
DMESW/COMAND,'PROFILE/CURVE,NAME/F(曲线轮廓度4),ELE-NAME/(FA(曲线1)),LOW-TOL/0.0000,UP-TOL/0.0500,PROJECT/-1,$
FORMPOSITION/1,SYMMETRICAL/0,FITMETHOD/0,ITERNUM/20,UNIT/0,ADATUM/FA(平面2),ARULE/RFS,BDATUM/FA(直线2),BRULE/RFS,$
CDATUM/FA(直线3),CRULE/RFS,OUT-PROF/0,OUT-PNTDEV/0,OUT-GRAPHIC/0,FILTER-USE/0,FILTER-COEF/3,OUT-MINMAX/0,$
OUT-ABS/0'
OUTPUT/FA(曲线1),TA(曲线轮廓度4)
DMESW/COMAND,'MOVE/CLEARPLANE'
