三坐标测量机具有螺纹中心位置测量的功能，可选用柱形测针或球形测针来实现。
在这里插入图片描述

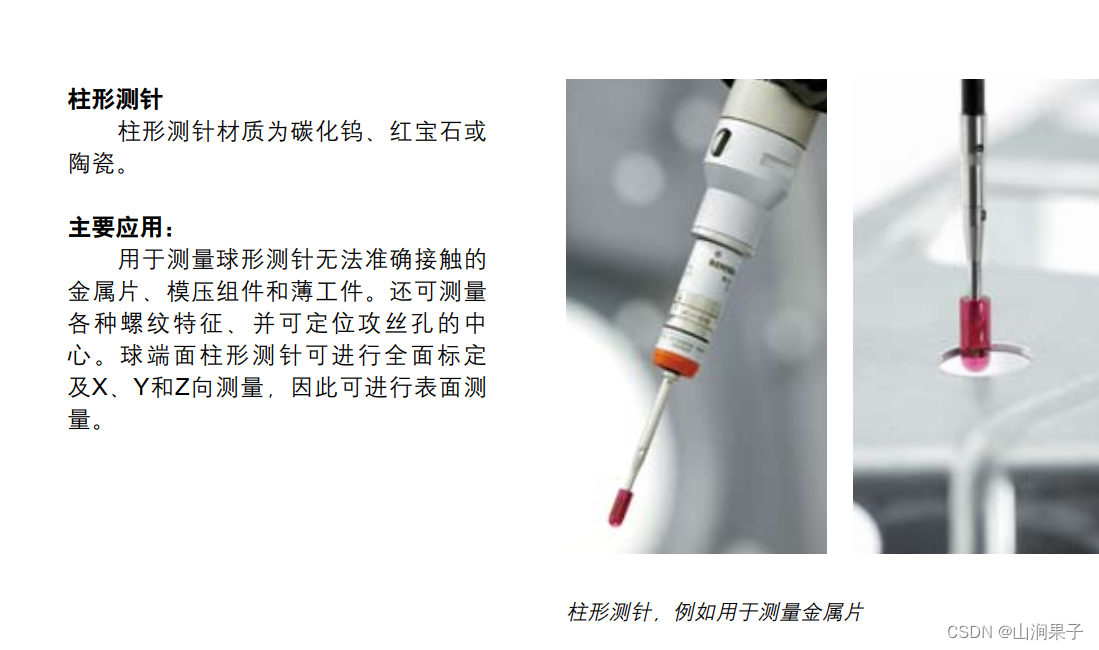

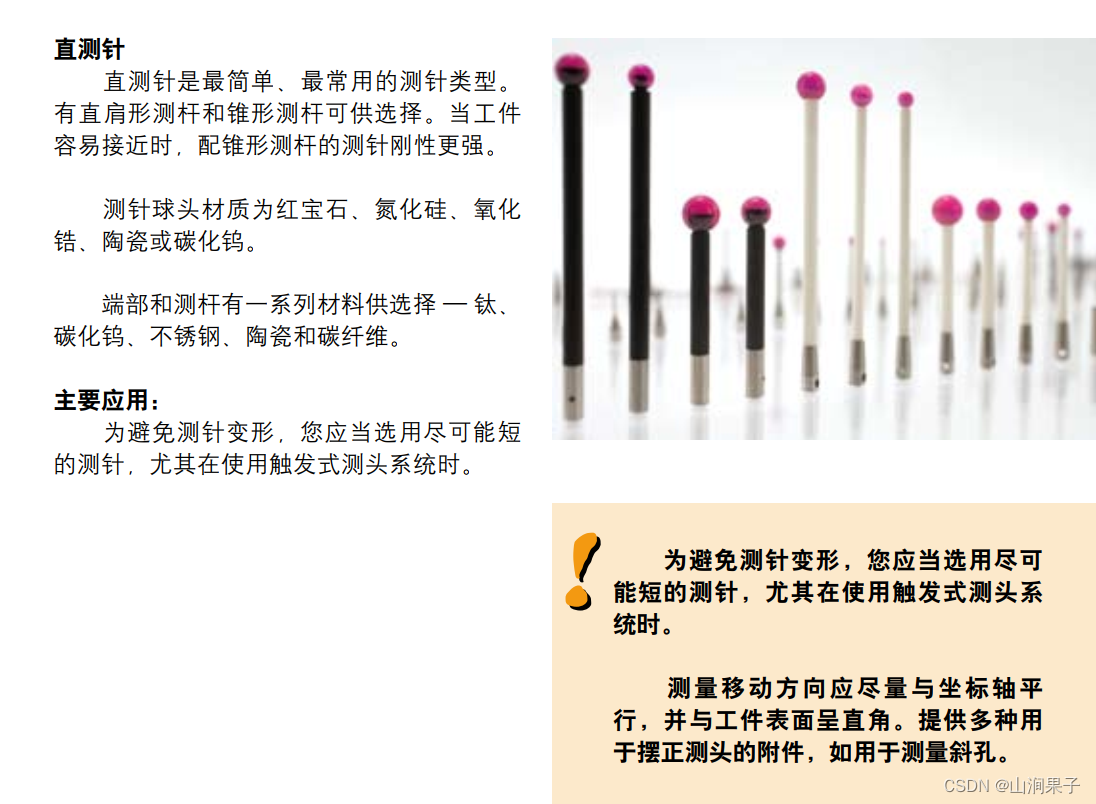

柱形测针测量过程简单，易操作，在手动机器和自动机器上均可实现。但在测量时要求测针的轴线方向与螺纹的轴线方向必须相一致，这对测针方向的调整要求比较严格，尤其在斜螺纹测量时测针角度很难调整。

在这里插入图片描述

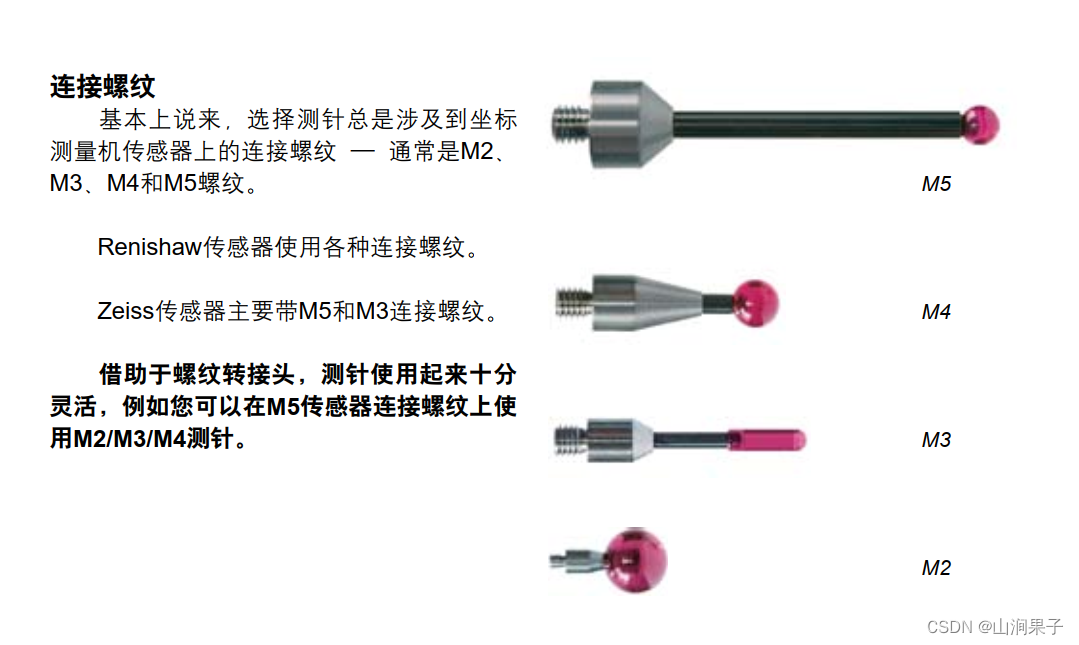

球形测针测量时对测针轴线方向要求不太严格，但原则上仅适应于自动测量机，因其使用的灵活性得到了大范围应用。需要注意的是测针测球的直径要大，避免出现测杆与螺纹碰触。
在这里插入图片描述

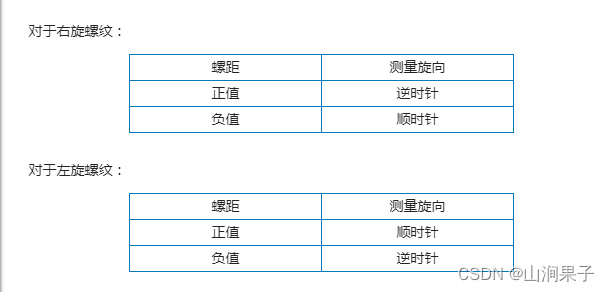

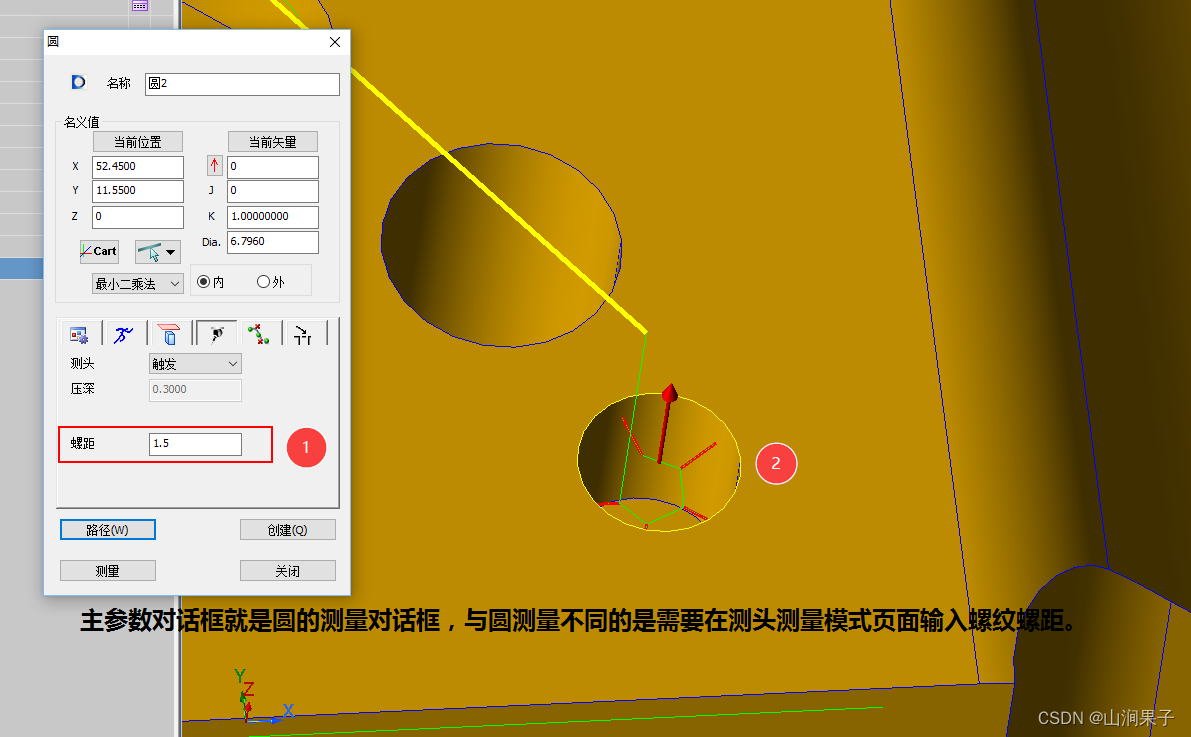

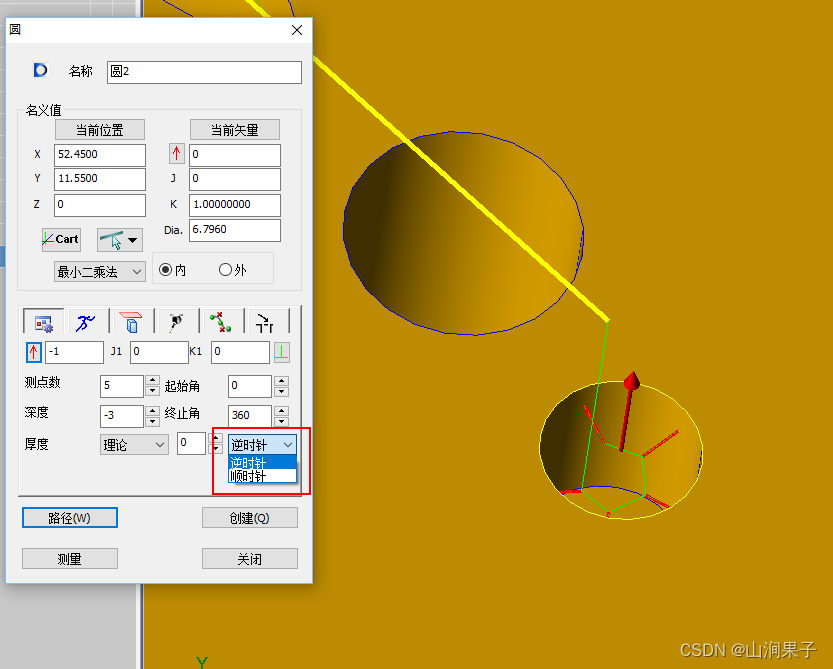

需要注意的是在螺距输入框中即可输入正值，也可输入负值，应该如何输入，取决于螺纹及测量的旋向（测量旋向分逆时针或顺时针）。

复制代码

$$ NET_DMIS_20160720
$$ MADE IN DE 2023-2-24 10:47:9
INCLUD/DMIS,'NET_DMIS_DEFINES.DMI'
INCLUD/DMIS,'VARDEFINE'
DMESW/COMAND,'PROBE_VAL/INIT'
UNITS/MM,ANGDEC
D(MACHINE)=DATSET/MCS
DMESW/COMAND,'COORDSYS/ALIGN'
WKPLAN/XYPLAN
PRCOMP/ON
PRCOMP/ON
FEDRAT/POSVEL,MMPS,300.0000
ACLRAT/POSACL,MMPSS,100.0000
FEDRAT/MESVEL,MMPS,20.0000
ACLRAT/MESACL,MMPSS,100.0000
SNSET/RETRCT,2.0000
SNSET/SEARCH,5.0000
SNSET/APPRCH,2.0000
DMESW/COMAND,'SNSET/MANRETRCT,1.0000'
DMESW/COMAND,'REPORT/CLEAR'
MODE/MAN
DID(D2L40)=DEVICE/STOR,'D2L40'
OPEN/DID(D2L40),SNS
S(A0B0)=SNSDEF/PROBE,INDEX,POL,0.0,0.0,0.0000,0.0000,1.0000,189.6500,2.0000
SNSLCT/SA(A0B0)
GEOALG/PLANE,LSTSQR
F(平面1)=FEAT/PLANE,CART,21.2175,21.5866,0,0,0,1.00000000
MEAS/PLANE,F(平面1),3
PTMEAS/CART,2.5273,55.5691,0,0,0,1.00000000
PTMEAS/CART,2.4066,4.6952,0,0,0,1.00000000
PTMEAS/CART,58.7187,4.4953,0,0,0,1.00000000
ENDMES
SNSET/DEPTH,0
DMESW/COMAND,'CONST/SET_PROJ_VEC,FA(平面1),1'
F(直线1)=FEAT/LINE,UNBND,CART,4.9236,0,-1.8936,0.99987169,0,0.01601860,0,-1.00000000,0
MEAS/LINE,F(直线1),2
PTMEAS/CART,4.9236,0,-1.4474,0,-1.00000000,0
PTMEAS/CART,60.6330,0,-1.4474,0,-1.00000000,0
ENDMES
F(点1)=FEAT/POINT,CART,0,4.4552,-1.5666,-1.00000000,0,0
MEAS/POINT,COMP,DME,F(点1),1
PTMEAS/CART,0,4.4552,-1.5666,-1.00000000,0,0
ENDMES
DATDEF/F(平面1),DAT(A_平面1)
D(坐标系1_S)=DATSET/DAT(A_平面1),ZDIR
D(坐标系1_R)=ROTATE/ZAXIS,FA(直线1),XDIR
D(坐标系1_T)=TRANS/ZORIG,FA(平面1)
D(坐标系1_T)=TRANS/YORIG,FA(直线1)
D(坐标系1_T)=TRANS/XORIG,FA(点1)
DMESW/COMAND,'COORDSYS/CAD=PART'
SAVE/DA(坐标系1)
MODE/AUTO,PROG,MAN
SNSET/RETRCT,1.0000
SNSET/APPRCH,1.0000
DMESW/COMAND,'SNSET/MANRETRCT,1.0000'
DMESW/COMAND,'CLEARP/ZDIR,10.0000,ZDIR,10.0000,ON'
F(圆1)=FEAT/CIRCLE,INNER,CART,31.5000,31.5000,0,0,0,1.00000000,20.0000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(圆1),CIRCLE,INNER,CART,LSTSQR,31.5000,31.5000,$
0,0,0,1.00000000,20.0000,-1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
F(圆2)=FEAT/CIRCLE,INNER,CART,52.4500,11.5500,0,0,0,1.00000000,6.7960
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(圆2),CIRCLE,INNER,CART,LSTSQR,52.4500,11.5500,$
0,0,0,1.00000000,6.7960,-1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,SCREW,0.3000,1.5000,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
