flowable 并行网关

即同时执行并行网关后的多个作业(task/事件/任务)

即同时收回执行多条后继续主流程中的后续一条事件

我这里也只是跑了一个较为简单的并行网关demo

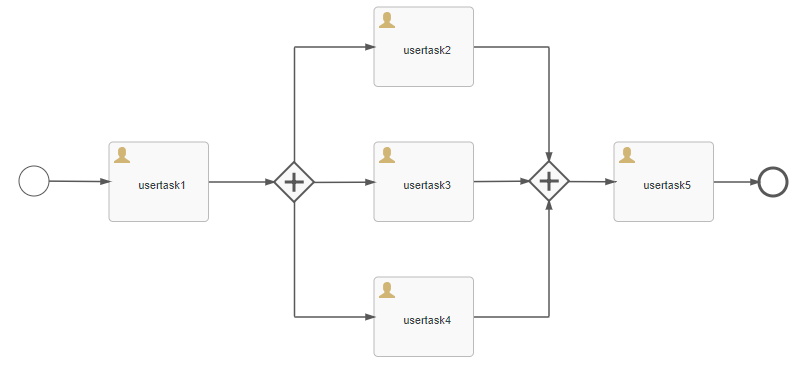

以下是我跑的流程图:

以下是BPMN2.0 的XML：

<process id="Eventgateway" name="Eventgateway" isExecutable="true">
    <documentation>并行网关dome</documentation>
    <startEvent id="start" name="开始"></startEvent>
    <parallelGateway id="parallelgatewaysend"></parallelGateway>
    <userTask id="usertask1" name="usertask1"></userTask>
    <userTask id="usertask2" name="usertask2"></userTask>
    <userTask id="usertask3" name="usertask3"></userTask>
    <userTask id="usertask4" name="usertask4"></userTask>
    <parallelGateway id="parallelgatewayput"></parallelGateway>
    <userTask id="usertask5" name="usertask5"></userTask>
    <endEvent id="end" name="结束"></endEvent>
    <sequenceFlow id="start-usertask1" sourceRef="start" targetRef="usertask1"></sequenceFlow>
    <sequenceFlow id="usertask5-end" sourceRef="usertask5" targetRef="end"></sequenceFlow>
    <sequenceFlow id="eventgateway-usertask5" sourceRef="parallelgatewayput" targetRef="usertask5"></sequenceFlow>
    <sequenceFlow id="usertask4-eventgateway" sourceRef="usertask4" targetRef="parallelgatewayput"></sequenceFlow>
    <sequenceFlow id="usertask3-eventgateway" sourceRef="usertask3" targetRef="parallelgatewayput"></sequenceFlow>
    <sequenceFlow id="usertask2-eventgateway" sourceRef="usertask2" targetRef="parallelgatewayput"></sequenceFlow>
    <sequenceFlow id="eventgateway-usertask2" sourceRef="parallelgatewaysend" targetRef="usertask2"></sequenceFlow>
    <sequenceFlow id="eventgateway-usertask4" sourceRef="parallelgatewaysend" targetRef="usertask4"></sequenceFlow>
    <sequenceFlow id="eventgateway-usertask3" sourceRef="parallelgatewaysend" targetRef="usertask3"></sequenceFlow>
    <sequenceFlow id="usertask1-eventgateway" sourceRef="usertask1" targetRef="parallelgatewaysend"></sequenceFlow>
  </process>

以下是JAVA API编程代码

//主体流程的开始
		//创建数据库链接信息 链接库名、用户名、密码请输入自己的
		ProcessEngineConfiguration cfg = new StandaloneProcessEngineConfiguration()
		.setJdbcUrl("jdbc:mysql://127.0.0.1:3306/*******?characterEncoding=UTF-8")
		.setJdbcUsername("****")
		.setJdbcPassword("****")
		.setJdbcDriver("com.mysql.jdbc.Driver")
		.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_FALSE);
		// 通过数据库链接信息         创建Flowable流程引擎 Create Flowable process engine
		ProcessEngine processEngine = cfg.buildProcessEngine();
		// 获取Flowable服务 Get Flowable repositoryService 定义流程和部署流程
		RepositoryService repositoryService = processEngine.getRepositoryService();
		// 获取Flowable服务 Get Flowable runtimeService 开始新流程实例和查询
		RuntimeService runtimeService = processEngine.getRuntimeService();
		// 获取taskService对象 Get the first task  任务查询与操作
		TaskService taskService = processEngine.getTaskService();

		Deployment deploy = repositoryService.createDeployment().addClasspathResource("processes/gateway/EventGateway.bpmn20.xml").deploy();
		ProcessInstance process = runtimeService.startProcessInstanceByKey("XMEventgateway");


		Task task = taskService.createTaskQuery().processInstanceId(process.getId()).singleResult();
		System.out.println("1 task is="+task);
		if (task!=null) {
			System.out.println("提交 task 服务 is="+task.getName());
			taskService.complete(task.getId());
		}
		//查询多个节点任务
		List<Task> list = taskService.createTaskQuery().processInstanceId(process.getId()).list();
		System.out.println("lists is="+list.toString());
		for (Task tasks : list) {
			System.out.println("提交任务 is="+tasks.getName());
			taskService.complete(tasks.getId());
		}
		task = taskService.createTaskQuery().processInstanceId(process.getId()).singleResult();
		System.out.println("2 task is="+task);
		if (task!=null) {
			System.out.println("提交任务 is="+task.getName());
			taskService.complete(task.getId());
		}
		task = taskService.createTaskQuery().processInstanceId(process.getId()).singleResult();


		processEngine.close();
		if (task==null) {
			System.out.println("所有任务执行完成");
		}else {
			System.out.println("还有任务等待执行");
		}
		System.exit(0);

以下是成功打印信息截图(由于有log日志不在一起打印所以一块一块截图) :

以上如有问题可评论  我看到立马回答

请不要所以转载 ！！！
