unity 雷达图

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class RadarTest : MonoBehaviour
{
    private int[] triangles;
    private Vector2[] uvs;
    private Vector3[] vertices;
    private Vector4[] tangents;

    [Header("元素")]
    public float element1 = 10;
    public float element2 = 10;
    public float element3 = 10;
    public float element4 = 10;
    public float element5 = 10;
    public float element6 = 10;

    private float sideLength = 10;
    private float everyAngle = 0;

    private CanvasRenderer canvasRenderer;
    [SerializeField]
    private Material renderMaterial;
    private int count = 7;
    private Mesh mesh;

    //地图太小放大一下
    public float MapSize;

    public int speed;//80
    private void OnEnable()
    {
        element1 = 0;
        element2 = 0;
        element3 = 0;
        element4 = 0;
        element5 = 0;
        element6 = 0;
    }

    void Start()
    {
        SetVertices();
    }

    int E1 = 50;
    int E2 = 100;
    int E3 = 80;
    int E4 = 100;
    int E5 = 60;
    int E6 = 100;


    //更新
    public void SetRadarNum(int[] intArray)
    {
        element1 = 0;
        element2 = 0;
        element3 = 0;
        element4 = 0;
        element5 = 0;
        element6 = 0;

        E1 = intArray[0];
        E2 = intArray[1];
        E3 = intArray[2];
        E4 = intArray[3];
        E5 = intArray[4];
        E6 = intArray[5];
    }


    图像参数变化过程
    public void SetRadar()
    {
        if (element1<=E1)
            element1 += Time.deltaTime*speed;
        if (element2 <= E2)
            element2 += Time.deltaTime * speed;
        if (element3 <= E3)
            element3 += Time.deltaTime * speed;
        if (element4 <= E4)
            element4 += Time.deltaTime * speed;
        if (element5 <= E5)
            element5 += Time.deltaTime * speed;
        if (element6 <= E6)
            element6 += Time.deltaTime * speed;
    }

    private void Update()
    {
        SetRadar();

        for (int i = 1; i < vertices.Length; i++)
        {
            switch (i)
            {
                case 1:
                    sideLength = element1*MapSize;
                    break;
                case 2:
                    sideLength = element2* MapSize;
                    break;
                case 3:
                    sideLength = element3* MapSize;
                    break;
                case 4:
                    sideLength = element4* MapSize;
                    break;
                case 5:
                    sideLength = element5* MapSize;
                    break;
                case 6:
                    sideLength = element6* MapSize;
                    break;
            }
            vertices[i] = Quaternion.Euler(0, 0, everyAngle * i) * Vector3.up * sideLength;
        }
        mesh.vertices = vertices;
        canvasRenderer.SetMesh(mesh);
    }

    /// <summary>
    /// 设置点位
    /// </summary>
    void SetVertices()
    {
        canvasRenderer = GetComponent<CanvasRenderer>();
        mesh = new Mesh();
        vertices = new Vector3[count];
        uvs = new Vector2[count];
        triangles = new int[count * 3];
        tangents = new Vector4[count];
        Vector4 tangent = new Vector4(0, 1, 0, -1);
        everyAngle = (float)360 / (count - 1);

        for (int i = 0; i < vertices.Length; i++)   //循环顶点
        {
            vertices[i] = Quaternion.Euler(0, 0, everyAngle * i) * Vector3.up * sideLength;
            uvs[i] = Quaternion.Euler(0, 0, everyAngle * i) * Vector3.up;
            tangents[i] = tangent;
        }

        //为mesh的顶点赋值
        for (int i = 0, index = 0; i < count - 1; i++, index += 3)
        {
            triangles[index + 0] = 0;
            triangles[index + 1] = i == 5 ? 1 : 2 + i;//倒数第二个是五就返一
            triangles[index + 2] = i == 5 ? 6 : 1 + i;//最后一个是五就返六
        }

        mesh.vertices = vertices;
        mesh.triangles = triangles;
        mesh.RecalculateNormals();
        mesh.tangents = tangents;
        mesh.uv = uvs;

        canvasRenderer.SetMesh(mesh);
        canvasRenderer.SetMaterial(renderMaterial, null);
    }
}

原文链接： https://www.jianshu.com/p/e74316ecf647

如果觉得单调，那你可以在绘制的mesh的周围添加一条边框线
在mesh原点放一个LineRender，给它挂一个脚本，因为在上边的网格顶点计算之后我们得到了一个三维向量数组，只需稍加处理，就可以用作在LineRender中的SetPositions方法的参数。

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class LineScript : BaseWindow<LineScript>
{
    LineRenderer lineRenderer;
    // Start is called before the first frame update
    void Start()
    {
        lineRenderer = transform.GetComponent<LineRenderer>();
        lineRenderer.startWidth = 1;
        lineRenderer.endWidth = 1;
    }

    public void SetLinePositions(Vector3[] vector3s)
    {
        Vector3[] v3 = (Vector3[])vector3s.Clone();

        v3[0] = v3[v3.Length - 1];

        lineRenderer.SetPositions(v3);
    }
}

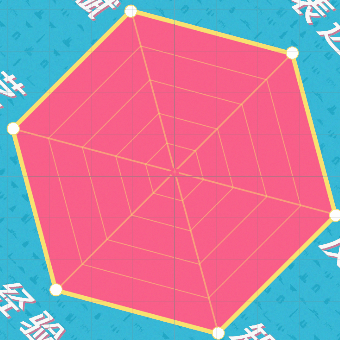

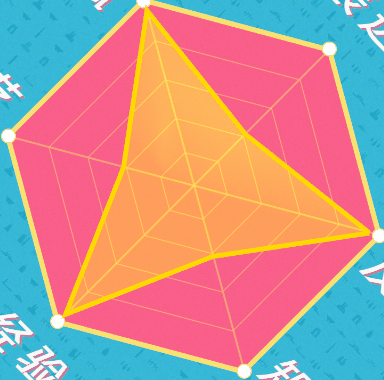

像这样
