概述

文章目录

  • 1 代码实现

1 代码实现

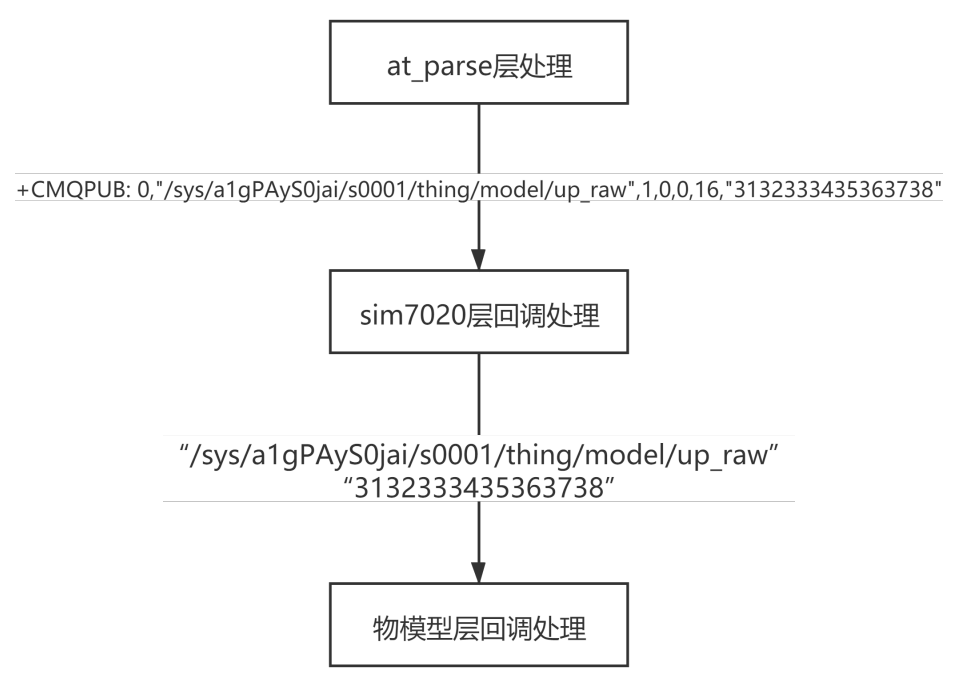

首先看一下收到数据后的回调函数：
在这里插入图片描述
如下为代码实现：

#include <string.h>
#include <stdio.h>
#include "main.h"
#include "at_parse.h"
#include "app_debug.h"
#include "at_net.h"

#include "FreeRTOS.h"
#include "task.h"


#define AT_CMD_AT           "AT"
#define AT_CMD_ATE0         "ATE0"
#define AT_CMD_GET_IMEI     "AT+GSN"    //get imei
#define AT_CMD_GET_IMSI     "AT+CIMI"   //get imsi
#define AT_CMD_SET_APN      "AT*MCGDEFCONT="IP","""   //cmnbiot    "AT*MCGDEFCONT="IP","cmnbiot""
#define AT_CMD_CFUN0        "AT+CFUN=0"
#define AT_CMD_CFUN1        "AT+CFUN=1"
#define AT_CMD_CPIN         "AT+CPIN?"
#define AT_CMD_CSQ          "AT+CSQ"
#define AT_CMD_CEREG        "AT+CEREG?"
#define AT_CMD_CGACT        "AT+CGACT?"
#define AT_CMD_CGCONTRDP    "AT+CGCONTRDP"
#define AT_CMD_PSM_REPORT   "AT+CPSMSTATUS=1"
#define AT_CMD_PSM_ON       "AT+CPSMS=1,,,"01001010","00000000""
#define AT_CMD_PSM_OFF      "AT+CPSMS=0"
#define AT_REPORT_PSM       "+CPSMSTATUS:"

#define AT_CMD_CMQNEW       "AT+CMQNEW"
#define AT_CMD_CMQTTSNEW    "AT+CMQTTSNEW"
#define AT_CMD_CMQCON       "AT+CMQCON"
#define AT_CMD_CMQSUB       "AT+CMQSUB"
#define AT_CMD_CMQUNSUB     "AT+CMQUNSUB"
#define AT_CMD_CMQDISCON    "AT+CMQDISCON"
#define AT_CMD_CMQPUB       "AT+CMQPUB"
#define AT_CMD_CMQALICFG    "AT+CMQALICFG"
#define AT_CMD_CMQALICON    "AT+CMQALICON"
#define AT_CMD_CREVHEX      "AT+CREVHEX=1"   //0-raw data  1-hex
#define AT_RECV_MQTT        "+CMQPUB:"
#define AT_RECV_MQTT_DISCON "+CMQDISCON:"

#define STATUS_IS_ON()  (!HAL_GPIO_ReadPin(M_STA_GPIO_Port,M_STA_Pin))
#define STATUS_IS_OFF() (HAL_GPIO_ReadPin(M_STA_GPIO_Port,M_STA_Pin))
#define PWRKEY_HIGH()   HAL_GPIO_WritePin(M_PWR_GPIO_Port,M_PWR_Pin,GPIO_PIN_RESET)
#define PWRKEY_LOW()    HAL_GPIO_WritePin(M_PWR_GPIO_Port,M_PWR_Pin,GPIO_PIN_SET)

#define SIM_RECV_BUF_SIZE 150
#define SIM_SEND_BUF_SIZE 150
#define SIM_RECV_TOPIC_SIZE 100

struct sim7020_control_t
{
    char recv_buf[SIM_RECV_BUF_SIZE];
    uint16_t recv_len;
    char recv_topic[SIM_RECV_TOPIC_SIZE];

    char send_buf[SIM_SEND_BUF_SIZE];
    uint8_t socket;
}sim_ctl;
static bool is_inited=false;
static mqtt_recv_callback mqtt_callback=NULL;


static bool sim7020_at_ok()
{
    uint16_t err=0;
    while (err<3)
    {
        err++;
        if(at_send_wait_reply(AT_CMD_AT,true,"OK","ERROR",NULL,NULL,1000)==false)continue;
        if(at_send_wait_reply(AT_CMD_ATE0,true,"OK","ERROR",NULL,NULL,1000)==false)continue;
        return true;
    }
    return false;

}

bool sim7020_pwr_on()
{
    uint16_t err=0;

    DEBUG("sim7020 pwr on");
    if(STATUS_IS_ON())return true;

    while(err<3)
    {
        err++;
        PWRKEY_HIGH();
        vTaskDelay(200);
        PWRKEY_LOW();
        vTaskDelay(1000);
        PWRKEY_HIGH();

        vTaskDelay(500);
        if(!STATUS_IS_ON())continue;
        if(sim7020_at_ok()==false)continue;

        return true;
    }
    return false;
}

bool sim7020_pwr_off()
{
    uint16_t err=0;
    DEBUG("sim7020 pwr off");
    if(STATUS_IS_OFF())return true;

    while(err<3)
    {
        err++;
        PWRKEY_HIGH();
        vTaskDelay(200);
        PWRKEY_LOW();
        vTaskDelay(1500);
        PWRKEY_HIGH();

        vTaskDelay(500);
        if(!STATUS_IS_OFF())continue;

        return true;
    }
    return false;
}

bool sim7020_reboot()
{
    if(STATUS_IS_ON())
    {
        if(sim7020_pwr_off()==false)return false;
    }
    return sim7020_pwr_on();
}


static bool sim7020_send_atcmd(char *cmd,char *prefix,uint32_t timeout)
{
    memset(sim_ctl.recv_buf,0,SIM_RECV_BUF_SIZE);
    sim_ctl.recv_len=SIM_RECV_BUF_SIZE;
    return at_send_wait_reply  (cmd,true,
                        prefix,"ERROR",
                        sim_ctl.recv_buf,&sim_ctl.recv_len,
                        timeout);
}

static bool sim7020_get_imei()
{
    uint16_t err=0;
    while(err<3)
    {
        err++;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_GET_IMEI,"86",1000)!=true)continue;
        return true;
    }
    return false;
}

static bool sim7020_check_sim()
{
    uint16_t err=0;
    while(err<3)
    {
        err++;
        vTaskDelay(500);
        if(sim7020_send_atcmd(AT_CMD_CPIN,"+CPIN: READY",1000)!=true)continue;
        return true;
    }
    return false;
}

static bool sim7020_set_apn()
{
    uint16_t err=0;
    while(err<3)
    {
        err++;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CFUN0,"OK",5000)!=true)continue;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_SET_APN,"OK",1000)!=true)continue;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CFUN1,"+CPIN: READY",5000)!=true)continue;
        return true;
    }
    return false;
}

static bool sim7020_check_net()
{
    uint16_t err=0;
    while(err<300)
    {
        err++;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CSQ,"+CSQ:",1000)!=true)continue;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CEREG,"+CEREG: 0,1",1000)!=true)continue;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CGACT,"+CGACT: 1,1",1000)!=true)continue;
        vTaskDelay(100);
        if(sim7020_send_atcmd(AT_CMD_CGCONTRDP,"+CGCONTRDP:",1000)!=true)continue;

        return true;
    }
    return false;

}

bool sim7020_deinit()
{
    DEBUG("sim7020 deinit");
    is_inited=false;
    sim7020_pwr_off();
    at_parse_deinit();
    memset(&sim_ctl,0,sizeof(sim_ctl));
    return true;
}
static void sim7020_mqtt_recv_handler(char *pdata,uint16_t data_len,void *arg)
{
    //+CMQPUB: 0,"/sys/a1gPAyS0jai/s0001/thing/model/up_raw",1,0,0,16,"3132333435363738"
    int a,b,c,d;
    memset(sim_ctl.recv_buf,0,SIM_RECV_BUF_SIZE);
    memset(sim_ctl.recv_topic,0,SIM_RECV_TOPIC_SIZE);
    sscanf(pdata,"%*[^/] %[^"] %*[^,],%d,%d,%d,%d %*[^"]"%[^"]",sim_ctl.recv_topic,&a,&b,&c,&d,sim_ctl.recv_buf);
    sim_ctl.recv_len=d;
    if(mqtt_callback!=NULL)
    {
        mqtt_callback(sim_ctl.recv_topic,sim_ctl.recv_buf,sim_ctl.recv_len);
    }

}

bool sim7020_init()
{
    uint16_t err=0;
    DEBUG("sim7020 init");
    if(at_parse_init()!=true)return false;
    at_register_callback(AT_RECV_MQTT,sim7020_mqtt_recv_handler,NULL);

    while(err<3)
    {
        err++;

        memset(&sim_ctl,0,sizeof(sim_ctl));

        if(sim7020_reboot()!=true)continue;

        if(sim7020_get_imei()!=true)continue;

        if(sim7020_check_sim()!=true)continue;

        if(sim7020_set_apn()!=true)continue;

        if(sim7020_check_net()!=true)continue;

        vTaskDelay(100);
        DEBUG("sim7020 init ok");
        is_inited=true;
        return true;
    }

    sim7020_deinit();
    return false;

}

bool sim7020_mqtt_connect(char *server,uint16_t port,char *prokey,char *devname,char *devsecret)
{
    uint16_t err=0;
    if(is_inited==false)return false;

    while(err<3)
    {
        err++;
        if(sim7020_pwr_on()!=true)continue;
        if(sim7020_check_net()!=true)continue;

        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s="%s","%d",12000,1024",AT_CMD_CMQNEW,server,port);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"+CMQNEW:",10000)!=true)continue;
        sim_ctl.socket=sim_ctl.recv_buf[9]-0x30;
        vTaskDelay(50);

        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d,"%s","%s","%s"",AT_CMD_CMQALICFG,sim_ctl.socket,prokey,devname,devsecret);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000)!=true)continue;

        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d,600,1",AT_CMD_CMQALICON,sim_ctl.socket);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000)!=true)continue;

        return true;
    }
    return false;
}

static bool sim7020_enter_psm()
{
    uint16_t err=0;
    uint16_t counter=0;

    while(err<2)
    {
        err++;
        if(sim7020_send_atcmd(AT_CMD_PSM_OFF,"OK",2000)!=true)continue;
        vTaskDelay(2000);
        if(sim7020_send_atcmd(AT_CMD_PSM_ON,"OK",2000)!=true)continue;

        counter=0;
        while (counter<15)
        {
            counter++;
            DEBUG("wait enter psm ...");
            vTaskDelay(1000);
            if(STATUS_IS_OFF())return true;
        }
    }
    return sim7020_pwr_off();
}

bool sim7020_mqtt_disconnect(void)
{
    if(is_inited==false)return false;

    memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
    snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d",AT_CMD_CMQDISCON,sim_ctl.socket);
    sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000);

    return sim7020_enter_psm();
}

bool sim7020_mqtt_pub(char *topic,char *mes,uint16_t mes_len)
{
    uint16_t err=0;
    if(is_inited==false)return false;
    while(err<3)
    {
        err++;
        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d,"%s",1,0,0,%d,"%s"",AT_CMD_CMQPUB,sim_ctl.socket,topic,mes_len,mes);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000)!=true)continue;
        return true;
    }
    return false;
}
bool sim7020_mqtt_sub(char *topic)
{
    uint16_t err=0;
    if(is_inited==false)return false;
    while(err<3)
    {
        err++;
        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d,"%s",1",AT_CMD_CMQSUB,sim_ctl.socket,topic);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000)!=true)continue;
        return true;
    }
    return false;
}
bool sim7020_mqtt_unsub(char *topic)
{
    uint16_t err=0;
    if(is_inited==false)return false;
    while(err<3)
    {
        err++;
        memset(sim_ctl.send_buf,0,SIM_SEND_BUF_SIZE);
        snprintf(sim_ctl.send_buf,SIM_SEND_BUF_SIZE,"%s=%d,"%s"",AT_CMD_CMQUNSUB,sim_ctl.socket,topic);
        if(sim7020_send_atcmd(sim_ctl.send_buf,"OK",10000)!=true)continue;
        return true;
    }
    return false;
}
bool sim7020_mqtt_recv_register(mqtt_recv_callback cb)
{
    if(is_inited==false)return false;
    mqtt_callback=cb;
    return true;
}


at_net_dev_t dev_sim7020={
    .init=sim7020_init,
    .deinit=sim7020_deinit,
    .mqtt_connect=sim7020_mqtt_connect,
    .mqtt_disconnect=sim7020_mqtt_disconnect,
    .mqtt_pub=sim7020_mqtt_pub,
    .mqtt_sub=sim7020_mqtt_sub,
    .mqtt_unsub=sim7020_mqtt_unsub,
    .mqtt_recv_register=sim7020_mqtt_recv_register,
};

测试代码如下：

/* USER CODE BEGIN Header_StartDefaultTask */
/**
  * @brief  Function implementing the defaultTask thread.
  * @param  argument: Not used
  * @retval None
  */
/* USER CODE END Header_StartDefaultTask */
void StartDefaultTask(void const * argument)
{
  /* USER CODE BEGIN StartDefaultTask */
  /* Infinite loop */
  float temp,humi;
  uint8_t write_buf[]="1234567890";
  uint8_t read_buf[20];
  uint16_t read_len;
  #define TEST_NAME 0X0001
  uint8_t buf[5];

  char reply_buf[30];
  uint16_t reply_len;

  debug_init();
  led_init();
  key_init();
  led_blink(2,5);
  sht30_init();
  //at_parse_init();
  //at_register_callback("+MQTT",test_callback,NULL);
  #define SERVER		"a1gPAyS0jai.iot-as-mqtt.cn-shanghai.aliyuncs.com"
  #define PRO_KEY		"a1gPAyS0jai"
  #define	DEV_NAME	"s0001"
  #define DEV_SECRET	"abd7aff3aa5dd6a44d85ec03561c733c"
  #define TOPIC_SUB	"/sys/a1gPAyS0jai/s0001/thing/model/down_raw"
  #define TOPIC_PUB	"/sys/a1gPAyS0jai/s0001/thing/model/up_raw"
  at_net_dev_register(&dev_sim7020);
  at_net_init();
  at_net_mqtt_connect(SERVER,1883,PRO_KEY,DEV_NAME,DEV_SECRET);
  at_net_mqtt_recv_register(mqtt_recv_handler);
  at_net_mqtt_sub(TOPIC_PUB);
  at_net_mqtt_pub(TOPIC_PUB,"3132333435",10);

  vTaskDelay(10000);
  at_net_mqtt_disconnect();

  for(;;)
  {
    // memset(reply_buf,0,30);
    // reply_len=30;
    // if(at_send_wait_reply("AT+CSQ",true,"+CSQ","ERROR",reply_buf,&reply_len,1000))
    // {
    //   DEBUG("-----recv %d,%s------",reply_len,reply_buf);
    // }
    //at_send_no_reply("AT",2,true,1000);
    //at_uart_send("12345rn",7,1000);
    // storage_write(TEST_NAME,sizeof(write_buf),write_buf);
    // memset(read_buf,0,20);
    // read_len=20;
    // if(storage_read(TEST_NAME,&read_len,read_buf))
    // {
    //   DEBUG("------%s-----",read_buf);
    // }
    // if(sht30_get_temp_humi(&temp,&humi))
    // {
    //   DEBUG("temp=%f,humi=%f",temp,humi);
    // }
    osDelay(1000);
  }
  /* USER CODE END StartDefaultTask */
}

最后

以上就是温柔缘分为你收集整理的NB驱动层MQTT发布和订阅数据的代码实现1 代码实现的全部内容，希望文章能够帮你解决NB驱动层MQTT发布和订阅数据的代码实现1 代码实现所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(46)

相关文章

MQTT学习笔记(1)--网络调试助手连接阿里云物联网初探 MQTT的网络调试助手通信测试
MQTT学习笔记(1)--网络调试助手连接阿里云物联网初探 MQTT的网络调试助手通信测试
物联网专题36：阿里云物联网 ESP8266
物联网专题36：阿里云物联网 ESP8266
AT&T格式汇编学习一、 大小写 二、 操作数赋值方向 三、前缀 四、间接寻址语法 五、 后缀
AT&T格式汇编学习一、 大小写 二、 操作数赋值方向 三、前缀 四、间接寻址语法 五、 后缀
arduino和NB-IOT模块M5310-A使用教程，app实时控制第一 、先上效果图第二、原理讲解第三、下载程序到arduino第四 app inventor 开发第五、小程序开发
arduino和NB-IOT模块M5310-A使用教程，app实时控制第一 、先上效果图第二、原理讲解第三、下载程序到arduino第四 app inventor 开发第五、小程序开发
NB驱动层MQTT发布和订阅数据的代码实现1 代码实现
NB驱动层MQTT发布和订阅数据的代码实现1 代码实现
SIM800C连接OneNet平台HTTP协议上传GPS数据
SIM800C连接OneNet平台HTTP协议上传GPS数据
STM32+移远MC20模块采用MQTT协议登录OneNet上传GPS数据一、环境介绍二、MC20模块三、代码功能四、核心代码五、OneNet创建产品
STM32+移远MC20模块采用MQTT协议登录OneNet上传GPS数据一、环境介绍二、MC20模块三、代码功能四、核心代码五、OneNet创建产品
企业级用户画像: 价格敏感度模型-PSMPSM模型引入PSM模型在网游中的运用PSM模型实施具体步骤PSM模型的缺陷真实案例：用KANO模型和PSM价格敏感度确定产品功能和定价确定了功能/服务，该如何为其定价参考资料：添加标签业务代码
企业级用户画像: 价格敏感度模型-PSMPSM模型引入PSM模型在网游中的运用PSM模型实施具体步骤PSM模型的缺陷真实案例：用KANO模型和PSM价格敏感度确定产品功能和定价确定了功能/服务，该如何为其定价参考资料：添加标签业务代码

评论列表共有 0 条评论

立即
投稿
返回
顶部
