基于FPGA的可控倒计时计数器

92 阅读 0 评论
我是靠谱客的博主 自信战斗机，最近开发中收集的这篇文章主要介绍基于FPGA的可控倒计时计数器，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

实现的效果：

（1）、能够自动倒计时，初始值可以在程序中设置；

（2）、能够通过按键改变初始值（秒、分、时都可以）；

（3）、可以根据时钟进行相应的LED灯闪烁；

相应参数：

（1）、使用芯片：Cyclone IV EP4CE10F17C8N

（2）、输入时钟：50MHz

首先我们先来看一看设计流程图（从左到右）：

输入：（1）、时钟输入；（2）、按键输入；（3）、复位键输入；

模块：（1）锁相环模块；（2）、按键转换模块；（3）、计数模块；（4）、译码模块；（5）、位选模块；（6）、时钟闪烁模块；

输出：（1）、位选；（2）、段选；（3）、LED

设计思路：

（1）、首先我们将输入的时钟通过锁相环，（50MHz->50MHz），以此来获得一个更加稳定的时钟；

（2）、我们将按键的值传入按键转换模块，将键值转换为，对秒的加or减，分的加or减，时的加or减；

（3）、然后将相应的值传入计数模块来改变计数的值；

（4）、然后将相应的计数值传入译码模块，以此来获得数码管需要的段选值；

（5）、通过1KHz的时钟来位选，显示时钟到数码管上；

（6）、将计数值输入到LED灯模块，根据相应的要求进行闪烁；

硬件设计：

段选是低电平有效，那么相应的数字转换为数码管的显示就如下：


                            1:1111_1001;
                            2:1010_0100;
                            3:1011_0000;
                            4:1001_1001;
                            5:1001_0010;
                            6:1000_0010;
                            7:1111_1000;
                            8:1000_0000;
                            9:1001_0000;

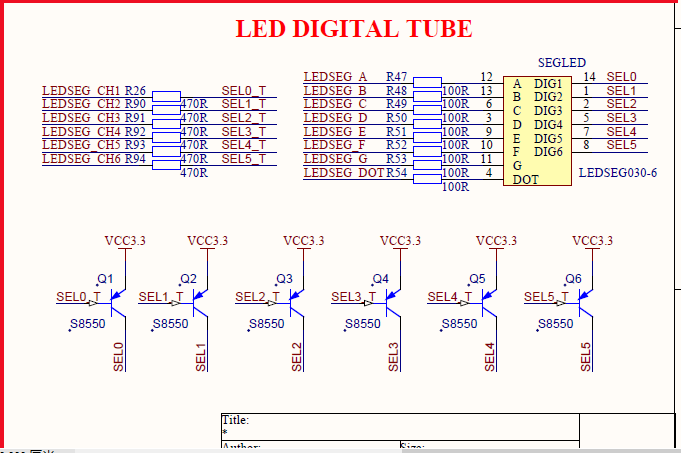

我们发现位选模块是通过PNP三极管来控制的，所以低电平时有效。

程序源码：

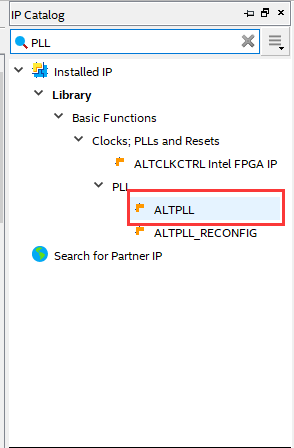

（1）、锁相环，锁相环通过如下的IP核创建即可，这里不再详细介绍。（锁相环可以去除掉）。

（2）、按键转换模块

module key_set(
		input clk,
		input reset,
		input [2:0] key,
		output reg [1:0] count,      //定义对秒、分、时的控制
		output reg [1:0] key_choose  //定义控制加、减
);

reg [31:0] cnt;
reg clk_Hz;
//产生一个5Hz的时钟，用来检测按键的按下，这样可以去除抖动带来的误差
always@(posedge clk or negedge reset)
                begin
				if(!reset)
					begin
						cnt <= 32'd0;
						clk_Hz <= 1'b0;
					end
				else if(cnt == 32'd5000_000)
					begin
						clk_Hz <= ~clk_Hz;
						cnt <= 32'd0;
					end
				else
					begin
						cnt <= cnt + 32'd1;
					end
		end

reg key_flag;
//键值的转换
always@(posedge clk_Hz or negedge reset)
	begin
		if(!reset)
			begin
				key_flag <= 1'b1;
				key_choose <= 2'b00;
				count <= 2'b00;
			end
		else if(key_flag && key!=3'b111)
			begin
				case(key)
					3'b110:
						begin
							count <= count+2'b1;
							key_flag <= 1'b0;
						end
					3'b101:
						begin
							key_choose <= 2'b10;
							key_flag <= 1'b0;
						end
					3'b011:
						begin
							key_choose <= 2'b11;
							key_flag <= 1'b0;
						end
					default:
						begin
							key_choose <= 2'b00;
							key_flag <= 1'b1;
						end
				endcase
			end
		else if(key == 3'b111)
			begin
				key_flag <= 1'b1;
				key_choose <= 2'b00;
			end
		else
			begin
				key_choose <= 2'b00;
				key_flag <= 1'b1;
			end
	end
endmodule

count：代表的是选择秒、分、时；

choose：代表的加or减；

（3）、计数模块

module count(
		input clk,
		input reset,
		input [1:0]choose,
		input [1:0]count,
		output [3:0] count_miao_ge,
		output [2:0] count_miao_shi,
		output [3:0] count_fen_ge,
		output [2:0] count_fen_shi,
		output [3:0] count_shi_ge,
		output [1:0] count_shi_shi
);




reg [31:0]cnt_1;
reg flag_1_second;
//该模块用来控制加减的速度变化
always@(posedge clk or negedge reset)
		begin
			if(!reset)
				begin
					cnt_1 <= 32'd0;
					flag_1_second <= 1'b0;
				end
			else if(cnt_1 == 32'd1200_0000)
				begin
					flag_1_second <= 1'b1;
					cnt_1 <= 32'd0;
				end
			else
				begin
					flag_1_second <= 1'b0;
					cnt_1 <= cnt_1 + 32'd1;
				end
		end


reg [31:0] cnt;
reg [3:0] count_miao_ge_reg;
reg [2:0] count_miao_shi_reg;
reg [3:0] count_fen_ge_reg;
reg [2:0] count_fen_shi_reg;
reg [3:0] count_shi_ge_reg;
reg [1:0] count_shi_shi_reg;

assign count_miao_ge = count_miao_ge_reg;  //秒的个位
assign count_miao_shi = count_miao_shi_reg;//秒的十位
assign count_fen_ge = count_fen_ge_reg;//分的个位
assign count_fen_shi = count_fen_shi_reg;//分的十位
assign count_shi_ge = count_shi_ge_reg;//时的个位
assign count_shi_shi = count_shi_shi_reg;//时的十位

always@(posedge clk or negedge reset)
		begin
				if(!reset)
					begin
							cnt <= 32'd0;
							count_miao_ge_reg <= 4'd5;
							count_miao_shi_reg <= 3'd4;
							count_fen_ge_reg <= 4'd6;
							count_fen_shi_reg <= 3'd5;
							count_shi_ge_reg <= 4'd8;
							count_shi_shi_reg <= 2'd1;
					end
					//当计满一秒并且秒的个位小于0时，秒的个位减一
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg>4'd0 && count == 2'b00)
						begin
							count_miao_ge_reg <= count_miao_ge_reg - 4'd1;
							cnt <= 32'd0;
						end
					//当计满一秒并且秒的个位等于0时，秒的十位减一，秒的个位变九
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg>3'd0 && count == 2'b00)
						begin
							count_miao_shi_reg <= count_miao_shi_reg - 3'd1;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
					//当计满一秒，秒到达00并且分的个位大于0时，分的个位减1
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0 && count_fen_ge_reg>4'd0 && count == 2'b00)
						begin
							count_fen_ge_reg <= count_fen_ge_reg - 4'd1;
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
					//当计满一秒，秒到达00并且分的个位等于0时，分的十位减1
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0 && count_fen_ge_reg==4'd0 && count_fen_shi_reg > 3'd0 && count == 2'b00)
						begin
						   count_fen_shi_reg <= count_fen_shi_reg - 3'd1;
							count_fen_ge_reg <= 4'd9;
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
						//当计满一秒，秒到达00，分等于00时，时的个位>0,时的个位减一
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0 && count_fen_ge_reg==4'd0 && count_fen_shi_reg ==3'd0 && count_shi_ge_reg >4'd0 && count == 2'b00)
						begin
							count_shi_ge_reg <= count_shi_ge_reg - 4'd1;
							count_fen_shi_reg <= 3'd5;
							count_fen_ge_reg <= 4'd9;
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
						//当计满一秒，秒到达00，分等于00时，时的个位等于0时,时的十位>0,时的十位减一
						else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0&& count_fen_ge_reg==4'd0 && count_fen_shi_reg ==3'd0 && count_shi_ge_reg == 4'd0 && count_shi_shi_reg > 2'd0 && count_shi_shi_reg< 2'd2 && count == 2'b00)
						begin
							count_shi_shi_reg <= count_shi_shi_reg - 2'd1;
						   count_shi_ge_reg <= 4'd9;
							count_fen_shi_reg <= 3'd5;
							count_fen_ge_reg <= 4'd9;
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
					//当计满一秒，秒到达00，分等于00时，时等于00,所有变回初值
					else if(cnt == 32'd5000_0000 && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0 && count_fen_ge_reg==4'd0 && count_fen_shi_reg ==3'd0 && count_shi_ge_reg == 4'd0 && count_shi_shi_reg == 2'd0 && count == 2'b00)
						begin
							count_shi_shi_reg <= 2'd2;
							count_shi_ge_reg <= 4'd3;
							count_fen_shi_reg <= 3'd5;
							count_fen_ge_reg <= 4'd9;
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
							cnt <= 32'd0;
						end
					/**用按键进行秒的控制加**/
					else if(count == 2'b01 && choose == 2'b10 && flag_1_second && count_miao_ge_reg < 4'd9 )
						begin
							count_miao_ge_reg <= count_miao_ge_reg + 4'd1;
						end
					else if(count == 2'b01 && choose == 2'b10 && flag_1_second && count_miao_ge_reg==4'd9 && count_miao_shi_reg<3'd5)
						begin
							count_miao_shi_reg <= count_miao_shi_reg + 3'd1;
							count_miao_ge_reg <= 4'd0;
						end
					else if(count == 2'b01 && choose == 2'b10 && flag_1_second && count_miao_ge_reg==4'd9 && count_miao_shi_reg==3'd5)
						begin
							count_miao_shi_reg <= 3'd0;
							count_miao_ge_reg <= 4'd0;
						end
					/**用按键进行秒的控制减**/
					else if(count == 2'b01 && choose == 2'b11 && flag_1_second && count_miao_ge_reg>4'd0 )
						begin
							count_miao_ge_reg <= count_miao_ge_reg - 4'd1;
						end
					else if(count == 2'b01 && choose == 2'b11 && flag_1_second && count_miao_ge_reg==4'd0 && count_miao_shi_reg>3'd0)
						begin
							count_miao_shi_reg <= count_miao_shi_reg - 3'd1;
							count_miao_ge_reg <= 4'd9;
						end
					else if(count == 2'b01 && choose == 2'b11 && flag_1_second && count_miao_ge_reg==4'd0 && count_miao_shi_reg==3'd0)
						begin
							count_miao_shi_reg <= 3'd5;
							count_miao_ge_reg <= 4'd9;
						end
					/**用按键进行分的控制加**/
					else if(count == 2'b10 && choose == 2'b10 && flag_1_second && count_fen_ge_reg<4'd9)
						begin
							count_fen_ge_reg <= count_fen_ge_reg + 4'd1;
						end
					else if(count == 2'b10 && choose == 2'b10 && flag_1_second  && count_fen_ge_reg==4'd9 && count_fen_shi_reg < 3'd5)
						begin
						   count_fen_shi_reg <= count_fen_shi_reg + 3'd1;
							count_fen_ge_reg <= 4'd0;
						end
					else if(count == 2'b10 && choose == 2'b10 && flag_1_second  && count_fen_ge_reg==4'd9)
						begin
							count_fen_shi_reg <= 3'd0;
							count_fen_ge_reg <= 4'd0;
						end
					/**用按键进行分的控制减**/
					else if(count == 2'b10 && choose == 2'b11 && flag_1_second  && count_fen_ge_reg> 4'd0)
						begin
							count_fen_ge_reg <= count_fen_ge_reg - 4'd1;
						end
					else if(count == 2'b10 && choose == 2'b11 && flag_1_second && count_fen_ge_reg== 4'd0 && count_fen_shi_reg > 3'd0 )
						begin
						   count_fen_shi_reg <= count_fen_shi_reg - 3'd1;
							count_fen_ge_reg <= 4'd9;
						end
					else if(count == 2'b10 && choose == 2'b11 && flag_1_second  && count_fen_ge_reg== 4'd0 && count_fen_shi_reg ==3'd0)
						begin
							count_fen_shi_reg <= 3'd5;
							count_fen_ge_reg <= 4'd9;
						end
					/**用按键进行时的控制加**/
					else if(count == 2'b11 && choose == 2'b10 && flag_1_second  && count_shi_ge_reg < 4'd9 && count_shi_shi_reg < 2'd2)
						begin
							count_shi_ge_reg <= count_shi_ge_reg + 4'd1;
						end
					else if(count == 2'b11 && choose == 2'b10 && flag_1_second  && count_shi_ge_reg == 4'd9 && count_shi_shi_reg < 2'd2)
						begin
							count_shi_shi_reg <= count_shi_shi_reg + 2'd1;
						   count_shi_ge_reg <= 4'd0;
						end
					else if(count == 2'b11 && choose == 2'b10 && flag_1_second  && count_shi_ge_reg < 4'd3 && count_shi_shi_reg == 2'd2)
						begin
							count_shi_ge_reg <= count_shi_ge_reg + 4'd1;
						end
					else if(count == 2'b11 && choose == 2'b10  && flag_1_second && count_shi_ge_reg == 4'd3 && count_shi_shi_reg == 2'd2)
						begin
							count_shi_shi_reg <= 2'd0;
							count_shi_ge_reg <= 4'd0;
						end
					/**用按键进行时的控制减**/
						else if(count == 2'b11 && choose == 2'b11 && flag_1_second && count_shi_ge_reg >4'd0 )
						begin
							count_shi_ge_reg <= count_shi_ge_reg - 4'd1;
						end
						else if(count == 2'b11 && choose == 2'b11 && flag_1_second  && count_shi_ge_reg == 4'd0 && count_shi_shi_reg > 2'd0)
						begin
							count_shi_shi_reg <= count_shi_shi_reg - 2'd1;
						   count_shi_ge_reg <= 4'd9;
						end
					else if(count == 2'b11 && choose == 2'b11 && flag_1_second && count_shi_ge_reg == 4'd0 && count_shi_shi_reg == 2'd0)
						begin
							count_shi_shi_reg <= 2'd2;
							count_shi_ge_reg <= 4'd3;
						end
					else if(count == 2'b00)
						begin
							cnt <= cnt + 32'd1;
						end
					else
						begin
							cnt <= cnt;
						end
		end
endmodule

（4）、译码模块

module decoding(
		input clk,
		input reset,
		input [3:0] count_miao_ge,
		input [2:0] count_miao_shi,
		input [3:0] count_fen_ge,
		input [2:0] count_fen_shi,
		input [3:0] count_shi_ge,
		input [1:0] count_shi_shi,
		output reg [7:0] code_miao_ge,
		output reg [7:0] code_miao_shi,
		output reg [7:0] code_fen_ge,
		output reg [7:0] code_fen_shi,
		output reg [7:0] code_shi_ge,
		output reg [7:0] code_shi_shi
);

always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_miao_ge <= 8'b1111_1111;
			else
					begin
						case(count_miao_ge)
							4'd0:code_miao_ge <= 8'b1100_0000;
							4'd1:code_miao_ge <= 8'b1111_1001;
							4'd2:code_miao_ge <= 8'b1010_0100;
							4'd3:code_miao_ge <= 8'b1011_0000;
							4'd4:code_miao_ge <= 8'b1001_1001;
							4'd5:code_miao_ge <= 8'b1001_0010;
							4'd6:code_miao_ge <= 8'b1000_0010;
							4'd7:code_miao_ge <= 8'b1111_1000;
							4'd8:code_miao_ge <= 8'b1000_0000;
							4'd9:code_miao_ge <= 8'b1001_0000;
							default:code_miao_ge <= 8'b1011_1111;
						endcase
					end

		end

always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_miao_shi <= 8'b1111_1111;
			else
					begin
						case(count_miao_shi)
							3'd0:code_miao_shi <= 8'b1100_0000;
							3'd1:code_miao_shi <= 8'b1111_1001;
							3'd2:code_miao_shi <= 8'b1010_0100;
							3'd3:code_miao_shi <= 8'b1011_0000;
							3'd4:code_miao_shi <= 8'b1001_1001;
							3'd5:code_miao_shi <= 8'b1001_0010;
							default:code_miao_shi <= 8'b1011_1111;
						endcase
					end

		end

always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_fen_ge <= 8'b1111_1111;
			else
					begin
						case(count_fen_ge)
							4'd0:code_fen_ge <= 8'b0100_0000;
							4'd1:code_fen_ge <= 8'b0111_1001;
							4'd2:code_fen_ge <= 8'b0010_0100;
							4'd3:code_fen_ge <= 8'b0011_0000;
							4'd4:code_fen_ge <= 8'b0001_1001;
							4'd5:code_fen_ge <= 8'b0001_0010;
							4'd6:code_fen_ge <= 8'b0000_0010;
							4'd7:code_fen_ge <= 8'b0111_1000;
							4'd8:code_fen_ge <= 8'b0000_0000;
							4'd9:code_fen_ge <= 8'b0001_0000;
							default:code_fen_ge <= 8'b1011_1111;
						endcase
					end

		end

always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_fen_shi <= 8'b1111_1111;
		   else
					begin
						case(count_fen_shi)
							3'd0:code_fen_shi <= 8'b1100_0000;
							3'd1:code_fen_shi <= 8'b1111_1001;
							3'd2:code_fen_shi <= 8'b1010_0100;
							3'd3:code_fen_shi <= 8'b1011_0000;
							3'd4:code_fen_shi <= 8'b1001_1001;
							3'd5:code_fen_shi <= 8'b1001_0010;
							default:code_fen_shi <= 8'b1011_1111;
						endcase
				end

	  end


always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_shi_ge <= 8'b1111_1111;
			else
					begin
						case(count_shi_ge)
							4'd0:code_shi_ge <= 8'b0100_0000;
							4'd1:code_shi_ge <= 8'b0111_1001;
							4'd2:code_shi_ge <= 8'b0010_0100;
							4'd3:code_shi_ge <= 8'b0011_0000;
							4'd4:code_shi_ge <= 8'b0001_1001;
							4'd5:code_shi_ge <= 8'b0001_0010;
							4'd6:code_shi_ge <= 8'b0000_0010;
							4'd7:code_shi_ge <= 8'b0111_1000;
							4'd8:code_shi_ge <= 8'b0000_0000;
							4'd9:code_shi_ge <= 8'b0001_0000;
							default:code_shi_ge <= 8'b1011_1111;
						endcase
					end

		end

always@(posedge clk or negedge reset)
		begin
			if(!reset)
				code_shi_shi <= 8'b1111_1111;
		   else
					begin
						case(count_shi_shi)
							2'd0:code_shi_shi <= 8'b1100_0000;
							2'd1:code_shi_shi <= 8'b1111_1001;
							2'd2:code_shi_shi <= 8'b1010_0100;
							default:code_shi_shi <= 8'b1011_1111;
						endcase
				end

	  end
endmodule

（5）、位选模块

module sel_show(
		input clk,
		input reset,
		input [7:0] code_miao_ge,
		input [7:0] code_miao_shi,
		input [7:0] code_fen_ge,
		input [7:0] code_fen_shi,
		input [7:0] code_shi_ge,
		input [7:0] code_shi_shi,
		output reg [7:0] led,
		output reg [5:0] sel
);

reg [15:0] cnt;
reg flag;
//产生1000Hz的时钟
always@(posedge clk or negedge reset)
		begin
			if(!reset)
					begin
						cnt <=16'd0;
						flag <= 1'b0;
					end

			else if(cnt == 16'd500_00)
					begin
					   cnt <= 16'd0;
						flag <= 1'b1;
					end
			else
					begin
						cnt <= cnt + 16'd1;
						flag <= 1'b0;
					end
		end

reg [2:0] state;
parameter start = 3'd0; //开始状态
parameter sel_1 = 3'd1; //位选1
parameter sel_2 = 3'd2; //位选2
parameter sel_3 = 3'd3; //位选3
parameter sel_4 = 3'd4; //位选4
parameter sel_5 = 3'd5; //位选5
parameter sel_6 = 3'd6; //位选6
parameter ending = 3'd7;//结束
always@(posedge clk or negedge reset)
		begin
			if(!reset)
				begin
					state <= 3'd0;
					sel <= 6'b000_000;
				end
			else
			case(state)
				start:
					begin
						if(flag == 1'b1)
							state <= sel_1;
						else
							state <= state;
					end
				sel_1:
					begin
						if(flag == 1'b1)
							begin
								state <= sel_2;
								sel <= 6'b111_110;
								led <= code_miao_ge;
							end
						else
							state <= state;
					end
				sel_2:
					begin
						if(flag == 1'b1)
							begin
								state <= sel_3;
								sel <= 6'b111_101;
								led <= code_miao_shi;
							end
						else
							state <= state;
					end
				sel_3:
					begin
						if(flag == 1'b1)
							begin
								state <= sel_4;
								sel <= 6'b111_011;
								led <= code_fen_ge;
							end
						else
							state <= state;
					end
				sel_4:
					begin
						if(flag == 1'b1)
							begin
								state <= sel_5;
								sel <= 6'b110_111;
								led <= code_fen_shi;
							end
						else
							state <= state;
					end
				sel_5:
					begin
						if(flag == 1'b1)
							begin
								state <= sel_6;
								sel <= 6'b101_111;
								led <= code_shi_ge;
							end
						else
							state <= state;
					end
				sel_6:
					begin
						if(flag == 1'b1)
							begin
								state <= ending;
								sel <= 6'b011_111;
								led <= code_shi_shi;
							end
						else
							state <= state;
					end
				ending:
					state <= start;
				default:
					state <= start;
			endcase
		end
endmodule

通过一个简单的状态机来进行位选。

（6）、LED灯闪烁模块

module led_flash(
		input clk,
		input reset,
	   input [3:0] count_miao_ge,
		input [2:0] count_miao_shi,
		input [3:0] count_fen_ge,
		input [2:0] count_fen_shi,
		output reg Led
);
reg [31:0] cnt_2Hz;
reg [31:0] cnt_5Hz;
reg clk_2Hz;
reg clk_5Hz;
parameter flash_2Hz = 32'd1250_0000;
parameter flash_5Hz = 32'd5000_000;
//产生2Hz的时钟5000_0000/2/2 = 1250_0000
always@(posedge clk or negedge reset)
		begin
				if(!reset)
					begin
						cnt_2Hz <= 32'd0;
					end
				else if(cnt_2Hz == flash_2Hz)
					begin
						clk_2Hz <= ~clk_2Hz;
						cnt_2Hz <= 32'd0;
					end
				else
					cnt_2Hz <= cnt_2Hz + 32'd1;
		end

//产生5Hz的时钟5000_0000/5/2 = 500_0000
always@(posedge clk or negedge reset)
		begin
				if(!reset)
					begin
						cnt_5Hz <= 32'd0;
					end
				else if(cnt_5Hz == flash_5Hz)
					begin
						clk_5Hz <= ~clk_5Hz;
						cnt_5Hz <= 32'd0;
					end
				else
					cnt_5Hz <= cnt_5Hz + 32'd1;
		end

//判断相应的范围并且选取相应的时钟。
always@(posedge clk or negedge reset)
		begin
			if(!reset)
				begin
					Led <= 1'b0;
				end
			else if(count_fen_shi == 3'd5 && count_fen_ge == 4'd9 && count_miao_shi == 3'd5 && count_miao_ge >= 4'd0 && count_miao_ge < 4'd5)
					Led <= clk_2Hz;
			else if(count_fen_shi == 3'd5 && count_fen_ge == 4'd9 && count_miao_shi == 3'd5 && count_miao_ge >= 4'd5 && count_miao_ge <= 4'd9)
					Led <= clk_5Hz;
			else
					Led <= 1'b0;
		end

endmodule

（7）、顶层函数

module top(
		input clk,
		input reset,
		input [2:0]key,
		output [7:0] led,
		output [5:0] sel,
		output Led
);


wire clk_50MHz;
wire locked;
pll u1(
	.inclk0(clk),
	.c0(clk_50MHz),
	.locked(locked)
);

wire [1:0] count;
wire [1:0] key_choose;
key_set u2(
		.clk(clk_50MHz),
		.reset(reset),
		.key(key),
		.count(count),
		.key_choose(key_choose)
);

wire [3:0]  count_miao_ge;
wire [2:0]  count_miao_shi;
wire [3:0]  count_fen_ge;
wire [2:0]  count_fen_shi;
wire [3:0]  count_shi_ge;
wire [1:0]  count_shi_shi;
count u3(
		.clk(clk_50MHz),
		.reset(reset),
		.choose(key_choose),
		.count(count),
		.count_miao_ge(count_miao_ge),
		.count_miao_shi(count_miao_shi),
		.count_fen_ge(count_fen_ge),
		.count_fen_shi(count_fen_shi),
		.count_shi_ge(count_shi_ge),
		.count_shi_shi(count_shi_shi)

);

wire [7:0] code_miao_ge;
wire [7:0] code_miao_shi;
wire [7:0] code_fen_ge;
wire [7:0] code_fen_shi;
wire [7:0] code_shi_ge;
wire [7:0] code_shi_shi;
decoding u4(
		.clk(clk_50MHz),
		.reset(reset),
		.count_miao_ge(count_miao_ge),
		.count_miao_shi(count_miao_shi),
		.count_fen_ge(count_fen_ge),
		.count_fen_shi(count_fen_shi),
		.count_shi_ge(count_shi_ge),
		.count_shi_shi(count_shi_shi),
		.code_miao_ge(code_miao_ge),
		.code_miao_shi(code_miao_shi),
		.code_fen_ge(code_fen_ge),
		.code_fen_shi(code_fen_shi),
		.code_shi_ge(code_shi_ge),
		.code_shi_shi(code_shi_shi)
);

sel_show u5(
		.clk(clk_50MHz),
		.reset(reset),
		.code_miao_ge(code_miao_ge),
		.code_miao_shi(code_miao_shi),
		.code_fen_ge(code_fen_ge),
		.code_fen_shi(code_fen_shi),
		.code_shi_ge(code_shi_ge),
		.code_shi_shi(code_shi_shi),
		.led(led),
		.sel(sel)
);

led_flash u6(
		.clk(clk),
		.reset(reset),
	   .count_miao_ge(count_miao_ge),
		.count_miao_shi(count_miao_shi),
		.count_fen_ge(count_fen_ge),
		.count_fen_shi(count_fen_shi),
		.Led(Led)
);
endmodule

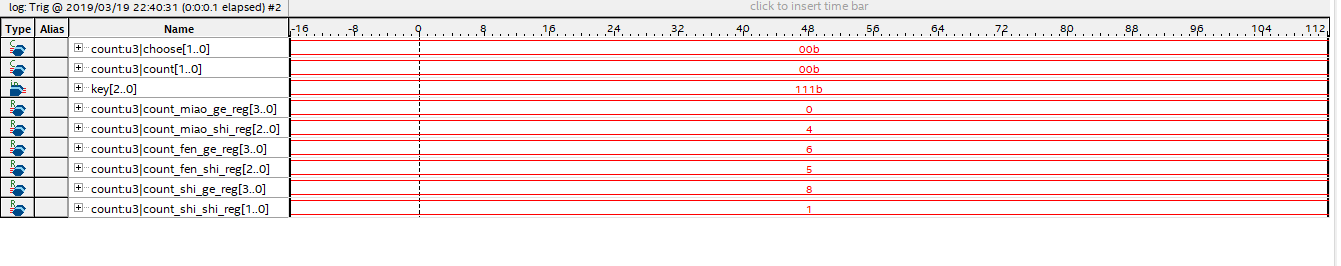

下载代码之后，我们通过Signal Tap进行简单的仿真。

观察这个我们可以看到程序运行正确。



最后

以上就是自信战斗机为你收集整理的基于FPGA的可控倒计时计数器的全部内容，希望文章能够帮你解决基于FPGA的可控倒计时计数器所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(61)

相关文章

东北大学计算机组成原理2018,东北大学计算机组成原理课程设计
东北大学计算机组成原理2018,东北大学计算机组成原理课程设计
multisim数字逻辑课程设计
multisim数字逻辑课程设计
Quartus ii 13.1 数字时钟
Quartus ii 13.1 数字时钟
基于FPGA的倒计时交通信号灯系统（使用quartusII）题外话学习路线方案设计小结
基于FPGA的倒计时交通信号灯系统（使用quartusII）题外话学习路线方案设计小结
基于FPGA的可控倒计时计数器
基于FPGA的可控倒计时计数器
用74ls90及少量器件制作电子时钟
用74ls90及少量器件制作电子时钟
手把手教你设计数字钟（基于protues8.6）手把手教你设计数字钟（基于protues8.6）模块讲解
手把手教你设计数字钟（基于protues8.6）手把手教你设计数字钟（基于protues8.6）模块讲解
EDA数字钟设计
EDA数字钟设计

评论列表共有 0 条评论

立即
投稿
返回
顶部
