一、系统框架

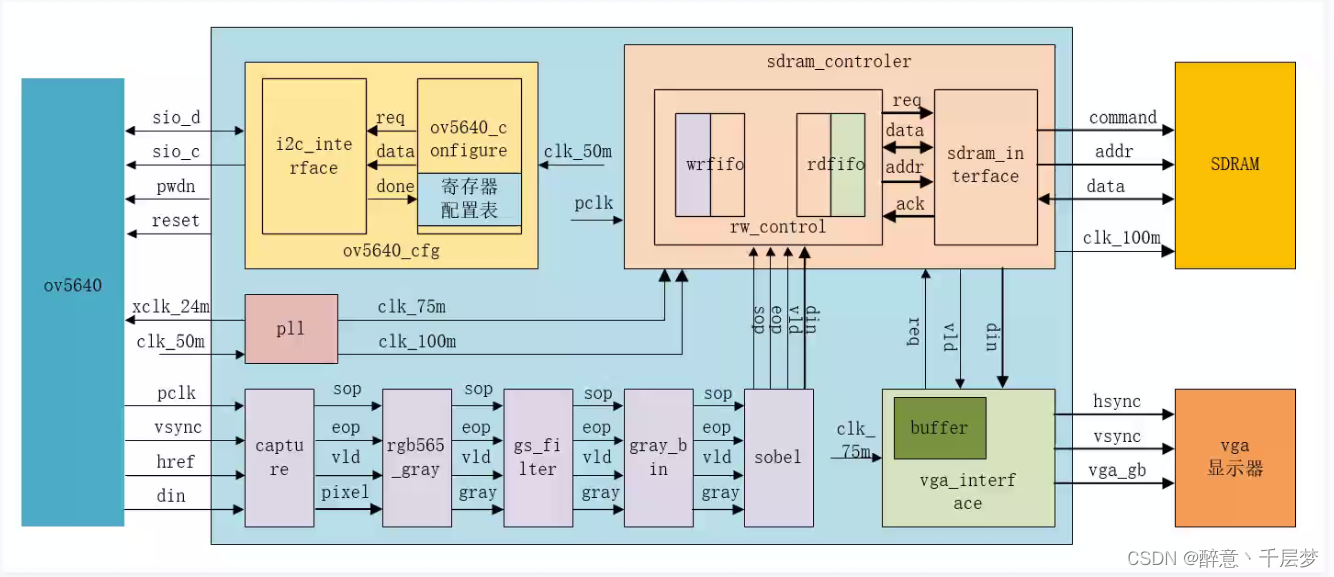

首先整个系统由摄像头模块、SDRAM数据缓存模块、vga显示模块、PLL时钟模块以及图像处理模块组成，这里先不用图像处理模块。
在这里插入图片描述

1.摄像头模块

摄像头配置

摄像头模块里面负责处理摄像头采集的数据，根据ov5640摄像头手册说明，我们需要先通过I2C协议去配置摄像头相关寄存器的参数。在摄像头上电后需要等待20ms。然后再通过I2C发送设备ID、写地址和数据，其中地址先发送高8位再发送低8位。这里包含摄像头时钟、图像大小、帧率以及其他和图像相关的参数。这里最重要的配置参数就是摄像头的图像分辨率和图像的色彩格式，这里通过配置的分辨率为1280*720，RGB565格式。

摄像头数据处理

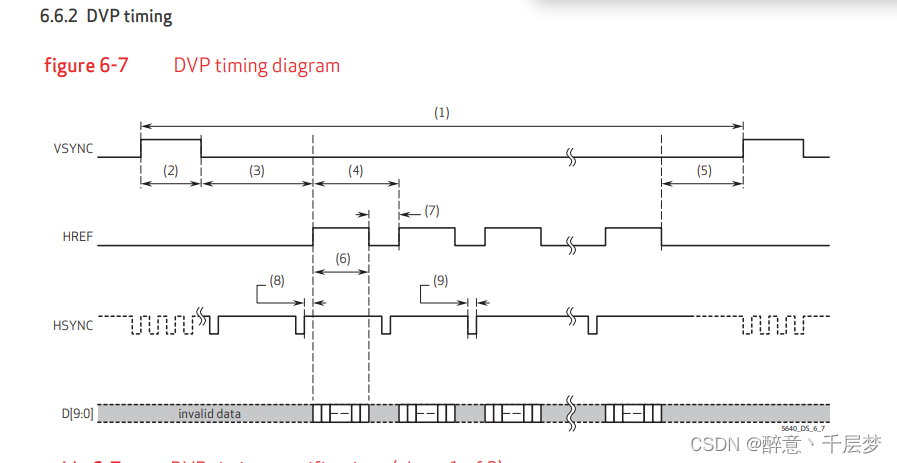

根据时序图可以看到，当场同步信号到来后，会跟随着许多HREF数据有效信号，我们在HREF高电平的时候去采集数据即可。
在这里插入图片描述
但是摄像头的数据是把16位RGB拆分为高八位和低八位发送的，我们需要通过移位+位拼接的方式把两个8bit数据合并成16bit数据输出。同时为了SDRAM模块更好的识别帧头和帧尾，在图像的第一个像素点以及最后一个像素点的时候分别拉高sop和eop信号，其余像素点这拉低。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            data <= 0;
        end
        else begin
            data <= {data[7:0],din};//左移
        end
    end

    assign pixel = data;
    assign sop = cnt_h == 1 && cnt_v == 0;
    assign eop = data_eop;
    assign vld = cnt_h[0];

2.SDRAM模块

SDRAM控制模块

由于摄像头数据时钟（84M）和vga时钟（75M）不一样，为了避免读写数据速度不一致就需要把摄像头的数据进行缓存，常见的缓存可以通过fifo，但是这里的数据量十分庞大，故需要通过SDRAM进行缓存。缓存的方式则是通过乒乓缓存，把SDRAM的两个blank单独作为数据的写入和读出，并在读写完成后切换读写blank，并且需要通过丢帧和复读的操作来保证读写图像的完整性。

SDRAM读写仲裁

由于摄像头的数据输出和vga的数据请求都是源源不断的，此时到底是读还是写SDRAM就需要一个规则约束。首先为了保证写FIFO数据过多或者读FIFO数据过少。当写FIFO数据大于阈值后就会发起一个写请求，当读FIFO的数据低于阈值后就会发起读请求。仲裁机制根据读写请求进行仲裁，如果同一时间只有单独的读或者写请求直接执行即可，如果同时存在两种请求，则会根据上次执行的是读或者写来进行相反的请求。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
//flag_sel    ;//标记上一次操作
    always @(posedge clk or negedge rst_n)begin
        if(!rst_n)begin
            flag_sel <= 0;
        end
        else if(read2done)begin
            flag_sel <= 1;
        end
        else if(write2done)begin
            flag_sel <= 0;
        end
    end

//prior_flag  ;//优先级标志 0：写优先级高   1：读优先级高     仲裁读、写的优先级
    always @(posedge clk or negedge rst_n)begin
        if(!rst_n)begin
            prior_flag <= 0;
        end
        else if(wr_flag && (flag_sel || (~flag_sel && ~rd_flag)))begin   //突发写优先级高
            prior_flag <= 1'b0;
        end
        else if(rd_flag && (~flag_sel || (flag_sel && ~wr_flag)))begin   //突发读优先级高
            prior_flag <= 1'b1;
        end
    end

SDRAM接口

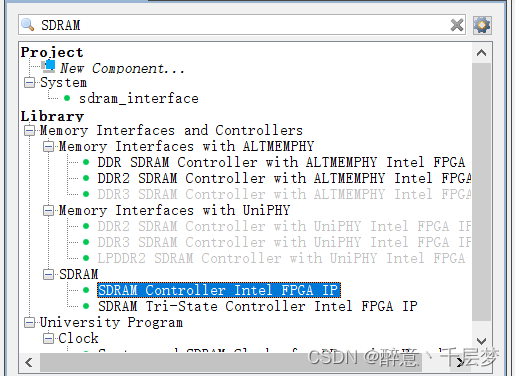

这里直接使用quartus自带的SDRAM接口ip。
在这里插入图片描述

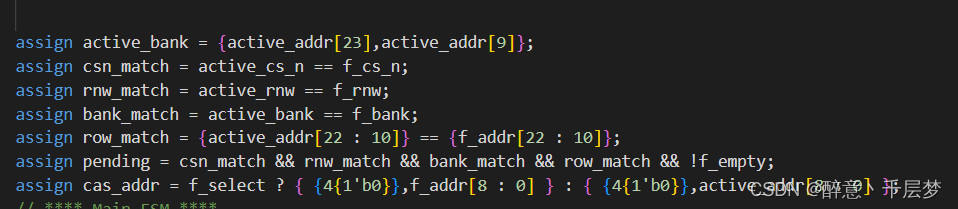

需要注意的是SDRAM的blank数据是数据位的最高位和第10位,行地址为第23位到11位,列地址则为低9位当然前提是这里的为4blank13行9列。如图为ip接口部分源码

所以地址需要这样进行拼接

复制代码

1
2
3
4
    assign avm_addr   = (state_c == WRITE)?{wr_bank[1],wr_addr[21:9],wr_bank[0],wr_addr[8:0]}
                       :((state_c == READ)?{rd_bank[1],rd_addr[21:9],rd_bank[0],rd_addr[8:0]}
                       :0);

读写FIFO

整个SDRAM模块涉及到摄像头模块到SDRAM模块（慢时钟域到快时钟域），SDRAM数据到vga模块（快时钟域到慢时钟域）的跨时钟域数据同步的问题，这里使用两个异步FIFO来缓存两个跨时钟域的数据。

首先是写FIFO（这里的读写相对于SDRAM）
写FIFO的写使能条件是FIFO非满、输入数据有效、旧的一帧被vga读完且新的一帧到来或者是当前帧数据。
写FIFO的读使能条件是当前需要往SDRAM写数据且FIFO非空，这里通过SDRAM控制模块的仲裁机制决定。

复制代码

1
2
3
    assign wfifo_wrreq = ~wfifo_full & din_vld & ((~wr_finish_r[1] & din_sop) ||wr_data_flag);
    assign wfifo_rdreq = state_c == WRITE && ~avs_waitrequest;

然后是读FIFO
读FIFO的写使能是当前把SDRAM读出来的数据有效且FIFO非满
读FIFO的读使能为当前FIFO非空且vga发起数据请求。

复制代码

1
2
3
    assign rfifo_wrreq = ~rfifo_full & avs_rddata_vld;
    assign rfifo_rdreq = ~rfifo_empty & rdreq;

3.vga显示模块

vga显示这边使用1280*780@60HZ参数输出图像，在行场有效区域内通过拉发起请求读取读FIFO的数据内的数据，再输出到屏幕上面。可以参考前面的博客基于FPGA的VGA显示彩条、字符、图片，这里不多描述。

4.PLL时钟模块

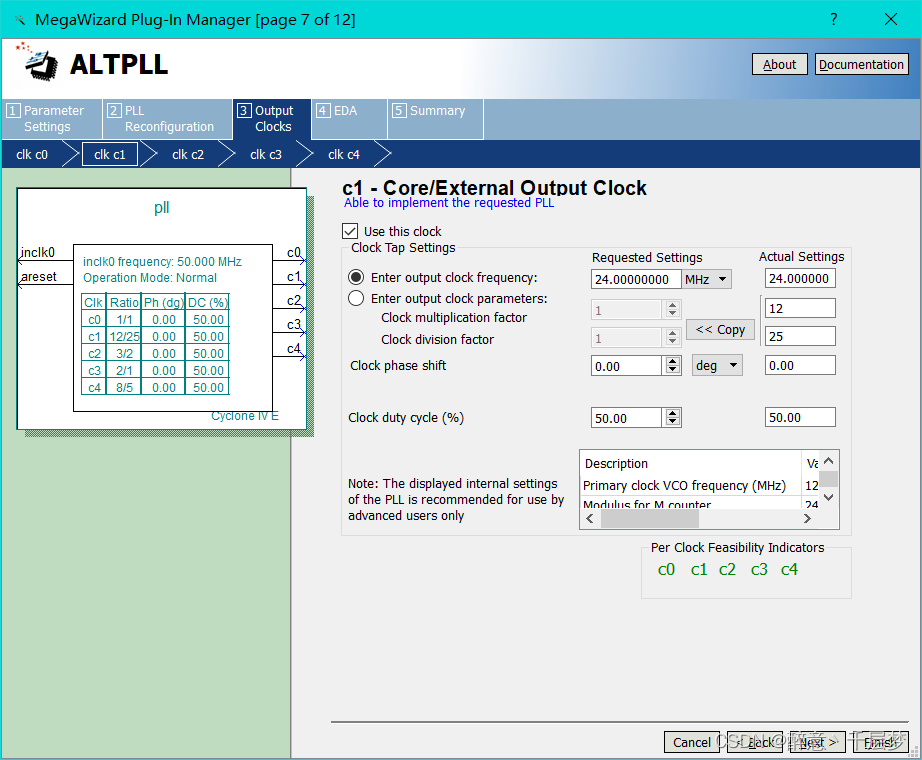

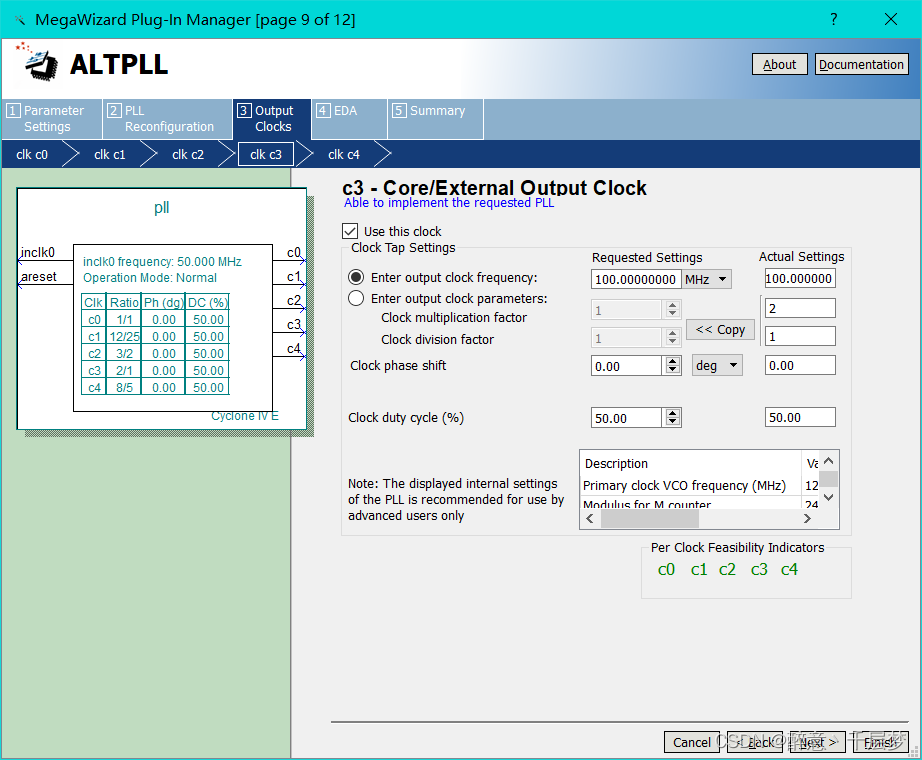

整个系统由50M的基准时钟驱动，并且通过PLL生成配置摄像头的驱动时钟（24M）、SDRAM接口驱动时钟（100M），vga驱动时钟（75M）还有输出到SDRAM外设的100M带相位偏移的时钟。
在这里插入图片描述

在这里插入图片描述

二、部分模块实现代码

1.摄像头配置

I2C接口

复制代码

`include "param.v"

module i2c_intf(
    input               clk         ,
    input               rst_n       ,

input               req         ,
    input       [3:0]   cmd         ,
    input       [7:0]   din         ,

output      [7:0]   dout        ,
    output              done        ,
    output              slave_ack   ,
    output              i2c_scl     ,
    input               i2c_sda_i   ,
    output              i2c_sda_o   ,
    output              i2c_sda_oe
    );

//状态机参数定义

localparam  IDLE  = 7'b000_0001,
                START = 7'b000_0010,
                WRITE = 7'b000_0100,
                RACK  = 7'b000_1000,
                READ  = 7'b001_0000,
                SACK  = 7'b010_0000,
                STOP  = 7'b100_0000;

//信号定义

reg     [6:0]       state_c     ;
    reg     [6:0]       state_n     ;

reg     [8:0]       cnt_scl     ;//产生i2c时钟
    wire                add_cnt_scl ;
    wire                end_cnt_scl ;
    reg     [3:0]       cnt_bit     ;//传输数据 bit计数器
    wire                add_cnt_bit ;
    wire                end_cnt_bit ;
    reg     [3:0]       bit_num     ;

    reg                 scl         ;//输出寄存器
    reg                 sda_out     ;
    reg                 sda_out_en  ;

reg     [7:0]       rx_data     ;
    reg                 rx_ack      ;
    reg     [3:0]       command     ;
    reg     [7:0]       tx_data     ;//发送数据

wire                idle2start  ;
    wire                idle2write  ;
    wire                idle2read   ;
    wire                start2write ;
    wire                start2read  ;
    wire                write2rack  ;
    wire                read2sack   ;
    wire                rack2stop   ;
    wire                sack2stop   ;
    wire                rack2idle   ;
    wire                sack2idle   ;
    wire                stop2idle   ;

//状态机
    always @(posedge clk or negedge rst_n) begin
        if (rst_n==0) begin
            state_c <= IDLE ;
        end
        else begin
            state_c <= state_n;
       end
    end

    always @(*) begin
        case(state_c)
            IDLE :begin
                if(idle2start)
                    state_n = START ;
                else if(idle2write)
                    state_n = WRITE ;
                else if(idle2read)
                    state_n = READ ;
                else
                    state_n = state_c ;
            end
            START :begin
                if(start2write)
                    state_n = WRITE ;
                else if(start2read)
                    state_n = READ ;
                else
                    state_n = state_c ;
            end
            WRITE :begin
                if(write2rack)
                    state_n = RACK ;
                else
                    state_n = state_c ;
            end
            RACK :begin
                if(rack2stop)
                    state_n = STOP ;
                else if(rack2idle)
                    state_n = IDLE ;
                else
                    state_n = state_c ;
            end
            READ :begin
                if(read2sack)
                    state_n = SACK ;
                else
                    state_n = state_c ;
            end
            SACK :begin
                if(sack2stop)
                    state_n = STOP ;
                else if(sack2idle)
                    state_n = IDLE ;
                else
                    state_n = state_c ;
            end
            STOP :begin
                if(stop2idle)
                    state_n = IDLE ;
                else
                    state_n = state_c ;
            end
            default : state_n = IDLE ;
        endcase
    end

    assign idle2start  = state_c==IDLE  && (req && (cmd&`CMD_START));
    assign idle2write  = state_c==IDLE  && (req && (cmd&`CMD_WRITE));
    assign idle2read   = state_c==IDLE  && (req && (cmd&`CMD_READ ));
    assign start2write = state_c==START && (end_cnt_bit && (command&`CMD_WRITE));
    assign start2read  = state_c==START && (end_cnt_bit && (command&`CMD_READ ));
    assign write2rack  = state_c==WRITE && (end_cnt_bit);
    assign read2sack   = state_c==READ  && (end_cnt_bit);
    assign rack2stop   = state_c==RACK  && (end_cnt_bit && (command&`CMD_STOP ));
    assign sack2stop   = state_c==SACK  && (end_cnt_bit && (command&`CMD_STOP ));
    assign rack2idle   = state_c==RACK  && (end_cnt_bit && (command&`CMD_STOP ) == 0);
    assign sack2idle   = state_c==SACK  && (end_cnt_bit && (command&`CMD_STOP ) == 0);
    assign stop2idle   = state_c==STOP  && (end_cnt_bit );

//计数器
    always @(posedge clk or negedge rst_n) begin
        if (rst_n==0) begin
            cnt_scl <= 0;
        end
        else if(add_cnt_scl) begin
            if(end_cnt_scl)
                cnt_scl <= 0;
            else
                cnt_scl <= cnt_scl+1 ;
       end
    end
    assign add_cnt_scl = (state_c != IDLE);
    assign end_cnt_scl = add_cnt_scl  && cnt_scl == (`SCL_PERIOD)-1 ;

always @(posedge clk or negedge rst_n) begin
        if (rst_n==0) begin
            cnt_bit <= 0;
        end
        else if(add_cnt_bit) begin
            if(end_cnt_bit)
                cnt_bit <= 0;
            else
                cnt_bit <= cnt_bit+1 ;
       end
    end
    assign add_cnt_bit = (end_cnt_scl);
    assign end_cnt_bit = add_cnt_bit  && cnt_bit == (bit_num)-1 ;

always  @(*)begin
        if(state_c == WRITE | state_c == READ) begin
            bit_num = 8;
        end
        else begin
            bit_num = 1;
        end
    end
//command
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            command <= 0;
        end
        else if(req)begin
            command <= cmd;
        end
    end

//tx_data
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            tx_data <= 0;
        end
        else if(req)begin
            tx_data <= din;
        end
    end

//scl
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            scl <= 1'b1;
        end
        else if(idle2start | idle2write | idle2read)begin//开始发送时，拉低
            scl <= 1'b0;
        end
        else if(add_cnt_scl && cnt_scl == `SCL_HALF-1)begin
            scl <= 1'b1;
        end
        else if(end_cnt_scl && ~stop2idle)begin
            scl <= 1'b0;
        end
    end

//sda_out
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            sda_out <= 1'b1;
        end
        else if(state_c == START)begin          //发起始位
            if(cnt_scl == `LOW_HLAF)begin       //时钟低电平时拉高sda总线
                sda_out <= 1'b1;
            end
            else if(cnt_scl == `HIGH_HALF)begin    //时钟高电平时拉低sda总线
                sda_out <= 1'b0;                //保证从机能检测到起始位
            end
        end
        else if(state_c == WRITE && cnt_scl == `LOW_HLAF)begin  //scl低电平时发送数据   并串转换
            sda_out <= tx_data[7-cnt_bit];
        end
        else if(state_c == SACK && cnt_scl == `LOW_HLAF)begin  //发应答位
            sda_out <= (command&`CMD_STOP)?1'b1:1'b0;
        end
        else if(state_c == STOP)begin //发停止位
            if(cnt_scl == `LOW_HLAF)begin       //时钟低电平时拉低sda总线
                sda_out <= 1'b0;
            end
            else if(cnt_scl == `HIGH_HALF)begin    //时钟高电平时拉高sda总线
                sda_out <= 1'b1;                //保证从机能检测到停止位
            end
        end
    end

//sda_out_en  总线输出数据使能
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            sda_out_en <= 1'b0;
        end
        else if(idle2start | idle2write | read2sack | rack2stop)begin
            sda_out_en <= 1'b1;
        end
        else if(idle2read | start2read | write2rack | stop2idle)begin
            sda_out_en <= 1'b0;
        end
    end

//rx_data       接收读入的数据
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            rx_data <= 0;
        end
        else if(state_c == READ && cnt_scl == `HIGH_HALF)begin
            rx_data[7-cnt_bit] <= i2c_sda_i;    //串并转换
        end
    end

//rx_ack
    always  @(posedge clk or negedge rst_n)begin
        if(~rst_n)begin
            rx_ack <= 1'b1;
        end
        else if(state_c == RACK && cnt_scl == `HIGH_HALF)begin
            rx_ack <= i2c_sda_i;
        end
    end

//输出信号

assign i2c_scl    = scl         ;
    assign i2c_sda_o  = sda_out     ;
    assign i2c_sda_oe = sda_out_en  ;

    assign dout = rx_data;
    assign done = rack2idle | sack2idle | stop2idle;
    assign slave_ack = rx_ack;

endmodule
