Linux clock子系统【3】-i2c控制器打开时钟的流程分析(devm_clk_get)(consumer侧)前言一、硬件流程图二、晶振设备树描述三、 I2CX时钟设备树描述四、驱动中获得/使能时钟参考

92 阅读 0 评论 61 点赞

我是靠谱客的博主长情书本，这篇文章主要介绍Linux clock子系统【3】-i2c控制器打开时钟的流程分析(devm_clk_get)(consumer侧)前言一、硬件流程图二、晶振设备树描述三、 I2CX时钟设备树描述四、驱动中获得/使能时钟参考，现在分享给大家，希望可以做个参考。

文章目录

前言
一、硬件流程图
二、晶振设备树描述
三、 I2CX时钟设备树描述
四、驱动中获得/使能时钟
- 4.1 流程源码分析
- - 4.1.1 devm_clk_get(struct device *dev, const char *id)
  - 4.1.2 of_clk_add_provider（注册 of_clock_provider）
  - 4.1.3 of_parse_phandle_with_args函数详解
  - - 4.1.3.1 源码分析
    - 4.1.3.2 驱动demo
- 4.2 clk_prepare_enable 函数详解
- - 4.2.1 enable = clk_gate2_enable
参考

前言

i2c控制器获取时钟的流程分析

一、硬件流程图

示例：pandas 是基于NumPy 的一种工具，该工具是为了解决数据分析任务而创建的。
简化如下：
在这里插入图片描述

二、晶振设备树描述

先来看看晶振("Clock providers")

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
osc: clock@1 {
	compatible = "fixed-clock";
	reg = <1>;
	#clock-cells = <0>;
	clock-frequency = <24000000>;
	clock-output-names = "osc";
};
/*根据compatible可以找到对应的驱动，驱动程序将晶振的频率记录下来，以后作为计算的基准。*/

/*然后再是PLL的设备节点*/
clks: ccm@020c4000 {
	compatible = "fsl,imx6ul-ccm";
	reg = <0x020c4000 0x4000>;
	interrupts = <GIC_SPI 87 IRQ_TYPE_LEVEL_HIGH>,
		     <GIC_SPI 88 IRQ_TYPE_LEVEL_HIGH>;
	#clock-cells = <1>;
	clocks = <&ckil>, <&osc>, <&ipp_di0>, <&ipp_di1>;
	clock-names = "ckil", "osc", "ipp_di0", "ipp_di1";
};
/*设备节点本身非常简单，复杂的是它对应的驱动程序。在驱动程序里面，肯定会根据reg获得寄存器的地址，然后设置各种内容*/
/*我们可以为它们配上一个ID。在设备树中的#clock-cells = <1>;表示 用多少个u32位来描述消费者。在本例中使用一个u32来描述。*/

大部分的芯片为了省电，它的外部模块时钟平时都是关闭的，只有在使用某个模块时，才设置相应的寄存器开启对应的时钟。
这些使用者各有不同，要怎么描述这些使用者呢？

我们可以为它们配上一个ID。在设备树中的#clock-cells = <1>;表示用多少个u32位来描述消费者。在本例中使用一个u32来描述。

这些ID值由谁提供的？

是由驱动程序提供的，该节点会对应一个驱动程序，驱动程序给硬件(消费者)都分配了一个ID，所以说复杂的操作都留给驱动程序来做。

三、 I2CX时钟设备树描述

消费者(“Clock consumers”)想使用时钟时，首先要找到时钟的直接提供者，向它发出申请。以I2C控制器为例：

复制代码

1
2
3
4
5
6
7
8
9
10
	i2c1: i2c@021a0000 {
		#address-cells = <1>;
		#size-cells = <0>;
		compatible = "fsl,imx6ul-i2c", "fsl,imx21-i2c";
		reg = <0x021a0000 0x4000>;
		interrupts = <GIC_SPI 36 IRQ_TYPE_LEVEL_HIGH>;
		clocks = <&clks IMX6UL_CLK_I2C1>;
		status = "disabled";
	};

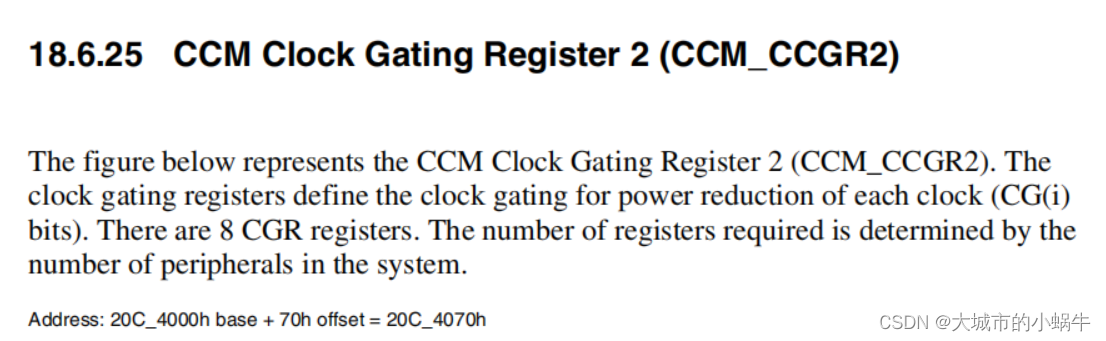

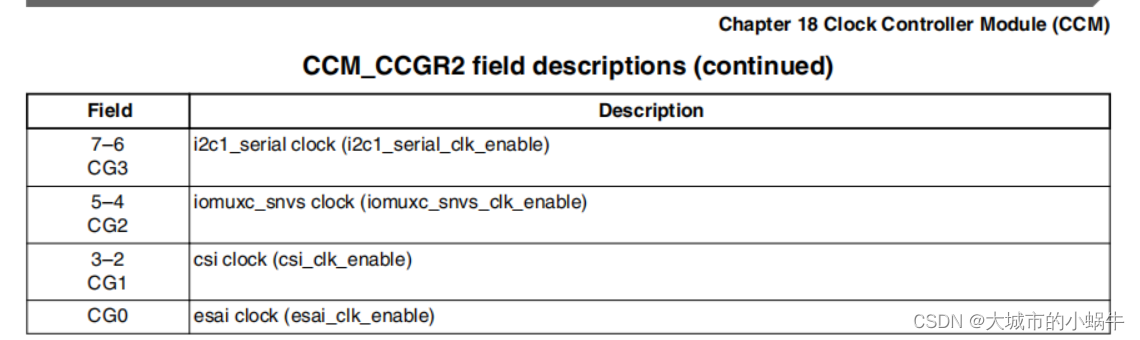

在clock属性里，首先要确定向谁发出时钟申请，这里是向clocks发出申请，然后确定想要时钟提供者提供哪一路时钟，这里是IMX6UL_CLK_I2C1，在驱动程序里定义了该宏，每种宏对应了一个时钟ID。
在这里插入图片描述
因此，我们只需要在设备节点定义clocks这个属性，这个属性确定时钟提供者，然后确定时钟ID，也就是向时钟提供者申请哪一路时钟。

那么我这个设备驱动程序，怎么去使用这些时钟呢？以前的驱动程序：clk_get(NULL, "name");clk_prepare_enable(clk)；现在的驱动程序：of_clk_get(node, 0); clk_prepare_enable(clk)；

四、驱动中获得/使能时钟

4.1 流程源码分析

4.1.1 devm_clk_get(struct device dev, const char id)

我们在设备驱动代码中仅使用以下两个api即打开了对应的时钟

复制代码

/* Get I2C clock */
i2c_imx->clk = devm_clk_get(&pdev->dev, NULL);
if (IS_ERR(i2c_imx->clk)) {
	dev_err(&pdev->dev, "can't get I2C clockn");
	return PTR_ERR(i2c_imx->clk);
}

ret = clk_prepare_enable(i2c_imx->clk);
if (ret) {
	dev_err(&pdev->dev, "can't enable I2C clockn");
	return ret;
}
drivers/clk/clk-devres.c(
	struct clk *devm_clk_get(struct device *dev, const char *id)
	{
		struct clk **ptr, *clk;

		ptr = devres_alloc(devm_clk_release, sizeof(*ptr), GFP_KERNEL);
		if (!ptr)
			return ERR_PTR(-ENOMEM);

		clk = clk_get(dev, id);
		if (!IS_ERR(clk)) {
			*ptr = clk;
			devres_add(dev, ptr);
		} else {
			devres_free(ptr);
		}
		return clk;
	}
)

struct clk *clk_get(struct device *dev, const char *con_id)
{
	const char *dev_id = dev ? dev_name(dev) : NULL;
	struct clk *clk;
	/*dev_id为设备的名称，对应设备树节点的 21a0000.i2c（dev.of_node->name）*/
	/*con_id为“clock-names”*/
	pr_info("[%s]_%snn",__FUNCTION__,dev_id);/*[clk_get]_21a0000.i2c*/
	if (dev) {
		clk = __of_clk_get_by_name(dev->of_node, dev_id, con_id);
		if (!IS_ERR(clk) || PTR_ERR(clk) == -EPROBE_DEFER)
			return clk;
	}

return clk_get_sys(dev_id, con_id);
}

static struct clk *__of_clk_get_by_name(struct device_node *np,
					const char *dev_id,
					const char *name)
{
	struct clk *clk = ERR_PTR(-ENOENT);

/* Walk up the tree of devices looking for a clock that matches */
	while (np) {
		int index = 0;

/*
		 * For named clocks, first look up the name in the
		 * "clock-names" property.  If it cannot be found, then
		 * index will be an error code, and of_clk_get() will fail.
		 */
		if (name)
			index = of_property_match_string(np, "clock-names", name);
		clk = __of_clk_get(np, index, dev_id, name);
		if (!IS_ERR(clk)) {
			break;
		} else if (name && index >= 0) {
			if (PTR_ERR(clk) != -EPROBE_DEFER)
				pr_err("ERROR: could not get clock %s:%s(%i)n",
					np->full_name, name ? name : "", index);
			return clk;
		}
		/*
		 * No matching clock found on this node.  If the parent node
		 * has a "clock-ranges" property, then we can try one of its
		 * clocks.
		 */
		np = np->parent;
		if (np && !of_get_property(np, "clock-ranges", NULL))
			break;
	}
	return clk;
}
/*of_property_match_string查找ext_clock是否在clock-names的属性中，我们从设备树中看出 clock-names的属性值为“ext_clock”,结果返回0，即index为0*/
/*它代表的是属性值的编号。

比如clock-names=“ext_clock”,"xxxx";

其中index 0为“ext_clock， index 1 为“xxxx”*/

static struct clk *__of_clk_get(struct device_node *np, int index,
			       const char *dev_id, const char *con_id)
{
	struct of_phandle_args clkspec;
	struct clk *clk;
	int rc;

if (index < 0)
		return ERR_PTR(-EINVAL);
	/*
		struct of_phandle_args {
	    struct device_node *np;   //引用到的节点
	    int args_count;   //参数数量
	    uint32_t args[MAX_PHANDLE_ARGS];参数
	};*/
	/*clocks = <&clks IMX6UL_CLK_I2C1>;*/
	/*clkspec->np=(ccm)(&clks),clkspec->args_count=1,clkspec->args=IMX6UL_CLK_I2C1*/
	rc = of_parse_phandle_with_args(np, "clocks", "#clock-cells", index,
					&clkspec);
	if (rc)
		return ERR_PTR(rc);
	clk = __of_clk_get_from_provider(&clkspec, dev_id, con_id);
	of_node_put(clkspec.np);
	return clk;
}
/*这个 of_parse_phandle_with_args很重要，为什么说很重要，很多人在学习设备设备树的时候不知道clocks = <&clks 156>;这个尖括号里面代表的意思*/

/*struct of_phandle_args clkspec;
struct of_phandle_args {
    struct device_node *np;   //引用到的节点
    int args_count;   //参数数量
    uint32_t args[MAX_PHANDLE_ARGS];参数
};
这个参数很重要，我们暂且记住，后面时钟用到了再说*/
/* __of_clk_get_from_provider(&clkspec, "21a0000.i2c", NULL, true);*/
 __of_clk_get_from_provider(&clkspec, dev_id, con_id, true);

 drivers/clk/clk.c(
	struct clk *__of_clk_get_from_provider(struct of_phandle_args *clkspec,
			       const char *dev_id, const char *con_id){
	struct of_clk_provider *provider;
	struct clk *clk = ERR_PTR(-EPROBE_DEFER);

if (!clkspec)
		return ERR_PTR(-EINVAL);
	/* Check if we have such a provider in our array */
	mutex_lock(&of_clk_mutex);
	list_for_each_entry(provider, &of_clk_providers, link) {
		if (provider->node == clkspec->np)/*ccm@020c4000*/
		/*clks[IMX6UL_CLK_I2C1]		= imx_clk_gate2("i2c1",		"perclk",	base + 0x70,	6);/*以i2c为例*/*/
		/*struct clk_hw *__clk_get_hw(struct clk *clk)*/
			clk = provider->get(clkspec, provider->data);(IMX6UL_CLK_I2C1,clks[])(获取时钟提供者)
		if (!IS_ERR(clk)) {
			/*从clk[]获取消费者时钟*/
			/*Linux clock子系统【5】-从imx_clk_mux解析多路复用时钟时钟驱动(provider侧)分析（__clk_create_clk）*/
			clk = __clk_create_clk(__clk_get_hw(clk), dev_id,
					       con_id);

			if (!IS_ERR(clk) && !__clk_get(clk)) {
				__clk_free_clk(clk);
				clk = ERR_PTR(-ENOENT);
			}
			break;
		}
	}
	mutex_unlock(&of_clk_mutex);
	return clk;
	}
)
/*遍历of_clk_providers链表,获得struct of_clk_provider *provider;这结构体是用来干嘛的*/
/**
 * struct of_clk_provider - Clock provider registration structure
 * @link: Entry in global list of clock providers
 * @node: Pointer to device tree node of clock provider
 * @get: Get clock callback.  Returns NULL or a struct clk for the
 *       given clock specifier
 * @data: context pointer to be passed into @get callback
 */
struct of_clk_provider {
	struct list_head link;

struct device_node *node;
	struct clk *(*get)(struct of_phandle_args *clkspec, void *data);
	void *data;
};
/*重点，函数指针，获得clk结构体的函数，分析到现在，终于知道了clk是怎么来的*/
struct clk_hw *__clk_get_hw(struct clk *clk)
{
	return !clk ? NULL : clk->core->hw;(这个是怎么来的有什么作用)
}

struct clk *__clk_create_clk(struct clk_hw *hw, const char *dev_id,
			     const char *con_id)
{
	struct clk *clk;

/* This is to allow this function to be chained to others */
	if (!hw || IS_ERR(hw))
		return (struct clk *) hw;

clk = kzalloc(sizeof(*clk), GFP_KERNEL);
	if (!clk)
		return ERR_PTR(-ENOMEM);

clk->core = hw->core;
	clk->dev_id = dev_id;
	clk->con_id = con_id;
	clk->max_rate = ULONG_MAX;

clk_prepare_lock();
	hlist_add_head(&clk->clks_node, &hw->core->clks);
	clk_prepare_unlock();

return clk;
}
