十进制数和有符号二进制定点小数转换MATLAB代码

我是在做一个FPGA的比赛时写的该MATLAB代码，原因是在FPGA中遇到了很多定点小数的运算，手动变换格式过于繁琐，因此通过代码解决。

一、十进制转二进制：

clc;
clear;

integer = 4; %整数位数
decimal = 14; %小数位数

sum_before_point = 0;
sum_after_point = 0;
sum = 0;
before_point_arr = zeros(1, integer + 1);
after_point_arr = zeros(1, decimal);

while (1)
    prompt = 'What is the deciaml value? ';
    num = input(prompt);
    lenrth_data = length(num);
    %------------------------------%
    if (num < 0)
        before_point_arr(integer + 1) = 1;
        num = abs(num);
        flag = 1;
    else
        before_point_arr(integer + 1) = 0;
        flag = 0;
    end

    %------------------------------%
    before_point = fix(num);

    for i = 1:integer
        before_point_arr(i) = mod(before_point, 2);
        before_point = fix(before_point / 2);
        if (before_point <= 1)
            before_point_arr(i + 1) = before_point;
            break;
        end
    end

    %------------------------------%
    after_point = num - fix(num);
    for j = 1:decimal
        after_point_arr(j) = fix(after_point * 2);
        after_point = after_point * 2;
        if (after_point >= 1)
            after_point = after_point - 1;
        end
    end
    %------------------------------%
    if (flag == 1)
        for i = 1:integer
            switch (before_point_arr(i))
                case 0
                    before_point_arr(i) = 1;
                case 1
                    before_point_arr(i) = 0;
            end
        end
        for k = 1:integer
            before_point_arr(k) = before_point_arr(k) + 1;
            if (before_point_arr(k) == 1)
                break;
            else if(before_point_arr(k) == 2)
                before_point_arr(k) = 0;
                end
            end
        end
        for j = 1:decimal
            switch (after_point_arr(j))
                case 0
                    after_point_arr(j) = 1;
                case 1
                    after_point_arr(j) = 0;
            end
        end
    end
    %------------------------------%
    if (flag == 1)
        fprintf('%d', 1);
    else if(flag == 0)
        fprintf('%d', 0);
        end
    end
    for i = 1:integer
        fprintf('%d', before_point_arr(integer + 1 - i));
    end
    for j = 1:decimal
        fprintf('%d', after_point_arr(j));
    end
    fprintf('n');a
    %------------------------------%
    before_point_arr = 0;
    after_point_arr = 0;
    flag = 0;
end

说明：输出的二进制定点小数最高位（最左边一位）为符号位。

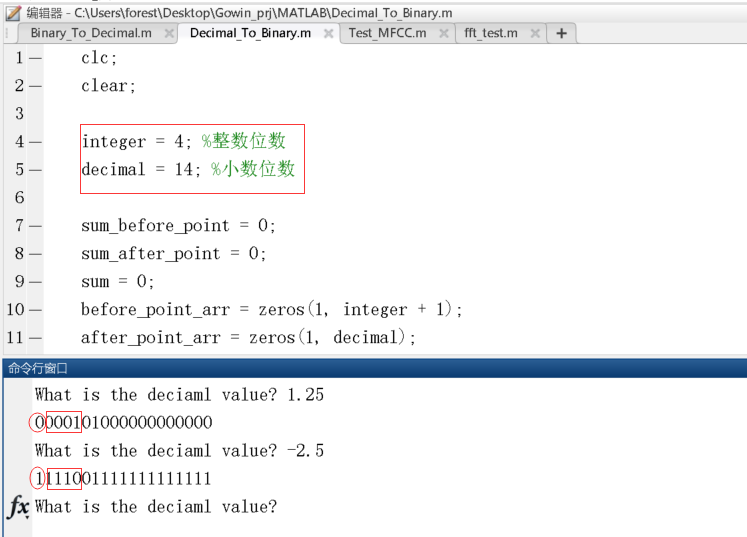

如上图所示，直接输入十进制数即可，输出结果为一串连续的0和1，圆圈处为最高位符号位，因为我定的是四位整数位，所以终端方框处为整数位,所以总二进制位数为1+4+14=19位。

二、二进制转十进制

clc;
clear;
format long g;

%正数原码位数限制integer + decimal < 23，负数补码位数限制integer + decimal < 16
integer = 1; %整数位数
decimal = 21; %小数位数

sum_before_point = 0;
sum_after_point = 0;
sum = 0;

while (1)
    prompt = 'What is the binary value? ';
    num = input(prompt);
    lenrth_data = length(num);

    before_point_arr = zeros(1, integer + 1);
    after_point_arr = zeros(1, decimal);

    %------------------------------%
    tempt = num;
    z = 10.^decimal;
    tempt = tempt / z;

    for i = 1:integer + 1
        before_point_arr(i) = fix(mod(tempt, 10));
        tempt = tempt / 10;
    end

    if (before_point_arr(integer + 1) == 1)
        flag = 1;
    else
        flag = 0;
    end

    %------------------------------%
    if(mod(decimal, 2))
        odd = 1;
    else
        odd = 0;
    end

    if(odd)
        x = (decimal - 1) / 2;
        y = (decimal + 1) / 2;
        z = 10.^x;

        tempt = fix(mod(num, z));
        for j = 1:x
            after_point_arr(j) = fix(mod(tempt, 10));
            tempt = tempt / 10;
        end
        tempt = num / z;
        for j = y:decimal
            after_point_arr(j) = fix(mod(tempt, 10));
            tempt = tempt / 10;
        end
    else
        x = decimal / 2;
        y = x + 1;
        z = 10.^x;

        tempt = mod(fix(num), z);
        for j = 1:x
            after_point_arr(j) = mod(fix(tempt), 10);
            tempt = tempt / 10;
        end
        tempt = num / z;
        for j = y:decimal
            after_point_arr(j) = mod(fix(tempt), 10);
            tempt = tempt / 10;
        end
    end

    %------------------------------%
    if (flag == 1)
        for i = 1:integer
            switch (after_point_arr(i))
                case 0
                    before_point_arr(i) = 1;
                case 1
                    before_point_arr(i) = 0;
            end
        end

        for k = 1:integer
            before_point_arr(k) = before_point_arr(k) + 1;
            if (before_point_arr(k) == 1)
                break;
            else if (before_point_arr(k) == 2)
                before_point_arr(k) = 0;
                end
            end
        end

        for j = 1:decimal
            switch (after_point_arr(j))
                case 0
                    after_point_arr(j) = 1;
                case 1
                    after_point_arr(j) = 0;
            end
        end
    end

    %------------------------------%
    for i = 1:integer
        sum_before_point = sum_before_point + before_point_arr(i) * 2.^(i - 1);
    end

    for j = 1:decimal
        sum_after_point = sum_after_point + after_point_arr(j) * 2.^(j - decimal - 1);
    end

    sum = sum_before_point + sum_after_point;

    if (flag == 1)
        sum = -sum;
    end

    %------------------------------%
    disp(sum);

    flag = 0;
    sum = 0;
    sum_before_point = 0;
    sum_after_point = 0;
    before_point_arr = 0;
    after_point_arr = 0;
end

说明：因为MATLAB取模函数mod有位数限制，所以输入的二进制位数也有限制，

如上图所示，输入时直接输入一串二进制0和1，但是注意输入正数和负数的位数限制。
