高德地图同时显示多个弹窗及根据经纬度画线

71 阅读 0 评论 47 点赞

我是靠谱客的博主伶俐百褶裙，最近开发中收集的这篇文章主要介绍高德地图同时显示多个弹窗及根据经纬度画线，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

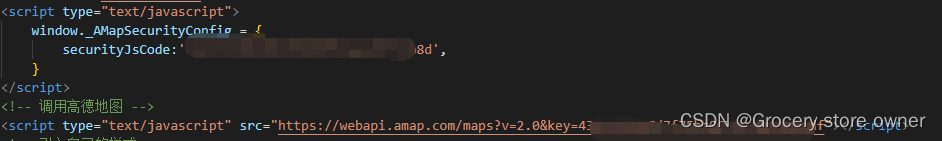

使用前需要创建应用获取key值以及密钥
在这里插入图片描述

带尺寸的图片: 在这里插入图片描述

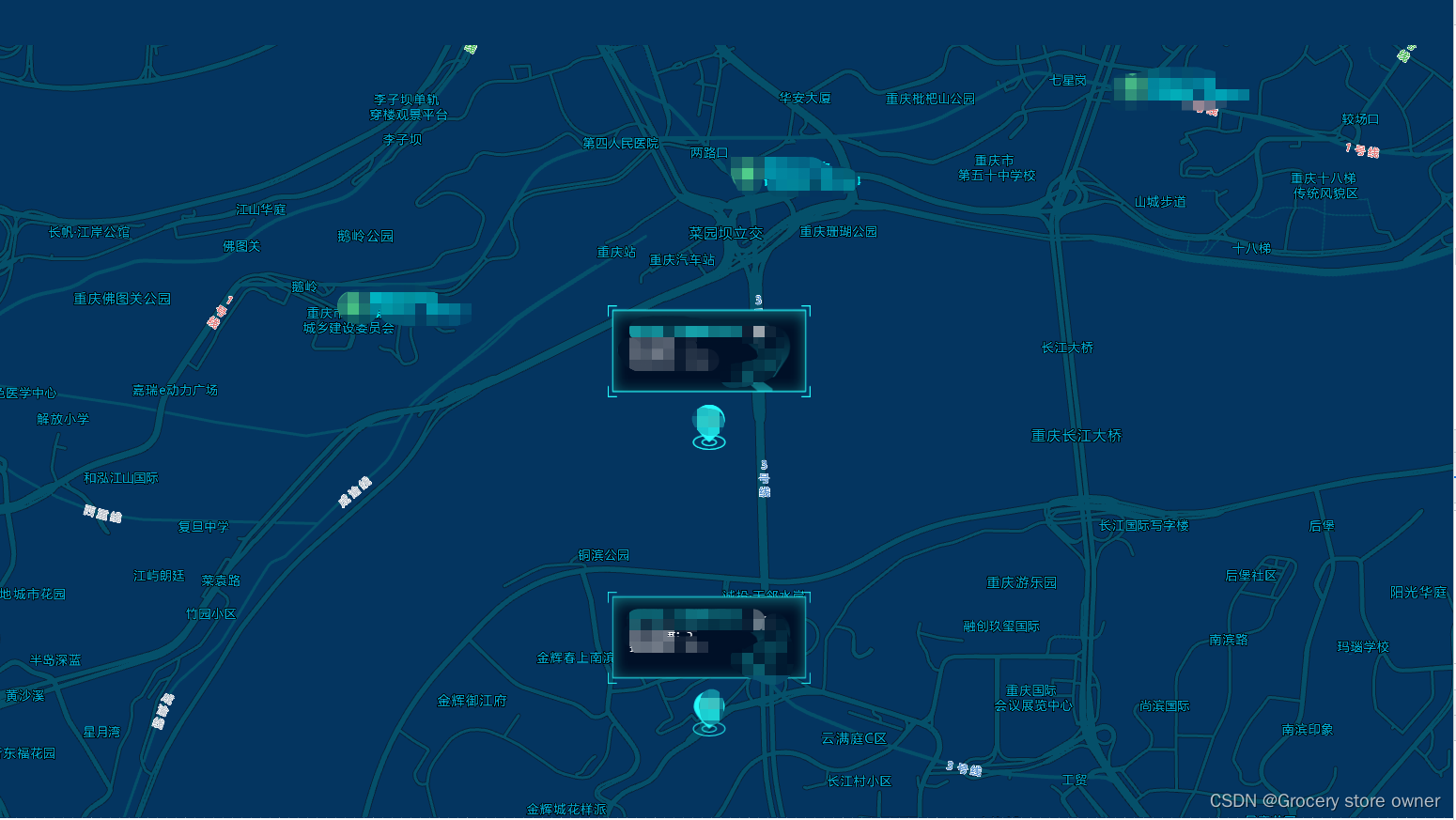

效果图
图片:

 getBaiduMap() {
                var map = new AMap.Map("tobacco-screen",{
                    zoom: 15, //设置地图的缩放级别
                    center: [106.521392, 29.573258],//中心点坐标
                });
                map.setMapStyle('amap://styles/2288f01aa0d80155004dfd82a99eefaa');

                var data=[
                    {x:106.521392,y:29.573258,name:'名称1',anjian:'案件1',zhifa:'执法1'},
                    {x:106.54852,y:29.534435,name:'名称2',anjian:'案件2',zhifa:'执法2'},
                ]
                data.forEach((item)=>{
                    var startIcon = new AMap.Icon({
                        // 图标尺寸
                        size: new AMap.Size(48, 48),
                        // 图标的取图地址
                        image: "../img/Law.png",
                        // 图标所用图片大小
                        imageSize: new AMap.Size(48, 48),
                        // 图标取图偏移量
                        imageOffset: new AMap.Pixel(0, 0)
                      });
                    var markers = [
                    {
                        icon: startIcon,
                        position: [item.x, item.y],
                        content: `
                            <div class="map-box">
                                <div class="prop-box">
                                    <div class="map-text-name">${item.name}
                                        <img class="camera" id="camera" src="../img/camera.png">
                                    </div>
                                    <div class="map-num">${item.anjian}</div>
                                    <div class="time-long">${item.zhifa}H</div>
                                </div>
                                <img class="bgcimg" src="../img/3154Bgc.png">
                            </div>
                            `,
                        // extData:{
                        //    id:"阿撒旦法师打发是打发阿斯顿发生"
                        // }

                    },
                    ];
                    var that=this
                    // 添加一些分布不均的点到地图上,地图上添加三个点标记，作为参照
                    markers.forEach(function(marker1) {
                        var marker =new AMap.Marker({
                        map: map,
                        icon: marker1.icon,
                        position: [marker1.position[0], marker1.position[1]],
                        offset: new AMap.Pixel(0, 0),
                        label: { content: `
                            <div class="map-box">
                                <div class="prop-box">
                                    <div class="map-text-name">${item.name}
                                        <img class="camera" id="camera" src="../img/camera.png">
                                    </div>
                                    <div class="map-num">${item.anjian}</div>
                                    <div class="time-long">${item.zhifa}H</div>
                                </div>
                                <img class="bgcimg" src="../img/3154Bgc.png">
                            </div>
                            `,
                        direction: 'left' //文本标注方位 可选值：'top'|'right'|'bottom'|'left'|'center'，默认值: 'right'
                        }

                        // content:marker.content
                        });
                        //点击事件
                        marker.on('click', (e)=>{
                            console.log(e);
                        });
                        //添加点击事件
                        marker.setExtData(marker1.extData)//添加marker 的自定义属性
                    });
                })

            },

弹窗样式

/* 地图弹窗 */
.map-box {
    top: -127px;
    left: -78px;
    display: block !important;
    position: relative;
    width: 216px !important;
    height: 98px !important;
    position: absolute;
}

.map-box>img {
    position: absolute;
    top: 0;
    left: 0px;
    width: 216px !important;
    height: 98px !important;
}

.map-box .prop-box {
    margin: 20px 0 0 24px;
    z-index: 99 !important;
    position: absolute;
}

.map-box .prop-box .map-text-name {
    position: relative;
    font-size: 1.4rem;
    font-family: Segoe UI-Bold, Segoe UI;
    font-weight: bold;
    color: #26FFFF;
}

.map-box .prop-box .map-text-name .camera {
    cursor: pointer;
    width: 23px !important;
    height: 23px !important;
    vertical-align: middle;
    position: absolute;
    right: -30px;
    top: -1px;
}

.map-box .prop-box .time-long {
    color: #FFFFFF;
    display: block !important;
}

.map-box .map-num {
    margin-top: 3px;
    font-size: 1.2rem;
    font-family: Segoe UI-Regular, Segoe UI;
    font-weight: 400;
    color: #FFFFFF;
}
.amap-marker-label{
    border: none !important;
    background-color: transparent;
}

隐藏高德地图logo

.amap-logo{
    display: none !important;
}
.amap-copyright {
    opacity:0;
}
.amap-marker-label{
    border: none !important;
    background-color: transparent;
}

高德地图使用经纬度画线

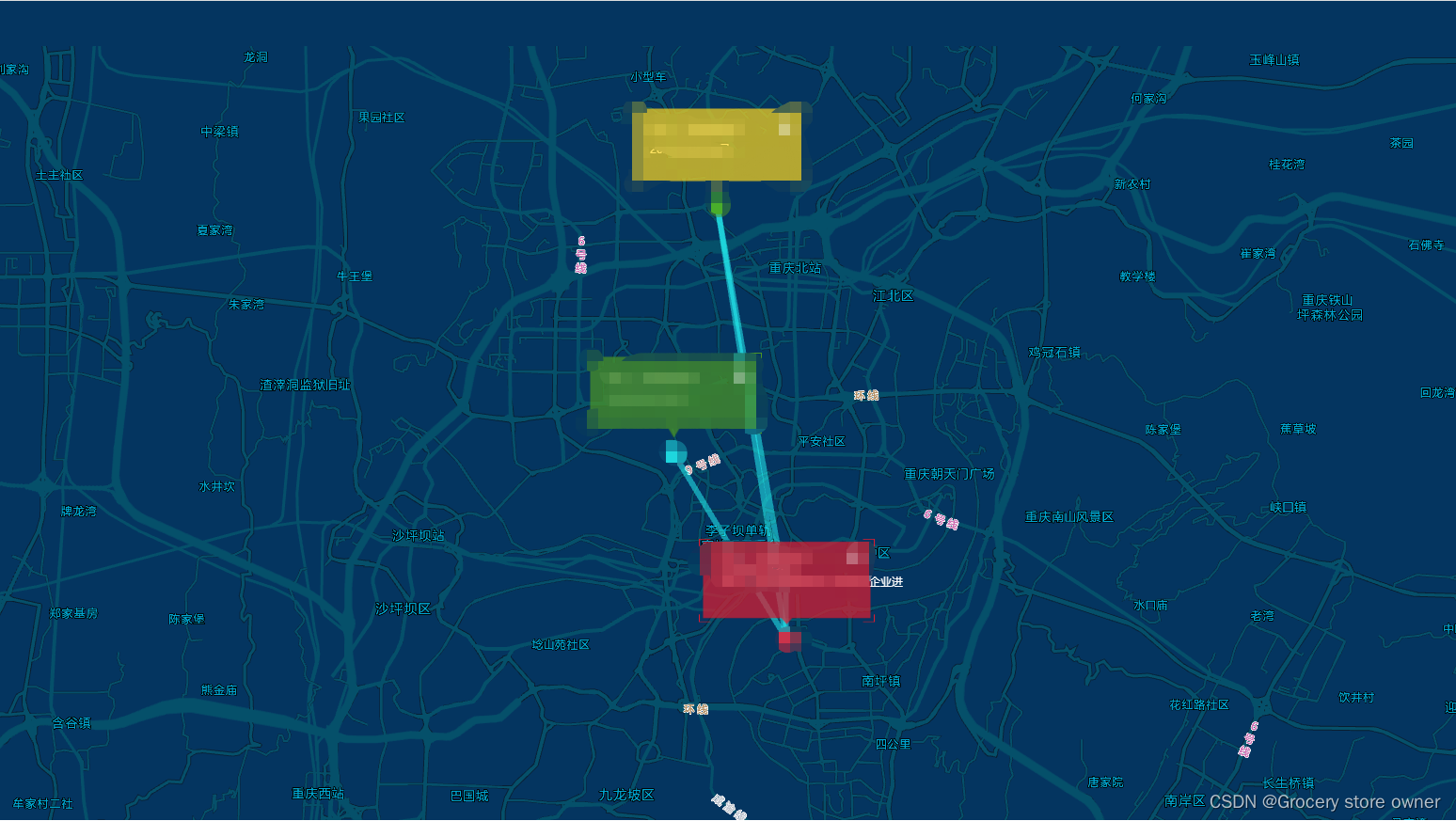

效果图
在这里插入图片描述

actionSrack(){
                var map = new AMap.Map("actionSrack",{
                    zoom: 1, //设置地图的缩放级别
                    center: [106.521392, 29.573258],//中心点坐标
                });
                map.setMapStyle('amap://styles/2288f01aa0d80155004dfd82a99eefaa');


                var positions = [[106.521392,29.573258],
                                [106.54852,29.534435],
                                [106.54852,29.543988],
                                [106.54852,29.543988],
                                [106.531991,29.625022],
                                [106.54852,29.534435]];

                var marker = new AMap.Marker({
                    map: map,
                    position: positions[0],
                    icon:new AMap.Icon({//设置图标不显示
                    image: "",
                    size: new AMap.Size(0, 0),  //图标大小
                    imageSize: new AMap.Size(0,0)
                }) ,
                    offset: new AMap.Pixel(-26, -13),
                    autoRotation: true,
                    angle:-90,
                });
                // 绘制轨迹
                var polyline = new AMap.Polyline({
                    map: map,
                    path: positions,
                    showDir: false,//是否显示箭头false/true
                    strokeColor: '#26FFFF',  //线颜色
                    strokeWeight: 6,      //线宽
                    strokeStyle: "solid"    //线样式,实线"solid"/虚线"dashed"
                });
                map.setFitView(marker);

                var data=[
                    {x:106.521392,y:29.573258,name:'名称1',anjian:'案件数量：5',zhifa:'1',image:'../img/oneguiji.png',content:`<div class="duijibgc">
                    <div class="namedian">客户：副食店</div>
                    <div class="timemonth">2020年9月26日</div>
                    <img class="redBgc" src="../img/蓝色.png">
                    <img id="cameras" class="camera" src="../img/camera.png">
                    </div>`},
                    {x:106.54852,y:29.534435,name:'名称1',anjian:'案件数量：5',zhifa:'2',image:'../img/fourguiji.png',content:`<div class="duijibgc">
                    <div class="namedianone">客户：副食店</div>
                    <div class="timemonth">2020年9月26日</div>
                    <div class="timemonth" style=" display: block ;width:14rem">商店</div>
                    <img class="redBgc" src="../img/红褐色.png">
                    <img id="camerass" class="camerass" src="../img/camera.png">
                    </div>`},
                    {x:106.531991,y:29.625022,name:'名称1',anjian:'案件数量：5',zhifa:'1',image:'../img/twoguiji.png',content:`<div class="duijibgc">
                    <div class="namedian">客户：副食店</div>
                    <div class="timemonth">2020年9月26日</div>
                    <img class="redBgc" src="../img/深lanse.png">
                    <img id="camera" class="camera" src="../img/camera.png">
                </div>
            `},


                ]
                data.forEach((item)=>{
                    var startIcon = new AMap.Icon({
                        // 图标尺寸
                        size: new AMap.Size(25, 25),
                        // 图标的取图地址
                        image: item.image,
                        // 图标所用图片大小
                        imageSize: new AMap.Size(25, 25),
                        // 图标取图偏移量
                        imageOffset: new AMap.Pixel(0, 0)
                      });
                    var markers = [
                    {
                        icon: startIcon,
                        position: [item.x, item.y],
                        content:
                        `<div class="duijibgc">
                        <div class="namedian">客户：副食店</div>
                        <div class="timemonth">2020年9月26日</div>
                        <img class="redBgc" src="../img/蓝色.png">
                        <img id="cameras" class="camera" src="../img/camera.png">
                    </div>`,

                    },
                    ];
                    var that=this
                    // 添加一些分布不均的点到地图上,地图上添加三个点标记，作为参照
                    markers.forEach(function(marker1) {
                        var marker =new AMap.Marker({
                        map: map,
                        icon: marker1.icon,
                        position: [marker1.position[0], marker1.position[1]],
                        offset: new AMap.Pixel(-10, -10),
                        label: { content:item.content,
                        direction: 'left' //文本标注方位 可选值：'top'|'right'|'bottom'|'left'|'center'，默认值: 'right'
                        }

                        // content:marker.content
                        });
                        marker.on('click', (e)=>{
                            console.log(e);
                        });
                        //添加点击事件
                        marker.setExtData(marker1.extData)//添加marker 的自定义属性
                    });
                })
            },

样式

.duijibgc {
    top: -108px;
    left: -82px;
    position: absolute;
    width: 187px !important;
    height: 91px !important;
}

.duijibgc .timemonth {
    display: block !important;
    color: #ffffff;
    margin-left: 2.6rem;
    width: 140px !important;
}

.duijibgc .redBgc {
    width: 187px;
    height: 91px;
    top: 0px;
    position: absolute;
}

.duijibgc .camera {
    position: absolute;
    top: 1.8rem;
    right: 1.5rem;
    width: 2.3rem;
    height: 2.3rem;
    cursor: pointer;
}

.duijibgc .camerass {
    position: absolute;
    top: 1rem;
    right: 1.5rem;
    width: 2.3rem;
    height: 2.3rem;
    cursor: pointer;
}
