我是靠谱客的博主 笨笨微笑，最近开发中收集的这篇文章主要介绍串口通讯以及MPAndroidchart画图的使用（kotlin）一．Kotlin串口通讯实现二．MPAndroidChart图表使用三．单个房间温度图表显示功能实现四．多个房间温度图表显示功能实现五．历史数据分析图显示功能实现，觉得挺不错的，现在分享给大家，希望可以做个参考。
概述
目录
一．Kotlin串口通讯实现... 2
1.1导入基础库... 2
1.2 效果展示... 3
1.3布局界面... 4
12.1 代码... 4
1.4 Activity实现代码... 9
13.1 实列化... 9
1.3.2 适配波特率以及获取本机串口号，进行串口监听... 9
二．MPAndroidChart图表使用... 13
2.1导入基础库... 13
2.1.1.引入开源库... 13
2.1.2在app根目录的buil.gradle文件中加入依赖... 13
2.2 LineChart曲线图... 14
2.2.1布局代码... 14
2.2.2 Activity实现代码... 14
2.3 BarChart柱状图... 23
2.3.1布局代码... 23
2.3.2 Activity实现代码... 23
2.4 曲线混合柱状图... 30
2.4.1布局代码... 30
2.4.2 Activity实现代码... 31
2.5 RadarChart雷达图... 32
2.5.1布局代码‘ 32
2.5.2 Activity实现代码... 32
2.6 PieChart饼状图... 35
2.6.1布局代码... 35
2.6.2 Activity实现代码... 35
三．单个房间温度图表显示功能实现... 36
3.1 效果展示... 36
3.2 数据库实现... 36
3.3布局代码... 36
3.4 Activity实现代码... 37
四．多个房间温度图表显示功能实现... 40
4.1 效果展示... 40
4.2布局代码... 41
4.3 Activity实现代码... 41
五．历史数据分析图显示功能实现... 46
5.1 效果展示... 47
5.2布局代码... 48
5.3 Activity实现代码... 51
一．Kotlin串口通讯实现
1.1导入基础库
1.为了方便大家。我把所有关于串口的资源打包成aar 文件，大家直接使用即可。
谷歌android串口开发 aar文件，地址如下所示：
使用过程
aar文件导入lib文件夹。
gradle文件
repositories {
flatDir {
dirs 'libs'
}
}dependencies {
implementation(name: 'serialport-1.0.1', ext: 'aar')

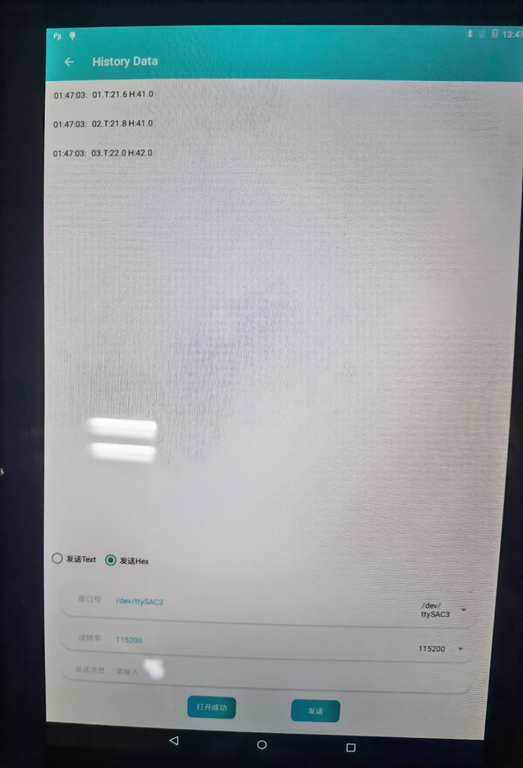

}1.2 效果展示
1.3布局界面
12.1 代码
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.appcompat.widget.Toolbar
android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
android:background="@color/shape3"
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?actionBarSize"
app:title="History Data"
app:titleTextColor="@android:color/white"
>
</androidx.appcompat.widget.Toolbar>
<FrameLayout
android:id="@+id/main_layout"
android:layout_width="match_parent"
android:layout_height="match_parent"
>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.recyclerview.widget.RecyclerView
android:id="@+id/recycler_view"
style="@style/RecyclerViewStyle"
android:layout_weight="1"/>
<RadioGroup
android:id="@+id/radioGroup"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginBottom="8dp"
android:layout_marginStart="8dp"
android:orientation="horizontal"
app:layout_constraintBottom_toTopOf="@+id/sp_bote"
app:layout_constraintStart_toStartOf="parent">
<RadioButton
android:id="@+id/radioButton1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="发送Text" />
<RadioButton
android:id="@+id/radioButton2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginLeft="10dp"
android:layout_weight="1"
android:checked="true"
android:text="发送Hex" />
</RadioGroup>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="串口号"
android:gravity="center"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:layout_weight="1"
android:id="@+id/EditText1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_serial"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:gravity="center"
android:text="波特率"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:id="@+id/EditText2"
android:layout_weight="1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_bote"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="发送消息"
android:gravity="center"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:id="@+id/SendText"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_marginLeft="14dp"
android:layout_weight="1"
android:background="@null"
android:hint="请输入"
android:textColor="@color/teal_200"
android:textSize="14sp" />
</LinearLayout>
</androidx.cardview.widget.CardView>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center"
android:layout_marginTop="20dp"
android:layout_marginBottom="25dp"
android:orientation="horizontal">
<Button
android:id="@+id/open"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="打开串口"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
<View
android:layout_width="100dp"
android:layout_height="match_parent"
>
</View>
<Button
android:id="@+id/send"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="发送"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
</LinearLayout>
</LinearLayout>
</FrameLayout>
</LinearLayout>1.4 Activity实现代码
13.1 实列化
private var serialPortFinder: SerialPortFinder? = null
private var serialHelper: SerialHelper? = null
//局部变量
private val list = ArrayList<Map<String, Any>>()
var map: Map<String, Any>? = null1.3.2 适配波特率以及获取本机串口号，进行串口监听
（1）适配器的编写
名字：SpAdapter
public class SpAdapter extends BaseAdapter {
String[] datas;
Context mContext;
public SpAdapter(Context context) {
this.mContext = context;
}
public void setDatas(String[] datas) {
this.datas = datas;
notifyDataSetChanged();
}
@Override
public int getCount() {
return datas == null ? 0 : datas.length;
}
@Override
public Object getItem(int position) {
return datas == null ? null : datas[position];
}
@Override
public long getItemId(int position) {
return position;
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
ViewHodler hodler = null;
if (convertView == null) {
hodler = new ViewHodler();
convertView = LayoutInflater.from(mContext).inflate(R.layout.item_layout, null);
hodler.mTextView = (TextView) convertView;
convertView.setTag(hodler);
} else {
hodler = (ViewHodler) convertView.getTag();
}
hodler.mTextView.setText(datas[position]);
return convertView;
}
private static class ViewHodler {
TextView mTextView;
}
}
（2）适配代码
serialPortFinder = SerialPortFinder()
//获取串口地址
val ports = serialPortFinder!!.allDevicesPath
//设置波特率地址
val botes = arrayOf(
"0",
"50",
"75",
"110",
"134",
"150",
"200",
"300",
"600",
"1200",
"1800",
"2400",
"4800",
"9600",
"19200",
"38400",
"57600",
"115200",
"230400",
"460800",
"500000",
"576000",
"921600",
"1000000",
"1152000",
"1500000",
"2000000",
"2500000",
"3000000",
"3500000",
"4000000"
)
val spAdapter = SpAdapter(this)
/*
* TODO 适配下拉列表（串口地址）
* */
spAdapter.setDatas(ports)
binding.spSerial.adapter = spAdapter
binding.spSerial.onItemSelectedListener = object : OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.port = ports[position]
binding.EditText1.setText(ports[position])
binding.open.text = "关闭串口"
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
/*
* TODO 适配下拉列表（波特率地址）
* */
val spAdapter2 = SpAdapter(this)
spAdapter2.setDatas(botes)
binding.spBote.adapter = spAdapter2
binding.spBote.onItemSelectedListener = object : OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.setBaudRate(botes[position])
binding.EditText2.setText(botes[position])
binding.open.text = "关闭串口"
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
（3）开启串口监视
serialHelper = object : SerialHelper() {
override fun onDataReceived(comBean: ComBean) {
runOnUiThread {
// Toast.makeText(
// baseContext,
// FuncUtil.ByteArrToHex(comBean.bRec),
// Toast.LENGTH_SHORT
// ).show()
/*
* TODO 将获取的数据进行列表适配
* */
map = HashMap()
(map as HashMap<String, Any>)["Value"] =comBean.sRecTime + ": " +
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec))
list.add(map as HashMap<String, Any>)
Handler(Looper.getMainLooper()).postDelayed({
/**
* 列表数据的溢处理已经适配
* */
if (list.size>12){
map = list[0]
list.remove(map)
}
initAdapter()
}, 300)
}
}
} 二．MPAndroidChart图表使用
2.1导入基础库
2.1.1.引入开源库
在项目根目录的build.gradle文件中加入如下代码
allprojects {
repositories {
maven { url "https://jitpack.io" }
}
2.1.2在app根目录的buil.gradle文件中加入依赖
根据自己的需求添加对应的库文件
主要运用到的为下列两个开源库
/*安卓项目实战之：开源框架BaseRecyclerViewAdapterHelper的使用*/
api 'com.github.CymChad:BaseRecyclerViewAdapterHelper:3.0.4'
//MPAndroidChart画图
implementation 'com.github.PhilJay:MPAndroidChart:v3.0.3'
dependencies {
//api表示对所有的module可见，如果没有在其他地方使用到版本号，则不用进行版本号的统一控制
/* *//*一个非常好用的开源库，调试Android数据库有救了*//*
debugImplementation 'com.glance.guolindev:glance:1.0.0-alpha01'*/
//使用开源的org.greenrobot.EventBus可以更好地维护事件处理
api 'org.greenrobot:eventbus:3.0.0'
//MultiDex，解决方法数超过65535限制
api 'androidx.multidex:multidex:2.0.1'
//leakcanary检测内存泄漏
debugImplementation 'com.squareup.leakcanary:leakcanary-android:2.4'
//Kotlin
implementation "org.jetbrains.kotlin:kotlin-stdlib-jdk7:$kotlin_version"
//RxJava
api 'io.reactivex.rxjava2:rxandroid:2.1.0'
api 'io.reactivex.rxjava2:rxjava:2.2.4'
//侧滑返回框架
api 'com.billy.android:smart-swipe:1.1.2'
/*android4.4以上沉浸式状态栏和导航栏实现以及Bar的其他管理*/
api 'com.gyf.immersionbar:immersionbar:3.0.0'
/*安卓项目实战之：开源框架BaseRecyclerViewAdapterHelper的使用*/
api 'com.github.CymChad:BaseRecyclerViewAdapterHelper:3.0.4'
//下拉刷新框架
api 'com.scwang.smartrefresh:SmartRefreshLayout:1.1.2'
//特殊Header
api 'com.scwang.smartrefresh:SmartRefreshHeader:1.1.2'
//MPAndroidChart画图
implementation 'com.github.PhilJay:MPAndroidChart:v3.0.3'
//底部选择器
api 'com.contrarywind:Android-PickerView:4.1.8'
}2.2 LineChart曲线图
2.2.1布局代码
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart1"
android:layout_width="match_parent"
android:layout_height="380dp"/>2.2.2 Activity实现代码
1.写一个工具类以便我们使用
文件名：DynamicLineChartManager
public class DynamicLineChartManager {
private LineChart lineChart;
private YAxis leftAxis;
private YAxis rightAxis;
private XAxis xAxis;
private LineData lineData;
private LineDataSet lineDataSet;
private List<ILineDataSet> lineDataSets = new ArrayList<>();
private SimpleDateFormat df = new SimpleDateFormat("HH:mm:ss");//设置日期格式
private List<String> timeList = new ArrayList<>(); //存储x轴的时间
//一条曲线
public DynamicLineChartManager(LineChart mLineChart, String name, int color) {
this.lineChart = mLineChart;
leftAxis = lineChart.getAxisLeft();
rightAxis = lineChart.getAxisRight();
xAxis = lineChart.getXAxis();
initLineChart();
initLineDataSet(name, color);
}
//警告曲线
public DynamicLineChartManager(LineChart mLineChart, String name, int color,float High, String warn,int warn_color) {
this.lineChart = mLineChart;
leftAxis = lineChart.getAxisLeft();
rightAxis = lineChart.getAxisRight();
xAxis = lineChart.getXAxis();
initLineChart();
initLineDataWarn(name, color,High,warn,warn_color);
}
//多条曲线
public DynamicLineChartManager(LineChart mLineChart, List<String> names, List<Integer> colors) {
this.lineChart = mLineChart;
leftAxis = lineChart.getAxisLeft();
rightAxis = lineChart.getAxisRight();
xAxis = lineChart.getXAxis();
initLineChart();
initLineDataSet(names, colors);
}
/**
* 初始化LineChar
*/
private void initLineChart() {
lineChart.setDrawGridBackground(false);
//显示边界
lineChart.setDrawBorders(true);
//折线图例 标签 设置
Legend legend = lineChart.getLegend();
legend.setForm(Legend.LegendForm.LINE);
legend.setTextSize(11f);
//显示位置
legend.setVerticalAlignment(Legend.LegendVerticalAlignment.BOTTOM);
legend.setHorizontalAlignment(Legend.LegendHorizontalAlignment.LEFT);
legend.setOrientation(Legend.LegendOrientation.HORIZONTAL);
legend.setDrawInside(false);
//X轴设置显示位置在底部
xAxis.setPosition(XAxis.XAxisPosition.BOTTOM);
xAxis.setGranularity(1f);
xAxis.setLabelCount(10);
xAxis.setValueFormatter(new IAxisValueFormatter() {
@Override
public String getFormattedValue(float value, AxisBase axis) {
return timeList.get((int) value % timeList.size());
}
});
//保证Y轴从0开始，不然会上移一点
leftAxis.setAxisMinimum(0f);
rightAxis.setAxisMinimum(0f);
}
/**
* 初始警告线化折线(一条线)
*
* @param name
* @param color
*/
private void initLineDataWarn(String name, int color,float High, String warn,int warn_color) {
lineDataSet = new LineDataSet(null, name);
lineDataSet.setLineWidth(1.5f);
lineDataSet.setCircleRadius(1.5f);
lineDataSet.setColor(color);
lineDataSet.setCircleColor(color);
lineDataSet.setHighLightColor(color);
//设置曲线填充
lineDataSet.setDrawFilled(true);
lineDataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lineDataSet.setValueTextSize(10f);
lineDataSet.setMode(LineDataSet.Mode.CUBIC_BEZIER);
//添加一个空的 LineData
lineData = new LineData();
lineChart.setData(lineData);
lineChart.invalidate();
setHightLimitLine(High,warn, warn_color);
}
/**
* 初始化折线(一条线)
*
* @param name
* @param color
*/
private void initLineDataSet(String name, int color) {
lineDataSet = new LineDataSet(null, name);
lineDataSet.setLineWidth(1.5f);
lineDataSet.setCircleRadius(1.5f);
lineDataSet.setColor(color);
lineDataSet.setCircleColor(color);
lineDataSet.setHighLightColor(color);
//设置曲线填充
lineDataSet.setDrawFilled(true);
lineDataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lineDataSet.setValueTextSize(10f);
lineDataSet.setMode(LineDataSet.Mode.CUBIC_BEZIER);
//添加一个空的 LineData
lineData = new LineData();
lineChart.setData(lineData);
lineChart.invalidate();
}
/**
* 初始化折线（多条线）
*
* @param names
* @param colors
*/
private void initLineDataSet(List<String> names, List<Integer> colors) {
for (int i = 0; i < names.size(); i++) {
lineDataSet = new LineDataSet(null, names.get(i));
lineDataSet.setColor(colors.get(i));
lineDataSet.setLineWidth(1.5f);
lineDataSet.setCircleRadius(1.5f);
lineDataSet.setColor(colors.get(i));
lineDataSet.setDrawFilled(true);
lineDataSet.setCircleColor(colors.get(i));
lineDataSet.setHighLightColor(colors.get(i));
lineDataSet.setMode(LineDataSet.Mode.CUBIC_BEZIER);
lineDataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lineDataSet.setValueTextSize(10f);
lineDataSets.add(lineDataSet);
}
//添加一个空的 LineData
lineData = new LineData();
lineChart.setData(lineData);
lineChart.invalidate();
}
/**
* 动态添加数据（一条折线图）
*
* @param number
*/
public void addEntry(Float number) {
//最开始的时候才添加 lineDataSet（一个lineDataSet 代表一条线）
if (lineDataSet.getEntryCount() == 0) {
lineData.addDataSet(lineDataSet);
}
lineChart.setData(lineData);
//避免集合数据过多，及时清空（做这样的处理，并不知道有没有用，但还是这样做了）
if (timeList.size() > 11) {
timeList.clear();
}
timeList.add(df.format(System.currentTimeMillis()));
Entry entry = new Entry(lineDataSet.getEntryCount(), number);
lineData.addEntry(entry, 0);
//通知数据已经改变
lineData.notifyDataChanged();
lineChart.notifyDataSetChanged();
//设置在曲线图中显示的最大数量
lineChart.setVisibleXRangeMaximum(10);
//移到某个位置
lineChart.moveViewToX(lineData.getEntryCount() - 5);
}
/**
* 动态添加数据（一条折线图）
*
* @param number
* @param time
* @param str
*/
public void HistoryEntry(Float number,String time,String str) {
//最开始的时候才添加 lineDataSet（一个lineDataSet 代表一条线）
if (lineDataSet.getEntryCount() == 0) {
lineData.addDataSet(lineDataSet);
}
lineChart.setData(lineData);
//避免集合数据过多，及时清空（做这样的处理，并不知道有没有用，但还是这样做了）
if (timeList.size() > 100) {
timeList.clear();
}
timeList.add(time);
Entry entry = new Entry(lineDataSet.getEntryCount(), number);
lineData.addEntry(entry, 0);
//通知数据已经改变
lineData.notifyDataChanged();
lineChart.notifyDataSetChanged();
//设置在曲线图中显示的最大数量
lineChart.setVisibleXRangeMaximum(10);
//移到某个位置
lineChart.moveViewToX(lineData.getEntryCount() - 5);
setDescription(str);
}
/**
* 动态添加数据（多条折线图）
*
* @param numbers
*/
public void addEntry(List<Float> numbers) {
if (lineDataSets.get(0).getEntryCount() == 0) {
lineData = new LineData(lineDataSets);
lineChart.setData(lineData);
}
if (timeList.size() > 11) {
timeList.clear();
}
timeList.add(df.format(System.currentTimeMillis()));
for (int i = 0; i < numbers.size(); i++) {
Entry entry = new Entry(lineDataSet.getEntryCount(), numbers.get(i));
lineData.addEntry(entry, i);
lineData.notifyDataChanged();
lineChart.notifyDataSetChanged();
lineChart.setVisibleXRangeMaximum(6);
lineChart.moveViewToX(lineData.getEntryCount() - 5);
}
}
/**
* 设置Y轴值
*
* @param max
* @param min
* @param labelCount
*/
public void setYAxis(float max, float min, int labelCount) {
if (max < min) {
return;
}
leftAxis.setAxisMaximum(max);
leftAxis.setAxisMinimum(min);
leftAxis.setLabelCount(labelCount, false);
rightAxis.setAxisMaximum(max);
rightAxis.setAxisMinimum(min);
rightAxis.setLabelCount(labelCount, false);
lineChart.invalidate();
}
/**
* 设置高限制线
*
* @param high
* @param name
*/
public void setHightLimitLine(float high, String name, int color) {
if (name == null) {
name = "高限制线";
}
LimitLine hightLimit = new LimitLine(high, name);
hightLimit.setLineWidth(4f);
hightLimit.setTextSize(10f);
hightLimit.setLineColor(color);
hightLimit.setTextColor(color);
leftAxis.addLimitLine(hightLimit);
lineChart.invalidate();
}
/**
* 设置低限制线
*
* @param low
* @param name
*/
public void setLowLimitLine(int low, String name) {
if (name == null) {
name = "低限制线";
}
LimitLine hightLimit = new LimitLine(low, name);
hightLimit.setLineWidth(4f);
hightLimit.setTextSize(10f);
leftAxis.addLimitLine(hightLimit);
lineChart.invalidate();
}
/**
* 设置描述信息
*
* @param str
*/
public void setDescription(String str) {
Description description = new Description();
description.setText(str);
description.setTextColor(Color.MAGENTA);
description.setTextSize(15);
lineChart.setDescription(description);
lineChart.invalidate();
}
}2．在activity里面使用
（1）实列化工具类
private var dynamicLineChartManager1: DynamicLineChartManager? = null
局部数据
/*
* 1.关于List在kotlin里面没有add(),clear() 方法解决办法
* 将List改变成MutableList，MutableList源码可以发现，常用的clear、addAll等方法都有定义
* 解决的办法就是将变量类型使用"MutableList"代替"List"就可以了，完整的定义如下代码：
* */
private val list: MutableList<Float> = ArrayList() //数据集合
private val names: MutableList<String> = ArrayList() //折线名字集合
private val colour: MutableList<Int> = ArrayList() //折线颜色集合（2）添加局部数据以及实现曲线
//折线名字
names.add("温度")
names.add("压强")
names.add("其他")
//折线颜色
colour.add(Color.CYAN)
colour.add(Color.GREEN)
colour.add(Color.BLUE)
//实现一条曲线
dynamicLineChartManager1 = DynamicLineChartManager(binding.dynamicChart1, names[0], colour[0])
//实现多条曲线
dynamicLineChartManager2 = DynamicLineChartManager(binding.dynamicChart2, names, colour)
（3）添加数据到曲线内
//添加一条曲线的数据
dynamicLineChartManager1?.addEntry((Math.random() * 100).toFloat())
//添加多条曲线的数据
list.add((Math.random() * 50).toFloat() + 10)
list.add((Math.random() * 80).toFloat() + 10)
list.add((Math.random() * 100).toFloat())
dynamicLineChartManager2!!.addEntry(list)
list.clear()2.3 BarChart柱状图
2.3.1布局代码
<com.github.mikephil.charting.charts.CombinedChart
android:id="@+id/chart1"
android:layout_width="match_parent"
android:layout_height="360dp"/>2.3.2 Activity实现代码
1.写一个工具类以便我们使用
类名字为：CombinedChartManager
public class CombinedChartManager {
private CombinedChart mCombinedChart;
private YAxis leftAxis;
private YAxis rightAxis;
private XAxis xAxis;
public CombinedChartManager(CombinedChart combinedChart) {
this.mCombinedChart = combinedChart;
leftAxis = mCombinedChart.getAxisLeft();
rightAxis = mCombinedChart.getAxisRight();
xAxis = mCombinedChart.getXAxis();
}
/**
* 初始化Chart
*/
private void initChart() {
//不显示描述内容
mCombinedChart.getDescription().setEnabled(false);
mCombinedChart.setDrawOrder(new CombinedChart.DrawOrder[]{
CombinedChart.DrawOrder.BAR,
CombinedChart.DrawOrder.LINE
});
mCombinedChart.setBackgroundColor(Color.WHITE);
mCombinedChart.setDrawGridBackground(false);
mCombinedChart.setDrawBarShadow(false);
mCombinedChart.setHighlightFullBarEnabled(false);
//显示边界
mCombinedChart.setDrawBorders(true);
//图例说明
Legend legend = mCombinedChart.getLegend();
legend.setWordWrapEnabled(true);
legend.setVerticalAlignment(Legend.LegendVerticalAlignment.BOTTOM);
legend.setHorizontalAlignment(Legend.LegendHorizontalAlignment.CENTER);
legend.setOrientation(Legend.LegendOrientation.HORIZONTAL);
legend.setDrawInside(false);
//Y轴设置
rightAxis.setDrawGridLines(false);
rightAxis.setAxisMinimum(0f);
leftAxis.setDrawGridLines(false);
leftAxis.setAxisMinimum(0f);
mCombinedChart.animateX(2000); // 立即执行的动画,x轴
}
/**
* 设置X轴坐标值
*
* @param xAxisValues x轴坐标集合
*/
public void setXAxis(final List<String> xAxisValues) {
//设置X轴在底部
XAxis xAxis = mCombinedChart.getXAxis();
xAxis.setPosition(XAxis.XAxisPosition.BOTTOM);
xAxis.setGranularity(1f);
xAxis.setLabelCount(xAxisValues.size() - 1,false);
xAxis.setValueFormatter(new IAxisValueFormatter() {
@Override
public String getFormattedValue(float value, AxisBase axis) {
return xAxisValues.get((int) value % xAxisValues.size());
}
});
mCombinedChart.invalidate();
}
/**
* 得到折线图(一条)
*
* @param lineChartY 折线Y轴值
* @param lineName 折线图名字
* @param lineColor 折线颜色
* @return
*/
private LineData getLineData(List<Float> lineChartY, String lineName, int lineColor) {
LineData lineData = new LineData();
ArrayList<Entry> yValue = new ArrayList<>();
for (int i = 0; i < lineChartY.size(); i++) {
yValue.add(new Entry(i, lineChartY.get(i)));
}
LineDataSet dataSet = new LineDataSet(yValue, lineName);
dataSet.setColor(lineColor);
dataSet.setCircleColor(lineColor);
dataSet.setValueTextColor(lineColor);
dataSet.setCircleSize(1);
//显示值
dataSet.setDrawValues(true);
dataSet.setValueTextSize(10f);
dataSet.setMode(LineDataSet.Mode.CUBIC_BEZIER);
dataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lineData.addDataSet(dataSet);
return lineData;
}
/**
* 得到折线图(多条)
*
* @param lineChartYs 折线Y轴值
* @param lineNames 折线图名字
* @param lineColors 折线颜色
* @return
*/
private LineData getLineData(List<List<Float>> lineChartYs, List<String> lineNames, List<Integer> lineColors) {
LineData lineData = new LineData();
for (int i = 0; i < lineChartYs.size(); i++) {
ArrayList<Entry> yValues = new ArrayList<>();
for (int j = 0; j < lineChartYs.get(i).size(); j++) {
yValues.add(new Entry(j, lineChartYs.get(i).get(j)));
}
LineDataSet dataSet = new LineDataSet(yValues, lineNames.get(i));
dataSet.setColor(lineColors.get(i));
dataSet.setCircleColor(lineColors.get(i));
dataSet.setValueTextColor(lineColors.get(i));
dataSet.setCircleSize(1);
dataSet.setDrawValues(true);
dataSet.setValueTextSize(10f);
dataSet.setMode(LineDataSet.Mode.CUBIC_BEZIER);
dataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lineData.addDataSet(dataSet);
}
return lineData;
}
/**
* 得到柱状图
*
* @param barChartY Y轴值
* @param barName 柱状图名字
* @param barColor 柱状图颜色
* @return
*/
private BarData getBarData(List<Float> barChartY, String barName, int barColor) {
BarData barData = new BarData();
ArrayList<BarEntry> yValues = new ArrayList<>();
for (int i = 0; i < barChartY.size(); i++) {
yValues.add(new BarEntry(i, barChartY.get(i)));
}
BarDataSet barDataSet = new BarDataSet(yValues, barName);
barDataSet.setColor(barColor);
barDataSet.setValueTextSize(10f);
barDataSet.setValueTextColor(barColor);
barDataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
barData.addDataSet(barDataSet);
//以下是为了解决 柱状图 左右两边只显示了一半的问题 根据实际情况 而定
xAxis.setAxisMinimum(-0.5f);
xAxis.setAxisMaximum((float) (barChartY.size()- 0.5));
return barData;
}
/**
* 得到柱状图(多条)
*
* @param barChartYs Y轴值
* @param barNames 柱状图名字
* @param barColors 柱状图颜色
* @return
*/
private BarData getBarData(List<List<Float>> barChartYs, List<String> barNames, List<Integer> barColors) {
List<IBarDataSet> lists = new ArrayList<>();
for (int i = 0; i < barChartYs.size(); i++) {
ArrayList<BarEntry> entries = new ArrayList<>();
for (int j = 0; j < barChartYs.get(i).size(); j++) {
entries.add(new BarEntry(j, barChartYs.get(i).get(j)));
}
BarDataSet barDataSet = new BarDataSet(entries, barNames.get(i));
barDataSet.setColor(barColors.get(i));
barDataSet.setValueTextColor(barColors.get(i));
barDataSet.setValueTextSize(10f);
barDataSet.setAxisDependency(YAxis.AxisDependency.LEFT);
lists.add(barDataSet);
}
BarData barData = new BarData(lists);
int amount = barChartYs.size(); //需要显示柱状图的类别 数量
float groupSpace = 0.12f; //柱状图组之间的间距
float barSpace = (float) ((1 - 0.12) / amount / 10); // x4 DataSet
float barWidth = (float) ((1 - 0.12) / amount / 10 * 9); // x4 DataSet
// (0.2 + 0.02) * 4 + 0.12 = 1.00 即100% 按照百分百布局
//柱状图宽度
barData.setBarWidth(barWidth);
//(起始点、柱状图组间距、柱状图之间间距)
barData.groupBars(0, groupSpace, barSpace);
return barData;
}
/**
* 显示混合图(柱状图+折线图)
*
* @param xAxisValues X轴坐标
* @param barChartY 柱状图Y轴值
* @param lineChartY 折线图Y轴值
* @param barName 柱状图名字
* @param lineName 折线图名字
* @param barColor 柱状图颜色
* @param lineColor 折线图颜色
*/
public void showCombinedChart(
List<String> xAxisValues, List<Float> barChartY, List<Float> lineChartY
, String barName, String lineName, int barColor, int lineColor) {
initChart();
setXAxis(xAxisValues);
CombinedData combinedData = new CombinedData();
combinedData.setData(getBarData(barChartY, barName, barColor));
combinedData.setData(getLineData(lineChartY, lineName, lineColor));
mCombinedChart.setData(combinedData);
mCombinedChart.invalidate();
}
/**
* 显示混合图(柱状图)
*
* @param xAxisValues X轴坐标
* @param barChartY 柱状图Y轴值
* @param lineChartY 折线图Y轴值
* @param barName 柱状图名字
* @param lineName 折线图名字
* @param barColor 柱状图颜色
* @param lineColor 折线图颜色
*/
public void showbinedChart(
List<String> xAxisValues, List<Float> barChartY
, String barName, int barColor) {
initChart();
setXAxis(xAxisValues);
CombinedData combinedData = new CombinedData();
combinedData.setData(getBarData(barChartY, barName, barColor));
mCombinedChart.setData(combinedData);
mCombinedChart.invalidate();
}
/**
* 显示混合图(柱状图+折线图)
*
* @param xAxisValues X轴坐标
* @param barChartYs 柱状图Y轴值
* @param lineChartYs 折线图Y轴值
* @param barNames 柱状图名字
* @param lineNames 折线图名字
* @param barColors 柱状图颜色
* @param lineColors 折线图颜色
*/
public void showCombinedChart(
List<String> xAxisValues, List<List<Float>> barChartYs, List<List<Float>> lineChartYs,
List<String> barNames, List<String> lineNames, List<Integer> barColors, List<Integer> lineColors) {
initChart();
setXAxis(xAxisValues);
CombinedData combinedData = new CombinedData();
combinedData.setData(getBarData(barChartYs, barNames, barColors));
combinedData.setData(getLineData(lineChartYs, lineNames, lineColors));
mCombinedChart.setData(combinedData);
mCombinedChart.invalidate();
}
}
2在Activity里面使用
（1）添加局部数据以及实现曲线
private fun intDate(){
//x轴数据
val xData: MutableList<String> = ArrayList()
for (i in 0..20) {
xData.add(i.toString())
}
//y轴数据集合
val yBarDatas: MutableList<List<Float>> = ArrayList()
//4种直方图
for (i in 0..3) {
//y轴数
val yData: MutableList<Float> = ArrayList()
for (j in 0..20) {
yData.add((Math.random() * 100).toFloat())
}
yBarDatas.add(yData)
}
//颜色集合
val colors: MutableList<Int> = ArrayList()
colors.add(Color.BLUE)
colors.add(Color.RED)
colors.add(Color.YELLOW)
colors.add(Color.CYAN)
//管理类
val combineChartManager1 = CombinedChartManager(binding.chart1)
combineChartManager1.showbinedChart(
xData, yBarDatas.get(0),
"直方图", colors.get(0)
)
}2.4 曲线混合柱状图
2.4.1布局代码
<com.github.mikephil.charting.charts.CombinedChart
android:id="@+id/chart1"
android:layout_width="match_parent"
android:layout_height="360dp"/>2.4.2 Activity实现代码
1..实现混合显示（工具类已经提供）
private fun intDate(){
//x轴数据
val xData: MutableList<String> = ArrayList()
for (i in 0..20) {
xData.add(i.toString())
}
//y轴数据集合
val yBarDatas: MutableList<List<Float>> = ArrayList()
//4种直方图
for (i in 0..3) {
//y轴数
val yData: MutableList<Float> = ArrayList()
for (j in 0..20) {
yData.add((Math.random() * 100).toFloat())
}
yBarDatas.add(yData)
}
//y轴数据集合
val yLineDatas: MutableList<List<Float>> = ArrayList()
//4种直方图
for (i in 0..3) {
//y轴数
val yData: MutableList<Float> = ArrayList()
for (j in 0..20) {
yData.add((Math.random() * 100).toFloat())
}
yLineDatas.add(yData)
}
//名字集合
val barNames: MutableList<String> = ArrayList()
barNames.add("直方图一")
barNames.add("直方图二")
barNames.add("直方图三")
barNames.add("直方图四")
//颜色集合
val colors: MutableList<Int> = ArrayList()
colors.add(Color.BLUE)
colors.add(Color.RED)
colors.add(Color.YELLOW)
colors.add(Color.CYAN)
//竖状图管理类
val lineNames: MutableList<String> = ArrayList()
lineNames.add("折线图一")
lineNames.add("折线图二")
lineNames.add("折线图三")
lineNames.add("折线图四")
//管理类
val combineChartManager1 = CombinedChartManager(binding.chart1)
combineChartManager1.showCombinedChart(xData, yBarDatas.get(0), yLineDatas.get(0),
"直方图", "线性图", colors.get(0), colors.get(1));
val combineChartManager2 = CombinedChartManager(binding.chart2)
combineChartManager2.showCombinedChart(
xData, yBarDatas, yLineDatas, barNames, lineNames,
colors, colors
)
}2.5 RadarChart雷达图
2.5.1布局代码‘
<com.github.mikephil.charting.charts.RadarChart
android:id="@+id/radar"
android:layout_marginTop="20dp"
android:layout_width="match_parent"
android:layout_height="300dp">2.5.2 Activity实现代码
1.实现代码
fun radar(){
val radar: RadarChart? = binding.radar
var list: MutableList<RadarEntry>? = null
var list2: MutableList<RadarEntry>? = null
list = ArrayList()
list2 = ArrayList()
list.add(RadarEntry(30F))
list.add(RadarEntry(35F))
list.add(RadarEntry(40F))
list.add(RadarEntry(35F))
list.add(RadarEntry(20F))
list2.add(RadarEntry(50F))
list2.add(RadarEntry(45F))
list2.add(RadarEntry(55F))
list2.add(RadarEntry(40F))
list2.add(RadarEntry(60F))
val radarDataSet = RadarDataSet(list, "男性")
radarDataSet.color = Color.RED
val radarDataSet1 = RadarDataSet(list2, "女性")
radarDataSet1.color = Color.BLUE
val radarData = RadarData(radarDataSet)
radarData.addDataSet(radarDataSet1)
radar!!.data = radarData
//Y轴最小值不设置会导致数据中最小值默认成为Y轴最小值
radar.yAxis.axisMinimum = 0f
//大字的颜色（中心点和各顶点的连线）
radar.webColor = Color.CYAN
//所有五边形的颜色
radar.webColorInner = Color.CYAN
//整个控件的背景颜色
radar.setBackgroundColor(Color.LTGRAY)
val xAxis = radar.xAxis
xAxis.textColor = Color.RED //X轴字体颜色
xAxis.textSize = 16f //X轴字体大小
//自定义X轴坐标描述（也就是五个顶点上的文字,默认是0、1、2、3、4）
xAxis.valueFormatter =
IAxisValueFormatter { v, axisBase ->
if (v == 0f) {
return@IAxisValueFormatter "语文"
}
if (v == 1f) {
return@IAxisValueFormatter "数学"
}
if (v == 2f) {
return@IAxisValueFormatter "英语"
}
if (v == 3f) {
return@IAxisValueFormatter "生物"
}
if (v == 4f) {
"地理"
} else ""
}
//是否绘制雷达框上对每个点的数据的标注 和Y轴坐标点一般不同时存在 否则显得很挤 默认为true
radarDataSet.setDrawValues(false)
radarDataSet1.setDrawValues(false)
radarDataSet.valueTextSize = 12f //数据值得字体大小（这里只是写在这）
radarDataSet.valueTextColor = Color.CYAN //数据值得字体颜色（这里只是写在这）
val yAxis = radar!!.yAxis
//是否绘制Y轴坐标点 和雷达框数据一般不同时存在 否则显得很挤 默认为true
yAxis.setDrawLabels(true)
yAxis.textColor = Color.GRAY //Y轴坐标数据的颜色
yAxis.axisMaximum = 80f //Y轴最大数值
yAxis.axisMinimum = 0f //Y轴最小数值
//Y轴坐标的个数 第二个参数一般填false true表示强制设置标签数 可能会导致X轴坐标显示不全等问题
yAxis.setLabelCount(10, false)
//对于右下角一串字母的操作
radar.description.isEnabled = false //是否显示右下角描述
radar.description.text = "这是修改那串英文的方法" //修改右下角字母的显示
radar.description.textSize = 20f //字体大小
radar.description.textColor = Color.CYAN //字体颜色
//图例
val legend = radar.legend
legend.isEnabled = true //是否显示图例
legend.position = Legend.LegendPosition.BELOW_CHART_CENTER //图例的位置
}2.6 PieChart饼状图
2.6.1布局代码
<com.github.mikephil.charting.charts.PieChart
android:id="@+id/pie"
android:layout_width="match_parent"
android:layout_height="300dp">
</com.github.mikephil.charting.charts.PieChart>2.6.2 Activity实现代码
1.实现代码
fun pie(){
val pie: PieChart = binding.pie
list = ArrayList()
(list as ArrayList<PieEntry>).add(PieEntry(56F, "男性"))
(list as ArrayList<PieEntry>).add(PieEntry(44F, "女性"))
val pieDataSet = PieDataSet(list, "")
val pieData = PieData(pieDataSet)
pie.data = pieData
pie.setBackgroundColor(Color.GRAY)
//设置各个数据的颜色
pieDataSet.setColors(Color.RED, Color.BLUE)
//实体扇形的空心圆的半径 设置成0时就是一个圆 而不是一个环
pie.holeRadius = 30f
//中间半透明白色圆的半径 设置成0时就是隐藏
pie.transparentCircleRadius = 30f
//设置中心圆的颜色
pie.setHoleColor(Color.CYAN)
//设置中心部分的字 （一般中间白色圆不隐藏的情况下才设置）
pie.centerText = "男女比例"
//设置中心字的字体颜色
pie.setCenterTextColor(Color.RED)
//设置中心字的字体大小
pie.setCenterTextSize(16f)
//设置描述的字体大小（图中的 男性 女性）
pie.setEntryLabelTextSize(20f)
//设置数据的字体大小 （图中的 44 56）
pieDataSet.valueTextSize = 20f
//设置描述的位置
pieDataSet.xValuePosition = PieDataSet.ValuePosition.OUTSIDE_SLICE
pieDataSet.valueLinePart1Length = 0.6f //设置描述连接线长度
//设置数据的位置
pieDataSet.yValuePosition = PieDataSet.ValuePosition.OUTSIDE_SLICE
pieDataSet.valueLinePart2Length = 0.6f //设置数据连接线长度
//设置两根连接线的颜色
pieDataSet.valueLineColor = Color.WHITE
//对于右下角一串字母的操作
pie.description.isEnabled = false //是否显示右下角描述
pie.description.text = "这是修改那串英文的方法" //修改右下角字母的显示
pie.description.textSize = 20f //字体大小
pie.description.textColor = Color.RED //字体颜色
//图例
val legend = pie.legend
legend.isEnabled = true //是否显示图例
legend.position = Legend.LegendPosition.BELOW_CHART_CENTER //图例的位置
//数据更新
pie.notifyDataSetChanged()
pie.invalidate()
//动画（如果使用了动画可以则省去更新数据的那一步）
pie.animateY(3000) //在Y轴的动画 参数是动画执行时间 毫秒为单位
// line.animateX(2000); //X轴动画
// line.animateXY(2000,2000);//XY两轴混合动画
}三．单个房间温度图表显示功能实现

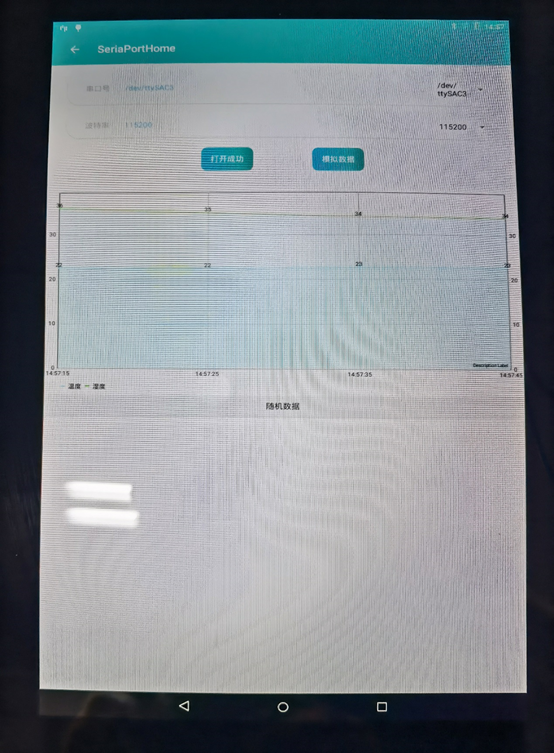

3.1 效果展示
3.2 数据库实现
1. 创建数据库
类名：（MyDatabaseHelper）
class MyDatabaseHelper(
private val mContext: Context, name: String?,
factory: CursorFactory?, version: Int
) :
SQLiteOpenHelper(mContext, name, factory, version) {
override fun onCreate(db: SQLiteDatabase) {
db.execSQL(CREATE)
//Toast.makeText(mContext, "Create succeeded", Toast.LENGTH_SHORT).show()
}
override fun onUpgrade(db: SQLiteDatabase, oldVersion: Int, newVersion: Int) {}
// TODO 创建数据库后，对数据库的操作
// sql中Constant是用来存放一些关于数据库的常量的类
// 类型有：Integer、text文本、varchar(n)、real浮点型、blob二进制类型
companion object {
const val CREATE = "create table temp(_id integer primary key autoincrement,Home text,Date text,time text,temperatures real,hum real)"
}
fun deleteDatabase(context: Context, databaseName: String?): Boolean {
return context.deleteDatabase(databaseName)
}
}2. 数据库的使用
（1）实例化
private var dbHelper: MyDatabaseHelper? = null
dbHelper = MyDatabaseHelper(this, "temperature.db", null, 1)（放到开始运行部分）（2）创建数据库
private fun sql() {
dbHelper?.writableDatabase;
}（3）删除数据库
private fun Detele(){
dbHelper?.deleteDatabase(applicationContext, "temperature.db");
}
（4）插入数据
fun add(){
val formatter = SimpleDateFormat("yyyy-MM-dd")
val date: String = formatter.format(Date())
/*
* HH-mm-ss(24时制)
* hh-mm-ss(12时制)
* */
val formatte = SimpleDateFormat("HH:mm:ss")
val time = formatte.format(Date())
val db: SQLiteDatabase = dbHelper!!.writableDatabase
val values = ContentValues()
// 开始组装第一条数据
values.put("Home", (Math.random() * 100).toString())
values.put("Date", date)
values.put("time", time)
values.put("temperatures", (Math.random() * 100).toFloat())
values.put("hum", (Math.random() * 100).toFloat())
db.insert("temp", null, values) // 插入第一条数据
values.clear()
}（5）查询数据
fun find(){
var sql : String = "select * from `temp` where `Date` = '2021-11-02';"
val cursor: Cursor = db.rawQuery(sql,null)
if (cursor.moveToFirst()) {
do {
val name: String = cursor.getString(
cursor.getColumnIndex("Date")
)
val author: String = cursor.getString(
cursor.getColumnIndex("time")
)
val pages: Float = cursor.getFloat(
cursor.getColumnIndex("temperatures")
)
Log.d("MainActivity", "book name is $name")
Log.d("MainActivity", "book author is $author")
Log.d("MainActivity", "book pages is $pages")
} while (cursor.moveToNext())
}
cursor.close()
}3.3布局代码
<?xml version="1.0" encoding="utf-8"?>
<ScrollView
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.appcompat.widget.Toolbar
android:background="@color/shape3"
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?actionBarSize"
android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
app:title="SeriaPortHome"
app:titleTextColor="@android:color/white"
>
</androidx.appcompat.widget.Toolbar>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="串口号"
android:gravity="center"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:layout_weight="1"
android:id="@+id/EditText1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_serial"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:gravity="center"
android:text="波特率"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:id="@+id/EditText2"
android:layout_weight="1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_bote"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center"
android:layout_marginTop="20dp"
android:layout_marginBottom="25dp"
android:orientation="horizontal">
<Button
android:id="@+id/open"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="打开串口"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
<View
android:layout_width="100dp"
android:layout_height="match_parent"
>
</View>
<Button
android:id="@+id/SimulateData"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="模拟数据"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
</LinearLayout>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart1"
android:layout_width="match_parent"
android:layout_height="380dp"/>
<Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/addEntry"
android:text="随机数据"
/>
</LinearLayout>
</ScrollView>3.4 Activity实现代码
1.实列化以及局部数据
//串口
private var serialPortFinder: SerialPortFinder? = null
private var serialHelper: SerialHelper? = null
//曲线
private var dynamicLineChartManager1: DynamicLineChartManager? = null
private val list: MutableList<Float> = ArrayList() //数据集合
private val names: MutableList<String> = ArrayList() //折线名字集合
private val colour: MutableList<Int> = ArrayList() //折线颜色集合
//线程使用
private val mHandler = Handler()2.串口实现函数以及数据跟新
/*
* TODO 串口使用初始化
* */
private fun openSerialPort(){
serialPortFinder = SerialPortFinder()
serialHelper = object : SerialHelper() {
override fun onDataReceived(comBean: ComBean) {
runOnUiThread {
/*
* TODO 获取串口数据已经保存数据
* */
val home =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(0, 2)
val tem =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(5, 9)
val hum =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(12, 16)
when(home.toInt()) {
1 -> {
list.add(tem.toFloat())
list.add(hum.toFloat())
dynamicLineChartManager1!!.addEntry(list)
list.clear()
}
2 -> LogUtil.d("home","2")
3 -> LogUtil.d("home","3")
4 -> LogUtil.d("home","4")
else -> {
}
}
}
}
}
//获取串口地址
val ports = serialPortFinder!!.allDevicesPath
//设置波特率地址
val botes = arrayOf(
"0",
"50",
"75",
"110",
"134",
"150",
"200",
"300",
"600",
"1200",
"1800",
"2400",
"4800",
"9600",
"19200",
"38400",
"57600",
"115200",
"230400",
"460800",
"500000",
"576000",
"921600",
"1000000",
"1152000",
"1500000",
"2000000",
"2500000",
"3000000",
"3500000",
"4000000"
)
val spAdapter = SpAdapter(this)
/*
* TODO 适配下拉列表（串口地址）
* */
spAdapter.setDatas(ports)
binding.spSerial.adapter = spAdapter
binding.spSerial.onItemSelectedListener = object : AdapterView.OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.port = ports[position]
binding.EditText1.setText(ports[position])
binding.open.text = "关闭串口"
//btOpen.setEnabled(true)
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
/*
* TODO 适配下拉列表（波特率地址）
* */
val spAdapter2 = SpAdapter(this)
spAdapter2.setDatas(botes)
binding.spBote.adapter = spAdapter2
binding.spBote.onItemSelectedListener = object : AdapterView.OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.setBaudRate(botes[position])
binding.EditText2.setText(botes[position])
binding.open.text = "关闭串口"
// btOpen.setEnabled(true)
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
}3.模拟数据跟新
/*
* TODO 线程更新处理
* */
private val mRunnable: Runnable = object : Runnable {
override fun run() {
dynamicLineChartManager1?.addEntry((Math.random() * 100).toFloat())
// 每3秒执行一次
mHandler.postDelayed(this, 3000) //给自己发送消息，自运行
}
}4.开启该线程
//模拟数据（simulated data）
binding.SimulateData.setOnClickListener{
//启动线程
mHandler.post(mRunnable);
//设置模拟数据不能被点击
binding.SimulateData.isEnabled = false
}5.退出时关闭模拟线程
override fun onDestroy() {
//将线程销毁掉
mHandler.removeCallbacks(mRunnable)
super.onDestroy()
}四．多个房间温度图表显示功能实现
4.1 效果展示
4.2布局代码
<?xml version="1.0" encoding="utf-8"?>
<ScrollView
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.appcompat.widget.Toolbar
android:background="@color/shape3"
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?actionBarSize"
android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
app:title="SeriaPortHome"
app:titleTextColor="@android:color/white"
>
</androidx.appcompat.widget.Toolbar>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="串口号"
android:gravity="center"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:layout_weight="1"
android:id="@+id/EditText1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_serial"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
style="@style/CardViews"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center_vertical"
android:layout_marginLeft="20dp">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:gravity="center"
android:text="波特率"
android:textColor="@color/black"
android:textSize="14sp" />
<EditText
android:id="@+id/EditText2"
android:layout_weight="1"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:hint="无"
android:inputType="number"
android:textColor="@color/shape1"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
<Spinner
android:id="@+id/sp_bote"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginEnd="15dp">
</Spinner>
</LinearLayout>
</androidx.cardview.widget.CardView>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:gravity="center"
android:layout_marginTop="20dp"
android:layout_marginBottom="25dp"
android:orientation="horizontal">
<Button
android:id="@+id/open"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="打开串口"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
<View
android:layout_width="100dp"
android:layout_height="match_parent"
>
</View>
<Button
android:id="@+id/SimulateData"
android:layout_width="wrap_content"
android:layout_height="44dp"
android:background="@drawable/shape_bt"
android:gravity="center"
android:text="模拟数据"
android:textColor="@android:color/white"
android:textSize="@dimen/sp_14" />
</LinearLayout>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart1"
android:layout_width="match_parent"
android:layout_height="380dp"/>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart2"
android:layout_width="match_parent"
android:layout_height="380dp"/>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart3"
android:layout_width="match_parent"
android:layout_height="380dp"/>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart4"
android:layout_width="match_parent"
android:layout_height="380dp"/>
<Button
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:id="@+id/addEntry"
android:text="随机数据"
/>
</LinearLayout>
</ScrollView>4.3 Activity实现代码
1.实列化以及局部数据
//串口
private var serialPortFinder: SerialPortFinder? = null
private var serialHelper: SerialHelper? = null
//曲线
private var dynamicLineChartManager1: DynamicLineChartManager? = null
private var dynamicLineChartManager2: DynamicLineChartManager? = null
private var dynamicLineChartManager3: DynamicLineChartManager? = null
private var dynamicLineChartManager4: DynamicLineChartManager? = null
//房间数据集
private val list: MutableList<Float> = ArrayList() //数据集合
private val list2: MutableList<Float> = ArrayList() //数据集合
private val list3: MutableList<Float> = ArrayList() //数据集合
private val list4: MutableList<Float> = ArrayList() //数据集合
private val names: MutableList<String> = ArrayList() //折线名字集合
private val colour: MutableList<Int> = ArrayList() //折线颜色集合
//数据库
private var dbHelper: MyDatabaseHelper? = null
private val mHandler = Handler()
2.串口实现函数以及数据跟新
/*
* TODO 串口使用初始化
* */
private fun openSerialPort(){
serialPortFinder = SerialPortFinder()
serialHelper = object : SerialHelper() {
override fun onDataReceived(comBean: ComBean) {
runOnUiThread {
/*
* TODO 获取串口数据已经保存数据
* */
val formatter = SimpleDateFormat("yyyy-MM-dd")
val date: String = formatter.format(Date())
/*
* HH-mm-ss(24时制)
* hh-mm-ss(12时制)
* */
val formatte = SimpleDateFormat("HH:mm:ss")
val time = formatte.format(Date())
val db: SQLiteDatabase = dbHelper!!.writableDatabase
val home =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(0, 2)
val tem =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(5, 9)
val hum =
ByteUtil.hexStringToString(ByteUtil.bytesToHexString(comBean.bRec)).toString().substring(12, 16)
when(home.toInt()) {
1 -> {
val values = ContentValues()
//保存到数据库中
values.put("Home",home.toInt())
values.put("Date", date)
values.put("time", time)
values.put("temperatures", tem)
values.put("hum", hum)
db.insert("temp", null, values) // 插入第一条数据
values.clear()
//更新列表
list.add(tem.toFloat())
list.add(hum.toFloat())
dynamicLineChartManager1!!.addEntry(list)
list.clear()
}
2 -> {
val values = ContentValues()
//保存到数据库中
values.put("Home",home.toInt())
values.put("Date", date)
values.put("time", time)
values.put("temperatures", tem)
values.put("hum", hum)
db.insert("temp", null, values) // 插入第一条数据
values.clear()
list2.add(tem.toFloat())
list2.add(hum.toFloat())
dynamicLineChartManager2!!.addEntry(list2)
list2.clear()
}
3 -> {
val values = ContentValues()
//保存到数据库中
values.put("Home",home.toInt())
values.put("Date", date)
values.put("time", time)
values.put("temperatures", tem)
values.put("hum", hum)
db.insert("temp", null, values) // 插入第一条数据
values.clear()
list3.add(tem.toFloat())
list3.add(hum.toFloat())
dynamicLineChartManager3!!.addEntry(list3)
list3.clear()
}
4 -> {
val values = ContentValues()
//保存到数据库中
values.put("Home",home.toInt())
values.put("Date", date)
values.put("time", time)
values.put("temperatures", tem)
values.put("hum", hum)
db.insert("temp", null, values) // 插入第一条数据
values.clear()
list4.add(tem.toFloat())
list4.add(hum.toFloat())
dynamicLineChartManager4!!.addEntry(list4)
list4.clear()
}
else -> {
}
}
}
}
}
//获取串口地址
val ports = serialPortFinder!!.allDevicesPath
//设置波特率地址
val botes = arrayOf(
"0",
"50",
"75",
"110",
"134",
"150",
"200",
"300",
"600",
"1200",
"1800",
"2400",
"4800",
"9600",
"19200",
"38400",
"57600",
"115200",
"230400",
"460800",
"500000",
"576000",
"921600",
"1000000",
"1152000",
"1500000",
"2000000",
"2500000",
"3000000",
"3500000",
"4000000"
)
val spAdapter = SpAdapter(this)
/*
* TODO 适配下拉列表（串口地址）
* */
spAdapter.setDatas(ports)
binding.spSerial.adapter = spAdapter
binding.spSerial.onItemSelectedListener = object : AdapterView.OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.port = ports[position]
binding.EditText1.setText(ports[position])
binding.open.text = "关闭串口"
//btOpen.setEnabled(true)
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
/*
* TODO 适配下拉列表（波特率地址）
* */
val spAdapter2 = SpAdapter(this)
spAdapter2.setDatas(botes)
binding.spBote.adapter = spAdapter2
binding.spBote.onItemSelectedListener = object : AdapterView.OnItemSelectedListener {
override fun onItemSelected(
parent: AdapterView<*>?,
view: View,
position: Int,
id: Long
) {
serialHelper?.close()
serialHelper?.setBaudRate(botes[position])
binding.EditText2.setText(botes[position])
binding.open.text = "关闭串口"
// btOpen.setEnabled(true)
}
override fun onNothingSelected(parent: AdapterView<*>?) {}
}
}3.模拟数据跟新
/*
* TODO 线程更新处理
* */
private val mRunnable: Runnable = object : Runnable {
override fun run() {
dynamicLineChartManager1?.addEntry((Math.random() * 100).toFloat())
dynamicLineChartManager2?.addEntry((Math.random() * 100).toFloat())
dynamicLineChartManager3?.addEntry((Math.random() * 100).toFloat())
dynamicLineChartManager4?.addEntry((Math.random() * 100).toFloat())
// 每3秒执行一次
mHandler.postDelayed(this, 3000) //给自己发送消息，自运行
}}4.开启该线程
//模拟数据（simulated data）
binding.SimulateData.setOnClickListener{
//启动线程
mHandler.post(mRunnable);
//设置模拟数据不能被点击
binding.SimulateData.isEnabled = false
}5.退出时关闭模拟线程
override fun onDestroy() {
//将线程销毁掉
mHandler.removeCallbacks(mRunnable)
super.onDestroy()
}五．历史数据分析图显示功能实现
5.1 效果展示
5.2布局代码
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.appcompat.widget.Toolbar
android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
android:background="@color/shape3"
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?actionBarSize"
app:title="History Data"
app:titleTextColor="@android:color/white"
>
</androidx.appcompat.widget.Toolbar>
<FrameLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:fab="http://schemas.android.com/apk/res-auto"
android:id="@+id/main_layout"
android:layout_width="match_parent"
android:layout_height="match_parent"
>
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<androidx.cardview.widget.CardView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginStart="30dp"
android:layout_marginTop="16dp"
android:layout_marginEnd="30dp"
android:background="@android:color/white"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginStart="20dp"
android:layout_marginEnd="20dp"
android:gravity="center_vertical">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="开始日期"
android:textColor="@color/black"
android:textSize="14sp" />
<TextView
android:id="@+id/start_text"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:background="@null"
android:hint="yyyy-MM-ddHH:mm:ss"
android:inputType="number"
android:textColor="@color/colorPrimary"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
</LinearLayout>
</androidx.cardview.widget.CardView>
<androidx.cardview.widget.CardView
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginStart="30dp"
android:layout_marginTop="16dp"
android:layout_marginEnd="30dp"
android:layout_marginBottom="16dp"
android:background="@android:color/white"
app:cardCornerRadius="22dp">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginStart="20dp"
android:layout_marginEnd="20dp"
android:gravity="center_vertical">
<TextView
android:layout_width="66dp"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:text="结束日期"
android:textColor="@color/black"
android:textSize="14sp" />
<TextView
android:id="@+id/end_text"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@null"
android:gravity="center"
android:hint="yyyy-MM-ddHH:mm:ss"
android:inputType="number"
android:textColor="@color/colorPrimary"
android:textSize="14sp"
android:layout_marginLeft="14dp" />
</LinearLayout>
</androidx.cardview.widget.CardView>
<com.github.mikephil.charting.charts.LineChart
android:id="@+id/dynamic_chart1"
android:layout_marginTop="20dp"
android:layout_width="match_parent"
android:layout_height="400dp"/>
<TextView
android:id="@+id/time"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="12dp"
android:layout_marginBottom="12dp"
android:alpha="0.4"
android:layout_gravity="center"
android:text="等待"
android:textColor="@color/black"
android:textSize="14sp" />
</LinearLayout>
</FrameLayout>
</LinearLayout>5.3 Activity实现代码
1.实列化以及局部数据
private var dynamicLineChartManager1: DynamicLineChartManager? = null
private val names: MutableList<String> = ArrayList() //折线名字集合
private var dbHelper: MyDatabaseHelper? = null
private val colour: MutableList<Int> = ArrayList() //折线颜色集合
private val list: MutableList<Float> = ArrayList() //数据集合
private var endData: String? = null
private var startData: String? = null
2. 开始时间选择
//开始时间选择
binding.startText.setOnClickListener {
val startTime = "1990-01-01 00:00:00"
val endTime = "2100-01-01 12:00:00"
val formatStr = DateUtil.Y_M_D_H_M_S
val type = booleanArrayOf(true, true, true, true, true, true)
val currentTime = DateUtil.convertOtherFormat(DateUtil.getCurrentDateTime(), DateUtil.Y_M_D, DateUtil.Y_M_D_H_M_S)
PickerViewUtil.selectDateTime(
this, { date: Date?, v1: View? ->
startData = DateUtil.dateToString(date, "yyyy-MM-ddHH:mm:ss")
val sb: StringBuilder = StringBuilder(startData)
Log.d("字符串：", "" + sb.toString() + " 字符长度：" + sb.length)
val string =sb.toString().substring(0, 10)
startData = string
Log.d("字符串：", "" + startData)
binding.startText.text = DateUtil.date2String(date!!, formatStr)
}, currentTime, startTime, endTime, formatStr,
"选择日期时间", "取消", "确定", type
)
//accessUrlRxJava(UrlConstant.ONE_NET_URL)
}3. 结束时间选择
//结束时间选择
binding.endText.setOnClickListener {
val startTime = "1990-01-01 00:00:00"
var endTime = "2100-01-01 12:00:00"
val formatStr = DateUtil.Y_M_D_H_M_S
val type = booleanArrayOf(true, true, true, true, true, true)
val currentsTime = DateUtil.convertOtherFormat(DateUtil.getCurrentDateTime(), DateUtil.Y_M_D, DateUtil.Y_M_D_H_M_S)
PickerViewUtil.selectDateTime(
this, OnTimeSelectListener { date: Date?, v1: View? ->
endData = DateUtil.dateToString(date, "yyyy-MM-ddHH:mm:ss")
val sb: StringBuilder = StringBuilder(endData)
Log.d("字符串：", "" + sb.toString() + " 字符长度：" + sb.length)
val string = sb.substring(0, 10)
endData = string.toString()
Log.d("字符串：", "" + endData)
binding.endText.text = DateUtil.date2String(date!!, formatStr)
binding.time.text = "等待中....!"
Handler(Looper.getMainLooper()).postDelayed({
/**
* 数据初始化（200毫秒）AddDeviceActivity
* */
findHistoryData()
}, 300)
}, currentsTime, startTime, endTime, formatStr,
"选择日期时间", "取消", "确定", type
)
//accessUrlRxJava(UrlConstant.ONE_NET_URL)
}4.数据库查找数据显示
private fun findHistoryData(){
val db: SQLiteDatabase = dbHelper!!.writableDatabase
val sql : String = "select * from `temp` where `Date` Between '$startData' and '$endData';"
val cursor: Cursor = db.rawQuery(sql,null)
if (cursor.moveToFirst()) {
do {
val Datas: String = cursor.getString(
cursor.getColumnIndex("Date")
)
val times: String = cursor.getString(
cursor.getColumnIndex("time")
)
val temp: Float = cursor.getFloat(
cursor.getColumnIndex("temperatures")
)
val hum: Float = cursor.getFloat(
cursor.getColumnIndex("hum")
)
list.add(temp.toFloat())
list.add(hum.toFloat())
dynamicLineChartManager1!!.HistoryAddEntry(list)
list.clear()
} while (cursor.moveToNext())
}
cursor.close()
Handler(Looper.getMainLooper()).postDelayed({
/**
* 数据初始化（200毫秒）AddDeviceActivity
* */
binding.time.text = "数据加载完成!"
}, 200)
}End
最后
以上就是笨笨微笑为你收集整理的串口通讯以及MPAndroidchart画图的使用（kotlin）一．Kotlin串口通讯实现二．MPAndroidChart图表使用三．单个房间温度图表显示功能实现四．多个房间温度图表显示功能实现五．历史数据分析图显示功能实现的全部内容，希望文章能够帮你解决串口通讯以及MPAndroidchart画图的使用（kotlin）一．Kotlin串口通讯实现二．MPAndroidChart图表使用三．单个房间温度图表显示功能实现四．多个房间温度图表显示功能实现五．历史数据分析图显示功能实现所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
