概述
1. 设备驱动加载及系统配置
关于sensor的开发环境、MPP的工作原理、ISP简介等可参考shugenyin的博客——海思Hi3518EV200。
|
1
2
|
cd
ko
.
/load3516a
-a -sensor sc3035 -osmem 64
|
在load脚本中添加sensor的相关配置，这里使用smartsens的SC3035-M的360万像素CMOS sensor。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
insert_sns()
{
case
$SNS_TYPE
in
sc3035)
himm 0x200f0050 0x2;
# i2c0_scl
himm 0x200f0054 0x2;
# i2c0_sda
himm 0x2003002c 0xB0007
# sensolsr unreset, clk 27MHz, VI 250MHz
;;
*)
echo
"xxxx Invalid sensor type $SNS_TYPE xxxx"
report_error
;;
esac
}
|
2. sensor的库文件生成(.so)
sensor的库文件需要在Linux服务器中的SDK包中编译得到，将生成的.so文件放到SDK包中的stream软件包中的Hi3516A_Stream_xxx/libs目录下。
sc3035_sensor_ctl.c实现sensor的初始化。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
|
void
sensor_init()
{
sensor_i2c_init();
sensor_init_3M_1536p_4lan();
}
void
sensor_init_3M_1536p_4lan()
{
sensor_write_register(0x0100,0x00);
sensor_write_register(0x4500,0x31);
// rnc sel
sensor_write_register(0x3416,0x11);
sensor_write_register(0x4501,0xa4);
// bit ctrl
sensor_write_register(0x3e03,0x03);
// aec
sensor_write_register(0x3e08,0x00);
sensor_write_register(0x3e09,0x10);
sensor_write_register(0x3e01,0x30);
sensor_write_register(0x322e,0x00);
sensor_write_register(0x322f,0xaf);
sensor_write_register(0x3306,0x56);
sensor_write_register(0x3307,0x17);
sensor_write_register(0x330b,0x54);
sensor_write_register(0x3303,0x20);
sensor_write_register(0x3309,0x20);
sensor_write_register(0x3308,0x08);
sensor_write_register(0x331e,0x16);
sensor_write_register(0x331f,0x16);
sensor_write_register(0x3320,0x18);
sensor_write_register(0x3321,0x18);
sensor_write_register(0x3322,0x18);
sensor_write_register(0x3323,0x18);
sensor_write_register(0x330c,0x0b);
sensor_write_register(0x330f,0x07);
sensor_write_register(0x3310,0x42);
sensor_write_register(0x3324,0x07);
sensor_write_register(0x3325,0x07);
sensor_write_register(0x335b,0xca);
sensor_write_register(0x335e,0x07);
sensor_write_register(0x335f,0x10);
sensor_write_register(0x3334,0x00);
sensor_write_register(0x3F01,0x04);
sensor_write_register(0x3F04,0x01);
sensor_write_register(0x3F05,0x30);
sensor_write_register(0x3626,0x01);
sensor_write_register(0x3635,0x60);
sensor_write_register(0x3631,0x84);
sensor_write_register(0x3636,0x88);
sensor_write_register(0x3633,0x3f);
sensor_write_register(0x3639,0x80);
sensor_write_register(0x3622,0x12);
sensor_write_register(0x3627,0x02);
sensor_write_register(0x3038,0xa4);
sensor_write_register(0x3621,0x18);
sensor_write_register(0x363a,0x1c);
sensor_write_register(0x3637,0xbe);
sensor_write_register(0x3638,0x85);
sensor_write_register(0x363c,0x48);
// ramp cur
sensor_write_register(0x5780,0xff);
// dpc
sensor_write_register(0x5781,0x04);
sensor_write_register(0x5785,0x10);
sensor_write_register(0x301e,0xe0);
// [4] 0:close tempsens
sensor_write_register(0x3662,0x82);
sensor_write_register(0x3d0d,0x00);
// close random code
sensor_write_register(0x3039,0x20);
sensor_write_register(0x303a,0x38);
//74.25M pclk
sensor_write_register(0x303b,0x00);
sensor_write_register(0x3306,0x56);
sensor_write_register(0x330b,0xc0);
sensor_write_register(0x3038,0xf8);
//pump clk div
sensor_write_register(0x320c,0x04);
//hts=2500
sensor_write_register(0x320d,0xe2);
sensor_write_register(0x320e,0x06);
//vts=1584
sensor_write_register(0x320f,0x30);
sensor_write_register(0x3202,0x00);
// ystart=48
sensor_write_register(0x3203,0x00);
sensor_write_register(0x3206,0x06);
// yend=1545 1545 rows selected
sensor_write_register(0x3207,0x08);
sensor_write_register(0x3200,0x00);
// xstart= 136
sensor_write_register(0x3201,0x88);
sensor_write_register(0x3204,0x09);
// xend = 2447 2312 cols selected
sensor_write_register(0x3205,0x8f);
sensor_write_register(0x3211,0x04);
// xstart
sensor_write_register(0x3213,0x04);
// ystart
sensor_write_register(0x3208,0x09);
//2304x1536
sensor_write_register(0x3209,0x00);
sensor_write_register(0x320a,0x06);
sensor_write_register(0x320b,0x00);
sensor_write_register(0x3312,0x06);
// sa1 timing
sensor_write_register(0x3340,0x04);
sensor_write_register(0x3341,0xd2);
sensor_write_register(0x3342,0x01);
sensor_write_register(0x3343,0xb0);
sensor_write_register(0x335d,0x2a);
// cmp timing
sensor_write_register(0x3348,0x04);
sensor_write_register(0x3349,0xd2);
sensor_write_register(0x334a,0x01);
sensor_write_register(0x334b,0xb0);
sensor_write_register(0x3368,0x03);
// auto precharge
sensor_write_register(0x3369,0x30);
sensor_write_register(0x336a,0x06);
sensor_write_register(0x336b,0x30);
sensor_write_register(0x3367,0x05);
sensor_write_register(0x330e,0x17);
sensor_write_register(0x3d08,0x00);
// pclk inv
sensor_write_register(0x303f,0x82);
sensor_write_register(0x3c03,0x10);
//fifo sram read position
sensor_write_register(0x3c00,0x45);
// Dig SRAM reset
sensor_write_register(0x3630,0x83);
//0xb9
sensor_write_register(0x3635,0x60);
//0x66
sensor_write_register(0x3620,0x62);
//0x82
sensor_write_register(0x3c00,0x00);
//[2]: 0 mipi->fifo
sensor_write_register(0x303f,0x02);
//[7]: 0 sel pll_pclk
sensor_write_register(0x3031,0x0a);
//[3:0] 10bit
sensor_write_register(0x3018,0x73);
//[7:5] sel lane=reg+1
sensor_write_register(0x3030,0x14);
sensor_write_register(0x3039,0x21);
sensor_write_register(0x303a,0x0F);
sensor_write_register(0x303b,0x06);
sensor_write_register(0x303c,0x38);
sensor_write_register(0x3650,0x46);
sensor_write_register(0x0100,0x01);
printf
(
"SC3035 sensor 3M-1536p 30fps init success!n"
);
}
|
sc3035_cmos.c主要实现ISP需要的回调函数，传递参数，包括ISP、AE、AWB等。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
|
//ISP function
HI_S32 cmos_init_sensor_exp_function(ISP_SENSOR_EXP_FUNC_S *pstSensorExpFunc)
{
memset
(pstSensorExpFunc, 0,
sizeof
(ISP_SENSOR_EXP_FUNC_S));
pstSensorExpFunc->pfn_cmos_sensor_init = sensor_init;
pstSensorExpFunc->pfn_cmos_sensor_exit = sensor_exit;
pstSensorExpFunc->pfn_cmos_sensor_global_init = sensor_global_init;
pstSensorExpFunc->pfn_cmos_set_image_mode = cmos_set_image_mode;
pstSensorExpFunc->pfn_cmos_set_wdr_mode = cmos_set_wdr_mode;
pstSensorExpFunc->pfn_cmos_get_isp_default = cmos_get_isp_default;
pstSensorExpFunc->pfn_cmos_get_isp_black_level = cmos_get_isp_black_level;
pstSensorExpFunc->pfn_cmos_set_pixel_detect = cmos_set_pixel_detect;
pstSensorExpFunc->pfn_cmos_get_sns_reg_info = cmos_get_sns_regs_info;
return
0;
}
//AE function
HI_S32 cmos_init_ae_exp_function(AE_SENSOR_EXP_FUNC_S *pstExpFuncs)
{
memset
(pstExpFuncs, 0,
sizeof
(AE_SENSOR_EXP_FUNC_S));
pstExpFuncs->pfn_cmos_get_ae_default = cmos_get_ae_default;
pstExpFuncs->pfn_cmos_fps_set = cmos_fps_set;
pstExpFuncs->pfn_cmos_slow_framerate_set= cmos_slow_framerate_set;
pstExpFuncs->pfn_cmos_inttime_update = cmos_inttime_update;
pstExpFuncs->pfn_cmos_gains_update = cmos_gains_update;
pstExpFuncs->pfn_cmos_again_calc_table = cmos_again_calc_table;
pstExpFuncs->pfn_cmos_get_inttime_max = cmos_get_inttime_max;
return
0;
}
//AWB function
HI_S32 cmos_init_awb_exp_function(AWB_SENSOR_EXP_FUNC_S *pstExpFuncs)
{
memset
(pstExpFuncs, 0,
sizeof
(AWB_SENSOR_EXP_FUNC_S));
pstExpFuncs->pfn_cmos_get_awb_default = cmos_get_awb_default;
return
0;
}
|
3. 修改stream软件包的.ini文件
sc3035_3m_4lan.ini文件在Hi3516A_Stream_xxx/configs目录下，改文件主要指定.so文件的位置、输入视频的接口(LVDS/MIPI/DVP)、视频格式（分辨率、同步方式、目标帧率等）等系统配置。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
|
[sensor]
Sensor_type =sc3035 ;sensor name
Mode =0 ;WDR_MODE_NONE = 0
;WDR_MODE_BUILT_IN = 1
;WDR_MODE_2To1_LINE = 2
;WDR_MODE_2To1_FRAME = 3
;WDR_MODE_2To1_FRAME_FULL_RATE =4 ...etc
DllFile =libs
/libsns_sc3035_4lan
.so ;sensor lib path
[mode]
input_mode =0 ;INPUT_MODE_MIPI = 0
;INPUT_MODE_SUBLVDS = 1
;INPUT_MODE_LVDS = 2 ...etc
dev_attr = 0 ;mipi_dev_attr_t = 0
;lvds_dev_attr_t = 1
;NULL =2
[mipi]
;----------only
for
mipi_dev---------
data_type = 1 ;raw data
type
: 8
/10/12/14
bit
;RAW_DATA_8BIT = 0
;RAW_DATA_10BIT = 1
;RAW_DATA_12BIT = 2
;RAW_DATA_14BIT = 3
lane_id = 0| 1 | 2 | 3 |-1|-1|-1|-1| ;lane_id: -1 - disable
[isp_image]
Isp_x =0
Isp_y =0
Isp_W =2304
Isp_H =1536
Isp_FrameRate=30
Isp_Bayer =3 ;BAYER_RGGB=0, BAYER_GRBG=1, BAYER_GBRG=2, BAYER_BGGR=3
|
4. 运行stream软件
运行stream软件包中的HiIspTool.sh脚本，通过以太网卡与上位机的PQTools建立通信。
|
1
2
|
cd
Hi3516A_Stream_V1.0.5.0
.
/HiIspTools
.sh -a -p sc3035_3m_4lan.ini
|
ittb_control进程是基于TCP的服务端，负责控制信号的传输。
ittb_stream进程也是基于TCP的服务端，负责播放H.265或YUV视频流。
5. 运行PQ Tools

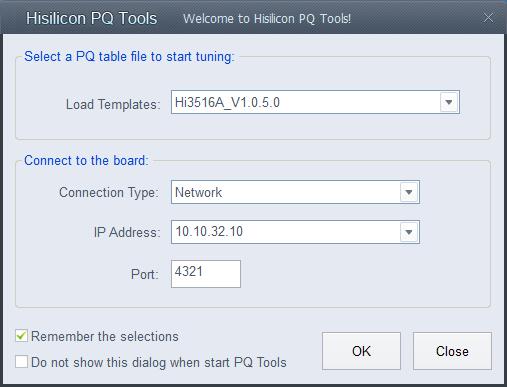

双击PQ Tools图片，弹出如下对话框，设置IP地址。

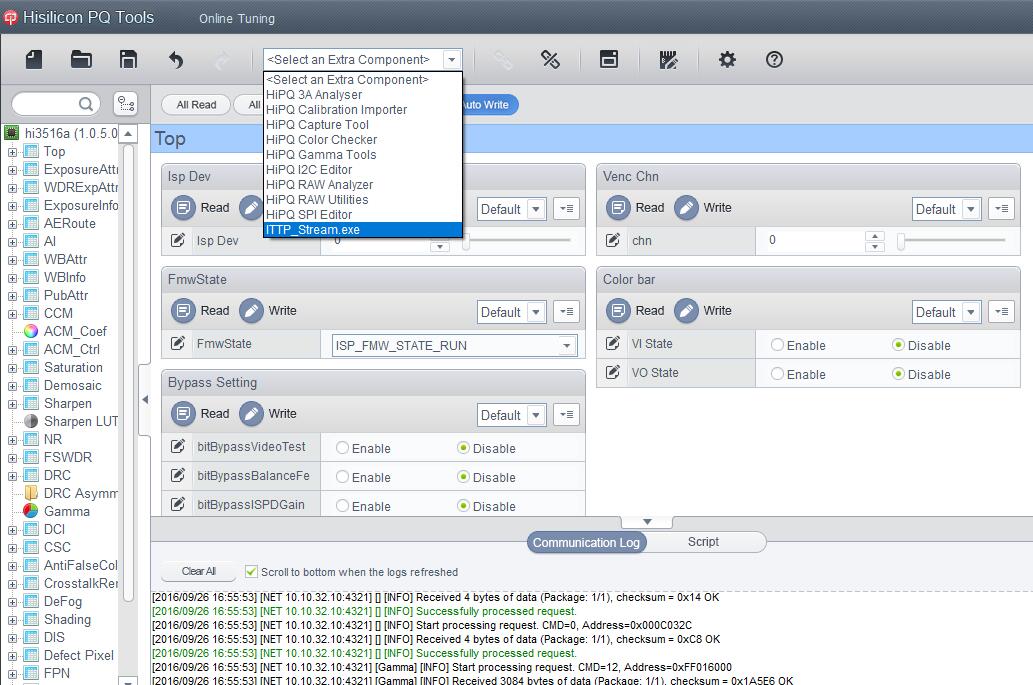

在下拉菜单中选择TTP_Stream.exe选项

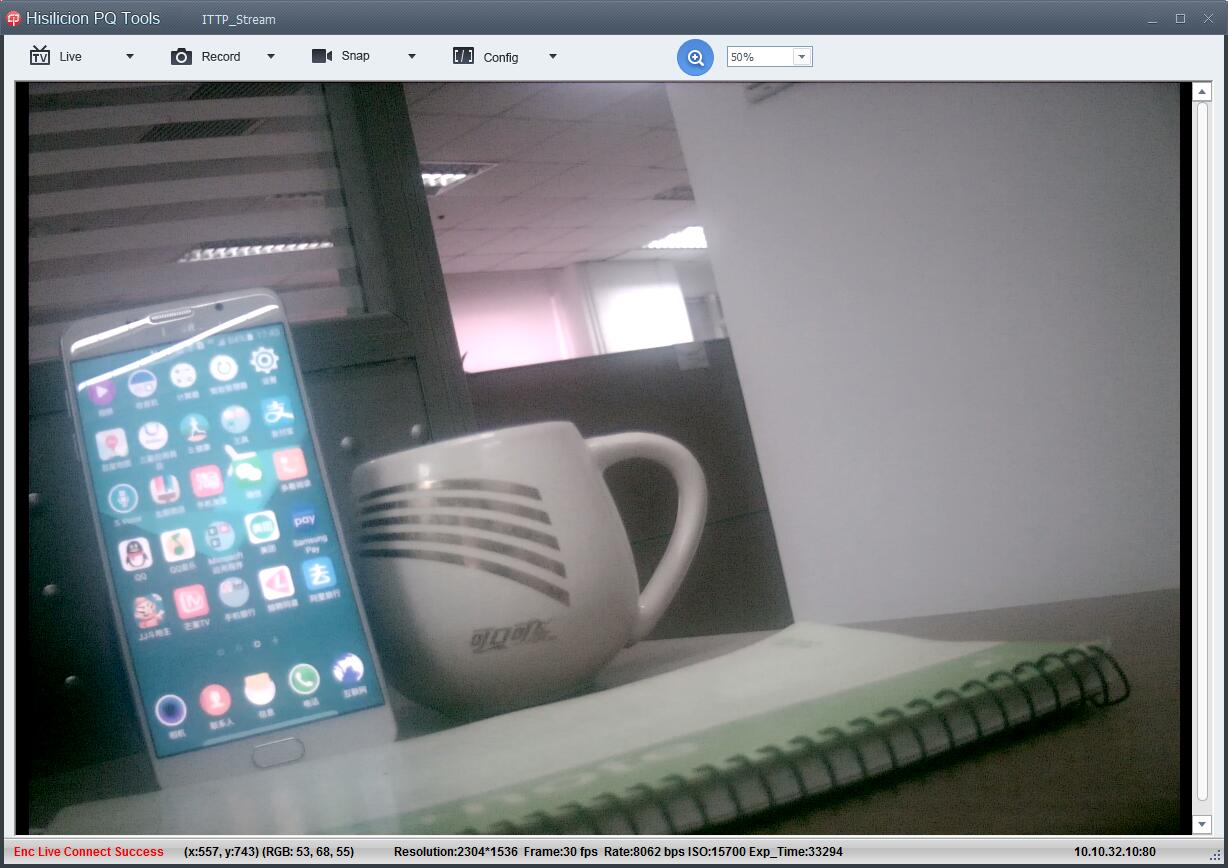

6. 最终结果
上位机显示视频结果，图像分辨率为2304*1536，帧率为30。
本文转自 shugenyin 51CTO博客，原文链接:http://blog.51cto.com/shugenyin/1856959
