概述

⛄一、元胞自动机简介

1 元胞自动机发展历程
最初的元胞自动机是由冯 · 诺依曼在 1950 年代为模拟生物细胞的自我复制而提出的. 但是并未受到学术界重视.
1970 年, 剑桥大学的约翰 · 何顿 · 康威设计了一个电脑游戏 “生命游戏” 后, 元胞自动机才吸引了科学家们的注意.

1983 年 S.Wolfram 发表了一系列论文. 对初等元胞机 256 种规则所产生的模型进行了深入研究, 并用熵来描述其演化行为, 将细胞自动机分为平稳型, 周期型, 混沌型和复杂型.

2 对元胞自动机的初步认识
元胞自动机（CA）是一种用来仿真局部规则和局部联系的方法。典型的元胞自动机是定义在网格上的，每一个点上的网格代表一个元胞与一种有限的状态。变化规则适用于每一个元胞并且同时进行。典型的变化规则，决定于元胞的状态，以及其（ 4 或 8 ）邻居的状态。

3 元胞的变化规则&元胞状态
典型的变化规则，决定于元胞的状态，以及其（ 4 或 8 ）邻居的状态。

4 元胞自动机的应用

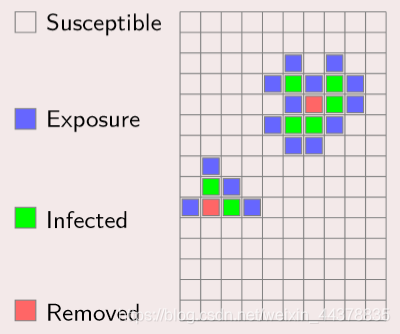

元胞自动机已被应用于物理模拟，生物模拟等领域。

5 元胞自动机的matlab编程
结合以上，我们可以理解元胞自动机仿真需要理解三点。一是元胞，在matlab中可以理解为矩阵中的一点或多点组成的方形块，一般我们用矩阵中的一点代表一个元胞。二是变化规则，元胞的变化规则决定元胞下一刻的状态。三是元胞的状态，元胞的状态是自定义的，通常是对立的状态，比如生物的存活状态或死亡状态，红灯或绿灯，该点有障碍物或者没有障碍物等等。

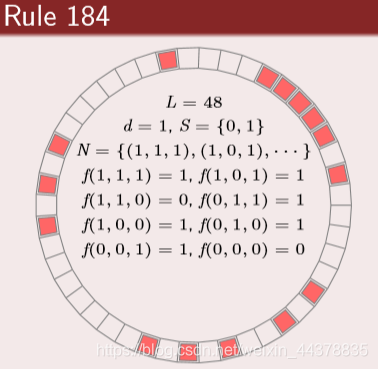

6 一维元胞自动机——交通规则
定义：
6.1 元胞分布于一维线性网格上.
6.2 元胞仅具有车和空两种状态.
在这里插入图片描述
7 二维元胞自动机——生命游戏
定义：
7.1 元胞分布于二维方型网格上.
7.2 元胞仅具有生和死两种状态.

元胞状态由周围八邻居决定.
规则：

骷髅：死亡；笑脸：生存
周围有三个笑脸，则中间变为笑脸
少于两个笑脸或者多于三个，中间则变死亡。

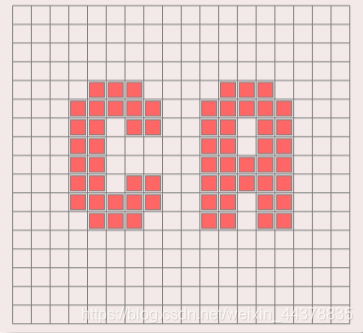

8 什么是元胞自动机
离散的系统: 元胞是定义在有限的时间和空间上的, 并且元胞的状态是有限.
动力学系统: 元胞自动机的举止行为具有动力学特征.
简单与复杂: 元胞自动机用简单规则控制相互作用的元胞模拟复杂世界.

在这里插入图片描述
9 构成要素

（1）元胞 (Cell)

元胞是元胞自动机基本单元：
状态: 每一个元胞都有记忆贮存状态的功能.
离散: 简单情况下, 元胞只有两种可能状态; 较复杂情况下, 元胞具有多种状态.
更新: 元胞的状态都安照动力规则不断更新.
（2）网格 (Lattice)

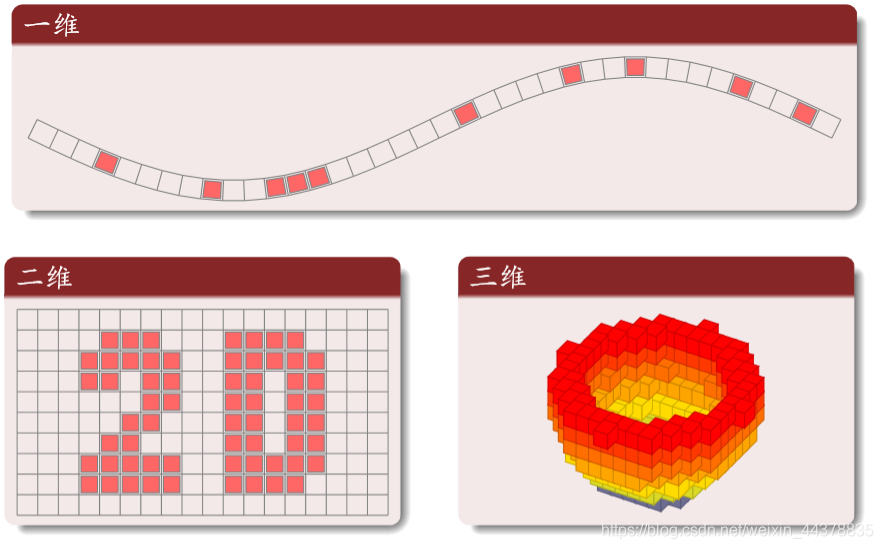

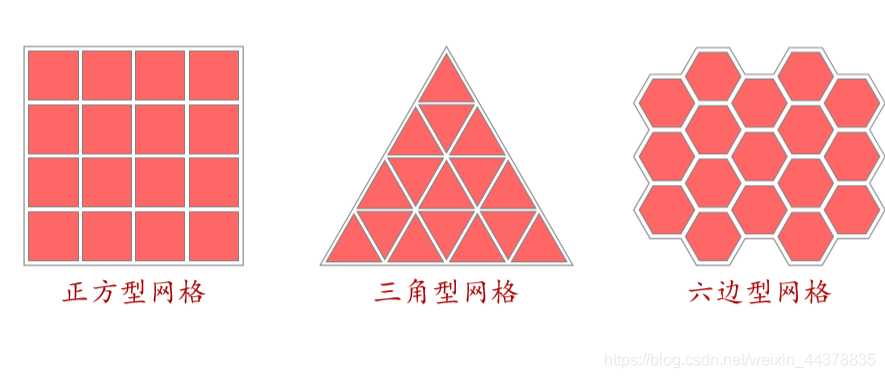

不同维网格
在这里插入图片描述
常用二维网格

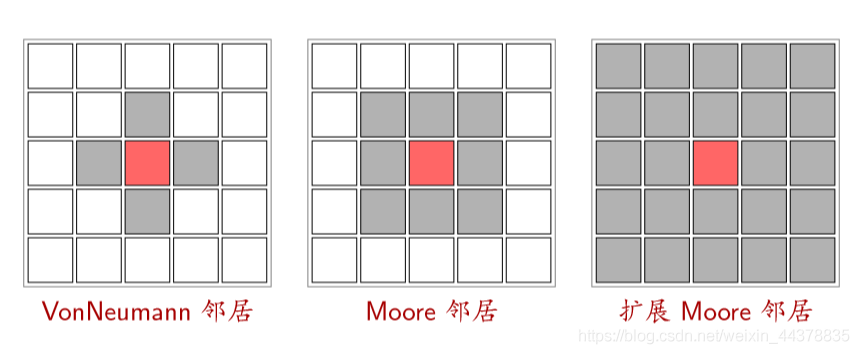

（3）邻居 (Neighborhood)

（4）边界 (Boundary)

反射型：以自己作为边界的状态
吸收型：不管边界（车开到边界就消失）

（5）规则（状态转移函数）
定义：根据元胞当前状态及其邻居状况确定下一时刻该元胞状态的动力学函数, 简单讲, 就是一个状态转移函数.
分类：
总和型: 某元胞下时刻的状态取决于且仅取决于它所有邻居的当前状态以及自身的当前状态.
合法型: 总和型规则属于合法型规则. 但如果把元胞自动机的规则限制为总和型, 会使元胞自动机具有局限性.

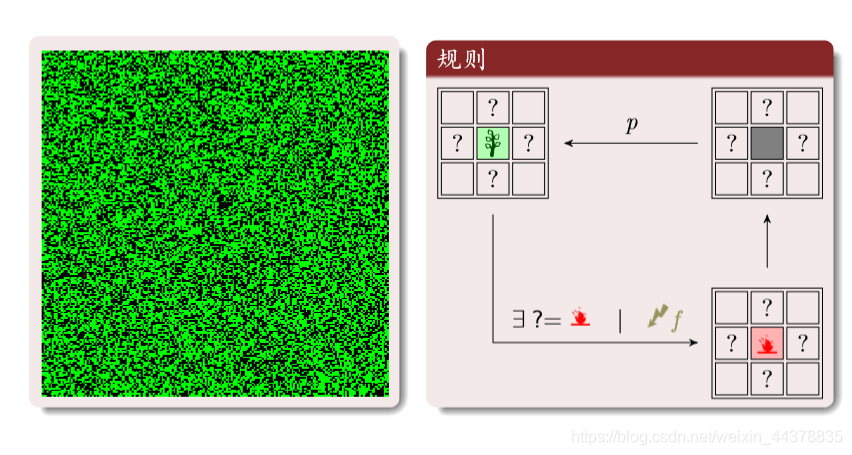

（6）森林火灾
在这里插入图片描述
绿色：树木；红色：火；黑色：空地。
三种状态循环转化：
树：周围有火或者被闪电击中就变成火。
空地：以概率p变为树木
理性分析：红为火；灰为空地；绿是树

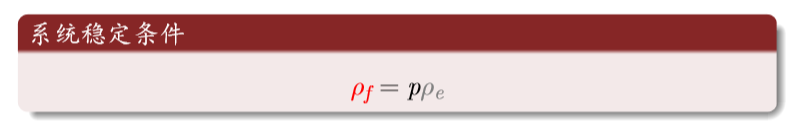

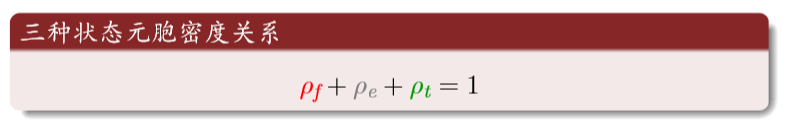

元胞三种状态的密度和为1

火转化为空地的密度等于空地转换为树的密度（新长出来的树等于烧没的树）
在这里插入图片描述

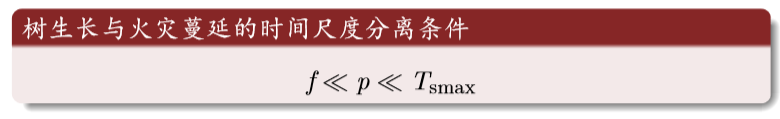

f是闪电的概率:远远小于树生成的概率；T s m a x T_{smax}T smax
是一大群树被火烧的时间尺度
程序实现

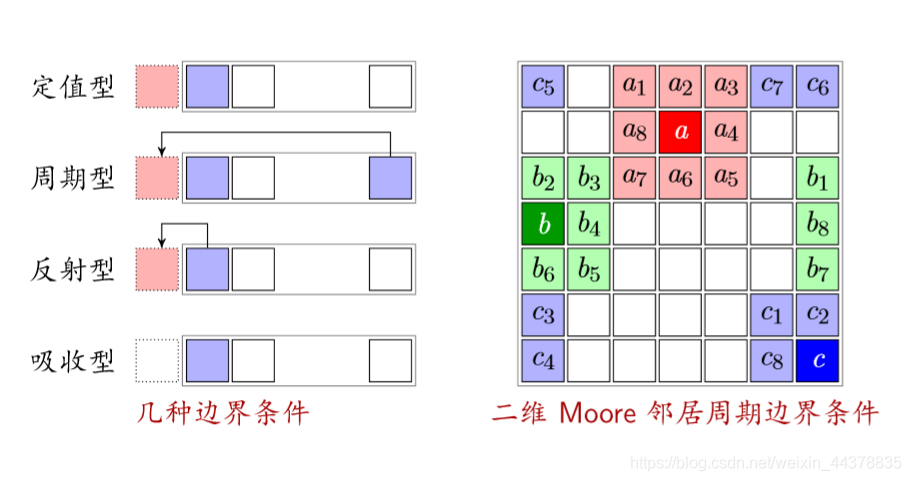

周期性边界条件
购进啊

其中的数字为编号

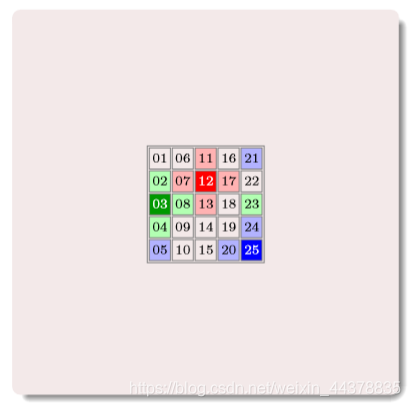

构建邻居矩阵

上面矩阵中的数字编号，对应原矩阵相同位置编号的上邻居编号，一一对应
同样道理：
在这里插入图片描述
（7）交通概念

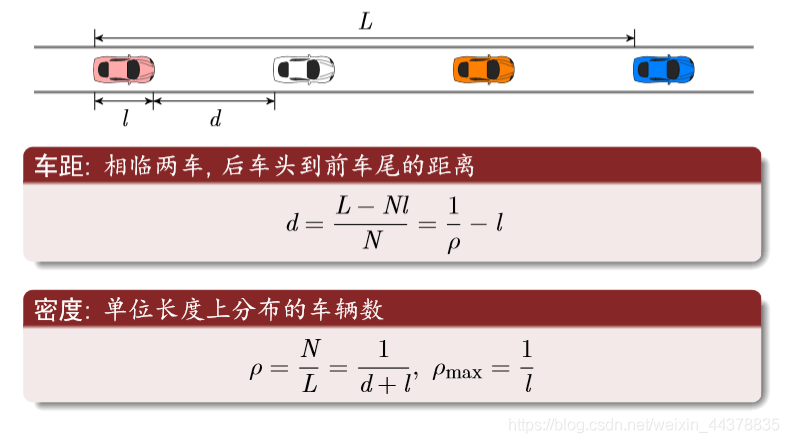

车距和密度

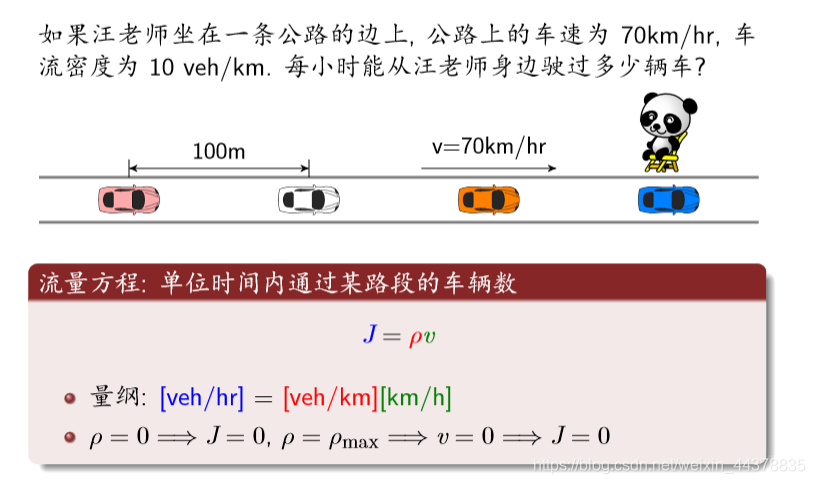

流量方程

守恒方程

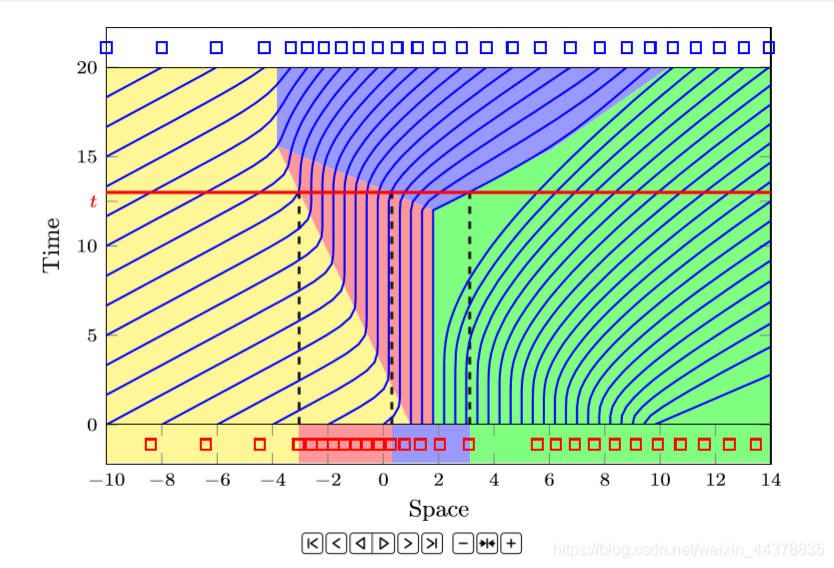

时空轨迹（横轴是空间纵轴为时间）

红线横线与蓝色交点表示每个时间车的位置。
如果是竖线则表示车子在该位置对应的时间

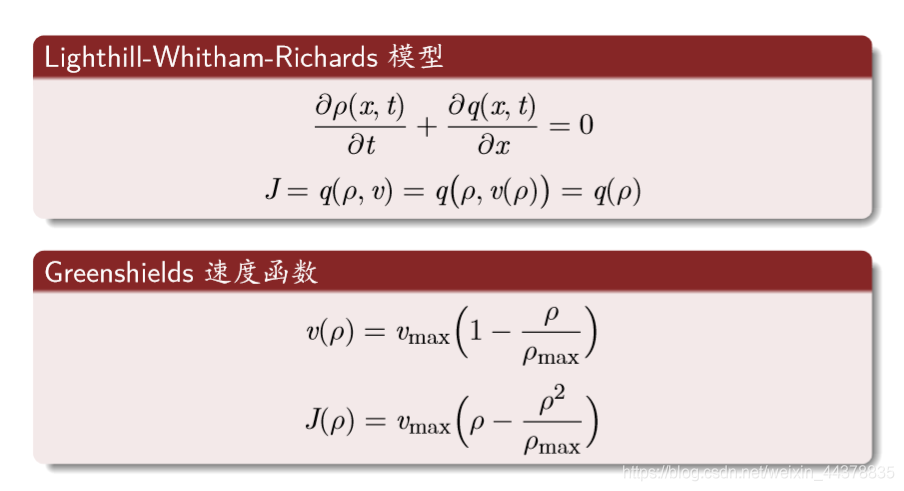

宏观连续模型：
在这里插入图片描述

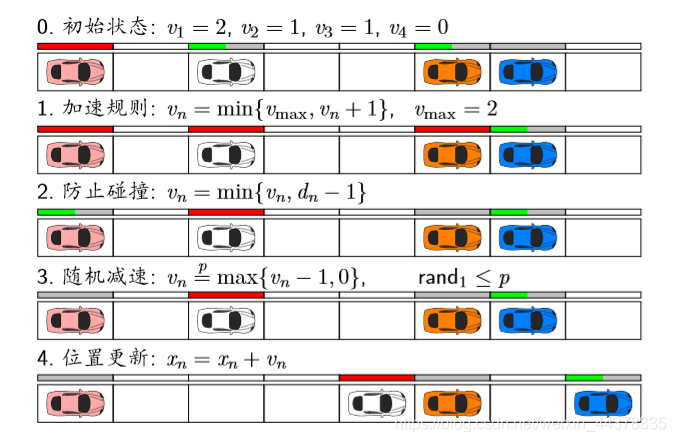

最常用的规则：

红色条表示速度是满的。

1 加速规则：不能超过v m a x （ 2 格 / s ） v_{max}（2格/s）v
max（2格/s）
2 防止碰撞：不能超过车距

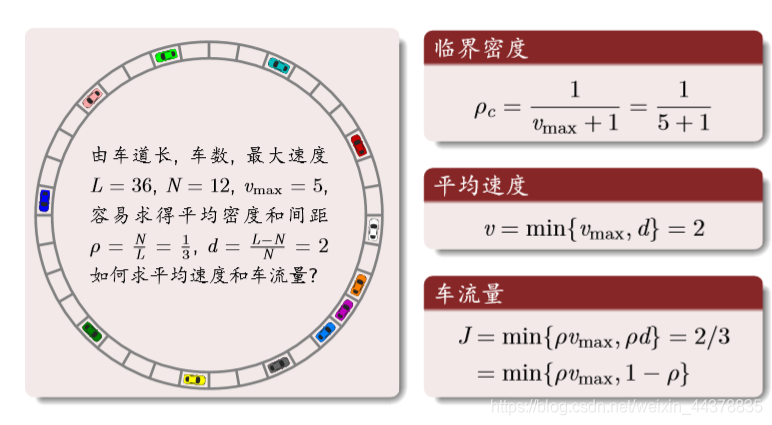

理论分析：
在这里插入图片描述

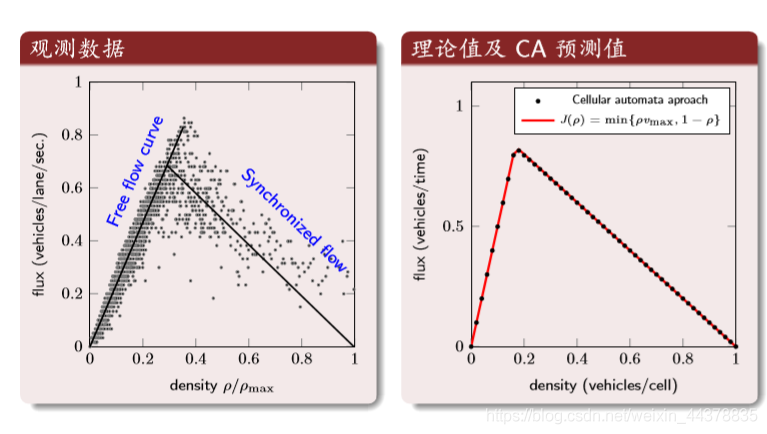

结果分析: 密度与流量

第一个图：横坐标是归一化后的密度，纵坐标是车流量。第二个图：理论值与CA的结果

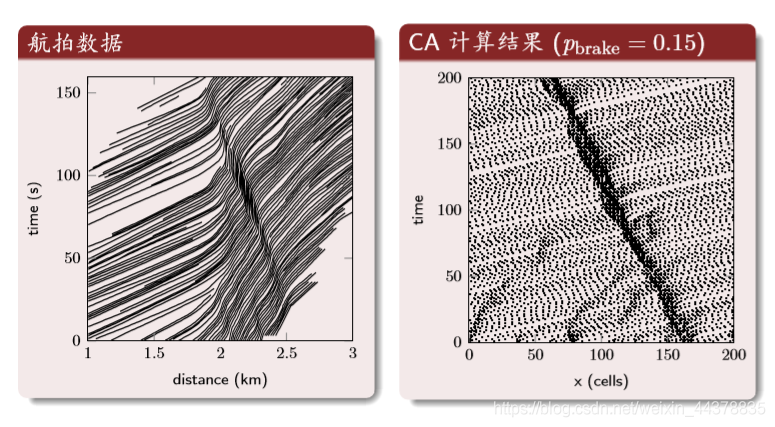

结果分析: 时空轨迹
在这里插入图片描述
中间的深色区域是交通堵塞的区域。

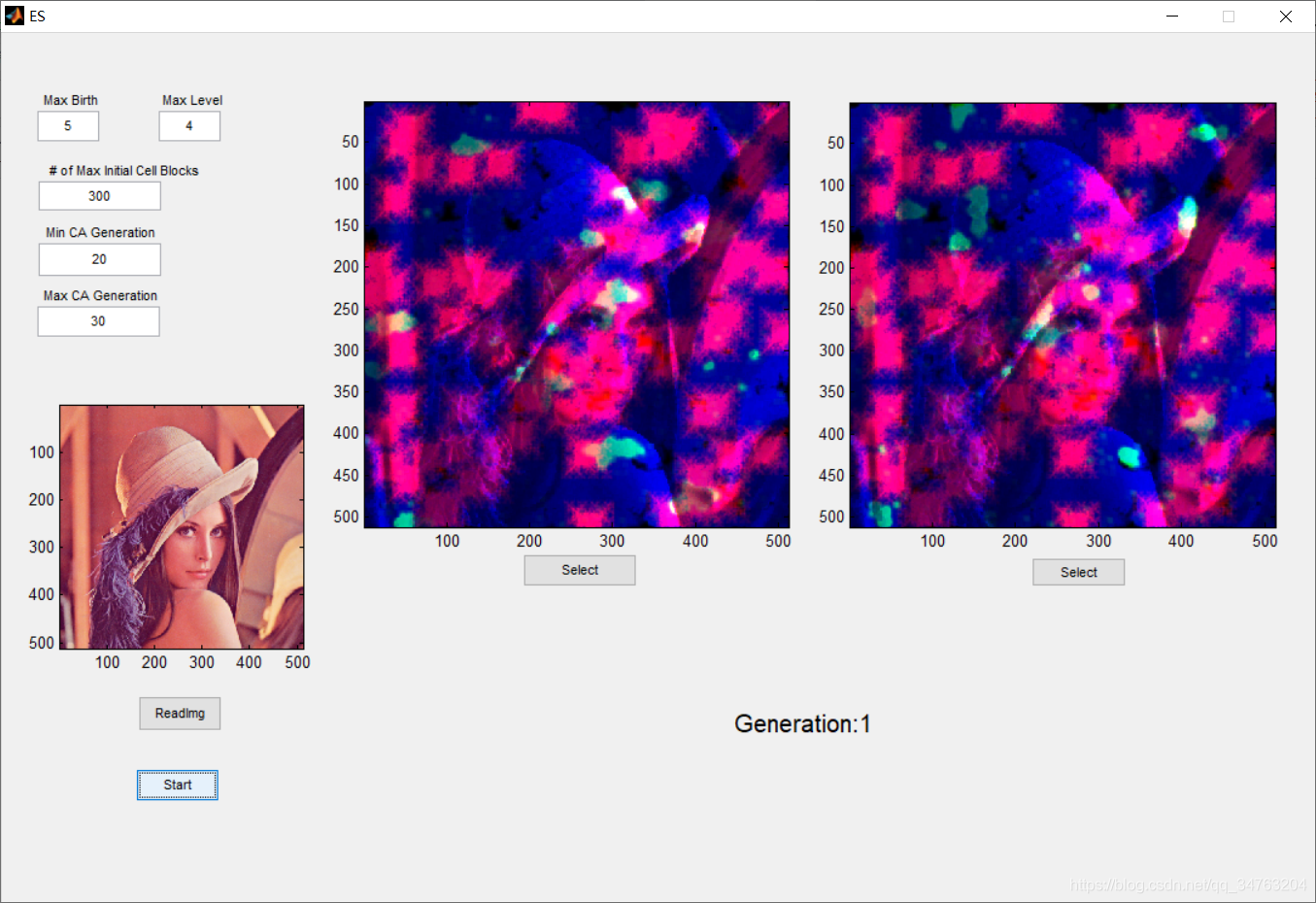

⛄二、部分源代码

function varargout = ES(varargin)
% ES MATLAB code for ES.fig
% ES, by itself, creates a new ES or raises the existing
% singleton*.
%
% H = ES returns the handle to a new ES or the handle to
% the existing singleton*.
%
% ES(‘CALLBACK’,hObject,eventData,handles,…) calls the local
% function named CALLBACK in ES.M with the given input arguments.
%
% ES(‘Property’,‘Value’,…) creates a new ES or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before ES_OpeningFcn gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to ES_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE’s Tools menu. Choose “GUI allows only one
% instance to run (singleton)”.
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help ES

% Last Modified by GUIDE v2.5 24-Nov-2014 16:51:08

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct(‘gui_Name’, mfilename, …
‘gui_Singleton’, gui_Singleton, …
‘gui_OpeningFcn’, @ES_OpeningFcn, …
‘gui_OutputFcn’, @ES_OutputFcn, …
‘gui_LayoutFcn’, [] , …
‘gui_Callback’, []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT

% — Executes just before ES is made visible.
function ES_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to ES (see VARARGIN)

% Choose default command line output for ES
handles.output = hObject;
handles.Img = 0;
handles.ParentImg = 0;
handles.OffspringImg = 0;
handles.Parent = cell(1, 8);
handles.Parent{1} = zeros(1, 3); % Birth
handles.Parent{2} = zeros(1, 3); % Level
handles.Parent{3} = zeros(1, 3); % number of Pattern Pos
handles.Parent{4} = cell(1, 3); % PosH
handles.Parent{5} = cell(1, 3); % PosW
handles.Parent{6} = zeros(1, 3); % Cell Generation
handles.Parent{7} = cell(1, 3); % Pattern
handles.Offspring = cell(1, 8);
handles.Offspring{1} = zeros(1, 3); % Birth
handles.Offspring{2} = zeros(1, 3); % Level
handles.Offspring{3} = zeros(1, 3); % number of Pattern Pos
handles.Offspring{4} = cell(1, 3); % PosH
handles.Offspring{5} = cell(1, 3); % PosW
handles.Offspring{6} = zeros(1, 3); % Cell Generation
handles.Offspring{7} = cell(1, 3); % Pattern
handles.Boundary = cell(1, 7); % Birth, Level, # of CellBlocks, MinCAG, MaxCAG, Image Size
handles.GenerationCount = 0;
if exist(‘iES’, ‘dir’) ~= 7
mkdir(‘iES’);
end
% Update handles structure
guidata(hObject, handles);

% UIWAIT makes ES wait for user response (see UIRESUME)
% uiwait(handles.figure1);

% — Outputs from this function are returned to the command line.
function varargout = ES_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;

function BirthVal_Callback(hObject, eventdata, handles)
% hObject handle to BirthVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,‘String’) returns contents of BirthVal as text
% str2double(get(hObject,‘String’)) returns contents of BirthVal as a double

% — Executes during object creation, after setting all properties.
function BirthVal_CreateFcn(hObject, eventdata, handles)
% hObject handle to BirthVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
% See ISPC and COMPUTER.
if ispc && isequal(get(hObject,‘BackgroundColor’), get(0,‘defaultUicontrolBackgroundColor’))
set(hObject,‘BackgroundColor’,‘white’);
end

function LevelVal_Callback(hObject, eventdata, handles)
% hObject handle to LevelVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,‘String’) returns contents of LevelVal as text
% str2double(get(hObject,‘String’)) returns contents of LevelVal as a double

% — Executes during object creation, after setting all properties.
function LevelVal_CreateFcn(hObject, eventdata, handles)
% hObject handle to LevelVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called

function CellBlocksVal_Callback(hObject, eventdata, handles)
% hObject handle to CellBlocksVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,‘String’) returns contents of CellBlocksVal as text
% str2double(get(hObject,‘String’)) returns contents of CellBlocksVal as a double

% — Executes during object creation, after setting all properties.
function CellBlocksVal_CreateFcn(hObject, eventdata, handles)
% hObject handle to CellBlocksVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called

function MinCAGVal_Callback(hObject, eventdata, handles)
% hObject handle to MinCAGVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,‘String’) returns contents of MinCAGVal as text
% str2double(get(hObject,‘String’)) returns contents of MinCAGVal as a double

% — Executes during object creation, after setting all properties.
function MinCAGVal_CreateFcn(hObject, eventdata, handles)
% hObject handle to MinCAGVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called

function MaxCAGVal_Callback(hObject, eventdata, handles)
% hObject handle to MaxCAGVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)

% Hints: get(hObject,‘String’) returns contents of MaxCAGVal as text
% str2double(get(hObject,‘String’)) returns contents of MaxCAGVal as a double

% — Executes during object creation, after setting all properties.
function MaxCAGVal_CreateFcn(hObject, eventdata, handles)
% hObject handle to MaxCAGVal (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles empty - handles not created until after all CreateFcns called

% — Executes on button press in ImgRead.
function ImgRead_Callback(hObject, eventdata, handles)
% hObject handle to ImgRead (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% [filename, user_canceled] = imgetfile;
% if user_canceled
% return;
% end
filename = ‘lenna.png’;
Img = imread(filename);
handles.Img = Img;
axes(handles.Original);
image(double(handles.Img)/255);
guidata(hObject, handles);

% — Executes on button press in Sellambda.
function Sellambda_Callback(hObject, eventdata, handles)
% hObject handle to Sellambda (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
imwrite(handles.ParentImg, [‘iEA/G’, num2str(handles.GenerationCount), ‘.jpg’]);
[handles.Offspring, cc] = Mutation(handles.Parent, handles.Boundary);
guidata(hObject, handles);
offspring = handles.ParentImg;
[offspring(:, :, cc), ta, tb, tc, td, te] = GUILogicRule(handles.Img, cc, handles.Offspring{1}(cc), handles.Offspring{2}(cc), handles.Offspring{3}(cc), handles.Offspring{6}(cc), 1, handles.Offspring{4}{cc}, handles.Offspring{5}{cc}, handles.Offspring{7}{cc});
axes(handles.mu);
image(offspring);
handles.GenerationCount = handles.GenerationCount +1;
handles.OffspringImg = offspring;
guidata(hObject, handles);
set(handles.Generation, ‘string’, strcat('Generation: ', num2str(handles.GenerationCount)));

% — Executes on button press in Selmu.
function Selmu_Callback(hObject, eventdata, handles)
% hObject handle to Selmu (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
imwrite(handles.OffspringImg, [‘iEA/G’, num2str(handles.GenerationCount), ‘.jpg’]);
[handles.Parent, cc] = Mutation(handles.Offspring, handles.Boundary);
guidata(hObject, handles);
Parent = handles.OffspringImg;
[Parent(:, :, cc), ta, tb, tc, td, te] = GUILogicRule(handles.Img, cc, handles.Parent{1}(cc), handles.Parent{2}(cc), handles.Parent{3}(cc), handles.Parent{6}(cc), 1, handles.Parent{4}{cc}, handles.Parent{5}{cc}, handles.Parent{7}{cc});
axes(handles.lambda);
image(Parent);
handles.GenerationCount = handles.GenerationCount +1;
handles.ParentImg = Parent;
guidata(hObject, handles);
set(handles.Generation, ‘string’, strcat('Generation: ', num2str(handles.GenerationCount)));

% — Executes on button press in Start.
function Start_Callback(hObject, eventdata, handles)
% hObject handle to Start (see GCBO)
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
handles.GenerationCount = 1;
Parent = zeros(size(handles.Img));
Sz = size(handles.Img);
Birth = str2double(get(handles.BirthVal, ‘string’));
Level = str2double(get(handles.LevelVal, ‘string’));
NumCellBlocks = str2double(get(handles.CellBlocksVal, ‘string’));
MinCAG = str2double(get(handles.MinCAGVal, ‘string’));
MaxCAG = str2double(get(handles.MaxCAGVal, ‘string’));
for cc=1:3
CellGen = randi([MinCAG, MaxCAG]);
PosH = randi([1, Sz(1)], 1, NumCellBlocks);
PosW = randi([1, Sz(2)], 1, NumCellBlocks);
[Parent(:, :, cc), handles.Parent{6}(cc), handles.Parent{1}(cc), handles.Parent{2}(cc), handles.Parent{3}(cc), handles.Parent{7}{cc}] = GUILogicRule(handles.Img, cc, Birth, Level, NumCellBlocks, CellGen, 0, PosH, PosW, 0);
handles.Parent{4}{cc} = PosH;
handles.Parent{5}{cc} = PosW;
guidata(hObject, handles);
end
handles.Boundary{1} = Birth;
handles.Boundary{2} = Level;
handles.Boundary{3} = NumCellBlocks;
handles.Boundary{4} = MinCAG;
handles.Boundary{5} = MaxCAG;
handles.Boundary{6} = Sz(1);
handles.Boundary{7} = Sz(2);
guidata(hObject, handles);
handles.Offspring = Mutation(handles.Parent, handles.Boundary);
guidata(hObject, handles);
offspring = zeros(Sz);
for cc=1:3
[offspring(:, :, cc), ta, tb, tc, td, te] = GUILogicRule(handles.Img, cc, handles.Offspring{1}(cc), handles.Offspring{2}(cc), handles.Offspring{3}(cc), handles.Offspring{6}(cc), 1, handles.Offspring{4}{cc}, handles.Offspring{5}{cc}, handles.Offspring{7}{cc});
end
handles.ParentImg = Parent;
handles.OffspringImg = offspring;
guidata(hObject, handles);
axes(handles.lambda);
image(Parent);
axes(handles.mu);
image(offspring);
set(handles.Generation, ‘string’, strcat('Generation: ', num2str(handles.GenerationCount)));

⛄三、运行结果

在这里插入图片描述

⛄四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1]党珊,蒋太刚,巫承军.基于元胞自动机方法的消防疏散仿真研究[J].现代电子技术. 2022,45(21)
[2]帅斌,秦梦瑶,许旻昊.基于元胞自动机的高速铁路列车运行仿真研究[J].计算机仿真. 2022,39(08)
[3]张睿洋.元胞自动机在两类传染病模型中的应用[J].现代信息科技. 2022,6(10)

3 备注
简介此部分摘自互联网，仅供参考，若侵权，请联系删除
