matlab 生命游戏（可调节代数，存活条件，繁殖条件）

77 阅读 0 评论 51 点赞

我是靠谱客的博主野性唇膏，这篇文章主要介绍matlab 生命游戏（可调节代数，存活条件，繁殖条件），现在分享给大家，希望可以做个参考。

以前写的，主要是受到golly这个软件的启发（感觉是个很好玩的软件）
这个生命游戏可调节代数，存活条件，繁殖条件

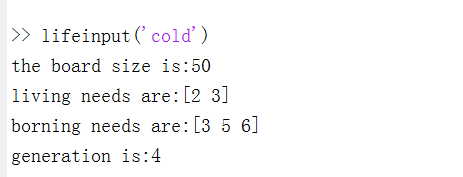

like this
在这里插入图片描述

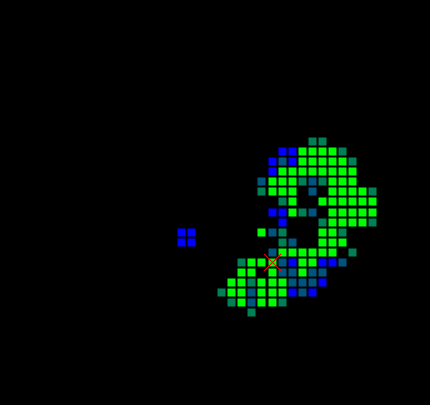

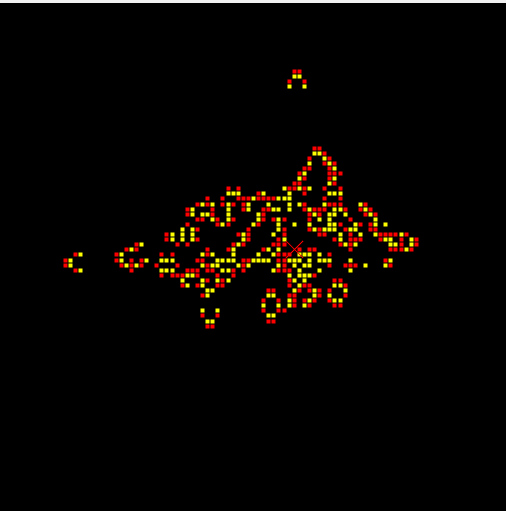

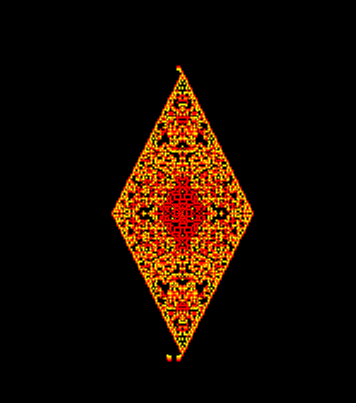

运行效果

代码：

复制代码

function lifeinput(arg1)
% life game which can input point as you will.
% move the red cross with the key
% 'uparrow','downarrow','leftarrow','rightarrow'
% use the key 'space'to input
% 'bacspace'to delete
% 'b' to begin 'c'to stop and 'a' to restart
% size is standing of the size of the background
% live means the needs of lives around for living
% born means the needs of lives around for borning
% if you want the new lives to take place the elder input 1 else input 2
% try to type lifeinput('life'),lifeinput('brian'),lifeinput('firework')...
    if nargin < 1||strcmp(arg1,'hot')||strcmp(arg1,'cold')
        size=input('the board size is:');
        live=input('living needs are:');
        born=input('borning needs are:');
        generation=input('generation is:');
        background=[0 0 0];
        if generation==1
            coloris=[1 1 1];
        end
        if generation~=1
            co=[0;sort((1./(1:(generation-1)))')];
            coloris=[ones(generation,1),co,zeros(generation,1)];
            if nargin < 1
            else if strcmp(arg1,'hot')
                coloris=[ones(generation,1),co,zeros(generation,1)];
                else strcmp(arg1,'cold')
                coloris=[zeros(generation,1),co,-sort(-co)];
                end
            end
        end
        arg1='start';
    end
    take=3;
    if  strcmp(arg1,'life')
        size=50;live=[2 3];born=3;generation=1;coloris=[1 1 1];background=[0 0 0];take=1;
    end
    if  strcmp(arg1,'star wars')
        size=300;live=[3 4 5];born=2;generation=3;
        co=[0;sort((1./(1:(generation-1)))')];
        coloris=[ones(generation,1),co,zeros(generation,1)];background=[0 0 0];take=3;
    end
    if  strcmp(arg1,'brian')
        size=100;live=20;born=2;generation=2;
        co=[0;sort((1./(1:(generation-1)))')];
        coloris=[ones(generation,1),co,zeros(generation,1)];background=[0 0 0];take=3;
    end
    if  strcmp(arg1,'signet')
        size=100;live=[3 4 5];born=2;generation=4;
        co=[0;sort((1./(1:(generation-1)))')];
        coloris=[ones(generation,1),co,zeros(generation,1)];background=[0 0 0];take=2;
    end
    if  strcmp(arg1,'fireworks')
        size=300;live=2;born=[1 3];generation=21;
        co=[0;sort((1./(1:(generation-1)))')];
        coloris=[ones(generation,1),co,zeros(generation,1)];background=[0 0 0];take=3;
    end
%..........................................................................
    persistent save BT BI
%..........................................................................
    axis equal
    axis([-0.5,size+0.5,-0.5,size+0.5])
    set(gca,'xtick',[],'ytick',[],'xcolor','w','ycolor','w')
    set(gca,'color',background)
    hold on
    %A=randi(9,[size,size]);
    %A(A<2.1)=0;
    %A(A>2)=1;
    A=zeros(size,size);
    %A=[input sqare with only ones and zeros]
    [a,b]=find(A(:,:)==1);
    B=[b,length(sum(A,2))-a];
    if ~isempty(B)
        B=[B,ones(length(sum(B,2)),1)*coloris(1,:)];
    else
        B=[1 1 1 1 1];
        B(1,:)=[];
    end
    postion=[floor(size/2),floor(size/2)];
    control=1;
    plotl=scatter(gca,B(:,1),B(:,2),1200/size,B(:,3:5),'s','filled');
    plotpostion=scatter(gca,postion(1,1),postion(1,2),150,'rx');
    set(gcf, 'KeyPressFcn', @key)
    fps = 20;
    game = timer('ExecutionMode', 'FixedRate', 'Period',1/fps, 'TimerFcn', @lifeGame);
    start(game)
set(gcf,'tag','co','CloseRequestFcn',@clo);
    function clo(~,~)
        stop(game)
        delete(findobj('tag','co'))
        clf
        close
    end
    function lifeGame(~,~)
        B=[1 1 1 1 1];
        B(1,:)=[];
        chang=length(sum(A,2));
        postion(postion>chang-1)=postion(postion>chang-1)-chang;
        postion(postion<0)=postion(postion<0)+chang;
        if control==2
            save=A;
            A(A~=0&A~=1)=0;
            B1=[A;zeros(1,chang)];B1(1,:)=[];B2=[zeros(1,chang);A];B2(end,:)=[];
            B3=[zeros(chang,1),A];B3(:,end)=[];B4=[A,zeros(chang,1)];B4(:,1)=[];
            C1=[zeros(chang,1),B1];C1(:,end)=[];C2=[B1,zeros(chang,1)];C2(:,1)=[];
            C3=[zeros(chang,1),B2];C3(:,end)=[];C4=[B2,zeros(chang,1)];C4(:,1)=[];
            NewA=B1+B2+B3+B4+C1+C2+C3+C4;
            progressA=zeros(chang,chang);
            livingA=zeros(chang,chang);
            for sborn=born
                progressA(NewA==sborn)=1;
            end
            for slive=live
                t3=find(NewA==slive);
                t2=find(A==1);
                [lalala,~,~]=intersect(t3,t2);
                progressA(lalala)=1;
                livingA(lalala)=1;
            end
            A=progressA;
            save(save~=0)=save(save~=0)+1;
            save(save>generation)=0;
            if take==1
                save(save==0&A==1)=A(save==0&A==1);
                A=save;
            end
            if take==2
                A(save~=0&A~=1)=save(save~=0&A~=1);
            end
            if take==3
                A(save~=0&livingA~=1)=save(save~=0&livingA~=1);
            end
            for gets=1:generation
                [a,b]=find(A(:,:)==gets);
                if ~isempty(a)
                    BT=[b,length(sum(A,2))-a];
                    BI=[BT,ones(length(b),1)*coloris(gets,:)];
                else
                    BI=[1 1 1 1 1];
                    BI(1,:)=[];
                end
                B=[B;BI];
            end

        end
        if control==1
            for gets=1:generation
                [a,b]=find(A(:,:)==gets);
                if ~isempty(a)
                    BT=[b,length(sum(A,2))-a];
                    BI=[BT,ones(length(b),1)*coloris(gets,:)];
                else
                    BI=[1 1 1 1 1];
                    BI(1,:)=[];
                end
                B=[B;BI];
            end
        end
        set(plotl,'XData',B(:,1),'YData',B(:,2),'CData',B(:,3:5))
        set(plotpostion,'XData',postion(1,1),'YData',postion(1,2))
    end
    function key(~,event)
        switch event.Key
            case 'uparrow'
                postion=postion+[0,1];
            case 'downarrow'
                postion=postion+[0,-1];
            case 'leftarrow'
                postion=postion+[-1,0];
            case 'rightarrow'
                postion=postion+[1,0];
            case 'space'
                A(length(sum(A,2))-postion(1,2),postion(1,1))=1;
            case 'backspace'
                A(length(sum(A,2))-postion(1,2),postion(1,1))=0;
            case 'b'
                control=2;
            case 'c'
                control=1;
            case 'a'
                A=zeros(100,100);
                B=[1 1 1 1 1];
                B(1,:)=[];
                control=1;
        end
    end
end
