RT-Thread Studio ART-Pi无法烧写外部Flash的问题的分析与解决

环境

• Win10 64位
• RT-Thread Studio 2.2.1
• ART-Pi 开发板：STM32H750XBH6开发板
• 工程：sdk-bsp-stm32h750-realthread-artpiprojectsart_pi_net_player

问题描述

• 使用RT-Thread Studio 进行下载，发现有的工程可以正常的下载，有的工程，怎么下载都是失败
• 对比了下成功与失败的原因，确认与硬件开发板没有关系
• 下载成功的信息：

开始下载程序：2022-03-29 00:44:34
D:RT-ThreadStudio>cd /dD:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbin
D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbin>D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbinSTM32_Programmer_CLI.exe -c port=SWD --extload D:Giteesdk-bsp-stm32h750-realthread-artpiprojectsart_pi_blink_ledboardstldrART-Pi_W25Q64.stldr mode=NORMAL -d "D:Giteesdk-bsp-stm32h750-realthread-artpiprojectsart_pi_blink_ledDebugrtthread.elf" -hardRst -s
      -------------------------------------------------------------------
                       STM32CubeProgrammer v2.7.0-RC1
      -------------------------------------------------------------------
Warning: The external loader file does not exist:
mode=normal
ST-LINK SN  : 0669FF393732484257242656
ST-LINK FW  : V2J35M26
Board       : --
Voltage     : 3.29V
SWD freq    : 4000 KHz
Connect mode: Normal
Reset mode  : Software reset
Device ID   : 0x450
Revision ID : Rev V
Device name : STM32H7xx
Flash size  : 128 KBytes
Device type : MCU
Device CPU  : Cortex-M7
Memory Programming ...
Opening and parsing file: rtthread.elf
  File          : rtthread.elf
  Size          : 260704 Bytes
  Address       : 0x90000000
Erasing memory corresponding to segment 0:
Erasing external memory sectors [0 63]
Download in Progress:
Progress: 100%
File download complete
Time elapsed during download operation: 00:00:07.748
Error: Unable to reset MCU!
RUNNING Program ...
  Address:      : 0x8000000
Application is running
Start operation achieved successfully
在debug configration中将reset mode由默认的“hardware reset”改为“system reset”
执行完毕, 耗时：7952ms.

• 下载失败的信息

开始下载程序：2022-03-29 00:47:09
D:RT-ThreadStudio>cd /dD:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbin
D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbin>D:RT-ThreadStudiorepoExtractDebugger_Support_PackagesSTMicroelectronicsST-LINK_Debugger1.6.0toolsbinSTM32_Programmer_CLI.exe -c port=SWD mode=NORMAL -d "D:Giteesdk-bsp-stm32h750-realthread-artpiprojectsart_pi_net_playerDebugrtthread.elf" -hardRst -s
      -------------------------------------------------------------------
                       STM32CubeProgrammer v2.7.0-RC1
      -------------------------------------------------------------------
ST-LINK SN  : 0669FF393732484257242656
ST-LINK FW  : V2J35M26
Board       : --
Voltage     : 3.29V
SWD freq    : 4000 KHz
Connect mode: Normal
Reset mode  : Software reset
Device ID   : 0x450
Revision ID : Rev V
Device name : STM32H7xx
Flash size  : 128 KBytes
Device type : MCU
Device CPU  : Cortex-M7
Memory Programming ...
Opening and parsing file: rtthread.elf
  File          : rtthread.elf
  Size          : 1983684 Bytes
  Address       : 0x90000000
Erasing memory corresponding to segment 0:
Download in Progress:
Error: failed to download Segment[0]
Error: failed to download the File
Error: Unable to reset MCU!
RUNNING Program ...
  Address:      : 0x8000000
Application is running
Start operation achieved successfully
在debug configration中将reset mode由默认的“hardware reset”改为“system reset”
执行完毕, 耗时：495ms.

问题分析

• 怀疑是下载算法引起的，查看工程的下载配置

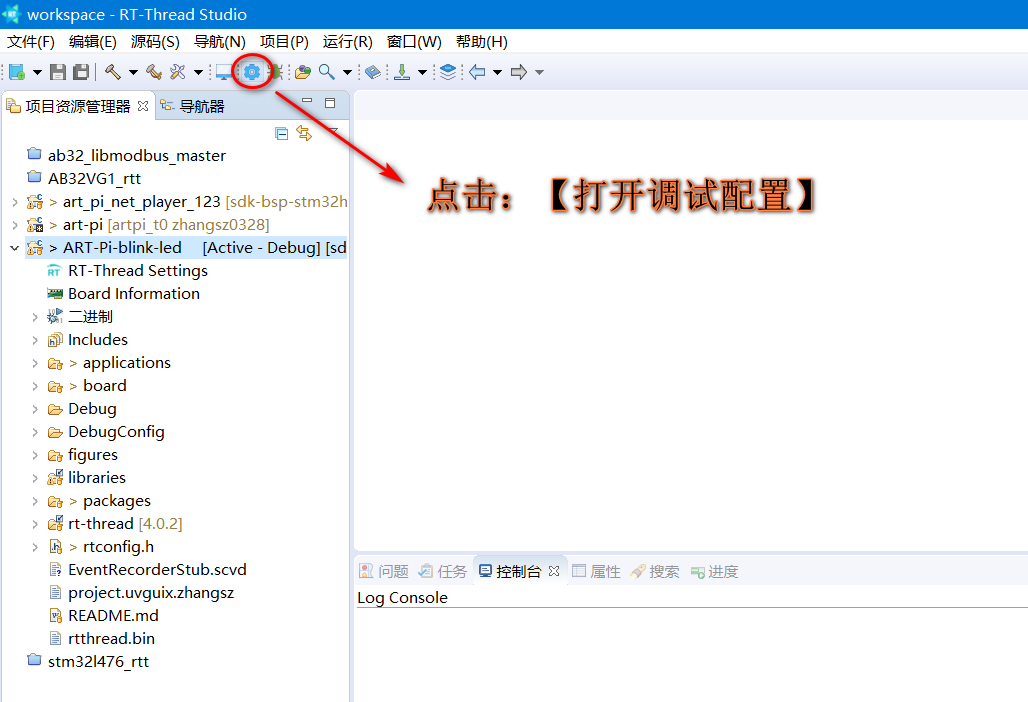

• 正常工程的下载配置：sdk-bsp-stm32h750-realthread-artpiprojectsart_pi_blink_led

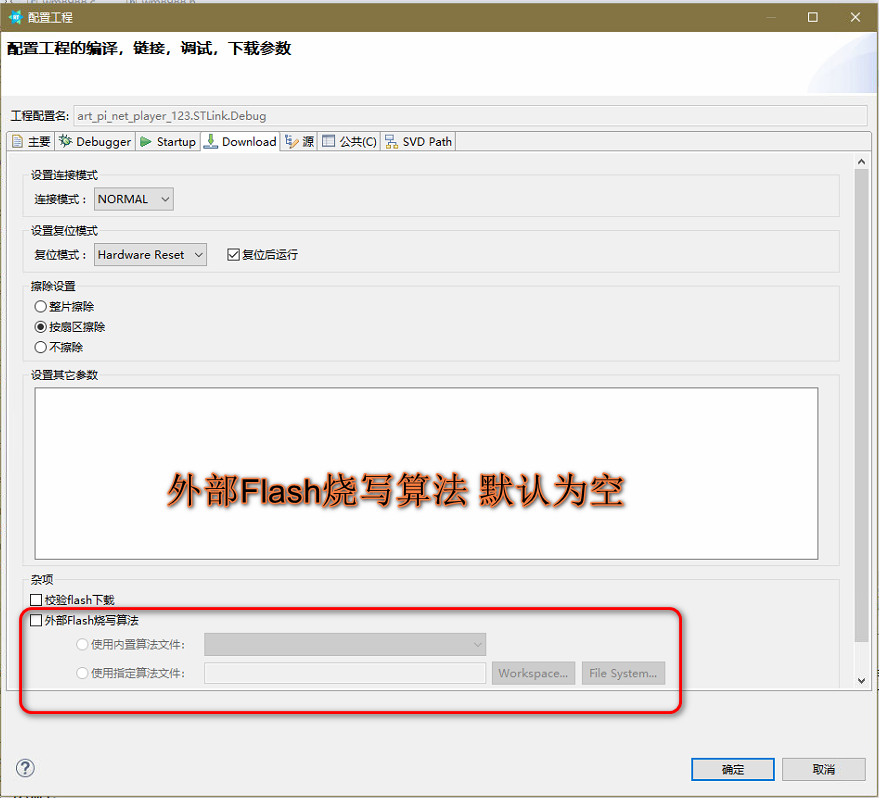

• 无法下载的工程配置：sdk-bsp-stm32h750-realthread-artpiprojectsart_pi_net_player

• 已经确定是没有【外部Flash烧写算法】引起的

解决方法

• 手动配置上烧写算法

• 配置完，可以正常的下载了
• 小问题：这个路径，与正常工程的路径，不太一样，后面研究如何配置和这个路径

正常的路径

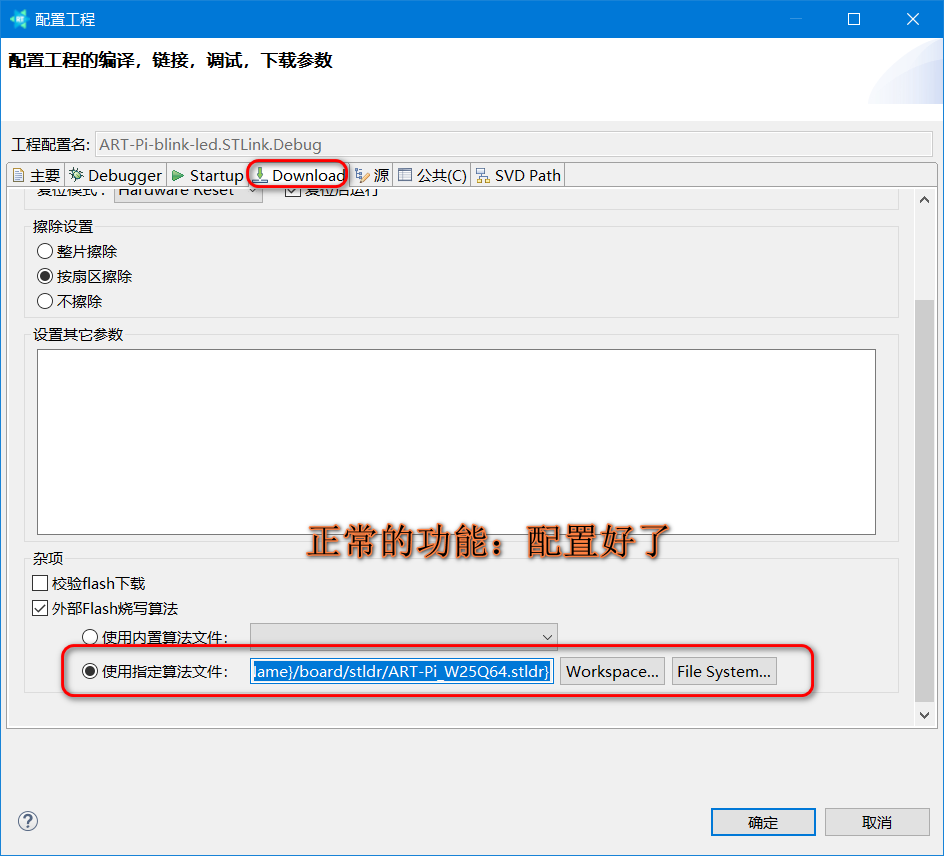

${workspace_loc:/${ProjName}/board/stldr/ART-Pi_W25Q64.stldr}

手动配置的路径

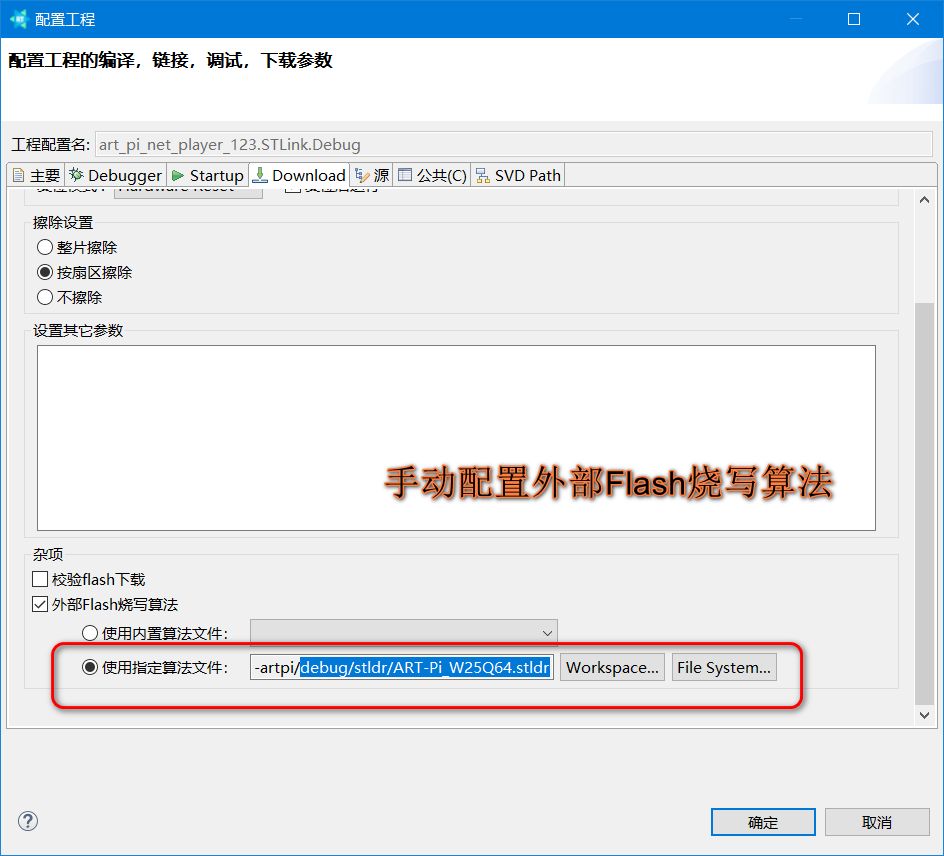

D:/Gitee/sdk-bsp-stm32h750-realthread-artpi/debug/stldr/ART-Pi_W25Q64.stldr

• 手动配置的，是个绝对地址

小结

• 继续研究
