C# 基于开源MQTT自主接入阿里云IoT平台

1. 准备工作

1.1 注册阿里云账号

使用淘宝账号或手机号，开通阿里云账号，并通过实名认证(可以用支付宝认证)

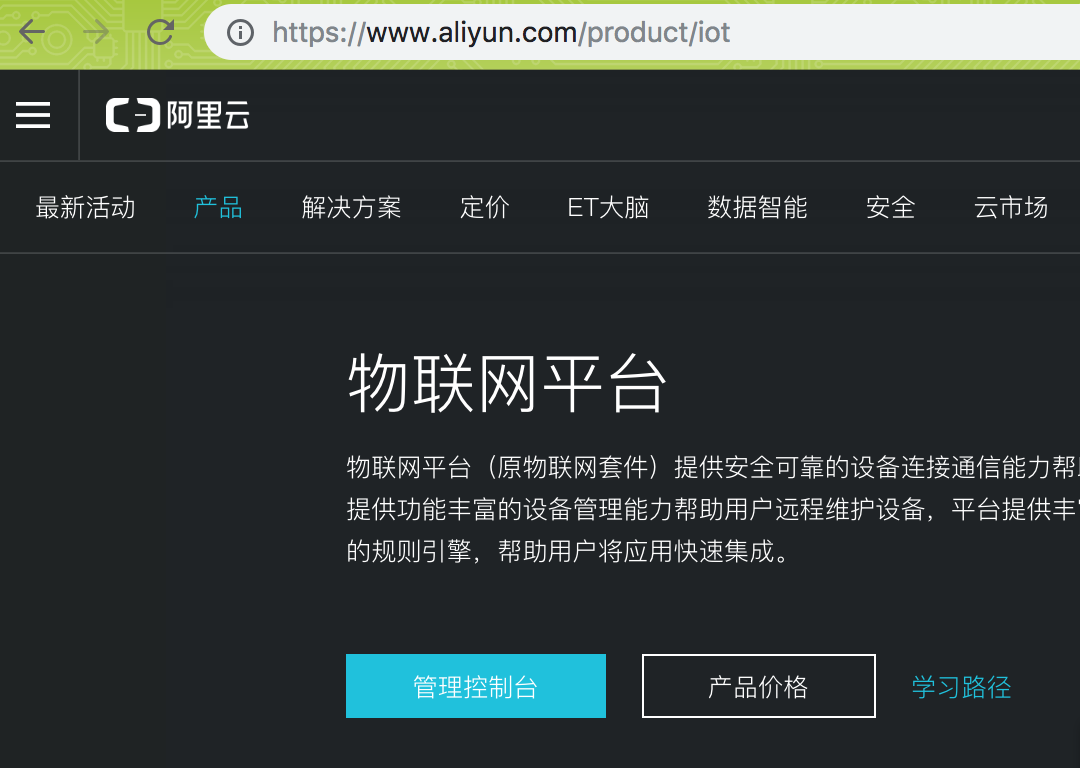

1.2 免费开通IoT物联网套件

产品官网 https://www.aliyun.com/product/iot

1.3 软件开发环境

• 语言 C#
• 工具 Visual Studio IDE

2. IoT平台云端开发

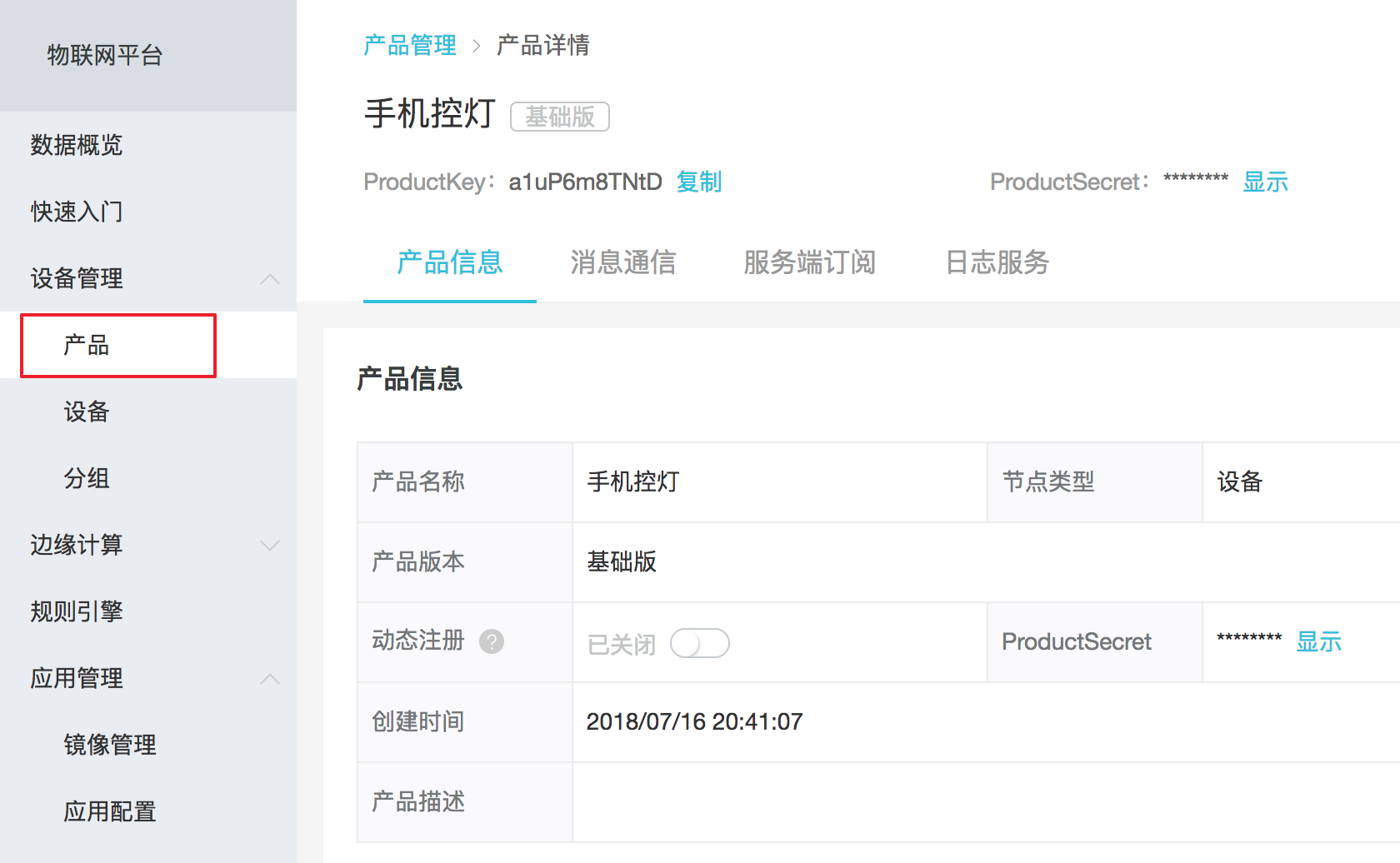

2.1 创建基础版产品

产品信息

消息通信Topic

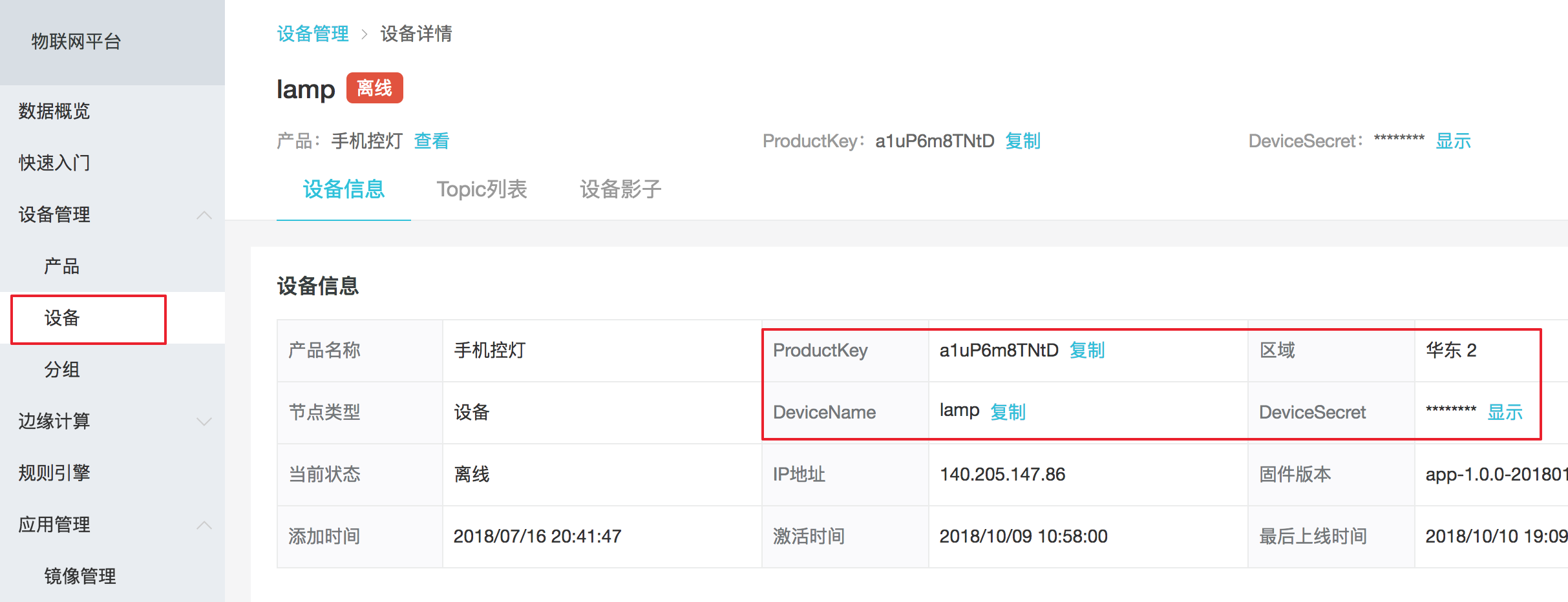

2.2 注册设备

获取设备身份三元组，ProductKey，DeviceName，DeviceSecret

3. 设备端开发

3.1 IoT平台接入password签名算法文件

签名规则参考 https://www.yuque.com/cloud-dev/iot-tech/mebm5g

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Security.Cryptography;
namespace iotxsdkmqttnet {
    public class IotSignUtils {
        public static string sign(Dictionary<string, string> param,
                            string deviceSecret, string signMethod) {
            string[] sortedKey = param.Keys.ToArray();
            Array.Sort(sortedKey);

            StringBuilder builder = new StringBuilder();
            foreach(var i in sortedKey){
                builder.Append(i).Append(param[i]);
            }

            byte[] key = Encoding.UTF8.GetBytes(deviceSecret);
            byte[] signContent = Encoding.UTF8.GetBytes(builder.ToString());
            //根据signMethod动态调整，硬编码了： 'hmacmd5'
            var hmac = new HMACMD5(key);
            byte[] hashBytes = hmac.ComputeHash(signContent);

            StringBuilder signBuilder = new StringBuilder();
            foreach (byte b in hashBytes)
                signBuilder.AppendFormat("{0:x2}", b);

            return signBuilder.ToString();
        }
    }
}

3.2 接入IoT平台C#版本的MQTT库

C#的mqtt库 https://www.nuget.org/packages/M2Mqtt/

目前最好用的C#库是 eclipse出的M2Mqtt库，

主页链接： http://www.eclipse.org/paho/clients/dotnet/

项目的地址是 https://github.com/eclipse/paho.mqtt.m2mqtt

使用方式是在vs 的命令中输入 Install-Package M2Mqtt

组件下载：M2Mqtt.Net.dll （v4.3.0最新版 2019.7.16本地生成）

链接：https://pan.baidu.com/s/1lacs13v9nde8d2wrj2oU4g
提取码：l8cg

3.3 设备端应用程序

using System;
using System.Net;
using System.Collections.Generic;
using uPLibrary.Networking.M2Mqtt;
using uPLibrary.Networking.M2Mqtt.Messages;
using System.Text;
using System.Linq;

namespace iotMqttDemo {
    class MainClass {
        static string ProductKey = "******";
        static string DeviceName = "******";
        static string DeviceSecret = "******";
        static string RegionId = "cn-shanghai";

        static string PubTopic = "/" + ProductKey + "/" + DeviceName + "/update";
        static string SubTopic = "/" + ProductKey + "/" + DeviceName + "/get";

        public static void Main(string[] args)
        {
            IPHostEntry host = Dns.GetHostEntry(Dns.GetHostName());
            string clientId = host.AddressList.FirstOrDefault(
                ip => ip.AddressFamily == System.Net.Sockets.AddressFamily.InterNetwork).ToString();
            string t = Convert.ToString(DateTimeOffset.Now.ToUnixTimeMilliseconds());
            string signmethod = "hmacmd5";

            Dictionary<string, string> dict = new Dictionary<string, string>();
            dict.Add("productKey", ProductKey);
            dict.Add("deviceName", DeviceName);
            dict.Add("clientId", clientId);
            dict.Add("timestamp", t);

            string mqttUserName = DeviceName + "&" + ProductKey;
            string mqttPassword = IotSignUtils.sign(dict, DeviceSecret, signmethod);
            string mqttClientId = clientId + "|securemode=3,signmethod="+signmethod+",timestamp=" + t + "|";

            string targetServer = "tcp://" + ProductKey + ".iot-as-mqtt." + RegionId + ".aliyuncs.com";

            ConnectMqtt(targetServer, mqttClientId, mqttUserName, mqttPassword);
        }

        static void ConnectMqtt(string targetServer, string mqttClientId, string mqttUserName, string mqttPassword){
            MqttClient client = new MqttClient(targetServer);
            client.ProtocolVersion = MqttProtocolVersion.Version_3_1_1;

            client.Connect(mqttClientId, mqttUserName, mqttPassword, false, 60);
            client.MqttMsgPublishReceived += Client_MqttMsgPublishReceived;

            //发布消息
            String content = "{'content':'msg from :" + mqttClientId + ", 这里是.NET设备'}";
            var id = client.Publish(PubTopic, Encoding.ASCII.GetBytes(content));

            //订阅消息
            client.Subscribe(new string[] { SubTopic }, new byte[] { 0 });
        }

        static void Client_MqttMsgPublishReceived(object sender, MqttMsgPublishEventArgs e)
        {
            // handle message received
            string topic = e.Topic;
            string message = Encoding.ASCII.GetString(e.Message);
        }

    }
}

4. 运行结果

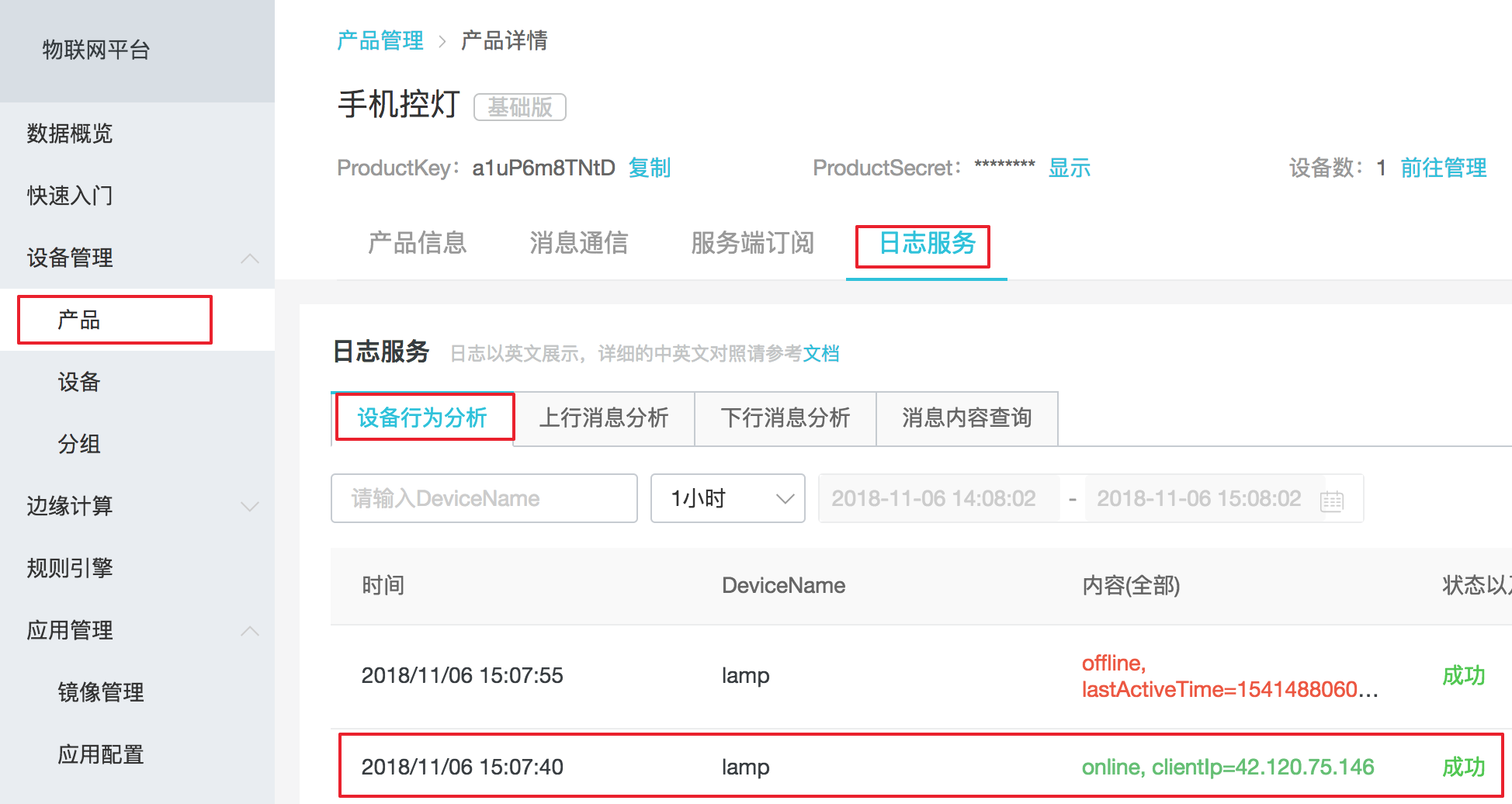

云端看到设备上线记录，数据上报记录

至此，完成了.NET平台设备C#语言接入阿里云IoT物联网云平台的开发实践。
