1. 可重叠和不可重叠区分

• 可重叠的序列检测器检测到一个目标串后可以不用回到初始状态，该目标串的元素的可作为下一个目标串的子串继续进行判断。
  0 1 1 0 1 0 1 0 1 1 1 0
• 不可重叠的序列检测器一次检测完成后必须回到初始状态。
  0 1 1 0 1 0 1 0 1 1 1 0

2. 可重叠序列检测器实现

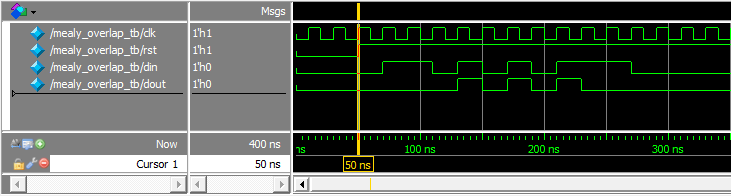

2.1. 米利机

• 输出由当前状态和输入共同决定

module	mealy_overlap	(
	output		reg		dout,

	input		wire	clk,
	input		wire	rst,
	input		wire	din
);

	reg	[1:0]	curr_state;
	reg	[1:0]	next_state;

	parameter	IDLE	=	2'b 00;
	parameter	S1		=	2'b 01;
	parameter	S2		=	2'b 10;

	always @ (posedge clk or negedge rst)	begin
		if (!rst)	begin
			curr_state	<=	IDLE;
		end else	begin
			curr_state	<=	next_state;
		end
	end

	always @ (*)	begin
		case	(curr_state)
			IDLE:	begin
				if (din == 1)	begin		next_state <= S1;	dout <= 0;	end
				else			begin		next_state <= IDLE;	dout <= 0;	end
			end
			S1:		begin
				if (din == 0)	begin		next_state <= S2;	dout <= 0;	end
				else			begin		next_state <= S1;	dout <= 0;	end
			end
			S2:		begin
				if (din == 1)	begin		next_state <= S1;	dout <= 1;	end
				else			begin		next_state <= IDLE;	dout <= 0;	end
			end
			default:	begin				next_state <= IDLE;	dout <= 0;	end
		endcase
	end

endmodule

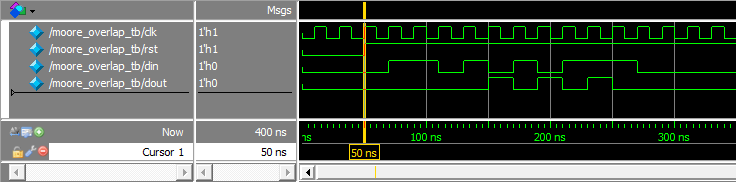

2.2. 摩尔机

• 输出由当前状态决定

module	moore_overlap	(
	output	reg		dout,

	input	wire	clk,
	input	wire	rst,
	input	wire	din
);

	reg	[1:0]	curr_state;
	reg	[1:0]	next_state;

	parameter	IDLE	=	2'b 00;
	parameter	S1		=	2'b 01;
	parameter	S2		=	2'b 10;
	parameter	S3		=	2'b 11;

	always@ (posedge clk or negedge rst)	begin
		if (!rst)	begin
			curr_state	<=	IDLE;
		end	else	begin
			curr_state	<=	next_state;
		end
	end

	always @ (*)	begin
		case	(curr_state)
			IDLE:	begin
				if (din == 1)		next_state	<=	S1;
				else				next_state	<=	IDLE;
			end
			S1:		begin
				if (din == 0)		next_state	<=	S2;
				else				next_state	<=	S1;
			end
			S2:		begin
				if (din == 1)		next_state	<=	S3;
				else				next_state	<=	IDLE;
			end
			S3:		begin
				if (din == 1)		next_state	<=	S1;
				else				next_state	<=	S2;
			end
			default:	begin		next_state	<=	IDLE;
			end
		endcase
	end

	always @ (*)	begin
		if (curr_state == S3)		dout	<=	1;
		else						dout	<=	0;
	end

endmodule

3. 不可重叠序列检测器实现

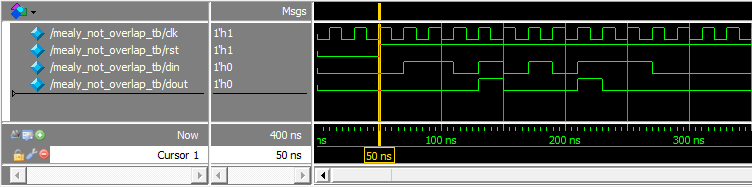

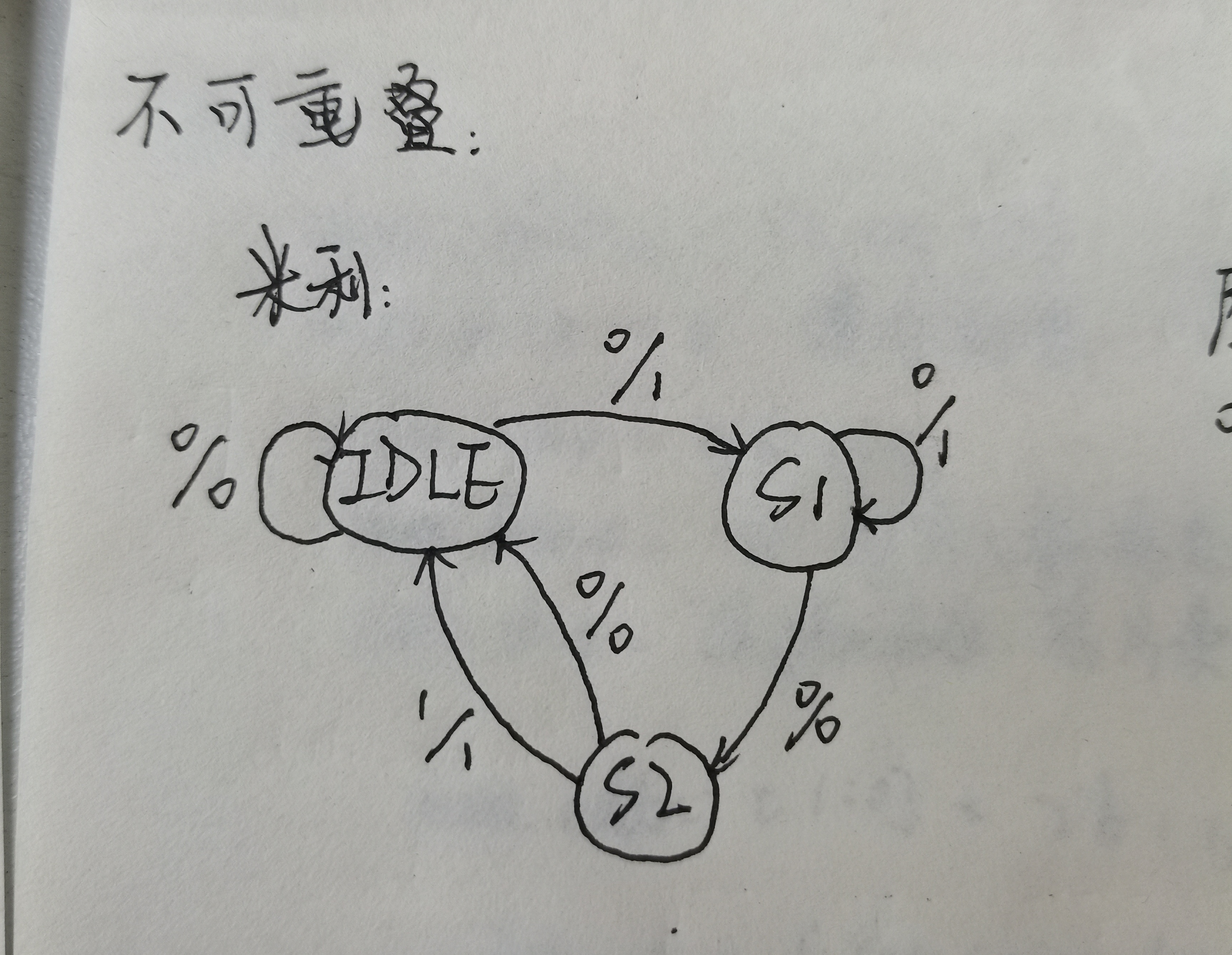

3.1. 米利机

module	mealy_not_overlap	(
	output		reg		dout,

	input		wire	clk,
	input		wire	rst,
	input		wire	din
);

	reg	[1:0]	curr_state;
	reg	[1:0]	next_state;

	parameter	IDLE	=	2'b 00;
	parameter	S1		=	2'b 01;
	parameter	S2		=	2'b 10;

	always @ (posedge clk or negedge rst)	begin
		if (!rst)	begin
			curr_state	<=	IDLE;
		end else	begin
			curr_state	<=	next_state;
		end
	end

	always @ (*)	begin
		case	(curr_state)
			IDLE:	begin
				if (din == 1)	begin		next_state <= S1;		dout <= 0;	end
				else			begin		next_state <= IDLE;		dout <= 0;	end
			end
			S1:		begin
				if (din == 0)	begin		next_state <= S2;		dout <= 0;	end
				else			begin		next_state <= S1;		dout <= 0;	end
			end
			S2:		begin
				if (din == 1)	begin		next_state <= IDLE;		dout <= 1;	end
				else			begin		next_state <= IDLE;		dout <= 0;	end
			end
			default:	begin				next_state <= IDLE;		dout <= 0;	end
		endcase
	end

endmodule

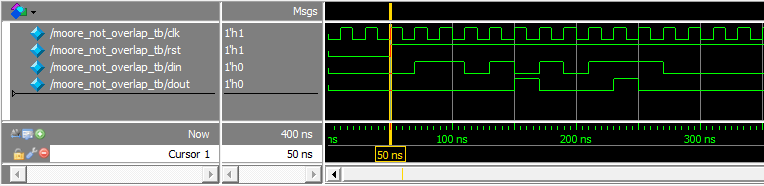

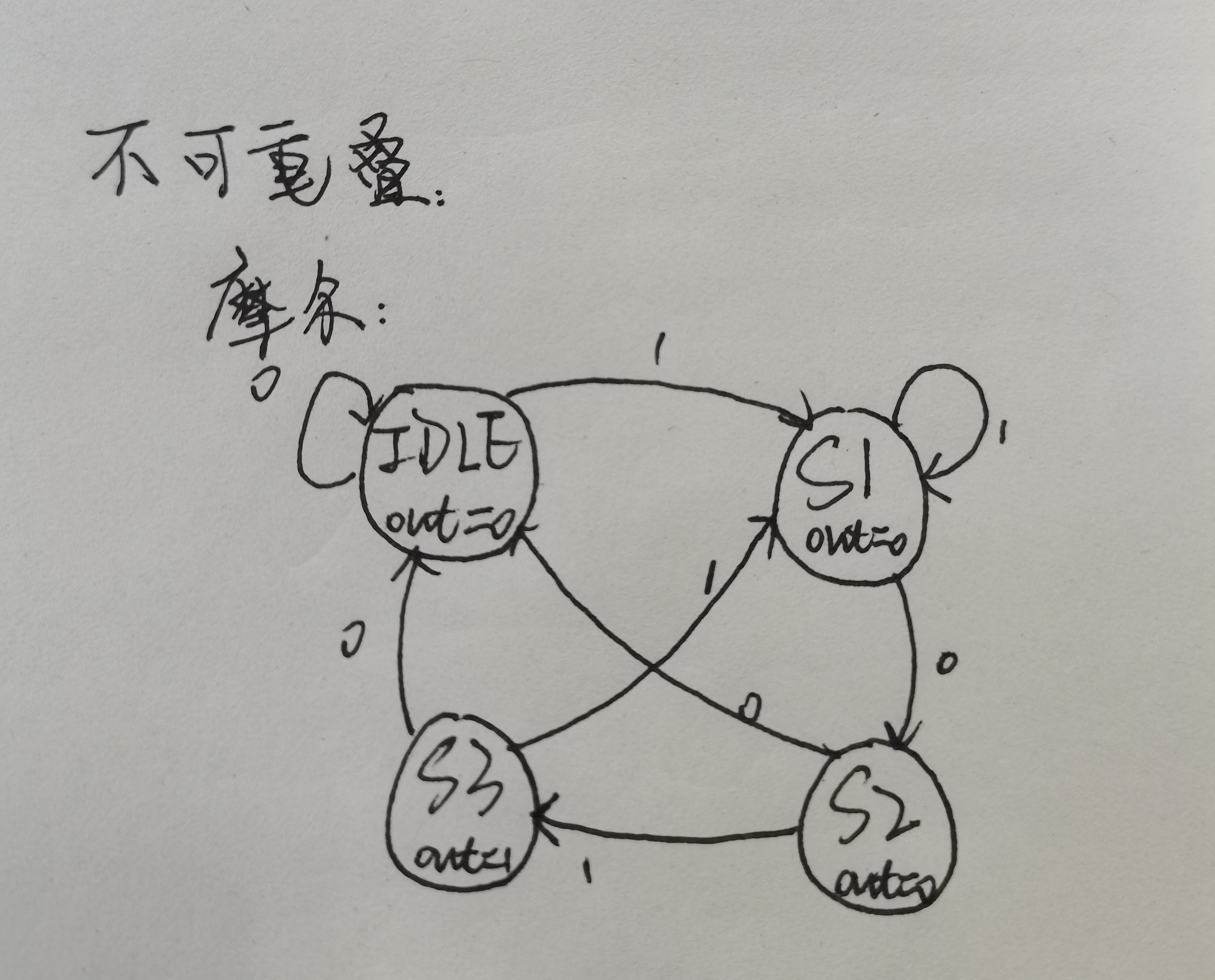

3.2. 摩尔机

module	moore_not_overlap	(
	output	reg		dout,

	input	wire	clk,
	input	wire	rst,
	input	wire	din
);

	reg	[1:0]	curr_state;
	reg	[1:0]	next_state;

	parameter	IDLE	=	2'b 00;
	parameter	S1		=	2'b 01;
	parameter	S2		=	2'b 10;
	parameter	S3		=	2'b 11;

	always@ (posedge clk or negedge rst)	begin
		if (!rst)	begin
			curr_state	<=	IDLE;
		end	else	begin
			curr_state	<=	next_state;
		end
	end

	always @ (*)	begin
		case	(curr_state)
			IDLE:	begin
				if (din == 1)		next_state	<=	S1;
				else				next_state	<=	IDLE;
			end
			S1:		begin
				if (din == 0)		next_state	<=	S2;
				else				next_state	<=	S1;
			end
			S2:		begin
				if (din == 1)		next_state	<=	S3;
				else				next_state	<=	IDLE;
			end
			S3:		begin
				if (din == 1)		next_state	<=	S1;
				else				next_state	<=	IDLE;
			end
			default:	begin		next_state	<=	IDLE;
			end
		endcase
	end

	always @ (*)	begin
		if (curr_state == S3)		dout	<=	1;
		else						dout	<=	0;
	end

endmodule

摩尔机和米利机的区别

Moore状态机的输出仅依赖于当前状态而与输入无关。想要输出dout = 1，状态S3必须形成。

Mealy状态机的输出与当前状态和输入有关。想要输出dout = 1，状态S2下输入din = 1就可以了，不需要状态S3。根据波形可对比反应更快。
