Verilog刷题HDLBits——Mt2015 q4

题目描述
代码

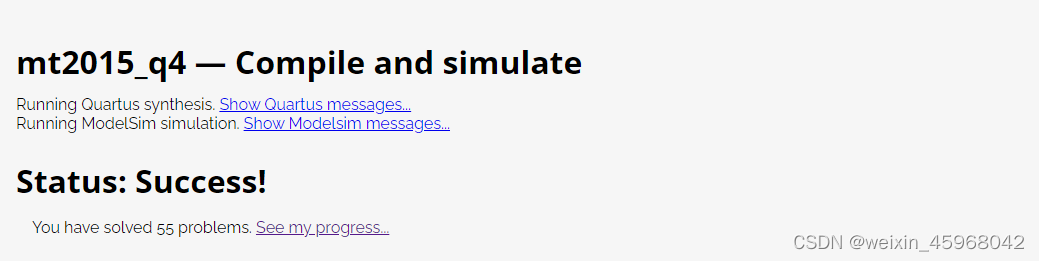

结果

题目描述

Taken from 2015 midterm question 4

See mt2015_q4a and mt2015_q4b for the submodules used here. The top-level design consists of two instantiations each of subcircuits A and B, as shown below.
在这里插入图片描述

代码

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
// 解法一：不分层
module top_module (input x, input y, output z);

    wire z1,z2,z3,z4;
    assign z1 = (x^y)&x;
    assign z2 = x^~y;
    assign z3 = (x^y)&x;
    assign z4 = x^~y;

    assign z = (z1|z2)^(z3&z4);

endmodule

// 解法二：分层
module top_module(
	input x,
	input y,
	output z);

	wire z1, z2, z3, z4;

	A ia1 (x, y, z1);
	B ib1 (x, y, z2);
	A ia2 (x, y, z3);
	B ib2 (x, y, z4);

	assign z = (z1 | z2) ^ (z3 & z4);

	// Or you could simplify the circuit including the sub-modules:
	// assign z = x|~y;

endmodule

module A (
	input x,
	input y,
	output z);

	assign z = (x^y) & x;

endmodule

module B (
	input x,
	input y,
	output z);

	assign z = ~(x^y);

endmodule
