VHDL四输入与非门74LS00编写及testbench文件仿真

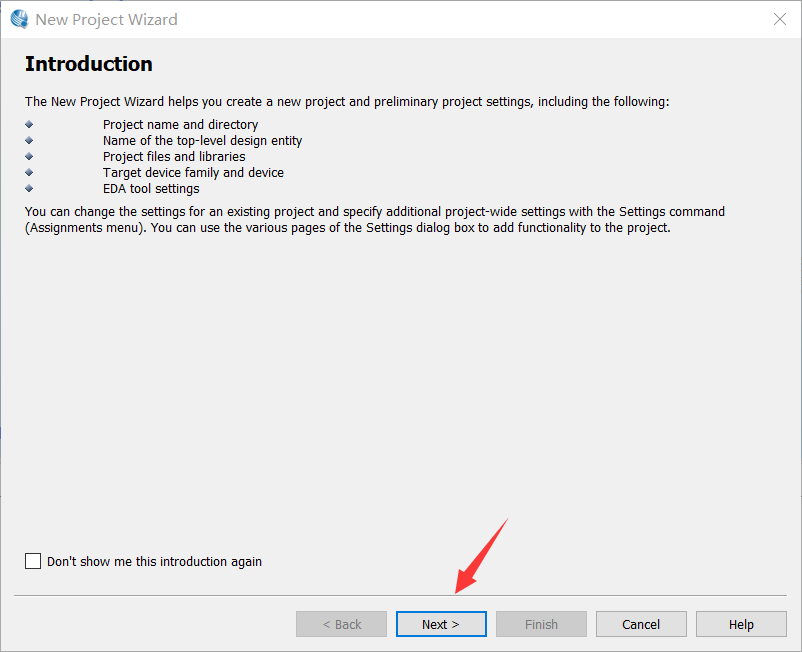

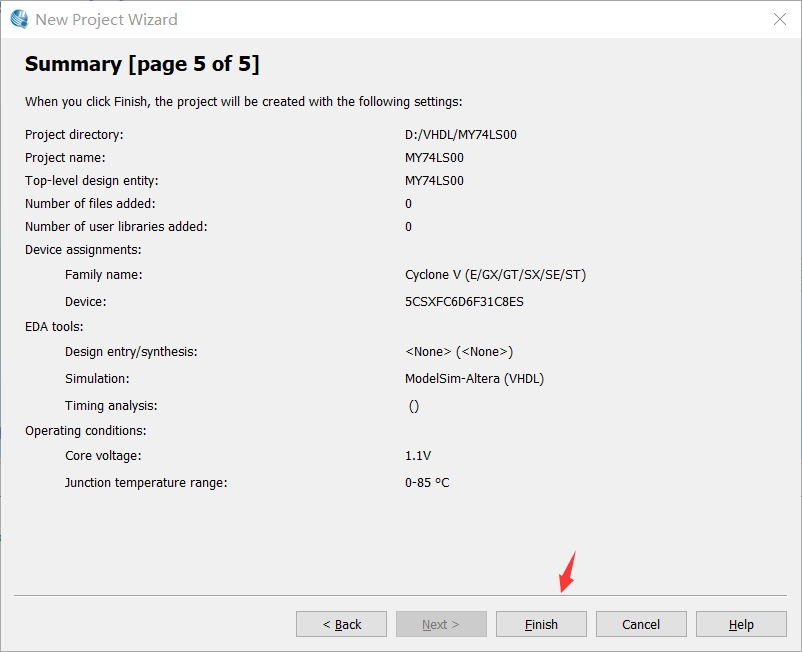

1.新建工程

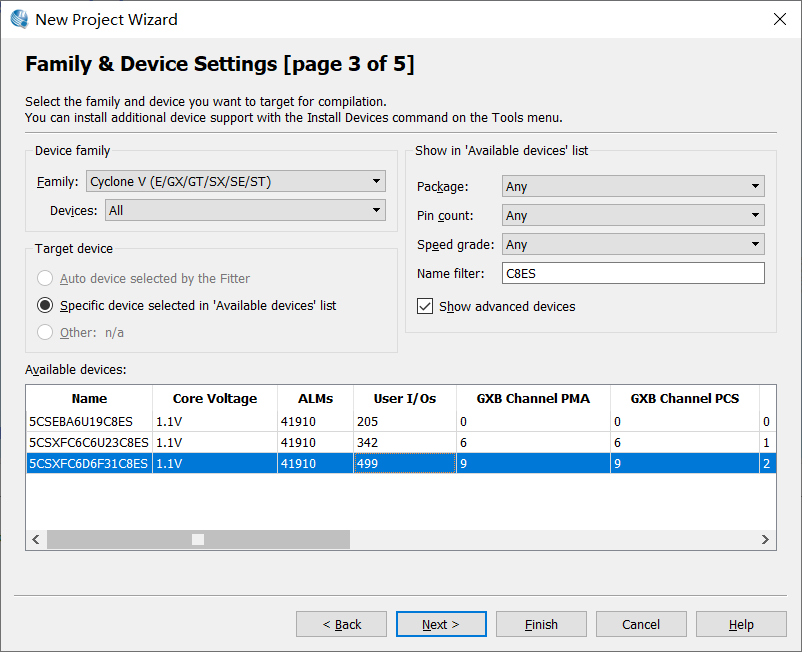

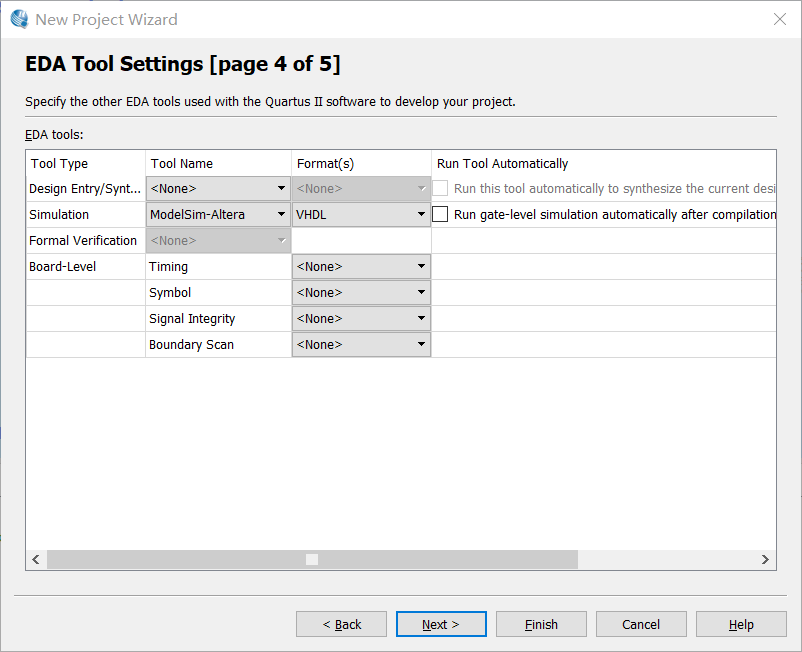

此处型号根据自己板子而定。

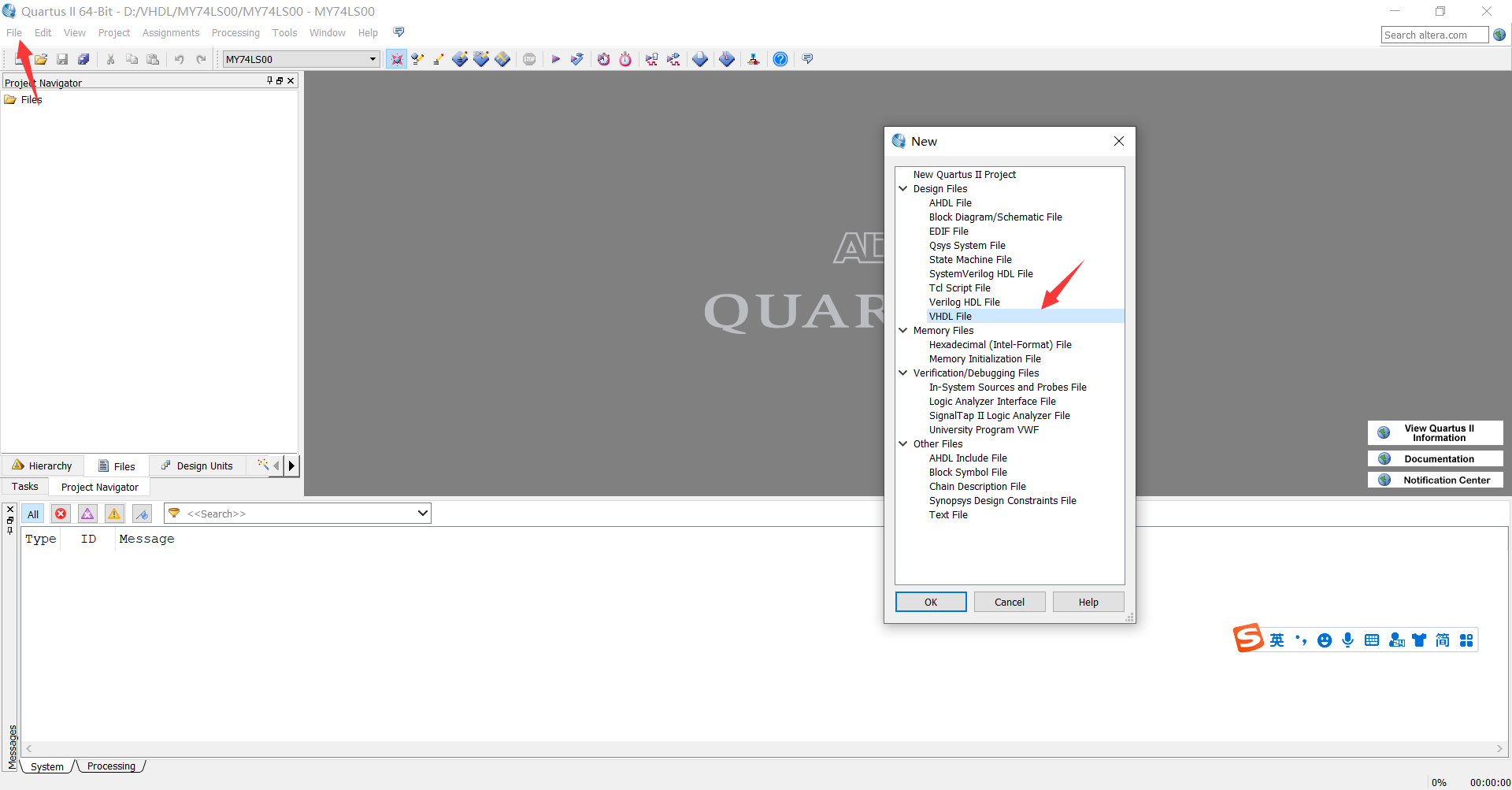

2.新建二输入与非门实体

MYNAND2.vhd文件如下

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;

ENTITY MYNAND2 IS
	PORT(A,B:IN STD_LOGIC;
		Y:OUT STD_LOGIC);
END	ENTITY MYNAND2;

ARCHITECTURE ART1 OF MYNAND2 IS
	BEGIN
	Y<=A NAND B;
END ARCHITECTURE ART1;

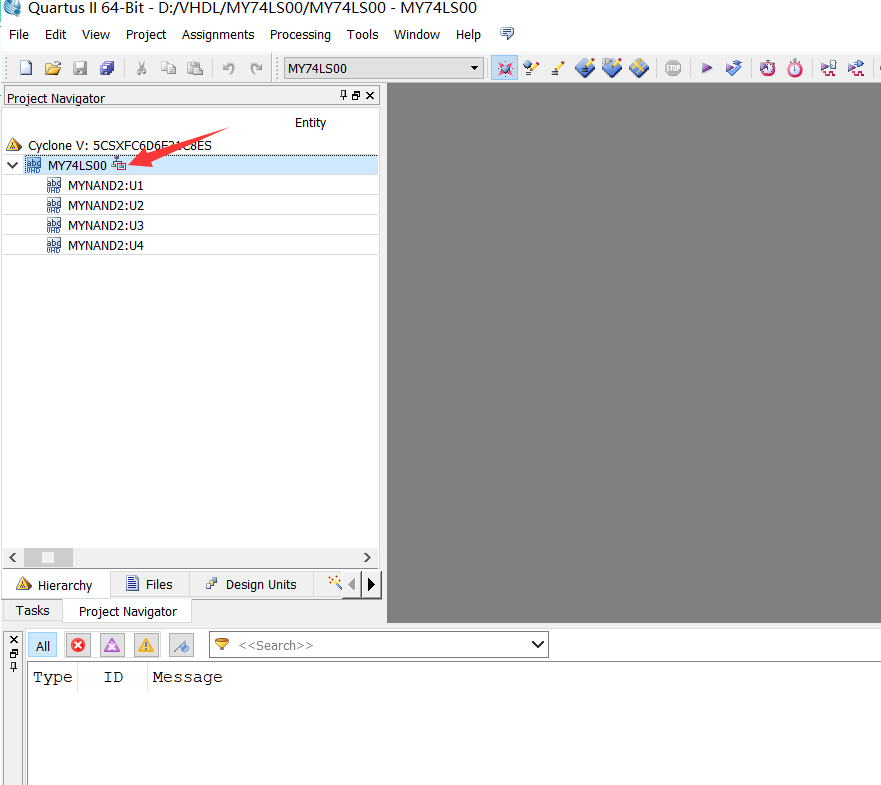

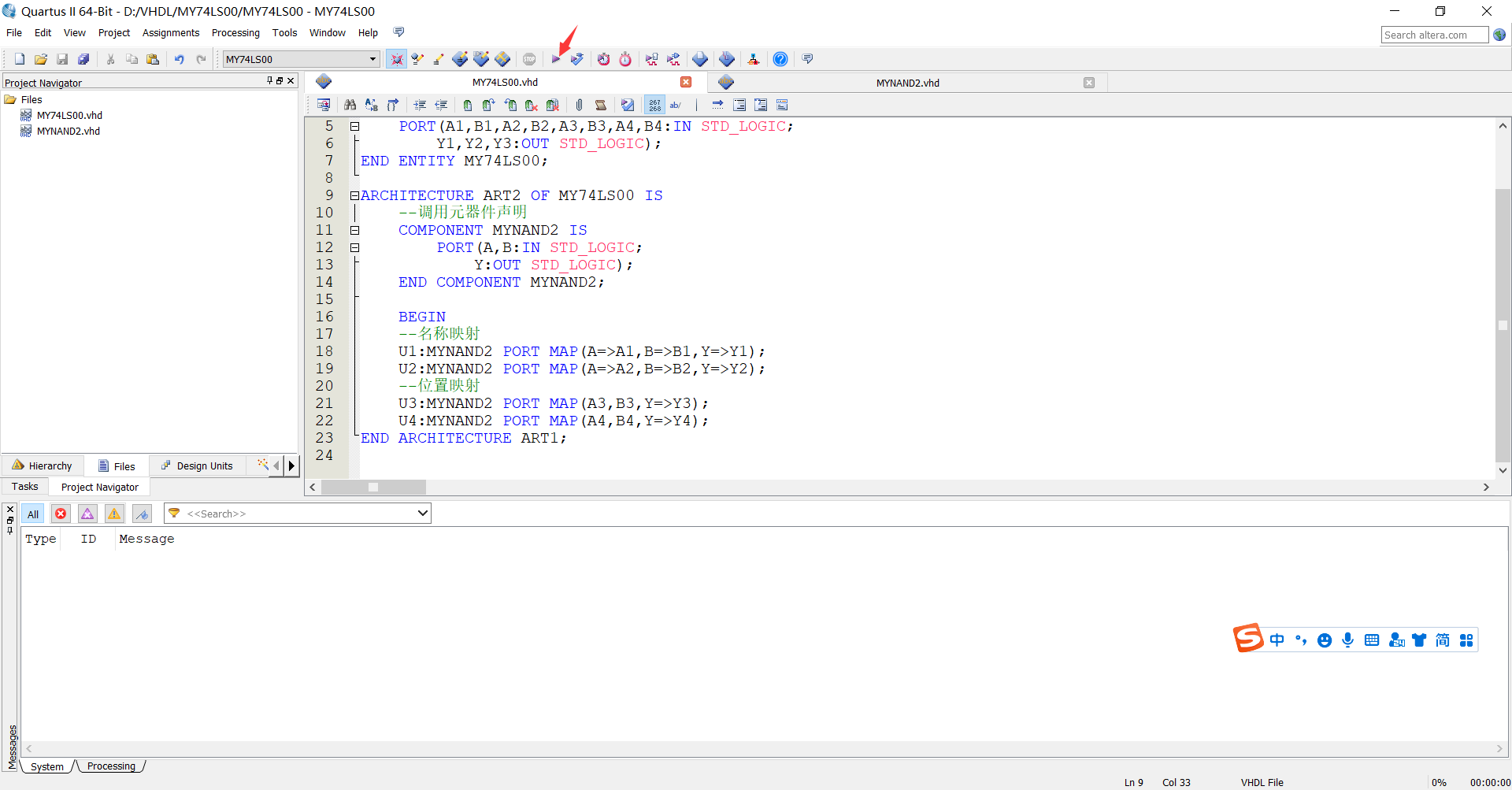

3.MY74LS00.vhd文件如下：

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;

ENTITY MY74LS00 IS
	PORT(A1,B1,A2,B2,A3,B3,A4,B4:IN STD_LOGIC;
		Y1,Y2,Y3,Y4:OUT STD_LOGIC);
END	ENTITY MY74LS00;

ARCHITECTURE ART2 OF MY74LS00 IS
	--调用元器件声明
	COMPONENT MYNAND2 IS
		PORT(A,B:IN STD_LOGIC;
			Y:OUT STD_LOGIC);
	END COMPONENT MYNAND2;

	BEGIN
	--名称映射
	U1:MYNAND2 PORT MAP(A=>A1,B=>B1,Y=>Y1);
	U2:MYNAND2 PORT MAP(A=>A2,B=>B2,Y=>Y2);
	--位置映射
	U3:MYNAND2 PORT MAP(A3,B3,Y3);
	U4:MYNAND2 PORT MAP(A4,B4,Y4);
END ARCHITECTURE ART2;

4.编写testbench文件
参考链接
点击菜单栏中processing,选择start，选择start testbench template write。此时会自动生成testbench模板到项目文件夹simulation里面，后缀为.vht。在MY74LS00simulationmodelsim文件夹下。

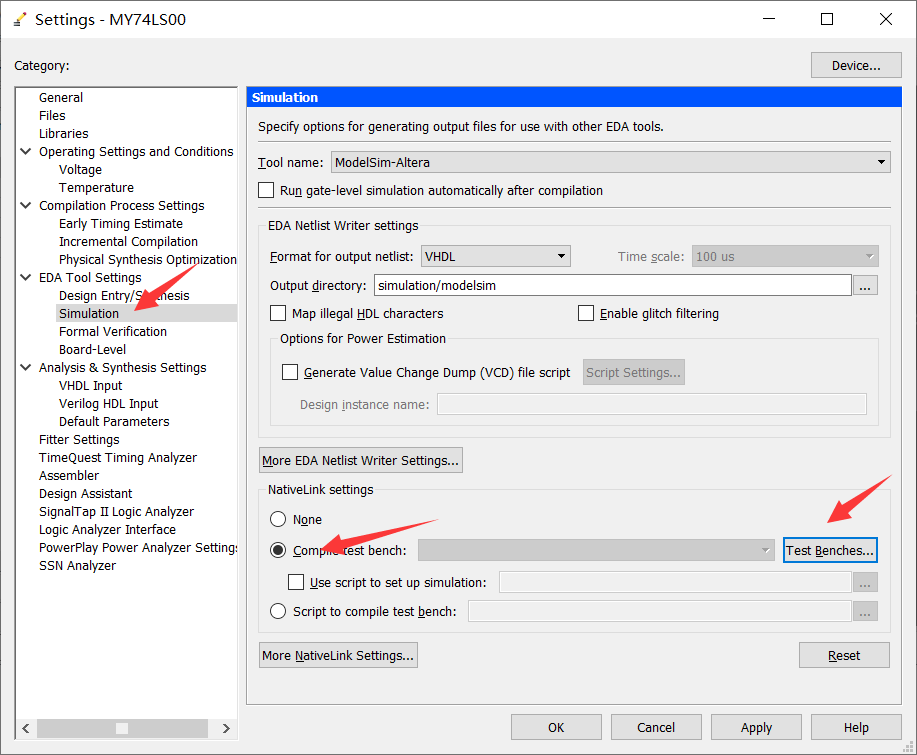

右键，点setting

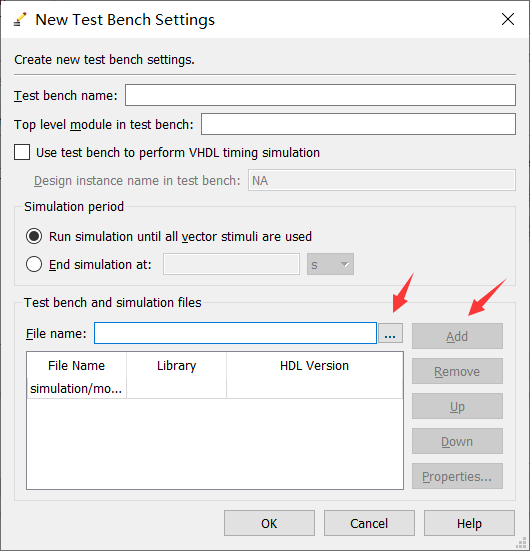

点test benches

选择…，在文件夹弹窗里面选择刚才的vht文件
点击add，结果如下：

修改名字，和tb文件里面的entity一致

在MY74LS00simulationmodelsim文件夹下找到MY74LS00.vht文件
testbench文件如下：

-- Copyright (C) 1991-2013 Altera Corporation
-- Your use of Altera Corporation's design tools, logic functions
-- and other software and tools, and its AMPP partner logic
-- functions, and any output files from any of the foregoing
-- (including device programming or simulation files), and any
-- associated documentation or information are expressly subject
-- to the terms and conditions of the Altera Program License
-- Subscription Agreement, Altera MegaCore Function License
-- Agreement, or other applicable license agreement, including,
-- without limitation, that your use is for the sole purpose of
-- programming logic devices manufactured by Altera and sold by
-- Altera or its authorized distributors.  Please refer to the
-- applicable agreement for further details.

-- ***************************************************************************
-- This file contains a Vhdl test bench template that is freely editable to
-- suit user's needs .Comments are provided in each section to help the user
-- fill out necessary details.
-- ***************************************************************************
-- Generated on "05/07/2021 22:28:19"

-- Vhdl Test Bench template for design  :  MY74LS00
--
-- Simulation tool : ModelSim-Altera (VHDL)
--

LIBRARY ieee;
USE ieee.std_logic_1164.all;

ENTITY MY74LS00_vhd_tst IS
END MY74LS00_vhd_tst;
ARCHITECTURE MY74LS00_arch OF MY74LS00_vhd_tst IS
-- constants
constant clk_period :time   :=20 ns;
-- signals
SIGNAL A1 : STD_LOGIC;
SIGNAL A2 : STD_LOGIC;
SIGNAL A3 : STD_LOGIC;
SIGNAL A4 : STD_LOGIC;
SIGNAL B1 : STD_LOGIC;
SIGNAL B2 : STD_LOGIC;
SIGNAL B3 : STD_LOGIC;
SIGNAL B4 : STD_LOGIC;
SIGNAL Y1 : STD_LOGIC;
SIGNAL Y2 : STD_LOGIC;
SIGNAL Y3 : STD_LOGIC;
SIGNAL Y4 : STD_LOGIC;
COMPONENT MY74LS00
	PORT (
	A1 : IN STD_LOGIC;
	A2 : IN STD_LOGIC;
	A3 : IN STD_LOGIC;
	A4 : IN STD_LOGIC;
	B1 : IN STD_LOGIC;
	B2 : IN STD_LOGIC;
	B3 : IN STD_LOGIC;
	B4 : IN STD_LOGIC;
	Y1 : OUT STD_LOGIC;
	Y2 : OUT STD_LOGIC;
	Y3 : OUT STD_LOGIC;
	Y4 : OUT STD_LOGIC
	);
END COMPONENT;
BEGIN
	i1 : MY74LS00
	PORT MAP (
-- list connections between master ports and signals
	A1 => A1,
	A2 => A2,
	A3 => A3,
	A4 => A4,
	B1 => B1,
	B2 => B2,
	B3 => B3,
	B4 => B4,
	Y1 => Y1,
	Y2 => Y2,
	Y3 => Y3,
	Y4 => Y4
	);
init : PROCESS
-- variable declarations
BEGIN
        -- code that executes only once
	A1 <= '0';
	B1 <= '0';
	A2 <= '1';
	B2 <= '0';
	A3 <= '0';
	B3 <= '1';
	A4 <= '1';
	B4 <= '1';
WAIT;
END PROCESS init;
always : PROCESS
-- optional sensitivity list
-- (        )
-- variable declarations
BEGIN
        -- code executes for every event on sensitivity list
WAIT;
END PROCESS always;
END MY74LS00_arch;

5.quartusII 点tools–run simulation tool–RTL simulation，内联modelsim启动，仿真结果如下

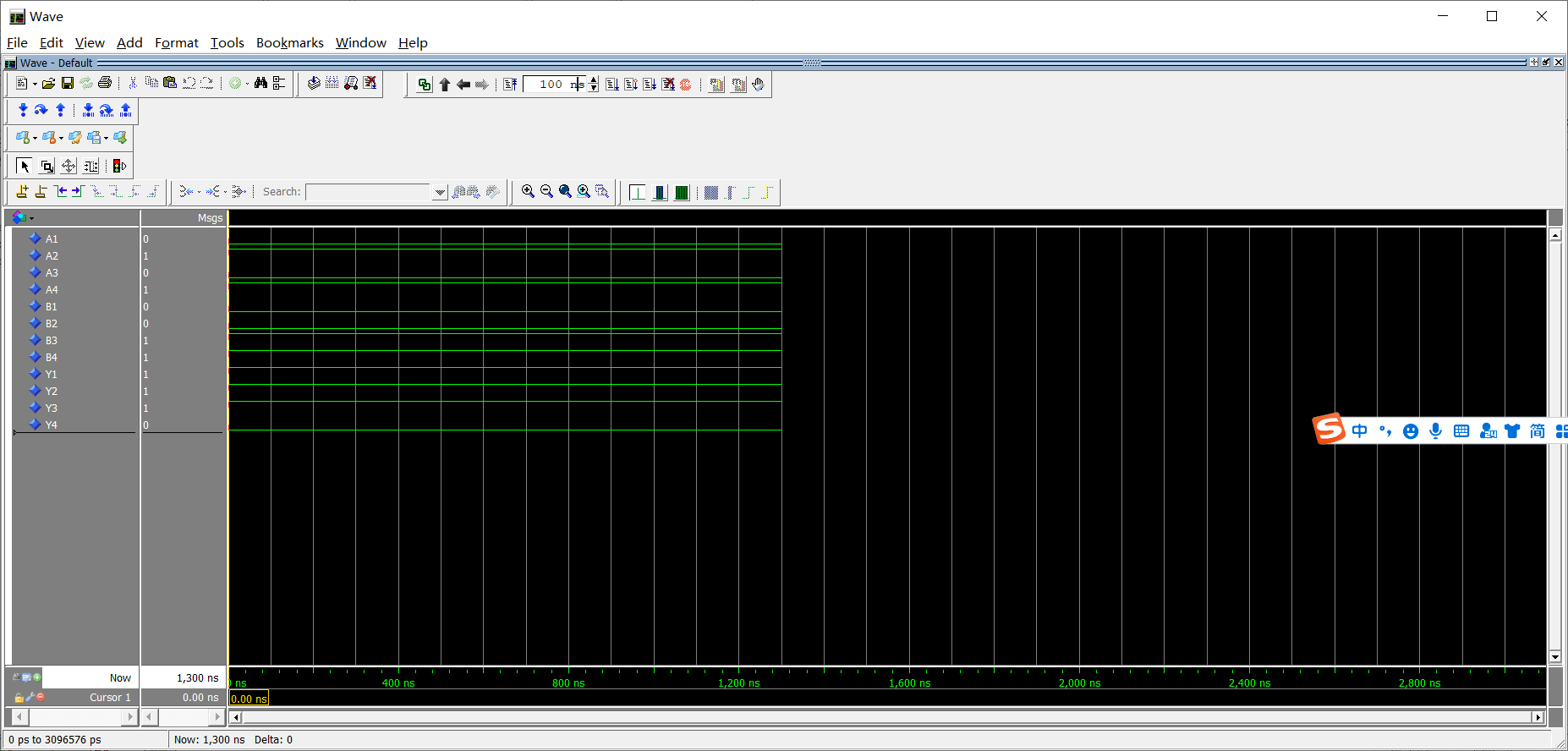

仿真结果：
