webRTC（四）：Webrtc音视频数据采集&录制&采集屏面数据

• WebRTC音视频数据采集

		var constraints={
			video: true,
			audio: true,

		}
		navigator.mediaDevices.getUserMedia(constraints)
							  .then(gotMediaStream)
							  .then(gotDevices)
							  .catch(handleError)

function gotMediaStream(stream){
		videoplay.srcObject=stream;
}

音视频数据采集主要使用getUserMedia方法获取媒体数据，constraints配置采集轨道的参数，video,audio的true表示采集，false表示不采集，然后将数据流通过gotMediaStream方法添加到视频组建上。

• WebRTC_API_适配

	<script src="https://webrtc.github.io/adapter/adapter-latest.js"></script>

添加官方的adapter-latest支持即可

• 获取音视频设备的访问权限

function gotMediaStream(stream){
		videoplay.srcObject=stream;
		return navigator.mediaDevices.enumerateDevices();
}

function gotDevices(deviceInfos){

	deviceInfos.forEach(function(deviceinfo){

		var option=	document.createElement('option');
		option.text=deviceinfo.label;
		option.value=deviceinfo.deviceId;

		if(deviceinfo.kind==='audioinput'){
			audioSource.appendChild(option);
		}else if(deviceinfo.kind==='audiooutput'){
			audioOutput.appendChild(option);
		}else if(deviceinfo.kind==='videoinput'){
			videoSource.appendChild(option);
		}
	})
}

在gotMediaStream方法返回return navigator.mediaDevices.enumerateDevices()，这时gotDevices方法中就可以获取音视频设备

• 视频约束

		var constraints={
			video: {
				width:640,
				height:480,
				frameRate:30,
				//environment:后置摄像头，user：前置摄像头
				facingMode:"user",
				deviceId: {exact:deviceId ? deviceId:undefined}
			},

视频约束所有的配置都在constraints中进行配置，更多详细可以查看官方api

• 音频约束

	var constraints={
			video: {
				width:640,
				height:480,
				frameRate:30,
				//environment:后置摄像头，user：前置摄像头
				facingMode:"user",
				deviceId: {exact:deviceId ? deviceId:undefined}
			},
			audio: {
				//降噪
				noiseSuppression:true,
				//回音消除
				echoCancellation:true
			},

		}

音频约束和视频约束一样，在constraints中进行配置，更多详细可以查看官方api

• 视屏特效

		<div>
			<label>Filter:</label>
			<select id="filter">
				<option value="none">None</option>
				<option value="blur">blur</option>
				<option value="grayscale">Grayscale</option>
				<option value="invert">Invert</option>
				<option value="sepia">sepia</option>
			</select>
		</div>

//特效
filtersSelect.onchange = function(){
	videoplay.className=filtersSelect.value;
}

设置特效直接设置视频源video的className即可

• 从视频中获取图片

<!--从视频中获取图片-->
<div>
	<button id="snapshot">Take snapshot</button>
</div>

<div>
	<canvas id="picture"></canvas>
</div>

//从视频中获取图片
var snapshot =document.querySelector("button#snapshot");
var picture =document.querySelector("canvas#picture");
picture.width=480;
picture.height=640;

//从视频中获取图片
snapshot.onclick=function(){
	picture.className=filtersSelect.value
	picture.getContext('2d').drawImage(videoplay,
									  0,0,
									  picture.width,
									  picture.height);


}

从视频中获取图片主要使用的是canvas来绘制的

• MediaStreamAPI及获取视频约束

//获取屏幕约束
var divConstraints = document.querySelector('div#constraints')

function gotMediaStream(stream){
		var videoTrack = stream.getVideoTracks()[0];
		var videoConstraints =	videoTrack.getSettings();

		divConstraints.textContent=	JSON.stringify(videoConstraints,null,2);

		videoplay.srcObject=stream;
		return navigator.mediaDevices.enumerateDevices();
}

结果

{ "aspectRatio": 1.3333333333333333, "deviceId": "97953df027728ab0acac98c670d59f654a1e7f36f9faf70f2e0fd7a479394fe3",
"frameRate": 29.969999313354492, "groupId": "1b83734781c08e3c51519598002aa1d5acb1bcd73772f5d2db4b976586af3666",
"height": 480, "width": 640, "videoKind": "color" }

获取视频约束，在gotMediaStream方法中获取视频轨道，信息都在轨道中获取

• 录制音频视屏

//视频录制
btnRecord.onclick=()=>{

	if(btnRecord.textContent==='Start Record'){
		startRecord();
		btnRecord.textContent='Stop Record'
		btnPlay.disabled=true;
		btnDownload.disabled=true;
	}else{
		stopRecord();
		btnRecord.textContent='Start Record'
		btnPlay.disabled=false;
		btnDownload.disabled=false;
	}
}

function gotMediaStream(stream){
		...

		window.stream=stream;

		...
		return navigator.mediaDevices.enumerateDevices();
}
//开始录制
function startRecord(){
	buffer=[];
	var options={
		mimeType: 'video/webm;codecs=vp8'
	}

	if(!window.MediaRecorder.isTypeSupported(options.mimeType)){
		console.error('${options.mimeType} is not supported');
		return;
	}
	try {
		 mediaRecorder= new window.MediaRecorder(window.stream,options);
	} catch (e) {

		console.error('failed to create  MediaRecorder:',e);
		return;
	}
	mediaRecorder.ondataavailable= handleDataAvailable;
	mediaRecorder.start(10);
}


//停止录制

function stopRecord(){
	mediaRecorder.stop();
}

• 播放录制视频

btnPlay.onclick=()=>{
	var blob =new Blob(buffer,{type: 'video/webm'});
	recvideo.src=window.URL.createObjectURL(blob);
	recvideo.srcObject=null;
	recvideo.controls=true;
	recvideo.play();
}

• 下载录制视频

btnDownload.onclick=()=>{
	var blob =new Blob(buffer,{type:'video/webm'});
	var url = window.URL.createObjectURL(blob);
	var a=document.createElement('a');
	a.href=url;
	a.style.display='none';
	a.download='aaa.webm';
	a.click();
}

• 采集屏面数据

//getDisplayMedia 捕获桌面 ，getUserMedia  捕获摄像头数据
function start(){
	//捕获桌面
    if (!navigator.mediaDevices||
	 		!navigator.mediaDevices.getDisplayMedia) {
		  console.log("getUserMedia is not supported!")
		  return;
	} else {
		//捕获桌面
		var constraints1={
			video: true,
			audio: true,

		}
		//getDisplayMedia 捕获桌面 ，getUserMedia  捕获摄像头数据
		navigator.mediaDevices.getDisplayMedia(constraints1)
							  .then(gotMediaStream)
							  .then(gotDevices)
							  .catch(handleError)
	}
}

采集屏幕数据其实和采集音视频信息一直，只是将getUserMedia替换成getDisplayMedia即可.

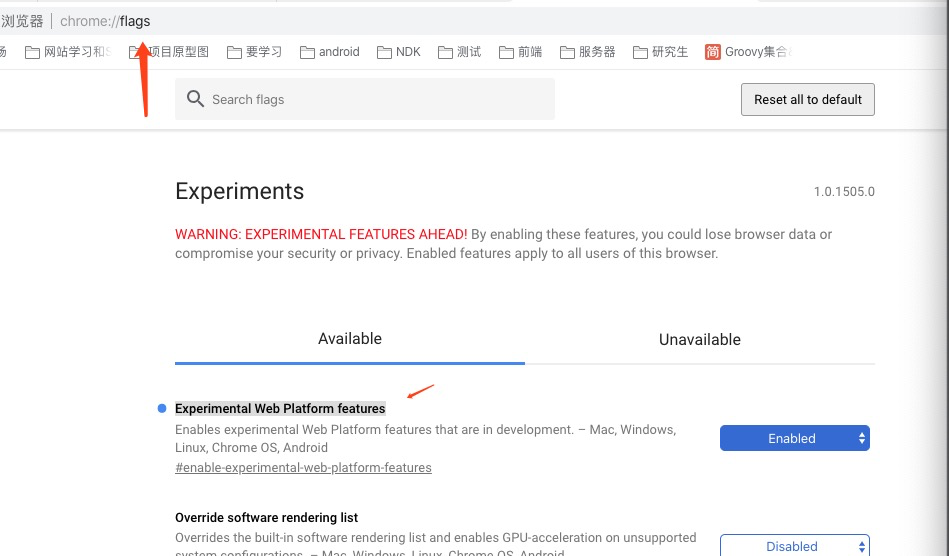

注意：要使用google浏览器打开Experimental Web Platform features

全部代码

• html

<html>
	<head>
		<title>
			WebRtc  capture video and audio
		</title>
		<style>
			.none{
				-webkit-filter:none;
			}
			.blur{
				-webkit-filter:blur(3px);
			}
			.grayscale{
				-webkit-filter:grayscale(1);
			}
			.invert{
				-webkit-filter:invert(1);
			}
			.sepia{
				-webkit-filter:sepia(1);
			}
		</style>
	</head>
	<body>
		<div>
			<label>audio input device:</label>
			<select id="audioSource"></select>
		</div>
		<div>
			<label>audio output device:</label>
			<select id="audioOutput"></select>
		</div>
		<div>
			<label>video input device:</label>
			<select id="videoSource"></select>
		</div>
		<div>
			<label>Filter:</label>
			<select id="filter">
				<option value="none">None</option>
				<option value="blur">blur</option>
				<option value="grayscale">Grayscale</option>
				<option value="invert">Invert</option>
				<option value="sepia">sepia</option>
			</select>
		</div>
		<div>
			<table>
				<tr>
					<td>
						<video autoplay playsinline id="player"></video>
					</td>
					<td>
						<video  playsinline id="recplayer"></video>
					</td>
					<td>
						<div id="constraints" class="output"></div>
					</td>
				</tr>
				<tr>
					<td>
						<button id="record">Start Record</button>
					</td>
					<td>
						<button id="recplay" disabled>Play</button>
					</td>
					<td>
						<button id="download" disabled>Download</button>
					</td>
				</tr>
			</table>

		</div>

		<!--从视频中获取图片-->
		<div>
			<button id="snapshot">Take snapshot</button>
		</div>

		<div>
			<canvas id="picture"></canvas>
		</div>

		<script src="https://webrtc.github.io/adapter/adapter-latest.js"></script>
		<script src="./js/client.js"></script>
	</body>
</html>

• js

'use strict'

var videoplay=document.querySelector('video#player')

var audioSource =document.querySelector("select#audioSource");
var audioOutput =document.querySelector("select#audioOutput");
var videoSource =document.querySelector("select#videoSource");

//特效
var filtersSelect =document.querySelector("select#filter");

//从视频中获取图片
var snapshot =document.querySelector("button#snapshot");
var picture =document.querySelector("canvas#picture");
picture.width=480;
picture.height=640;

//获取屏幕约束
var divConstraints = document.querySelector('div#constraints')


//录制音视频
var recvideo = document.querySelector('video#recplayer')
var btnRecord = document.querySelector('button#record')
var btnPlay = document.querySelector('button#recplay')
var btnDownload = document.querySelector('button#download')



var buffer;
var mediaRecorder;

function gotMediaStream(stream){
		var videoTrack = stream.getVideoTracks()[0];
		var videoConstraints =	videoTrack.getSettings();

		divConstraints.textContent=	JSON.stringify(videoConstraints,null,2);

		window.stream=stream;

		videoplay.srcObject=stream;
		return navigator.mediaDevices.enumerateDevices();
}

function handleError(err){
	console.log("getUserMedia  error:",err);
}

function gotDevices(deviceInfos){

	deviceInfos.forEach(function(deviceinfo){

		var option=	document.createElement('option');
		option.text=deviceinfo.label;
		option.value=deviceinfo.deviceId;

		if(deviceinfo.kind==='audioinput'){
			audioSource.appendChild(option);
		}else if(deviceinfo.kind==='audiooutput'){
			audioOutput.appendChild(option);
		}else if(deviceinfo.kind==='videoinput'){
			videoSource.appendChild(option);
		}
	})
}

//getDisplayMedia 捕获桌面 ，getUserMedia  捕获摄像头数据
function start(){

	//捕获摄像头数据
	if (!navigator.mediaDevices||
			!navigator.mediaDevices.getUserMedia) {
	//捕获桌面
	// if (!navigator.mediaDevices||
	// 		!navigator.mediaDevices.getDisplayMedia) {
		  console.log("getUserMedia is not supported!")
		  return;
	} else {
		var deviceId=videoSource.value;

		//捕获摄像头数据
		var constraints={
			video: {
				width:640,
				height:480,
				frameRate:30,
				//environment:后置摄像头，user：前置摄像头
				facingMode:"user",
				deviceId: {exact:deviceId ? deviceId:undefined}
			},
			audio: {
				//降噪
				noiseSuppression:true,
				//回音消除
				echoCancellation:true
			},

		}
		//捕获桌面
		var constraints1={
			video: true,
			audio: true,

		}
		//getDisplayMedia 捕获桌面 ，getUserMedia  捕获摄像头数据

		navigator.mediaDevices.getUserMedia(constraints)
		// navigator.mediaDevices.getDisplayMedia(constraints1)
							  .then(gotMediaStream)
							  .then(gotDevices)
							  .catch(handleError)
	}
}

start();


videoSource.onchange=start;

//特效
filtersSelect.onchange = function(){
	videoplay.className=filtersSelect.value;
}

//从视频中获取图片
snapshot.onclick=function(){
	picture.className=filtersSelect.value
	picture.getContext('2d').drawImage(videoplay,
									  0,0,
									  picture.width,
									  picture.height);


}

//视频录制
btnRecord.onclick=()=>{

	if(btnRecord.textContent==='Start Record'){
		startRecord();
		btnRecord.textContent='Stop Record'
		btnPlay.disabled=true;
		btnDownload.disabled=true;
	}else{
		stopRecord();
		btnRecord.textContent='Start Record'
		btnPlay.disabled=false;
		btnDownload.disabled=false;
	}
}

function handleDataAvailable(e){
	if(e&&e.data&&e.data.size>0){
		buffer.push(e.data)
	}
}
function startRecord(){
	buffer=[];
	var options={
		mimeType: 'video/webm;codecs=vp8'
	}

	if(!window.MediaRecorder.isTypeSupported(options.mimeType)){
		console.error('${options.mimeType} is not supported');
		return;
	}
	try {
		 mediaRecorder= new window.MediaRecorder(window.stream,options);
	} catch (e) {

		console.error('failed to create  MediaRecorder:',e);
		return;
	}
	mediaRecorder.ondataavailable= handleDataAvailable;
	mediaRecorder.start(10);
}
function stopRecord(){
	mediaRecorder.stop();
}

btnPlay.onclick=()=>{
	var blob =new Blob(buffer,{type: 'video/webm'});
	recvideo.src=window.URL.createObjectURL(blob);
	recvideo.srcObject=null;
	recvideo.controls=true;
	recvideo.play();
}

btnDownload.onclick=()=>{
	var blob =new Blob(buffer,{type:'video/webm'});
	var url = window.URL.createObjectURL(blob);
	var a=document.createElement('a');
	a.href=url;
	a.style.display='none';
	a.download='aaa.webm';
	a.click();
}

这里提供一个我自己的测试地址：https://www.huangxiaoguo.club/mediastream/index.html
