概述
一、简介
WebRTC概念
WebRTC是由Google主导的，由一组标准、协议和JavaScript API组成，用于实现浏览器之间（端到端之间）的音频、视频及数据共享。WebRTC不需要安装任何插件，通过简单的JavaScript API就可以使得实时通信变成一种标准功能。
为什么使用webrtc
现在各大浏览器以及终已经逐渐加大对WebRTC技术的支持。下图是webrtc官网给出的现在已经提供支持了的浏览器和平台。
二、srs启动
webrtc需要srs的最低版本：SRS4.0.14，为了拉取到最新版本的srs，我们首先做的就是获取到最新的srs代码，安装git步骤如下：
centos安装git
#安装依赖
yum install curl-devel expat-devel gettext-devel openssl-devel zlib-devel
yum install gcc-c++ perl-ExtUtils-MakeMaker
#查看yum源仓库git信息
yum info git
#移除默认安装git
yum remove git
#安装git
yum install git
#查看git版本
git --version
webrtc需要srs的最低版本：SRS4.0.14，所以我们部署的srs的时候版本需要大于SRS4.0.14，如果使用git获取分支可以使用如下命令(进入到srs的git目录）：
#查看当前git分支信息(默认分支*指定,当前为3.0)
git branch -v
#rtc在4.0或develop分支上可以拉取到,切换到4.0
git checkout 4.0release
#再次查看当前所处分支
git branch -v
#如果要查看所有发布的git版本可以使用
git tag
webrtc是默认支持的（–rtc=on），所以直接编译即可：
./configure --with-hls --with-ssl --with-http-server --with-http-callback --with-http-api --with-ingest --with-stream-caster && make
然后，我们可以使用默认的rtc配置(conf/rtc.conf)跑起来：
cd srs-4.0.39/trunk
./objs -c conf/rtc.conf
默认rtc.conf配置如下
listen 1935;
max_connections 1000;
srs_log_tank console;
srs_log_file ./objs/srs.log;
daemon off;
http_server {
enabled on;
listen 8080;
dir ./objs/nginx/html;
}
#rtc用到的api服务端口
http_api {
enabled on;
listen 1985;
}
stats {
network 0;
}
#rtc的配置
rtc_server {
enabled on;
# Listen at udp://8000
listen 8000;
#
# The $CANDIDATE means fetch from env, if not configed, use * as default.
#
# The * means retrieving server IP automatically, from all network interfaces,
# @see https://github.com/ossrs/srs/issues/307#issuecomment-599028124
#拉取流地址:使用本机地址或如下配置
candidate $CANDIDATE;
}
vhost __defaultVhost__ {
#vhost打开启用rtc
rtc {
enabled on;
bframe discard;
}
}

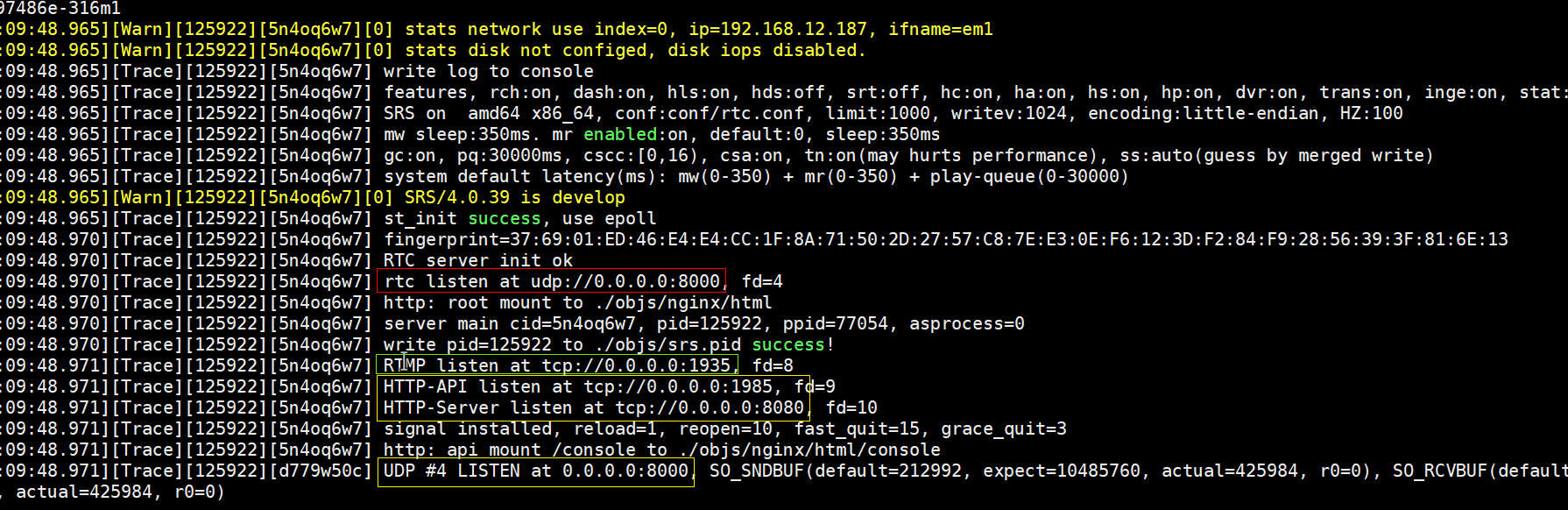

启动后，可以看到rtc监听的端口信息
三、推送rtmp视频
启动后我们需要采集本地的音视频，然后推送至srs中，srs通过协议转换生成webrtc协议
我们推送rtmp的流到srs中
rtmp://192.168.12.187:1935/live/1
我这里使用obs，你也可以使用ffmpeg推送rtmp
ffmpeg -f dshow -i video="HD Camera":audio="麦克风阵列 (Realtek(R) Audio)" -vcodec libx264 -x264opts "bframes=0" -r 25 -g 25 -preset:v ultrafast -tune:v zerolatency -codec:a aac -ac 2 -ar 44100 -f flv rtmp://192.168.50.150:1935/live/1
推送流成功之后，我们可以使用srs自带的rtc_player播放器进行播放，直接请求srs服务的8080端口即可
http://192.168.12.187:8080/players/rtc_player.html
四、webrtc播放
可以看到我们使用webrtc协议就可以播放该视频流了，视频流地址：webrtc://srs
webrtc://192.168.12.187/live/1

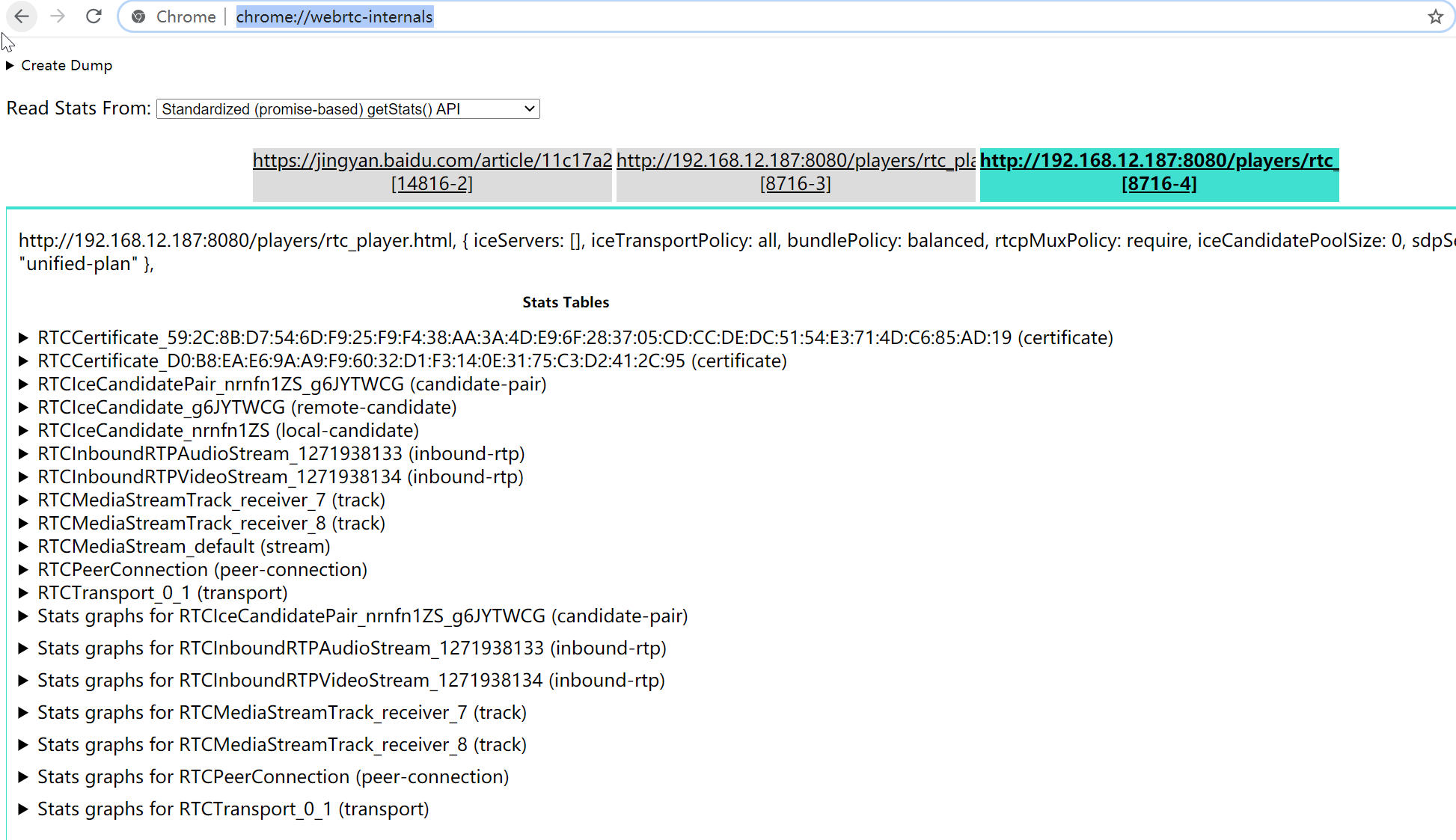

chrome的rtc调式模式打开(如调试黑屏问题candidate)：
chrome://webrtc-internals
webrtc调试请求参数（可以看到是通过api接口的1985端口发出的，正式我们启用的）
webrtc提供的播放接口为：
http://192.168.12.187:1985/rtc/v1/play/
http://192.168.12.187:1985/rtc/v1/play/
请求参数：
{
"api": "http://192.168.12.187:1985/rtc/v1/play/",
"streamurl": "webrtc://192.168.12.187/live/1",
"clientip": null,
"sdp": "v=0rno=- 8774286378837017703 2 IN IP4 127.0.0.1rns=-rnt=0 0rna=group:BUNDLE 0 1rna=msid-semantic: WMSrnm=audio 9 UDP/TLS/RTP/SAVPF 111 103 104 9 0 8 106 105 13 110 112 113 126rnc=IN IP4 0.0.0.0rna=rtcp:9 IN IP4 0.0.0.0rna=ice-ufrag:BLetrna=ice-pwd:cbGk3IU+Qdmq87i4JEEp1KGkrna=ice-options:tricklerna=fingerprint:sha-256 22:2E:04:F1:E1:12:0F:35:7B:16:C2:51:FC:79:D6:B8:49:78:6E:FE:B5:1A:8E:0F:91:85:61:C4:50:47:14:18rna=setup:actpassrna=mid:0rna=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-levelrna=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-timerna=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01rna=extmap:4 urn:ietf:params:rtp-hdrext:sdes:midrna=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-idrna=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-idrna=recvonlyrna=rtcp-muxrna=rtpmap:111 opus/48000/2rna=rtcp-fb:111 transport-ccrna=fmtp:111 minptime=10;useinbandfec=1rna=rtpmap:103 ISAC/16000rna=rtpmap:104 ISAC/32000rna=rtpmap:9 G722/8000rna=rtpmap:0 PCMU/8000rna=rtpmap:8 PCMA/8000rna=rtpmap:106 CN/32000rna=rtpmap:105 CN/16000rna=rtpmap:13 CN/8000rna=rtpmap:110 telephone-event/48000rna=rtpmap:112 telephone-event/32000rna=rtpmap:113 telephone-event/16000rna=rtpmap:126 telephone-event/8000rnm=video 9 UDP/TLS/RTP/SAVPF 96 97 98 99 100 101 122 102 121 127 120 125 107 108 109 124 119 123 118 114 115 116rnc=IN IP4 0.0.0.0rna=rtcp:9 IN IP4 0.0.0.0rna=ice-ufrag:BLetrna=ice-pwd:cbGk3IU+Qdmq87i4JEEp1KGkrna=ice-options:tricklerna=fingerprint:sha-256 22:2E:04:F1:E1:12:0F:35:7B:16:C2:51:FC:79:D6:B8:49:78:6E:FE:B5:1A:8E:0F:91:85:61:C4:50:47:14:18rna=setup:actpassrna=mid:1rna=extmap:14 urn:ietf:params:rtp-hdrext:toffsetrna=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-timerna=extmap:13 urn:3gpp:video-orientationrna=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01rna=extmap:12 http://www.webrtc.org/experiments/rtp-hdrext/playout-delayrna=extmap:11 http://www.webrtc.org/experiments/rtp-hdrext/video-content-typerna=extmap:7 http://www.webrtc.org/experiments/rtp-hdrext/video-timingrna=extmap:8 http://www.webrtc.org/experiments/rtp-hdrext/color-spacerna=extmap:4 urn:ietf:params:rtp-hdrext:sdes:midrna=extmap:5 urn:ietf:params:rtp-hdrext:sdes:rtp-stream-idrna=extmap:6 urn:ietf:params:rtp-hdrext:sdes:repaired-rtp-stream-idrna=recvonlyrna=rtcp-muxrna=rtcp-rsizerna=rtpmap:96 VP8/90000rna=rtcp-fb:96 goog-rembrna=rtcp-fb:96 transport-ccrna=rtcp-fb:96 ccm firrna=rtcp-fb:96 nackrna=rtcp-fb:96 nack plirna=rtpmap:97 rtx/90000rna=fmtp:97 apt=96rna=rtpmap:98 VP9/90000rna=rtcp-fb:98 goog-rembrna=rtcp-fb:98 transport-ccrna=rtcp-fb:98 ccm firrna=rtcp-fb:98 nackrna=rtcp-fb:98 nack plirna=fmtp:98 profile-id=0rna=rtpmap:99 rtx/90000rna=fmtp:99 apt=98rna=rtpmap:100 VP9/90000rna=rtcp-fb:100 goog-rembrna=rtcp-fb:100 transport-ccrna=rtcp-fb:100 ccm firrna=rtcp-fb:100 nackrna=rtcp-fb:100 nack plirna=fmtp:100 profile-id=2rna=rtpmap:101 rtx/90000rna=fmtp:101 apt=100rna=rtpmap:122 VP9/90000rna=rtcp-fb:122 goog-rembrna=rtcp-fb:122 transport-ccrna=rtcp-fb:122 ccm firrna=rtcp-fb:122 nackrna=rtcp-fb:122 nack plirna=fmtp:122 profile-id=1rna=rtpmap:102 H264/90000rna=rtcp-fb:102 goog-rembrna=rtcp-fb:102 transport-ccrna=rtcp-fb:102 ccm firrna=rtcp-fb:102 nackrna=rtcp-fb:102 nack plirna=fmtp:102 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42001frna=rtpmap:121 rtx/90000rna=fmtp:121 apt=102rna=rtpmap:127 H264/90000rna=rtcp-fb:127 goog-rembrna=rtcp-fb:127 transport-ccrna=rtcp-fb:127 ccm firrna=rtcp-fb:127 nackrna=rtcp-fb:127 nack plirna=fmtp:127 level-asymmetry-allowed=1;packetization-mode=0;profile-level-id=42001frna=rtpmap:120 rtx/90000rna=fmtp:120 apt=127rna=rtpmap:125 H264/90000rna=rtcp-fb:125 goog-rembrna=rtcp-fb:125 transport-ccrna=rtcp-fb:125 ccm firrna=rtcp-fb:125 nackrna=rtcp-fb:125 nack plirna=fmtp:125 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=42e01frna=rtpmap:107 rtx/90000rna=fmtp:107 apt=125rna=rtpmap:108 H264/90000rna=rtcp-fb:108 goog-rembrna=rtcp-fb:108 transport-ccrna=rtcp-fb:108 ccm firrna=rtcp-fb:108 nackrna=rtcp-fb:108 nack plirna=fmtp:108 level-asymmetry-allowed=1;packetization-mode=0;profile-level-id=42e01frna=rtpmap:109 rtx/90000rna=fmtp:109 apt=108rna=rtpmap:124 H264/90000rna=rtcp-fb:124 goog-rembrna=rtcp-fb:124 transport-ccrna=rtcp-fb:124 ccm firrna=rtcp-fb:124 nackrna=rtcp-fb:124 nack plirna=fmtp:124 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=4d001frna=rtpmap:119 rtx/90000rna=fmtp:119 apt=124rna=rtpmap:123 H264/90000rna=rtcp-fb:123 goog-rembrna=rtcp-fb:123 transport-ccrna=rtcp-fb:123 ccm firrna=rtcp-fb:123 nackrna=rtcp-fb:123 nack plirna=fmtp:123 level-asymmetry-allowed=1;packetization-mode=1;profile-level-id=64001frna=rtpmap:118 rtx/90000rna=fmtp:118 apt=123rna=rtpmap:114 red/90000rna=rtpmap:115 rtx/90000rna=fmtp:115 apt=114rna=rtpmap:116 ulpfec/90000rn"
}
webrtc播放请求回复：
{
"code": 0,
"server": 377766,
"sdp": "v=0rno=SRS/4.0.39(Leo) 30292192 2 IN IP4 0.0.0.0rns=SRSPlaySessionrnt=0 0rna=ice-literna=group:BUNDLE 0 1rna=msid-semantic: WMS live/1rnm=audio 9 UDP/TLS/RTP/SAVPF 111rnc=IN IP4 0.0.0.0rna=ice-ufrag:75m4425yrna=ice-pwd:5k49gz6h45c56i27f1ltb735z9667dadrna=fingerprint:sha-256 37:69:01:ED:46:E4:E4:CC:1F:8A:71:50:2D:27:57:C8:7E:E3:0E:F6:12:3D:F2:84:F9:28:56:39:3F:81:6E:13rna=setup:passiverna=mid:0rna=sendonlyrna=rtcp-muxrna=rtcp-rsizerna=rtpmap:111 opus/48000/2rna=ssrc:1271938135 cname:1wty44643861r274rna=ssrc:1271938135 label:audio-mt940p61rna=candidate:0 1 udp 2130706431 192.168.12.187 8000 typ host generation 0rna=candidate:1 1 udp 2130706431 172.17.0.1 8000 typ host generation 0rna=candidate:2 1 udp 2130706431 10.224.98.128 8000 typ host generation 0rnm=video 9 UDP/TLS/RTP/SAVPF 102rnc=IN IP4 0.0.0.0rna=ice-ufrag:75m4425yrna=ice-pwd:5k49gz6h45c56i27f1ltb735z9667dadrna=fingerprint:sha-256 37:69:01:ED:46:E4:E4:CC:1F:8A:71:50:2D:27:57:C8:7E:E3:0E:F6:12:3D:F2:84:F9:28:56:39:3F:81:6E:13rna=setup:passiverna=mid:1rna=sendonlyrna=rtcp-muxrna=rtcp-rsizerna=rtpmap:102 H264/90000rna=ssrc:1271938136 cname:1wty44643861r274rna=ssrc:1271938136 label:video-lz539zd4rna=candidate:0 1 udp 2130706431 192.168.12.187 8000 typ host generation 0rna=candidate:1 1 udp 2130706431 172.17.0.1 8000 typ host generation 0rna=candidate:2 1 udp 2130706431 10.224.98.128 8000 typ host generation 0rn",
"sessionid": "75m4425y:BLet"
}
经过测试webrtc在动画场景下是出现花屏的，这个应该不是udp导致的（我去掉bframe discard后不花屏，但是出现杂音和卡顿），具体的webrtc配置我们可以去srs的4.0版本上查看full.conf看具体说明：
https://github.com/ossrs/srs/blob/4.0release/trunk/conf/full.conf
我截取了webrtc部分的配置和说明，详见如下：
#############################################################################################
# WebRTC server section
#############################################################################################
rtc_server {
# Whether enable WebRTC server.
# default: off
enabled on;
# The udp listen port, we will reuse it for connections.
# default: 8000
listen 8000;
# The exposed candidate IPs, response in SDP candidate line. It can be:
# * Retrieve server IP automatically, from all network interfaces.
# eth0 Retrieve server IP by specified network interface name. # TODO: Implements it.
# $CANDIDATE Read the IP from ENV variable, use * if not set, see https://github.com/ossrs/srs/issues/307#issuecomment-599028124
# x.x.x.x A specified IP address or DNS name, which can be access by client such as Chrome.
# You can specific more than one interface name:
# eth0 eth1 Use network interface eth0 and eth1. # TODO: Implements it.
# Also by IP or DNS names:
# 192.168.1.3 10.1.2.3 rtc.me # TODO: Implements it.
# And by multiple ENV variables:
# $CANDIDATE $EIP # TODO: Implements it.
# default: *
candidate *;
# The IP family filter for candidate, it can be:
# ipv4 Filter IP v4 candidates.
# ipv6 Filter IP v6 candidates.
# all Filter all IP v4 or v6 candidates.
# For example, if set to ipv4, we only use the IPv4 address as candidate.
# default: ipv4
ip_family ipv4;
# Whether use ECDSA certificate.
# If not, use RSA certificate.
# default: on
ecdsa on;
# Whether encrypt RTP packet by SRTP.
# @remark Should always turn it on, or Chrome will fail.
# default: on
encrypt on;
# We listen multiple times at the same port, by REUSEPORT, to increase the UDP queue.
# Note that you can set to 1 and increase the system UDP buffer size by net.core.rmem_max
# and net.core.rmem_default or just increase this to get larger UDP recv and send buffer.
# default: 1
reuseport 1;
# Whether merge multiple NALUs into one.
# @see https://github.com/ossrs/srs/issues/307#issuecomment-612806318
# default: off
merge_nalus off;
# Whether enable the perf stat at http://localhost:1985/api/v1/perf
# default: on
perf_stat on;
# The queue length, in number of mmsghdr, in messages.
# For example, 30 means we will cache 30K messages at most.
# If exceed, we will drop messages.
# @remark Each reuseport use a dedicated queue, if queue is 2000, reuseport is 4,
# then system queue is 2000*4 = 8k, user can incrase reuseport to incrase the queue.
# default: 2000
queue_length 2000;
# The black-hole to copy packet to, for debugging.
# For example, when debugging Chrome publish stream, the received packets are encrypted cipher,
# we can set the publisher black-hole, SRS will copy the plaintext packets to black-hole, and
# we are able to capture the plaintext packets by wireshark.
black_hole {
# Whether enable the black-hole.
# default: off
enabled off;
# The black-hole address for session.
addr 127.0.0.1:10000;
}
}
vhost下rtc启用配置：
vhost rtc.vhost.srs.com {
rtc {
# Whether enable WebRTC server.
# default: off
enabled on;
# The strategy for bframe.
# keep Keep bframe, which may make browser with playing problems.
# discard Discard bframe, maybe cause browser with little problems.
# default: keep
bframe discard;
# The strategy for aac audio.
# transcode Transcode aac to opus.
# discard Discard aac audio packet.
# default: transcode
aac transcode;
# The timeout in seconds for session timeout.
# Client will send ping(STUN binding request) to server, we use it as heartbeat.
# default: 30
stun_timeout 30;
# The strick check when process stun.
# default: off
stun_strict_check on;
# The role of dtls when peer is actpass: passive or active
# default: passive
dtls_role passive;
# The version of dtls, support dtls1.0, dtls1.2, and auto
# default: auto
dtls_version auto;
# Drop the packet with the pt(payload type), 0 never drop.
# default: 0
drop_for_pt 0;
}
# whether enable min delay mode for vhost.
# default: on, for RTC.
min_latency on;
play {
# set the MW(merged-write) latency in ms.
# @remark For WebRTC, we enable pass-timestamp mode, so we ignore this config.
# default: 0 (For WebRTC)
mw_latency 0;
# Set the MW(merged-write) min messages.
# default: 0 (For Real-Time, min_latency on)
# default: 1 (For WebRTC, min_latency off)
mw_msgs 0;
}
# For NACK.
nack {
# Whether support NACK.
# default: on
enabled on;
}
# For TWCC.
twcc {
# Whether support TWCC.
# default: on
enabled on;
}
}
也可以在客户端指定webrtc服务器wlan的ip(如果docker获取不到ip可以通过设置环境变量方式$CANDIDATE)：
webrtc://192.168.12.187/live/1?eip=192.168.12.187
如果使用docker测试可以使用拉取对应镜像
#查看发布的所有的版本
git tag
#通过查看到的版本拉取对应的docker镜像(也可以使用杭州的镜像)
docker pull osrs/srs:v4.0.34
查看源码和对应文档可以进入srs-docker版本，切换到rts分支：
https://github.com/ossrs/srs-docker/tree/rtc
源码获取、合作、技术交流请获取如下联系方式：
QQ交流群：961179337
微信账号：lixiang6153
公众号：IT技术快餐
电子邮箱：lixx2048@163.com
