@(posedge vif.clk) 【uvm】

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
`ifndef MY_DRIVER__SV
`define MY_DRIVER__SV
class my_driver extends uvm_driver#(my_transaction);

   virtual my_if vif;

   `uvm_component_utils(my_driver)
   function new(string name = "my_driver", uvm_component parent = null);
      super.new(name, parent);
   endfunction

   virtual function void build_phase(uvm_phase phase);
      super.build_phase(phase);
      if(!uvm_config_db#(virtual my_if)::get(this, "", "vif", vif))
         `uvm_fatal("my_driver", "virtual interface must be set for vif!!!")
   endfunction

   extern task main_phase(uvm_phase phase);
   extern task drive_one_pkt(my_transaction tr);
endclass

task my_driver::main_phase(uvm_phase phase);
   vif.data <= 8'b0;
   vif.valid <= 1'b0;
   while(!vif.rst_n)
      @(posedge vif.clk);
   while(1) begin
      seq_item_port.get_next_item(req);
		  $display("drv get next");
      drive_one_pkt(req);
      seq_item_port.item_done();
   end
endtask

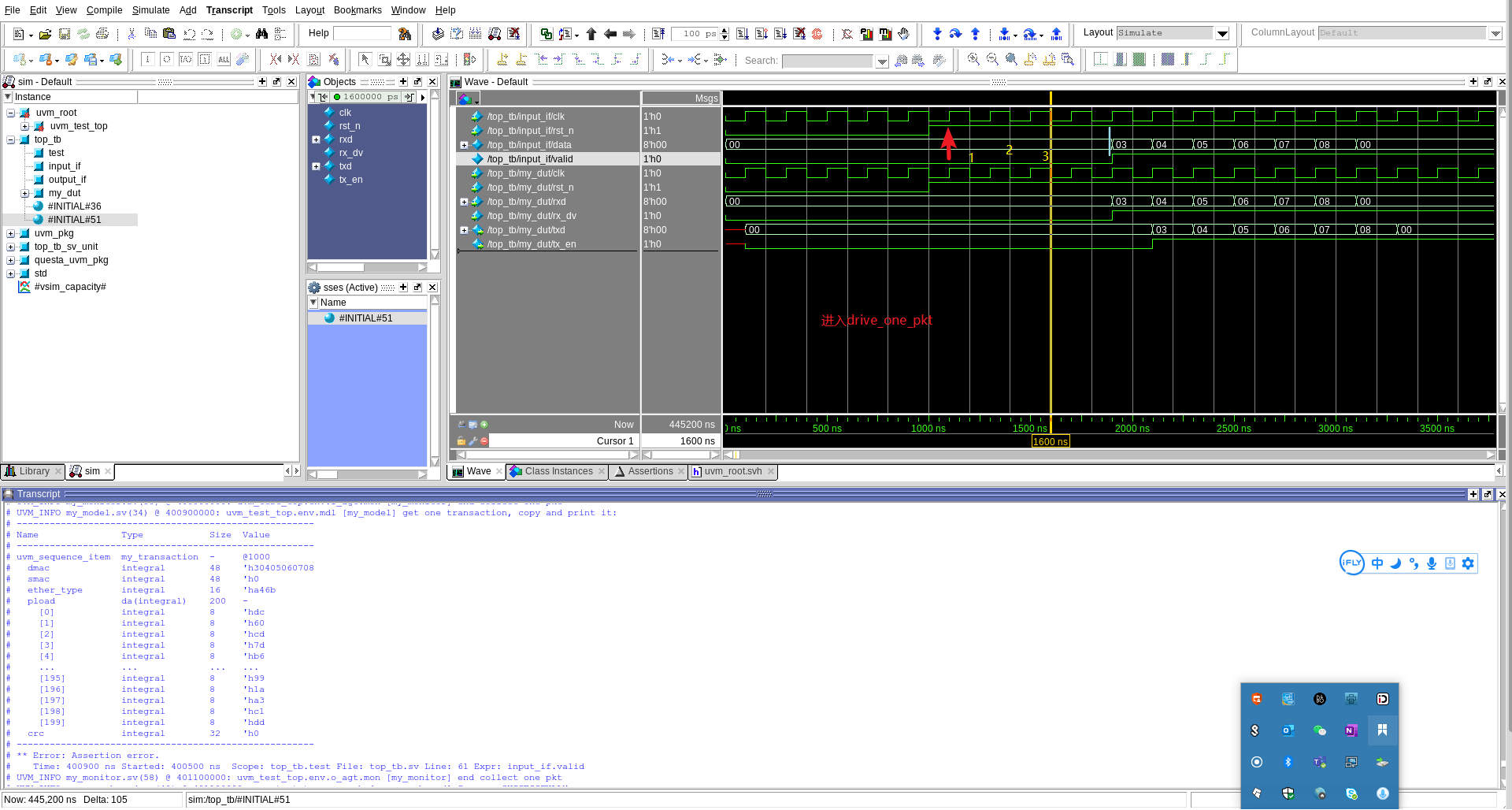

task my_driver::drive_one_pkt(my_transaction tr);  //红色标记进入 并开始 repeat(3) @(posedge vif.clk);
   byte unsigned     data_q[];
   int  data_size;

   data_size = tr.pack_bytes(data_q) / 8;
	uvm_report_info(get_type_name(),$psprintf("data_size = %0d",data_size));
   `uvm_info("my_driver", "begin to drive one pkt", UVM_LOW);
   repeat(3) @(posedge vif.clk);
   for ( int i = 0; i < data_size; i++ ) begin
      @(posedge vif.clk);   //repeat(3) @(posedge vif.clk); 之后再等一个posedge
      vif.valid <= 1'b1;
      vif.data <= data_q[i];
	//uvm_report_info(get_type_name(),$psprintf("drv loop = %0d",i));
   end

   @(posedge vif.clk);
   vif.valid <= 1'b0;
   `uvm_info("my_driver", "end drive one pkt", UVM_LOW);
endtask


`endif
