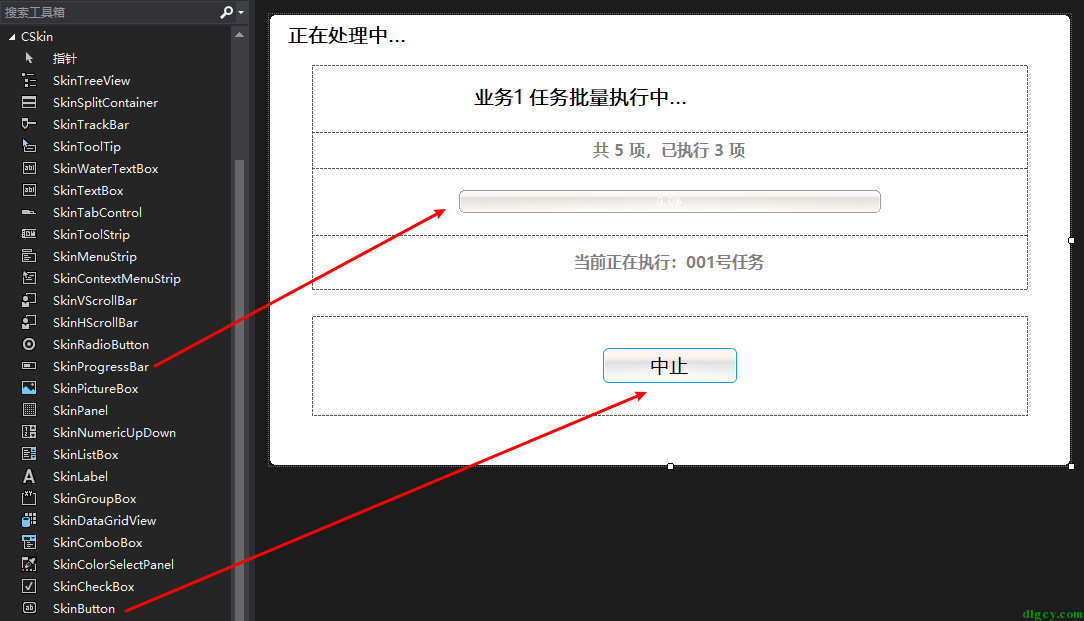

Winform 实现进度条弹窗和任务控制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/// <summary>
/// 执行操作事件
/// </summary>
public event Action OperateAction;

/// <summary>
/// 终止操作事件
/// </summary>
public event Action AbortAction;

/// <summary>
/// 中止按钮点击事件
/// </summary>
private void btn_Abort_Click(object sender, EventArgs e)
{
  AbortAction?.Invoke();
  DialogResult = DialogResult.Abort;
  //Close(); //不需要手动关闭;
}

/// <summary>
/// 窗体载入事件
/// </summary>
private void FormProgressDialog_Load(object sender, EventArgs e)
{
  Task.Factory.StartNew(() =>
  {
    OperateAction?.Invoke();
    DialogResult = DialogResult.OK;
  });
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/// <summary>
/// 设置显示信息(值为null时保持不变)
/// </summary>
/// <param name="rtfTitleContent">富文本格式的标题内容</param>
/// <param name="totalMessage">总体消息</param>
/// <param name="currentMessage">当前消息</param>
public void SetInfo(string rtfTitleContent = null, string totalMessage = null, string currentMessage = null)
{
  if (rtfTitleContent != null) rtb_Title.Rtf = rtfTitleContent;
  if (totalMessage != null) lbl_Total.Text = totalMessage;
  if (currentMessage != null) lbl_Current.Text = currentMessage;
}

/// <summary>
/// 设置进度
/// </summary>
/// <param name="currentValue">当前数值</param>
/// <param name="totalValue">总数值</param>
public void SetProsess(double currentValue, double totalValue)
{
  try
  {
    progressBar.Value = (int)(currentValue / totalValue * 100);
  }
  catch (Exception ex)
  {
    Console.WriteLine(ex);
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133

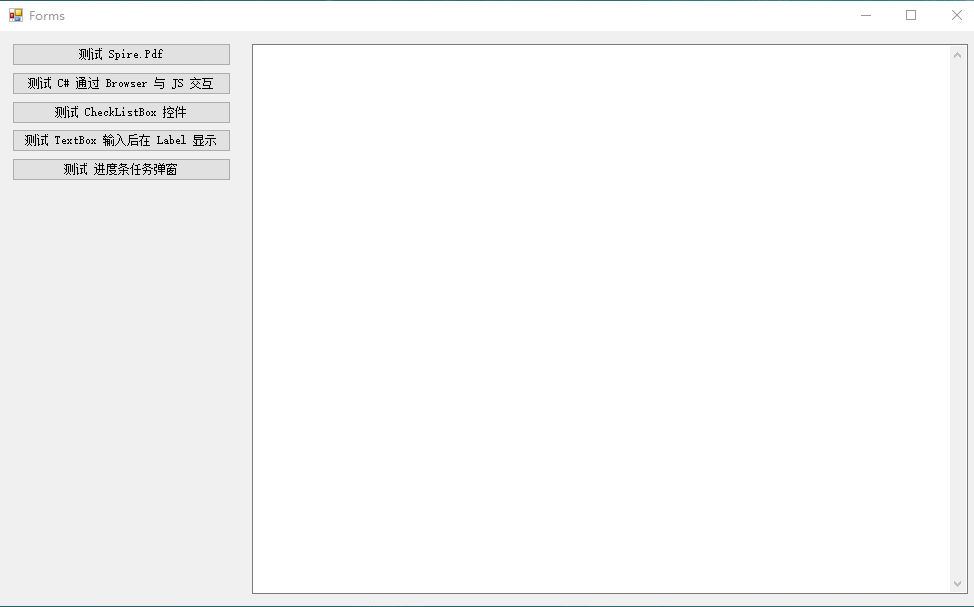

#region 测试任务进度条弹窗

private CancellationTokenSource _Cts; //任务取消令牌;
private AutoResetEvent _AutoResetEvent = new AutoResetEvent(false);//参数传 false，则 WaitOne 时阻塞等待;

/// <summary>
/// 测试任务进度弹窗
/// </summary>
private void BtnProgressDialog_Click(object sender, EventArgs e)
{
  _AutoResetEvent.Reset();
  string businessName = "业务1";

  FormProgressDialog progressWindow = new FormProgressDialog()
  {
    Text = "任务处理窗口",
  };

  progressWindow.SetColorfulTitle("业务1 ", Color.DarkOrange, true);
  progressWindow.SetColorfulTitle("正在执行中......", Color.Black);
  progressWindow.SetInfo(null, "", "");

  List<string> orders = new List<string>(){"订单1", "订单2", "订单3", "订单4", "订单5" }; //业务数据;
  List<string> leftList = orders.Select(x => x).ToList(); //剩余（未处理）数据;
  int successCount = 0; //成功数量;

  _Cts = new CancellationTokenSource();

  //注册一个将在取消此 CancellationToken 时调用的委托;
  _Cts.Token.Register(async () =>
  {
    ShowInfo("操作终止");

    await Task.Run(() =>
    {
      _AutoResetEvent.WaitOne(1000 * 5); //等待有可能还在执行的业务方法;

      if (successCount < orders.Count)
      {
        ShowInfo($"{businessName} 有 {orders.Count - successCount} 项任务被终止，可在消息框中查看具体项。");

        foreach (var leftName in leftList)
        {
          ShowInfo($"【{businessName}】的【{leftName}】执行失败，失败原因：【手动终止】。");
        }
      }
    });

  });

  progressWindow.OperateAction += () =>
  {
    Task task = new Task(() =>
    {
      foreach (var order in orders)
      {
        //判断是否被取消;
        if (_Cts.Token.IsCancellationRequested)
        {
          break;
        }

        progressWindow.TryBeginInvoke(new Action(() =>
        {
          progressWindow.SetInfo(null, $"共{orders.Count}项，已执行{successCount}项", $"当前正在执行：{order}");
        }));

        if (BusinessMethod(order, businessName))
        {
          successCount++;
          leftList.RemoveAll(x => x == order);

          if (_Cts.Token.IsCancellationRequested)
          {
            _AutoResetEvent.Set(); //放行 Register 委托处的等待;
          }
        }

        progressWindow.TryBeginInvoke(new Action(() =>
        {
          progressWindow.SetProsess(orders.IndexOf(order) + 1, orders.Count);
        }));
      }
    }, _Cts.Token);

    task.Start();
    task.Wait();
  };

  progressWindow.AbortAction += () =>
  {
    _Cts.Cancel();
  };

  var result = progressWindow.ShowDialog();
  int leftCount = orders.Count - successCount;
  if (result == DialogResult.OK || leftCount <= 0)
  {
    ShowInfo($"{businessName} 整体完成。");
  }
  else if (result == DialogResult.Abort)
  {
    //移到 _Cts.Token.Register 处一起判断，不然数目可能不准;
    //ShowInfo($"{businessName} 有 {leftCount} 项任务被终止，可在消息框中查看具体项。");
  }
}

/// <summary>
/// 业务处理方法
/// </summary>
private bool BusinessMethod(string order, string businessName)
{
  string errStr = $"【{businessName}】的 {order} 任务失败，失败原因：";

  //测试
  Thread.Sleep(1000 * 2);

  try
  {
    //业务方法;

    ShowInfo($"【{businessName}】的 {order} 任务执行成功。");
    return true;
  }
  catch (Exception ex)
  {
    ShowInfo($"{errStr}{ex.Message}");
  }

  return false;
}

#endregion
