概述

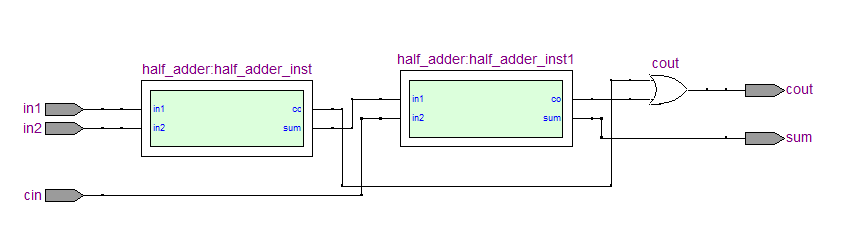

//全加器，层次化设计
module	full_adder
(
	input	wire	in1	,
	input	wire	in2	,
	input	wire	cin	,

	output	wire	cout,
	output	wire	sum
);

wire	h0_sum;
wire	h0_cout;

wire	h1_cout;

half_adder	half_adder_inst
(
	.in1	(in1),
	.in2	(in2),

	.sum	(h0_sum),
	.co	    (h0_cout)
);
half_adder	half_adder_inst1
(
	.in1	(h0_sum),
	.in2	(cin),

	.sum	(sum),
	.co	    (h1_cout)
);

assign	cout = h0_cout | h1_cout;

endmodule

//半加器
module	half_adder
(
	input	wire	in1	,
	input	wire	in2	,

	output	wire	co,
	output	wire	sum
);

assign {co, sum} = in1 + in2;

endmodule

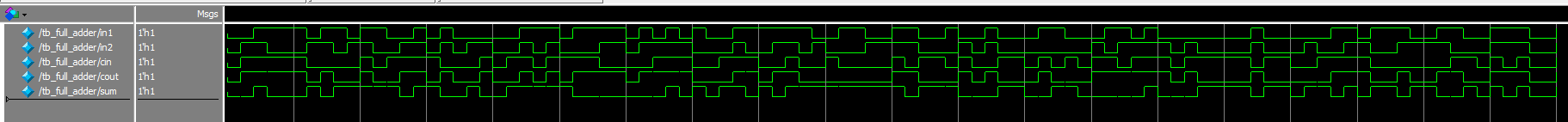

`timescale	1ns/1ns
module	tb_full_adder();

reg	in1, in2, cin;
wire cout, sum;

initial begin
	in1 <= 1'b0;
	in2 <= 1'b0;
	cin <= 1'b0;
end

always #10 in1 <= {$random} % 2;
always #10 in2 <= {$random} % 2;
always #10 cin <= {$random} % 2;

initial begin

	$timeformat(-9, 0, "ns", 6);
	$monitor("@time %t:in1=%b in2=%b cin=%b cout=%b sum=%b", $time, in1, in2, cin, cout, sum);
end

full_adder	full_adder_inst
(
	.in1	(in1),
	.in2	(in2),
	.cin	(cin),

	.cout	(cout),
	.sum    (sum)
);

endmodule
