概述
frameworksbasemediajavaandroidmediaMediaPlayer.java
首先明确一点：MediaPlayer只是向java层暴露了具体播放的接口，其具体实现都是通过JNI接口调用c++代码实现的；
先看一个简单的接口 ：start(); 他调用了native层的 _start() 方法
public void start() throws IllegalStateException {
//FIXME use lambda to pass startImpl to superclass
final int delay = getStartDelayMs();
if (delay == 0) {
startImpl();
} else {
new Thread() {
public void run() {
try {
Thread.sleep(delay);
} catch (InterruptedException e) {
e.printStackTrace();
}
baseSetStartDelayMs(0);
try {
startImpl();
} catch (IllegalStateException e) {
// fail silently for a state exception when it is happening after
// a delayed start, as the player state could have changed between the
// call to start() and the execution of startImpl()
}
}
}.start();
}
}private void startImpl() {
baseStart(0); // unknown device at this point
stayAwake(true);
tryToEnableNativeRoutingCallback();
_start();
}
private native void _start() throws IllegalStateException;JNI也是用Native语言编写的，它属于Native层。但是为了便于学习和分析，我们将与JNI相关的代码划 分到JNI层，JNI层是Native层的一部分。

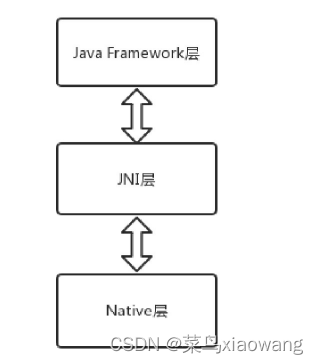

JNI是 Java Native Interface的缩写，通过JNI可以让Java方法与Native方法相互调用，其中Native方法一般是用 C/C++编写的。因此，JNI就是连接Java层和Native层的桥梁。要使用JNI需要先加载JNI库，在 MediaPlayer.java中有如下代码
static {
System.loadLibrary("media_jni");
native_init();
}在静态代码块中加载JNI库，并调用native_init方法。这里加载的名为"media_jni"的 JIN 库指的是 libmedia.so。
MediaPlayer 的 JNI 层的代码在 frameworks/base/media/jni/android_media_MediaPlayer.cpp中。我们需要通过JNI调用Native方法，那么就应该有一个结构来保存Java层Native方法与JNI层方法的对应关系，这个结构就是 android_media_MediaPlayer.cpp中定义的JNINativeMethod数组，代码如下所示
static const JNINativeMethod gMethods[] = {
{
"nativeSetDataSource",
"(Landroid/os/IBinder;Ljava/lang/String;[Ljava/lang/String;"
"[Ljava/lang/String;)V",
(void *)android_media_MediaPlayer_setDataSourceAndHeaders
},
{"_setDataSource", "(Ljava/io/FileDescriptor;JJ)V", (void *)android_media_MediaPlayer_setDataSourceFD},
{"_setDataSource", "(Landroid/media/MediaDataSource;)V",(void *)android_media_MediaPlayer_setDataSourceCallback },
{"_setVideoSurface", "(Landroid/view/Surface;)V", (void *)android_media_MediaPlayer_setVideoSurface},
{"_prepare", "()V", (void *)android_media_MediaPlayer_prepare},
{"prepareAsync", "()V", (void *)android_media_MediaPlayer_prepareAsync},
{"_start", "()V", (void *)android_media_MediaPlayer_start},
{"_stop", "()V", (void *)android_media_MediaPlayer_stop},
{"getVideoWidth", "()I", (void *)android_media_MediaPlayer_getVideoWidth},
{"getVideoHeight", "()I", (void *)android_media_MediaPlayer_getVideoHeight},
{"native_getMetrics", "()Landroid/os/PersistableBundle;", (void *)android_media_MediaPlayer_native_getMetrics},
{"setPlaybackParams", "(Landroid/media/PlaybackParams;)V", (void *)android_media_MediaPlayer_setPlaybackParams},
{"getPlaybackParams", "()Landroid/media/PlaybackParams;", (void *)android_media_MediaPlayer_getPlaybackParams},
{"setSyncParams", "(Landroid/media/SyncParams;)V", (void *)android_media_MediaPlayer_setSyncParams},
{"getSyncParams", "()Landroid/media/SyncParams;", (void *)android_media_MediaPlayer_getSyncParams},
{"_seekTo", "(JI)V", (void *)android_media_MediaPlayer_seekTo},
{"_notifyAt", "(J)V", (void *)android_media_MediaPlayer_notifyAt},
{"_pause", "()V", (void *)android_media_MediaPlayer_pause},
{"isPlaying", "()Z", (void *)android_media_MediaPlayer_isPlaying},
{"getCurrentPosition", "()I", (void *)android_media_MediaPlayer_getCurrentPosition},
{"getDuration", "()I", (void *)android_media_MediaPlayer_getDuration},
{"_release", "()V", (void *)android_media_MediaPlayer_release},
{"_reset", "()V", (void *)android_media_MediaPlayer_reset},
{"_setAudioStreamType", "(I)V", (void *)android_media_MediaPlayer_setAudioStreamType},
{"_getAudioStreamType", "()I", (void *)android_media_MediaPlayer_getAudioStreamType},
{"setParameter", "(ILandroid/os/Parcel;)Z", (void *)android_media_MediaPlayer_setParameter},
{"setLooping", "(Z)V", (void *)android_media_MediaPlayer_setLooping},
{"isLooping", "()Z", (void *)android_media_MediaPlayer_isLooping},
{"_setVolume", "(FF)V", (void *)android_media_MediaPlayer_setVolume},
{"native_invoke", "(Landroid/os/Parcel;Landroid/os/Parcel;)I",(void *)android_media_MediaPlayer_invoke},
{"native_setMetadataFilter", "(Landroid/os/Parcel;)I", (void *)android_media_MediaPlayer_setMetadataFilter},
{"native_getMetadata", "(ZZLandroid/os/Parcel;)Z", (void *)android_media_MediaPlayer_getMetadata},
{"native_init", "()V", (void *)android_media_MediaPlayer_native_init},
{"native_setup", "(Ljava/lang/Object;Landroid/os/Parcel;)V",(void *)android_media_MediaPlayer_native_setup},
{"native_finalize", "()V", (void *)android_media_MediaPlayer_native_finalize},
{"getAudioSessionId", "()I", (void *)android_media_MediaPlayer_get_audio_session_id},
{"native_setAudioSessionId", "(I)V", (void *)android_media_MediaPlayer_set_audio_session_id},
{"_setAuxEffectSendLevel", "(F)V", (void *)android_media_MediaPlayer_setAuxEffectSendLevel},
{"attachAuxEffect", "(I)V", (void *)android_media_MediaPlayer_attachAuxEffect},
{"native_pullBatteryData", "(Landroid/os/Parcel;)I", (void *)android_media_MediaPlayer_pullBatteryData},
{"native_setRetransmitEndpoint", "(Ljava/lang/String;I)I", (void *)android_media_MediaPlayer_setRetransmitEndpoint},
{"setNextMediaPlayer", "(Landroid/media/MediaPlayer;)V", (void *)android_media_MediaPlayer_setNextMediaPlayer},
{"native_applyVolumeShaper",
"(Landroid/media/VolumeShaper$Configuration;Landroid/media/VolumeShaper$Operation;)I",
(void *)android_media_MediaPlayer_applyVolumeShaper},
{"native_getVolumeShaperState",
"(I)Landroid/media/VolumeShaper$State;",
(void *)android_media_MediaPlayer_getVolumeShaperState},
// Modular DRM
{ "_prepareDrm", "([B[B)V", (void *)android_media_MediaPlayer_prepareDrm },
{ "_releaseDrm", "()V", (void *)android_media_MediaPlayer_releaseDrm },
// AudioRouting
{"native_setOutputDevice", "(I)Z", (void *)android_media_MediaPlayer_setOutputDevice},
{"native_getRoutedDeviceId", "()I", (void *)android_media_MediaPlayer_getRoutedDeviceId},
{"native_enableDeviceCallback", "(Z)V", (void *)android_media_MediaPlayer_enableDeviceCallback},
};从上面来看，JNINativeMethod数组有3个参数。
• 第一个参数，比如"_prepare"，它是Java 层Native 方法的名称。在Java层调用Native方法，交由JNI层来 实现。
• 第二个参数是 Java 层 Native 方法的参数和返回值。其中（）中的字符代表参数，后面的字母则代表 返回值。
• 第三个参数是Java层Native方法对应的JNI层的方法，比如_prepare方法对应JNI层的方法为 android_media_MediaPlayer_prepare。通过JNI层的方法就可以调用Native层相应的方法
前面在MediaPlayer.java的静态代码块中调用了native_init方法，这个方法是一个Native方法，查询 JNINativeMethod数组，它对应的是android_media_MediaPlayer_native_init方法，如下所示：
// This function gets some field IDs, which in turn causes class initialization.
// It is called from a static block in MediaPlayer, which won't run until the
// first time an instance of this class is used.
static void
android_media_MediaPlayer_native_init(JNIEnv *env)
{
jclass clazz;
//JNI层调用Java层，获取MediaPlayer对象
clazz = env->FindClass("android/media/MediaPlayer");
if (clazz == NULL) {
return;
}
fields.context = env->GetFieldID(clazz, "mNativeContext", "J");
if (fields.context == NULL) {
return;
}
//获取Java层的postEventFromNative方法
fields.post_event = env->GetStaticMethodID(clazz, "postEventFromNative",
"(Ljava/lang/Object;IIILjava/lang/Object;)V");
if (fields.post_event == NULL) {
return;
}
fields.surface_texture = env->GetFieldID(clazz, "mNativeSurfaceTexture", "J");
if (fields.surface_texture == NULL) {
return;
}
env->DeleteLocalRef(clazz);
clazz = env->FindClass("android/net/ProxyInfo");
if (clazz == NULL) {
return;
}
fields.proxyConfigGetHost =
env->GetMethodID(clazz, "getHost", "()Ljava/lang/String;");
fields.proxyConfigGetPort =
env->GetMethodID(clazz, "getPort", "()I");
fields.proxyConfigGetExclusionList =
env->GetMethodID(clazz, "getExclusionListAsString", "()Ljava/lang/String;");
env->DeleteLocalRef(clazz);
// Modular DRM
FIND_CLASS(clazz, "android/media/MediaDrm$MediaDrmStateException");
if (clazz) {
GET_METHOD_ID(gStateExceptionFields.init, clazz, "<init>", "(ILjava/lang/String;)V");
gStateExceptionFields.classId = static_cast<jclass>(env->NewGlobalRef(clazz));
env->DeleteLocalRef(clazz);
} else {
ALOGE("JNI android_media_MediaPlayer_native_init couldn't "
"get clazz android/media/MediaDrm$MediaDrmStateException");
}
gPlaybackParamsFields.init(env);
gSyncParamsFields.init(env);
gVolumeShaperFields.init(env);
}Native层可以通过JNI层来调用Java层代码。
static void android_media_MediaPlayer_start(JNIEnv *env, jobject thiz)
{
ALOGV("start");
sp<MediaPlayer> mp = getMediaPlayer(env, thiz);//得到MediaPlayer的强指针
if (mp == NULL ) {
jniThrowException(env, "java/lang/IllegalStateException", NULL);
return;
}
//通过 JNI 层的android_media_MediaPlayer_start方法调用了 Native 层的 start方法
process_media_player_call( env, thiz, mp->start(), NULL, NULL );
}

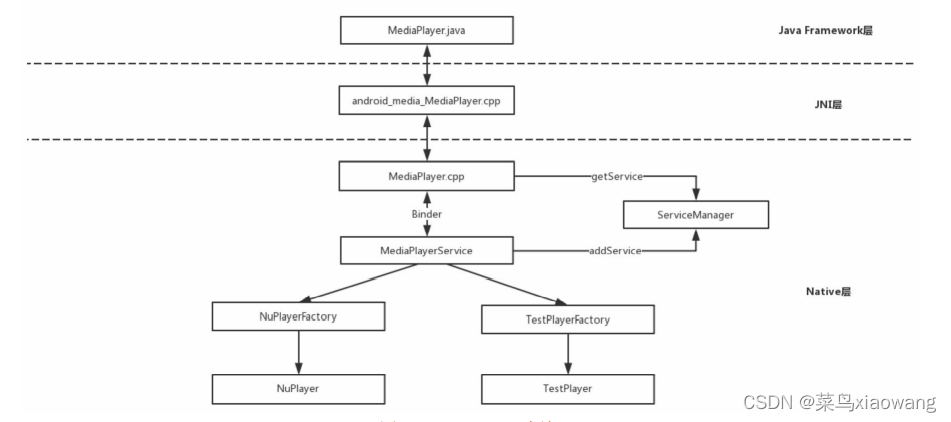

MediaPlayer的Native层整体是一个C/S（Client/Server）架构，Client端和Server端运行在两个进程中，它们之间通过Binder机制来进行通信。Client端MediaPlayer对应的动态库是libmedia.so，Server端 MediaPlayerService对应的动态库为libmediaservice.so
1.Client端分析
MediaPlayer Client 端的功能实现定义的头文件为 mediaplayer.h，相应的源文件为
frameworksavmedialibmediamediaplayer.cpp
我们 接着来查看mediaplayer.cpp的prepare方法，如下所示 调用了prepareAsync_l方法
// TODO: In case of error, prepareAsync provides the caller with 2 error codes,
// one defined in the Android framework and one provided by the implementation
// that generated the error. The sync version of prepare returns only 1 error
// code.
status_t MediaPlayer::prepare()
{
ALOGV("prepare");
Mutex::Autolock _l(mLock);
mLockThreadId = getThreadId();
if (mPrepareSync) {
mLockThreadId = 0;
return -EALREADY;
}
mPrepareSync = true;
status_t ret = prepareAsync_l();
if (ret != NO_ERROR) {
mLockThreadId = 0;
return ret;
}
if (mPrepareSync) {
mSignal.wait(mLock); // wait for prepare done
mPrepareSync = false;
}
ALOGV("prepare complete - status=%d", mPrepareStatus);
mLockThreadId = 0;
return mPrepareStatus;
}// must call with lock held
status_t MediaPlayer::prepareAsync_l()
{
if ( (mPlayer != 0) && ( mCurrentState & (MEDIA_PLAYER_INITIALIZED | MEDIA_PLAYER_STOPPED) ) ) {
if (mAudioAttributesParcel != NULL) {
mPlayer->setParameter(KEY_PARAMETER_AUDIO_ATTRIBUTES, *mAudioAttributesParcel);
} else {
mPlayer->setAudioStreamType(mStreamType);
}
mCurrentState = MEDIA_PLAYER_PREPARING;
return mPlayer->prepareAsync();
}
ALOGE("prepareAsync called in state %d, mPlayer(%p)", mCurrentState, mPlayer.get());
return INVALID_OPERATION;
}调用了mPlayer的prepareAsync方法，那么mPlayer指的是什么呢？我们带着这个问题 来查看mediaplayer.cpp的setDataSource方法
status_t MediaPlayer::setDataSource(const sp<IDataSource> &source)
{
ALOGV("setDataSource(IDataSource)");
status_t err = UNKNOWN_ERROR;
//通过getMediaPlayerService方法得到IMediaPlayerService指针
//IMediaPlayerService指针指向的就是MediaPlayer的Service端：MediaPlayerService
const sp<IMediaPlayerService> service(getMediaPlayerService());
if (service != 0) {
//通过IMediaPlayerService的create方法得到
//IMediaPlayer指针。通过IMediaPlayer指针就可以调用MediaPlayerService所提供的各种功能
sp<IMediaPlayer> player(service->create(this, mAudioSessionId, mAttributionSource));
if ((NO_ERROR != doSetRetransmitEndpoint(player)) ||
(NO_ERROR != player->setDataSource(source))) {
player.clear();
}
err = attachNewPlayer(player);
}
return err;
}status_t MediaPlayer::attachNewPlayer(const sp<IMediaPlayer>& player)
{
status_t err = UNKNOWN_ERROR;
sp<IMediaPlayer> p;
{ // scope for the lock
Mutex::Autolock _l(mLock);
if ( !( (mCurrentState & MEDIA_PLAYER_IDLE) ||
(mCurrentState == MEDIA_PLAYER_STATE_ERROR ) ) ) {
ALOGE("attachNewPlayer called in state %d", mCurrentState);
return INVALID_OPERATION;
}
clear_l();
p = mPlayer;
mPlayer = player;
if (player != 0) {
mCurrentState = MEDIA_PLAYER_INITIALIZED;
err = NO_ERROR;
} else {
ALOGE("Unable to create media player");
}
}
if (p != 0) {
p->disconnect();
}
return err;
}attachNewPlayer方法将player赋值给mPlayer。因此，前面遗留下的问题得到了解决：mPlayer指的就是 IMediaPlayer指针，调用mPlayer的prepareAsync方法其实就是调用MediaPlayerService的prepareAsync方法。
2.Server端分析
在多媒体架构中除了C/S架构中的Client和Server，还有一个全局的ServiceManager，它用来管理系统中 的各种Service。Client、Server和ServiceManager的关系如图所示。
1.首先Server进程会注册一些Service到ServiceManager中
2.Client要使用某个Service，则需要先到ServiceManager查询Service的相关信息
3.然后Client根据Service的相关信息与Service所在的Server进程建立通信通路,这样Client就可以使用Service了。
Android的多媒体服务是由一个叫作 MediaServer的服务进程提供的，它是一个可执行程序，在Android系统启动时，MediaServer也会被启动。
frameworksavmediamediaservermain_mediaserver.cpp
int main(int argc __unused, char **argv __unused)
{
signal(SIGPIPE, SIG_IGN);
sp<ProcessState> proc(ProcessState::self());
//得到IServiceManager指针，这样我们就可以与另一个进程的ServiceManager进行通信。
sp<IServiceManager> sm(defaultServiceManager());
ALOGI("ServiceManager: %p", sm.get());
//注册服务
MediaPlayerService::instantiate();
ResourceManagerService::instantiate();
registerExtensions();
::android::hardware::configureRpcThreadpool(16, false);
ProcessState::self()->startThreadPool();
IPCThreadState::self()->joinThreadPool();
::android::hardware::joinRpcThreadpool();
}frameworksavmedialibmediaplayerserviceMediaPlayerService.cpp
向 ServiceManager 添加一个名为media.player 的 MediaPlayerService 服务。这样 MediaPlayerService 就被添加到 ServiceManager中，MediaPlayer 就可以通过 字符串"media.player"来查询 MediaPlayerService。
void MediaPlayerService::instantiate() {
defaultServiceManager()->addService(
String16("media.player"), new MediaPlayerService());
}MediaPlayer是在setDataSource的getMediaPlayerService方法中查询MediaPlayerService的
frameworksavmedialibmediaIMediaDeathNotifier.cpp
// establish binder interface to MediaPlayerService
/*static*/const sp<IMediaPlayerService>
IMediaDeathNotifier::getMediaPlayerService()
{
ALOGV("getMediaPlayerService");
Mutex::Autolock _l(sServiceLock);
if (sMediaPlayerService == 0) {
//得到 IServiceManager 指针
sp<IServiceManager> sm = defaultServiceManager();
sp<IBinder> binder;
do {
//查询名称为"media.player"的服务。这样MediaPlayer就获取了MediaPlayerService的信息，
//通过这些信息就可以与在MediaServer进程中的MediaPlayerService进行通信了
binder = sm->getService(String16("media.player"));
if (binder != 0) {
break;
}
ALOGW("Media player service not published, waiting...");
usleep(500000); // 0.5 s
} while (true);
if (sDeathNotifier == NULL) {
sDeathNotifier = new DeathNotifier();
}
binder->linkToDeath(sDeathNotifier);
sMediaPlayerService = interface_cast<IMediaPlayerService>(binder);
}
ALOGE_IF(sMediaPlayerService == 0, "no media player service!?");
return sMediaPlayerService;
}当我们调用MediaPlayer的setDataSource方法时，会调用MediaPlayerService 的setDataSource方法： frameworks/av/media/libmediaplayerservice/MediaPlayerService.cpp
status_t MediaPlayerService::Client::setDataSource(
const sp<IMediaHTTPService> &httpService,
const char *url,
const KeyedVector<String8, String8> *headers)
{
ALOGV("setDataSource(%s)", url);
if (url == NULL)
return UNKNOWN_ERROR;
if ((strncmp(url, "http://", 7) == 0) ||
(strncmp(url, "https://", 8) == 0) ||
(strncmp(url, "rtsp://", 7) == 0)) {
if (!checkPermission("android.permission.INTERNET")) {
return PERMISSION_DENIED;
}
}
if (strncmp(url, "content://", 10) == 0) {
// get a filedescriptor for the content Uri and
// pass it to the setDataSource(fd) method
String16 url16(url);
int fd = android::openContentProviderFile(url16);
if (fd < 0)
{
ALOGE("Couldn't open fd for %s", url);
return UNKNOWN_ERROR;
}
status_t status = setDataSource(fd, 0, 0x7fffffffffLL); // this sets mStatus
close(fd);
return mStatus = status;
} else {
//获取播放器的类型playerType
player_type playerType = MediaPlayerFactory::getPlayerType(this, url);
sp<MediaPlayerBase> p = setDataSource_pre(playerType);
if (p == NULL) {
return NO_INIT;
}
return mStatus =
setDataSource_post(
p, p->setDataSource(httpService, url, headers));
}
}sp<MediaPlayerBase> MediaPlayerService::Client::setDataSource_pre(
player_type playerType)
{
ALOGV("player type = %d", playerType);
// create the right type of player
sp<MediaPlayerBase> p = createPlayer(playerType);
}sp<MediaPlayerBase> MediaPlayerService::Client::createPlayer(player_type playerType)
{
// determine if we have the right player type
sp<MediaPlayerBase> p = getPlayer();
if ((p != NULL) && (p->playerType() != playerType)) {
ALOGV("delete player");
p.clear();
}
if (p == NULL) {
p = MediaPlayerFactory::createPlayer(playerType, mListener,
VALUE_OR_FATAL(aidl2legacy_int32_t_pid_t(mAttributionSource.pid)));
}
if (p != NULL) {
p->setUID(VALUE_OR_FATAL(aidl2legacy_int32_t_uid_t(mAttributionSource.uid)));
}
return p;
}frameworksavmedialibmediaplayerserviceMediaPlayerFactory.cpp
sp<MediaPlayerBase> MediaPlayerFactory::createPlayer(
player_type playerType,
const sp<MediaPlayerBase::Listener> &listener,
pid_t pid) {
sp<MediaPlayerBase> p;
IFactory* factory;
status_t init_result;
Mutex::Autolock lock_(&sLock);
if (sFactoryMap.indexOfKey(playerType) < 0) {
ALOGE("Failed to create player object of type %d, no registered"
" factory", playerType);
return p;
}
factory = sFactoryMap.valueFor(playerType);
CHECK(NULL != factory);
p = factory->createPlayer(pid);
if (p == NULL) {
ALOGE("Failed to create player object of type %d, create failed",
playerType);
return p;
}
init_result = p->initCheck();
if (init_result == NO_ERROR) {
p->setNotifyCallback(listener);
} else {
ALOGE("Failed to create player object of type %d, initCheck failed"
" (res = %d)", playerType, init_result);
p.clear();
}
return p;
}在Android 6.0中， MediaPlayerFactory 中有 3 个播放器 Factory，分别是 StagefrightPlayerFactory、NuPlayerFactory和 TestPlayerFactory。其中，StagefrightPlayerFactory用于创建Stagefright框架。Stagefright 框架在 Android 2.0 中被引入系统以替代庞大复杂的 OpenCore 框架。但是由于Stagefright 存在严重漏洞，并被黑客所利用，因 此在 Android 7.0 以后中，谷歌去掉了StagefrightPlayerFactory，也就是Stagefright框架。默认的播放器使用谷歌自己研发的NuPlayer框架。NuPlayerFactory的createPlayer方法如下所示
virtual sp<MediaPlayerBase> createPlayer(pid_t pid) {
ALOGV(" create NuPlayer");
return new NuPlayerDriver(pid);
}
最后
以上就是娇气蓝天为你收集整理的MediaPlayer的全部内容，希望文章能够帮你解决MediaPlayer所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
