我是靠谱客的博主执着发卡，这篇文章主要介绍Python modbus rtu slave+mysql+随机数生产模拟数据，现在分享给大家，希望可以做个参考。

目的：
通过读取mysq’l rtu数据表地址数值，用python在原值得基础上加上随机数（0-9）
mysql数据
数据结构
在这里插入图片描述

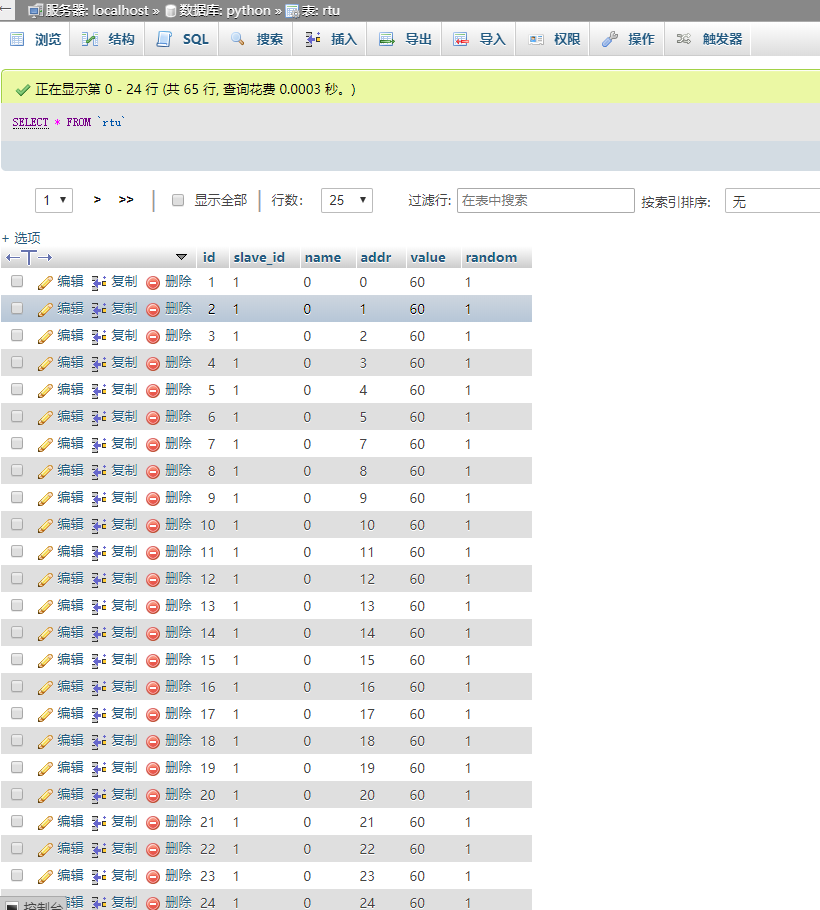

数据列表（部分）

Python代码

复制代码

#!/usr/bin/env python
# -*- coding: utf_8 -*-
import sys
import time
import pymysql
import json
import random
import modbus_tk
import modbus_tk.defines as cst
from modbus_tk import modbus_rtu
import serial
#PORT = 0
PORT = '/dev/ttyS1'
mysqlhost="localhost"
mysqluser="python"
mysqlpassword="python"
mysqlport=3306
mysqldatabase="python"
mysqlcharset='utf8'
#读取数据库触发条件规则
def mysql_rule(myserver,slaveid):
db = pymysql.connect(mysqlhost,
mysqluser,
mysqlpassword,
port=mysqlport,
database=mysqldatabase,
charset=mysqlcharset)
cursor = db.cursor(cursor =pymysql.cursors.DictCursor) #设置游标类型为DictCursor以后，生成的就是字段名和值组成的键值对字典了
sql = "SELECT * FROM rtu where slave_id='"+str(slaveid)+"'"
print(sql)
try:
cursor.execute(sql)
results = cursor.fetchall()
value=[]
for row in results:
value=[]
slave_id = row['slave_id']
name = row['name']
addr = int(row['addr'])
myvalue =int(row['value'])+random.randint(0,9)
value.append(myvalue)
print(str(slave_id)+" "+name+" "+str(addr)+" "+str(myvalue))
myslave = myserver.get_slave(slaveid)
myslave.set_values(name,addr,myvalue)
value = myslave.get_values(name,addr, 1)
sys.stdout.write('done: values written: %srn' % (str(value)+' id'+str(row['id'])))
# 打印结果
except:
print("Error: unable to fecth data")
cursor.close()
db.close()
def main():
"""main"""
logger = modbus_tk.utils.create_logger(name="console", record_format="%(message)s")
#Create the server
server = modbus_rtu.RtuServer(serial.Serial(PORT,baudrate=9600))
try:
logger.info("running...")
logger.info("enter 'quit' for closing the server")
server.start()
slave_1 = server.add_slave(1)
slave_1.add_block('0', cst.HOLDING_REGISTERS, 0, 100)
while True:
slave_id = 1
name = '0'
address = int('0')
mysql_rule(server,slave_id)
time.sleep(1) # 休眠1秒
finally:
server.stop()
if __name__ == "__main__":
main()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
#!/usr/bin/env python
# -*- coding: utf_8 -*-
import sys
import time
import pymysql
import json
import random
import modbus_tk
import modbus_tk.defines as cst
from modbus_tk import modbus_rtu
import serial
#PORT = 0
PORT = '/dev/ttyS1'
mysqlhost="localhost"
mysqluser="python"
mysqlpassword="python"
mysqlport=3306
mysqldatabase="python"
mysqlcharset='utf8'
#读取数据库触发条件规则
def mysql_rule(myserver,slaveid):
db = pymysql.connect(mysqlhost,
mysqluser,
mysqlpassword,
port=mysqlport,
database=mysqldatabase,
charset=mysqlcharset)
cursor = db.cursor(cursor =pymysql.cursors.DictCursor) #设置游标类型为DictCursor以后，生成的就是字段名和值组成的键值对字典了
sql = "SELECT * FROM rtu where slave_id='"+str(slaveid)+"'"
print(sql)
try:
cursor.execute(sql)
results = cursor.fetchall()
value=[]
for row in results:
value=[]
slave_id = row['slave_id']
name = row['name']
addr = int(row['addr'])
myvalue =int(row['value'])+random.randint(0,9)
value.append(myvalue)
print(str(slave_id)+" "+name+" "+str(addr)+" "+str(myvalue))
myslave = myserver.get_slave(slaveid)
myslave.set_values(name,addr,myvalue)
value = myslave.get_values(name,addr, 1)
sys.stdout.write('done: values written: %srn' % (str(value)+' id'+str(row['id'])))
# 打印结果
except:
print("Error: unable to fecth data")
cursor.close()
db.close()
def main():
"""main"""
logger = modbus_tk.utils.create_logger(name="console", record_format="%(message)s")
#Create the server
server = modbus_rtu.RtuServer(serial.Serial(PORT,baudrate=9600))
try:
logger.info("running...")
logger.info("enter 'quit' for closing the server")
server.start()
slave_1 = server.add_slave(1)
slave_1.add_block('0', cst.HOLDING_REGISTERS, 0, 100)
while True:
slave_id = 1
name = '0'
address = int('0')
mysql_rule(server,slave_id)
time.sleep(1) # 休眠1秒
finally:
server.stop()
if __name__ == "__main__":
main()

测试结果

复制代码

1
2
在这里插入代码片

在这里插入图片描述

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[root@bogon lqj]# python rtu.py
RtuServer /dev/ttyS1 is opened
running...
enter 'quit' for closing the server
SELECT * FROM rtu where slave_id='1'
1 0 0 66
done: values written: (66,) id1
1 0 1 68
done: values written: (68,) id2
1 0 2 63
done: values written: (63,) id3
1 0 3 64
done: values written: (64,) id4
1 0 4 60
done: values written: (60,) id5
1 0 5 68
done: values written: (68,) id6
1 0 7 69
done: values written: (69,) id7
1 0 8 66
