代码链接：https://github.com/Philipcjh/HW-of-SLAMBOOK2/blob/main/hw7/p10PnP.cpp

在原作者的基础上我加了CMakeLists.txt文件，方便大家能够在Ubuntu上编译执行。具体的代码注释没有写，如果有大神写完了，到时候可以私信我，把他分享给我，我将感激不尽。

10pnp.cpp：

#include <iostream>
#include <opencv2/core/core.hpp>
#include <opencv2/features2d/features2d.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/calib3d/calib3d.hpp>
#include <ceres/ceres.h>
#include <ceres/rotation.h>
#include <Eigen/Core>
#include <Eigen/Geometry>
#include "sophus/se3.hpp"
#include <chrono>

using namespace std;
using namespace Eigen;
using namespace cv;

void find_feature_matches(
  const Mat &img_1, const Mat &img_2,
  std::vector<KeyPoint> &keypoints_1,
  std::vector<KeyPoint> &keypoints_2,
  std::vector<DMatch> &matches);

// 像素坐标转相机归一化坐标
Point2d pixel2cam(const Point2d &p, const Mat &K);

//Ref:http://www.ceres-solver.org/nnls_tutorial.html#bundle-adjustment
struct PnPReprojectionError {
  PnPReprojectionError(Point2f pts_2d, Point3f pts_3d)
      : _pts_2d(pts_2d), _pts_3d(pts_3d) {}

  template <typename T>
  bool operator()(const T* const rotation_vector,
                  const T* const translation_vector,
                  T* residuals) const {

    T p_transformed[3], p_origin[3];
    p_origin[0]=T(_pts_3d.x);
    p_origin[1]=T(_pts_3d.y);
    p_origin[2]=T(_pts_3d.z);
    ceres::AngleAxisRotatePoint(rotation_vector, p_origin, p_transformed);

    //旋转后加上平移向量
    p_transformed[0] += translation_vector[0];
    p_transformed[1] += translation_vector[1];
    p_transformed[2] += translation_vector[2];

    //归一化
    T xp = p_transformed[0] / p_transformed[2];
    T yp = p_transformed[1] / p_transformed[2];


    double fx=520.9, fy=521.0, cx=325.1, cy=249.7;
    // Compute final projected point position.
    T predicted_x = fx * xp + cx;
    T predicted_y = fy * yp + cy;

    // The error is the difference between the predicted and observed position.
    residuals[0] = T(_pts_2d.x) - predicted_x;
    residuals[1] = T(_pts_2d.y) - predicted_y;
    return true;
  }

   // 2，3，3指输出维度（residuals）为2
   //待优化变量（rotation_vector，translation_vector）维度分别为3
   static ceres::CostFunction* Create(const Point2f _pts_2d,
                                      const Point3f _pts_3d) {
     return (new ceres::AutoDiffCostFunction<PnPReprojectionError, 2, 3, 3>(
                 new PnPReprojectionError(_pts_2d, _pts_3d)));
   }

  Point2f _pts_2d;
  Point3f _pts_3d;
};

// 通过引入Sophus库简化计算，并使用雅克比矩阵的解析解代替自动求导
class PnPSE3ReprojectionError : public ceres::SizedCostFunction<2, 6> {
public:
    EIGEN_MAKE_ALIGNED_OPERATOR_NEW

    PnPSE3ReprojectionError(Eigen::Vector2d pts_2d, Eigen::Vector3d pts_3d) :
            _pts_2d(pts_2d), _pts_3d(pts_3d) {}

    virtual ~PnPSE3ReprojectionError() {}

    virtual bool Evaluate(
      double const* const* parameters, double *residuals, double **jacobians) const {

        Eigen::Map<const Eigen::Matrix<double,6,1>> se3(*parameters);

        Sophus::SE3d T = Sophus::SE3d::exp(se3);

        Eigen::Vector3d Pc = T * _pts_3d;

        Eigen::Matrix3d K;
        double fx = 520.9, fy = 521.0, cx = 325.1, cy = 249.7;
        K << fx, 0, cx,
	     0, fy, cy,
	     0, 0, 1;

        Eigen::Vector2d error =  _pts_2d - (K * Pc).hnormalized();

        residuals[0] = error[0];
        residuals[1] = error[1];

        if(jacobians != NULL) {
            if(jacobians[0] != NULL) {
                Eigen::Map<Eigen::Matrix<double, 2, 6, Eigen::RowMajor>> J(jacobians[0]);

                double x = Pc[0];
                double y = Pc[1];
                double z = Pc[2];

                double x2 = x*x;
                double y2 = y*y;
                double z2 = z*z;

		//雅克比矩阵推导看书187页公式(7.46)
                J(0,0) = -fx/z;
                J(0,1) =  0;
                J(0,2) =  fx*x/z2;
                J(0,3) =  fx*x*y/z2;
                J(0,4) = -fx-fx*x2/z2;
                J(0,5) =  fx*y/z;
                J(1,0) =  0;
                J(1,1) = -fy/z;
                J(1,2) =  fy*y/z2;
                J(1,3) =  fy+fy*y2/z2;
                J(1,4) = -fy*x*y/z2;
                J(1,5) = -fy*x/z;
            }
        }

        return true;
    }

private:
    const Eigen::Vector2d _pts_2d;
    const Eigen::Vector3d _pts_3d;
};


int main(int argc, char **argv){
  if (argc != 5) {
    cout << "usage: pose_estimation_3d2d img1 img2 depth1 depth2" << endl;
    return 1;
  }
  //-- 读取图像
  Mat img_1 = imread(argv[1], CV_LOAD_IMAGE_COLOR);
  Mat img_2 = imread(argv[2], CV_LOAD_IMAGE_COLOR);
  assert(img_1.data && img_2.data && "Can not load images!");

  vector<KeyPoint> keypoints_1, keypoints_2;
  vector<DMatch> matches;
  find_feature_matches(img_1, img_2, keypoints_1, keypoints_2, matches);
  cout << "一共找到了" << matches.size() << "组匹配点" << endl;

  // 建立3D点
  Mat d1 = imread(argv[3], CV_LOAD_IMAGE_UNCHANGED);       // 深度图为16位无符号数，单通道图像
  Mat K = (Mat_<double>(3, 3) << 520.9, 0, 325.1, 0, 521.0, 249.7, 0, 0, 1);
  vector<Point3f> pts_3d;
  vector<Point2f> pts_2d;
  vector<Vector3d> pts_3d_eigen;
  vector<Vector2d> pts_2d_eigen;

  for (DMatch m:matches) {
    ushort d = d1.ptr<unsigned short>(int(keypoints_1[m.queryIdx].pt.y))[int(keypoints_1[m.queryIdx].pt.x)];
    if (d == 0)   // bad depth
      continue;
    float dd = d / 5000.0;
    Point2d p1 = pixel2cam(keypoints_1[m.queryIdx].pt, K);
    pts_3d.push_back(Point3f(p1.x * dd, p1.y * dd, dd));//第一个相机观察到的3D点坐标
    pts_2d.push_back(keypoints_2[m.trainIdx].pt);//特征点在第二个相机中的投影
    pts_3d_eigen.push_back(Vector3d(p1.x * dd, p1.y * dd, dd));
    pts_2d_eigen.push_back(Vector2d(keypoints_2[m.trainIdx].pt.x, keypoints_2[m.trainIdx].pt.y));
  }

  cout << "3d-2d pairs: " << pts_3d.size() << endl;

  chrono::steady_clock::time_point t1 = chrono::steady_clock::now();
  Mat r, t;
  solvePnP(pts_3d, pts_2d, K, Mat(), r, t, false); // 调用OpenCV 的 PnP 求解，可选择EPNP，DLS等方法
  Mat R;
  cv::Rodrigues(r, R); // r为旋转向量形式，用Rodrigues公式转换为矩阵
  chrono::steady_clock::time_point t2 = chrono::steady_clock::now();
  chrono::duration<double> time_used = chrono::duration_cast<chrono::duration<double>>(t2 - t1);
  cout << "solve pnp in opencv cost time: " << time_used.count() << " seconds." << endl;

  cout << "R=" << endl << R << endl;
  cout << "t=" << endl << t << endl;
  cout << endl;
  //ceres求解PnP, 使用自动求导
  cout << "以下是ceres求解（自动求导）" << endl;
  double r_ceres[3]={0,0,0};
  double t_ceres[3]={0,0,0};

  ceres::Problem problem;
  for (size_t i = 0; i < pts_2d.size(); ++i) {
    ceres::CostFunction* cost_function =
	PnPReprojectionError::Create(pts_2d[i],pts_3d[i]);
    problem.AddResidualBlock(cost_function,
			     nullptr /* squared loss */,
			     r_ceres,
			     t_ceres);
  }

  t1 = chrono::steady_clock::now();
  ceres::Solver::Options options;
  options.linear_solver_type = ceres::DENSE_SCHUR;
  options.minimizer_progress_to_stdout = true;
  ceres::Solver::Summary summary;
  ceres::Solve(options, &problem, &summary);
  std::cout << summary.BriefReport() << "n";

  Mat r_ceres_cv=(Mat_<double>(3, 1) <<r_ceres[0], r_ceres[1], r_ceres[2]);
  Mat t_ceres_cv=(Mat_<double>(3, 1) <<t_ceres[0], t_ceres[1], t_ceres[2]);
  cv::Rodrigues(r_ceres_cv, R);
  cout << "R=" << endl << R << endl;
  cout << "t=" << endl << t_ceres_cv << endl;

  t2 = chrono::steady_clock::now();
  time_used = chrono::duration_cast<chrono::duration<double>>(t2 - t1);
  cout << "solve pnp in ceres cost time: " << time_used.count() << " seconds." << endl<< endl;

  //ceres求解PnP, 使用雅克比矩阵的解析解
  cout << "以下是ceres求解（雅克比矩阵给出解析解）" << endl;

  Sophus::Vector6d se3;
  se3<<0,0,0,0,0,0;// 初始化非常重要

  ceres::Problem problem_;
  for(int i=0; i<pts_3d_eigen.size(); ++i) {
      ceres::CostFunction *cost_function;
      cost_function = new PnPSE3ReprojectionError(pts_2d_eigen[i], pts_3d_eigen[i]);
      problem_.AddResidualBlock(cost_function, NULL, se3.data());

  }

  t1 = chrono::steady_clock::now();
  ceres::Solver::Options options_;
  options_.dynamic_sparsity = true;
  options_.max_num_iterations = 100;
  options_.sparse_linear_algebra_library_type = ceres::SUITE_SPARSE;
  options_.minimizer_type = ceres::TRUST_REGION;
  options_.linear_solver_type = ceres::SPARSE_NORMAL_CHOLESKY;
  options_.trust_region_strategy_type = ceres::DOGLEG;
  options_.minimizer_progress_to_stdout = true;
  options_.dogleg_type = ceres::SUBSPACE_DOGLEG;

  ceres::Solver::Summary summary_;
  ceres::Solve(options_, &problem_, &summary_);
  std::cout << summary_.BriefReport() << "n";

  std::cout << "estimated pose: n" << Sophus::SE3d::exp(se3).matrix() << std::endl;
  t2 = chrono::steady_clock::now();
  time_used = chrono::duration_cast<chrono::duration<double>>(t2 - t1);
  cout << "solve pnp in ceres cost time: " << time_used.count() << " seconds." << endl;

  return 0;
}

void find_feature_matches(const Mat &img_1, const Mat &img_2,
                          std::vector<KeyPoint> &keypoints_1,
                          std::vector<KeyPoint> &keypoints_2,
                          std::vector<DMatch> &matches) {
  //-- 初始化
  Mat descriptors_1, descriptors_2;
  // used in OpenCV3
  Ptr<FeatureDetector> detector = ORB::create();
  Ptr<DescriptorExtractor> descriptor = ORB::create();
  // use this if you are in OpenCV2
  // Ptr<FeatureDetector> detector = FeatureDetector::create ( "ORB" );
  // Ptr<DescriptorExtractor> descriptor = DescriptorExtractor::create ( "ORB" );
  Ptr<DescriptorMatcher> matcher = DescriptorMatcher::create("BruteForce-Hamming");
  //-- 第一步:检测 Oriented FAST 角点位置
  detector->detect(img_1, keypoints_1);
  detector->detect(img_2, keypoints_2);

  //-- 第二步:根据角点位置计算 BRIEF 描述子
  descriptor->compute(img_1, keypoints_1, descriptors_1);
  descriptor->compute(img_2, keypoints_2, descriptors_2);

  //-- 第三步:对两幅图像中的BRIEF描述子进行匹配，使用 Hamming 距离
  vector<DMatch> match;
  // BFMatcher matcher ( NORM_HAMMING );
  matcher->match(descriptors_1, descriptors_2, match);

  //-- 第四步:匹配点对筛选
  double min_dist = 10000, max_dist = 0;

  //找出所有匹配之间的最小距离和最大距离, 即是最相似的和最不相似的两组点之间的距离
  for (int i = 0; i < descriptors_1.rows; i++) {
    double dist = match[i].distance;
    if (dist < min_dist) min_dist = dist;
    if (dist > max_dist) max_dist = dist;
  }

  printf("-- Max dist : %f n", max_dist);
  printf("-- Min dist : %f n", min_dist);

  //当描述子之间的距离大于两倍的最小距离时,即认为匹配有误.但有时候最小距离会非常小,设置一个经验值30作为下限.
  for (int i = 0; i < descriptors_1.rows; i++) {
    if (match[i].distance <= max(2 * min_dist, 30.0)) {
      matches.push_back(match[i]);
    }
  }
}

Point2d pixel2cam(const Point2d &p, const Mat &K) {
  return Point2d
    (
      (p.x - K.at<double>(0, 2)) / K.at<double>(0, 0),
      (p.y - K.at<double>(1, 2)) / K.at<double>(1, 1)
    );
}

CMakeLists.txt：

cmake_minimum_required(VERSION 2.8)
project(ch7_2)

set(CMAKE_BUILD_TYPE "Release")
add_definitions("-DENABLE_SSE")
#set(CMAKE_CXX_FLAGS "-std=c++11 -O2 ${SSE_FLAGS} -msse4")
set(CMAKE_CXX_FLAGS "-std=c++14 -O2 ${SSE_FLAGS} -msse4")

list(APPEND CMAKE_MODULE_PATH ${PROJECT_SOURCE_DIR}/cmake)

find_package(OpenCV 3 REQUIRED)
find_package(G2O REQUIRED)
find_package(Sophus REQUIRED)
find_package(Ceres REQUIRED)

include_directories(
        ${OpenCV_INCLUDE_DIRS}
        ${G2O_INCLUDE_DIRS}
        ${Sophus_INCLUDE_DIRS}
        ${CERES_LIBRARIES}
        "/usr/local/include/eigen3/"

)
add_executable(10pnp 10pnp.cpp)
target_link_libraries(10pnp
        g2o_core g2o_stuff
        ${OpenCV_LIBS} ${CERES_LIBRARIES} fmt)

add_executable(10icp 10icp.cpp)
target_link_libraries(10icp
       g2o_core g2o_stuff
        ${OpenCV_LIBS} ${CERES_LIBRARIES} fmt)

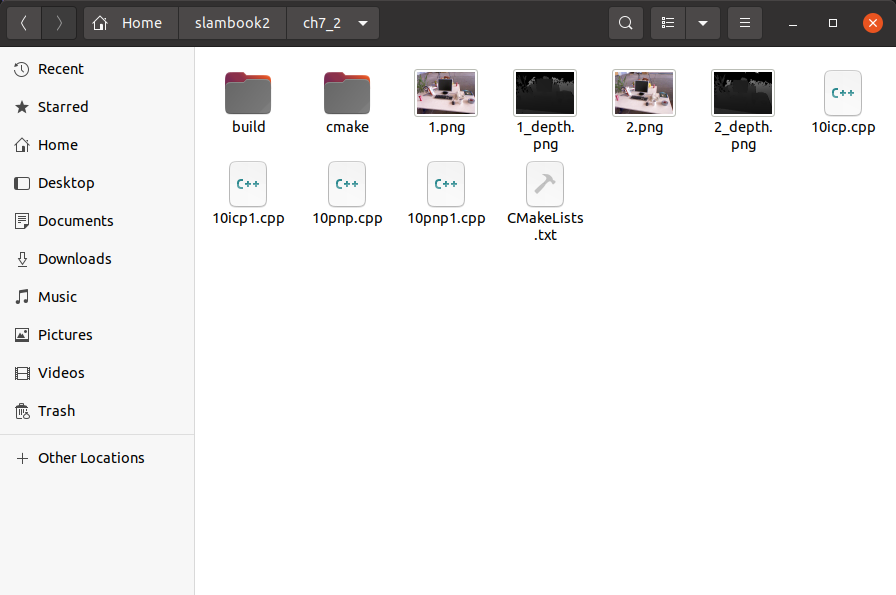

注意：我重新创建了一个文件夹，文件分布如下所示：

 执行结果：

./10pnp 1.png 2.png 1_depth.png 2_depth.png

-- Max dist : 94.000000
-- Min dist : 4.000000
一共找到了79组匹配点
3d-2d pairs: 75
solve pnp in opencv cost time: 0.000406887 seconds.
R=
[0.9979059095501266, -0.05091940089110201, 0.03988747043653948;
 0.04981866254253315, 0.9983623157438158, 0.02812094175376485;
 -0.04125404886078184, -0.0260749135288436, 0.998808391202765]
t=
[-0.1267821389557959;
 -0.008439496817520764;
 0.06034935748888207]

以下是ceres求解（自动求导）
iter      cost      cost_change  |gradient|   |step|    tr_ratio  tr_radius  ls_iter  iter_time  total_time
   0  2.025888e+04    0.00e+00    6.83e+05   0.00e+00   0.00e+00  1.00e+04        0    4.41e-05    1.92e-04
   1  1.650410e+02    2.01e+04    1.47e+04   1.51e-01   9.99e-01  3.00e+04        1    9.68e-05    3.09e-04
   2  1.498819e+02    1.52e+01    4.80e+01   7.30e-03   1.00e+00  9.00e+04        1    4.70e-05    3.63e-04
Ceres Solver Report: Iterations: 3, Initial cost: 2.025888e+04, Final cost: 1.498819e+02, Termination: CONVERGENCE
R=
[0.9979061714739172, -0.05092444873781777, 0.03987447121929216;
 0.04982431246493198, 0.9983622113118902, 0.02811463874620321;
 -0.04124088774099816, -0.02606905340019193, 0.9988090876804998]
t=
[-0.1267625259978171;
 -0.008424980436889882;
 0.06034877257668213]
solve pnp in ceres cost time: 0.000447545 seconds.

以下是ceres求解（雅克比矩阵给出解析解）
iter      cost      cost_change  |gradient|   |step|    tr_ratio  tr_radius  ls_iter  iter_time  total_time
   0  2.025888e+04    0.00e+00    6.83e+05   0.00e+00   0.00e+00  1.00e+04        0    8.51e-05    1.07e-04
   1  2.052736e+02    2.01e+04    3.79e+04   1.52e-01   9.97e-01  1.00e+04        1    1.70e-04    2.85e-04
   2  1.500357e+02    5.52e+01    2.38e+03   8.62e-03   9.97e-01  1.00e+04        1    9.20e-05    3.84e-04
   3  1.498820e+02    1.54e-01    7.50e+01   2.41e-04   9.99e-01  1.00e+04        1    8.80e-05    4.79e-04
   4  1.498819e+02    1.63e-04    4.05e+00   8.96e-06   9.97e-01  1.00e+04        1    8.70e-05    5.72e-04
Ceres Solver Report: Iterations: 5, Initial cost: 2.025888e+04, Final cost: 1.498819e+02, Termination: CONVERGENCE
estimated pose:
   0.997906  -0.0509194   0.0398875   -0.126782
  0.0498187    0.998362   0.0281209 -0.00843933
  -0.041254  -0.0260749    0.998808   0.0603495
          0           0           0           1
solve pnp in ceres cost time: 0.000696333 seconds.

代码链接：https://github.com/Philipcjh/HW-of-SLAMBOOK2/blob/main/hw7/p10ICP.cpp#L251

 10icp.cpp：

#include <iostream>
#include <opencv2/core/core.hpp>
#include <opencv2/features2d/features2d.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/calib3d/calib3d.hpp>
#include <ceres/ceres.h>
#include <ceres/rotation.h>
#include <Eigen/Core>
#include <Eigen/Geometry>
#include "sophus/se3.hpp"
#include <chrono>

using namespace std;
using namespace Eigen;
using namespace cv;

void find_feature_matches(
  const Mat &img_1, const Mat &img_2,
  std::vector<KeyPoint> &keypoints_1,
  std::vector<KeyPoint> &keypoints_2,
  std::vector<DMatch> &matches);

// 像素坐标转相机归一化坐标
Point2d pixel2cam(const Point2d &p, const Mat &K);

void pose_estimation_3d3d(
  const vector<Point3f> &pts1,
  const vector<Point3f> &pts2,
  Mat &R, Mat &t
);

//Ref:http://www.ceres-solver.org/nnls_tutorial.html#bundle-adjustment
struct ICPReprojectionError {
  ICPReprojectionError(Point3f pts1_3d, Point3f pts2_3d)
      : _pts1_3d(pts1_3d), _pts2_3d(pts2_3d) {}

  template <typename T>
  bool operator()(const T* const rotation_vector,
                  const T* const translation_vector,
                  T* residuals) const {

    T p_transformed[3], p_origin[3];
    p_origin[0]=T(_pts2_3d.x);
    p_origin[1]=T(_pts2_3d.y);
    p_origin[2]=T(_pts2_3d.z);
    ceres::AngleAxisRotatePoint(rotation_vector, p_origin, p_transformed);

    //旋转后加上平移向量
    p_transformed[0] += translation_vector[0];
    p_transformed[1] += translation_vector[1];
    p_transformed[2] += translation_vector[2];

    //计算error
    residuals[0] = T(_pts1_3d.x) - p_transformed[0];
    residuals[1] = T(_pts1_3d.y) - p_transformed[1];
    residuals[2] = T(_pts1_3d.z) - p_transformed[2];
    return true;
  }

   // 3，3，3指输出维度（residuals）为3
   //待优化变量（rotation_vector，translation_vector）维度分别为3
   static ceres::CostFunction* Create(const Point3f _pts1_3d,
                                      const Point3f _pts2_3d) {
     return (new ceres::AutoDiffCostFunction<ICPReprojectionError, 3, 3, 3>(
                 new ICPReprojectionError(_pts1_3d, _pts2_3d)));
   }

  Point3f _pts1_3d;
  Point3f _pts2_3d;
};


// 通过引入Sophus库简化计算，并使用雅克比矩阵的解析解代替自动求导
class ICPSE3ReprojectionError : public ceres::SizedCostFunction<3, 6> {
public:
    EIGEN_MAKE_ALIGNED_OPERATOR_NEW

    ICPSE3ReprojectionError(Eigen::Vector3d pts1_3d, Eigen::Vector3d pts2_3d) :
            _pts1_3d(pts1_3d), _pts2_3d(pts2_3d) {}

    virtual ~ICPSE3ReprojectionError() {}

    virtual bool Evaluate(
      double const* const* parameters, double *residuals, double **jacobians) const {

        Eigen::Map<const Eigen::Matrix<double,6,1>> se3(*parameters);

        Sophus::SE3d T = Sophus::SE3d::exp(se3);

        Eigen::Vector3d Pc = T * _pts2_3d;

        Eigen::Vector3d error =  _pts1_3d - Pc;

        residuals[0] = error[0];
        residuals[1] = error[1];
	residuals[2] = error[2];

        if(jacobians != NULL) {
            if(jacobians[0] != NULL) {
                Eigen::Map<Eigen::Matrix<double, 3, 6, Eigen::RowMajor>> J(jacobians[0]);

                double x = Pc[0];
                double y = Pc[1];
                double z = Pc[2];

		//雅克比矩阵推导看书187页公式(7.45),因为这里变换后的P'在计算error时是被减的，所以应该是(7.45)取负
                J(0,0) = -1; J(0,1) = 0; J(0,2) = 0; J(0,3) = 0; J(0,4) = -z; J(0,5) = y;
		J(1,0) = 0; J(1,1) = -1; J(1,2) = 0; J(1,3) = z; J(1,4) = 0; J(1,5) = -x;
		J(2,0) = 0; J(2,1) = 0; J(2,2) = -1; J(2,3) = -y; J(2,4) = x; J(2,5) = 0;
            }
        }

        return true;
    }

private:
    const Eigen::Vector3d _pts1_3d;
    const Eigen::Vector3d _pts2_3d;
};


int main(int argc, char **argv){
  if (argc != 5) {
    cout << "usage: pose_estimation_3d3d img1 img2 depth1 depth2" << endl;
    return 1;
  }
  //-- 读取图像
  Mat img_1 = imread(argv[1], CV_LOAD_IMAGE_COLOR);
  Mat img_2 = imread(argv[2], CV_LOAD_IMAGE_COLOR);

  vector<KeyPoint> keypoints_1, keypoints_2;
  vector<DMatch> matches;
  find_feature_matches(img_1, img_2, keypoints_1, keypoints_2, matches);
  cout << "一共找到了" << matches.size() << "组匹配点" << endl;

  // 建立3D点
  Mat depth1 = imread(argv[3], CV_LOAD_IMAGE_UNCHANGED);       // 深度图为16位无符号数，单通道图像
  Mat depth2 = imread(argv[4], CV_LOAD_IMAGE_UNCHANGED);       // 深度图为16位无符号数，单通道图像
  Mat K = (Mat_<double>(3, 3) << 520.9, 0, 325.1, 0, 521.0, 249.7, 0, 0, 1);
  vector<Point3f> pts1, pts2;
  vector<Vector3d> pts1_eigen, pts2_eigen;

  for (DMatch m:matches) {
    ushort d1 = depth1.ptr<unsigned short>(int(keypoints_1[m.queryIdx].pt.y))[int(keypoints_1[m.queryIdx].pt.x)];
    ushort d2 = depth2.ptr<unsigned short>(int(keypoints_2[m.trainIdx].pt.y))[int(keypoints_2[m.trainIdx].pt.x)];
    if (d1 == 0 || d2 == 0)   // bad depth
      continue;
    Point2d p1 = pixel2cam(keypoints_1[m.queryIdx].pt, K);
    Point2d p2 = pixel2cam(keypoints_2[m.trainIdx].pt, K);
    float dd1 = float(d1) / 5000.0;
    float dd2 = float(d2) / 5000.0;
    pts1.push_back(Point3f(p1.x * dd1, p1.y * dd1, dd1));
    pts2.push_back(Point3f(p2.x * dd2, p2.y * dd2, dd2));
    pts1_eigen.push_back(Vector3d(p1.x * dd1, p1.y * dd1, dd1));
    pts2_eigen.push_back(Vector3d(p2.x * dd2, p2.y * dd2, dd2));
  }

  cout << "3d-3d pairs: " << pts1.size() << endl;
  Mat R, t;
  pose_estimation_3d3d(pts1, pts2, R, t);
  cout << "ICP via SVD results: " << endl;
  cout << "R = " << R << endl;
  cout << "t = " << t << endl;
  cout << "R_inv = " << R.t() << endl;
  cout << "t_inv = " << -R.t() * t << endl;
  cout << endl;

  //ceres求解PnP, 使用自动求导
  cout << "以下是ceres求解（自动求导）" << endl;
  double r_ceres[3]={0,0,0};
  double t_ceres[3]={0,0,0};

  ceres::Problem problem;
  for (size_t i = 0; i < pts1.size(); ++i) {
    ceres::CostFunction* cost_function =
	ICPReprojectionError::Create(pts1[i],pts2[i]);
    problem.AddResidualBlock(cost_function,
			     nullptr /* squared loss */,
			     r_ceres,
			     t_ceres);
  }

  chrono::steady_clock::time_point t1 = chrono::steady_clock::now();
  ceres::Solver::Options options;
  options.linear_solver_type = ceres::DENSE_SCHUR;
  options.minimizer_progress_to_stdout = true;
  ceres::Solver::Summary summary;
  ceres::Solve(options, &problem, &summary);
  std::cout << summary.BriefReport() << "n";

  Mat r_ceres_cv=(Mat_<double>(3, 1) <<r_ceres[0], r_ceres[1], r_ceres[2]);
  Mat t_ceres_cv=(Mat_<double>(3, 1) <<t_ceres[0], t_ceres[1], t_ceres[2]);
  cv::Rodrigues(r_ceres_cv, R);
  cout << "R=" << endl << R << endl;
  cout << "t=" << endl << t_ceres_cv << endl;

  chrono::steady_clock::time_point t2 = chrono::steady_clock::now();
  chrono::duration<double> time_used = chrono::duration_cast<chrono::duration<double>>(t2 - t1);
  cout << "solve pnp in ceres cost time: " << time_used.count() << " seconds." << endl;

  //ceres求解PnP, 使用雅克比矩阵的解析解
  cout << "以下是ceres求解（雅克比矩阵给出解析解）" << endl;

  Sophus::Vector6d se3;
  se3<<0,0,0,0,0,0;// 初始化非常重要

  ceres::Problem problem_;
  for(int i=0; i<pts1_eigen.size(); ++i) {
      ceres::CostFunction *cost_function;
      cost_function = new ICPSE3ReprojectionError(pts1_eigen[i], pts2_eigen[i]);
      problem_.AddResidualBlock(cost_function, NULL, se3.data());

  }

  t1 = chrono::steady_clock::now();
  ceres::Solver::Options options_;
  options_.dynamic_sparsity = true;
  options_.max_num_iterations = 100;
  options_.sparse_linear_algebra_library_type = ceres::SUITE_SPARSE;
  options_.minimizer_type = ceres::TRUST_REGION;
  options_.linear_solver_type = ceres::SPARSE_NORMAL_CHOLESKY;
  options_.trust_region_strategy_type = ceres::DOGLEG;
  options_.minimizer_progress_to_stdout = true;
  options_.dogleg_type = ceres::SUBSPACE_DOGLEG;

  ceres::Solver::Summary summary_;
  ceres::Solve(options_, &problem_, &summary_);
  std::cout << summary_.BriefReport() << "n";

  std::cout << "estimated pose: n" << Sophus::SE3d::exp(se3).matrix() << std::endl;
  t2 = chrono::steady_clock::now();
  time_used = chrono::duration_cast<chrono::duration<double>>(t2 - t1);
  cout << "solve pnp in ceres cost time: " << time_used.count() << " seconds." << endl;

  return 0;
}

void find_feature_matches(const Mat &img_1, const Mat &img_2,
                          std::vector<KeyPoint> &keypoints_1,
                          std::vector<KeyPoint> &keypoints_2,
                          std::vector<DMatch> &matches) {
  //-- 初始化
  Mat descriptors_1, descriptors_2;
  // used in OpenCV3
  Ptr<FeatureDetector> detector = ORB::create();
  Ptr<DescriptorExtractor> descriptor = ORB::create();
  // use this if you are in OpenCV2
  // Ptr<FeatureDetector> detector = FeatureDetector::create ( "ORB" );
  // Ptr<DescriptorExtractor> descriptor = DescriptorExtractor::create ( "ORB" );
  Ptr<DescriptorMatcher> matcher = DescriptorMatcher::create("BruteForce-Hamming");
  //-- 第一步:检测 Oriented FAST 角点位置
  detector->detect(img_1, keypoints_1);
  detector->detect(img_2, keypoints_2);

  //-- 第二步:根据角点位置计算 BRIEF 描述子
  descriptor->compute(img_1, keypoints_1, descriptors_1);
  descriptor->compute(img_2, keypoints_2, descriptors_2);

  //-- 第三步:对两幅图像中的BRIEF描述子进行匹配，使用 Hamming 距离
  vector<DMatch> match;
  // BFMatcher matcher ( NORM_HAMMING );
  matcher->match(descriptors_1, descriptors_2, match);

  //-- 第四步:匹配点对筛选
  double min_dist = 10000, max_dist = 0;

  //找出所有匹配之间的最小距离和最大距离, 即是最相似的和最不相似的两组点之间的距离
  for (int i = 0; i < descriptors_1.rows; i++) {
    double dist = match[i].distance;
    if (dist < min_dist) min_dist = dist;
    if (dist > max_dist) max_dist = dist;
  }

  printf("-- Max dist : %f n", max_dist);
  printf("-- Min dist : %f n", min_dist);

  //当描述子之间的距离大于两倍的最小距离时,即认为匹配有误.但有时候最小距离会非常小,设置一个经验值30作为下限.
  for (int i = 0; i < descriptors_1.rows; i++) {
    if (match[i].distance <= max(2 * min_dist, 30.0)) {
      matches.push_back(match[i]);
    }
  }
}

Point2d pixel2cam(const Point2d &p, const Mat &K) {
  return Point2d
    (
      (p.x - K.at<double>(0, 2)) / K.at<double>(0, 0),
      (p.y - K.at<double>(1, 2)) / K.at<double>(1, 1)
    );
}

void pose_estimation_3d3d(const vector<Point3f> &pts1,
                          const vector<Point3f> &pts2,
                          Mat &R, Mat &t) {
  Point3f p1, p2;     // center of mass
  int N = pts1.size();
  for (int i = 0; i < N; i++) {
    p1 += pts1[i];
    p2 += pts2[i];
  }
  p1 = Point3f(Vec3f(p1) / N);
  p2 = Point3f(Vec3f(p2) / N);
  vector<Point3f> q1(N), q2(N); // remove the center
  for (int i = 0; i < N; i++) {
    q1[i] = pts1[i] - p1;
    q2[i] = pts2[i] - p2;
  }

  // compute q1*q2^T
  Eigen::Matrix3d W = Eigen::Matrix3d::Zero();
  for (int i = 0; i < N; i++) {
    W += Eigen::Vector3d(q1[i].x, q1[i].y, q1[i].z) * Eigen::Vector3d(q2[i].x, q2[i].y, q2[i].z).transpose();
  }
  cout << "W=" << W << endl;

  // SVD on W
  Eigen::JacobiSVD<Eigen::Matrix3d> svd(W, Eigen::ComputeFullU | Eigen::ComputeFullV);
  Eigen::Matrix3d U = svd.matrixU();
  Eigen::Matrix3d V = svd.matrixV();

  cout << "U=" << U << endl;
  cout << "V=" << V << endl;

  Eigen::Matrix3d R_ = U * (V.transpose());
  if (R_.determinant() < 0) {
    R_ = -R_;
  }
  Eigen::Vector3d t_ = Eigen::Vector3d(p1.x, p1.y, p1.z) - R_ * Eigen::Vector3d(p2.x, p2.y, p2.z);

  // convert to cv::Mat
  R = (Mat_<double>(3, 3) <<
    R_(0, 0), R_(0, 1), R_(0, 2),
    R_(1, 0), R_(1, 1), R_(1, 2),
    R_(2, 0), R_(2, 1), R_(2, 2)
  );
  t = (Mat_<double>(3, 1) << t_(0, 0), t_(1, 0), t_(2, 0));
}

CMakeLists.txt

和上面一样

执行结果：

./10icp 1.png 2.png 1_depth.png 2_depth.png

-- Max dist : 94.000000
-- Min dist : 4.000000
一共找到了79组匹配点
3d-3d pairs: 72
W=  10.871 -1.01948  2.54771
-2.16033  3.85307 -5.77742
 3.94738 -5.79979  9.62203
U=  0.558087  -0.829399 -0.0252034
 -0.428009  -0.313755   0.847565
  0.710878   0.462228   0.530093
V=  0.617887  -0.784771 -0.0484806
 -0.399894  -0.366747   0.839989
  0.676979   0.499631   0.540434
ICP via SVD results:
R = [0.9969452349468715, 0.05983347698056557, -0.05020113095482046;
 -0.05932607657705309, 0.9981719679735133, 0.01153858699565957;
 0.05079975545906246, -0.008525103184062521, 0.9986724725659557]
t = [0.144159841091821;
 -0.06667849443812729;
 -0.03009747273569774]
R_inv = [0.9969452349468715, -0.05932607657705309, 0.05079975545906246;
 0.05983347698056557, 0.9981719679735133, -0.008525103184062521;
 -0.05020113095482046, 0.01153858699565957, 0.9986724725659557]
t_inv = [-0.1461462958593589;
 0.05767443542067568;
 0.03806388018483625]

以下是ceres求解（自动求导）
iter      cost      cost_change  |gradient|   |step|    tr_ratio  tr_radius  ls_iter  iter_time  total_time
   0  1.199125e+00    0.00e+00    5.06e+00   0.00e+00   0.00e+00  1.00e+04        0    4.89e-05    2.00e-04
   1  9.083313e-01    2.91e-01    3.38e-01   1.82e-01   9.93e-01  3.00e+04        1    8.99e-05    3.08e-04
   2  9.077571e-01    5.74e-04    1.64e-03   4.20e-03   9.98e-01  9.00e+04        1    4.79e-05    3.63e-04
Ceres Solver Report: Iterations: 3, Initial cost: 1.199125e+00, Final cost: 9.077571e-01, Termination: CONVERGENCE
R=
[0.9969507083715436, 0.05977598782075687, -0.0501609046721651;
 -0.05926864452294801, 0.998175330608928, 0.0115428393460838;
 0.05075936222894979, -0.008534673034733091, 0.9986744447027271]
t=
[0.1440933285152241;
 -0.06667828689784586;
 -0.03010919342781287]
solve pnp in ceres cost time: 0.000474735 seconds.
以下是ceres求解（雅克比矩阵给出解析解）
iter      cost      cost_change  |gradient|   |step|    tr_ratio  tr_radius  ls_iter  iter_time  total_time
   0  1.199125e+00    0.00e+00    5.06e+00   0.00e+00   0.00e+00  1.00e+04        0    1.08e-04    1.31e-04
   1  9.080573e-01    2.91e-01    2.09e-01   1.82e-01   9.94e-01  1.00e+04        1    1.59e-04    2.98e-04
   2  9.077578e-01    3.00e-04    1.33e-02   5.82e-03   9.93e-01  1.00e+04        1    8.51e-05    3.91e-04
Ceres Solver Report: Iterations: 3, Initial cost: 1.199125e+00, Final cost: 9.077578e-01, Termination: CONVERGENCE
estimated pose:
   0.996952   0.0597362  -0.0501911    0.144171
  -0.059225    0.998177   0.0116122  -0.0669146
  0.0507933 -0.00860423    0.998672  -0.0300734
          0           0           0           1
solve pnp in ceres cost time: 0.000505383 seconds.

最后

以上就是直率蜗牛最近收集整理的关于视觉SLAM十四讲CH7课后习题10_1转载于：视觉SLAM十四讲（第二版）第7讲习题解答 - 知乎大家好，这里是Philip~最近在学习高博的《视觉SLAM十四讲》（第二版），以下是对第7讲习题的解答，如有错误或不全面的地方还请大家指正。 1. 除了本书介绍的ORB特征点，你还能找到哪些特征点？请说说SIFT或SURF的…https://zhuanlan.zhihu.com/p/38942086410. *在Ceres 中实现PnP 和ICP 的优化。 10icp.cpp：执行结果：的全部内容，更多相关视觉SLAM十四讲CH7课后习题10_1转载于：视觉SLAM十四讲（第二版）第7讲习题解答内容请搜索靠谱客的其他文章。
