概述

前面两篇文章通过扩展EchartsLayer.js这个图层类，实现了使用ArcGIS JS API和eCharts，在二维和三维场景下绘制迁徙图和散点图。这篇文章继续通过绘制网络路径图的例子，再来验证下我们扩展的这个图层类是否可用，先来看下最终效果：

实现思路

迁徙图、散点图和网络路径图这种图表跟地理坐标关系紧密，所以仅仅通过第一篇二维普通图表绘制的方式是无法实现这类图表绘制的，所以就需要我们来扩展eCharts的相关功能，使其能够够结合最新版的ArcGIS JS API来完成地图上这类图表的绘制，eCharts官网也提供了相应的扩展插件，但这种插件并不能很好地支持我们ArcGIS JS API的高版本，所以我们在这篇文章里直接扩展了一个图层类，下面是具体的实现思路：

实现ArcGIS JS API和eCharts的结合，最最关键的是要实现两个插件库里的坐标系转换，这是重点，只要搞清楚了这一点，我们完全可以脱离地图API库的束缚，理论上可以实现eCharts跟任意地图库的结合。在此处转换坐标时我们使用了eCharts提供的registerCoordinateSystem方法，通过这个方法我们注册了一个名为"arcgis"的坐标系，里面对eCharts中的dataToPoint、pointToData等方法进行了重写，然后将这些所有内容封装为了一个EchartsLayer图层类。至于这个文件的源码，文章结尾会提供，接下来我们看一下具体的实现步骤。

实现步骤

1、本文所用的demo同样是基于React框架搭建的，所以我们首先基于React框架搭建一个初始化项目，然后改写src目录下的App.js这个主文件，实例化出一张二维地图，这中间用到了esri-loader插件，具体的实现过程可查看我的这篇文章【【番外】 React中使用ArcGIS JS API 4.14开发】，里面有具体的实现步骤。

2、通过上述操作实例化完一张二维地图后，我们接下来就要进行网络路径图的绘制操作了，在开始之前我们需要数据，就是关于网络路径的坐标数据和相应权重值的数据，我将它存在了一份JS文件里，此文件比较大，所以并不打算在此处粘贴出来，有需要的可以到此地址下载(https://download.csdn.net/download/qq_35117024/12279946)。

3、下载到数据后，将数据拷贝至demo代码目录下，然后在组件代码中引入，此处我们是将它引入到我们新建的TrafficNetwork组件目录下，然后编写数据处理的函数，对下载下来的数据进行初始化处理，代码如下：

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
    //初始化数据
    _initData=() => {
        const _self = this;
        let data = trafficData;
        let hStep = 300 / (data.length - 1);
        _self.state.busLines = [].concat.apply([], data.map(function (busLine, idx) {
            let prevPt;
            let points = [];
            for (let i = 0; i < busLine.length; i += 2) {
                let pt = [busLine[i], busLine[i + 1]];
                if (i > 0) {
                    pt = [
                        prevPt[0] + pt[0],
                        prevPt[1] + pt[1]
                    ];
                }
                prevPt = pt;

                points.push([pt[0] / 1e4, pt[1] / 1e4]);
            }
            return {
                coords: points,
                lineStyle: {
                    normal: {
                        color: echarts.color.modifyHSL('#5A94DF', Math.round(hStep * idx))
                    }
                }
            }
        }))
    }

4、数据初始完成后，我们进行网络路径图表的绘制信息配置，也就是初始化series属性，代码如下：

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
    //初始化图表配置
    _initCharts=() => {
        const _self = this;
        _self.state.series = [{
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            silent: true,
            lineStyle: {
                // color: '#c23531',
                // color: 'rgb(200, 35, 45)',
                opacity: 0.2,
                width: 1
            },
            progressiveThreshold: 500,
            progressive: 200
        }, {
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            lineStyle: {
                width: 0
            },
            effect: {
                constantSpeed: 20,
                show: true,
                trailLength: 0.1,
                symbolSize: 1.5
            },
            zlevel: 1
        }]
    }

5、接下来和之前文章的流程一样，监听地图的绘制完成事件，然后调用图表绘制函数来绘制网络路径图，代码如下：

复制代码

1
2
3
4
view.when(function() {
	_self.state.mapview = view;
	_self._drawCharts();
});

复制代码

//绘制图表
    _drawCharts=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/dojo/dojo.js',
        };

loadModules([
            'http://localhost/test/EchartsLayer.min.js'
        ], options).then(([
            echartsLayer
        ]) => {
            console.log(_self.state.mapview)
            //_self.state.mapview.when(function(){
                let chart = new echartsLayer(_self.state.mapview);
                let option = {
                    title: {
                        text: 'ArcGIS API for Javascript4.14扩展Echarts4之网络路径图',
                        subtext: 'Develop By X北辰北',
                        left: 'center',
                        textStyle: {
                            color: '#fff'
                        }
                    },
                    series: _self.state.series
                };
                chart.setChartOption(option);
            //});
        }
        ).catch((err) => {
            console.log('图表绘制失败，' + err);
        });
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
    //绘制图表
    _drawCharts=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/dojo/dojo.js',
        };

        loadModules([
            'http://localhost/test/EchartsLayer.min.js'
        ], options).then(([
            echartsLayer
        ]) => {
            console.log(_self.state.mapview)
            //_self.state.mapview.when(function(){
                let chart = new echartsLayer(_self.state.mapview);
                let option = {
                    title: {
                        text: 'ArcGIS API for Javascript4.14扩展Echarts4之网络路径图',
                        subtext: 'Develop By X北辰北',
                        left: 'center',
                        textStyle: {
                            color: '#fff'
                        }
                    },
                    series: _self.state.series
                };
                chart.setChartOption(option);
            //});
        }
        ).catch((err) => {
            console.log('图表绘制失败，' + err);
        });
    }

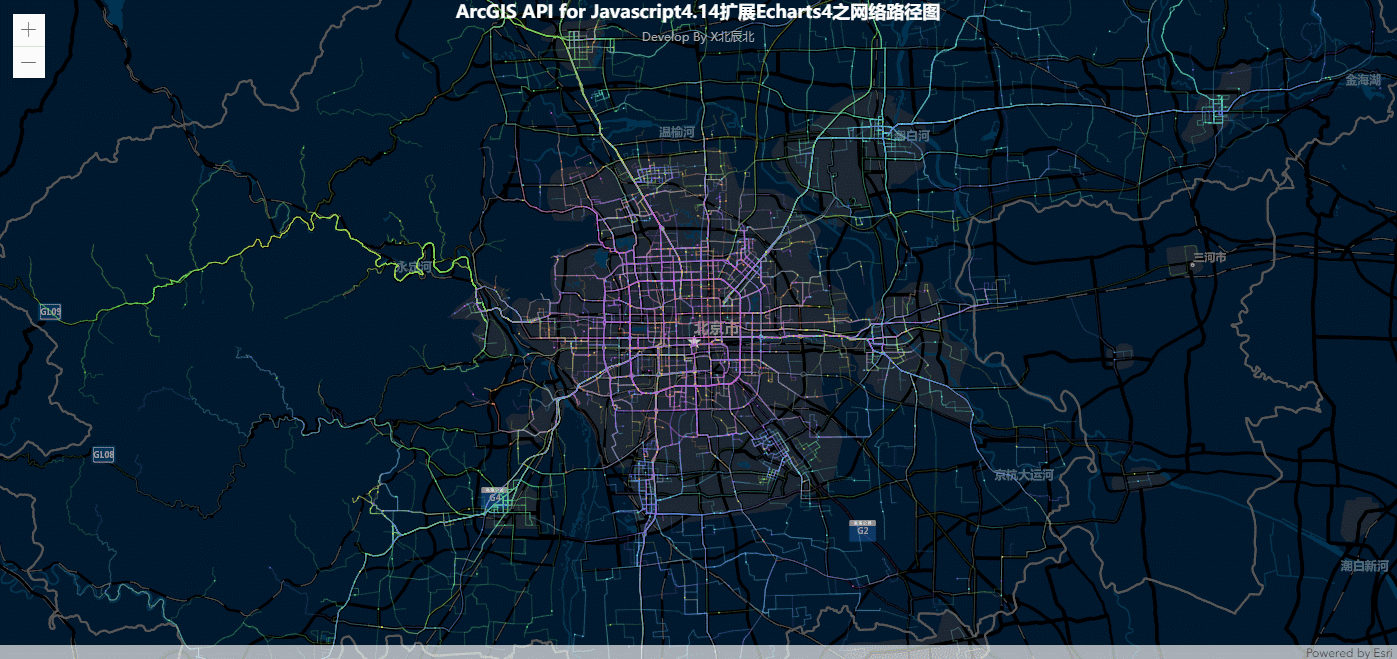

6、通过以上步骤就完成了网络路径的二维绘制，三维绘制的话很简单，只需要将MapView替换为SceneView即可，代码如下：

复制代码

1
2
3
4
5
6
let view = new SceneView({
	container: "mapview",
	map: map,
	scale: 50000000,
	center: [107.246152,34.414465]
});

总结

我们通过三篇文章，介绍了关于在eCharts中有关地理坐标的图表如何在ArcGIS的底图上绘制的过程，这篇文章中的实现流程跟之前两篇一样，都是通过扩展EchartsLayer.js这个图层类来实现的，所以后续大家有需要将eCharts中有关地理坐标的图表绘制到ArcGIS地图上时，可用此扩展类来实现。关于将eCharts中普通的二维图表绘制到ArcGIS底图上的操作，因为不涉及地理坐标的问题，所以我们通过纯前端的方式即可解决，具体实现请看这篇文章【01 【ArcGIS JS API + eCharts系列】实现地图上二维图表的绘制】。

附：

TrafficNetwork组件代码：

复制代码

import React,{Component} from 'react';
import {loadModules} from 'esri-loader';
import echarts from 'echarts';
import './trafficNetwork.css';

import trafficData from './data/trafficData';

class TrafficNetwork extends Component {

state = {
        busLines: null,
        series: null,
    }

componentDidMount=() => {
        this._initMapView();
        this._initData();
        this._initCharts();
    }

//实例化地图
    _initMapView=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/',
            css: 'https://js.arcgis.com/4.14/esri/themes/light/main.css'
        };

loadModules(['esri/Map',
            'esri/Basemap',
            'esri/layers/TileLayer',
            'esri/views/MapView',
            'esri/views/SceneView',
        ], options).then(([
            Map,
            Basemap,
            TileLayer,
            MapView,
            SceneView,
        ]) => {
                    let basemap = new Basemap({
                        baseLayers: [
                            new TileLayer({
                                url: "http://map.geoq.cn/arcgis/rest/services/ChinaOnlineStreetPurplishBlue/MapServer",
                                title: "Basemap"
                            })
                        ],
                        title: "basemap",
                        id: "basemap"
                    });
                    let map = new Map({
                        basemap: basemap
                    });
                    let view = new MapView({
                        container: "mapview",
                        map: map,
                        zoom: 10,
                        center: [116.403406,39.91582]         //北京 116.403406,39.91582  成都 107.246152,34.414465
                    });
                    // let view = new SceneView({
                    //     container: "mapview",
                    //     map: map,
                    //     scale: 50000000,
                    //     center: [107.246152,34.414465]
                    // });

                    view.when(function() {
                        _self.state.mapview = view;
                        _self._drawCharts();
                    });
            }
        ).catch((err) => {
            console.log('底图创建失败，' + err);
        });
    }

//初始化数据
    _initData=() => {
        const _self = this;
        let data = trafficData;
        let hStep = 300 / (data.length - 1);
        _self.state.busLines = [].concat.apply([], data.map(function (busLine, idx) {
            let prevPt;
            let points = [];
            for (let i = 0; i < busLine.length; i += 2) {
                let pt = [busLine[i], busLine[i + 1]];
                if (i > 0) {
                    pt = [
                        prevPt[0] + pt[0],
                        prevPt[1] + pt[1]
                    ];
                }
                prevPt = pt;

points.push([pt[0] / 1e4, pt[1] / 1e4]);
            }
            return {
                coords: points,
                lineStyle: {
                    normal: {
                        color: echarts.color.modifyHSL('#5A94DF', Math.round(hStep * idx))
                    }
                }
            }
        }))
    }

//初始化图表配置
    _initCharts=() => {
        const _self = this;
        _self.state.series = [{
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            silent: true,
            lineStyle: {
                // color: '#c23531',
                // color: 'rgb(200, 35, 45)',
                opacity: 0.2,
                width: 1
            },
            progressiveThreshold: 500,
            progressive: 200
        }, {
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            lineStyle: {
                width: 0
            },
            effect: {
                constantSpeed: 20,
                show: true,
                trailLength: 0.1,
                symbolSize: 1.5
            },
            zlevel: 1
        }]
    }

//绘制图表
    _drawCharts=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/dojo/dojo.js',
        };

render() {
        return (
            <div id="mapview"></div>
        )
    }
}

export default TrafficNetwork;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
import React,{Component} from 'react';
import {loadModules} from 'esri-loader';
import echarts from 'echarts';
import './trafficNetwork.css';

import trafficData from './data/trafficData';

class TrafficNetwork extends Component {

    state = {
        busLines: null,
        series: null,
    }

    componentDidMount=() => {
        this._initMapView();
        this._initData();
        this._initCharts();
    }

    //实例化地图
    _initMapView=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/',
            css: 'https://js.arcgis.com/4.14/esri/themes/light/main.css'
        };

        loadModules(['esri/Map',
            'esri/Basemap',
            'esri/layers/TileLayer',
            'esri/views/MapView',
            'esri/views/SceneView',
        ], options).then(([
            Map,
            Basemap,
            TileLayer,
            MapView,
            SceneView,
        ]) => {
                    let basemap = new Basemap({
                        baseLayers: [
                            new TileLayer({
                                url: "http://map.geoq.cn/arcgis/rest/services/ChinaOnlineStreetPurplishBlue/MapServer",
                                title: "Basemap"
                            })
                        ],
                        title: "basemap",
                        id: "basemap"
                    });
                    let map = new Map({
                        basemap: basemap
                    });
                    let view = new MapView({
                        container: "mapview",
                        map: map,
                        zoom: 10,
                        center: [116.403406,39.91582]         //北京 116.403406,39.91582  成都 107.246152,34.414465
                    });
                    // let view = new SceneView({
                    //     container: "mapview",
                    //     map: map,
                    //     scale: 50000000,
                    //     center: [107.246152,34.414465]
                    // });

                    view.when(function() {
                        _self.state.mapview = view;
                        _self._drawCharts();
                    });
            }
        ).catch((err) => {
            console.log('底图创建失败，' + err);
        });
    }

    //初始化数据
    _initData=() => {
        const _self = this;
        let data = trafficData;
        let hStep = 300 / (data.length - 1);
        _self.state.busLines = [].concat.apply([], data.map(function (busLine, idx) {
            let prevPt;
            let points = [];
            for (let i = 0; i < busLine.length; i += 2) {
                let pt = [busLine[i], busLine[i + 1]];
                if (i > 0) {
                    pt = [
                        prevPt[0] + pt[0],
                        prevPt[1] + pt[1]
                    ];
                }
                prevPt = pt;

                points.push([pt[0] / 1e4, pt[1] / 1e4]);
            }
            return {
                coords: points,
                lineStyle: {
                    normal: {
                        color: echarts.color.modifyHSL('#5A94DF', Math.round(hStep * idx))
                    }
                }
            }
        }))
    }

    //初始化图表配置
    _initCharts=() => {
        const _self = this;
        _self.state.series = [{
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            silent: true,
            lineStyle: {
                // color: '#c23531',
                // color: 'rgb(200, 35, 45)',
                opacity: 0.2,
                width: 1
            },
            progressiveThreshold: 500,
            progressive: 200
        }, {
            type: 'lines',
            coordinateSystem: 'arcgis',
            polyline: true,
            data: _self.state.busLines,
            lineStyle: {
                width: 0
            },
            effect: {
                constantSpeed: 20,
                show: true,
                trailLength: 0.1,
                symbolSize: 1.5
            },
            zlevel: 1
        }]
    }

    //绘制图表
    _drawCharts=() => {
        const _self = this;
        const options = {
            url: 'https://js.arcgis.com/4.14/dojo/dojo.js',
        };

        loadModules([
            'http://localhost/test/EchartsLayer.min.js'
        ], options).then(([
            echartsLayer
        ]) => {
            console.log(_self.state.mapview)
            //_self.state.mapview.when(function(){
                let chart = new echartsLayer(_self.state.mapview);
                let option = {
                    title: {
                        text: 'ArcGIS API for Javascript4.14扩展Echarts4之网络路径图',
                        subtext: 'Develop By X北辰北',
                        left: 'center',
                        textStyle: {
                            color: '#fff'
                        }
                    },
                    series: _self.state.series
                };
                chart.setChartOption(option);
            //});
        }
        ).catch((err) => {
            console.log('图表绘制失败，' + err);
        });
    }

    render() {
        return (
            <div id="mapview"></div>
        )
    }
}

export default TrafficNetwork;

EchartsLayer.min.js文件代码：

复制代码

1
var _0x4564=['prototype','setMapOffset','dataToPoint','point','toScreen','pointToData','toMap','getViewRect','BoundingRect','getRoamTransform','dojo/_base/declare','dojo/_base/lang','esri/geometry/Point','esri/geometry/SpatialReference','EchartsglLayer','registerCoordinateSystem','arcgis','getE3CoordinateSystem','init','setBaseMap','createLayer','view','chartOption','setCharts','box','visible','hidden','chart','off','undefined','extent','xAxis','xmin','xmax','yAxis','ymin','ymax','setOption','animation','createElement','div','setAttribute','echartsData','name','style','width','height','position','absolute','top','left','getElementsByClassName','esri-view-surface','appendChild','startMapEventListeners','outerHTML','originLyr','features','screenData','map_DragStart_Listener','remove','map_DragEnd_Listener','map_ZoomStart_Listener','map_ZoomEnd_Listener','map_ExtentChange_Listener','watch','hitch','resize','rotation','map','_mapOffset','create','eachSeries','get','coordinateSystem','getDimensionsInfo','dimensions'];(function(_0x4ea369,_0x173297){var _0x432a1a=function(_0x3b4d7a){while(--_0x3b4d7a){_0x4ea369['push'](_0x4ea369['shift']());}};_0x432a1a(++_0x173297);}(_0x4564,0xf1));var _0x1824=function(_0x20e690,_0x5f0396){_0x20e690=_0x20e690-0x0;var _0x841fe2=_0x4564[_0x20e690];return _0x841fe2;};define([_0x1824('0x0'),_0x1824('0x1'),_0x1824('0x2'),_0x1824('0x3')],function(_0x4156fb,_0x59c3eb,_0x275378,_0x4d54b1){return _0x4156fb(_0x1824('0x4'),null,{'name':_0x1824('0x4'),'view':null,'box':null,'chart':null,'chartOption':null,'visible':!![],'constructor':function(_0x27b7d3,_0x649a95){echarts[_0x1824('0x5')](_0x1824('0x6'),this[_0x1824('0x7')](_0x27b7d3));this[_0x1824('0x8')](_0x27b7d3,_0x649a95);},'init':function(_0x3a80a9,_0x5617d3){this[_0x1824('0x9')](_0x3a80a9);this[_0x1824('0xa')]();},'setBaseMap':function(_0x3ddf37){this[_0x1824('0xb')]=_0x3ddf37;},'setChartOption':function(_0x497153){this[_0x1824('0xc')]=_0x497153;this[_0x1824('0xd')]();},'setVisible':function(_0x36aa18){if(!this[_0x1824('0xe')]||this[_0x1824('0xf')]===_0x36aa18)return;this[_0x1824('0xe')][_0x1824('0x10')]=!_0x36aa18;this[_0x1824('0xf')]=_0x36aa18;_0x36aa18===!![]&&setCharts();},'refreshBegin':function(){this[_0x1824('0xe')][_0x1824('0x10')]=!![];},'refreshing':function(){setCharts();},'refreshEnd':function(){this[_0x1824('0xe')][_0x1824('0x10')]=![];},'on':function(_0x5dd691,_0x472109,_0x4b90b9){this[_0x1824('0x11')]['on'](_0x5dd691,_0x472109,_0x4b90b9);},'off':function(_0x25e82f,_0x44fdf2,_0x3cd39d){this[_0x1824('0x11')][_0x1824('0x12')](_0x25e82f,_0x44fdf2,_0x3cd39d);},'map_DragStart_Listener':null,'map_DragEnd_Listener':null,'map_ZoomStart_Listener':null,'map_ZoomEnd_Listener':null,'map_ExtentChange_Listener':null,'map_click_Listener':null,'setCharts':function(){if(!this[_0x1824('0xf')])return;if(this[_0x1824('0xc')]==null||this[_0x1824('0xc')]==_0x1824('0x13'))return;let _0x50f53f=this[_0x1824('0xb')][_0x1824('0x14')];this[_0x1824('0xc')][_0x1824('0x15')]={'show':![],'min':_0x50f53f[_0x1824('0x16')],'max':_0x50f53f[_0x1824('0x17')]};this[_0x1824('0xc')][_0x1824('0x18')]={'show':![],'min':_0x50f53f[_0x1824('0x19')],'max':_0x50f53f[_0x1824('0x1a')]};this[_0x1824('0x11')][_0x1824('0x1b')](this[_0x1824('0xc')]);this[_0x1824('0xc')][_0x1824('0x1c')]=![];},'createLayer':function(){let _0x56973d=this[_0x1824('0xe')]=document[_0x1824('0x1d')](_0x1824('0x1e'));_0x56973d[_0x1824('0x1f')]('id',_0x1824('0x20'));_0x56973d[_0x1824('0x1f')](_0x1824('0x21'),_0x1824('0x20'));_0x56973d[_0x1824('0x22')][_0x1824('0x23')]=this[_0x1824('0xb')][_0x1824('0x23')]+'px';_0x56973d[_0x1824('0x22')][_0x1824('0x24')]=this[_0x1824('0xb')][_0x1824('0x24')]+'px';_0x56973d[_0x1824('0x22')][_0x1824('0x25')]=_0x1824('0x26');_0x56973d[_0x1824('0x22')][_0x1824('0x27')]=0x0;_0x56973d[_0x1824('0x22')][_0x1824('0x28')]=0x0;let _0x22f992=document[_0x1824('0x29')](_0x1824('0x2a'))[0x0];_0x22f992[_0x1824('0x2b')](_0x56973d);this[_0x1824('0x11')]=echarts[_0x1824('0x8')](_0x56973d);this[_0x1824('0x2c')]();},'removeLayer':function(){this[_0x1824('0xe')][_0x1824('0x2d')]='';this[_0x1824('0xb')]=null;this[_0x1824('0xe')]=null;this[_0x1824('0x2e')]=null;this[_0x1824('0x2f')]=null;this[_0x1824('0x30')]=[];this[_0x1824('0x11')]=null;this[_0x1824('0xc')]=null;this[_0x1824('0x31')][_0x1824('0x32')]();this[_0x1824('0x33')][_0x1824('0x32')]();this[_0x1824('0x34')][_0x1824('0x32')]();this[_0x1824('0x35')][_0x1824('0x32')]();this[_0x1824('0x36')][_0x1824('0x32')]();},'startMapEventListeners':function(){let _0x576d14=this[_0x1824('0xb')];_0x576d14[_0x1824('0x37')](_0x1824('0x14'),_0x59c3eb[_0x1824('0x38')](this,function(){if(!this[_0x1824('0xf')])return;this[_0x1824('0xd')]();this[_0x1824('0x11')][_0x1824('0x39')]();this[_0x1824('0xe')][_0x1824('0x10')]=![];}));_0x576d14[_0x1824('0x37')](_0x1824('0x3a'),_0x59c3eb[_0x1824('0x38')](this,function(){if(!this[_0x1824('0xf')])return;this[_0x1824('0xd')]();this[_0x1824('0x11')][_0x1824('0x39')]();this[_0x1824('0xe')][_0x1824('0x10')]=![];}));},'getE3CoordinateSystem':function(_0x56f41a){var _0x4504c9=function _0x4504c9(_0x180267){this[_0x1824('0x3b')]=_0x180267;this[_0x1824('0x3c')]=[0x0,0x0];};_0x4504c9[_0x1824('0x3d')]=function(_0x1a4547){_0x1a4547[_0x1824('0x3e')](function(_0x17e9bb){if(_0x17e9bb[_0x1824('0x3f')](_0x1824('0x40'))===_0x1824('0x6')){_0x17e9bb[_0x1824('0x40')]=new _0x4504c9(_0x56f41a);}});};_0x4504c9[_0x1824('0x41')]=function(){return['x','y'];};_0x4504c9[_0x1824('0x42')]=['x','y'];_0x4504c9[_0x1824('0x43')][_0x1824('0x42')]=['x','y'];_0x4504c9[_0x1824('0x43')][_0x1824('0x44')]=function setMapOffset(_0xeffdb8){this[_0x1824('0x3c')]=_0xeffdb8;};_0x4504c9[_0x1824('0x43')][_0x1824('0x45')]=function dataToPoint(_0x209327){var _0x2755d4={'type':_0x1824('0x46'),'x':_0x209327[0x0],'y':_0x209327[0x1],'spatialReference':new _0x4d54b1(0x10e6)};var _0x3676a6=_0x56f41a[_0x1824('0x47')](_0x2755d4);var _0x52b765=this[_0x1824('0x3c')];return[_0x3676a6['x']-_0x52b765[0x0],_0x3676a6['y']-_0x52b765[0x1]];};_0x4504c9[_0x1824('0x43')][_0x1824('0x48')]=function pointToData(_0x5d9368){var _0x4282c5=this[_0x1824('0x3c')];var _0x3a367d={'x':_0x5d9368[0x0]+_0x4282c5[0x0],'y':_0x5d9368[0x1]+_0x4282c5[0x1]};var _0x3a9399=_0x56f41a[_0x1824('0x49')](_0x3a367d);return[_0x3a9399['x'],_0x3a9399['y']];};_0x4504c9[_0x1824('0x43')][_0x1824('0x4a')]=function getViewRect(){return new graphic[(_0x1824('0x4b'))](0x0,0x0,this[_0x1824('0x3b')][_0x1824('0x23')],this[_0x1824('0x3b')][_0x1824('0x24')]);};_0x4504c9[_0x1824('0x43')][_0x1824('0x4c')]=function getRoamTransform(){return matrix[_0x1824('0x3d')]();};return _0x4504c9;}});});
