配置Eureka集群Eureka-serverEureka-client查看eureka-server 服务提供方注册进eureka-server 消费方远程调用服务提供方

86 阅读 0 评论
我是靠谱客的博主 会撒娇香水，最近开发中收集的这篇文章主要介绍配置Eureka集群Eureka-serverEureka-client查看eureka-server 服务提供方注册进eureka-server 消费方远程调用服务提供方，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

目录

Eureka-server

添加依赖

配置文件

启动类

Eureka-client

添加依赖

配置文件

​编辑

启动类

controller

消费方

config

引入ribbon

controller

查看eureka-server

 服务提供方注册进eureka-server

 消费方远程调用服务提供方

Eureka-server

添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>mycloud2022</artifactId>
        <groupId>com.qfedu</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>mycloud-eureka-server7001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.qfedu</groupId>
            <artifactId>mycloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

配置文件

server:
  port: 7001

eureka:
  instance:
#  eureka服务端的实例名称
    hostname: eureka7001.com
  client:
#    false表示不像注册中心注册自己
    register-with-eureka: false
#    false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    fetch-registry: false
#    设置与eureka server交互的地址查询服务和注册服务都依赖这个地址
    service-url:
      defaultZone: http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/

启动类

package com.qfedu;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
import org.springframework.context.annotation.Configuration;

/**
 * @ClassName EurekaServerMain7001
 * @Description TODO
 * @Author huocarry
 * @Date 2022/12/29 20:35
 * @Version 1.0
 **/

@SpringBootApplication
@EnableEurekaServer
public class EurekaServerMain7001 {
    public static void main(String[] args) {
        SpringApplication.run(EurekaServerMain7001.class,args);
    }
}

Eureka-client

添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>mycloud2022</artifactId>
        <groupId>com.qfedu</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>mycloud-provider-payment8001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

   <dependencies>
       <dependency>
           <groupId>mysql</groupId>
           <artifactId>mysql-connector-java</artifactId>
       </dependency>

       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-web</artifactId>
       </dependency>

       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-actuator</artifactId>
       </dependency>

       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter</artifactId>
       </dependency>

       <dependency>
           <groupId>org.mybatis.spring.boot</groupId>
           <artifactId>mybatis-spring-boot-starter</artifactId>
           <version>2.2.2</version>
       </dependency>
       <dependency>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-jdbc</artifactId>
       </dependency>

       <dependency>
           <groupId>com.alibaba</groupId>
           <artifactId>druid-spring-boot-starter</artifactId>
           <version>1.1.10</version>
       </dependency>

       <dependency>
           <groupId>org.projectlombok</groupId>
           <artifactId>lombok</artifactId>
       </dependency>

       <dependency>
           <groupId>com.qfedu</groupId>
           <artifactId>mycloud-api-commons</artifactId>
           <version>1.0-SNAPSHOT</version>
       </dependency>

       <dependency>
           <groupId>org.springframework.cloud</groupId>
           <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
       </dependency>



   </dependencies>




</project>

配置文件

server:
  port: 8001

spring:
  application:
    name: mycloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      driver-class-name: com.mysql.jdbc.Driver
      url: jdbc:mysql://localhost:3306/hccy
      username: root
      password: 990304

mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.qfedu.entity

eureka:
  client:
#    表示是否让自己注册进Eureka Server，默认为true
    register-with-eureka: true
#    是否从Eureka Server抓取已有的注册信息，默认为true。单节点无所谓，集群必须设置为true才能配合ribbon使用负载均衡
    fetch-registry: true
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka,http://eureka7003.com:7003/eureka
  instance:
    instance-id: payment8001
#    显示ip以及端口号
    prefer-ip-address: true

instance属性：

启动类

@EnableEurekaClient

package com.qfedu;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

/**
 * @ClassName PaymentMain8001
 * @Description TODO
 * @Author huocarry
 * @Date 2022/12/28 17:29
 * @Version 1.0
 **/
@SpringBootApplication
@EnableEurekaClient
@MapperScan(basePackages = "com.qfedu.dao")
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

controller

package com.qfedu.controller;

import com.qfedu.entity.Payment;
import com.qfedu.result.CommonResult;
import com.qfedu.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.*;

/**
 * @ClassName PaymentController
 * @Description TODO
 * @Author huocarry
 * @Date 2022/12/28 19:56
 * @Version 1.0
 **/
@RestController
@RequestMapping("/payment")
@Slf4j
public class PaymentController {

    @Autowired
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;


    @PostMapping("/create")
    public CommonResult create(@RequestBody Payment payment){
        int result = paymentService.create(payment);
        log.info("*******插入结果："+result);
        if (result>0){
            return new CommonResult(200,"插入数据库成功,serverPort="+serverPort,result);
        }else {
            return new CommonResult(444,"插入数据库失败",null);
        }
    }



    @GetMapping("get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*******查询结果："+payment);
        if (payment!=null){
            return new CommonResult(200,"查询成功,serverPort="+serverPort,payment);
        }else {
            return new CommonResult(444,"没有查询结果,对应ID:"+id,null);
        }
    }
}

消费方

config

package com.qfedu.config;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RandomRule;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

/**
 * @ClassName RestTemplateConfig
 * @Description TODO
 * @Author huocarry
 * @Date 2022/12/29 17:32
 * @Version 1.0
 **/

@Configuration
public class RestTemplateConfig {


    @Bean
    @LoadBalanced
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }



    @Bean
    public IRule iRule() {
        return new RandomRule();
    }

}

引入ribbon

ribbon=负载均衡+RestTemplate

@LoadBalanced注解：能让这个RestTemplate在请求时拥有客户端负载均衡的能力

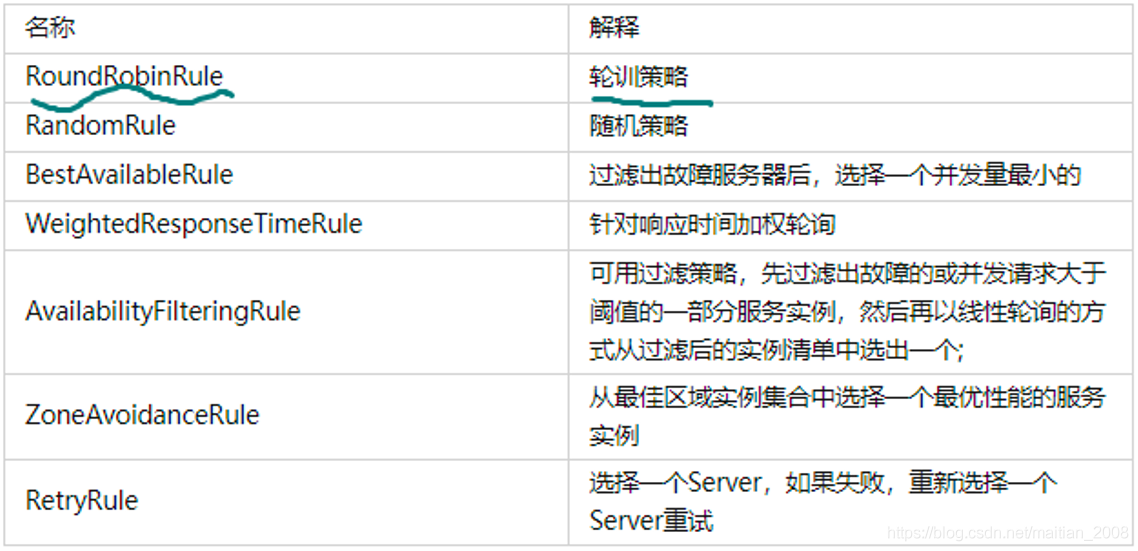

IRule

在这里插入图片描述

controller

package com.qfedu.controller;

import com.netflix.appinfo.InstanceInfo;
import com.netflix.discovery.EurekaClient;
import com.qfedu.entity.Payment;
import com.qfedu.result.CommonResult;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

/**
 * @ClassName OrderController
 * @Description TODO
 * @Author huocarry
 * @Date 2022/12/29 17:26
 * @Version 1.0
 **/

@RestController
@Slf4j
@RequestMapping("/consumer")
public class OrderController {

    private static final String PAYMENT_URL="http://mycloud-payment-service";

//    @Autowired
//    private EurekaClient eurekaClient;


    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/payment/create")
    public CommonResult create(Payment payment){
//        InstanceInfo info = eurekaClient.getNextServerFromEureka("mycloud-payment-service", false);
//        String url = info.getHomePageUrl();
        return restTemplate.postForObject(PAYMENT_URL+"payment/create",payment,CommonResult.class);
    }

    @GetMapping("/payment/get/{id}")
    public CommonResult getPayment(@PathVariable("id") Long id){
//        InstanceInfo info = eurekaClient.getNextServerFromEureka("mycloud-payment-service", false);
//        String url = info.getHomePageUrl();
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }
}

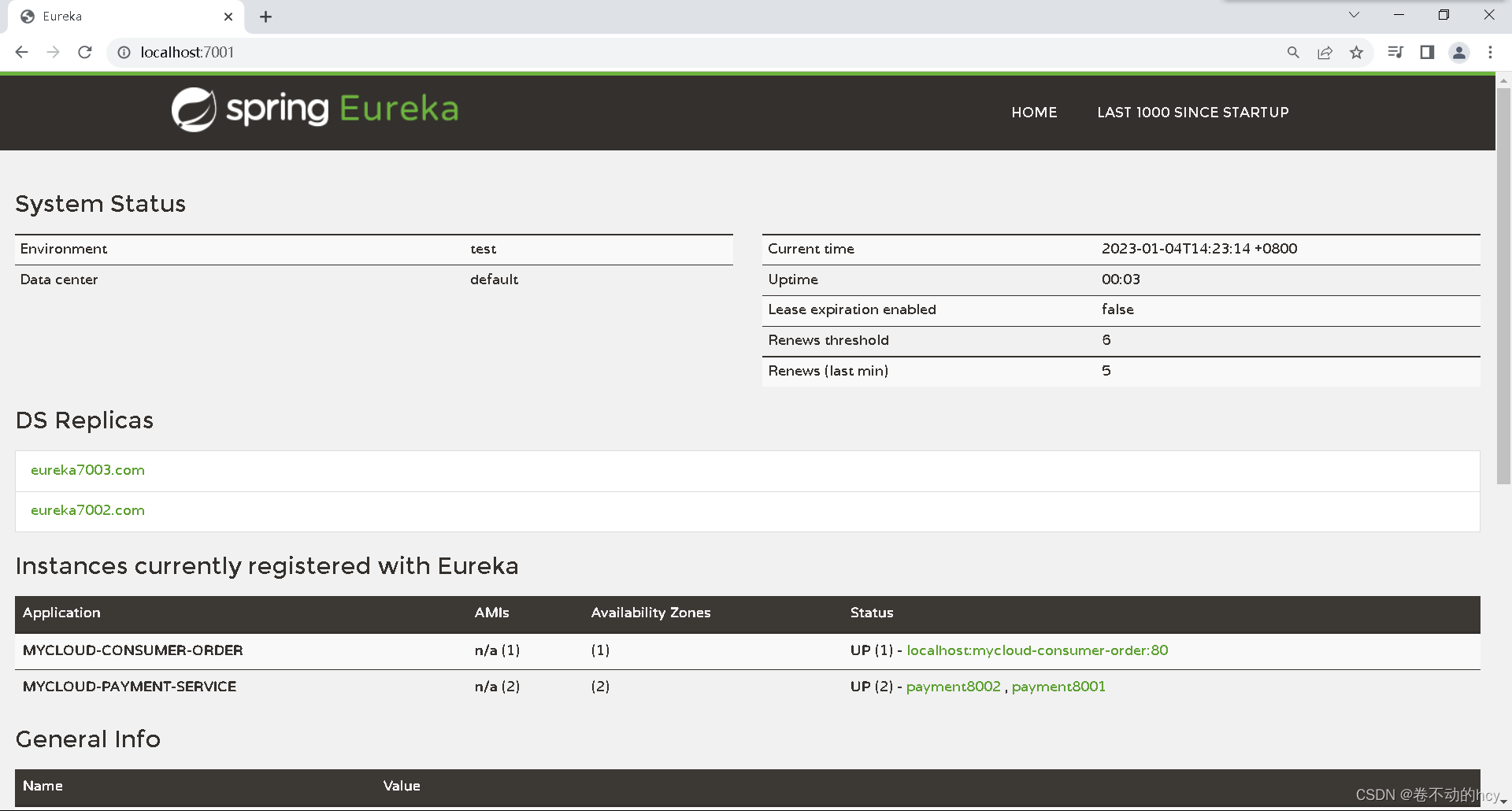

查看eureka-server

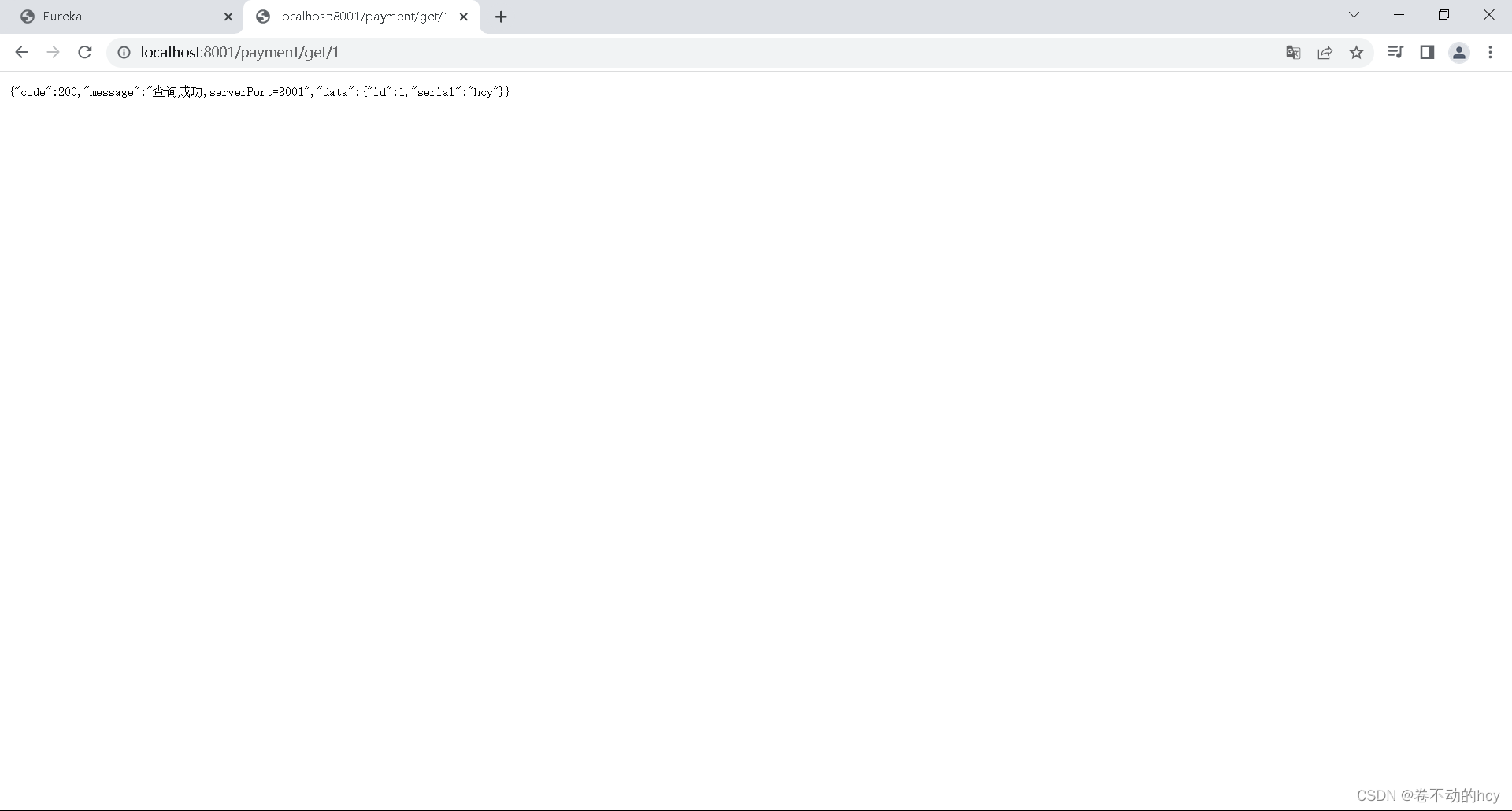

 服务提供方注册进eureka-server

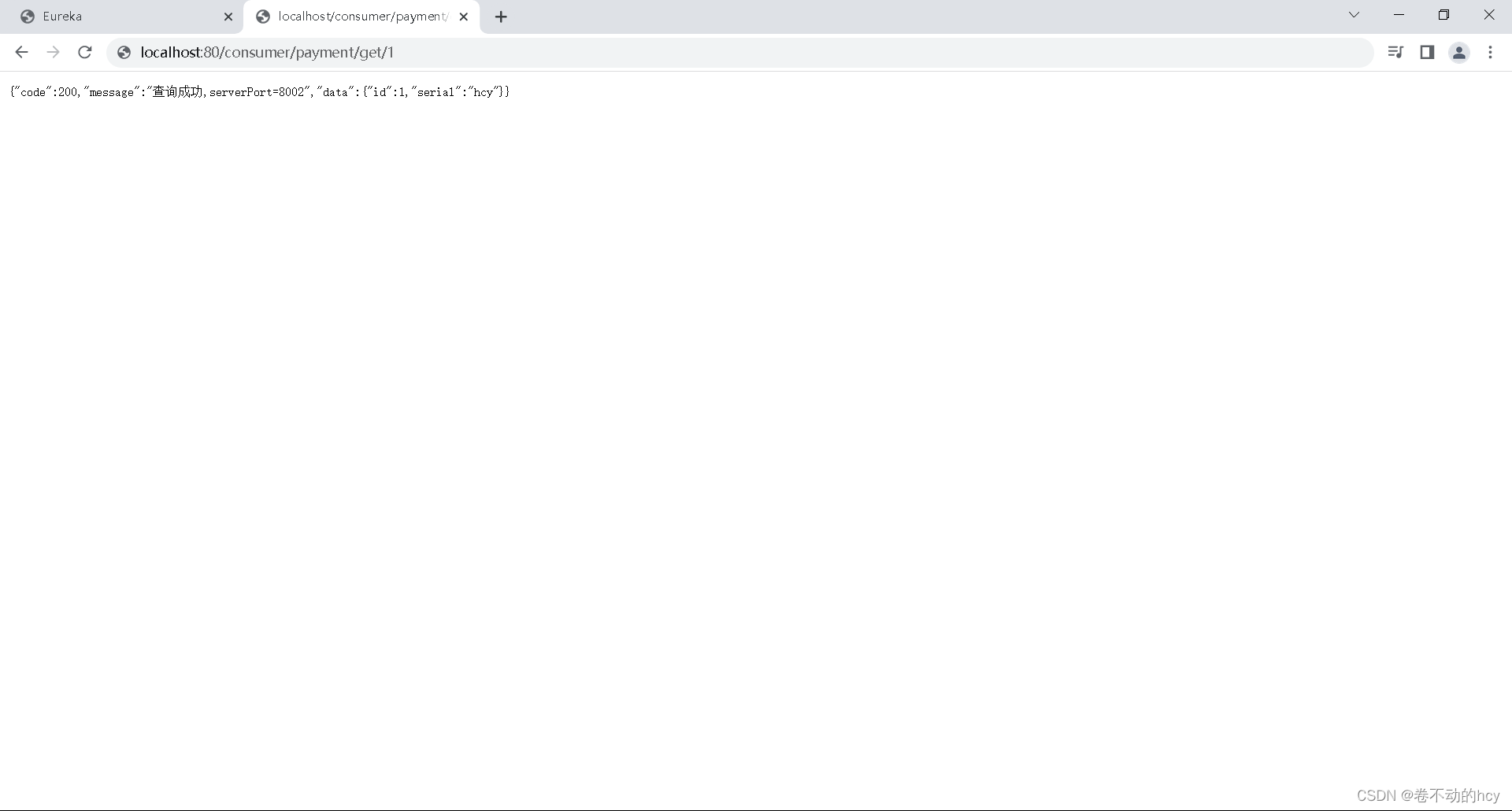

 消费方远程调用服务提供方
