概述
一：MHA介绍
什么是mha，有什么特性
1. 主服务器的自动监控和故障转移
MHA监控复制架构的主服务器，一旦检测到主服务器故障，就会自动进行故障转移。即使有些从服务器没有收到最新的relay log，MHA自动从最新的从服务器上识别差异的relay log并把这些日志应用到其他从服务器上，因此所有的从服务器保持一致性了。MHA通常在几秒内完成故障转移，9-12秒可以检测出主服务器故障，7-10秒内关闭故障的主服务器以避免脑裂，几秒中内应用差异的relay log到新的主服务器上，整个过程可以在10-30s内完成。还可以设置优先级指定其中的一台slave作为master的候选人。由于MHA在slaves之间修复一致性，因此可以将任何slave变成新的master，而不会发生一致性的问题，从而导致复制失败。
MHA Manager会定时探测集群中的master节点，当master出现故障时，它可以自动将最新数据的slave提升为新的master，然后将所有其他的slave重新指向新的master。整个故障转移过程对应用程序完全透明。
在MHA自动故障切换过程中，MHA试图从宕机的主服务器上保存二进制日志，最大程度的保证数据的不丢失，但这并不总是可行的。例如，如果主服务器硬件故障或无法通过ssh访问，MHA没法保存二进制日志，只进行故障转移而丢失了最新的数据。使用MySQL 5.5的半同步复制，可以大大降低数据丢失的风险。MHA可以与半同步复制结合起来。如果只有一个slave已经收到了最新的二进制日志，MHA可以将最新的二进制日志应用于其他所有的slave服务器上，因此可以保证所有节点的数据一致性。
目前MHA主要支持一主多从的架构，要搭建MHA,要求一个复制集群中必须最少有三台数据库服务器，一主二从，即一台充当master，一台充当备用master，另外一台充当从库，因为至少需要三台服务器，出于机器成本的考虑，淘宝也在该基础上进行了改造，目前淘宝TMHA已经支持一主一从。（出自：《深入浅出MySQL(第二版)》）
2. 交互式主服务器故障转移
可以只使用MHA的故障转移，而不用于监控主服务器，当主服务器故障时，人工调用MHA来进行故障故障。
3. 非交互式的主故障转移
不监控主服务器，但自动实现故障转移。这种特征适用于已经使用其他软件来监控主服务器状态，比如heartbeat来检测主服务器故障和虚拟IP地址接管，可以使用MHA来实现故障转移和slave服务器晋级为master服务器。
4. 在线切换主从服务器
在许多情况下，需要将现有的主服务器迁移到另外一台服务器上。比如主服务器硬件故障，RAID控制卡需要重建，将主服务器移到性能更好的服务器上等等。维护主服务器引起性能下降，导致停机时间至少无法写入数据。另外，阻塞或杀掉当前运行的会话会导致主主之间数据不一致的问题发生。MHA提供快速切换和优雅的阻塞写入，这个切换过程只需要0.5-2s的时间，这段时间内数据是无法写入的。在很多情况下，0.5-2s的阻塞写入是可以接受的。因此切换主服务器不需要计划分配维护时间窗口(呵呵，不需要你在夜黑风高时通宵达旦完成切换主服务器的任务)。

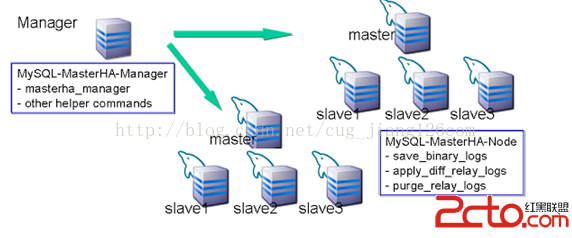

5. MHA由两部分组成：MHA Manager（管理节点）和MHA Node（数据节点）
Manaer模块：可以管理多套Master-Slave Replication
Masterha_manager：提供实现自动故障检测和故障转移的命令
Node模块：部署在所有的MySQL Server上
管理节点可以和数据节点在同一台机器，也可以不在同一台机器上。
6. MHA比较灵活，可以写脚本，来进行故障转移，或者主从切换等。
7.主库崩溃不存在数据一致性问题
8.不需要对当前mysql环境做重大修改
9.不需要添加额外的服务器(仅一台manager就可管理上百个replication)
10.只要replication支持的存储引擎，MHA都支持，不会局限于innodb
缺点：
1、 虽然MHA试图从宕机的主服务器上保存二进制日志，但也会有问题。例如，如果主服务器硬件故障或无法通过ssh访问，MHA没法保存二进制日志，只进行故障转移而丢失最新数据。
2、 当主DB故障，切换到另外的服务器上后，即使恢复了原来的主DB，也不能立即加入整套MHA系统中，得重新部署。而且当发生一次切换后，管理节点的监控进程就会自动退出，需要用脚本来自动启动。
二：实验环境
搭建好一主两从mysql，要求：
将从库配置成只读模式。
每台数据库上都要建下复制用户
开启半同步复制
开启GTID。
vip:192.168.6.252,期初配在master上。
三：实验步骤
1：修改/etc/hosts
在3台机器上都添加每台服务器的主机名,如：
192.168.6.51 master //主
192.168.6.52 slave1 //从
192.168.6.70 slave2 //从（主备）
2：配置主机信任关系
#在192.168.6.51生成密码文件，然后将其拷贝到本机，192.168.6.52和192.168.6.70上。
# ssh-keygen
# ssh-copy-id root@192.168.6.51
# ssh-copy-id root@192.168.6.52
# ssh-copy-id root@192.168.6.70
依次在192.168.6.52,192.168.6.70上也生成密码文件，然后拷贝到本机与其他机器上。
配置完成后，用ssh ip测试，看是否能免密码登陆。
3：安装MHA
点击这里进行下载：
http://pan.baidu.com/s/1pJ0VkSz
或者：
http://download.csdn.net/download/yabignshi/8974251
http://download.csdn.net/detail/yabignshi/8974265
在所有数据节点上安装：
yum install perl-DBD-MySQL -y
rpm -ivh mha4mysql-node-0.56-0.el6.noarch.rpm
安装完成后会在/usr/bin目录下生成以下脚本文件(这些工具通常由MHA Manager的脚本触发，无需人为操作)：
save_binary_logs //保存和复制master的二进制日志
apply_diff_relay_logs //识别差异的中继日志事件并将其差异的事件应用于其他的slave
filter_mysqlbinlog //去除不必要的ROLLBACK事件（MHA已不再使用这个工具）
purge_relay_logs //清除中继日志（不会阻塞SQL线程）
在管理节点上安装：
yum install perl-DBD-MySQL -y（由于这里管理节点和数据节点都在6.51上，所以这个省略）
yum install perl-Config-Tiny -y
yum install epel-release -y
yum install perl-Log-Dispatch -y
yum install perl-Parallel-ForkManager -y
rpm -ivh mha4mysql-node-0.56-0.el6.noarch.rpm
rpm -ivh mha4mysql-manager-0.56-0.el6.noarch.rpm
安装完成后会在/usr/bin目录下生成以下脚本文件:
-rwxr-xr-x. 1 root root 1995 Apr 1 2014 masterha_check_repl
-rwxr-xr-x. 1 root root 1779 Apr 1 2014 masterha_check_ssh
-rwxr-xr-x. 1 root root 1865 Apr 1 2014 masterha_check_status
-rwxr-xr-x. 1 root root 3201 Apr 1 2014 masterha_conf_host
-rwxr-xr-x. 1 root root 2517 Apr 1 2014 masterha_manager
-rwxr-xr-x. 1 root root 2165 Apr 1 2014 masterha_master_monitor
-rwxr-xr-x. 1 root root 2373 Apr 1 2014 masterha_master_switch
-rwxr-xr-x. 1 root root 5171 Apr 1 2014 masterha_secondary_check
-rwxr-xr-x. 1 root root 1739 Apr 1 2014 masterha_stop
-rwxr-xr-x. 1 root root 4807 Apr 1 2014 filter_mysqlbinlog
-rwxr-xr-x. 1 root root 7525 Apr 1 2014 save_binary_logs
-rwxr-xr-x. 1 root root 8261 Apr 1 2014 purge_relay_logs
-rwxr-xr-x. 1 root root 16367 Apr 1 2014 apply_diff_relay_logs
4：从服务器配置
从服务器，要加上relay_log_purge=0，不加的话，会报出warning,relay_log_purge=0 is not set on slave
4.1 在线设置
set global relay_log_purge = 0;
4.2 修改配置文件
vi /etc/my.cnf
添加：
relay_log_purge = 0
5：配置mha manage
5.1 添加管理账号
#在数据节点上执行以下操作
grant all privileges on *.* TO mha@'192.168.%' IDENTIFIED BY 'test';
5.2：配置/etc/mha/app1.cnf
#只在管理端做，manage这台机器
mkdir /etc/mha
mkdir -p /var/log/mha/app1
vi /etc/mha/app1.cnf
添加：
[server default]
manager_log=/var/log/mha/app1/manager.log
manager_workdir=/var/log/mha/app1.log
master_binlog_dir=/data/mysql/data
master_ip_failover_script= /etc/mha/master_ip_failover
master_ip_online_change_script=/etc/mha/master_ip_online_change
report_script=/etc/mha/send_report
secondary_check_script=masterha_secondary_check -s 192.168.6.51 -s 192.168.6.52 -s 192.168.6.70
user=mha
password=test
ping_interval=2
repl_password=beijing
repl_user=rep_user
ssh_user=root
[server1]
hostname=192.168.6.51
port=3306
[server2]
candidate_master=1
#check_repl_delay=0
hostname=192.168.6.52
port=3306
[server3]
hostname=192.168.6.70
port=3306默认情况下，MHA Manager只是用单个线路检测：从Manager到Master。但是这个并不推荐。MHA通过调用一个额外的脚本（通过secondary_check_script参数指定），实际上可以有两个或更多的检查线路，以提高 MHA 的网络容忍能力，避免MHA频繁failover。
在server default中的配置，是三台机器共同的配置，也可以放到具体的server中进行定制.
5.3 master_ip_failover
vi /etc/mha/master_ip_failover
#!/usr/bin/env perl
use strict;
use warnings FATAL => 'all';
use Getopt::Long;
my (
$command, $ssh_user, $orig_master_host, $orig_master_ip,
$orig_master_port, $new_master_host, $new_master_ip, $new_master_port
);
my $vip = '192.168.6.242/24';
my $key = '0';
my $ssh_start_vip = "/sbin/ifconfig enp0s3:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig enp0s3:$key down";
GetOptions(
'command=s' => $command,
'ssh_user=s' => $ssh_user,
'orig_master_host=s' => $orig_master_host,
'orig_master_ip=s' => $orig_master_ip,
'orig_master_port=i' => $orig_master_port,
'new_master_host=s' => $new_master_host,
'new_master_ip=s' => $new_master_ip,
'new_master_port=i' => $new_master_port,
);
exit &main();
sub main {
print "nnIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===nn";
if ( $command eq "stop" || $command eq "stopssh" ) {
my $exit_code = 1;
eval {
print "Disabling the VIP on old master: $orig_master_host n";
&stop_vip();
$exit_code = 0;
};
if ($@) {
warn "Got Error: $@n";
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "start" ) {
my $exit_code = 10;
eval {
print "Enabling the VIP - $vip on the new master - $new_master_host n";
&start_vip();
$exit_code = 0;
};
if ($@) {
warn $@;
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "status" ) {
print "Checking the Status of the script.. OK n";
exit 0;
}
else {
&usage();
exit 1;
}
}
sub start_vip() {
`ssh $ssh_user@$new_master_host " $ssh_start_vip "`;
}
sub stop_vip() {
return 0 unless ($ssh_user);
`ssh $ssh_user@$orig_master_host " $ssh_stop_vip "`;
}
sub usage {
print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip
--orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=portn";
}
#需要改下脚本里的浮动ip和网卡名称为自己实际要配的vip及所在网卡：
my $vip = '192.168.6.242/24';
my $ssh_start_vip = "/sbin/ifconfig enp0s3:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig enp0s3:$key down";
5.4 master_ip_online_change
vi /etc/mha/master_ip_online_change
添加：
#!/usr/bin/env perl
use strict;
use warnings FATAL =>'all';
use Getopt::Long;
my $vip = '192.168.144.242/24';
my $key = '0';
my $ssh_start_vip = "/sbin/ifconfig enp0s3:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig enp0s3:$key down";
my $exit_code = 0;
my (
$command, $orig_master_is_new_slave, $orig_master_host,
$orig_master_ip, $orig_master_port, $orig_master_user,
$orig_master_password, $orig_master_ssh_user, $new_master_host,
$new_master_ip, $new_master_port, $new_master_user,
$new_master_password, $new_master_ssh_user,
);
GetOptions(
'command=s' => $command,
'orig_master_is_new_slave' => $orig_master_is_new_slave,
'orig_master_host=s' => $orig_master_host,
'orig_master_ip=s' => $orig_master_ip,
'orig_master_port=i' => $orig_master_port,
'orig_master_user=s' => $orig_master_user,
'orig_master_password=s' => $orig_master_password,
'orig_master_ssh_user=s' => $orig_master_ssh_user,
'new_master_host=s' => $new_master_host,
'new_master_ip=s' => $new_master_ip,
'new_master_port=i' => $new_master_port,
'new_master_user=s' => $new_master_user,
'new_master_password=s' => $new_master_password,
'new_master_ssh_user=s' => $new_master_ssh_user,
);
exit &main();
sub main {
#print "nnIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===nn";
if ( $command eq "stop" || $command eq "stopssh" ) {
# $orig_master_host, $orig_master_ip, $orig_master_port are passed.
# If you manage master ip address at global catalog database,
# invalidate orig_master_ip here.
my $exit_code = 1;
eval {
print "nnn***************************************************************n";
print "Disabling the VIP - $vip on old master: $orig_master_hostn";
print "***************************************************************nnnn";
&stop_vip();
$exit_code = 0;
};
if ($@) {
warn "Got Error: $@n";
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "start" ) {
# all arguments are passed.
# If you manage master ip address at global catalog database,
# activate new_master_ip here.
# You can also grant write access (create user, set read_only=0, etc) here.
my $exit_code = 10;
eval {
print "nnn***************************************************************n";
print "Enabling the VIP - $vip on new master: $new_master_host n";
print "***************************************************************nnnn";
&start_vip();
$exit_code = 0;
};
if ($@) {
warn $@;
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "status" ) {
print "Checking the Status of the script.. OK n";
`ssh $orig_master_ssh_user@$orig_master_host " $ssh_start_vip "`;
exit 0;
}
else {
&usage();
exit 1;
}}
# A simple system call that enable the VIP on the new master
sub start_vip() {
`ssh $new_master_ssh_user@$new_master_host " $ssh_start_vip "`;
}
# A simple system call that disable the VIP on the old_master
sub stop_vip() {
`ssh $orig_master_ssh_user@$orig_master_host " $ssh_stop_vip "`;
}
sub usage {
print
"Usage: master_ip_failover -command=start|stop|stopssh|status -orig_master_host=host -
orig_master_ip=ip -orig_master_port=po
rt -new_master_host=host -new_master_ip=ip -new_master_port=portn";
}
同样需要修改vip及网卡名称
5.5 send_report
vi /etc/mha/send_report，添加：
#!/usr/bin/perl
# Copyright (C) 2011 DeNA Co.,Ltd.
#
# This program is free software; you can redistribute it and/or modify
# itunder the terms of the GNU General Public License as published by
# the Free Software Foundation; either version 2 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program; if not, write to the Free Software
# Foundation, Inc.,
# 51Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
## Note: This is a sample script and is notcomplete. Modify the script based on your environment.
use strict;
use warnings FATAL => 'all';
use Mail::Sender;
use Getopt::Long;
#new_master_host and new_slave_hosts areset only when recovering master succeeded
my ( $dead_master_host, $new_master_host, $new_slave_hosts,$subject, $body );
my $smtp='smtp.163.com';
my $mail_from='xxxxxxx@163.com';
my $mail_user='xxxxxxx@163.com';
my $mail_pass='Password';
my$mail_to=['949538827@qq.com','15521xxxx@139.com'];
GetOptions(
'orig_master_host=s' => $dead_master_host,
'new_master_host=s' =>$new_master_host,
'new_slave_hosts=s' =>$new_slave_hosts,
'subject=s' =>$subject,
'body=s' => $body,
);
mailToContacts($smtp,$mail_from,$mail_user,$mail_pass,$mail_to,$subject,$body);
sub mailToContacts {
my ( $smtp, $mail_from, $user, $passwd, $mail_to, $subject, $msg ) = @_;
open my $DEBUG, "> /tmp/monitormail.log"
or die "Can't open the debug file:$!n";
my $sender = new Mail::Sender {
ctype => 'text/plain;charset=utf-8',
encoding => 'utf-8',
smtp => $smtp,
from => $mail_from,
auth => 'LOGIN',
TLS_allowed => '0',
authid => $user,
authpwd => $passwd,
to => $mail_to,
subject => $subject,
debug => $DEBUG
};
$sender->MailMsg(
{ msg => $msg,
debug => $DEBUG
}
)or print $Mail::Sender::Error;
return 1;
}
# Do whatever you want here
exit 0;
注意：需要修改下以下几行内容：
my $smtp='smtp.163.com';
my $mail_from='xxxxxxx@163.com';
my $mail_user='xxxxxxx@163.com';
my $mail_pass='Password';
my$mail_to=['949538827@qq.com','15521xxxx@139.com'];
5.6 给脚本授权
chmod +x /etc/mha/master_ip_online_change
chmod +x /etc/mha/master_ip_failover
chmod +x /etc/mha/send_report
5.7 在主节点手动绑定vip
ifconfig enp0s3:0 192.168.6.242 up
6：检查mha manage是不是配置成功
6.1 检查ssh登录
[root@ser6-51 .ssh]# masterha_check_ssh --conf=/etc/mha/app1.cnf
Fri Aug 7 15:11:07 2015 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Fri Aug 7 15:11:07 2015 - [info] Reading application default configuration from /etc/mha/app1.cnf..
Fri Aug 7 15:11:07 2015 - [info] Reading server configuration from /etc/mha/app1.cnf..
Fri Aug 7 15:11:07 2015 - [info] Starting SSH connection tests..
Fri Aug 7 15:11:08 2015 - [debug]
Fri Aug 7 15:11:07 2015 - [debug] Connecting via SSH from root@192.168.6.51(192.168.6.51:22) to root@192.168.6.52(192.168.6.52:22)..
Fri Aug 7 15:11:07 2015 - [debug] ok.
Fri Aug 7 15:11:07 2015 - [debug] Connecting via SSH from root@192.168.6.51(192.168.6.51:22) to root@192.168.6.70(192.168.6.70:22)..
Fri Aug 7 15:11:08 2015 - [debug] ok.
Fri Aug 7 15:11:08 2015 - [debug]
Fri Aug 7 15:11:07 2015 - [debug] Connecting via SSH from root@192.168.6.52(192.168.6.52:22) to root@192.168.6.51(192.168.6.51:22)..
Fri Aug 7 15:11:08 2015 - [debug] ok.
Fri Aug 7 15:11:08 2015 - [debug] Connecting via SSH from root@192.168.6.52(192.168.6.52:22) to root@192.168.6.70(192.168.6.70:22)..
Fri Aug 7 15:11:08 2015 - [debug] ok.
Fri Aug 7 15:11:09 2015 - [debug]
Fri Aug 7 15:11:08 2015 - [debug] Connecting via SSH from root@192.168.6.70(192.168.6.70:22) to root@192.168.6.51(192.168.6.51:22)..
Fri Aug 7 15:11:08 2015 - [debug] ok.
Fri Aug 7 15:11:09 2015 - [debug] Connecting via SSH from root@192.168.6.70(192.168.6.70:22) to root@192.168.6.52(192.168.6.52:22)..
Fri Aug 7 15:11:09 2015 - [debug] ok.
Fri Aug 7 15:11:09 2015 - [info] All SSH connection tests passed successfully./*
如果看到，All SSH connection tests passed successfully，就说明ssh配置成功了
假如报错：
[error][/usr/share/perl5/vendor_perl/MHA/SSHCheck.pm, ln63]
将.ssh下的内容全部清空，然后重新认证即可
*/
6.2检查mysql replication是否配置成功
[root@ser6-51 .ssh]# masterha_check_repl --conf=/etc/mha/app1.cnf
Fri Aug 7 15:33:11 2015 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.
Fri Aug 7 15:33:11 2015 - [info] Reading application default configuration from /etc/mha/app1.cnf..
Fri Aug 7 15:33:11 2015 - [info] Reading server configuration from /etc/mha/app1.cnf..
Fri Aug 7 15:33:11 2015 - [info] MHA::MasterMonitor version 0.56.
Fri Aug 7 15:33:11 2015 - [info] GTID failover mode = 0
Fri Aug 7 15:33:11 2015 - [info] Dead Servers:
Fri Aug 7 15:33:11 2015 - [info] Alive Servers:
Fri Aug 7 15:33:11 2015 - [info] 192.168.6.51(192.168.6.51:3306)
Fri Aug 7 15:33:11 2015 - [info] 192.168.6.52(192.168.6.52:3306)
Fri Aug 7 15:33:11 2015 - [info] 192.168.6.70(192.168.6.70:3306)
Fri Aug 7 15:33:11 2015 - [info] Alive Slaves:
Fri Aug 7 15:33:11 2015 - [info] 192.168.6.52(192.168.6.52:3306) Version=5.6.20-r5436-log (oldest major version between slaves) log-bin:enabled
Fri Aug 7 15:33:11 2015 - [info] Replicating from 192.168.6.51(192.168.6.51:3306)
Fri Aug 7 15:33:11 2015 - [info] Primary candidate for the new Master (candidate_master is set)
Fri Aug 7 15:33:11 2015 - [info] 192.168.6.70(192.168.6.70:3306) Version=5.6.20-r5436-log (oldest major version between slaves) log-bin:enabled
Fri Aug 7 15:33:11 2015 - [info] Replicating from 192.168.6.51(192.168.6.51:3306)
Fri Aug 7 15:33:11 2015 - [info] Current Alive Master: 192.168.6.51(192.168.6.51:3306)
Fri Aug 7 15:33:11 2015 - [info] Checking slave configurations..
Fri Aug 7 15:33:11 2015 - [info] Checking replication filtering settings..
Fri Aug 7 15:33:11 2015 - [info] binlog_do_db= , binlog_ignore_db=
Fri Aug 7 15:33:11 2015 - [info] Replication filtering check ok.
Fri Aug 7 15:33:11 2015 - [info] GTID (with auto-pos) is not supported
Fri Aug 7 15:33:11 2015 - [info] Starting SSH connection tests..
Fri Aug 7 15:33:13 2015 - [info] All SSH connection tests passed successfully.
Fri Aug 7 15:33:13 2015 - [info] Checking MHA Node version..
Fri Aug 7 15:33:14 2015 - [info] Version check ok.
Fri Aug 7 15:33:14 2015 - [info] Checking SSH publickey authentication settings on the current master..
Fri Aug 7 15:33:14 2015 - [info] HealthCheck: SSH to 192.168.6.51 is reachable.
Fri Aug 7 15:33:14 2015 - [info] Master MHA Node version is 0.56.
Fri Aug 7 15:33:14 2015 - [info] Checking recovery script configurations on 192.168.6.51(192.168.6.51:3306)..
Fri Aug 7 15:33:14 2015 - [info] Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/data/mysql/data --output_file=/var/tmp/save_binary_logs_test --manager_version=0.56 --start_file=mysql-bin.000032
Fri Aug 7 15:33:14 2015 - [info] Connecting to root@192.168.6.51(192.168.6.51:22)..
Creating /var/tmp if not exists.. ok.
Checking output directory is accessible or not..
ok.
Binlog found at /data/mysql/data, up to mysql-bin.000032
Fri Aug 7 15:33:15 2015 - [info] Binlog setting check done.
Fri Aug 7 15:33:15 2015 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers..
Fri Aug 7 15:33:15 2015 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='mha' --slave_host=192.168.6.52 --slave_ip=192.168.6.52 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.20-r5436-log --manager_version=0.56 --relay_log_info=/data/mysql/data/relay-log.info --relay_dir=/data/mysql/data/ --slave_pass=xxx
Fri Aug 7 15:33:15 2015 - [info] Connecting to root@192.168.6.52(192.168.6.52:22)..
Checking slave recovery environment settings..
Opening /data/mysql/data/relay-log.info ... ok.
Relay log found at /data/mysql/data, up to mysql-relay-bin.000002
Temporary relay log file is /data/mysql/data/mysql-relay-bin.000002
Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
Testing mysqlbinlog output.. done.
Cleaning up test file(s).. done.
Fri Aug 7 15:33:16 2015 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='mha' --slave_host=192.168.6.70 --slave_ip=192.168.6.70 --slave_port=3306 --workdir=/var/tmp --target_version=5.6.20-r5436-log --manager_version=0.56 --relay_log_info=/data/mysql/data/relay-log.info --relay_dir=/data/mysql/data/ --slave_pass=xxx
Fri Aug 7 15:33:16 2015 - [info] Connecting to root@192.168.6.70(192.168.6.70:22)..
Checking slave recovery environment settings..
Opening /data/mysql/data/relay-log.info ... ok.
Relay log found at /data/mysql/data, up to mysql-relay-bin.000003
Temporary relay log file is /data/mysql/data/mysql-relay-bin.000003
Testing mysql connection and privileges..Warning: Using a password on the command line interface can be insecure.
done.
Testing mysqlbinlog output.. done.
Cleaning up test file(s).. done.
Fri Aug 7 15:33:17 2015 - [info] Slaves settings check done.
Fri Aug 7 15:33:17 2015 - [info]
192.168.6.51(192.168.6.51:3306) (current master)
+--192.168.6.52(192.168.6.52:3306)
+--192.168.6.70(192.168.6.70:3306)
Fri Aug 7 15:33:17 2015 - [info] Checking replication health on 192.168.6.52..
Fri Aug 7 15:33:17 2015 - [info] ok.
Fri Aug 7 15:33:17 2015 - [info] Checking replication health on 192.168.6.70..
Fri Aug 7 15:33:17 2015 - [info] ok.
Fri Aug 7 15:33:17 2015 - [warning] master_ip_failover_script is not defined.
Fri Aug 7 15:33:17 2015 - [warning] shutdown_script is not defined.
Fri Aug 7 15:33:17 2015 - [info] Got exit code 0 (Not master dead).
MySQL Replication Health is OK./*
假如执行该命令报错：
……
Fri Aug 7 15:17:21 2015 - [info] Connecting to root@192.168.6.52(192.168.6.52:22)..
Can't exec "mysqlbinlog": No such file or directory at /usr/share/perl5/vendor_perl/MHA/BinlogManager.pm line 106.
mysqlbinlog version command failed with rc 1:0, please verify PATH, LD_LIBRARY_PATH, and client options
at /usr/bin/apply_diff_relay_logs line 493
Fri Aug 7 15:17:21 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln205] Slaves settings check failed!
Fri Aug 7 15:17:21 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln413] Slave configuration failed.
Fri Aug 7 15:17:21 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln424] Error happened on checking configurations. at /usr/bin/masterha_check_repl line 48
Fri Aug 7 15:17:21 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln523] Error happened on monitoring servers.
Fri Aug 7 15:17:21 2015 - [info] Got exit code 1 (Not master dead).
MySQL Replication Health is NOT OK!在所有数据节点上都创建一下软连接：
ln -s /usr/local/mysql/bin/mysqlbinlog /usr/bin/mysqlbinlog
再次运行：
masterha_check_repl --conf=/etc/mha/app1.cnf
又报一个新的错误：
Testing mysql connection and privileges..sh: mysql: command not found
mysql command failed with rc 127:0!
at /usr/bin/apply_diff_relay_logs line 375
main::check() called at /usr/bin/apply_diff_relay_logs line 497
eval {...} called at /usr/bin/apply_diff_relay_logs line 475
main::main() called at /usr/bin/apply_diff_relay_logs line 120
Fri Aug 7 15:28:08 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln205] Slaves settings check failed!
Fri Aug 7 15:28:08 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln413] Slave configuration failed.
Fri Aug 7 15:28:08 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln424] Error happened on checking configurations. at /usr/bin/masterha_check_repl line 48
Fri Aug 7 15:28:08 2015 - [error][/usr/share/perl5/vendor_perl/MHA/MasterMonitor.pm, ln523] Error happened on monitoring servers.
Fri Aug 7 15:28:08 2015 - [info] Got exit code 1 (Not master dead).在所有数据节点上建立软连接：
ln -s /usr/local/mysql/bin/mysql /usr/bin/mysql
*/
7：在管理端启动监控
[root@ser6-51 .ssh]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/mha/app1/manager.log 2>&1 &
[1] 14694
[root@ser6-51 .ssh]# masterha_check_status --conf=/etc/mha/app1.cnf //查看状态
app1 (pid:14694) is running(0:PING_OK), master:192.168.6.51
# masterha_stop --conf=/etc/mha/app1.cnf //关闭监控
8：验证MHA高可用
关掉主库，看下浮动ip是否漂移，看下令一个从库的复制是否指向了新主库，然后通过连浮动ip插入两条数据，看下这两条数据是否会同步到其他从库上。
在6.51上关闭Mysql实例：
[root@ser6-51 ~]# service mysql stop
Shutting down MySQL... [ OK ]
在管理节点上查看日志：
[root@ser6-51 ~]# tail -f /var/log/mha/app1/manager.log
----- Failover Report -----
app1: MySQL Master failover 192.168.6.51(192.168.6.51:3306) to 192.168.6.52(192.168.6.52:3306) succeeded
Master 192.168.6.51(192.168.6.51:3306) is down!
Check MHA Manager logs at ser6-51:/var/log/mha/app1/manager.log for details.
Started automated(non-interactive) failover.
The latest slave 192.168.6.52(192.168.6.52:3306) has all relay logs for recovery.
Selected 192.168.6.52(192.168.6.52:3306) as a new master.
192.168.6.52(192.168.6.52:3306): OK: Applying all logs succeeded.
192.168.6.70(192.168.6.70:3306): This host has the latest relay log events.
Generating relay diff files from the latest slave succeeded.
192.168.6.70(192.168.6.70:3306): OK: Applying all logs succeeded. Slave started, replicating from 192.168.6.52(192.168.6.52:3306)
192.168.6.52(192.168.6.52:3306): Resetting slave info succeeded.
Master failover to 192.168.6.52(192.168.6.52:3306) completed successfully.可以看到master自动切换到6.52上了。
在6.70上查看：
mysql> show slave status G;
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.6.52
Master_User: rep_user
Master_Port: 3306可以看到master_host变成了192.168.6.52.
在现在的master上查看变量read_only,发现被自动关闭了，说明之前的slave现在可写了：
mysql> show variables like 'read_only';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| read_only | OFF |
+---------------+-------+
1 row in set (0.01 sec)
在新主库上执行show slave status，会看到没有了主从复制的信息，不再是原主的从库：
欧耶。嘻嘻。
我发现再次启动6.51的mysql后，并没有自动加入集群。需要自己连接到现在的master上：
change master to master_host='192.168.6.52',master_user='rep_user',master_password='……' ,master_port=3306,master_auto_position=1;
start slave;
切换完成后，manager进程会自动挂掉：
[root@manager ~]# masterha_check_status --conf=/etc/mha/app1.cnf
app1 is stopped(2:NOT_RUNNING).
需要手动启动mha管理进程：
nohup masterha_manager --conf=/etc/mha/app1.cnf --ignore_last_failover < /dev/null > /var/log/mha/app1/manager.log 2>&1 &
实验发现，当mha架构中宕掉了两个节点后，则无法进行故障转移。必须至少两个节点是存活的才行。
实践发现，mha会选择一个io进程读取到最新的数据作为新主库（若备选主库不是最新的，也不会选择它），并且会等待从库应用完relay log，才会切过来。
本篇文章参考自：http://blog.51yip.com/mysql/1722.html，
http://www.cnblogs.com/wingsless/p/4033093.html，
初探keepalive+mysql-ha架构
最后
以上就是激动黄蜂为你收集整理的用MHA实现mysql自动故障转移(配置vip模式，非keepalive）一：MHA介绍二：实验环境三：实验步骤 的全部内容，希望文章能够帮你解决用MHA实现mysql自动故障转移(配置vip模式，非keepalive）一：MHA介绍二：实验环境三：实验步骤 所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
发表评论 取消回复
