Android标签容器的开发

1
2
3
4
5
6
7
8
9
10
11
    <declare-styleable name="TagContainerView">
        <attr name="tag_vertical_margin" format="dimension" />
        <attr name="tag_horizontal_margin" format="dimension" />
        <attr name="tag_text_color" format="color" />
        <attr name="tag_padding_vertical" format="dimension" />
        <attr name="tag_padding_horizontal" format="dimension" />
        <attr name="tag_text_size" format="dimension" />
        <attr name="tag_bg_drawable" format="reference" />
        <attr name="tag_bg_drawable_selected" format="reference" />
        <attr name="tag_text_color_selected" format="color" />
    </declare-styleable>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
package com.openld.seniorui.testtagcontainer

import android.annotation.SuppressLint
import android.content.Context
import android.graphics.Color
import android.graphics.Paint
import android.text.TextUtils
import android.util.AttributeSet
import android.view.DragEvent
import android.view.Gravity
import android.view.ViewGroup
import android.widget.TextView
import androidx.annotation.NonNull
import com.openld.seniorui.R
import com.openld.seniorutils.utils.DisplayUtils

/**
 * author: lllddd
 * created on: 2022/6/15 20:42
 * description:Tag容器，能够自动换行
 */
@SuppressLint("NewApi")
class TagContainerView(context: Context?, attrs: AttributeSet?, defStyleAttr: Int) :
    ViewGroup(context, attrs, defStyleAttr) {

    // 垂直方向间距
    private var mVerticalMargin: Int = 0

    // 水平方向间距
    private var mHorizontalMargin: Int = 0

    // tag高度
    private var mTagHeight: Int = 0

    // tag水平padding
    private var mTagHorizontalPadding: Int = 0

    // tag垂直padding
    private var mTagVerticalPadding: Int = 0

    // tag文字颜色
    private var mTagTextColor: Int = Color.RED

    // tag选中的文字颜色
    private var mTagTextColorSelected: Int = Color.WHITE

    // tag字体大小
    private var mTagTextSize: Int = 14

    // 组件宽度
    private var mWidth: Int = 0

    // 组件高度
    private var mHeight: Int = 0

    // tag背景Drawable
    private var mBgTagDrawableResId: Int = R.drawable.bg_tag

    // tag选中背景Drawable
    private var mBgTagSelectedDrawableResId: Int = R.drawable.bg_tag_selected

    // 该画笔用来辅助测量tag中的文字
    private var mTagTextPaint: Paint

    // Tag被点击的监听器
    private var mOnTagClickListener: OnTagClickListener? = null

    // Tag被长按的监听器
    private var mOnTagLongClickListener: OnTagLongClickListener? = null

    constructor(context: Context?, attrs: AttributeSet?) : this(context, attrs, 0)

    constructor(context: Context?) : this(context, null)

    init {
        val a = context!!.obtainStyledAttributes(attrs, R.styleable.TagContainerView)

        mVerticalMargin = a.getDimensionPixelSize(
            R.styleable.TagContainerView_tag_vertical_margin,
            DisplayUtils.dp2px(context, 5)
        )

        mHorizontalMargin = a.getDimensionPixelSize(
            R.styleable.TagContainerView_tag_horizontal_margin,
            DisplayUtils.dp2px(context, 5)
        )

        val tagTextSizePx = a.getDimensionPixelSize(
            R.styleable.TagContainerView_tag_text_size,
            DisplayUtils.sp2px(context, 14)
        )
        mTagTextSize = DisplayUtils.px2sp(context, tagTextSizePx)

        mTagVerticalPadding = a.getDimensionPixelSize(
            R.styleable.TagContainerView_tag_padding_vertical,
            DisplayUtils.dp2px(context, 2)
        )

        mTagHorizontalPadding = a.getDimensionPixelSize(
            R.styleable.TagContainerView_tag_padding_horizontal,
            DisplayUtils.dp2px(context, 10)
        )

        mTagTextColor = a.getColor(
            R.styleable.TagContainerView_tag_text_color,
            context.resources.getColor(R.color.red, null)
        )

        mTagTextColorSelected = a.getColor(
            R.styleable.TagContainerView_tag_text_color_selected,
            context.resources.getColor(R.color.white, null)
        )

        mBgTagDrawableResId =
            a.getResourceId(R.styleable.TagContainerView_tag_bg_drawable, R.drawable.bg_tag)

        mBgTagSelectedDrawableResId = a.getResourceId(
            R.styleable.TagContainerView_tag_bg_drawable_selected,
            R.drawable.bg_tag_selected
        )

        // 这边需要加上一个文字的偏移否则展示有问题
        mTagTextPaint = Paint()
        mTagTextPaint.textSize = mTagTextSize.toFloat()
        val textOffset = mTagTextPaint.fontMetrics.bottom - mTagTextPaint.fontMetrics.top

        mTagHeight = (textOffset + tagTextSizePx + mTagVerticalPadding * 2).toInt()

        a.recycle()
    }

    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        var lines = 1
        if (childCount == 0) {
            super.onMeasure(widthMeasureSpec, heightMeasureSpec)
        }

        val width = MeasureSpec.getSize(widthMeasureSpec)
        val widthMode = MeasureSpec.getMode(widthMeasureSpec)
        val height = MeasureSpec.getSize(heightMeasureSpec)
        val heightMode = MeasureSpec.getMode(heightMeasureSpec)

        // 处理宽
        mWidth = when (widthMode) {
            MeasureSpec.EXACTLY -> {
                width
            }
            MeasureSpec.AT_MOST -> {
                // 此时让横向占满屏幕
                context.resources.displayMetrics.widthPixels
            }
            else -> {
                width
            }
        }

        // 处理高
        when (heightMode) {
            MeasureSpec.EXACTLY -> {
                mHeight = height
            }
            MeasureSpec.AT_MOST -> {
                var tempWidth = 0
                var index = 0
                while (index < childCount) {
                    val child = getChildAt(index)
                    val childParams = child.layoutParams as MarginLayoutParams

                    if (tempWidth <= mWidth - paddingLeft - paddingRight) {//当前行摆得下
                        tempWidth += childParams.width + childParams.leftMargin + childParams.rightMargin
                        index++
                    } else {// 当前行摆不下了
                        index--
                        lines++
                        tempWidth = 0
                    }
                }
                mHeight = paddingTop + paddingBottom + lines * (mTagHeight + 2 * mVerticalMargin)
            }
            else -> {
                mHeight = height
            }
        }

        setMeasuredDimension(mWidth, mHeight)
    }

    override fun onLayout(changed: Boolean, l: Int, t: Int, r: Int, b: Int) {
        for (index in 0 until childCount) {
            val child = getChildAt(index)
            val childParams = child.layoutParams as MarginLayoutParams

            var left: Int
            var top: Int
            var right: Int
            var bottom: Int

            if (index == 0) {// 第一个tag
                left = paddingLeft + childParams.leftMargin
                top = paddingTop + childParams.topMargin
                right = left + childParams.width
                bottom = top + childParams.height
            } else {// 非第一个tag
                val preChild = getChildAt(index - 1)
                val preChildParams = preChild.layoutParams as MarginLayoutParams

                if (preChild.right + preChildParams.rightMargin + childParams.leftMargin + childParams.width + childParams.rightMargin
                    <= mWidth - paddingRight
                ) {// 不需要换行
                    left = preChild.right + preChildParams.rightMargin + childParams.leftMargin
                    top = preChild.top
                    right = left + childParams.width
                    bottom = top + childParams.height
                } else {// 需要换行
                    left = paddingLeft + childParams.leftMargin
                    top = preChild.bottom + preChildParams.bottomMargin + childParams.topMargin
                    right = left + childParams.width
                    bottom = top + childParams.height
                }
            }

            child.layout(left, top, right, bottom)
        }
    }

    override fun onDragEvent(event: DragEvent?): Boolean {
        return super.onDragEvent(event)
    }

    /**
     * 设置tags
     */
    @SuppressLint("UseCompatLoadingForDrawables")
    fun setTags(@NonNull tagList: List<String>) {
        removeAllViews()

        for (index in tagList.indices) {
            val s = tagList[index]
            if (TextUtils.isEmpty(s)) {
                continue
            }

            // 方式1：使用LayoutInflater添加tag
//            val view = LayoutInflater.from(context).inflate(R.layout.tag, this, false)
//            val txtTag = view.findViewById<TextView>(R.id.txt_tag) as TextView
//            txtTag.tag = false
//            txtTag.text = s
//            txtTag.setTextColor(mTagTextColor)
//            txtTag.textSize = mTagTextSize.toFloat()
//            txtTag.gravity = Gravity.CENTER
//            txtTag.background = context.getDrawable(mBgTagDrawableResId)
//            txtTag.setOnClickListener {
//                onTagClick(index, txtTag, s)
//            }
//            txtTag.setOnLongClickListener {
//                onTagLongClick(index, txtTag, s)
//                true
//            }
//            txtTag.setPadding(
//                mTagHorizontalPadding,
//                mTagVerticalPadding,
//                mTagHorizontalPadding,
//                mTagVerticalPadding
//            )
//
//            val params = view.layoutParams as MarginLayoutParams
//            params.width =
//                2 * mTagHorizontalPadding + DisplayUtils.sp2px(
//                    context,
//                    mTagTextPaint.measureText(s).toInt()
//                )
//            params.height = mTagHeight
//
//            params.leftMargin = mHorizontalMargin
//            params.rightMargin = mHorizontalMargin
//            params.topMargin = mHorizontalMargin
//            params.bottomMargin = mHorizontalMargin
//            view.layoutParams = params
//            addView(view)


            // 方式2：动态添加tag
            val txtTag = TextView(context)
            // 标记默认未选中
            txtTag.tag = false
            txtTag.setLines(1)

            val layoutParams = MarginLayoutParams(
                2 * mTagHorizontalPadding + DisplayUtils.sp2px(
                    context,
                    mTagTextPaint.measureText(s).toInt()
                ),
                mTagHeight
            )

            layoutParams.leftMargin = mHorizontalMargin
            layoutParams.rightMargin = mHorizontalMargin
            layoutParams.topMargin = mVerticalMargin
            layoutParams.bottomMargin = mVerticalMargin
            txtTag.layoutParams = layoutParams

            txtTag.setPadding(
                mTagHorizontalPadding,
                mTagVerticalPadding,
                mTagHorizontalPadding,
                mTagVerticalPadding
            )

            txtTag.text = s
            txtTag.gravity = Gravity.CENTER

            txtTag.setTextColor(mTagTextColor)
            txtTag.textSize = mTagTextSize.toFloat()
            txtTag.background = context.getDrawable(mBgTagDrawableResId)
            txtTag.setOnClickListener {
                onTagClick(index, txtTag, s)
            }
            txtTag.setOnLongClickListener {
                onTagLongClick(index, txtTag, s)
                true
            }
            addView(txtTag)
        }
    }

    @SuppressLint("UseCompatLoadingForDrawables")
    private fun onTagLongClick(index: Int, @NonNull tag: TextView, @NonNull s: String) {
        if (mOnTagLongClickListener == null) {
            return
        }

        tag.tag = !(tag.tag as Boolean)
        if (tag.tag as Boolean) {
            tag.background = context.getDrawable(R.drawable.bg_tag_selected)
            tag.setTextColor(mTagTextColorSelected)
        } else {
            tag.background = context.getDrawable(R.drawable.bg_tag)
            tag.setTextColor(mTagTextColor)
        }

        mOnTagLongClickListener!!.onTagLongClicked(index, tag, s, tag.tag as Boolean)
    }

    /**
     * 对tag的点击
     */
    private fun onTagClick(index: Int, @NonNull tag: TextView, @NonNull s: String) {
        if (mOnTagClickListener == null) {
            return
        }

        mOnTagClickListener!!.onTagClicked(index, tag, s)
    }

    override fun generateLayoutParams(attrs: AttributeSet?): LayoutParams {
        return MarginLayoutParams(context, attrs)
    }

    /**
     * Tag点击的监听器
     */
    interface OnTagClickListener {
        /**
         * 点击了tag
         *
         * @param index 位置游标
         * @param tag 被点击的tag
         * @param tagStr tag内容
         */
        fun onTagClicked(index: Int, @NonNull tag: TextView, @NonNull tagStr: String)
    }

    /**
     * 设置Tag被点击的监听器
     *
     * @param listener 监听器
     */
    fun setOnTagClickListener(listener: OnTagClickListener) {
        this.mOnTagClickListener = listener
    }

    /**
     * Tag点击的监听器
     */
    interface OnTagLongClickListener {
        /**
         * 点击了tag
         *
         * @param index 位置游标
         * @param tag 被点击的tag
         * @param tagStr tag内容
         * @param isSelected 是否选中
         */
        fun onTagLongClicked(
            index: Int,
            @NonNull tag: TextView,
            @NonNull tagStr: String,
            isSelected: Boolean
        )
    }

    /**
     * 设置Tag被点击的监听器
     *
     * @param listener 监听器
     */
    fun setOnTagLongClickListener(listener: OnTagLongClickListener) {
        this.mOnTagLongClickListener = listener
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".testtagcontainer.TestTagContainerActivity">

    <com.openld.seniorui.testtagcontainer.TagContainerView
        android:id="@+id/tag_container"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:padding="5dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0"
        app:tag_bg_drawable="@drawable/bg_tag"
        app:tag_bg_drawable_selected="@drawable/bg_tag_selected"
        app:tag_horizontal_margin="5dp"
        app:tag_padding_horizontal="10dp"
        app:tag_padding_vertical="2dp"
        app:tag_text_color="@color/red"
        app:tag_text_color_selected="@color/white"
        app:tag_text_size="12sp"
        app:tag_vertical_margin="5dp" />

</androidx.constraintlayout.widget.ConstraintLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
package com.openld.seniorui.testtagcontainer

import android.animation.AnimatorSet
import android.animation.ObjectAnimator
import android.os.Bundle
import android.view.animation.AccelerateDecelerateInterpolator
import android.widget.TextView
import android.widget.Toast
import androidx.appcompat.app.AppCompatActivity
import com.openld.seniorui.R
import com.openld.seniorutils.utils.DisplayUtils
import kotlin.random.Random

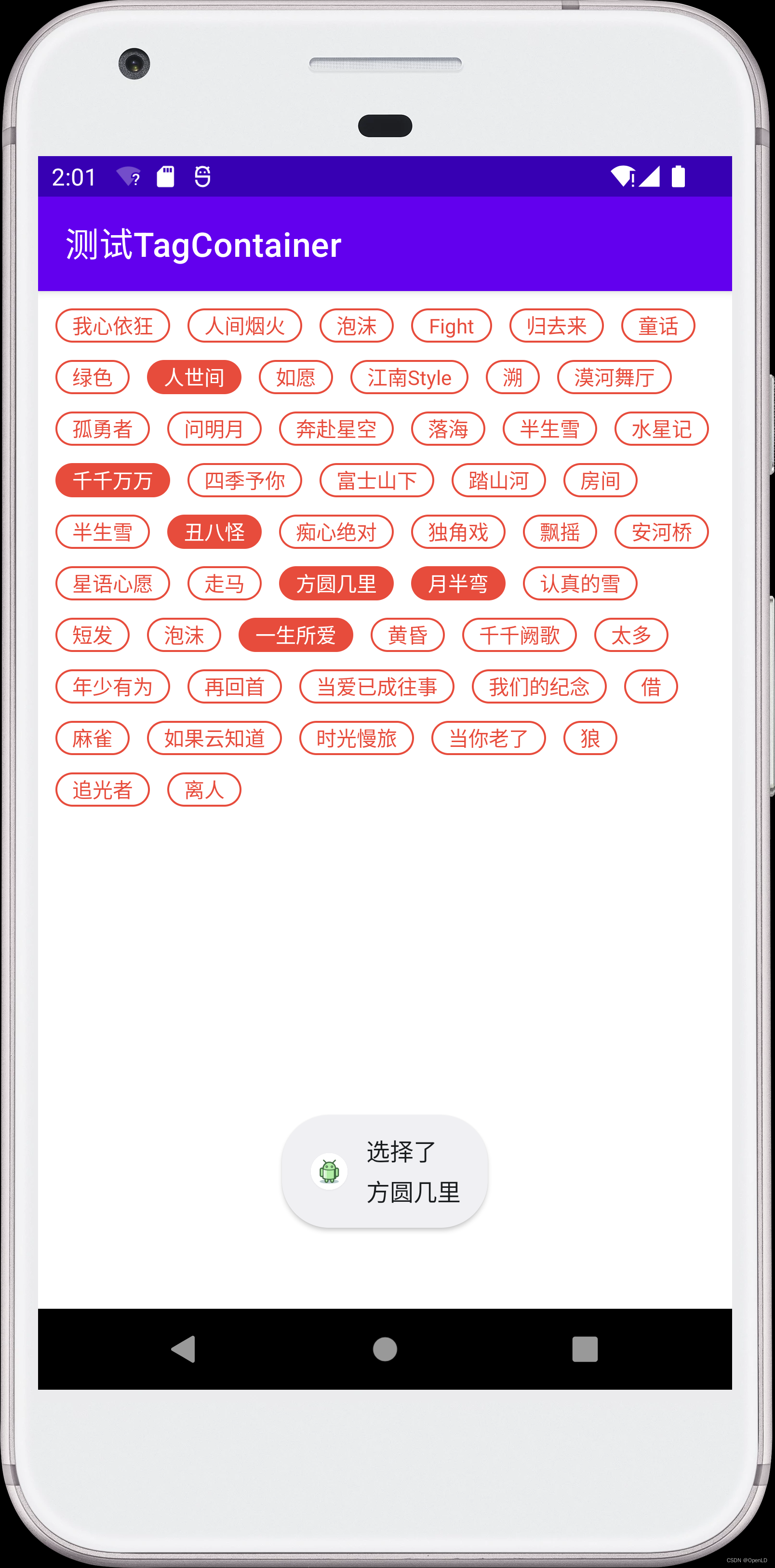

class TestTagContainerActivity : AppCompatActivity(), TagContainerView.OnTagClickListener,
    TagContainerView.OnTagLongClickListener {
    private lateinit var mTagContainer: TagContainerView

    private lateinit var mTagList: MutableList<String>

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_test_tag_container)

        initData()

        initWidgets()

        addListeners()
    }

    private fun initData() {
        mTagList = mutableListOf<String>()
        mTagList.add("我心依狂")
        mTagList.add("人间烟火")
        mTagList.add("泡沫")
        mTagList.add("Fight")
        mTagList.add("归去来")
        mTagList.add("童话")
        mTagList.add("绿色")
        mTagList.add("人世间")
        mTagList.add("如愿")
        mTagList.add("江南Style")
        mTagList.add("溯")
        mTagList.add("漠河舞厅")
        mTagList.add("孤勇者")
        mTagList.add("问明月")
        mTagList.add("奔赴星空")
        mTagList.add("落海")
        mTagList.add("半生雪")
        mTagList.add("水星记")
        mTagList.add("千千万万")
        mTagList.add("四季予你")
        mTagList.add("富士山下")
        mTagList.add("踏山河")
        mTagList.add("房间")
        mTagList.add("半生雪")
        mTagList.add("丑八怪")
        mTagList.add("痴心绝对")
        mTagList.add("独角戏")
        mTagList.add("飘摇")
        mTagList.add("安河桥")
        mTagList.add("星语心愿")
        mTagList.add("走马")
        mTagList.add("方圆几里")
        mTagList.add("月半弯")
        mTagList.add("认真的雪")
        mTagList.add("短发")
        mTagList.add("泡沫")
        mTagList.add("一生所爱")
        mTagList.add("黄昏")
        mTagList.add("千千阙歌")
        mTagList.add("太多")
        mTagList.add("年少有为")
        mTagList.add("再回首")
        mTagList.add("当爱已成往事")
        mTagList.add("我们的纪念")
        mTagList.add("借")
        mTagList.add("麻雀")
        mTagList.add("如果云知道")
        mTagList.add("时光慢旅")
        mTagList.add("当你老了")
        mTagList.add("狼")
        mTagList.add("追光者")
        mTagList.add("离人")
    }

    private fun initWidgets() {
        mTagContainer = findViewById(R.id.tag_container)
        mTagContainer.setTags(mTagList)

        val random = Random(1)

        for (index in 0 until mTagContainer.childCount) {
            val offsetDp = random.nextInt(10)
            val xOffset = DisplayUtils.dp2px(this, offsetDp).toFloat()

            if (offsetDp % 2 == 0) {
                val animator = ObjectAnimator.ofFloat(
                    mTagContainer.getChildAt(index),
                    "translationX",
                    -xOffset,
                    0f,
                    xOffset,
                    0f
                ).apply {
                    duration = 200
                    interpolator = AccelerateDecelerateInterpolator()
                    repeatCount = 4
                    start()
                }
            } else {
                val animator = ObjectAnimator.ofFloat(
                    mTagContainer.getChildAt(index),
                    "translationX",
                    xOffset,
                    0f,
                    -xOffset,
                    0f
                ).apply {
                    duration = 200
                    interpolator = AccelerateDecelerateInterpolator()
                    repeatCount = 4
                    start()
                }
            }
        }
    }

    private fun addListeners() {
        mTagContainer.setOnTagClickListener(this)
        mTagContainer.setOnTagLongClickListener(this)
    }

    override fun onTagClicked(index: Int, tag: TextView, tagStr: String) {
        Toast.makeText(this, "点击了第${index}个tagn${tagStr}", Toast.LENGTH_SHORT).show()

        val animScaleX = ObjectAnimator.ofFloat(tag, "scaleX", 1.0f, 1.2f, 1.0f)
        animScaleX.repeatCount = 1

        val animScaleY = ObjectAnimator.ofFloat(tag, "scaleY", 1.0f, 1.2f, 1.0f)
        animScaleY.repeatCount = 1

        val set = AnimatorSet().apply {
            duration = 300
            interpolator = AccelerateDecelerateInterpolator()
            playTogether(animScaleX, animScaleY)
            start()
        }

    }

    override fun onTagLongClicked(index: Int, tag: TextView, tagStr: String, isSelected: Boolean) {
        if (isSelected) {
            Toast.makeText(this, "选择了n${tagStr}", Toast.LENGTH_SHORT).show()
        } else {
            Toast.makeText(this, "取消了n${tagStr}", Toast.LENGTH_SHORT).show()
        }
    }
}
