搭建高可用RabbitMQ镜像模式集群

• rabbitmq+Keepalived+Haproxy 的集群架构

一、部署rabbitmq集群

1、环境准备

3台centos7操作系统，ip分别为：
192.168.122.46
192.168.122.221
192.168.122.140

2、修改 hosts 文件 (3 台)

[root@rabbitmq1 ~]# vim /etc/hosts
192.168.122.46 rabbitmq1
192.168.122.221 rabbitmq2
192.168.122.140 rabbitmq3

3、安装 rabbitmq(3 台)

  [root@rabbitmq-1 ~] yum install erlang
[root@rabbitmq-1 ~]  yum install -y socat
[root@rabbitmq-1 ~] yum -y install rabbitmq-server

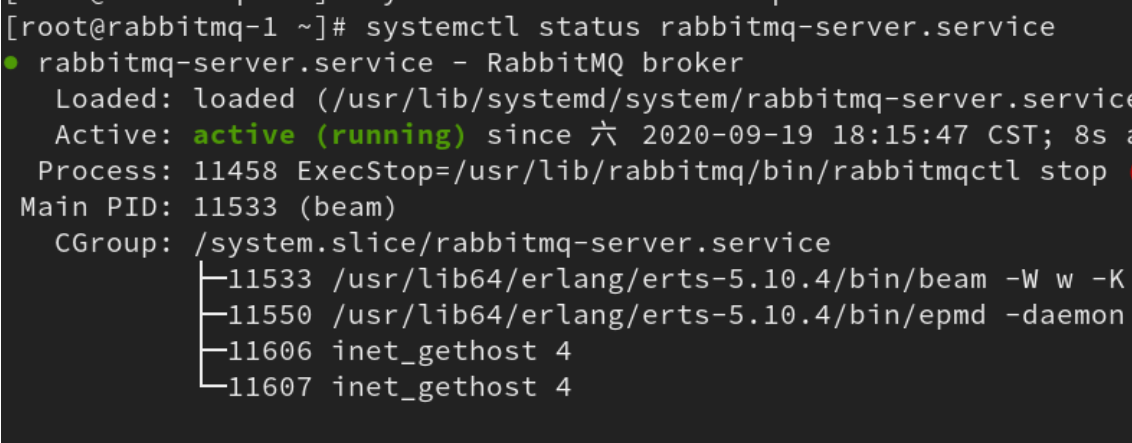

[root@rabbitmq-1 ~] systemctl start rabbitmq-server.service

启动 rabbitmq 内置 web 插件， 管理 rabbitmq 账号等信息 (3 台)

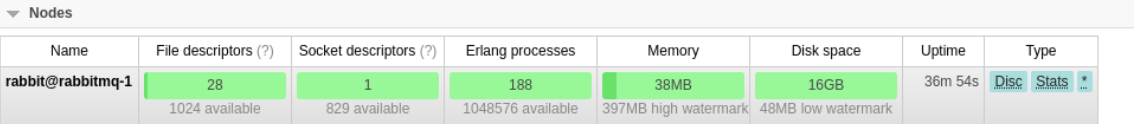

[root@rabbitmq1 ~]# rabbitmq-plugins enable rabbitmq_management

4、搭建 rabbitmq 的一般模式集群

统一 erlang.cookie 文件中 cookie 值

#复制 rabbitmq1 中 /var/lib/rabbitmq/.erlang.cookie 的内容到 rabbitmq2 rabbitmq2 相同的内容

[root@rabbitmq2 ~]# chmod 600 /var/lib/rabbitmq/.erlang.cookie

Rabbitmq 集群添加节点

• 重启 rabbitmq1机器中 rabbitmq 的服务 在 rabbitmq2，rabbitmq3 分别执行

[root@rabbitmq2 ~]# rabbitmqctl stop_app
[root@rabbitmq2 ~]# rabbitmqctl join_cluster --ram rabbit@rabbitmq-1
[root@rabbitmq2 ~]# rabbitmqctl start_app
[root@rabbitmq2 ~]# rabbitmq-plugins enable rabbitmq_management
[root@rabbitmq2 ~]# systemctl restart rabbitmq-server.service

5、搭建 rabbitmq 的镜像高可用模式集群

[root@rabbitmq1 ~]# rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all"}'

二、部署haproxy

环境

• 两台虚拟机或者选择集群中的任意两个节点配置

• keepalived1：192.168.122.83

• keepalived2：192.168.122.47

1、安装 haproxy

2、创建 haproxy.conf

[root@localhost ~]#  cp -rf /etc/haproxy/haproxy.cfg{,.bak}
[root@localhost ~]# vim /etc/haproxy/haproxy.cfg

[root@localhost ~]# cat /etc/haproxy/haproxy.cfg
global
    log                     127.0.0.1 local0
    chroot                  /var/lib/haproxy
    pidfile                 /var/run/haproxy.pid
    maxconn                 4000
    user                    haproxy
    group                   haproxy
    daemon

defaults
    mode                     http
    log                      global
    option                   dontlognull
    retries                  3
    maxconn                  3000
    contimeout               50000
    clitimeout               50000
    srvtimeout               50000

listen stats
    bind                    *:1314
    stats                   enable
    stats                   hide-version
    stats uri               /haproxystats
    stats realm             Haproxy stats
    stats auth              admin:admin
    stats admin             if TRUE
listen rabbitmq
    bind *:15672
    mode tcp
    balance roundrobin
    server rabbitmq-1 192.168.122.46:15672 check maxconn 2000
    server rabbitmq-2 192.168.122.221:15672 check maxconn 2000
    server rabbitmq-3 192.168.122.140:15672 check maxconn 2000

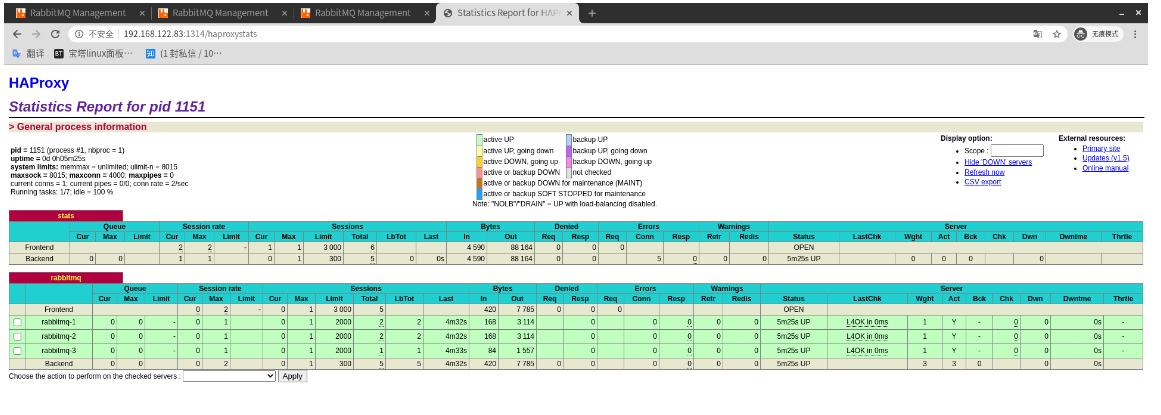

3、haproxy 监控页面访问验证

• 端口1314/haproxystats 账号密码 admin:admin

• 有以下效果

三、部署Keepalived，实现主从热备、秒级切换

1、环境

• 两台虚拟机或者选择集群中的任意两个节点配置
• keepalived1：192.168.122.83
• keepalived2：192.168.122.47
• VIP地址：192.168.122.100

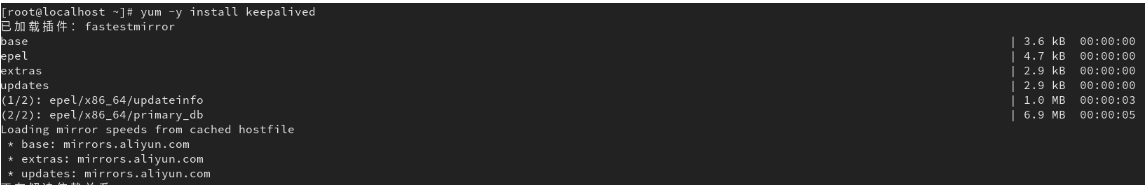

2、安装keepalived

3、修改配置文件

保存备份 cp /etc/keepalived/keepalived.conf{,.bak}

1、keepalived1 配置

[root@localhost keepalived]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id director1
}

vrrp_script check_haproxy {
   script "/etc/keepalived/check_haproxy_status.sh"
   interval 5
}

vrrp_instance VI_1 {
    state MASTER
    nopreempt
    interface eth0
    virtual_router_id 80
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.122.100
    }

    track_script {
        check_haproxy
    }
}

2、keepalived2 配置

[root@localhost ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   router_id director2
}

vrrp_instance VI_1 {
    state BACKUP
    nopreempt
    interface eth0
    virtual_router_id 80
    priority 50
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.122.100
    }
}

3、健康检测脚本 haproxy_chk.sh

[root@localhost keepalived]# cat /etc/keepalived/check_haproxy_status.sh
#!/bin/bash
counter=$(ps -C haproxy --no-heading|wc -l)
if [ "${counter}" = "0" ]; then
    systemctl restart haproxy
    sleep 5
    counter=$(ps -C haproxy --no-heading|wc -l)
    if [ "${counter}" = "0" ]; then
    	systemctl stop keepalived
    fi
fi

添加执行权限 chmod a+x /etc/keepalived/check_haproxy_status.sh

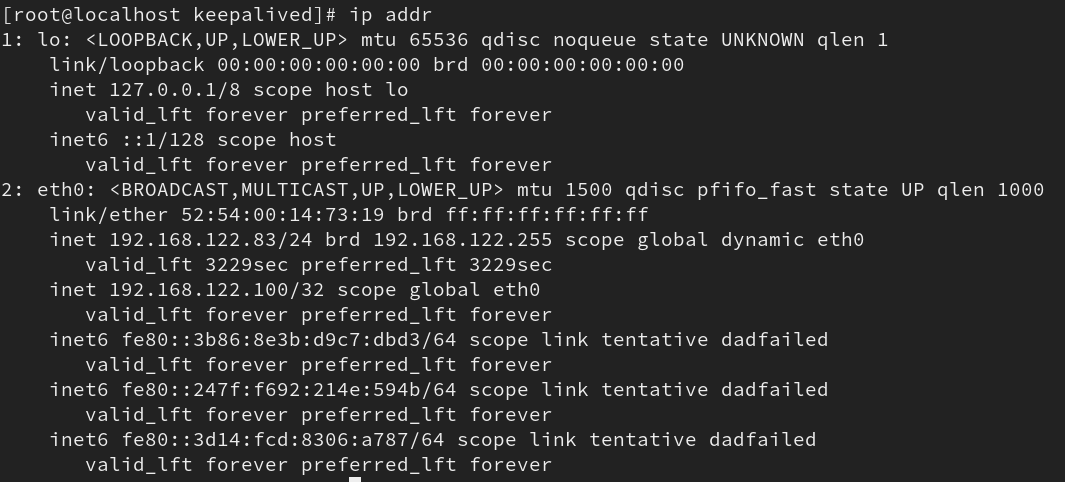

4、开启服务验证是VIP
