ubuntu 16.04安装PCL 1.9.0

115 阅读 0 评论 76 点赞

我是靠谱客的博主文艺铃铛，这篇文章主要介绍ubuntu 16.04安装PCL 1.9.0，现在分享给大家，希望可以做个参考。

一、PCL依赖库安装

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
sudo apt-get update
sudo apt-get install git build-essential linux-libc-dev
sudo apt-get install cmake cmake-gui
sudo apt-get install libusb-1.0-0-dev libusb-dev libudev-dev
sudo apt-get install mpi-default-dev openmpi-bin openmpi-common
sudo apt-get install libflann1.8 libflann-dev
sudo apt-get install libeigen3-dev
sudo apt-get install libboost-all-dev
sudo apt-get install libvtk5.10-qt4 libvtk5.10 libvtk5-dev
sudo apt-get install libqhull* libgtest-dev
sudo apt-get install freeglut3-dev pkg-config
sudo apt-get install libxmu-dev libxi-dev
sudo apt-get install mono-complete
sudo apt-get install qt-sdk openjdk-8-jdk openjdk-8-jre

注意：很多朋友应该都是换了清华、中科大、阿里等源，如果update不能成功完成的话，可以更换成UBUNTU最原始的源。（我突然遇到了这个情况，换成原来的源就解决了）。

二、PCL1.9.0版本下载

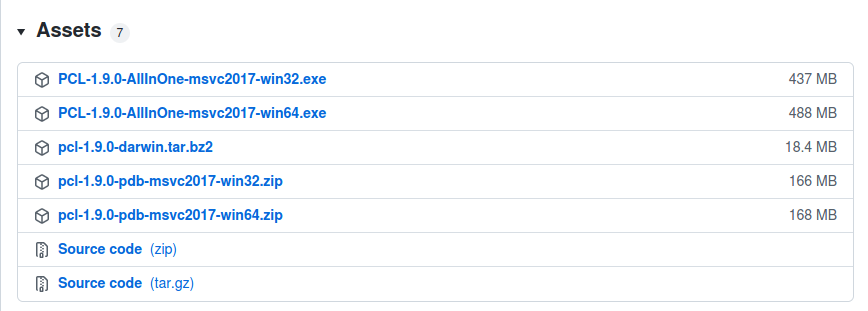

github下载地址：pcl-1.9.0

下载tar.gz版本的

三、编译

将安装包放在home下

1.先解压安装包

复制代码

1
tar -zxvf pcl-pcl-1.9.0.tar.gz

2.进入到安装包

复制代码

1
2
3
cd pcl-pcl-1.9.0
mkdir build
cd build

3.编译

复制代码

1
2
3
cmake -DCMAKE_BUILD_TYPE=Release ..
make -j4
sudo make install

实践较长，等待

四、测试安装环境

pcl_test.cpp

复制代码

//pcl_test.cpp
#include <iostream>
#include <pcl/common/common_headers.h>
#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>
#include <pcl/visualization/cloud_viewer.h>
#include <pcl/console/parse.h>


int main(int argc, char **argv) {
    std::cout << "Test PCL !!!" << std::endl;

    pcl::PointCloud<pcl::PointXYZRGB>::Ptr point_cloud_ptr (new pcl::PointCloud<pcl::PointXYZRGB>);
    uint8_t r(255), g(15), b(15);
    for (float z(-1.0); z <= 1.0; z += 0.05)
    {
      for (float angle(0.0); angle <= 360.0; angle += 5.0)
      {
	pcl::PointXYZRGB point;
	point.x = 0.5 * cosf (pcl::deg2rad(angle));
	point.y = sinf (pcl::deg2rad(angle));
	point.z = z;
	uint32_t rgb = (static_cast<uint32_t>(r) << 16 |
		static_cast<uint32_t>(g) << 8 | static_cast<uint32_t>(b));
	point.rgb = *reinterpret_cast<float*>(&rgb);
	point_cloud_ptr->points.push_back (point);
      }
      if (z < 0.0)
      {
	r -= 12;
	g += 12;
      }
      else
      {
	g -= 12;
	b += 12;
      }
    }
    point_cloud_ptr->width = (int) point_cloud_ptr->points.size ();
    point_cloud_ptr->height = 1;

    pcl::visualization::CloudViewer viewer ("test");
    viewer.showCloud(point_cloud_ptr);
    while (!viewer.wasStopped()){ };
    return 0;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
//pcl_test.cpp
#include <iostream>
#include <pcl/common/common_headers.h>
#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>
#include <pcl/visualization/cloud_viewer.h>
#include <pcl/console/parse.h>


int main(int argc, char **argv) {
    std::cout << "Test PCL !!!" << std::endl;

    pcl::PointCloud<pcl::PointXYZRGB>::Ptr point_cloud_ptr (new pcl::PointCloud<pcl::PointXYZRGB>);
    uint8_t r(255), g(15), b(15);
    for (float z(-1.0); z <= 1.0; z += 0.05)
    {
      for (float angle(0.0); angle <= 360.0; angle += 5.0)
      {
	pcl::PointXYZRGB point;
	point.x = 0.5 * cosf (pcl::deg2rad(angle));
	point.y = sinf (pcl::deg2rad(angle));
	point.z = z;
	uint32_t rgb = (static_cast<uint32_t>(r) << 16 |
		static_cast<uint32_t>(g) << 8 | static_cast<uint32_t>(b));
	point.rgb = *reinterpret_cast<float*>(&rgb);
	point_cloud_ptr->points.push_back (point);
      }
      if (z < 0.0)
      {
	r -= 12;
	g += 12;
      }
      else
      {
	g -= 12;
	b += 12;
      }
    }
    point_cloud_ptr->width = (int) point_cloud_ptr->points.size ();
    point_cloud_ptr->height = 1;

    pcl::visualization::CloudViewer viewer ("test");
    viewer.showCloud(point_cloud_ptr);
    while (!viewer.wasStopped()){ };
    return 0;
}

CMakeLists.txt

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
cmake_minimum_required(VERSION 2.8)
project(pcl_test)

find_package(PCL 1.9 REQUIRED)

include_directories(${PCL_INCLUDE_DIRS})
link_directories(${PCL_LIBRARY_DIRS})
add_definitions(${PCL_DEFINITIONS})

add_executable(pcl_test pcl_test.cpp)

target_link_libraries (pcl_test ${PCL_LIBRARIES})

install(TARGETS pcl_test RUNTIME DESTINATION bin)

效果：
