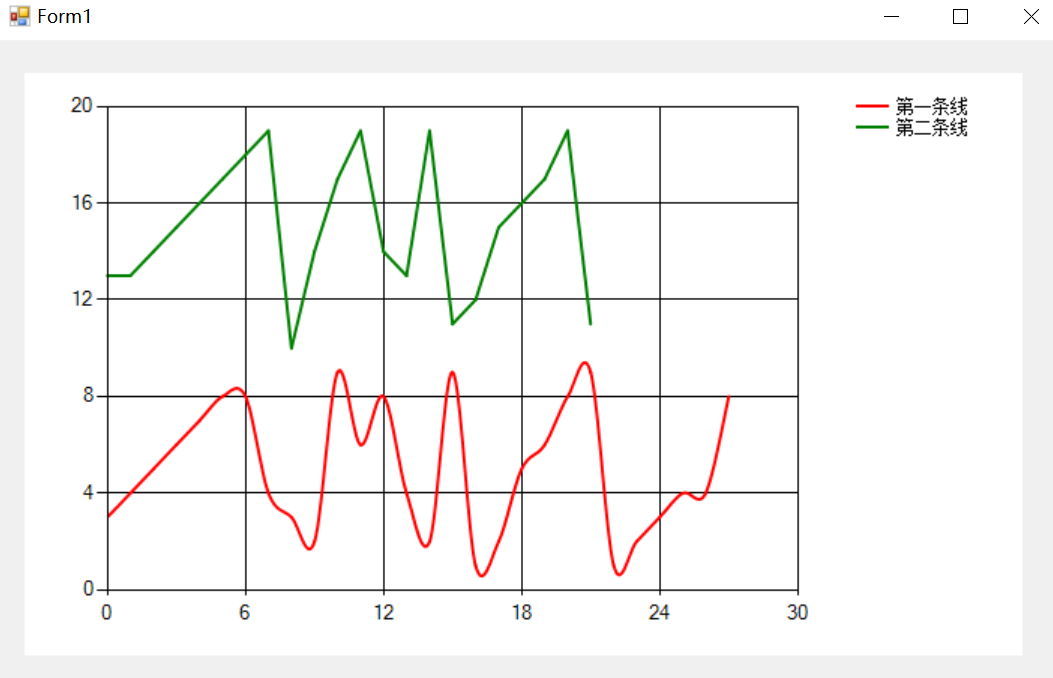

【C#语言】绘制两条折线图

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Windows.Forms.DataVisualization.Charting;

namespace 图表练习
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            // 设置曲线的样式
            Series series1 = new Series();
            series1 = chart1.Series[0];
            series1.ChartType = SeriesChartType.Spline;
            series1.BorderWidth = 2;
            series1.Color = Color.Red;
            series1.LegendText = "第一条线";

            Series series2 = new Series();
            series2 = chart1.Series[1];
            series2.ChartType = SeriesChartType.Line;
            series2.BorderWidth = 2;
            series2.Color = Color.Green;
            series2.LegendText = "第二条线";


            // 准备数据
            int[] myValues1 = { 3, 4, 5, 6, 7, 8, 8, 4, 3, 2, 9, 6, 8, 4, 2, 9, 1, 2, 5, 6, 8, 9, 1, 2, 3, 4, 4, 8 };

            int[] myValues2 = { 13, 13, 14, 15, 16, 17, 18, 19, 10, 14, 17, 19, 14, 13, 19, 11, 12, 15, 16, 17, 19, 11 };

            // 在chart中显示数据

            int xValue1 = 0;
            int xValue2 = 0;
            foreach (int yValue1 in myValues1)
            {
                series1.Points.AddXY(xValue1, yValue1);
                xValue1++;
            }

            foreach (int yValue2 in myValues2)
            {
                series2.Points.AddXY(xValue2, yValue2);
                xValue2++;

            }

            // 设置显示范围
            ChartArea myChartArea = chart1.ChartAreas[0];
            myChartArea.AxisX.Minimum = 0;
            myChartArea.AxisX.Maximum = 30;
            myChartArea.AxisY.Minimum = 0;
            myChartArea.AxisY.Maximum = 20;
        }
    }
}
