概述

神经网络构建：
Multilayer_Perceptron.py:

import numpy as np
from utils.features import prepare_for_training#做归一化
from utils.hypothesis import sigmoid, sigmoid_gradient#sigmoid函数 极其导数



class MultilayerPerceptron:
    #定义初始化函数
    def __init__(self,data,labels,layers,normalize_data =False):
        #数据预处理函数调用
        data_processed = prepare_for_training(data,normalize_data = normalize_data)[0]
        #初始化赋值操作
        self.data= data_processed
        self.labels= labels
        self.layers= layers #784 25 10
        self.normalize_data= normalize_data
        self.thetas = MultilayerPerceptron.thetas_init(layers)#权重参数初始化
        #第一层是输入层，输入像素点个数：28*28*1（长 宽 颜色通道）--不可改
        #第二层：隐层神经元个数 25个（把784特征转化为25维向量）  --可改
        #第三层：分类层，10分类任务

    def predict(self,data):
        data_processed = prepare_for_training(data,normalize_data = self.normalize_data)[0]
        num_examples = data_processed.shape[0]

        predictions = MultilayerPerceptron.feedforward_propagation(data_processed,self.thetas,self.layers)

        return np.argmax(predictions,axis=1).reshape((num_examples,1))#返回最大概率值



        #定义训练模块对参数进行更新，神经网络也是用优化算法去做的（要传入最大迭代次数max_iterations  和学习率alpha）
    def train(self,max_iterations=1000,alpha=0.1):
        #为了方便权重矩阵参数进行更新，把矩阵拉成一个向量，（后面再还原成矩阵）
        unrolled_theta = MultilayerPerceptron.thetas_unroll(self.thetas)
        #调用梯度下降函数对参数进行更新
        (optimized_theta,cost_history) = MultilayerPerceptron.gradient_descent(self.data,self.labels,unrolled_theta,self.layers,max_iterations,alpha)
        #还原成矩阵thetas_roll
        self.thetas = MultilayerPerceptron.thetas_roll(optimized_theta,self.layers)
        return self.thetas,cost_history


         #定义权重矩阵初始化函数（传入要更新权重的层数）
    @staticmethod
    def thetas_init(layers):
        num_layers = len(layers)#layer是list结构
        thetas = {}#定义一个字典 每一层权重参数写里面

        #用for循环对每层权重参数进行赋值
        #在此案例中只有3层784 25 10 需要赋值的只有两层
        #循环执行两次得到25*785和10*26两组矩阵（785 26加上了权重偏置）
        for layer_index in range(num_layers - 1):
            """
                            会执行两次，得到两组参数矩阵：25*785 , 10*26
            """
            in_count = layers[layer_index]
            out_count = layers[layer_index+1]
            # 这里需要考虑到偏置项，记住一点偏置的个数跟输出的结果是一致的
            thetas[layer_index] = np.random.rand(out_count,in_count+1)*0.05 #随机进行初始化操作，值尽量小一点
        return thetas

    #把矩阵合并向量
    @staticmethod
    def thetas_unroll(thetas):
        num_theta_layers = len(thetas)
        unrolled_theta = np.array([])
        for theta_layer_index in range(num_theta_layers):
            unrolled_theta = np.hstack((unrolled_theta,thetas[theta_layer_index].flatten()))
            #flatten只能适用于numpy对象，即array或者mat，普通的list列表不适用 a.flatten()：a是个数组（矩阵），a.flatten()就是把a降到一维，默认是按行的方向降
        return unrolled_theta


    #定义梯度下降函数：梯度下降求的是前向和反向传播的参数更新
    #step:计算loss值 由loss计算梯度值 梯度值更新  return优化完的theta
    @staticmethod
    def gradient_descent(data,labels,unrolled_theta,layers,max_iterations,alpha):

        optimized_theta = unrolled_theta
        cost_history = []

        for _ in range(max_iterations):

            cost = MultilayerPerceptron.cost_function(data,labels,MultilayerPerceptron.thetas_roll(optimized_theta,layers),layers)
            cost_history.append(cost)
            theta_gradient = MultilayerPerceptron.gradient_step(data,labels,optimized_theta,layers)#计算theta梯度
            optimized_theta = optimized_theta - alpha* theta_gradient#对theta进行更新
        return optimized_theta,cost_history

            #计算theta梯度函数：
    @staticmethod
    def gradient_step(data,labels,optimized_theta,layers):
        theta = MultilayerPerceptron.thetas_roll(optimized_theta,layers)#把向量还原为矩阵
        thetas_rolled_gradients = MultilayerPerceptron.back_propagation(data,labels,theta,layers)#调用反向传播函数
        thetas_unrolled_gradients = MultilayerPerceptron.thetas_unroll(thetas_rolled_gradients)
        return thetas_unrolled_gradients


    #定义反向传播函数：
    @staticmethod
    def back_propagation(data,labels,thetas,layers):
        num_layers = len(layers)
        (num_examples,num_features) = data.shape#（1700 875）
        num_label_types = layers[-1]

        deltas = {}
        #初始化操作
        for layer_index in range(num_layers -1 ):
            in_count = layers[layer_index]
            out_count = layers[layer_index+1]
            deltas[layer_index] = np.zeros((out_count,in_count+1)) #25*785 10*26
        for example_index in range(num_examples):
            layers_inputs = {}
            layers_activations = {}
            layers_activation = data[example_index,:].reshape((num_features,1))#785*1
            layers_activations[0] = layers_activation
            #逐层计算
            for layer_index in range(num_layers - 1):
                layer_theta = thetas[layer_index] #得到当前权重参数值 25*785   10*26
                layer_input = np.dot(layer_theta,layers_activation) #第一次得到25*1 第二次10*1
                layers_activation = np.vstack((np.array([[1]]),sigmoid(layer_input)))
                layers_inputs[layer_index + 1] = layer_input #后一层计算结果
                layers_activations[layer_index + 1] = layers_activation #后一层经过激活函数后的结果
            output_layer_activation = layers_activation[1:,:]

            delta = {}
            #标签处理
            bitwise_label = np.zeros((num_label_types,1))
            bitwise_label[labels[example_index][0]] = 1
            #计算输出层和真实值之间的差异
            delta[num_layers - 1] = output_layer_activation - bitwise_label

            #遍历循环 L L-1 L-2 ...2
            for layer_index in range(num_layers - 2,0,-1):
                layer_theta = thetas[layer_index]
                next_delta = delta[layer_index+1]
                layer_input = layers_inputs[layer_index]
                layer_input = np.vstack((np.array((1)),layer_input))
                #按照公式进行计算
                delta[layer_index] = np.dot(layer_theta.T,next_delta)*sigmoid_gradient(layer_input)
                #过滤掉偏置参数
                delta[layer_index] = delta[layer_index][1:,:]
            for layer_index in range(num_layers-1):
                layer_delta = np.dot(delta[layer_index+1],layers_activations[layer_index].T)
                deltas[layer_index] = deltas[layer_index] + layer_delta #第一次25*785  第二次10*26

        for layer_index in range(num_layers -1):

            deltas[layer_index] = deltas[layer_index] * (1/num_examples)

        return deltas


            #定义损失函数
    @staticmethod
    def cost_function(data,labels,thetas,layers):
        num_layers = len(layers)#层数
        num_examples = data.shape[0]#样本个数
        num_labels = layers[-1]#label是layers的最后一层

        #前向传播走一次
        predictions = MultilayerPerceptron.feedforward_propagation(data,thetas,layers)
        #制作标签，每一个样本的标签都得是one-hot
        bitwise_labels = np.zeros((num_examples,num_labels))
        for example_index in range(num_examples):
            bitwise_labels[example_index][labels[example_index][0]] = 1
        bit_set_cost = np.sum(np.log(predictions[bitwise_labels == 1]))
        bit_not_set_cost = np.sum(np.log(1-predictions[bitwise_labels == 0]))
        cost = (-1/num_examples) *(bit_set_cost+bit_not_set_cost)
        return cost


      #定义前向传播函数
    @staticmethod
    def feedforward_propagation(data,thetas,layers):
        num_layers = len(layers)
        num_examples = data.shape[0]
        in_layer_activation = data#输入数据

        # 逐层计算
        for layer_index in range(num_layers - 1):
            theta = thetas[layer_index]
            out_layer_activation = sigmoid(np.dot(in_layer_activation,theta.T))
            # 正常计算完之后是num_examples*25,但是要考虑偏置项 变成num_examples*26
            out_layer_activation = np.hstack((np.ones((num_examples,1)),out_layer_activation))
            in_layer_activation = out_layer_activation

        #返回输出层结果,结果中不要偏置项了
        return in_layer_activation[:,1:]


         #定义矩阵还原函数
    @staticmethod
    def thetas_roll(unrolled_thetas,layers):
        num_layers = len(layers)
        thetas = {}#指定一个字典方便索引那一层矩阵
        unrolled_shift = 0#指定一个标志位 记录到那一层
        for layer_index in range(num_layers - 1):
            in_count = layers[layer_index]
            out_count = layers[layer_index+1]

            thetas_width = in_count + 1
            thetas_height = out_count
            thetas_volume = thetas_width * thetas_height
            start_index = unrolled_shift
            end_index = unrolled_shift + thetas_volume
            layer_theta_unrolled = unrolled_thetas[start_index:end_index]
            thetas[layer_index] = layer_theta_unrolled.reshape((thetas_height,thetas_width))
            unrolled_shift = unrolled_shift+thetas_volume

        return thetas

数据集训练：
minist.py:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.image as mping
import math

from multilayer_perceptron import MultilayerPerceptron


data = pd.read_csv('../neural_network/data/mnist-demo.csv')

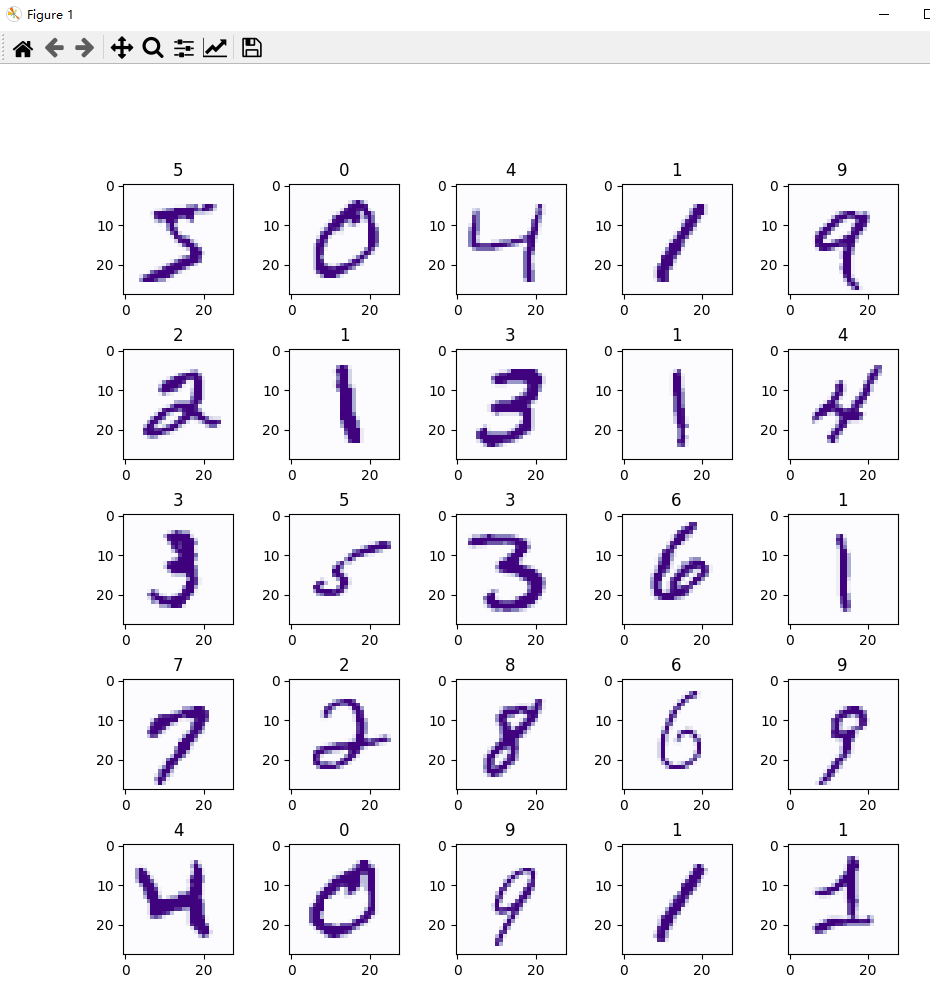

numbers_to_display = 25#要展示图像的数量
num_cells = math.ceil(math.sqrt(numbers_to_display))
plt.figure(figsize=(10,10))
for plot_index in range(numbers_to_display):
    digit = data[plot_index:plot_index+1].values
    digit_label = digit[0][0]
    digit_pixels = digit[0][1:]
    image_size = int(math.sqrt(digit_pixels.shape[0]))
    frame = digit_pixels.reshape((image_size,image_size))
    plt.subplot(num_cells,num_cells,plot_index+1)
    plt.imshow(frame,cmap='Purples')
    plt.title(digit_label)
plt.subplots_adjust(wspace=0.5,hspace=0.5)
plt.show()

train_data = data.sample(frac = 0.8)
test_data = data.drop(train_data.index)

train_data = train_data.values
test_data = test_data.values

num_training_examples = 5000

x_train = train_data[:num_training_examples,1:]
y_train = train_data[:num_training_examples,[0]]

x_test = test_data[:,1:]
y_test = test_data[:,[0]]


layers=[784,25,10]

normalize_data = True
max_iterations = 500
alpha = 0.1


multilayer_perceptron = MultilayerPerceptron(x_train,y_train,layers,normalize_data)
(thetas,costs) = multilayer_perceptron.train(max_iterations,alpha)

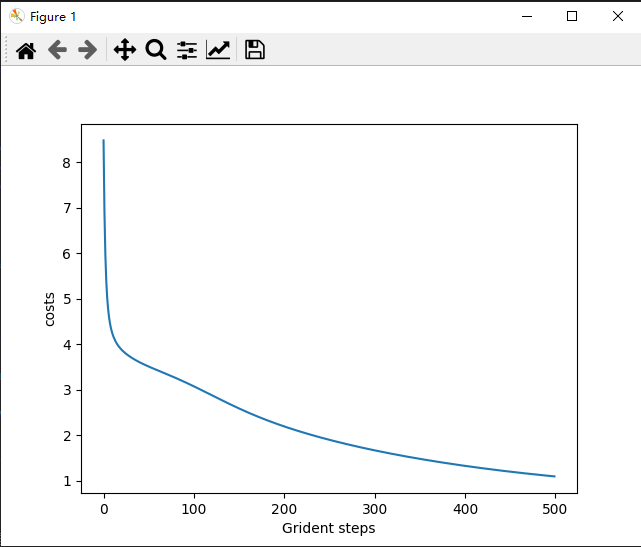

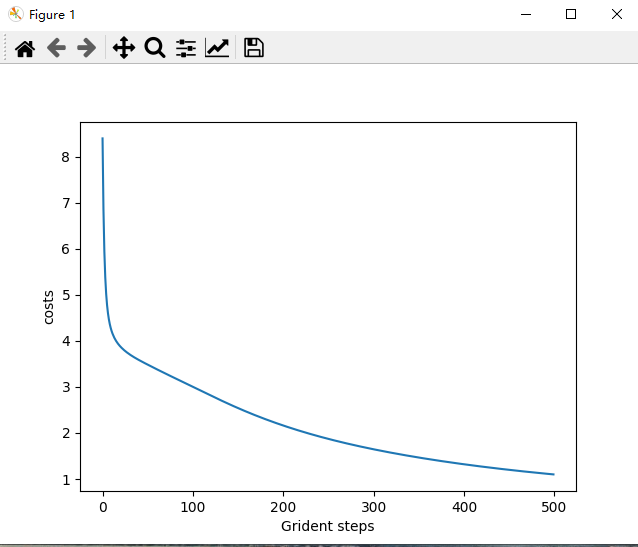

plt.plot(range(len(costs)),costs)
plt.xlabel('Grident steps')
plt.ylabel('costs')
plt.show()


y_train_predictions = multilayer_perceptron.predict(x_train)
y_test_predictions = multilayer_perceptron.predict(x_test)

train_p = np.sum(y_train_predictions == y_train)/y_train.shape[0] * 100
test_p = np.sum(y_test_predictions == y_test)/y_test.shape[0] * 100
print ('训练集准确率：',train_p)
print ('测试集准确率：',test_p)

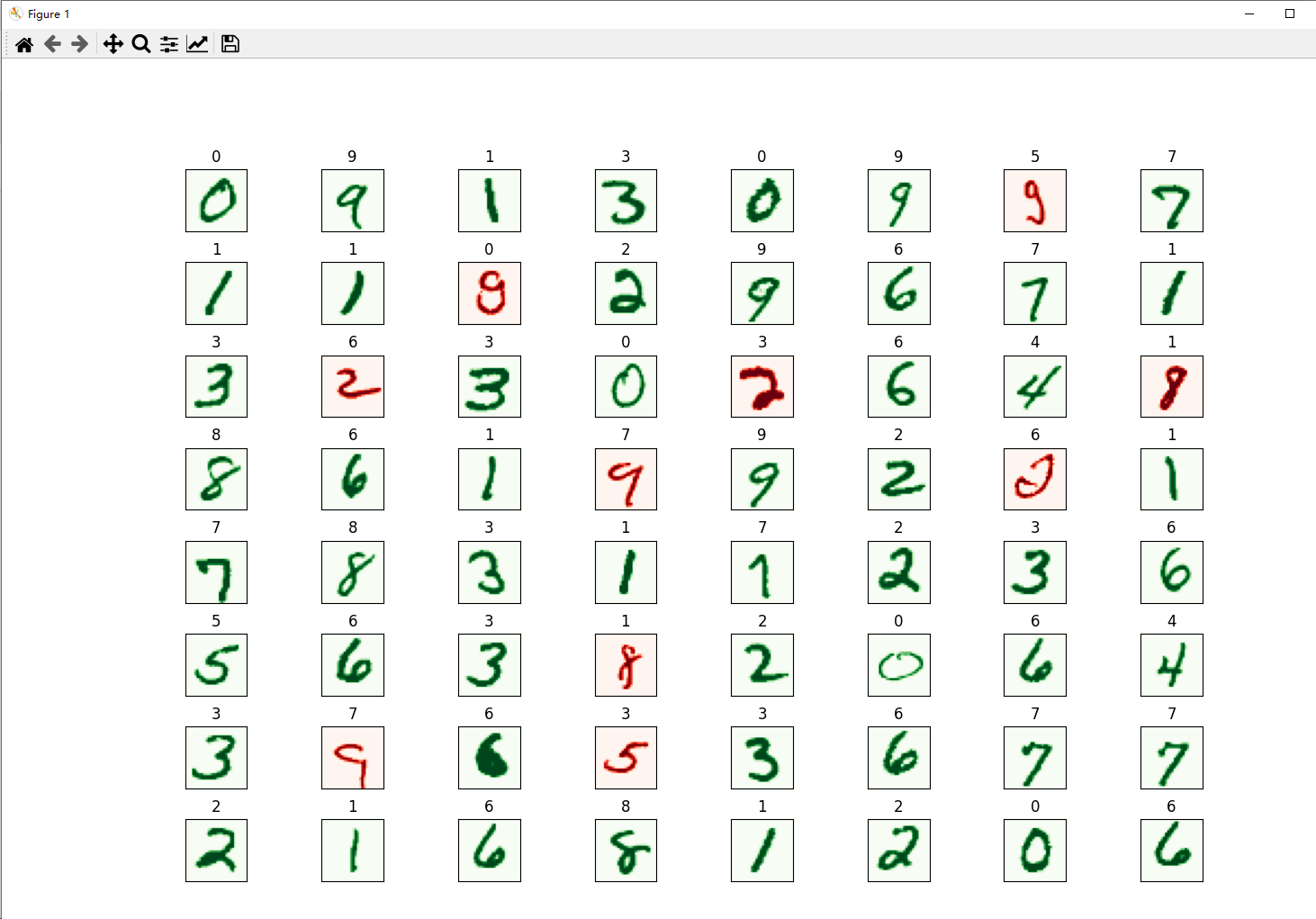

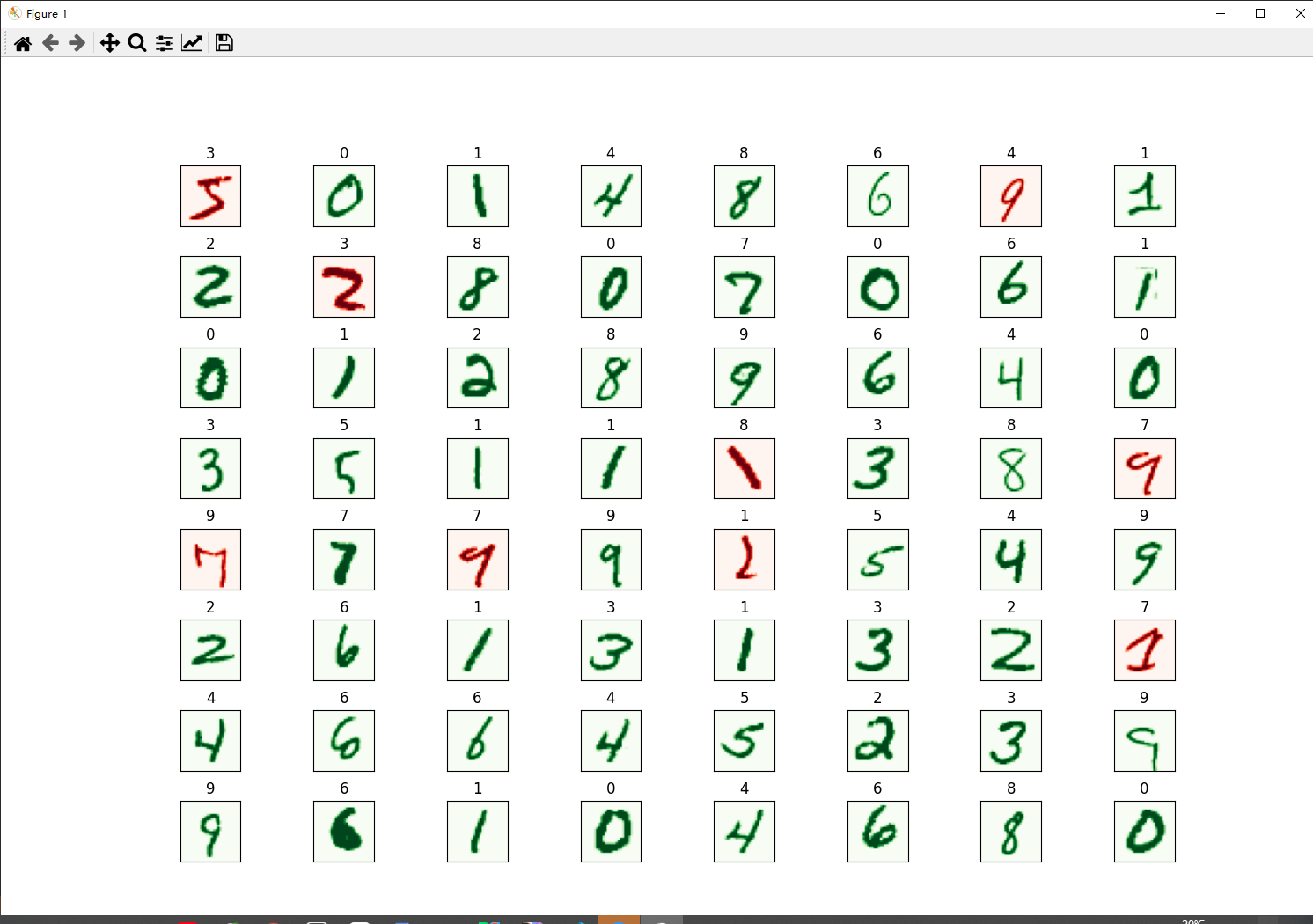

numbers_to_display = 64

num_cells = math.ceil(math.sqrt(numbers_to_display))

plt.figure(figsize=(15, 15))

for plot_index in range(numbers_to_display):
    digit_label = y_test[plot_index, 0]
    digit_pixels = x_test[plot_index, :]

    predicted_label = y_test_predictions[plot_index][0]

    image_size = int(math.sqrt(digit_pixels.shape[0]))

    frame = digit_pixels.reshape((image_size, image_size))

    color_map = 'Greens' if predicted_label == digit_label else 'Reds'
    plt.subplot(num_cells, num_cells, plot_index + 1)
    plt.imshow(frame, cmap=color_map)
    plt.title(predicted_label)
    plt.tick_params(axis='both', which='both', bottom=False, left=False, labelbottom=False, labelleft=False)

plt.subplots_adjust(hspace=0.5, wspace=0.5)
plt.show()
