概述

Qt中已经为我们封装了很好用的窗口风格，但在实际开发过程当中，要么需求要么UI抛过来的界面要求总是平添许多工作量。今天得空便来记录下我在项目中实现的一个需求：扁平化界面风格。虽然可能还会在未来的使用过程中暴露出一些问题，但目前还是可以满足基本使用需求的。

进入正题，首先我们必须创建一个基于QDialog的带界面的类，然后对Qt生成的窗体进行改造，再在代码中应用信号槽机制实现类似于原生窗体的事件交互。下面是实现代码：

YMDialog.h

#ifndef YMDIALOG_H
#define YMDIALOG_H

#include <QtWidgets/QDialog>
#include <QMouseEvent>
#include <QPoint>

#include "ui_YMDialog.h"

#define PADDING 2
enum Direction { UP=0, DOWN=1, LEFT, RIGHT, LEFTTOP, LEFTBOTTOM, RIGHTBOTTOM, RIGHTTOP, NONE };

//无边框窗口
class YMDialog : public QDialog
{
Q_OBJECT

public:
YMDialog(QWidget *parent = 0);
~YMDialog();

void mousePressEvent(QMouseEvent * e);
void mouseReleaseEvent(QMouseEvent * e);
void mouseMoveEvent(QMouseEvent * e);

void region(const QPoint &cursorGlobalPoint);
public slots:
void minButtonSlot();
void maxButtonSlot();
void closeButtonSlot();

private:
Ui::YMDialogClass ui;

QPoint move_point; //移动的距离
bool mouse_press; //鼠标按下

bool isNormal;
QSize nomalSize;
QSize maxSize;
QPoint nomalPoint;
QPoint maxPoint;

bool isLeftPressDown; // 判断左键是否按下
QPoint dragPosition; // 窗口移动拖动时需要记住的点
Direction dir; // 窗口大小改变时，记录改变方向
};

#endif // YMDIALOG_H

YMDialog.cpp

#include "YMDialog.h"

#include <QToolButton>
#include <QLabel>
#include <QAction>
#include <QDesktopWidget>

YMDialog::YMDialog(QWidget *parent)
: QDialog(parent)
{
ui.setupUi(this);

nomalSize.setWidth(600);
nomalSize.setHeight(400);
isNormal = true;

QDesktopWidget* detk = QApplication::desktop();
nomalPoint.setX((detk->width() - this->width())/2);
nomalPoint.setY((detk->height() - this->height())/2);

maxSize.setWidth(detk->width());
maxSize.setHeight(detk->height());

maxPoint.setX(detk->availableGeometry().x());
maxPoint.setY(detk->availableGeometry().y());

dir = NONE;

setWindowFlags(Qt::FramelessWindowHint | Qt::WindowStaysOnTopHint);
setMouseTracking(true);
ui.widget->setMouseTracking(true);

//自定义背景1
//QLabel * background = new QLabel(this);
//background->setStyleSheet("background-color:rgb(120, 120, 255)");
//background->setGeometry(0,0,this->width(),this->height());

//background->setMouseTracking(true);

//background->setPixmap(QPixmap(":/YMDialog/Resources/background.png"));
//background->setGeometry(0,0,this->width(),this->height());
//设置图片充满整个label
//background->setScaledContents(true);

//获取最大化、最小化、关闭按钮图标
QPixmap minPix = style()->standardPixmap(QStyle::SP_TitleBarMinButton);
QPixmap maxPix = style()->standardPixmap(QStyle::SP_TitleBarMaxButton);
QPixmap closePix = style()->standardPixmap(QStyle::SP_TitleBarCloseButton);

//为按钮设置图标
ui.minbtn->setIcon(minPix);
ui.maxbtn->setIcon(maxPix);
ui.closebtn->setIcon(closePix);

int width = this->width(); //获取界面的宽度

//设置按钮在窗口上的位置
ui.minbtn->setGeometry(width-67,5,20,20);
ui.maxbtn->setGeometry(width-46,5,20,20);
ui.closebtn->setGeometry(width-25,5,20,20);

//设置按钮的提示信息
ui.minbtn->setToolTip(QStringLiteral("最小化"));
ui.maxbtn->setToolTip(QStringLiteral("最大化"));
ui.closebtn->setToolTip(QStringLiteral("关闭"));

//设置按钮样式
//ui.minbtn->setStyleSheet("background-color:transparent");
//ui.maxbtn->setStyleSheet("background-color:transparent");
//ui.closebtn->setStyleSheet("background-color:transparent");

ui.minbtn->setStyleSheet("QToolButton{background-color:transparent;}"
  "QToolButton:hover{border: 0px;background-color: rgb(141, 141, 141);}"
  "QToolButton:pressed{background-color: rgb(86, 86, 86);}");
ui.maxbtn->setStyleSheet("QToolButton{background-color:transparent;}"
  "QToolButton:hover{border: 0px;background-color: rgb(141, 141, 141);}"
  "QToolButton:pressed{background-color: rgb(86, 86, 86);}");
ui.closebtn->setStyleSheet("QToolButton{background-color:transparent;}"
  "QToolButton:hover{border: 0px;background-color: rgb(141, 141, 141);}"
  "QToolButton:pressed{background-color: rgb(86, 86, 86);}");

//this->setStyleSheet("background-color: rgb(95, 143, 143);");

connect(ui.minbtn,SIGNAL(clicked()),this, SLOT(minButtonSlot()));
connect(ui.maxbtn,SIGNAL(clicked()),this, SLOT(maxButtonSlot()));
connect(ui.closebtn,SIGNAL(clicked()),this, SLOT(closeButtonSlot()));

mouse_press = false;

//QFile file(":/YMDialog/qss/coffee.qss");
//file.open(QFile::ReadOnly);
//QString styleSheet = QString::fromLatin1(file.readAll());
//qApp->setStyleSheet(styleSheet);
}

YMDialog::~YMDialog()
{

}

void YMDialog::mousePressEvent( QMouseEvent * e )
{
if (e->button() == Qt::LeftButton)
{
mouse_press = true;
move_point = e->pos();

  if(dir != NONE)
  {
   this->mouseGrabber();
  } else
  {
   dragPosition = e->globalPos() - this->frameGeometry().topLeft();
  }
}
}

void YMDialog::mouseReleaseEvent( QMouseEvent * e )
{
mouse_press = false;
if(dir != NONE)
{
this->releaseMouse();
this->setCursor(QCursor(Qt::ArrowCursor));
}
}

void YMDialog::mouseMoveEvent( QMouseEvent * e )
{
QPoint gloPoint = e->globalPos();
QRect rect = this->rect();
QPoint tl = mapToGlobal(rect.topLeft());
QPoint rb = mapToGlobal(rect.bottomRight());

if(!mouse_press)
{
  this->region(gloPoint);
} else
{
  if(dir != NONE)
  {
   QRect rMove(tl, rb);

   switch(dir)
   {
   case LEFT:
    if(rb.x() - gloPoint.x() <= this->minimumWidth())
     rMove.setX(tl.x());
    else
     rMove.setX(gloPoint.x());
    break;
   case RIGHT:
    rMove.setWidth(gloPoint.x() - tl.x());
    break;
   case UP:
    if(rb.y() - gloPoint.y() <= this->minimumHeight())
     rMove.setY(tl.y());
    else
     rMove.setY(gloPoint.y());
    break;
   case DOWN:
    rMove.setHeight(gloPoint.y() - tl.y());
    break;
   case LEFTTOP:
    if(rb.x() - gloPoint.x() <= this->minimumWidth())
     rMove.setX(tl.x());
    else
     rMove.setX(gloPoint.x());
    if(rb.y() - gloPoint.y() <= this->minimumHeight())
     rMove.setY(tl.y());
    else
     rMove.setY(gloPoint.y());
    break;
   case RIGHTTOP:
    rMove.setWidth(gloPoint.x() - tl.x());
    rMove.setY(gloPoint.y());
    break;
   case LEFTBOTTOM:
    rMove.setX(gloPoint.x());
    rMove.setHeight(gloPoint.y() - tl.y());
    break;
   case RIGHTBOTTOM:
    rMove.setWidth(gloPoint.x() - tl.x());
    rMove.setHeight(gloPoint.y() - tl.y());
    break;
   default:
    break;
   }
   this->setGeometry(rMove);
  } else
  {
   QPoint move_pos = e->globalPos();
   this->move(move_pos - move_point);
  }
}
QDialog::mouseMoveEvent(e);
}

void YMDialog::minButtonSlot()
{
this->showMinimized();
}

void YMDialog::maxButtonSlot()
{
if(isNormal)
{
  //this->showMaximized();
  this->setGeometry(maxPoint.x(),maxPoint.y(),maxSize.width(),maxSize.height());
  isNormal = false;
}
else
{
  this->setGeometry(nomalPoint.x(),nomalPoint.y(),nomalSize.width(),nomalSize.height());
  isNormal = true;
}
}

void YMDialog::closeButtonSlot()
{
this->close();
}

void YMDialog::region(const QPoint &cursorGlobalPoint)
{
// 获取窗体在屏幕上的位置区域，tl为topleft点，rb为rightbottom点
QRect rect = this->rect();
QPoint tl = mapToGlobal(rect.topLeft());
QPoint rb = mapToGlobal(rect.bottomRight());

int x = cursorGlobalPoint.x();
int y = cursorGlobalPoint.y();

if(tl.x() + PADDING >= x && tl.x() <= x && tl.y() + PADDING >= y && tl.y() <= y)
{
  // 左上角
  dir = LEFTTOP;
  this->setCursor(QCursor(Qt::SizeFDiagCursor)); // 设置鼠标形状
} else if(x >= rb.x() - PADDING && x <= rb.x() && y >= rb.y() - PADDING && y <= rb.y())
{
  // 右下角
  dir = RIGHTBOTTOM;
  this->setCursor(QCursor(Qt::SizeFDiagCursor));
} else if(x <= tl.x() + PADDING && x >= tl.x() && y >= rb.y() - PADDING && y <= rb.y())
{
  //左下角
  dir = LEFTBOTTOM;
  this->setCursor(QCursor(Qt::SizeBDiagCursor));
} else if(x <= rb.x() && x >= rb.x() - PADDING && y >= tl.y() && y <= tl.y() + PADDING)
{
  // 右上角
  dir = RIGHTTOP;
  this->setCursor(QCursor(Qt::SizeBDiagCursor));
} else if(x <= tl.x() + PADDING && x >= tl.x())
{
  // 左边
  dir = LEFT;
  this->setCursor(QCursor(Qt::SizeHorCursor));
} else if( x <= rb.x() && x >= rb.x() - PADDING)
{
  // 右边
  dir = RIGHT;
  this->setCursor(QCursor(Qt::SizeHorCursor));
}else if(y >= tl.y() && y <= tl.y() + PADDING)
{
  // 上边
  dir = UP;
  this->setCursor(QCursor(Qt::SizeVerCursor));
} else if(y <= rb.y() && y >= rb.y() - PADDING)
{
  // 下边
  dir = DOWN;
  this->setCursor(QCursor(Qt::SizeVerCursor));
}else
{
  // 默认
  dir = NONE;
  this->setCursor(QCursor(Qt::ArrowCursor));
}
}

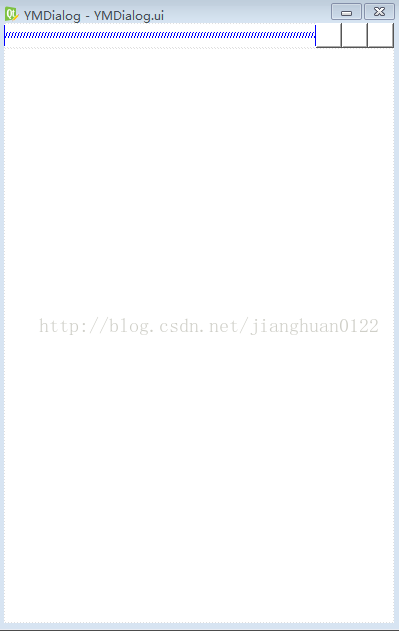

界面ui文件

/********************************************************************************
** Form generated from reading UI file 'YMDialog.ui'
**
** Created by: Qt User Interface Compiler version 5.5.1
**
** WARNING! All changes made in this file will be lost when recompiling UI file!
********************************************************************************/

#ifndef UI_YMDIALOG_H
#define UI_YMDIALOG_H

#include <QtCore/QVariant>
#include <QtWidgets/QAction>
#include <QtWidgets/QApplication>
#include <QtWidgets/QButtonGroup>
#include <QtWidgets/QDialog>
#include <QtWidgets/QHBoxLayout>
#include <QtWidgets/QHeaderView>
#include <QtWidgets/QSpacerItem>
#include <QtWidgets/QToolButton>
#include <QtWidgets/QVBoxLayout>
#include <QtWidgets/QWidget>

QT_BEGIN_NAMESPACE

class Ui_YMDialogClass
{
public:
    QVBoxLayout *verticalLayout;
    QWidget *widget_2;
    QHBoxLayout *horizontalLayout_2;
    QSpacerItem *horizontalSpacer;
    QToolButton *minbtn;
    QToolButton *maxbtn;
    QToolButton *closebtn;
    QWidget *widget;

    void setupUi(QDialog *YMDialogClass)
    {
        if (YMDialogClass->objectName().isEmpty())
            YMDialogClass->setObjectName(QStringLiteral("YMDialogClass"));
        YMDialogClass->resize(390, 600);
        YMDialogClass->setStyleSheet(QStringLiteral(""));
        verticalLayout = new QVBoxLayout(YMDialogClass);
        verticalLayout->setSpacing(0);
        verticalLayout->setContentsMargins(11, 11, 11, 11);
        verticalLayout->setObjectName(QStringLiteral("verticalLayout"));
        verticalLayout->setContentsMargins(0, 0, 0, 0);
        widget_2 = new QWidget(YMDialogClass);
        widget_2->setObjectName(QStringLiteral("widget_2"));
        widget_2->setMaximumSize(QSize(16777215, 25));
        widget_2->setStyleSheet(QStringLiteral("background-color: rgb(255, 255, 255);"));
        horizontalLayout_2 = new QHBoxLayout(widget_2);
        horizontalLayout_2->setSpacing(0);
        horizontalLayout_2->setContentsMargins(11, 11, 11, 11);
        horizontalLayout_2->setObjectName(QStringLiteral("horizontalLayout_2"));
        horizontalLayout_2->setContentsMargins(0, 0, 0, 0);
        horizontalSpacer = new QSpacerItem(40, 20, QSizePolicy::Expanding, QSizePolicy::Minimum);

horizontalLayout_2->addItem(horizontalSpacer);

minbtn = new QToolButton(widget_2);
minbtn->setObjectName(QStringLiteral("minbtn"));

horizontalLayout_2->addWidget(minbtn);

maxbtn = new QToolButton(widget_2);
maxbtn->setObjectName(QStringLiteral("maxbtn"));

horizontalLayout_2->addWidget(maxbtn);

closebtn = new QToolButton(widget_2);
closebtn->setObjectName(QStringLiteral("closebtn"));

horizontalLayout_2->addWidget(closebtn);

verticalLayout->addWidget(widget_2);

        widget = new QWidget(YMDialogClass);
        widget->setObjectName(QStringLiteral("widget"));
        QSizePolicy sizePolicy(QSizePolicy::Expanding, QSizePolicy::Expanding);
        sizePolicy.setHorizontalStretch(0);
        sizePolicy.setVerticalStretch(0);
        sizePolicy.setHeightForWidth(widget->sizePolicy().hasHeightForWidth());
        widget->setSizePolicy(sizePolicy);
        widget->setStyleSheet(QStringLiteral("background-color: rgb(255, 255, 255);"));

verticalLayout->addWidget(widget);

retranslateUi(YMDialogClass);

QMetaObject::connectSlotsByName(YMDialogClass);
} // setupUi

    void retranslateUi(QDialog *YMDialogClass)
    {
        YMDialogClass->setWindowTitle(QApplication::translate("YMDialogClass", "YMDialog", 0));
        minbtn->setText(QString());
        maxbtn->setText(QString());
        closebtn->setText(QString());
    } // retranslateUi

};

namespace Ui {
class YMDialogClass: public Ui_YMDialogClass {};
} // namespace Ui

QT_END_NAMESPACE

#endif // UI_YMDIALOG_H

注意：承载实际功能区最底层的widget需要设置setMouseTracking(true)，否则将跟踪不到鼠标的拖动事件。
