概述

今天是2022年10月24号，广大程序员口中程序员的节日，在此祝大家节日快乐，在以后的编码生涯中一撸到底无BUG，哈哈。言归正传，今天来学一下Dubbo go中的几个高级特性。

前提条件

下载代码

# 1. 下载 官网 sample 源代码
git clone https://github.com/apache/dubbo-go-samples

# 2. 在项目根目录下 执行以下命令 下载golang的相关依赖
go mod tidy

启动 zookeeper

上下文传递

用于客户端、服务端在RPC调用过程中增加额外的参数信息，已满足特殊的需求。如在一次RPC中需要实现全链路日志跟踪的需求，用来方便日志排查、问题追踪、性能优化等等。

此类需求，通常的做法是调用方生成一个唯一请求ID，然后将ID传递给后续的每一个RPC调用。因此在系统运维的角度看，只需要找到该ID，就可以定位一个请求的前世今生，包含整个rpc方法执行的调用链，对于定位问题非常的有帮助。

如系统A -> 系统B -> 系统C。当意外情况出现时，就可以根据全链路日志跟踪系统，判断到底哪个系统出现问题了。

该demo代码在 context 子模块中。

运行服务端代码

# 1. 跳转到指定目录
cd /Users/andy/tool/golang/dubbo-go-samples/context/triple/go-server/cmd

# 2. 导出配置文件地址
export  DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/context/triple/go-server/conf/dubbogo.yml

# 3. 运行代码
go run .

运行客户端代码

# 1. 跳转到指定目录
cd /Users/andy/tool/golang/dubbo-go-samples/context/triple/go-client/cmd

# 2. 导出配置文件地址
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/context/triple/go-client/conf/dubbogo.yml

# 3. 运行代码
go run .

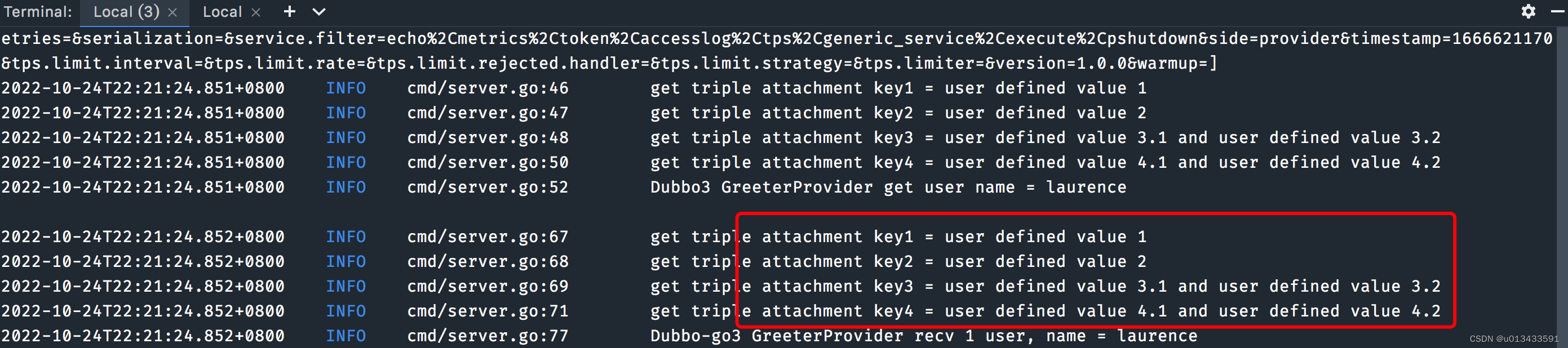

服务端输入的日志截图如下：

在这里插入图片描述

核心代码

服务端

func (s *GreeterProvider) SayHelloStream(svr api.Greeter_SayHelloStreamServer) error {
	// map must be assert to map[string]interface, because of dubbo limitation
	attachments := svr.Context().Value(constant.AttachmentKey).(map[string]interface{})

	// value must be assert to []string[0], because of http2 header limitation
	logger.Infof("get triple attachment key1 = %s", attachments["key1"].([]string)[0])
	logger.Infof("get triple attachment key2 = %s", attachments["key2"].([]string)[0])
	logger.Infof("get triple attachment key3 = %s and %s", attachments["key3"].([]string)[0],
		attachments["key3"].([]string)[1])
  // 当传递参数为数组时，根据下标获取 每一个参数的值
	logger.Infof("get triple attachment key4 = %s and %s", attachments["key4"].([]string)[0],
		attachments["key4"].([]string)[1])
	c, err := svr.Recv()
	if err != nil {
		return err
	}
	logger.Infof("Dubbo-go3 GreeterProvider recv 1 user, name = %sn", c.Name)
	err = svr.Send(&api.User{
		Name: "hello " + c.Name,
		Age:  18,
		Id:   "123456789",
	})
	if err != nil {
		return err
	}
	return nil
}

客户端

func main() {
	err := config.Load()
	if err != nil {
		panic(err)
	}

	logger.Info("start to test triple unary context attachment transport")
	req := &api.HelloRequest{
		Name: "laurence",
	}
	ctx := context.Background()
	// set user defined context attachment, map value can be string or []string, otherwise it is not to be transferred
	userDefinedValueMap := make(map[string]interface{})
	userDefinedValueMap["key1"] = "user defined value 1"
	userDefinedValueMap["key2"] = "user defined value 2"
	userDefinedValueMap["key3"] = []string{"user defined value 3.1", "user defined value 3.2"}
	userDefinedValueMap["key4"] = []string{"user defined value 4.1", "user defined value 4.2"}
	ctx = context.WithValue(ctx, constant.AttachmentKey, userDefinedValueMap)
	reply, err := grpcGreeterImpl.SayHello(ctx, req)
	if err != nil {
		logger.Error(err)
	}
	logger.Infof("client response result: %vn", reply)

	//stream rpc
	logger.Info("start to test triple streaming rpc context attachment transport")
	request := &api.HelloRequest{
		Name: "laurence",
	}
	stream, err := grpcGreeterImpl.SayHelloStream(ctx)
	if err != nil {
		logger.Error(err)
	}
	// stream grpc双向流式发送
	err = stream.Send(request)
	if err != nil {
		logger.Error(err)
	}
	logger.Infof("client stream send request: %vn", request)

	var wg sync.WaitGroup
	wg.Add(1)
	go func() {
		defer wg.Done()
		reply, err := stream.Recv()
		if err != nil {
			logger.Error(err)
		}
		logger.Infof("client stream received result: %vn", reply)
	}()
	wg.Wait()
}

异常信息回传

用户可以在 provider 端生成用户定义的异常信息，可以记录异常产生堆栈，triple 协议可保证将用户在客户端获取到异常 message ，并可以查看报错堆栈，便于定位问题。

运行服务端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/error/triple/hessian2/go-server/cmd

# 2. 导出配置文件
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/error/triple/hessian2/go-service/conf/dubbogo.yml

# 3. 启动服务
go run .

运行客户端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/helloworld/java-client

# 2. 授权 sh 脚本
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/error/triple/hessian2/go-client/conf/dubbogo.yml

# 3. 启动 项目
go run .

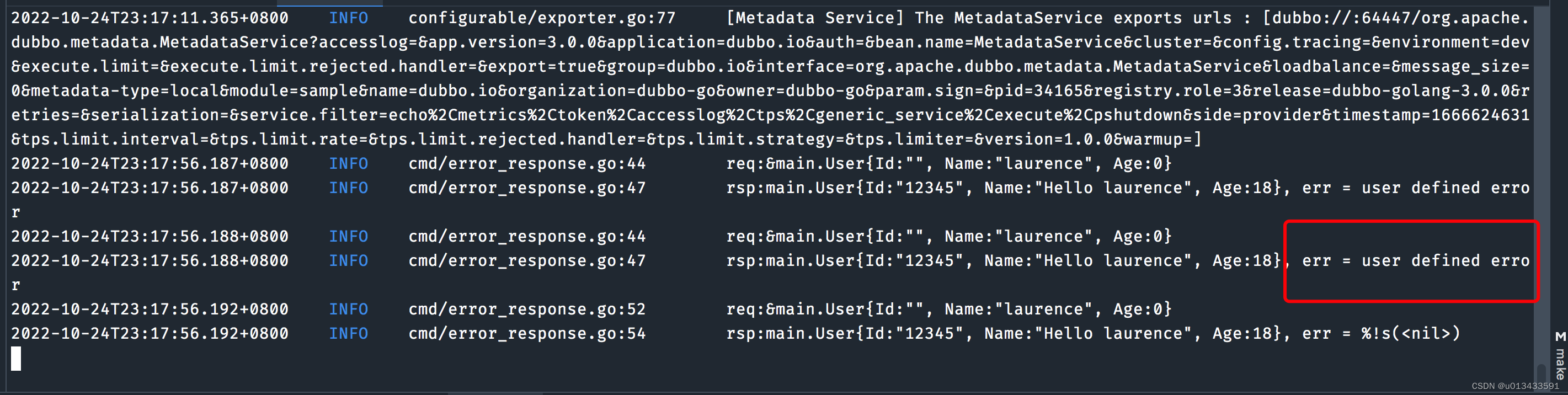

服务端截图

在这里插入图片描述

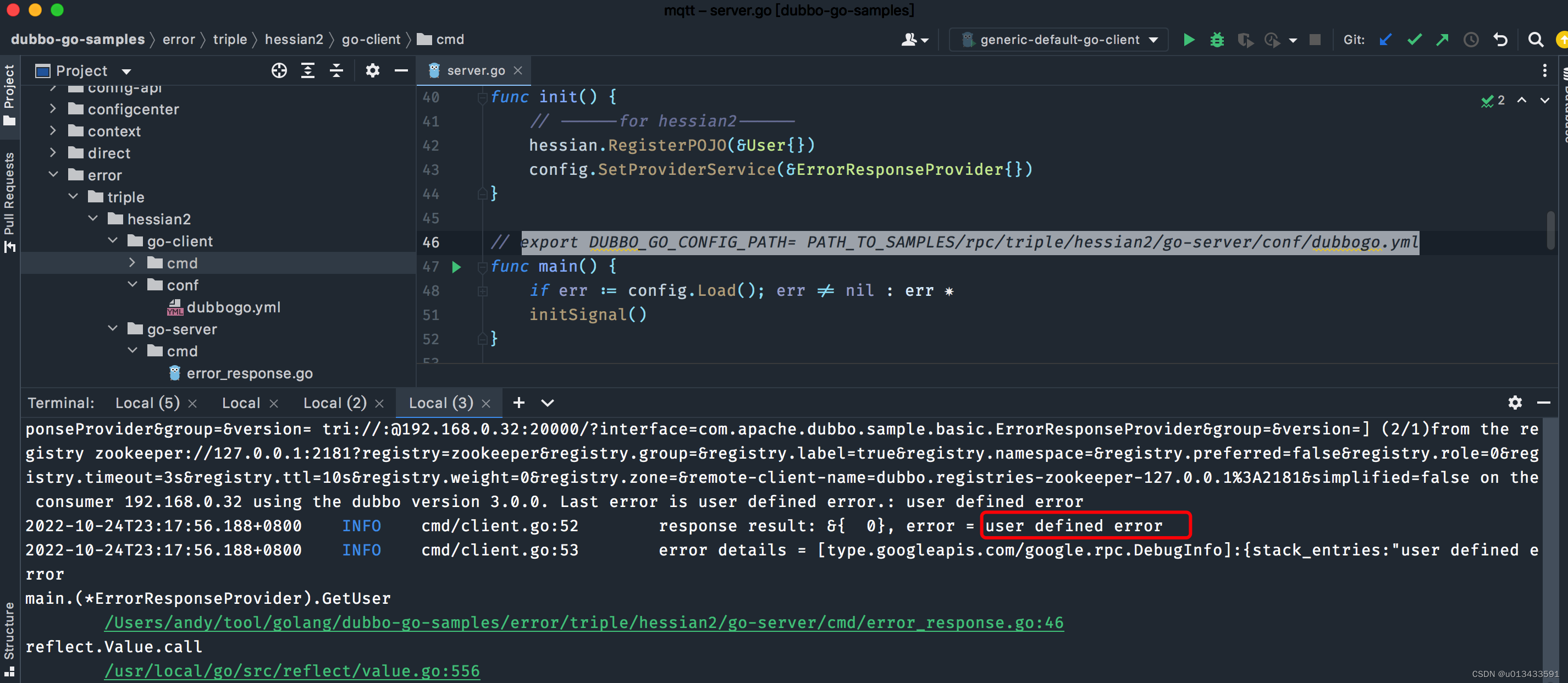

客户端截图

在这里插入图片描述

核心代码

服务端代码

package main

import (
	"fmt"
	"os"
	"os/signal"
	"syscall"
	"time"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/imports"

	hessian "github.com/apache/dubbo-go-hessian2"
)

var (
	survivalTimeout = int(3 * time.Second)
)

func init() {
	// ------for hessian2------
	hessian.RegisterPOJO(&User{})
	config.SetProviderService(&ErrorResponseProvider{})
}

// export DUBBO_GO_CONFIG_PATH= PATH_TO_SAMPLES/rpc/triple/hessian2/go-server/conf/dubbogo.yml
func main() {
	if err := config.Load(); err != nil {
		panic(err)
	}
	initSignal()
}

func initSignal() {
	signals := make(chan os.Signal, 1)
	// It is not possible to block SIGKILL or syscall.SIGSTOP
	signal.Notify(signals, os.Interrupt, syscall.SIGHUP, syscall.SIGQUIT, syscall.SIGTERM, syscall.SIGINT)
	for {
		sig := <-signals
		logger.Infof("get signal %s", sig.String())
		switch sig {
		case syscall.SIGHUP:
			// reload()
		default:
			time.Sleep(time.Second * 5)
			time.AfterFunc(time.Duration(survivalTimeout), func() {
				logger.Warnf("app exit now by force...")
				os.Exit(1)
			})

			// The program exits normally or timeout forcibly exits.
			fmt.Println("provider app exit now...")
			return
		}
	}
}

客户端代码


package main

import (
	"context"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/imports"

	hessian "github.com/apache/dubbo-go-hessian2"

	tripleCommon "github.com/dubbogo/triple/pkg/common"
)

var errorResponseProvider = new(ErrorResponseProvider)

func init() {
	config.SetConsumerService(errorResponseProvider)
	hessian.RegisterPOJO(&User{})
}

// need to setup environment variable "CONF_CONSUMER_FILE_PATH" to "conf/client.yml" before run
func main() {
	if err := config.Load(); err != nil {
		panic(err)
	}
	testErrorService()
	testService()
}

func testErrorService() {
	if user, err := errorResponseProvider.GetUser(context.TODO(), &User{Name: "laurence"}); err != nil {
		logger.Infof("response result: %v, error = %s", user, err)
		logger.Infof("error details = %+v", err.(tripleCommon.TripleError).Stacks())
	}
}

func testService() {
	if user, err := errorResponseProvider.GetUserWithoutError(context.TODO(), &User{Name: "laurence"}); err != nil {
		logger.Infof("response result: %v, error = %s", user, err)
		logger.Infof("error details = %+v", err.(tripleCommon.TripleError).Stacks())
	}
}

自定义Filter

Dubbo中Filter 是由一组Filter组成的一个Filter链，采用责任链模式进行开发。Filter内部可以控制RPC调用的行为，如参数验证、IP限制、流量限制等等。今天来学习一下Dubbo go中的自定义Filter

运行服务端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/filter/custom/go-server/cmd

# 2. 导出配置文件
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/filter/custom/go-server/conf/dubbogo.yml

# 3. 启动服务
go run .

运行服务端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/filter/custom/go-client/cmd

# 2. 导出配置文件
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/filter/custom/go-client/conf/dubbogo.yml

# 3. 启动服务
go run .

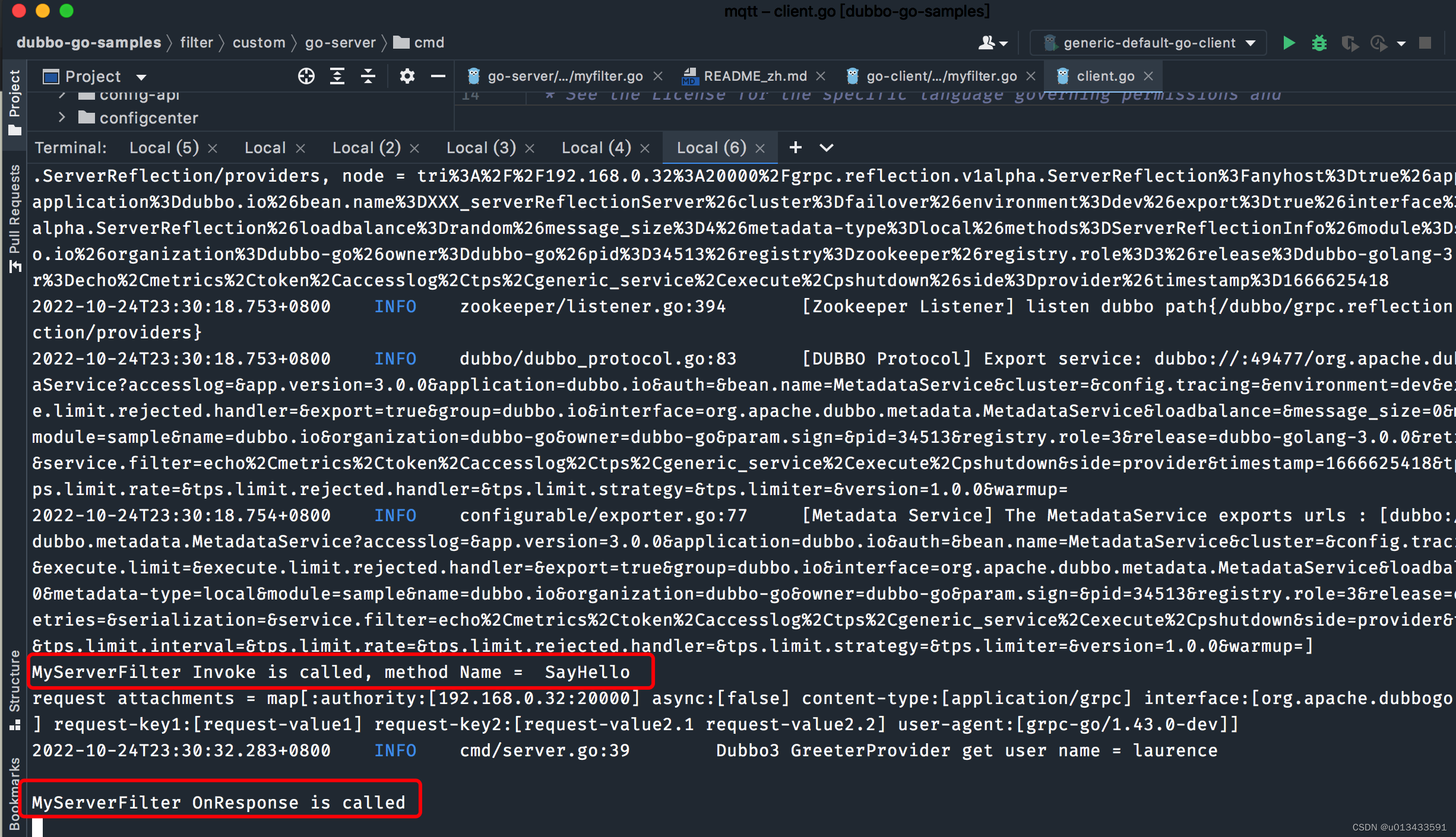

服务端日志

在这里插入图片描述

客户端日志

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-ThTp1iAw-1666626986335)(/Users/andy/Library/Application Support/typora-user-images/image-20221024233412665.png)]

核心代码

服务端 Filter


package main

import (
	"context"
	"fmt"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/extension"
	"dubbo.apache.org/dubbo-go/v3/filter"
	"dubbo.apache.org/dubbo-go/v3/protocol"
)

func init() {
	extension.SetFilter("myServerFilter", NewMyServerFilter)
}

func NewMyServerFilter() filter.Filter {
	return &MyServerFilter{}
}

type MyServerFilter struct {
}

func (f *MyServerFilter) Invoke(ctx context.Context, invoker protocol.Invoker, invocation protocol.Invocation) protocol.Result {
	fmt.Println("MyServerFilter Invoke is called, method Name = ", invocation.MethodName())
	fmt.Printf("request attachments = %sn", invocation.Attachments())
	return invoker.Invoke(ctx, invocation)
}
func (f *MyServerFilter) OnResponse(ctx context.Context, result protocol.Result, invoker protocol.Invoker, protocol protocol.Invocation) protocol.Result {
	fmt.Println("MyServerFilter OnResponse is called")
	myAttachmentMap := make(map[string]interface{})
	myAttachmentMap["key1"] = "value1"
	myAttachmentMap["key2"] = []string{"value1", "value2"}
	result.SetAttachments(myAttachmentMap)
	return result
}

服务端 main


package main

import (
	"context"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/imports"
)

import (
	"github.com/apache/dubbo-go-samples/api"
)

type GreeterProvider struct {
	api.UnimplementedGreeterServer
}

func (s *GreeterProvider) SayHello(ctx context.Context, in *api.HelloRequest) (*api.User, error) {
	logger.Infof("Dubbo3 GreeterProvider get user name = %sn", in.Name)
	return &api.User{Name: "Hello " + in.Name, Id: "12345", Age: 21}, nil
}

// export DUBBO_GO_CONFIG_PATH= PATH_TO_SAMPLES/helloworld/go-server/conf/dubbogo.yml
func main() {
	config.SetProviderService(&GreeterProvider{})
	if err := config.Load(); err != nil {
		panic(err)
	}
	select {}
}

服务端配置文件

dubbo:
  registries:
    demoZK:
      protocol: zookeeper
      address: 127.0.0.1:2181
  protocols:
    tripleProtocol:
      name: tri
      port: 20000
  provider:
    services:
      GreeterProvider:
        filter: myServerFilter
        loadbalance: random
        warmup: 100
        cluster: failover

客户端 Filter


package main

import (
	"context"
	"fmt"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/extension"
	"dubbo.apache.org/dubbo-go/v3/filter"
	"dubbo.apache.org/dubbo-go/v3/protocol"
)

func init() {
	extension.SetFilter("myClientFilter", NewMyClientFilter)
}

func NewMyClientFilter() filter.Filter {
	return &MyClientFilter{}
}

type MyClientFilter struct {
}

func (f *MyClientFilter) Invoke(ctx context.Context, invoker protocol.Invoker, invocation protocol.Invocation) protocol.Result {
	fmt.Println("MyClientFilter Invoke is called, method Name = ", invocation.MethodName())
	invocation.SetAttachment("request-key1", "request-value1")
	invocation.SetAttachment("request-key2", []string{"request-value2.1", "request-value2.2"})
	return invoker.Invoke(ctx, invocation)
}
func (f *MyClientFilter) OnResponse(ctx context.Context, result protocol.Result, invoker protocol.Invoker, protocol protocol.Invocation) protocol.Result {
	fmt.Println("MyClientFilter OnResponse is called")
	fmt.Println("result attachment = ", result.Attachments())
	return result
}

客户端 main

/*
 * Licensed to the Apache Software Foundation (ASF) under one or more
 * contributor license agreements.  See the NOTICE file distributed with
 * this work for additional information regarding copyright ownership.
 * The ASF licenses this file to You under the Apache License, Version 2.0
 * (the "License"); you may not use this file except in compliance with
 * the License.  You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package main

import (
	"context"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/imports"
)

import (
	"github.com/apache/dubbo-go-samples/api"
)

var userProvider = &api.GreeterClientImpl{}

func init() {
	config.SetConsumerService(userProvider)
}

func main() {
	err := config.Load()
	if err != nil {
		panic(err)
	}

	logger.Infof("nnnstart to test")
	user, err := userProvider.SayHello(context.TODO(), &api.HelloRequest{Name: "laurence"})
	if err != nil {
		panic(err)
	}
	logger.Infof("get user = %+v", user)
}

客户端配置文件

# dubbo client yaml configure file

dubbo:
  registries:
    demoZK:
      protocol: zookeeper
      timeout: 3s
      address: 127.0.0.1:2181
  consumer:
    filter: myClientFilter
    check: true
    request_timeout: 3s
    connect_timeout: 3s
    references:
      GreeterClientImpl:
        protocol: tri

服务端限流

运行服务端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/filter/tpslimit/go-server/cmd

# 2. 导出配置文件
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/filter/tpslimit/go-server/conf/dubbogo.yml

# 3. 启动服务
go run .

运行客户端代码

# 1. 跳转到项目目录
cd /Users/andy/tool/golang/dubbo-go-samples/filter/tpslimit/go-client/cmd

# 2. 导出配置文件
export DUBBO_GO_CONFIG_PATH=/Users/andy/tool/golang/dubbo-go-samples/filter/tpslimit/go-client/conf/dubbogo.yml

# 3. 启动服务
go run .

在这里插入图片描述

核心代码

客户端代码


package main

import (
	"context"
	"time"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/imports"

	hessian "github.com/apache/dubbo-go-hessian2"
)

import (
	"github.com/apache/dubbo-go-samples/filter/tpslimit/go-client/pkg"
)

var userProvider = &pkg.UserProvider{}

func init() {
	config.SetConsumerService(userProvider)
	hessian.RegisterPOJO(&pkg.User{})
}

func main() {
	err := config.Load()
	if err != nil {
		panic(err)
	}

	var successCount, failCount int64
	logger.Infof("nnnstart to test dubbo")
	for i := 0; i < 60; i++ {
		time.Sleep(200 * time.Millisecond)
		user, err := userProvider.GetUser(context.TODO(), "A001")
		if err != nil {
			failCount++
			logger.Infof("error: %vn", err)
		} else {
			successCount++
		}
		logger.Infof("response: %vn", user)
	}
	logger.Infof("successCount=%v, failCount=%vn", successCount, failCount)
}

服务端配置文件

# dubbo server yaml configure file


dubbo:
  registries:
    demoZK:
      protocol: zookeeper
      timeout: 3s
      address: 127.0.0.1:2181
  protocols:
    dubbo:
      name: dubbo
      port: 20000
  provider:
    services:
      UserProvider:
        interface: org.apache.dubbo.UserProvider
        cluster: failover
        loadbalance: random # load balancing strategy, such as random, roundrobin, leastactive or consistenthash.
        warmup: 100  # warmup period, in seconds
        tps.limiter: method-service # the Limiter that judge if the TPS overs the threshold, such as method-service or default
        tps.limit.strategy: fixedWindow # the name of limit strategy, such as fixedWindow, slidingWindow, default, threadSafeFixedWindow or the strategy name you customed
        tps.limit.rejected.handler: DefaultValueHandler
        tps.limit.interval: 1000 # the interval time unit is ms
        tps.limit.rate: 3 # the max value in the interval. <0 means that the service will not be limited.

服务端代码


package main

import (
	"os"
	"os/signal"
	"syscall"
	"time"
)

import (
	"dubbo.apache.org/dubbo-go/v3/common/logger"
	"dubbo.apache.org/dubbo-go/v3/config"
	_ "dubbo.apache.org/dubbo-go/v3/filter/tps/strategy"
	_ "dubbo.apache.org/dubbo-go/v3/imports"

	hessian "github.com/apache/dubbo-go-hessian2"
)

import (
	"github.com/apache/dubbo-go-samples/filter/tpslimit/go-server/pkg"
)

var (
	survivalTimeout = int(3e9)
)

func main() {
	config.SetProviderService(new(pkg.UserProvider))
	hessian.RegisterPOJO(&pkg.User{})
	err := config.Load()
	if err != nil {
		panic(err)
	}
	initSignal()
}

func initSignal() {
	signals := make(chan os.Signal, 1)
	// It is not possible to block SIGKILL or syscall.SIGSTOP
	signal.Notify(signals, os.Interrupt, syscall.SIGHUP, syscall.SIGQUIT, syscall.SIGTERM, syscall.SIGINT)
	for {
		sig := <-signals
		logger.Infof("get signal %s", sig.String())
		switch sig {
		case syscall.SIGHUP:
			// reload()
		default:
			time.AfterFunc(time.Duration(survivalTimeout), func() {
				logger.Warnf("app exit now by force...")
				os.Exit(1)
			})

			// The program exits normally or timeout forcibly exits.
			logger.Infof("provider app exit now...")
			return
		}
	}
}

最后

以上就是跳跃秀发为你收集整理的Dubbo go 高级特性前提条件上下文传递异常信息回传自定义Filter服务端限流的全部内容，希望文章能够帮你解决Dubbo go 高级特性前提条件上下文传递异常信息回传自定义Filter服务端限流所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：Golang
浏览次数：62 次浏览
发布日期：2023-08-31 09:25:22
本文链接：https://www.kaopuke.com/article/k-p-k_14_uzo_14_f3_13_z_6_2.html

Dubbo go 高级特性前提条件上下文传递异常信息回传自定义Filter服务端限流

概述

前提条件

上下文传递

运行服务端代码

运行客户端代码

核心代码

异常信息回传

运行服务端代码

运行客户端代码

核心代码

自定义Filter

运行服务端代码

运行服务端代码

核心代码

服务端限流

运行服务端代码

运行客户端代码

核心代码

最后

评论列表共有 0 条评论

发表评论取消回复

Dubbo go 高级特性前提条件上下文传递异常信息回传自定义Filter服务端限流

概述

前提条件

上下文传递

运行服务端代码

运行客户端代码

核心代码

异常信息回传

运行服务端代码

运行客户端代码

核心代码

自定义Filter

运行服务端代码

运行服务端代码

核心代码

服务端限流

运行服务端代码

运行客户端代码

核心代码

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
