spring扩展点之BeanFactoryPostProcessor和BeanPostProcessor

72 阅读 0 评论 48 点赞

我是靠谱客的博主开放皮带，最近开发中收集的这篇文章主要介绍spring扩展点之BeanFactoryPostProcessor和BeanPostProcessor，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

先来看下这两个接口的定义：

/*
 * Copyright 2002-2016 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.beans.factory.config;

import org.springframework.beans.BeansException;
import org.springframework.lang.Nullable;

/**
 * Factory hook that allows for custom modification of new bean instances,
 * e.g. checking for marker interfaces or wrapping them with proxies.
 *
 * <p>ApplicationContexts can autodetect BeanPostProcessor beans in their
 * bean definitions and apply them to any beans subsequently created.
 * Plain bean factories allow for programmatic registration of post-processors,
 * applying to all beans created through this factory.
 *
 * <p>Typically, post-processors that populate beans via marker interfaces
 * or the like will implement {@link #postProcessBeforeInitialization},
 * while post-processors that wrap beans with proxies will normally
 * implement {@link #postProcessAfterInitialization}.
 *
 * @author Juergen Hoeller
 * @since 10.10.2003
 * @see InstantiationAwareBeanPostProcessor
 * @see DestructionAwareBeanPostProcessor
 * @see ConfigurableBeanFactory#addBeanPostProcessor
 * @see BeanFactoryPostProcessor
 */
public interface BeanPostProcessor {

	/**
	 * Apply this BeanPostProcessor to the given new bean instance <i>before</i> any bean
	 * initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
	 * or a custom init-method). The bean will already be populated with property values.
	 * The returned bean instance may be a wrapper around the original.
	 * <p>The default implementation returns the given {@code bean} as-is.
	 * @param bean the new bean instance
	 * @param beanName the name of the bean
	 * @return the bean instance to use, either the original or a wrapped one;
	 * if {@code null}, no subsequent BeanPostProcessors will be invoked
	 * @throws org.springframework.beans.BeansException in case of errors
	 * @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
	 */
	@Nullable
	default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		return bean;
	}

	/**
	 * Apply this BeanPostProcessor to the given new bean instance <i>after</i> any bean
	 * initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
	 * or a custom init-method). The bean will already be populated with property values.
	 * The returned bean instance may be a wrapper around the original.
	 * <p>In case of a FactoryBean, this callback will be invoked for both the FactoryBean
	 * instance and the objects created by the FactoryBean (as of Spring 2.0). The
	 * post-processor can decide whether to apply to either the FactoryBean or created
	 * objects or both through corresponding {@code bean instanceof FactoryBean} checks.
	 * <p>This callback will also be invoked after a short-circuiting triggered by a
	 * {@link InstantiationAwareBeanPostProcessor#postProcessBeforeInstantiation} method,
	 * in contrast to all other BeanPostProcessor callbacks.
	 * <p>The default implementation returns the given {@code bean} as-is.
	 * @param bean the new bean instance
	 * @param beanName the name of the bean
	 * @return the bean instance to use, either the original or a wrapped one;
	 * if {@code null}, no subsequent BeanPostProcessors will be invoked
	 * @throws org.springframework.beans.BeansException in case of errors
	 * @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
	 * @see org.springframework.beans.factory.FactoryBean
	 */
	@Nullable
	default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		return bean;
	}

}

/*
 * Copyright 2002-2016 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.beans.factory.config;

import org.springframework.beans.BeansException;

/**
 * Allows for custom modification of an application context's bean definitions,
 * adapting the bean property values of the context's underlying bean factory.
 *
 * <p>Application contexts can auto-detect BeanFactoryPostProcessor beans in
 * their bean definitions and apply them before any other beans get created.
 *
 * <p>Useful for custom config files targeted at system administrators that
 * override bean properties configured in the application context.
 *
 * <p>See PropertyResourceConfigurer and its concrete implementations
 * for out-of-the-box solutions that address such configuration needs.
 *
 * <p>A BeanFactoryPostProcessor may interact with and modify bean
 * definitions, but never bean instances. Doing so may cause premature bean
 * instantiation, violating the container and causing unintended side-effects.
 * If bean instance interaction is required, consider implementing
 * {@link BeanPostProcessor} instead.
 *
 * @author Juergen Hoeller
 * @since 06.07.2003
 * @see BeanPostProcessor
 * @see PropertyResourceConfigurer
 */
@FunctionalInterface
public interface BeanFactoryPostProcessor {

	/**
	 * Modify the application context's internal bean factory after its standard
	 * initialization. All bean definitions will have been loaded, but no beans
	 * will have been instantiated yet. This allows for overriding or adding
	 * properties even to eager-initializing beans.
	 * @param beanFactory the bean factory used by the application context
	 * @throws org.springframework.beans.BeansException in case of errors
	 */
	void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;

}

一、BeanFactoryPostProcessor和BeanPostProcessor的区别

BeanFactoryPostProcessor和BeanPostProcessor都是spring初始化bean的扩展点。两个接口非常相似。

BeanFactoryPostProcessor可以对bean的定义（配置元数据）进行处理。也就是说，Spring IoC容器允许BeanFactoryPostProcessor在容器实际实例化任何其它的bean之前读取配置元数据，并有可能修改它。如果你愿意，你可以配置多个BeanFactoryPostProcessor。你还能通过设置'order'属性来控制BeanFactoryPostProcessor的执行次序。

注册BeanFactoryPostProcessor的实例，需要重载void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;

通过beanFactory可以获取bean的示例或定义等。同时可以修改bean的属性，这是和BeanPostProcessor最大的区别。

例如：

BeanDefinition bd = beanFactory.getBeanDefinition("xxBean");
MutablePropertyValues mpv =  bd.getPropertyValues();
if(pv.contains("xxName")) {
    pv.addPropertyValue("xxName", "icoder");
}

BeanPostProcessor的实例，需要重载下面两个方法

	default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		return bean;
	}
	default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		return bean;
	}

二、BeanPostProcessors

1、bean生成过程

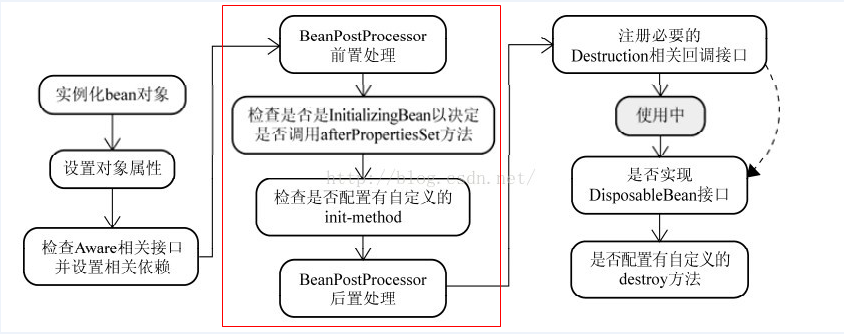

首先回顾下bean的生命周期如下图：

如果这个接口的某个实现类被注册到某个容器，那么该容器的每个受管Bean在调用初始化方法的前后，都会获得该接口实现类的一个回调。容器调用接口定义的方法时会将该受管Bean的实例和名字通过参数传入方法，进过处理后通过方法的返回值返回给容器。

要使用BeanPostProcessor回调，就必须先在容器中注册实现该接口的类，那么如何注册呢？BeanFactory和ApplicationContext容器的注册方式不大一样：

若使用BeanFactory，则必须要显示的调用其addBeanPostProcessor()方法进行注册，参数为BeanPostProcessor实现类的实例；
如果是使用ApplicationContext，那么容器会在配置文件在中自动寻找实现了BeanPostProcessor接口的Bean，然后自动注册，我们要做的只是配置一个BeanPostProcessor实现类的Bean就可以了。

假如我们使用了多个的BeanPostProcessor的实现类，那么如何确定处理顺序呢？其实只要实现Ordered接口，设置order属性就可以很轻松的确定不同实现类的处理顺序了。

3、示例

3.1 applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
       http://www.springframework.org/schema/aop
       http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context-3.0.xsd">


    <!-- 声明注解方式加载bean-->
    <context:annotation-config/>

    <!-- 要加载的bean的包路径-->
    <context:component-scan base-package="com.meituan.hyt.test1"/>

    <bean id="userPostProcessor" class="com.meituan.hyt.test1.UserPostProcessor"/>
</beans>

3.2 自己的业务bean

package com.meituan.hyt.test1;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

@Component
public class User {
    @Value("老名字")
    private String name;
    @Value("50")
    private Integer id;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "User{" +
                "name='" + name + ''' +
                ", id=" + id +
                '}';
    }
}

3.3 postProcessor bean

package com.meituan.hyt.test1;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;

public class UserPostProcessor implements BeanPostProcessor {
    @Override
    public Object postProcessBeforeInitialization(Object o, String s) throws BeansException {
        if(o instanceof User){
            User user = (User)o;
            user.setName("新名字");
            user.setId(100);
            return user;
        }
        return o;
    }

    @Override
    public Object postProcessAfterInitialization(Object o, String s) throws BeansException {
        return o;
    }
}

package com.meituan.hyt.test1;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;


public class Main2 {
    public static void main(String[] args) {
        ApplicationContext cxt = new ClassPathXmlApplicationContext("applicationContext.xml");
        User user = (User) cxt.getBean("user");
        System.out.println(user.toString());
    }
}

3.5 执行结果

如果没有<bean id="userPostProcessor" class="com.meituan.hyt.test1.UserPostProcessor"/>
User{name='老名字', id=50}

添加<bean id="userPostProcessor" class="com.meituan.hyt.test1.UserPostProcessor"/>
User{name='新名字', id=100}

4、InstantiationAwareBeanPostProcessor是BeanPostProcessor的子接口

InstantiationAwareBeanPostProcessor是BeanPostProcessor的子接口，可以在Bean生命周期的另外两个时期提供扩展的回调接口，即实例化Bean之前（调用postProcessBeforeInstantiation方法）和实例化Bean之后（调用postProcessAfterInstantiation方法）。其使用方法与上面介绍的BeanPostProcessor接口类似，只时回调时机不同。该接口是在bean被实例化之后，相关属性被设置之前之后回调

三、与BeanFactoryPostProcessor接口的区别

1、实现BeanFactoryPostProcessor 接口，会被Application contexts自动发现
2、BeanFactoryPostProcessor 仅仅对 bean definitions 发生关系，不能对bean instances 交互，对bean instances 的交互，由BeanPostProcessor的实现来处理
3、PropertyResourceConfigurer 是一个典型的实现 (PropertyResourceConfigurer是BeanFactoryPostProcessor的一个实现）

　　BeanFactoryPostProcessor接口实现类可以在当前BeanFactory初始化后，bean实例化之前对BeanFactory做一些处理。BeanFactoryPostProcessor是针对于bean容器的，在调用它时，BeanFactory只加载了bean的定义，还没有对它们进行实例化，所以我们可以通过对BeanFactory的处理来达到影响之后实例化bean的效果。跟BeanPostProcessor一样，ApplicationContext也能自动检测和调用容器中的BeanFactoryPostProcessor。

示例1：

package com.meituan.hyt.test1;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanFactoryPostProcessor;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;

public class UserBeanFactoryPostProcessor implements BeanFactoryPostProcessor {
    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory configurableListableBeanFactory) throws BeansException {
        System.out.println("BeanFactoryPostProcessor doing");
    }
}

applicationContext.xml中添加bean配置

<bean id="userBeanFactoryPostProcessor" class="com.meituan.hyt.test1.UserBeanFactoryPostProcessor"/>

重新运行，结果

BeanFactoryPostProcessor doing
User{name='新名字', id=100}

示例2：

有这样的也个业务场景：

<bean id="user" class="com.gym.UserServiceImpl" >
      <property name="username" value="${username_}"/>
      <property name="password" value="${password_}"/>
</bean>

spring支持系统对username_进行占位符的配置为properties文件配置，试想如果我们有个配置中心，我们希望spring启动的时候，从远程配置中心取数据，而非本地文件，这里就需要我们自定义一个实现BeanFactoryPostProcessor的PropertyResourceConfigurer 实例。
看下面的例子：

bean.xml配置：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context-3.0.xsd"
    default-autowire="byName">

     <bean id="user" class="com.gym.UserServiceImpl" >
       <property name="username" value="${username_}"/>
       <property name="password" value="${password_}"/>
     </bean>

     <bean id="myFactoryPostProcessor" class="com.gym.MyFilePlaceHolderBeanFactoryPostProcessor"/>
</beans>

模拟从远程取文件：

import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.config.PropertyPlaceholderConfigurer;
import org.springframework.core.io.support.PropertiesLoaderUtils;

/**
 * @author xinchun.wang
 */
public class MyFilePlaceHolderBeanFactoryPostProcessor
    extends PropertyPlaceholderConfigurer implements InitializingBean{

    public void afterPropertiesSet() throws Exception {
        List<Properties> list = new ArrayList<Properties>();
        Properties p = PropertiesLoaderUtils.loadAllProperties("config.properties");
        list.add(p);
        //这里是关键，这就设置了我们远程取得的List<Properties>列表
        setPropertiesArray(list.toArray(new Properties[list.size()]));
    }

}

java bean配置

public class UserServiceImpl implements IUserService{
    private static final Logger logger = LoggerFactory.getLogger(UserServiceImpl.class);

    public UserServiceImpl(){
        logger.info("UserServiceImpl 构造函数 ");
    }

    private String username;
    private String password;

    public String getUsername() {
        return username;
    }

    public String getPassword() {
        return password;
    }

    public void setUsername(String username) {
        logger.info("UserServiceImpl setUsername {}",username);
        this.username = username;
    }

    public void setPassword(String password) {
        logger.info("UserServiceImpl setPassword {}",password);
        this.password = password;
    }

    @Override
    public String toString() {
        return "UserServiceImpl [username=" + username + ", password="
                + password + "]";
    }

}

测试

public class TestApplicationContext {
    public static void main(String[] args) {
        ClassPathXmlApplicationContext applicationContext = new ClassPathXmlApplicationContext(
                "classpath:spring/applicationContext.xml");
        IUserService userService = applicationContext.getBean(IUserService.class);
        String password = userService.getPassword();
        applicationContext.destroy();
        System.out.println(password);
    }

}
