VRRP+track

客户需求：

Sw4作为客户机，创建vlan并配置地址

配置MSTP让sw1上实例10为主根，实例20为备根 sw2上实例10为备根，实例20为主根

配置VRRP使vlan10到sw1为主网关，sw2为备网关 vlan20到sw2为主网关 sw1为备网关

Sw1的上行端口DOWN掉后，vlan10到sw2为主网关

[sw1]vlan 10
[sw1-vlan10]vlan 20
[sw1]inter range g1/0/1 g1/0/2
[sw1-if-range]port link-type trunk            //接口模式改为trunk
[sw1-if-range]port trunk permit vlan 10 20      //放行vlan10 vlan20
[sw1]stp region-configuration                 //进入MST域配置模式
[sw1-mst-region]region-name h3c            //配置MST域名
[sw1-mst-region]instance 10 vlan 10           //配置实例和VLAN映射关系
[sw1-mst-region]instance 20 vlan 20           //配置实例和VLAN映射关系
[sw1-mst-region]active region-configuration    //激活MST配置
[sw1]stp instance 10 root primary              //配置交换机为实例的主根
[sw1]stp instance 20 root secondary           //配置交换机为实例的备根

[sw2]vlan 10
[sw2-vlan10]vlan 20
[sw2]inter range g1/0/1 g1/0/2
[sw2-if-range]port link-type trunk           //端口模式改为trunk
[sw2-if-range]port trunk permit vlan 10 20   //放行vlan10 vlan20
[sw2]stp region-configuration              //进入MST域配置模式
[sw2-mst-region]region-name h3c          //配置MST域名
[sw2-mst-region]instance 10 vlan 10         //配置实例10和VLAN10映射关系
[sw2-mst-region]instance 20 vlan 20         //配置实例20和VLAN20映射关系
[sw2-mst-region]active region-configuration   //激活MST配置
[sw2]stp instance 10 root secondary           //配置交换机为实例的备根
[sw2]stp instance 20 root primary             //配置交换机为实例的主根

[sw3]vlan 10
[sw3-vlan10]vlan 20
[sw3]inter g1/0/3
[sw3-GigabitEthernet1/0/3]port access vlan 10     //端口模式为access并绑定vlan10
[sw3-GigabitEthernet1/0/3]inter g1/0/4
[sw3-GigabitEthernet1/0/4]port access vlan20     //端口模式为access并绑定vlan20
[sw3]inter range g1/0/1 g1/0/2
[sw3-if-range]port link-type trunk               //端口改为trunk模式
[sw3-if-range]port trunk permit vlan 10 20        //放行vlan10 vlan20
[sw3]stp region-configuration                     //进入MST域配置模式
[sw3-mst-region]region-name h3c                //配置MST域名
[sw3-mst-region]instance10 vlan 10                           //配置实例10和VLAN10映射关系
[sw3-mst-region]instance 20 vlan 20                //配置实例20和VLAN20映射关系
[sw3-mst-region]active region-configuration        //激活MST配置
[sw3]stp bpdu-protection    //配置bpdu保护（边缘端口收到bpdu后，进入errdown，端口角色变成DP，状态变成discarding）

[sw4]undo stp global enable    //关闭stp服务
[sw4]vlan 10
[sw4-vlan10]vlan 20
Qu
[sw4]inter g1/0/1
[sw4-GigabitEthernet1/0/1]port acc
[sw4-GigabitEthernet1/0/1]port access vlan10
[sw4-GigabitEthernet1/0/1]inter g1/0/2
[sw4-GigabitEthernet1/0/2]port acc
[sw4-GigabitEthernet1/0/2]port access vlan20
[sw4]inter vlan 10
[sw4-Vlan-interface10]ip add 192.168.10.124
[sw4-Vlan-interface10]inter vlan 20
[sw4-Vlan-interface20]ip add 192.168.20.124

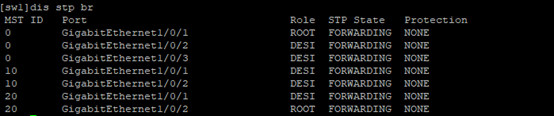

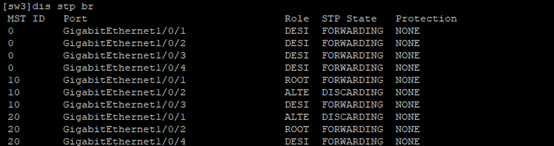

查看mstp邻居状态 sw3的g1/0/2阻塞实例10 g1/0/1阻塞实例20

[sw1]inter vlan 10
[sw1-Vlan-interface10]ip add 192.168.10.25224
[sw1-Vlan-interface10]vrrp vrid 10 virtual-ip 192.168.10.254 //配置VRRP虚拟IP地址
[sw1-Vlan-interface10] vrrp vrid 10priority 110             //配置VRRP优先级
[sw1-Vlan-interface10]inter vlan 20
[sw1-Vlan-interface20]ip add 192.168.20.25224
[sw1-Vlan-interface20]vrrp vrid 20virtual-ip 192.168.20.254  //配置VRRP虚拟IP地址
[sw1-Vlan-interface10] vrrp vrid 20priority 90              //配置VRRP优先级

[sw2]inter vlan 10
[sw2-Vlan-interface10]ip add 192.168.10.25324
[sw2-Vlan-interface10]vrrp vrid 10virtual-ip 192.168.10.254   //配置VRRP虚拟IP地址
[sw2-Vlan-interface20]vrrpvrid 10 priority 90                           //配置VRRP优先级
[sw2-Vlan-interface10]inter vlan 20
[sw2-Vlan-interface20]ip add 192.168.20.25324
[sw2-Vlan-interface20]vrrp vrid 20virtual-ip 192.168.20.254  //配置VRRP虚拟IP地址
[sw2-Vlan-interface20]vrrp vrid 20 priority110             //配置VRRP优先级

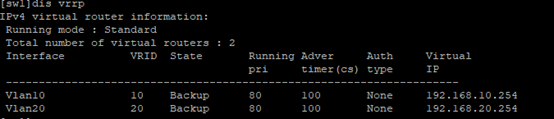

查看sw1的VRRP可以看到sw1上vlan10为主 优先级为110vlan20为备 优先级80

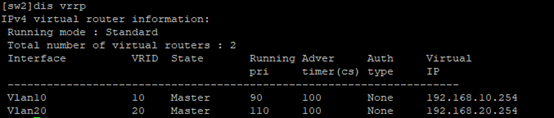

Sw2上vlan20为主，优先级110 vlan10为备 优先级90

如果优先级一样，先配置vrrp的为主，主备根据ip地址，地址大的优先

track

[sw1]track 1 interface GigabitEthernet1/0/3     配置接口监视
[sw1-Vlan-interface10]vrrp vrid 10 track 1priority reduced 30   VRRP中调用接口监视

Sw1上的g1/0/3接口DOWN掉，便会把vrid为10的优先级减去30，所以sw1的vrid10成为备 sw2的vrid10成为主，如果sw1的g1/0/3接口重新up，因为up前sw1的vrid10优先级大于sw2的，所以会重新成为主
