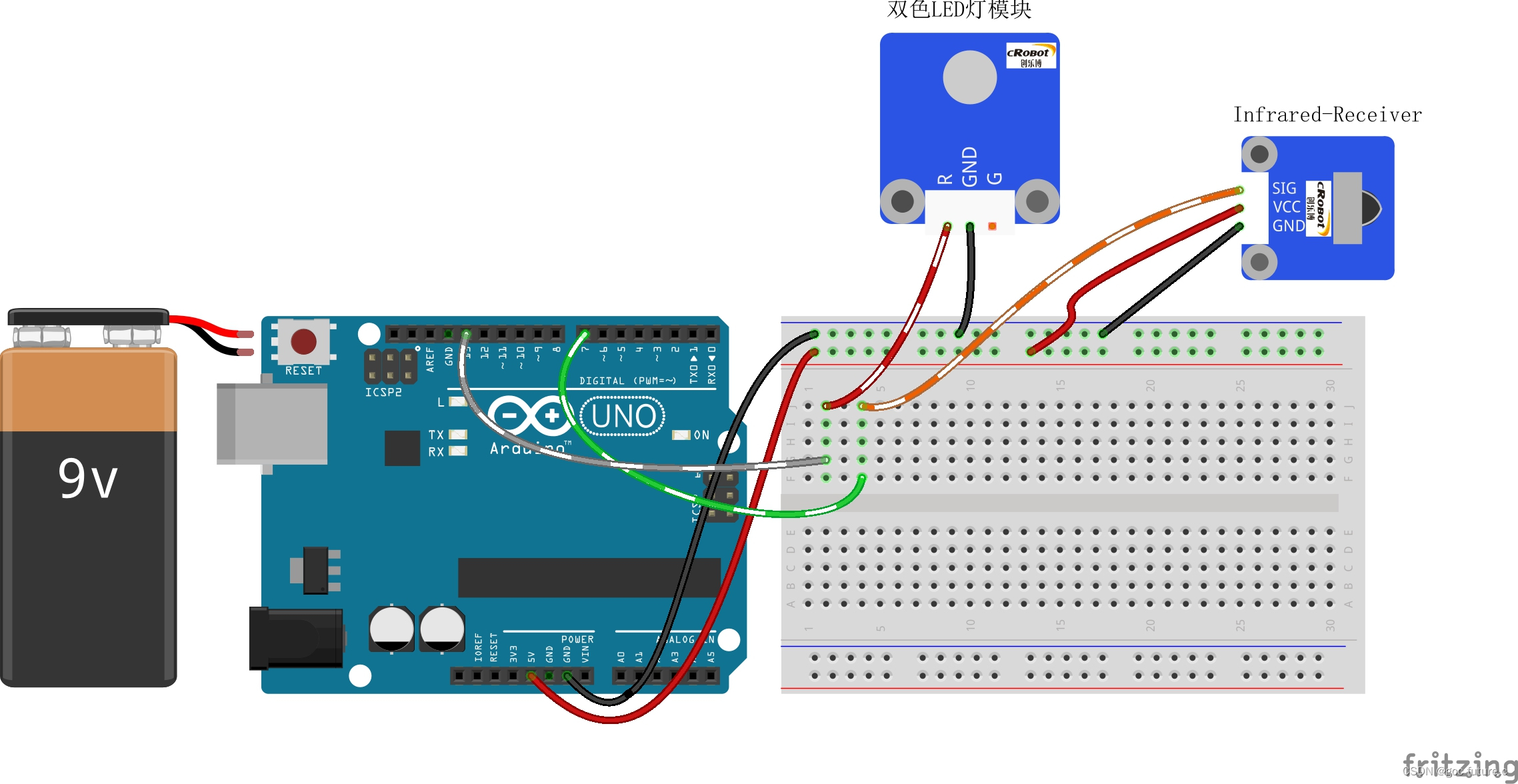

一、实物连接

二、程序实现

代码如下：

#include <IRremote.h>
const int irReceiverPin =12;
const int ledPin = 13;
IRrecv irrecv(irReceiverPin);
decode_results results;

//Servo my_duoji1;
//Servo my_duoji2;

void setup()
{
  pinMode(ledPin,OUTPUT);//set ledpin as OUTPUT
  Serial.begin(9600);//initialize serial
  irrecv.enableIRIn(); //enable ir receiver module
}
void loop()
{
  if (irrecv.decode(&results))
  {
    Serial.print("irCode: "); //print"irCode: "
    Serial.print(results.value, HEX); //print the value in hexdecimal
    Serial.print(", bits: "); //print" , bits: "
    Serial.println(results.bits); //print the bits
    irrecv.resume(); // Receive the next value
  }
  delay(600); //delay 600ms
  if(results.value == 0xFFA25D)//if receiver module receive OxFFA25D
  {
     digitalWrite(ledPin,HIGH);
  }
  else
  {
    digitalWrite(ledPin,LOW);//turn off the led
  }
}
