Configure Block Parameters

The block parameters define values for blocks in your model. For example, block

parameters include channel numbers for multichannel boards, input and output voltage

ranges, and sample time. For information about configuring block parameters for

Speedgoat I/O modules, see the Speedgoat documentation at www.speedgoat.com/help.

This procedure uses the Simulink® model slrt_ex_osc . To open this model, in the MATLAB

Command Window, type:

open_system(fullfile(matlabroot, 'toolbox', 'slrealtime', ...

'examples', 'slrt_ex_osc'))

In the Simulink Editor, double-click the File

Log block.

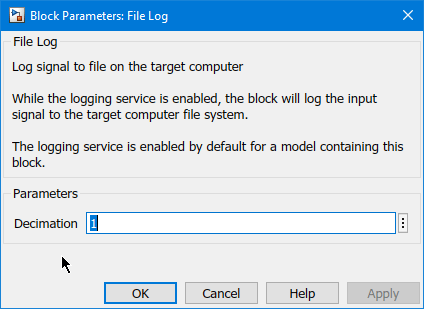

Fill in the File Log dialog box. For example, enter a

decimation value to reduce file logging data collection.

When you change block parameter values through the block parameters dialog box, the

changes take effect when you build the real-time application. You can also change

parameter values in a real-time application without rebuilding the application. For more

information, see Tunable Block Parameters and Tunable Global Parameters.
