我是靠谱客的博主 外向小伙,这篇文章主要介绍数字图像处理作业一—— remove the background and enhance the image,现在分享给大家,希望可以做个参考。

作业要求:

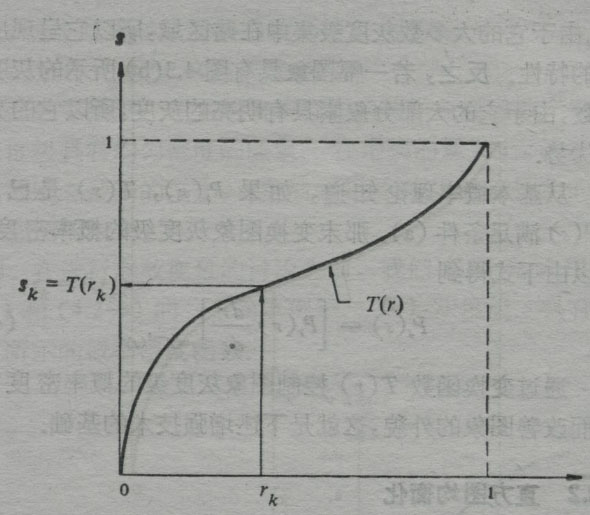

运用图像处理的方法去除上图中背景黑色沁墨印记。

在这2123片描述

作业初步思路:

将图片简单转化成二值图片

代码如下

i = imread('original.jpg');
gy_i = im2bw(i);
imshow(gy_i)

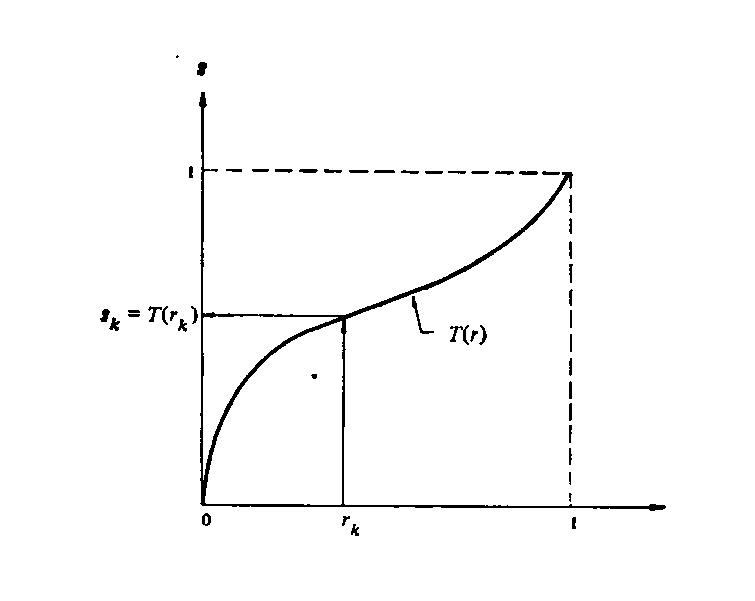

得到结果如下:

在这里插入图片描述

可见仍存在一些未去除的污点,于是思考新步骤如下

新步骤:

通过遍历矩阵,遍历所有像素值=0的像素以及其周围八个像素点,如果周围八个像素点仅有一至两个是黑点,则把其变为白点,代码如下:

row = [-1,0,1];
column = [-1,0,1];
for i = 2:m-1
    for j = 2:n-1
        if gy_i(i,j) == 0
            count = 0;
            for r = 1:3
                for c = 1:3
                    if gy_i(i+row(r),j+column(c)) == 0
                        ![count = count + 1;
                    end
                end]
            end
            if count >=1 && count <=3
                gy_i(i,j)=1;
            end
        end
    end
end

figure;imshow(gy_i)

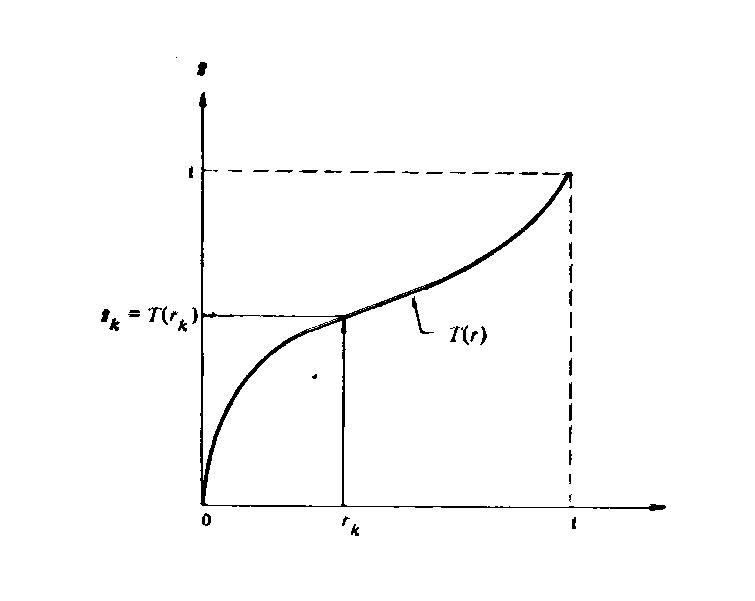

得到的图像如下
在这里插入图片描述
相对而言,在纵坐标左上角,以及坐标轴的右上角,比之前稍微好了一些,对其进行重复操作,发现效果并不是特别理想,因此思考采取其他方法加以改进。

新步骤:

通过遍历矩阵,遍历所有像素值=0的像素并找出以及其为重心,以2k+1为边长的正方形,将其包围,如果在正方形的边中没有像素值=1的点,则将该点的像素值变为0,经过几次测试,发现当l=4的时候,该方法的效果较好,代码如下:

new_img = ones(m,n);
l = 4;
column = [-l:l];
for i = l+1:m-l-1
    for j = l+1:n-l-1
        if gy_i(i,j) == 0
            count = 0;
            for r = 1:2*l+1
                if gy_i(i+l,j+column(c)) == 0
                    count = count + 1;
                end
                if gy_i(i-1,j+column(c)) == 0
                    count = count + 1;
                end
                if gy_i(i+column(c),j+1) == 0
                    count = count + 1;
                end
                if gy_i(i+column(c),j-1) == 0
                    count = count + 1;
                end
            if count ~= 0
                new_img(i,j)=0;
            end
            end
        end
    end
end

figure;imshow(new_img)

得到的图像如下:
在这里插入图片描述
可见除了中间的一个较大的点之外,其他的小点基本清除完成。

反思与不足之处:

  1. 仍然有部分噪声未去除
  2. 在去除噪声的过程中,也去除了一些必要的点
  3. 运用了过多的for循环,可能计算速度会比较慢
  4. 可能可以考虑更多的类似聚类的方法,得以更好的解决

完全代码如下:

i = imread('original.jpg');
gy_i = im2bw(i);
imshow(gy_i)
[m,n] = size(gy_i);

k = 1;
row = [-k:k];
column = [-k:k];
counts = 0;
for i = 2:m-1
    for j = 2:n-1
        if gy_i(i,j) == 0
            count = 0;
            for r = 1:3
                for c = 1:3
                    if gy_i(i+row(r),j+column(c)) == 0
                        count = count + 1;
                    end
                end
            end
            if count >=1 && count <=3
                gy_i(i,j)=1;
                counts = counts +1
            end
        end
    end
end
figure;imshow(gy_i)



new_img = ones(m,n);
l = 4;
column = [-l:l];
for i = l+1:m-l-1
    for j = l+1:n-l-1
        if gy_i(i,j) == 0
            count = 0;
            for r = 1:2*l+1
                if gy_i(i+l,j+column(c)) == 0
                    count = count + 1;
                end
                if gy_i(i-1,j+column(c)) == 0
                    count = count + 1;
                end
                if gy_i(i+column(c),j+1) == 0
                    count = count + 1;
                end
                if gy_i(i+column(c),j-1) == 0
                    count = count + 1;
                end
            if count ~= 0
                new_img(i,j)=0;
            end
            end
        end
    end
end

figure;imshow(new_img)
