Verilog数字系统设计——移位寄存器实现

69 阅读 0 评论
我是靠谱客的博主 爱笑帽子，最近开发中收集的这篇文章主要介绍Verilog数字系统设计——移位寄存器实现，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

link

一、各种移位寄存器的原理

1.1、自循环移位

这里用例子说明较为清晰：
假如一个二进制数字是 1111100000
自循环左移 --> 1111000001 1110000011 1100000111 …
自循环右移 --> 0111110000 0011111000 0001111100 …

1.2、带进位位的循环移位

这里用例子说明较为清晰：
带进位的循环左移RCL(Rotate Left Through Carry)：
用原CF的值填补空出的位，移出的位再进入CF。
　　假设当前，AL=01010011B，CF=1，则
　　执行指令 ROL AL,1
　　后，AL=10100110B，CF=0
　　执行指令 RCL AL,1
　　后，AL=10100111B，CF=0
　　最后一位的1，是先前CF的1

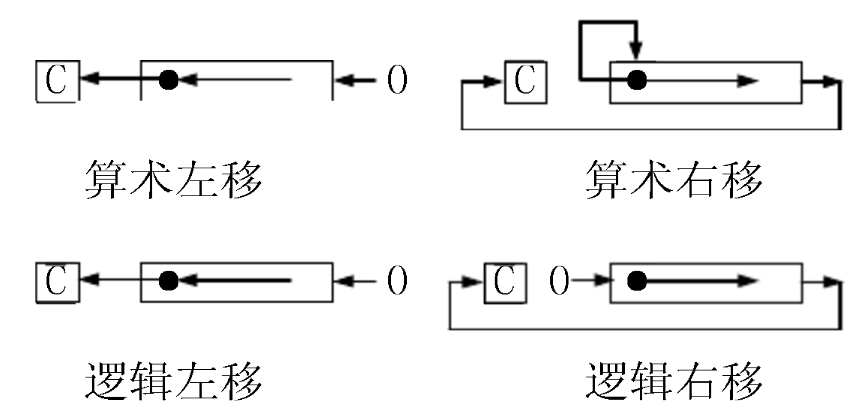

1.3、区别

区别
具体区别可分为下面三种：

1.3.1、方式不同

循环左移：累加器自身循环向左移位。
带进位循环左移：累加器连同进位位一起左移。






  • 1
  • 2

1.3.2、过程不同

循环左移：移出的位不仅要进入CF，而且还要填补空出的位。
带进位循环左移：用原CF的值填补空出的位，移出的位再进入CF。






  • 1
  • 2

1.3.3、功能不同

循环左移：把操作数d,的各个二进制位向左移动d位，从d左端移出的每一位再依次移到右端空出的位上，最后移出的位还要送到CF中。
带进位循环左移：把操作数d的各位与CF联合在一起，构成9个或者17个二进制位，向左移动d位，从左端移出的各位再依次移到右端空出的位上。






  • 1
  • 2

二、代码实现

2.1、shift module

module shiftreg(out,reset,clk,data,select);
	output reg [7:0] out; //output signal
	input [1:0] select;	//Status selection signal
	input [7:0] data;
	input reset,clk;	//reset signal
	reg CF,temp;

always @<span class="token punctuation">(</span>posedge clk or posedge reset<span class="token punctuation">)</span>
	begin
	<span class="token keyword">if</span><span class="token punctuation">(</span>reset<span class="token punctuation">)</span>		<span class="token comment">//reset signal</span>
		begin
		out <span class="token operator">&lt;=</span> data<span class="token punctuation">;</span>
		CF <span class="token operator">&lt;=</span> <span class="token number">0</span><span class="token punctuation">;</span>
		end
	<span class="token keyword">else</span>
		begin
		<span class="token keyword">case</span><span class="token punctuation">(</span>select<span class="token punctuation">)</span>
			<span class="token number">2</span>'b00<span class="token operator">:</span>			<span class="token comment">//ROL:Shift left from cycle</span>
				out <span class="token operator">&lt;=</span> <span class="token punctuation">{<!-- --></span>out<span class="token punctuation">[</span><span class="token number">0</span><span class="token punctuation">]</span><span class="token punctuation">,</span>out<span class="token punctuation">[</span><span class="token number">7</span><span class="token operator">:</span><span class="token number">1</span><span class="token punctuation">]</span><span class="token punctuation">}</span><span class="token punctuation">;</span>
			<span class="token comment">//用原CF的值填补空出的位，移出的位再进入CF</span>
			<span class="token number">2</span>'b01<span class="token operator">:</span>		<span class="token comment">//RCL:Cyclic left shift with carry</span>
				begin
				temp <span class="token operator">=</span> out<span class="token punctuation">[</span><span class="token number">0</span><span class="token punctuation">]</span><span class="token punctuation">;</span>
                			out <span class="token operator">=</span> <span class="token punctuation">{<!-- --></span>CF<span class="token punctuation">,</span>out<span class="token punctuation">[</span><span class="token number">7</span><span class="token operator">:</span><span class="token number">1</span><span class="token punctuation">]</span><span class="token punctuation">}</span><span class="token punctuation">;</span>
                			CF <span class="token operator">=</span> temp<span class="token punctuation">;</span>
				end

			<span class="token number">2</span>'b10<span class="token operator">:</span>		<span class="token comment">//ROR:Rotate Right</span>
				out <span class="token operator">=</span> <span class="token punctuation">{<!-- --></span>out<span class="token punctuation">[</span><span class="token number">6</span><span class="token operator">:</span><span class="token number">0</span><span class="token punctuation">]</span><span class="token punctuation">,</span>out<span class="token punctuation">[</span><span class="token number">7</span><span class="token punctuation">]</span><span class="token punctuation">}</span><span class="token punctuation">;</span>
			<span class="token number">2</span>'b11<span class="token operator">:</span>			<span class="token comment">//RCR:Rotate Right Through Carry</span>
				begin
  				temp <span class="token operator">=</span>out<span class="token punctuation">[</span><span class="token number">7</span><span class="token punctuation">]</span><span class="token punctuation">;</span>
                			out <span class="token operator">=</span> <span class="token punctuation">{<!-- --></span>out<span class="token punctuation">[</span><span class="token number">6</span><span class="token operator">:</span><span class="token number">0</span><span class="token punctuation">]</span><span class="token punctuation">,</span>CF<span class="token punctuation">}</span><span class="token punctuation">;</span>
                			CF <span class="token operator">=</span> temp<span class="token punctuation">;</span>
				end
			<span class="token keyword">default</span><span class="token operator">:</span>out <span class="token operator">&lt;=</span> <span class="token number">8</span>'bx<span class="token punctuation">;</span>
		endcase
		end
	end

endmodule

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43

2.2、test module

module test_shiftreg;
	reg clk_t,reset_t;
	reg[1:0] select_t;
	wire[7:0] out_t;
	reg[7:0] data_t;

shiftreg <span class="token function">myshift</span><span class="token punctuation">(</span>
	<span class="token punctuation">.</span><span class="token function">out</span><span class="token punctuation">(</span><span class="token class-name">out_t</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
	<span class="token punctuation">.</span><span class="token function">reset</span><span class="token punctuation">(</span><span class="token class-name">reset_t</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
	<span class="token punctuation">.</span><span class="token function">clk</span><span class="token punctuation">(</span><span class="token class-name">clk_t</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
	<span class="token punctuation">.</span><span class="token function">data</span><span class="token punctuation">(</span><span class="token class-name">data_t</span><span class="token punctuation">)</span><span class="token punctuation">,</span>
	<span class="token punctuation">.</span><span class="token function">select</span><span class="token punctuation">(</span><span class="token class-name">select_t</span><span class="token punctuation">)</span><span class="token punctuation">)</span><span class="token punctuation">;</span>

initial
begin
	<span class="token class-name">data_t</span> <span class="token operator">=</span> <span class="token number">8</span>'b1011_0101<span class="token punctuation">;</span>
	<span class="token class-name">reset_t</span> <span class="token operator">=</span> <span class="token number">1</span><span class="token punctuation">;</span>
	<span class="token class-name">clk_t</span> <span class="token operator">=</span> <span class="token number">0</span><span class="token punctuation">;</span>
	<span class="token class-name">select_t</span> <span class="token operator">=</span> <span class="token number">2</span>'b11<span class="token punctuation">;</span>
	#<span class="token number">20</span> <span class="token class-name">reset_t</span> <span class="token operator">=</span> <span class="token number">0</span><span class="token punctuation">;</span>
end
always #<span class="token number">20</span> <span class="token class-name">clk_t</span> <span class="token operator">=</span> <span class="token operator">~</span><span class="token class-name">clk_t</span><span class="token punctuation">;</span>	<span class="token comment">//clock signal</span>

endmodule

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25

三、仿真截图

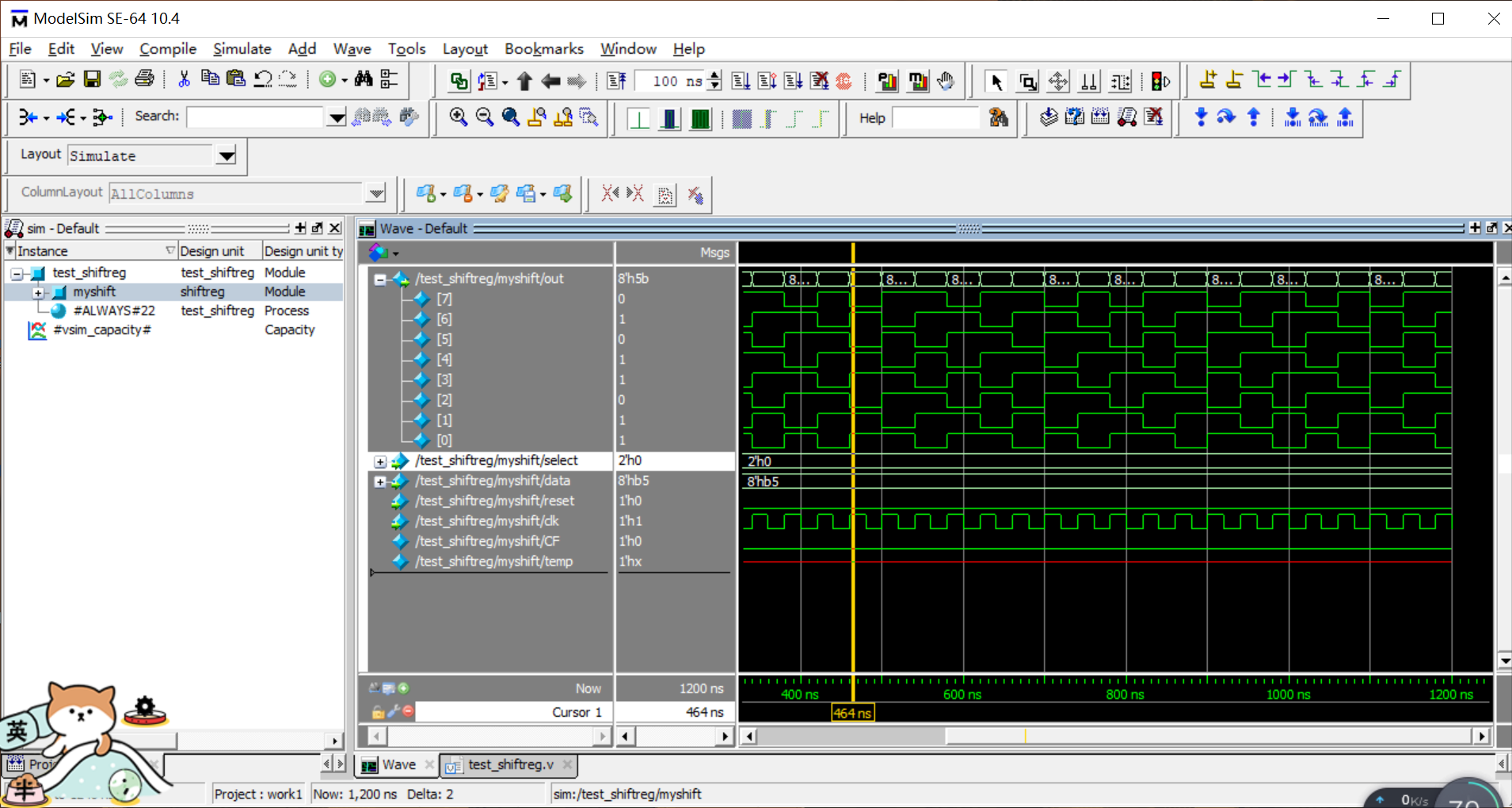

3.1、自循环左移

自循环左移截图

3.2、带进位位的循环左移

带进位位的循环左移

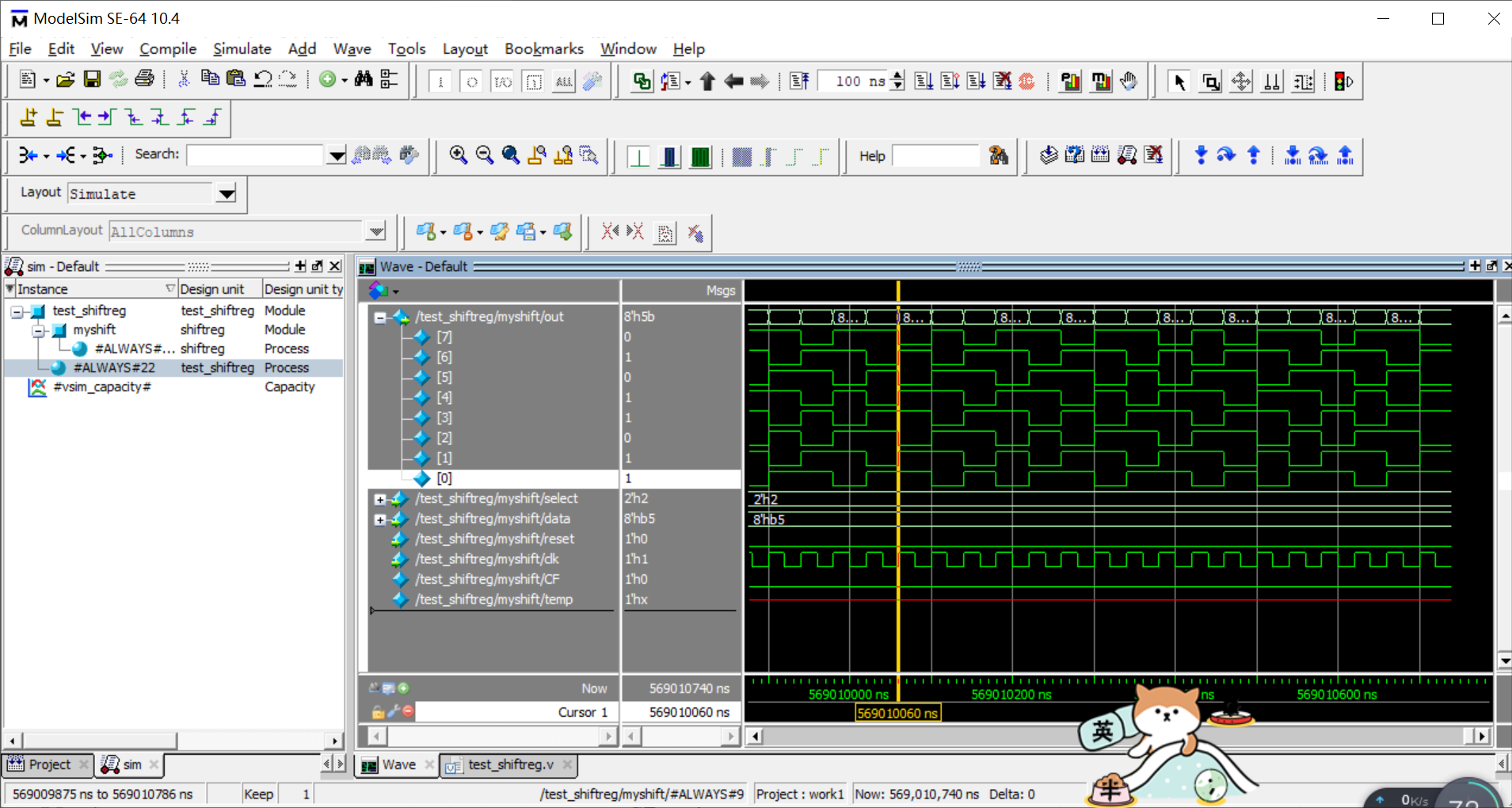

3.2、自循环右移

自循环右移

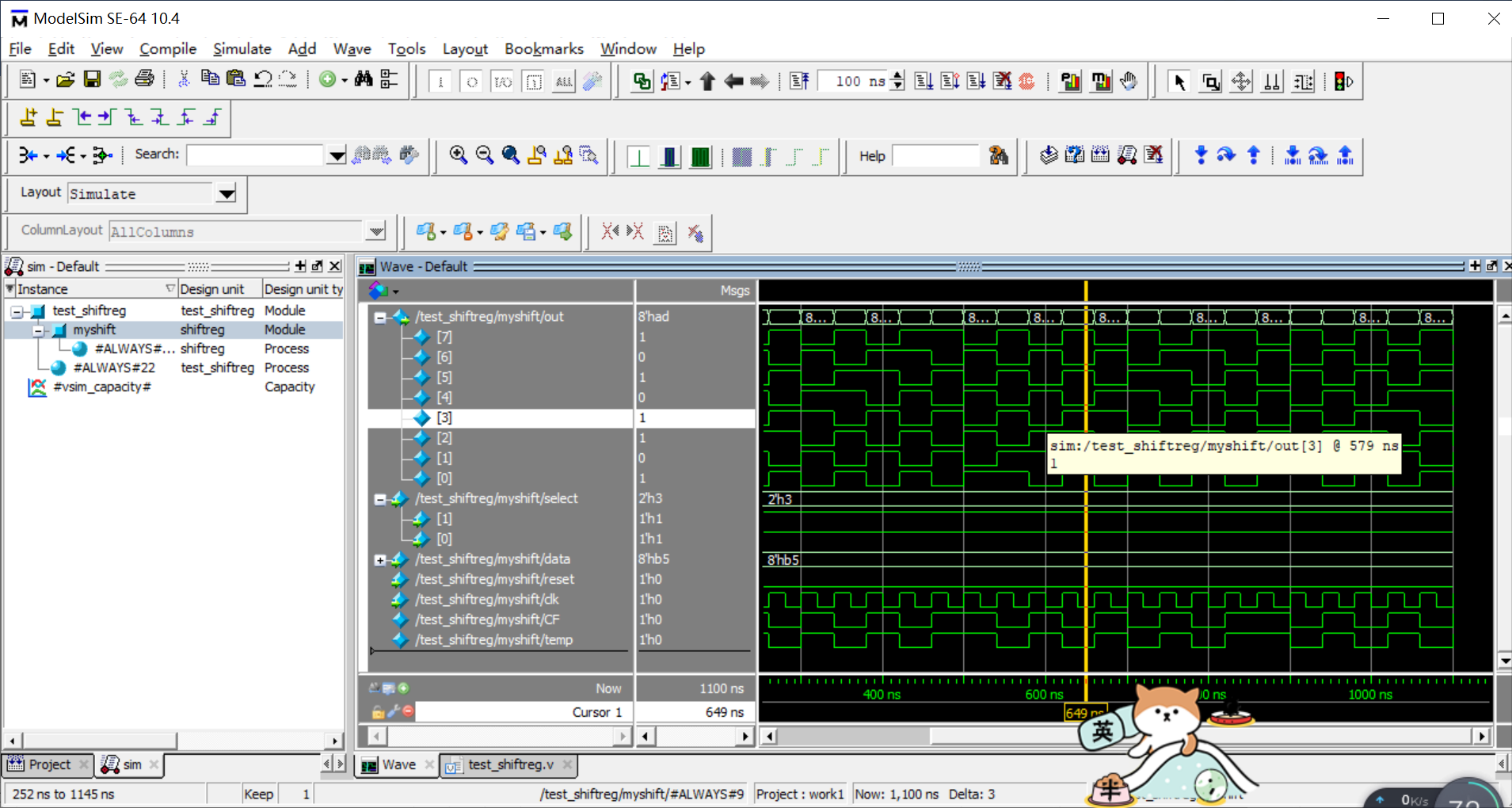

3.3、带进位位的循环右移

带借位的循环右移

3.4、带进位位的循环右移

带进位位的循环右移
