1.所有主机上都要操作
systemctop disable firewalld;systemctl stop firewalld
swapoff -a ;sed -i '/swap/s/^/#/g'
/etc/fstab
setenforce 0;sed -i 's/SELINUX=enforcing/SELINUX=disabled/g'
/etc/selinux/config
2.主机名初始化
hostnamectl set-hostname
$主机名 #不同的主机山设置不同的主机名
[root@master1 $]# vim /etc/hosts
127.0.0.1
localhost localhost.localdomain localhost4 localhost4.localdomain4
::1
localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.74.128
master1 registry.mt.com
192.168.74.129
master2
192.168.74.130
master3
3、内核初始化-所有主机
[root@master1 yaml]# cat /etc/sysctl.d/kubernetes.conf
net.bridge.bridge-nf-call-iptables=1
#需要modprobe br_netfilter模块才会有
net.bridge.bridge-nf-call-ip6tables=1
net.ipv4.ip_forward=1
net.ipv4.tcp_tw_recycle=0
vm.swappiness=0 # 禁止使用 swap 空间，只有当系统 OOM 时才允许使用它
vm.overcommit_memory=1 # 不检查物理内存是否够用
vm.panic_on_oom=0
fs.inotify.max_user_instances=8192
fs.inotify.max_user_watches=1048576
fs.file-max=655360000
fs.nr_open=655360000
net.ipv6.conf.all.disable_ipv6=1
net.netfilter.nf_conntrack_max=2310720
[root@master1 yaml]# sysctl --system
4、时间同步
ntpdate time.windows.com
5、设置资源配置文件
echo "* soft nofile 65536" >> /etc/security/limits.conf
echo "* hard nofile 65536" >> /etc/security/limits.conf
echo "* soft nproc 65536"
>> /etc/security/limits.conf
echo "* hard nproc 65536"
>> /etc/security/limits.conf
echo "* soft
memlock
unlimited"
>> /etc/security/limits.conf
echo "* hard memlock
unlimited"
>> /etc/security/limits.conf
6、开机加载模块
[root@master1 ~]# cat /etc/modules-load.d/k8s.conf
lvs
lvs_rr
br_netfilter
lvs_wrr
lvs_sh
[root@master1 ~]# modprobe lvs
[root@master1 ~]# modprobe lvs_rr
[root@master1 ~]# modprobe br_netfilter
[root@master1 ~]# modprobe lvs_wrr
[root@master1 ~]# modprobe lvs_sh
[root@iZ2zef0llgs69lx3vc9rfgZ ~]# lsmod |grep vs
ip_vs_sh
12688
0
ip_vs_wrr
12697
0
ip_vs_rr
12600
0
ip_vs
145497
6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack
137239
1 ip_vs
libcrc32c
12644
2 ip_vs,nf_conntrack

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# 在所有节点上执行：
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum list docker-ce.x86_64 --showduplicates | sort -r
#可以看到可以安装的docker-ce版本，选择其中一个安装即可
yum install docker-ce-18.06.1.ce-3.el7
# 修改/etc/docker/docker-daemon.json配置文件
{
"exec-opts": ["native.cgroupdriver=systemd"],
"registry-mirrors": ["https://b9pmyelo.mirror.aliyuncs.com"],
"insecure-registries": ["www.mt.com:9500"]
}
说明：
registry-mirrors 为aliyun镜像加速设置的地址，用于加速下载国外的镜像。不然下载会很慢
#修改完成后，docker info验证
systemctl disbale docker;systemctl enable docker
[root@master1 $]# docker info |tail -10
Registry: https://index.docker.io/v1/
Labels:
Experimental: false
Insecure Registries:
www.mt.com:9500
127.0.0.0/8
Registry Mirrors:
https://b9pmyelo.mirror.aliyuncs.com/
Live Restore Enabled: false

1
2
3
4
5
6
7
8
9
10
11
12
13
#创建repo文件
/etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
#baseurl=https://mirrors.tuna.tsinghua.edu.cn/kubernetes/yum/repos/kubernetes-el7-$basearch
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
#安装
yum install kubeadm-1.18.0 kubectl-1.18.0 kubelet-1.18.0
#启动服务
systemctl start kubelet;systemctl enable kubelet

1
2
3
4
5
6
7
8
9
10
注意：针对多master节点，初始化方法有差异。 //本实验没有用到该步骤
kubeadm init --kubernetes-version=$版本 --apiserver-advertise-address=$本masterip
--control-plane-endpoint=$本masterip:6443
#这一行必须要
--pod-network-cidr=10.244.0.0/16
--image-repository registry.aliyuncs.com/google_containers

-service-cidr=10.96.0.0/12
第一个节点如此操作，第二个节点使用kubeadm join方式加入control-plane

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
#只在master上运行
[root@master1 ~]# kubeadm init --apiserver-advertise-address=192.168.74.128 --image-repository registry.aliyuncs.com/google_containers --kubernetes-version v1.18.0 --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
W0503 16:48:24.338256
38262 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
[init] Using Kubernetes version: v1.18.0
[preflight] Running pre-flight checks
#1、预检查，拉镜像
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
#2、初始化kubelet信息
[kubelet-start] Starting the kubelet
[certs] Using certificateDir folder "/etc/kubernetes/pki"
#3、证书准备
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [master1 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.74.128]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [master1 localhost] and IPs [192.168.74.128 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [master1 localhost] and IPs [192.168.74.128 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
#4、写入kubeconfig信息
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests" #5、写入control-plane 配置信息
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
W0503 16:49:05.984728
38262 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0503 16:49:05.985466
38262 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 17.002641 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.18" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master1 as control-plane by adding the label "node-role.kubernetes.io/master=''"
#6、打标签
[mark-control-plane] Marking the node master1 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: i91fyq.rp8jv1t086utyxif
#7、配置bootstrap和RBAC
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
#8、插件安装
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
# 创建kubectl访问apiserver 配置文件。在master上执行
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
# 创建network
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
#加入集群使用
kubeadm join 192.168.74.128:6443 --token i91fyq.rp8jv1t086utyxif
--discovery-token-ca-cert-hash sha256:a31d6b38fec404eda854586a4140069bc6e3154241b59f40a612e24e9b89bf37
[root@master1 ~]# docker images
REPOSITORY
TAG
IMAGE ID
CREATED
SIZE
registry.aliyuncs.com/google_containers/kube-proxy
v1.18.0
43940c34f24f
13 months ago
117MB
registry.aliyuncs.com/google_containers/kube-apiserver
v1.18.0
74060cea7f70
13 months ago
173MB
registry.aliyuncs.com/google_containers/kube-controller-manager
v1.18.0
d3e55153f52f
13 months ago
162MB
registry.aliyuncs.com/google_containers/kube-scheduler
v1.18.0
a31f78c7c8ce
13 months ago
95.3MB
registry.aliyuncs.com/google_containers/pause
3.2
80d28bedfe5d
14 months ago
683kB
registry.aliyuncs.com/google_containers/coredns
1.6.7
67da37a9a360
15 months ago
43.8MB
registry.aliyuncs.com/google_containers/etcd
3.4.3-0
303ce5db0e90
18 months ago
288MB
k8s.gcr.io/etcd
3.2.24
3cab8e1b9802
2 years ago
220MB
k8s.gcr.io/coredns
1.2.2
367cdc8433a4
2 years ago
39.2MB
k8s.gcr.io/kubernetes-dashboard-amd64
v1.10.0
0dab2435c100
2 years ago
122MB
k8s.gcr.io/flannel
v0.10.0-amd64
f0fad859c909
3 years ago
44.6MB
k8s.gcr.io/pause
3.1
da86e6ba6ca1
3 years ago
742kB
[root@master1 ~]#

1
2
3
4
5
# 创建kubectl配置文件：
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[root@master1 ~]# kubectl
get nodes
NAME
STATUS
ROLES
AGE
VERSION
master1
NotReady
master
36m
v1.18.0
# master2和master3上执行
kubeadm join 192.168.74.128:6443 --token i91fyq.rp8jv1t086utyxif --discovery-token-ca-cert-hash sha256:a31d6b38fec404eda854586a4140069bc6e3154241b59f40a612e24e9b89bf37
[root@master1 ~]# kubectl
get nodes
NAME
STATUS
ROLES
AGE
VERSION
master1
NotReady
master
40m
v1.18.0
master2
NotReady
<none>
78s
v1.18.0
master3
NotReady
<none>
31s
v1.18.0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
[root@master1 yaml]# kubectl apply -f
https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml
[root@master1 yaml]# kubectl
get pods -n kube-system
NAME
READY
STATUS
RESTARTS
AGE
coredns-7ff77c879f-l9h6x
1/1
Running
0
60m
coredns-7ff77c879f-lp9p2
1/1
Running
0
60m
etcd-master1
1/1
Running
0
60m
kube-apiserver-master1
1/1
Running
0
60m
kube-controller-manager-master1
1/1
Running
0
60m
kube-flannel-ds-524n6
1/1
Running
0
45s
kube-flannel-ds-8gqwp
1/1
Running
0
45s
kube-flannel-ds-fgvpf
1/1
Running
0
45s
kube-proxy-2fz26
1/1
Running
0
21m
kube-proxy-46psf
1/1
Running
0
20m
kube-proxy-p7jnd
1/1
Running
0
60m
kube-scheduler-master1
1/1
Running
0
60m
[root@master1 yaml]# kubectl
get nodes #在安装网络插件之前STATUS都是NotReady状态
NAME
STATUS
ROLES
AGE
VERSION
master1
Ready
master
60m
v1.18.0
master2
Ready
<none>
21m
v1.18.0
master3
Ready
<none>
20m
v1.18.0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
[root@master1 yaml]# kubectl
create deployment nginx --image=nginx
[root@master1 yaml]# kubectl
expose deployment
nginx --port=80 --type=NodePort
[root@master1 yaml]# kubectl
get pods -o wide
NAME
READY
STATUS
RESTARTS
AGE
IP
NODE
NOMINATED NODE
READINESS GATES
nginx-f89759699-fvlfg
1/1
Running
0
99s
10.244.2.3
master3
<none>
<none>
[root@master1 yaml]# kubectl
get svc/nginx
NAME
TYPE
CLUSTER-IP
EXTERNAL-IP
PORT(S)
AGE
nginx
NodePort
10.105.249.76
<none>
80:30326/TCP
85s

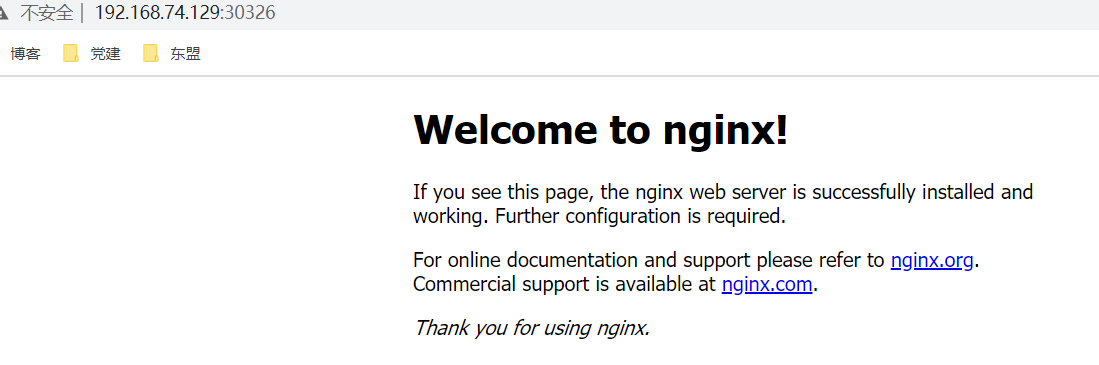

[root@master1 yaml]# curl -s -I master2:30326
#访问集群中任意一个node节点的 30326端口都可以通
HTTP/1.1 200 OK
Server: nginx/1.19.10
Date: Mon, 03 May 2021 09:58:47 GMT
Content-Type: text/html
Content-Length: 612
Last-Modified: Tue, 13 Apr 2021 15:13:59 GMT
Connection: keep-alive
ETag: "6075b537-264"
Accept-Ranges: bytes
[root@master1 yaml]# curl -s -I master3:30326
HTTP/1.1 200 OK
Server: nginx/1.19.10
Date: Mon, 03 May 2021 09:58:50 GMT
Content-Type: text/html
Content-Length: 612
Last-Modified: Tue, 13 Apr 2021 15:13:59 GMT
Connection: keep-alive
ETag: "6075b537-264"
Accept-Ranges: bytes
[root@master1 yaml]# curl -s -I master1:30326 #master1为master节点非worker节点，
^C
镜像：
[root@master1 yaml]# docker images
REPOSITORY
TAG
IMAGE ID
CREATED
SIZE
quay.io/coreos/flannel
v0.14.0-rc1
0a1a2818ce59
2 weeks ago
67.9MB
registry.aliyuncs.com/google_containers/kube-proxy
v1.18.0
43940c34f24f
13 months ago
117MB
registry.aliyuncs.com/google_containers/kube-controller-manager
v1.18.0
d3e55153f52f
13 months ago
162MB
registry.aliyuncs.com/google_containers/kube-apiserver
v1.18.0
74060cea7f70
13 months ago
173MB
registry.aliyuncs.com/google_containers/kube-scheduler
v1.18.0
a31f78c7c8ce
13 months ago
95.3MB
registry.aliyuncs.com/google_containers/pause
3.2
80d28bedfe5d
14 months ago
683kB
registry.aliyuncs.com/google_containers/coredns
1.6.7
67da37a9a360
15 months ago
43.8MB
registry.aliyuncs.com/google_containers/etcd
3.4.3-0
303ce5db0e90
18 months ago
288MB
[root@master2 ~]# docker images
REPOSITORY
TAG
IMAGE ID
CREATED
SIZE
quay.io/coreos/flannel
v0.14.0-rc1
0a1a2818ce59
2 weeks ago
67.9MB
registry.aliyuncs.com/google_containers/kube-proxy
v1.18.0
43940c34f24f
13 months ago
117MB
registry.aliyuncs.com/google_containers/pause
3.2
80d28bedfe5d
14 months ago
683kB
registry.aliyuncs.com/google_containers/coredns
1.6.7
67da37a9a360
15 months ago
43.8MB
[root@master3 ~]# docker images
REPOSITORY
TAG
IMAGE ID
CREATED
SIZE
quay.io/coreos/flannel
v0.14.0-rc1
0a1a2818ce59
2 weeks ago
67.9MB
nginx
latest
62d49f9bab67
2 weeks ago
133MB
registry.aliyuncs.com/google_containers/kube-proxy
v1.18.0
43940c34f24f
13 months ago
117MB
registry.aliyuncs.com/google_containers/pause
3.2
80d28bedfe5d
14 months ago
683kB
registry.aliyuncs.com/google_containers/coredns
1.6.7
67da37a9a360
15 months ago
43.8MB

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
preflight
Run pre-flight checks
certs
Certificate generation
/ca
Generate the self-signed Kubernetes CA to provision identities for other Kubernetes components
/apiserver
Generate the certificate for serving the Kubernetes API
/apiserver-kubelet-client
Generate the certificate for the API server to connect to kubelet
/front-proxy-ca
Generate the self-signed CA to provision identities for front proxy
/front-proxy-client
Generate the certificate for the front proxy client
/etcd-ca
Generate the self-signed CA to provision identities for etcd
/etcd-server
Generate the certificate for serving etcd
/etcd-peer
Generate the certificate for etcd nodes to communicate with each other
/etcd-healthcheck-client
Generate the certificate for liveness probes to healthcheck etcd
/apiserver-etcd-client
Generate the certificate the apiserver uses to access etcd
/sa
Generate a private key for signing service account tokens along with its public key
kubeconfig
Generate all kubeconfig files necessary to establish the control plane and the admin kubeconfig file
/admin
Generate a kubeconfig file for the admin to use and for kubeadm itself
/kubelet
Generate a kubeconfig file for the kubelet to use *only* for cluster bootstrapping purposes
/controller-manager
Generate a kubeconfig file for the controller manager to use
/scheduler
Generate a kubeconfig file for the scheduler to use
kubelet-start
Write kubelet settings and (re)start the kubelet
control-plane
Generate all static Pod manifest files necessary to establish the control plane
/apiserver
Generates the kube-apiserver static Pod manifest
/controller-manager
Generates the kube-controller-manager static Pod manifest
/scheduler
Generates the kube-scheduler static Pod manifest
etcd
Generate static Pod manifest file for local etcd
/local
Generate the static Pod manifest file for a local, single-node local etcd instance
upload-config
Upload the kubeadm and kubelet configuration to a ConfigMap
/kubeadm
Upload the kubeadm ClusterConfiguration to a ConfigMap
/kubelet
Upload the kubelet component config to a ConfigMap
upload-certs
Upload certificates to kubeadm-certs
mark-control-plane
Mark a node as a control-plane
bootstrap-token
Generates bootstrap tokens used to join a node to a cluster
kubelet-finalize
Updates settings relevant to the kubelet after TLS bootstrap
/experimental-cert-rotation
Enable kubelet client certificate rotation
addon
Install required addons for passing conformance tests
/coredns
Install the CoreDNS addon to a Kubernetes cluster
/kube-proxy
Install the kube-proxy addon to a Kubernetes cluster

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
[root@master1 ~]# kubeadm init phase --help
Use this command to invoke single phase of the init workflow
Usage:
kubeadm init phase [command]
Available Commands:
addon
Install required addons for passing Conformance tests
bootstrap-token
Generates bootstrap tokens used to join a node to a cluster
certs
Certificate generation
control-plane
Generate all static Pod manifest files necessary to establish the control plane
etcd
Generate static Pod manifest file for local etcd
kubeconfig
Generate all kubeconfig files necessary to establish the control plane and the admin kubeconfig file
kubelet-finalize
Updates settings relevant to the kubelet after TLS bootstrap
kubelet-start
Write kubelet settings and (re)start the kubelet
mark-control-plane Mark a node as a control-plane
preflight
Run pre-flight checks
upload-certs
Upload certificates to kubeadm-certs
upload-config
Upload the kubeadm and kubelet configuration to a ConfigMap
...

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
"join [api-server-endpoint]" 命令执行下列阶段：
preflight
Run join pre-flight checks
control-plane-prepare
Prepare the machine for serving a control plane
/download-certs
[EXPERIMENTAL] Download certificates shared among control-plane nodes from the kubeadm-certs Secret
/certs
Generate the certificates for the new control plane components
/kubeconfig
Generate the kubeconfig for the new control plane components
/control-plane
Generate the manifests for the new control plane components
kubelet-start
Write kubelet settings, certificates and (re)start the kubelet
control-plane-join
Join a machine as a control plane instance
/etcd
Add a new local etcd member
/update-status
Register the new control-plane node into the ClusterStatus maintained in the kubeadm-config ConfigMap
/mark-control-plane
Mark a node as a control-plane
[flag]
#这里只列出常用的参数
--apiserver-advertise-address string
#如果该节点托管一个新的控制平面实例，则 API 服务器将公布其正在侦听的 IP 地址。如果未设置，则使用默认网络接口
--apiserver-bind-port int32
默认值: 6443 #如果节点应该托管新的控制平面实例，则为 API 服务器要绑定的端口。
--control-plane 在此节点上创建一个新的控制平面实例
--discovery-file string	对于基于文件的发现，给出用于加载集群信息的文件或者 URL。
--discovery-token string	对于基于令牌的发现，该令牌用于验证从 API 服务器获取的集群信息。
--discovery-token-ca-cert-hash stringSlice	对基于令牌的发现，验证根 CA 公钥是否与此哈希匹配 (格式: "<type>:<value>")。
--tls-bootstrap-token string	指定在加入节点时用于临时通过 Kubernetes 控制平面进行身份验证的令牌。
--token string	如果未提供这些值，则将它们用于 discovery-token 令牌和 tls-bootstrap 令牌。

1
2
3
4
5
对于工作节点：
kubeadm join --discovery-token abcdef.1234567890abcdef --discovery-token-ca-cert-hash sha256:1234..cdef 1.2.3.4:6443
对于控制节点：
kubeadm join --discovery-token abcdef.1234567890abcdef --discovery-token-ca-cert-hash sha256:1234..cdef --control-plane 1.2.3.4:6443

1
2
kubeadm join --token abcdef.1234567890abcdef --discovery-token-unsafe-skip-ca-verification 1.2.3.4:6443

1
2
3
4
5
6
7
8
9
# 关闭自动approve csr
kubectl delete clusterrolebinding kubeadm:node-autoapprove-bootstrap
#
#关闭对集群信息configmap的公开访问
kubectl -n kube-public get cm cluster-info -o yaml | grep "kubeconfig:" -A11 | grep "apiVersion" -A10 | sed "s/
//" | tee cluster-info.yaml
使用 cluster-info.yaml 文件作为 kubeadm join --discovery-file 参数。
kubectl -n kube-public delete rolebinding kubeadm:bootstrap-signer-clusterinfo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@master1 pki]# kubeadm
config --help
There is a ConfigMap in the kube-system namespace called "kubeadm-config" that kubeadm uses to store internal configuration about the
cluster. kubeadm CLI v1.8.0+ automatically creates this ConfigMap with the config used with 'kubeadm init', but if you
initialized your cluster using kubeadm v1.7.x or lower, you must use the 'config upload' command to create this
ConfigMap. This is required so that 'kubeadm upgrade' can configure your upgraded cluster correctly.
Usage:
kubeadm config [flags]
kubeadm config [command]
Available Commands:
images
Interact with container images used by kubeadm
migrate
Read an older version of the kubeadm configuration API types from a file, and output the similar config object for the newer version
print
Print configuration
view
View the kubeadm configuration stored inside the cluster

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
# 1)images kubeadm使用到的镜像查看和拉取
list #Print a list of images kubeadm will use. The configuration file is used in case any images or image repositories are customized
pull #Pull images used by kubeadm
[root@master1 yaml]# kubeadm config images
list
I0503 22:55:00.007902
111954 version.go:252] remote version is much newer: v1.21.0; falling back to: stable-1.18
W0503 22:55:01.118197
111954 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
k8s.gcr.io/kube-apiserver:v1.18.18
k8s.gcr.io/kube-controller-manager:v1.18.18
k8s.gcr.io/kube-scheduler:v1.18.18
k8s.gcr.io/kube-proxy:v1.18.18
k8s.gcr.io/pause:3.2
k8s.gcr.io/etcd:3.4.3-0
k8s.gcr.io/coredns:1.6.7
# 2)view #查看kubeadm集群配置
[root@master1 yaml]# kubeadm
config view
apiServer:
extraArgs:
authorization-mode: Node,RBAC
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns:
type: CoreDNS
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.18.0
networking:
dnsDomain: cluster.local
podSubnet: 10.244.0.0/16
serviceSubnet: 10.96.0.0/12
scheduler: {}
可以修改config view的内容，然后指定文件初始化集群：kubeadm init --config kubeadm.yml
config文件支持
# 3)print init-defaults
注意：可以使用init-defaults作为kubeadm.yml配置文件，
[root@master1 yaml]# kubeadm config print
'init-defaults'
W0503 23:00:53.662149
113332 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
apiVersion: kubeadm.k8s.io/v1beta2
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 1.2.3.4
bindPort: 6443
nodeRegistration:
criSocket: /var/run/dockershim.sock
name: master1
taints:
- effect: NoSchedule
key: node-role.kubernetes.io/master
---
apiServer:
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns:
type: CoreDNS
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: k8s.gcr.io
kind: ClusterConfiguration
kubernetesVersion: v1.18.0
networking:
dnsDomain: cluster.local
serviceSubnet: 10.96.0.0/12
scheduler: {}
[root@master1 yaml]# kubeadm config print
init-defaults
--component-configs KubeProxyConfiguration
[root@master1 yaml]# kubeadm config print
init-defaults
--component-configs KubeletConfiguration
# 4)print join-defaults
[root@master1 yaml]# kubeadm config print
'join-defaults'
apiVersion: kubeadm.k8s.io/v1beta2
caCertPath: /etc/kubernetes/pki/ca.crt
discovery:
bootstrapToken:
apiServerEndpoint: kube-apiserver:6443
token: abcdef.0123456789abcdef
unsafeSkipCAVerification: true
timeout: 5m0s
tlsBootstrapToken: abcdef.0123456789abcdef
kind: JoinConfiguration
nodeRegistration:
criSocket: /var/run/dockershim.sock
name: master1
taints: null
[root@master1 yaml]# kubeadm config print
join-defaults
--component-configs KubeProxyConfiguration
[root@master1 yaml]# kubeadm config print
join-defaults
--component-configs KubeletConfiguration

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
1）[root@master1 pki]# kubeadm alpha
certs --help
Commands related to handling kubernetes certificates
Usage:
kubeadm alpha certs [command]
Aliases:
certs, certificates
Available Commands:
certificate-key
Generate certificate keys
#生成证书
check-expiration Check certificates expiration for a Kubernetes cluster
#检查过期
renew
Renew certificates for a Kubernetes cluster
#刷新证书
[root@master1 pki]# kubeadm
alpha certs
check-expiration
[check-expiration] Reading configuration from the cluster...
[check-expiration] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
CERTIFICATE
EXPIRES
RESIDUAL TIME
CERTIFICATE AUTHORITY
EXTERNALLY MANAGED
admin.conf
May 03, 2022 08:49 UTC
362d
no
apiserver
May 03, 2022 08:49 UTC
362d
ca
no
apiserver-etcd-client
May 03, 2022 08:49 UTC
362d
etcd-ca
no
apiserver-kubelet-client
May 03, 2022 08:49 UTC
362d
ca
no
controller-manager.conf
May 03, 2022 08:49 UTC
362d
no
etcd-healthcheck-client
May 03, 2022 08:49 UTC
362d
etcd-ca
no
etcd-peer
May 03, 2022 08:49 UTC
362d
etcd-ca
no
etcd-server
May 03, 2022 08:49 UTC
362d
etcd-ca
no
front-proxy-client
May 03, 2022 08:49 UTC
362d
front-proxy-ca
no
scheduler.conf
May 03, 2022 08:49 UTC
362d
no
CERTIFICATE AUTHORITY
EXPIRES
RESIDUAL TIME
EXTERNALLY MANAGED
ca
May 01, 2031 08:49 UTC
9y
no
etcd-ca
May 01, 2031 08:49 UTC
9y
no
front-proxy-ca
May 01, 2031 08:49 UTC
9y
no

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@master1 pki]# kubeadm alpha kubeconfig
user --client-name=kube-apiserver-etcd-clientI0505 23:28:58.999787
49317 version.go:252] remote version is much newer: v1.21.0; falling back to: stable-1.18W0505 23:29:01.024319
49317 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]apiVersion: v1clusters:- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.133:6443
name: kubernetescontexts:- context:
cluster: kubernetes
user: kube-apiserver-etcd-client
name: kube-apiserver-etcd-client@kubernetescurrent-context: kube-apiserver-etcd-client@kuberneteskind: Configpreferences: {}users:- name: kube-apiserver-etcd-client
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM0ekNDQWN1Z0F3SUJBZ0lJTlZmQkNWZFNrYTR3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TVRBMU1ETXdPRFE1TUROYUZ3MHlNakExTURVeE5USTVNREZhTUNVeApJekFoQmdOVkJBTVRHbXQxWW1VdFlYQnBjMlZ5ZG1WeUxXVjBZMlF0WTJ4cFpXNTBNSUlCSWpBTkJna3Foa2lHCjl3MEJBUUVGQUFPQ0FROEFNSUlCQ2dLQ0FRRUFyTGc2cG9EK28zMnZpLytMVkhoV0FSbHZBZHFrWFRFYjAvR0QKY0xDeFlraDdhYUVVVmxKTjBHUFFkTkJhb3R5TGtvak9jL3Y4WEdxcVh2bGRpOUN0eVFMR2EydGNuNWlKZkQweAp1bjFNQXZIT1cxaUVDM2RLR1BXeXIraUZBVFExakk2ZXA2aDNidEVsSHkwSVVabEhQUDJ3WW5JQnV1NCtsLy9xCmsrc1lMQjZ0N0ZoalVQbmhnaHk4T2dMa0o3UmRjMWNBSDN3ejR2L0xoYy9yK0ppc0kvZnlRTXpiYVdqdE5GRTEKYk1MdnlYM0RXbmhlVnlod3EyUTZEbHhMaGVFWUJRWWxhbjNjdVQ3aG5YSm9NTGJKUnRhSVFWbktVOVJzYVlSUgpVVnRvdUZ2QkN5d21qOGlvOUdJakV6M2dMa0JPTk1BMERvVTlFZjhBcFpuZFY4VmN5d0lEQVFBQm95Y3dKVEFPCkJnTlZIUThCQWY4RUJBTUNCYUF3RXdZRFZSMGxCQXd3Q2dZSUt3WUJCUVVIQXdJd0RRWUpLb1pJaHZjTkFRRUwKQlFBRGdnRUJBTGw5NURPVlFmRTkxejgwQUFCOE5mR2x3d200ZnNHM0hjRXh2cXBudjdhb2I4WTQ3QWRvMkNBaApNY1pUdUxWQ3B2SHRUYk15YXhoRE41VzNmdnU2NXRuUVJKM21RNzhBSllsWjZzVmZWODNTNzgzOGRnYWtKckluCjRtNm5KME5sRjRyeFpZbEVwRU5yWUxBOUlYM25oZndVY0FpbG9uWG03cmlaOVIvV1FJZHZ1WXVQMFdDMUI1RUoKY1ZiTWN4dUJOZGwwTHpKa1dYWUc3Y3ZaYjR5NmR5U2FPZnBranNKdFFudzlzbm9nNHVBUW1DMENnZFZpcUx5ZwpscExuYVExR3BVeVF5bTlDSTVvRlMzSThrS2RaQmV5d1duQURCYXFjS3BKTnFRWkFRWnRQYzhXSjRIczREYlVMCjM3YnlPSEp6VUZkbWxPMU9ubDRhQWRsVXp3Y0IxemM9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBckxnNnBvRCtvMzJ2aS8rTFZIaFdBUmx2QWRxa1hURWIwL0dEY0xDeFlraDdhYUVVClZsSk4wR1BRZE5CYW90eUxrb2pPYy92OFhHcXFYdmxkaTlDdHlRTEdhMnRjbjVpSmZEMHh1bjFNQXZIT1cxaUUKQzNkS0dQV3lyK2lGQVRRMWpJNmVwNmgzYnRFbEh5MElVWmxIUFAyd1luSUJ1dTQrbC8vcWsrc1lMQjZ0N0ZoagpVUG5oZ2h5OE9nTGtKN1JkYzFjQUgzd3o0di9MaGMvcitKaXNJL2Z5UU16YmFXanRORkUxYk1MdnlYM0RXbmhlClZ5aHdxMlE2RGx4TGhlRVlCUVlsYW4zY3VUN2huWEpvTUxiSlJ0YUlRVm5LVTlSc2FZUlJVVnRvdUZ2QkN5d20KajhpbzlHSWpFejNnTGtCT05NQTBEb1U5RWY4QXBabmRWOFZjeXdJREFRQUJBb0lCQUJ1R1VISndaQ1FSeDRQNworV3hBc1JRRHhaajZDdTkrLy94S3BMTzB0TkFBMVFvRVRZVmtJRnB4VGFzUCtTR3pHOXNDU2tSWmgrSUNiWnd0CkNTZGEzaGNHaGpCZ0w2YVBYSG1jRnV5dFF3dkZGU21oZFltT1BSUzFNd0N0Z1dTcnVVem8vWWVpWlVZWHRsNjkKZ25IZWgyZkUxZk1hVUFSR0sxdDF3U0JKZXRTczIrdG5wcnhFZ3E5a1BxRkpFUEJ3SG8vRElkQ3gzRWJLZWY2NQpSSzRhMURDcWIzLzNrYzE2dGoweWwrNXFZKzVFQ2xBMjZhbTNuSFJHWVdUQ0QyUEVsNnZoUXVZMHN5bHh3djAwClgwLzFxakNVeU1DWkJVYlo1RkNpM25yOE5HMnBETnFGbEtnZnJXTXVkMkdoTEMxWUp5ekdIU3AyTm91L0U3L2cKRmVzV2ZVRUNnWUVBMVlTWUtJeS9wa3pKZFhCTVhBOUVoYnZaQ3hudk40bkdjNXQxdXZxb2h6WVBVbjhIbDRmNwpxN1Q0d2tpZEtDN29CMXNIUVdCcmg5d3UvRXVyQ0ZRYzRremtHQmZJNkwzSzBHalg3VXVCc3VOODQyelBZbmtvCjFQakJTTXdLQlVpb0ZlMnlJWnZmOU53V0FLczA3VU9VMTNmeVpodHVVcTVyYklrOVE2VXRGeU1DZ1lFQXp4V1oKSjQwa3lPTmliSml5ZFFtYkd4UG9sK0dzYjFka1JNUlVCMjk4K3l4L0JnOE4zOWppVko1bjZkbmVpazc5MklYdQprU0k5VENJdkh4ZlBkUTR0Q1JpdnFWUVcza0xvSk5jVkg3UW8rWnIzd3JOYmZrOWR3MDJ1WGZqWlpNTmx3ZmgwCkR3S0NnSFBIVVBucU4wcW1RUzVva3A0QUM4WmVKOHQ2S3FHR1Vqa0NnWUVBeTM4VStjaXpPNDhCanBFWjViK1QKWWhZWGxQSUJ3Ui9wYVBOb2NHMUhRNTZ0V2NYQitaVGJzdG5ISUh2T2RLYkg4NEs1Vm9ETDIyOXB4SUZsbjRsegpBZWVnbUtuS2pLK2VaYVVXN28xQkxycUxvOEZub2dXeGVkRWZmZjhoS2NvR2tPZTdGemNWYXF4N3QrVjBpeEVYCkFZakxHSy9hSktraHJ3N1p1ZWZxSXBzQ2dZQUpLcWFWNXB5TE8rMStheC96S0ZLeVZ5WkRtdHk4TFAwbVFoNksKR2JoSmtnV3BhZjh1T25hQ1VtUzlLRVMra0pLU0JCTzBYdlNocXgyMDNhUDBSWVZlMHJYcjQrb0RPcWoyQUlOUgozUEszWWRHM3o2S3NLNjAxMlBsdjlYVUNEZGd5UnVJMFMrTWs5bnNMTFpUZGo3TmVUVVNad042MXBybENQN0tQCnNvaTBtUUtCZ0hPRC9ZV2h0NENLNWpXMlA0UWQyeUJmL1M1UUlPakRiMk45dVgvcEk2OFNYcVNYUWQrYXZ3cjkKRjN2MFkxd3gvVXc3U1lqVy8wLytNaE4ycW5ZYWZibDI2UEtyRTM1ZTZNYXhudFMxNTJHTzVaTHFPWVByOHpDVAp6Nk9MMko0a0lONHJ5QUhsdkFqc1htUVAzTG4yZ0JESVFhb3dZWUtTa2phZE5jc1lMUWhhCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@master1 pki]# kubeadm
reset phase --help
Use this command to invoke single phase of the reset workflowUsage:
kubeadm reset phase [command]Available Commands:
cleanup-node
Run cleanup node.
#清理节点
preflight
Run reset pre-flight checks
#检查
remove-etcd-member
Remove a local etcd member.
#清理etcd成员
update-cluster-status Remove this node from the ClusterStatus object.
#更新集群状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
[root@master1 ~]# tree /etc/kubernetes/
/etc/kubernetes/
├── admin.conf
├── controller-manager.conf
├── kubelet.conf
├── manifests
│   ├── etcd.yaml
│   ├── kube-apiserver.yaml
│   ├── kube-controller-manager.yaml
│   └── kube-scheduler.yaml
├── pki
│   ├── apiserver.crt
│   ├── apiserver-etcd-client.crt
│   ├── apiserver-etcd-client.key
│   ├── apiserver.key
│   ├── apiserver-kubelet-client.crt
│   ├── apiserver-kubelet-client.key
│   ├── ca.crt
│   ├── ca.key
│   ├── etcd
│   │   ├── ca.crt
│   │   ├── ca.key
│   │   ├── healthcheck-client.crt
│   │   ├── healthcheck-client.key
│   │   ├── peer.crt
│   │   ├── peer.key
│   │   ├── server.crt
│   │   └── server.key
│   ├── front-proxy-ca.crt
│   ├── front-proxy-ca.key
│   ├── front-proxy-client.crt
│   ├── front-proxy-client.key
│   ├── sa.key
│   └── sa.pub
└── scheduler.conf
3 directories, 30 files
[root@master2 ~]# tree /etc/kubernetes/
/etc/kubernetes/
├── kubelet.conf
├── manifests
└── pki
└── ca.crt
2 directories, 2 files
#同master1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1)[root@master1 kubernetes]# cat admin.conf
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: kubernetescontexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Configpreferences: {}users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4akNDQWRxZ0F3SUJBZ0lJVFVrUFJHZUxsYTB3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TVRBMU1ETXdPRFE1TUROYUZ3MHlNakExTURNd09EUTVNRFZhTURReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTJnbUFsZmVCZ3FsWG5OeEIKSVZ2V040WnBUTHNOMTRsN0I1c0hnTUQ4UUQzNEsyOUpmOFVaV2ZhUlJPR3IwK0hadXhhdldCM1F4TGQ3SDQ1RwpkTkFMMFNxWmlqRUlPL1JCc1BhS0tQcEYvdGIzaVlrWGk5Y0tzL3UxOVBLMVFHb29kOWwrUzR1Vzh1OG9tTHA2CldJQ3VjUWYwa2sxOTVJNnVHVXBRYmZpY1BRYVdLWC9yK1lYbDFhbUl2YTlGOEVJZlEzVjZQU0Jmb3BBajNpVjkKVU1Ic0dIWU1mLzlKcThscGNxNWxSZGZISkNJaVRPQ21SSjZhekIrRGpVLytES0RiRG5FaEJ2b2ZYQldYczZPWQpJbVdodEhFbENVZ3BnQWZBNjRyd3ZEaVlteERjbitLUWd5dk1GamwzNDMzMy9yWTZDNWZoUmVjSmtranJtNHI1CjFRVmUyd0lEQVFBQm95Y3dKVEFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFOREJBVy9qTVNRYlE4TGd5cktTRDZZYmtZY3ZYWHRaNUVodAovUXBsZnNTS1Frd1IvNzhnQjRjUTFQMHFXMmZrWnhhZjZTODJ3cGxGcEQ0SktId3VkNG1SZy9mTU5oYVdiY0tDCnRJejMydnpsY2dlMm9ydEdMSmU3MVVPcVIxY0l4c25qZHhocFk3SkRWeFNDcE9vbDkzc1ZUT3hNaTRwYjErNXEKL1MxWERLdk1FZmxQTEtQcERpTGVLZFBVVHo4Y21qdlhFUndvS0NLOHYvUVY3YStoN0gvKzlYZHc2bEkyOXpRawp6V01kamxua2RJVzQ2L1Q1RDVUMnNQVkZKak9nZEhLR2loMG9pU1ZBZWZiVzVwdTFlTktrb2h3SWJ1Q0RRM0oyCmk5ZUFsbmFvYWU0QkU0bTBzVGpTR0FLTTZqTUxTZXZiaTY1dnZCUGw3OU9CSXQ2WXZjVT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBMmdtQWxmZUJncWxYbk54QklWdldONFpwVExzTjE0bDdCNXNIZ01EOFFEMzRLMjlKCmY4VVpXZmFSUk9HcjArSFp1eGF2V0IzUXhMZDdINDVHZE5BTDBTcVppakVJTy9SQnNQYUtLUHBGL3RiM2lZa1gKaTljS3MvdTE5UEsxUUdvb2Q5bCtTNHVXOHU4b21McDZXSUN1Y1FmMGtrMTk1STZ1R1VwUWJmaWNQUWFXS1gvcgorWVhsMWFtSXZhOUY4RUlmUTNWNlBTQmZvcEFqM2lWOVVNSHNHSFlNZi85SnE4bHBjcTVsUmRmSEpDSWlUT0NtClJKNmF6QitEalUvK0RLRGJEbkVoQnZvZlhCV1hzNk9ZSW1XaHRIRWxDVWdwZ0FmQTY0cnd2RGlZbXhEY24rS1EKZ3l2TUZqbDM0MzMzL3JZNkM1ZmhSZWNKa2tqcm00cjUxUVZlMndJREFRQUJBb0lCQUhQNjdBQloyUFZVK1ByQwptbzZSR0dFT3lZSjhXYitXTFBCOXdiNzJhUGdQUHF4MEZTZTNBMlk4WjBlNXR6b05BRkdwbm5vRDJpSlo2MDk4CjBmT2ZHem9YSy9jN1g4THNpZWtGSzdiaWNrczl0QXpmOUx0NUZ3Tm9XSURFZmkrV2lKSkFDaE5MWEc4N1VsL3oKaWRMOEdFNmR5Ylh0TEpOZ1pqR2p1eWJVUU4rZ1h1VTFZdUo1NEtEWnFFblp4Uk1PT0pqMm1YU2dZWW9kNTFqMQpyZkZ0Z0xidGVLckhBSFFubzhheDdOQjVudzh4U3lBTDdVbGxnNWl5MDRwNHpzcFBRZnpOckhwdytjMG5FR3lICmdIa3pkdC94RUJKNkg0YWk1bnRMdVJGSU54ZE5oeEFEM2d5YU1SRFBzLzF2N3E5SFNTem91ejR1Ri94WURaYXgKenIrWjlNa0NnWUVBNXhOUXl6SUsvSFAwOUYxdHpDMFgzUDg0eEc5YWNXTUxMYkxzdGdJYWpwSWxzQ1JGMzV4cgpYeUtSeFpOb0JBS1M4RnhlZ1ZkbmJKbUNvL0FwZHVtb2ZJZGovYXEwQ1VHK3FVV3dFcUVlYXRMSWhUdUE0aFFkClg4dEJLSStndFU1alpqdmMzSjlFSGczWnpKSFUwc0UyKzAyTDVjb3BZZWRZMGczaTJsWmIwOTBDZ1lFQThZNG8KeUZtMFkxZjdCamUvdGNnYTVEMWEyaG5POWozUjNic1lMb0xrVE52MWpmMm9PTG0vMTBKQnhVVkFQd1lYbm8zUAo0U3FPallsQlNxUjRKOTZCd1hOaGRmenoxS0MwSXpXNUZ2T1lHRFpXSXBuMFMxZy9KTnRqOVdyS1RpWjNEenU0CjBQbGx3dzZXaE5hWmlpeWs0SDYvT0Z4NFR6MzE5NzBWelRHWVRoY0NnWUFOMGtueTNYdHF2a1RZbVA0SVNHbzAKL2M4WGNOR29GcFNFbHo4eFk4N1MyRXNJemlLZnpXdGV0V0tpdnI1cC92MXJBeHRrQVNaZWlKQVgzaldjdHowcwp0YXgxYjlCMC9VbTZOa0RoM0dGRlluWThBZU1qb3JCZkduazdROXdJL0RkVjFoN1AwM2J2bFVTQngvZEM0K3UxCi9GMXgwVFhJZFY0S3NtbnZSVnNZd1FLQmdRRFpyTlBQaUJib2x6WWM2a3dXVWhiNXF0aWVSamVjNnlTZC9hWFMKOUIwcnJlUGdhcjhYTHp4VGpOK2NGOFhIaFlQdlc3Z0RIc2lMZnk2WlJ4RUlUSmo5YlM1Y2x2QmJvZDN6Qk15ZwpoQytCVWlYWTFJZXpCZmtSQzZ0T1UwZXZtVFlkUWlKUUh3NjI4Z1J0L0wwc0tRTURVdlNhbzZtL0x3VGlsVUI2ClFzRVBUUUtCZ0ZpWUpLZklnZ0NqamltRWZZb1ZxaXp6MnVUMmtPWHhCNlhycUJDbGlXclNCUElFT2lmcjIraU4KTmx6MTBIcTkzRWVUd0VlbUhpQy9DVmR5amh3N2JjY2gvQWZWLzZJSzhoWHRlUmhRcDZvdnpFSUtVa0NYQWx0Mwo2RzA3RUw2Qk9JVFgwbFBIWlYzUDBDRGVvRnFXSUd6RHpnUHA2ak40SVhPdGQwc0RPbFZkCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@master1 kubernetes]# cat controller-manager.conf
apiVersion: v1clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: kubernetescontexts:
- context:
cluster: kubernetes
user: system:kube-controller-manager
name: system:kube-controller-manager@kubernetes
current-context: system:kube-controller-manager@kubernetes
kind: Config
preferences: {}users:
- name: system:kube-controller-manager
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM1ekNDQWMrZ0F3SUJBZ0lJVWpSRlRjUG9MWUl3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TVRBMU1ETXdPRFE1TUROYUZ3MHlNakExTURNd09EUTVNRFZhTUNreApKekFsQmdOVkJBTVRIbk41YzNSbGJUcHJkV0psTFdOdmJuUnliMnhzWlhJdGJXRnVZV2RsY2pDQ0FTSXdEUVlKCktvWklodmNOQVFFQkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUxGd3NVRWU3am5nNGQwVHAwclAxSklMVzJ2aFNIMzgKY09hdnhIRnMzOForZHhXNVJ5NDB2TTRyeldmakhtRUhyQXpydmxUWjhHL1FKS0xWSlYrd0R5c2MraEJxSEhYegpyUzF0MHlOTWZERktHQU04dDRSQjQxSjVCaUhIcFFOYWl4cVk4WGhPbnZsLzJaV3dhVHNoMGVEcFdpKy9YbUFpCm9oc2xjL2U0Nk1Rb1hSdmlGK0Uva0o0K05YeEFQdXVCeVBNQVd1Y0VUeTlrRXU0d1ladkp6bVJEcnY4SjdIam0KQVNkL2JoYjlzc0s1QlFITlE5QncyaUMvUWp0YTZZVTRlQ2l3RTFEOGNndUszbzMvcVFsMkVkdGNoSEtHMGxmTgoyY3JvQW1yMWFqZkRwUFpvRERxa0lDU0x0STdtL3dNZ1QybUdyaDgzUFcxTFdjSjVyR1FRWU1FQ0F3RUFBYU1uCk1DVXdEZ1lEVlIwUEFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQTBHQ1NxR1NJYjMKRFFFQkN3VUFBNElCQVFBelBjUUNPOElHN0lhSmdqdlN4RWYzU0NER3RXT0JZd0ZOYUtZck9LUDVKZGlJN01ZZQpiTnBEZWZKR2szd1V6bEVMYm5NOTQ1NkpjNExaYXp1WFFwUkF5d0VJelVTUHdKV2JicERsQlpIWnV3Ym5wd1lJCkdhZExyUVRXVXBBV3RaSXhOb1RjbzJlK09menVack9IS0YzYjR2akljWGdUV2VtVmJqazJ4RUd6dHpDMG5UZ04KZFR1UW1GaDNJRnl1VmdjbjNqZytTeTZQb3ZKV1lianFBeW9MWlFkUGJUQnl0YXZQcWcrNjhRNXdZamVpZXhTZwo1bHdlMmVrcHB3VUkxVU1oZlk5a2ZBY1Bma0NWbjdxKzEveGtpdlF0dTJ0UTN6dDR0dzVnaks5ZkR5NTROejlPCkJJd1ZiYTBRdVgySW1OemVCR2EvYzVNUjV2S09tcFpHSnkrZwotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBc1hDeFFSN3VPZURoM1JPblNzL1VrZ3RiYStGSWZmeHc1cS9FY1d6ZnhuNTNGYmxICkxqUzh6aXZOWitNZVlRZXNET3UrVk5ud2I5QWtvdFVsWDdBUEt4ejZFR29jZGZPdExXM1RJMHg4TVVvWUF6eTMKaEVIalVua0dJY2VsQTFxTEdwanhlRTZlK1gvWmxiQnBPeUhSNE9sYUw3OWVZQ0tpR3lWejk3am94Q2hkRytJWAo0VCtRbmo0MWZFQSs2NEhJOHdCYTV3UlBMMlFTN2pCaG04bk9aRU91L3duc2VPWUJKMzl1RnYyeXdya0ZBYzFECjBIRGFJTDlDTzFycGhUaDRLTEFUVVB4eUM0cmVqZitwQ1hZUjIxeUVjb2JTVjgzWnl1Z0NhdlZxTjhPazltZ00KT3FRZ0pJdTBqdWIvQXlCUGFZYXVIemM5YlV0WndubXNaQkJnd1FJREFRQUJBb0lCQVFDVUV5b280UW9Hek85UAowYzNpOWFzOE1UUWF4QWI5OUVPM2oyak5Dd0Yzb1NQNXdnTnZ3TnpxNU16bWJEZDIyN010bVRIZGwzNDVvU1poCnFLUW14VUx6Ukp3K1JINzV3OTk2TU5ObytyUU5ZZnJHQU01WkZhOEJyVE43enlLYXVOMnExWVYxVTQ4QlFUc3YKMnVjR1RNUGNBSUNkcGdLNUVVM2NmNVhXWGI0SnF3MjlzdWJER0ZtL2kzUlpiTzlTejFBZUFEU0tXN1lGS2thMwpQRzFsWklUenlndkRjV20zK2U5TlRYR3VKTVNHK1FXOGlSUWJkZk9HbGdtRDNUa0FzUGpxYkphZ0Z3NGpoVEErCjJwODhDNVRvVVVkakRhS0d3RTBWcmpsWUUxandBRnRoWTY4dXd0T0l1MHlWYlN6R3RnOWxlNUVVMEsvWGdnekcKOGd5TWZPQUJBb0dCQU5oQmRjNm9SdVZ6ZmpsV3NQK0QybExjbTZFVDZwNU15T1A0WlJ4TU0yejJoUTR2UGNRZQorTXd4UHA3YUJWczQvVlJadk5JSWJIcTdHZCtKdXNFOFdyeHQ5Z0xBcDU3QTdTUXdkeWUvMGtuZk5tSDFWdTNuCkxDM3AybWU3SnhETlF6bTdRMVpRWVM5TTl4RHBpak9oc2RHY3BRN3hMODk3cUV2aFBaSUtQL0pCQW9HQkFOSU4KQStWNVNsRTYwWDNtZHhPMHEzV0ZCaEFKMWtMNnhHNThjNnpYdGgvYnBXdFRlNXF2Q1FteUhyZ1I1a2pvSzlsZgpYeUdRTEtIMHhRRVBzRG94cGpjMmZzemhXN1cxNVJSRkpyMlM1Q0kybndZSVdUUG5vMXBEbG8rWXJ5TXAxWnZDCkxrVlpHOFpZeURPeURIY3VueStMSHM2Z3NseUdpMTliK2dhZEo4NkJBb0dBR0x0THhNbWI2Z3ZPU0xKd1paaG4KdEloRVNDU2w5VnFrc3VXcWNwVUlZSkxFM3IxcVcrNksxNWRlS1A2WUZEbXRSeU5JSStFUXZ1eDg1Z0t6Vi93VwpDR3l1OE51bGo5TlNpNHY3WkpGY2RGUlJ2Tnc1QjlZalNGRHhTR0d2OHd6MmZqaTdWN2l6bEp4QnVTNXNQc0ZrCk82dWxlTkwrZThVUmx6UDRQYVpzYjhFQ2dZQWVtOExybDRjYTJ5Vlg0Vk9NelpFR3FRRy9LSS9PWnRoaytVR3AKK0MwVDYxL3BpZHJES2FwNWZUazR2WEwvUU1YVEFURE5wVUs3dnYxT01Fa1AwZGhVeDE0bTROZ0tYSjBySFFDTwpNMitIQk1xYmlHL25QbVB4YlZQdFRPU0lqVG9SWG5SN3FvWi9tc1JodEJwWTY3UktxMDByOHdMS3ROaHVadXJDCk4vaHJBUUtCZ0VHalk3U0ZrbCtudGgvUkh0aWFublpSallicnFaNXdUbk1EYjMwTEJKOFVwd01zQUJiWnYweFgKdk9wVXROdWVMV243QWtEVCtRYWtIanBDbmVDQUNRcE55VVhRZmJtYVgwaEFkbDVKVlRrWUZHaDUzcmhOL1UzRAowc3FZbDRjOWJjYWVua2xZMUdqbUNUcmlwTDFsVjFjZlA1bklXTTRVbUlCSm9GV1RYS2VECi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
[root@master1 kubernetes]# cat kubelet.conf
apiVersion: v1clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: kubernetescontexts:
- context:
cluster: kubernetes
user: system:node:master1
name: system:node:master1@kubernetes
current-context: system:node:master1@kubernetes
kind: Config
preferences: {}users:
- name: system:node:master1
user:
client-certificate: /var/lib/kubelet/pki/kubelet-client-current.pem
client-key: /var/lib/kubelet/pki/kubelet-client-current.pem
# master2的kubelet.conf
[root@master2 kubernetes]# cat kubelet.conf
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: default-clustercontexts:
- context:
cluster: default-cluster
namespace: default
user: default-auth
name: default-context
current-context: default-
contextkind: Config
preferences: {}
users:
- name: default-auth
user:
client-certificate: /var/lib/kubelet/pki/kubelet-client-current.pem
client-key: /var/lib/kubelet/pki/kubelet-client-current.pem
#master3的配置
[root@master3 ~]# cat /etc/kubernetes/kubelet.conf
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: default-clustercontexts:
- context:
cluster: default-cluster
namespace: default
user: default-auth
name: default-context
current-context: default-context
kind: Config
preferences: {}users:
- name: default-auth
user:
client-certificate: /var/lib/kubelet/pki/kubelet-client-current.pem
client-key: /var/lib/kubelet/pki/kubelet-client-current.pem

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@master1 kubernetes]# cat scheduler.conf
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeE1EVXdNekE0TkRrd00xb1hEVE14TURVd01UQTRORGt3TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTnRpCkpkNW41YlhIMURISm9hTWpxQ3Z6bytjNHZHQmVsYkxjaFhrL3p2eUpaNk5vQU1PdG9PRWQwMC9YWmlYSktJUEEKWm5xbUJzZktvV2FIdEpUWDViSzlyZVdEaXJPM3Q2QUtMRG5tMzFiRHZuZjF6c0Z3dnlCU3RhUkFOUTRzZE5tbApCQWg1SFlpdmJzbjc2S0piVk1jdlIvSHJjcmw5U0IyWEpCMkFRUHRuOHloay94MUhONGxma01KVU5CTnk4bjV0ClMzUmRjZ1lTVEhJQ0FGLzFxdkl6c01ONjNEdHBIai9LNjJBNTAwN3RXUEF4MVpPdGFwL1pxM1UyeTk3S1gxYnEKdk1SanFyM0lXZW9ZMWdsWnJvdXRjcVpoelh2VmVKRE9DY1pVNFEyNmlFMzJyYWRFT3Y0bTVvZEUzSDdEYjBRWgpYMVNUNzY4SGRYTWtZWEJxOWJNQ0F3RUFBYU1qTUNFd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFNZ0cyeVFzb0dyYkpDRE91ZXVWdVMyV2hlRHUKVnBkQlFIdFFxSkFGSlNSQ1M4aW9yQzE5K2gxeWgxOEhJNWd4eTljUGFBTXkwSmczRVlwUUZqbTkxQWpJWFBOQgp3Y2h0R1NLa1BpaTdjempoV2VpdXdJbDE5eElrM2lsY1dtNTBIU2FaVWpzMXVCUmpMajNsOFBFOEJITlNhYXBDCmE5NkFjclpnVmtVOFFpNllPaUxDOVpoMExiQkNWaDZIV2pRMGJUVnV2aHVlY0x5WlJpTlovUEVmdmhIa0Q3ZFIKK0RyVnBoNXVHMXdmL3ZqQXBhQmMvTWZ2TGswMlJ4dTNZR0VNbGd2TndPMStoOXJ3anRJbkNWdVIyZ3hIYjJtZgpvb0RMRHZTMDk0dXBMNkR6bXZqdkZSU1pjWElLaklQZ2xaN0VGdlprWWYrcjUybW5aeVE0NVVPcUlwcz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
server: https://192.168.74.128:6443
name: kubernetescontexts:
- context:
cluster: kubernetes
user: system:kube-scheduler
name: system:kube-scheduler@kubernetes
current-context: system:kube-scheduler@kubernetes
kind: Config
preferences: {}users:
- name: system:kube-scheduler
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMzakNDQWNhZ0F3SUJBZ0lJRnA0V1FFTFp0Ymt3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TVRBMU1ETXdPRFE1TUROYUZ3MHlNakExTURNd09EUTVNRFZhTUNBeApIakFjQmdOVkJBTVRGWE41YzNSbGJUcHJkV0psTFhOamFHVmtkV3hsY2pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCCkJRQURnZ0VQQURDQ0FRb0NnZ0VCQUx1ZmJmeG8vQUlORWMrL3ZTNFY5RDdFejdRUU5PazM4Y21tbFBrMitWVTYKQXpxWFZKT2E2VDQ1Tmpib0hIeFZOWEZVNStvRmlmTU11M3N3WEthdllMYSs4RW1lK1gxU05zaGg2RlF4L2FOUApOVlpLRE9XMzJFZnhMSkpKdml2OEZuenE5MkdjTTNOWFd5MjlCdkp0UHBIRmx3SjFFSzc0QXh5NmQ5dm9GN2VsCml0WUNNUk92L3pWV0szNjhlb0xSaUNOd1A0NWtnbW5MeHBvU1VyUmgrWHhHeEdjcTJCdVg0ZTZSTzd5REVtdUsKNjhpUFprRjRlRE5aUWpieEhnUzRKNTE2aGFqR1RKWExNMUovbVEvaFo0TEU2L2JXOWlKZCtkVEEzeGgyOG9SagpNREZISUwzUk9wcHJnRFZodGxGY2VGUmhpamJlRmpDcXNXWEthOXNGZ01NQ0F3RUFBYU1uTUNVd0RnWURWUjBQCkFRSC9CQVFEQWdXZ01CTUdBMVVkSlFRTU1Bb0dDQ3NHQVFVRkJ3TUNNQTBHQ1NxR1NJYjNEUUVCQ3dVQUE0SUIKQVFBdVBWYmhIblU2MmpkV1l6TmdQM1JjZEtBblNhZWszMjUwQWZqM3dBOWJhL0drdzlZS3Nsb2M5eWhrekYyegptK0lsVWlMczdXM0MxTlFzSDNmUytCS3llWS9NMGtQVWRYVWw2YVVwOGZ2cW1iRDdRZi80Ty94eDhWK2oweG9MCmhZaWpmNGFCc2dYTFN4YlBMZ0FDWDJTYXNHaXgxYkZRSlBtTFUrem5PVWpQUnJzQWdlMlJtY2ZOS0VwUEMwaEoKR1F2ZkdaTDY1TkgvamNDSHpHM3prQlBxeCtQTUZOc2RuK3hnYndUU0haTlFYWk00OE0rWnR0eG5uYm1sL1Rxcwp4Slc2OWJMdU80cVVaTGtiemZVN29oaFhFejBhcHRid2R3QUpXUVdtQy9heEpvbmVHQ2lEb1A4c3hoSnpoUmtWCkVoQlQyYWxBOVdpdFFqNDFyMitMdlhwOQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBdTU5dC9HajhBZzBSejcrOUxoWDBQc1RQdEJBMDZUZnh5YWFVK1RiNVZUb0RPcGRVCms1cnBQamsyTnVnY2ZGVTFjVlRuNmdXSjh3eTdlekJjcHE5Z3RyN3dTWjc1ZlZJMnlHSG9WREg5bzA4MVZrb00KNWJmWVIvRXNra20rSy93V2ZPcjNZWnd6YzFkYkxiMEc4bTAra2NXWEFuVVFydmdESExwMzIrZ1h0NldLMWdJeApFNi8vTlZZcmZyeDZndEdJSTNBL2ptU0NhY3ZHbWhKU3RHSDVmRWJFWnlyWUc1Zmg3cEU3dklNU2E0cnJ5STltClFYaDRNMWxDTnZFZUJMZ25uWHFGcU1aTWxjc3pVbitaRCtGbmdzVHI5dGIySWwzNTFNRGZHSGJ5aEdNd01VY2cKdmRFNm1tdUFOV0cyVVZ4NFZHR0tOdDRXTUtxeFpjcHIyd1dBd3dJREFRQUJBb0lCQUh5KzlldmJDYU43ZVJvKwpDOVIyZUZ5N2tyWFFDTDMvbWwxT3lzSWdVUXJmZFlJaFYvU0VEUXg0RVpuVUhneDB3d0hGU0NVSzVidVovWlZjCmhGMjNRWUIvMTFlN3dYb1hqYUVScDkxREY3YmJWVVU0R3ZjcGt6M1NGcVoxTFdJbFMvWm1hM0NVNElpUnptZk0KeEsrdS91a0JEUFJ2VFZab1EvbDM2WFZuRFUzbU9NOTBVQ1QwaHA3akVNVitRa2k1K2Vnam5GOExodEpRcmVDTQpTNHZQUE91UGNxTjdSQm9IRkJVSG0zMFBheXlaN3FHZWdBZlVjZFAzM3U5bXd0WUl2VmxzVDNvVkJXTjNub0E5CkFjZGU4QXFmY0dnUlB1YVBTWlI0TW5xK1Bhb2RnSGVwUTR5NEc3Y01oSi9SeUFTRndwWkdYTFhHdnJCcVpKS3MKdDBGOGV0RUNnWUVBeWZ3R250RmM0OWlUSXIvU2NEV1hnS0Z4QVpFSTdBR3h2Yi91bW9IZVp4R0VjbkxVYXNKTApFeHl0aEJtY1VDSEZncVZmWW5mejY2bzVJVGExY1JJcjcxbVFuUnRPdWgxUzAwRCtCQzF2c0ovN2krMHc3Nm9LCmtsbUpSUE5ud2tGUjBvaHpvL1JQWCtvL1Z0Tm1nYUdTNDhJdmh2SzRaRENudnRORHdRbXFTOVVDZ1lFQTdjd3gKZGJMbURuUFJRL3lTcE9Scy8yWklCUGxtQ0wrQWg2RDJZQThiTVBmeVNIRnhGek40TFUxUWprS2RrK2tKbit0UApIcE5WekJiemlDalg1R0UvaDhRRC9RZmdnUDdLcjJId1RZd2NuNW1IRXl2WDdDQ2NLUUhmL05RYnhVQmh4OEdiCjFPekllMUU5NndMV2p1RDhpNzhjU3ZEdm9WZmlaTllJNGUrN1hqY0NnWUFMSmNhend6aE9OdWkvOVRoSEN4NG0KY2tLTFpKYktkN2w0a0h3NXVNc3Vndy85UlFzbUxUejVmQTZ6aUxwUXpkeFp2b2pLSlhhbjNnZ3pKaExUZjc0LwpBb0Z4dWswWkJuOUl1NENKZUh4K2tnWFBEak15TnY5SVhucXQvSVVRZW94cWd5OW1zQmdsWWdkRzRubjQwNU1JCjBQSFFqOXJQWk1RTlN4bWxNTVJlVlFLQmdCdVJwdEpNY1Z1UGxkMVo5TzVsQlRYKzk2Nkw4NFprSFZTY0ZyUkEKVEJpN1JqMmIyVTZsU3ZPRm1TZEZGZHZHRXJXVnBGQ1pLRU5IRGVqbFExSlk2L0tqaVFyVzFQSmZsOFFKaU1DVQowK1MwK2ZJQkRVRjA3bVhhcjhzeUZCNGtQckhZQW1jSEpKOFhaaVJPNmUwYXJHelBOVXFDOEdVMk9Tc1RuV2dFClVTYTFBb0dCQUlXZDZFSzZ4ZC8vdmF3dFhvUDU2anF4WTdQY3dGVnJPUEV3ekF6UGtWYU1wMElvNnR3TkJQVmoKZ0FDQjMzcUwxaWxWQ1NaZ2JBOFhRVWNqcHdTT2o2Wm8wNmRBUWpqM3I3b2ZJeHJKSWhtMndhSEIvbGFNVkdyWgpEQ1hHdlpCNm9HRGIyZCtVQUhxWkNDUzRMRCtwQmdwbG9sZ0hYbVN2MW00RFJiR0FZcW5PCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
[root@master1 manifests]# cat etcd.yaml
apiVersion: v1
kind: Podmetadata:
annotations:
kubeadm.kubernetes.io/etcd.advertise-client-urls: https://192.168.74.128:2379
creationTimestamp: null
labels:
component: etcd
tier: control-plane
name: etcd
namespace: kube-system
spec:
containers:
- command:
- etcd
- --advertise-client-urls=https://192.168.74.128:2379
- --cert-file=/etc/kubernetes/pki/etcd/server.crt
- --client-cert-auth=true
- --data-dir=/var/lib/etcd
- --initial-advertise-peer-urls=https://192.168.74.128:2380
- --initial-cluster=master1=https://192.168.74.128:2380
- --key-file=/etc/kubernetes/pki/etcd/server.key
- --listen-client-urls=https://127.0.0.1:2379,https://192.168.74.128:2379
- --listen-metrics-urls=http://127.0.0.1:2381
- --listen-peer-urls=https://192.168.74.128:2380
- --name=master1
- --peer-cert-file=/etc/kubernetes/pki/etcd/peer.crt
- --peer-client-cert-auth=true
- --peer-key-file=/etc/kubernetes/pki/etcd/peer.key
- --peer-trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
- --snapshot-count=10000
- --trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt
image: registry.aliyuncs.com/google_containers/etcd:3.4.3-0
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 8
httpGet:
host: 127.0.0.1
path: /health
port: 2381
scheme: HTTP
initialDelaySeconds: 15
timeoutSeconds: 15
name: etcd
resources: {}
volumeMounts:
- mountPath: /var/lib/etcd
name: etcd-data
- mountPath: /etc/kubernetes/pki/etcd
name: etcd-certs
hostNetwork: true
priorityClassName: system-cluster-critical
volumes:
- hostPath:
path: /etc/kubernetes/pki/etcd
type: DirectoryOrCreate
name: etcd-certs
- hostPath:
path: /var/lib/etcd
type: DirectoryOrCreate
name: etcd-datastatus: {}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
[root@master1 manifests]# cat kube-apiserver.yaml
apiVersion: v1
kind: Podmetadata:
annotations:
kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 192.168.74.128:6443
creationTimestamp: null
labels:
component: kube-apiserver
tier: control-plane
name: kube-apiserver
namespace: kube-system
spec:
containers:
- command:
- kube-apiserver
- --advertise-address=192.168.74.128
- --allow-privileged=true
- --authorization-mode=Node,RBAC
- --client-ca-file=/etc/kubernetes/pki/ca.crt
- --enable-admission-plugins=NodeRestriction
- --enable-bootstrap-token-auth=true
- --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
- --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
- --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
- --etcd-servers=https://127.0.0.1:2379
- --insecure-port=0
- --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
- --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt
- --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client.key
- --requestheader-allowed-names=front-proxy-client
- --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
- --requestheader-extra-headers-prefix=X-Remote-Extra-
- --requestheader-group-headers=X-Remote-Group
- --requestheader-username-headers=X-Remote-User
- --secure-port=6443
- --service-account-key-file=/etc/kubernetes/pki/sa.pub
- --service-cluster-ip-range=10.96.0.0/12
- --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
- --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
image: registry.aliyuncs.com/google_containers/kube-apiserver:v1.18.0
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 8
httpGet:
host: 192.168.74.128
path: /healthz
port: 6443
scheme: HTTPS
initialDelaySeconds: 15
timeoutSeconds: 15
name: kube-apiserver
resources:
requests:
cpu: 250m
volumeMounts:
- mountPath: /etc/ssl/certs
name: ca-certs
readOnly: true
- mountPath: /etc/pki
name: etc-pki
readOnly: true
- mountPath: /etc/kubernetes/pki
name: k8s-certs
readOnly: true
hostNetwork: true
priorityClassName: system-cluster-critical
volumes:
- hostPath:
path: /etc/ssl/certs
type: DirectoryOrCreate
name: ca-certs
- hostPath:
path: /etc/pki
type: DirectoryOrCreate
name: etc-pki
- hostPath:
path: /etc/kubernetes/pki
type: DirectoryOrCreate
name: k8s-certsstatus: {}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
[root@master1 manifests]# cat kube-controller-manager.yaml
apiVersion: v1
kind: Pod
metadata:
creationTimestamp: null
labels:
component: kube-controller-manager
tier: control-plane
name: kube-controller-manager
namespace: kube-system
spec:
containers:
- command:
- kube-controller-manager
- --allocate-node-cidrs=true
- --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
- --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
- --bind-address=127.0.0.1
- --client-ca-file=/etc/kubernetes/pki/ca.crt
- --cluster-cidr=10.244.0.0/16
- --cluster-name=kubernetes
- --cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt
- --cluster-signing-key-file=/etc/kubernetes/pki/ca.key
- --controllers=*,bootstrapsigner,tokencleaner
- --kubeconfig=/etc/kubernetes/controller-manager.conf
- --leader-elect=true
- --node-cidr-mask-size=24
- --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.crt
- --root-ca-file=/etc/kubernetes/pki/ca.crt
- --service-account-private-key-file=/etc/kubernetes/pki/sa.key
- --service-cluster-ip-range=10.96.0.0/12
- --use-service-account-credentials=true
image: registry.aliyuncs.com/google_containers/kube-controller-manager:v1.18.0
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 8
httpGet:
host: 127.0.0.1
path: /healthz
port: 10257
scheme: HTTPS
initialDelaySeconds: 15
timeoutSeconds: 15
name: kube-controller-manager
resources:
requests:
cpu: 200m
volumeMounts:
- mountPath: /etc/ssl/certs
name: ca-certs
readOnly: true
- mountPath: /etc/pki
name: etc-pki
readOnly: true
- mountPath: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
name: flexvolume-dir
- mountPath: /etc/kubernetes/pki
name: k8s-certs
readOnly: true
- mountPath: /etc/kubernetes/controller-manager.conf
name: kubeconfig
readOnly: true
hostNetwork: true
priorityClassName: system-cluster-critical
volumes:
- hostPath:
path: /etc/ssl/certs
type: DirectoryOrCreate
name: ca-certs
- hostPath:
path: /etc/pki
type: DirectoryOrCreate
name: etc-pki
- hostPath:
path: /usr/libexec/kubernetes/kubelet-plugins/volume/exec
type: DirectoryOrCreate
name: flexvolume-dir
- hostPath:
path: /etc/kubernetes/pki
type: DirectoryOrCreate
name: k8s-certs
- hostPath:
path: /etc/kubernetes/controller-manager.conf
type: FileOrCreate
name: kubeconfigstatus: {}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[root@master1 manifests]# cat kube-scheduler.yaml
apiVersion: v1
kind: Pod
metadata:
creationTimestamp: null
labels:
component: kube-scheduler
tier: control-plane
name: kube-scheduler
namespace: kube-system
spec:
containers:
- command:
- kube-scheduler
- --authentication-kubeconfig=/etc/kubernetes/scheduler.conf
- --authorization-kubeconfig=/etc/kubernetes/scheduler.conf
- --bind-address=127.0.0.1
- --kubeconfig=/etc/kubernetes/scheduler.conf
- --leader-elect=true
image: registry.aliyuncs.com/google_containers/kube-scheduler:v1.18.0
imagePullPolicy: IfNotPresent
livenessProbe:
failureThreshold: 8
httpGet:
host: 127.0.0.1
path: /healthz
port: 10259
scheme: HTTPS
initialDelaySeconds: 15
timeoutSeconds: 15
name: kube-scheduler
resources:
requests:
cpu: 100m
volumeMounts:
- mountPath: /etc/kubernetes/scheduler.conf
name: kubeconfig
readOnly: true
hostNetwork: true
priorityClassName: system-cluster-critical
volumes:
- hostPath:
path: /etc/kubernetes/scheduler.conf
type: FileOrCreate
name: kubeconfigstatus: {}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
[root@master1 pki]# cat apiserver.crt
-----BEGIN CERTIFICATE-----
MIIDVzCCAj+gAwIBAgIIKUS+2WsvNC8wDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
AxMKa3ViZXJuZXRlczAeFw0yMTA1MDMwODQ5MDNaFw0yMjA1MDMwODQ5MDNaMBkx
FzAVBgNVBAMTDmt1YmUtYXBpc2VydmVyMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8A
MIIBCgKCAQEA6yhoybfD8bD6+jTDpo+3m/ZtXvQXDCTETC0GOgdJPUyT6EtbPJRV
Hs+t9aWDkKbl4K3lhsxmGsf6yDZot4ImZIgSpU2y6zU2t/lCyR0sM+2umCtdo/FA
o53zFYe/UaepFFKA72sUvkCm4DnRzWMYzWofjHV7AkFOFZzbEyM9PpiGnUESY37o
FLHhqe7c0pei1hypiLZDSHcloXObvO+kiRy4TmD8kdqW/3iR67edhYaUbpD/oZg1
g9Qihir6QCs3iiNokrRbZEhsUeZmcqvAViZDye8FNwpzRe4e9M0ibOf3AD3ikpWw
8Nrs+BiTmeWYyxig/Od7kGwsqYA6t5d46wIDAQABo4GmMIGjMA4GA1UdDwEB/wQE
AwIFoDATBgNVHSUEDDAKBggrBgEFBQcDATB8BgNVHREEdTBzggdtYXN0ZXIxggpr
dWJlcm5ldGVzghJrdWJlcm5ldGVzLmRlZmF1bHSCFmt1YmVybmV0ZXMuZGVmYXVs
dC5zdmOCJGt1YmVybmV0ZXMuZGVmYXVsdC5zdmMuY2x1c3Rlci5sb2NhbIcECmAA
AYcEwKhKgDANBgkqhkiG9w0BAQsFAAOCAQEAfaMG4LqEIHhi+Bs0qJHXd+yA1UIU
kM9AjfgbRUcJytF5LSZakH+b+S5+J9ihjrvi5jaGWmEKjagOUkkWtTq+uDXDZk55
kNuAobt16o/jrOobpTCH4Bd9U/7R99Ui4H608LopNfEn3GChA658nEBxYELvCKEq
9YM/i05qhHbLJnocjd4pErkWbS7JE0H5JxGvA5avLHgwSqbHkAD8xn+nST4/tTFr
4S9GZd/8kB4QRG0TFFX8zAuZsihd3QpIpDuwgw3PwImHjD/Mpxw58eR71i68oqPd
w2Vsc07Ir+YlSr5ZREdzWmp0xTRJ4DyykWdU0gM9MycfH48Lm5K78XQxfQ==
-----END CERTIFICATE-----
[root@master1 pki]# cat apiserver-etcd-client.crt
-----BEGIN CERTIFICATE-----
MIIC+TCCAeGgAwIBAgIIfOypnw+V1s0wDQYJKoZIhvcNAQELBQAwEjEQMA4GA1UE
AxMHZXRjZC1jYTAeFw0yMTA1MDMwODQ5MDRaFw0yMjA1MDMwODQ5MDVaMD4xFzAV
BgNVBAoTDnN5c3RlbTptYXN0ZXJzMSMwIQYDVQQDExprdWJlLWFwaXNlcnZlci1l
dGNkLWNsaWVudDCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBALRhqUvX
x93vtwxuaW5zEEKLTMreUuKmvFggLDyeRN2jSbI2RWX1UT230ZnJOt+C3hD6u65B
0cIYNyFRxoTIF7jtbc6YPvlHFS1JMh1OjZE42tLuXomdFLXjtuc9fRLtOLXhBofS
hUZTaxEZzqthspFPzetaVmLEIMLOh989TJJI0HP+Go07T09XsaBFLyabyZl1QhfY
Itjbr7NaEBzdRZ8GbETfi5nXgtsfguD1CslDqZTfMNP3scwco2kqVmvuJ/Fli6SA
5OnB7HdfL9jNW5mswXCQ+9N4jsTqOoHRg80iO7mAFDnR/gjnUob6WxeNipcSKjIN
8IaIuIM5HSPiibcCAwEAAaMnMCUwDgYDVR0PAQH/BAQDAgWgMBMGA1UdJQQMMAoG
CCsGAQUFBwMCMA0GCSqGSIb3DQEBCwUAA4IBAQAFIgXU0b+vtIXeBPaBVwMb5b//
aLqAMnxbxHxjIee6NDxQHLK13aPUXuGdku3TI6cTFWOu2OYFxJbJ73J6xjtAJ2r4
MU8yiOLddap4eFsHhFQUuXDcOyuiMau2E86IrTkXVQR3vk21k4bJNT51zjOrNg9I
/MSIWA5CRaQop6WDXmnmbiZEqhB+OH6FL+7yn2lGXw7CYNMe9XaQjr37arFSXvlR
zBjaEU+jBZMrQvdatH+LFcLn4Bvrhtao+cfdCP1dl6iJYlBAEnT+7Gmvl1O5BQQn
qVP/zJxIl4VzzmlqLAGHz8UH/RR329jQHjS5ySK94LUFXRvGpZ4CvuanFBuJ
-----END CERTIFICATE-----
[root@master1 pki]# cat apiserver-etcd-client.key
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAtGGpS9fH3e+3DG5pbnMQQotMyt5S4qa8WCAsPJ5E3aNJsjZF
ZfVRPbfRmck634LeEPq7rkHRwhg3IVHGhMgXuO1tzpg++UcVLUkyHU6NkTja0u5e
iZ0UteO25z19Eu04teEGh9KFRlNrERnOq2GykU/N61pWYsQgws6H3z1MkkjQc/4a
jTtPT1exoEUvJpvJmXVCF9gi2Nuvs1oQHN1FnwZsRN+LmdeC2x+C4PUKyUOplN8w
0/exzByjaSpWa+4n8WWLpIDk6cHsd18v2M1bmazBcJD703iOxOo6gdGDzSI7uYAU
OdH+COdShvpbF42KlxIqMg3whoi4gzkdI+KJtwIDAQABAoIBAHxeQZ3bPyDUYL8f
eW3/w5w980qEk11WXNHeDOIWtaCjLvLC3IJ56/PDw65mwkLNNlM6rSBunTNYAtrk
SR3P4BtPCMDC09iHnCBHMVhnitAwBSAd3ey/80GdqcQx7wSXrtwoNJp9GgrtBQsb
YhVkHPx3q6Cz/o/GblgikifnWd4ZUGis14TvG1rEhxKEZneDVKuUIpuhZhCHt33s
LAiHhrA6nPkd7w4LmYIWPQW491oQ9Fc+jRzEP9GhmcbYQKeMMg32etO23k0vVibX
cQnnSL6uQmNIZcuzBi1LFerpw3Xz1xephNPuR1pEjm6Ph3bBq0b3G5NAqa4pHL8m
Rof7dxECgYEAwqISJ69dmvaUuhtt+CmO8AJBBEzDBrFfkpI9h2JfcJPWBl4ts5ko
e1OlxEpG9uPwso3NudzP3RH/iDt7pUanjBTtHRi7XYfR2U77ogr/OdbJKlGrsdwy
x9UTsYx6LoOA82Xkc1+Bx6UHl9FCdj/AvdbEdYcrxE9CDwdpJXM1HtsCgYEA7UFD
hkLGnyiYK7nZjgK3gRdAIGEmQWNb19e5DHVDECLOg7nI+CBCZA84wVecrbrsBWH+
dfAt6ZC2tjebrnYYOOJwVkkLnzj6feIGqdzxBwsJ7ZzEQ7MIcYLWqgK/WV5NNlvJ
EAj9lHfFhzoe4Xb4feJct1buYdcyS5JA0HA0UVUCgYEAkzzcEx186H/lXyzk8jku
Iq7x1HjliKiiLlVnKoXmwVl1LXgNhrI0h6dt3aJ7MMabDdhsa1B6BzlYYAzvqsZa
dYRXJA3ToBvhSk2P2rQLBAxSPitugayc1cOBlG06+PkOkhLg0c7MdOWJavYpGx97
haF1GZvaJjX3OTtX9bbD1sUCgYAgrAkhdxalGlECTICiJsugclQ5YUeEX6tpKOLp
zUgj87ceurnrOX4LC3GUZn1EC2avQxRop1+bN3uB0lyVBNxHER/JMhvwnEcaiMLE
J5Hll2aRmzIH5KK4Bv2KwgAZzXuyjac9lw9cn7XK7n0MLXcA1uhPsx/2x0y8zXIx
ghIiVQKBgALUXZc68Nc2ubVa86nr78g2wnEgxiMeIM7c7tMALyYRtvnmBoHBhIba
VETlxkAdkzhmtDi1gUFrkJ8nLDrmmKA/5A6kObouTOHBbk5HGEJEkn9PnWj7pCRb
rOk4a1nc4Y0IiAjM+WdyzOR5Mj+ENmFm2sKQ6LtKKXj7iVuO/F2k
-----END RSA PRIVATE KEY-----
[root@master1 pki]# cat apiserver.key
-----BEGIN RSA PRIVATE KEY-----
MIIEpAIBAAKCAQEA6yhoybfD8bD6+jTDpo+3m/ZtXvQXDCTETC0GOgdJPUyT6Etb
PJRVHs+t9aWDkKbl4K3lhsxmGsf6yDZot4ImZIgSpU2y6zU2t/lCyR0sM+2umCtd
o/FAo53zFYe/UaepFFKA72sUvkCm4DnRzWMYzWofjHV7AkFOFZzbEyM9PpiGnUES
Y37oFLHhqe7c0pei1hypiLZDSHcloXObvO+kiRy4TmD8kdqW/3iR67edhYaUbpD/
oZg1g9Qihir6QCs3iiNokrRbZEhsUeZmcqvAViZDye8FNwpzRe4e9M0ibOf3AD3i
kpWw8Nrs+BiTmeWYyxig/Od7kGwsqYA6t5d46wIDAQABAoIBACNEozqlofCMr4d5
BGLlqQ7uDYcxKoe6t+oI0qc/Un+sDX7IVn2mbYG6egeedDXsogtpaUQnQaUAmx8N
8fSbw3BObCV4mr3l9DfxXU/WXTvIiOfvkRK2axBe7wcqncn8UEJpAUdnEuxZu+1j
HpEkLKMaKHMjZ3h2HOTm6oBbR6MsaVboR93Ux9otiGPO2ndb3PMtbg7NBVuD13dV
w+gMaqFlN4aCjN6e5gEIHow3KOA8VTEwud4Uv8T3+aG884rkbnm+D9QkG/e0Hp5L
NOxgn/iyYuPdAS4vGzDICwbYwBOFWmvyLqc4Hc+LAcYTp5IsJl3xUNEG8xKYcyKX
qIx7ufkCgYEA7KKmrMTsnPEaFhk1RVFU/0pEjSDiFsV5JrxYxhJPEgf+AEI8Nazd
Ku5yY1mNGZ0PwZONUpDFbXJKot7Xafj2YWs+yqQKjQe7BPSmuN83W9zr3f94YLxy
VfOwoDpZfU6AMU5zsQrZ/DmE1+coBxLWtwav+VwlQudk/UpPe6nZY3UCgYEA/mbO
NQQNrb926T+JApJqZvAH5emjDFTpp5y+p1zY6rLsOBFMdc+PhTpoM51zi0tuX7H+
udU91PfjmZovMmoo8zwgxFFgfEwkOWImWzSOnG/KVcriBsTrlIirQVedhyjWn3O7
565dURNOpq8GH6mTVaqvKniTpkwO+sj9+u2lvt8CgYBXIVCjvuKsqu4DAwclXdwh
H/R7zobRAacpRyKc0/L/Xaf96mWHEf5hp2jBAiE9NCKwESdxJlM7iGDI9ap1n7EA
j9+P97TW1uja20ZkPfSBQ6gplr55SAoFcfQwGywGQphbD1rz7l3zTC6I3NlVOW+L
9s9mzrH9n3wE846upwyfXQKBgQDPJf76hFZvB9xXiPiTM42YTBLiTyAIxouLg8Jq
nNu0IATgkpVjyKLgpPJ8NNUEs2MoYNM9ljlG1KJrTHTp5C97/5XexTR/gbBtWVJK
Kb2F/DERMqZhRK9evvpTtnf6unIoXCDBQeWSQtpkN1gRKA9kThtbxdrUKlJ4Onk0
fZXcmQKBgQCu2uxIW2QcrrT9eaWxs3sCdnliBCHo99SGRHP3ASe+8gzE4JpypI6r
EHWdcb4z4ewc51AP8h4msKXuXx0OBWqZSp0SMv47c2asBTHXYwVP01KcJaHlecGq
rCm2A5xWgkqieYsLoORJ1czKpw2UTyZ0YODCUDiPXQCVJ0Hpg4IxkA==
-----END RSA PRIVATE KEY-----
[root@master1 pki]# cat apiserver-kubelet-client.crt
-----BEGIN CERTIFICATE-----
MIIC/zCCAeegAwIBAgIIO4G9X1sn9vswDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
AxMKa3ViZXJuZXRlczAeFw0yMTA1MDMwODQ5MDNaFw0yMjA1MDMwODQ5MDRaMEEx
FzAVBgNVBAoTDnN5c3RlbTptYXN0ZXJzMSYwJAYDVQQDEx1rdWJlLWFwaXNlcnZl
ci1rdWJlbGV0LWNsaWVudDCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEB
ALf7qf4RayVh5Tz81yjLF3KqNn7bPJWVN3DVTbIWRSLo8mDbQvDm7kCIaoXbVxds
owiGHT67EQ9xzaDA6USMOfGplfenowOyjO1/8C8gbJgzGKOR/rKcvbUE5qGh1bLf
gr/RMNyfT6hXvkLop/PDVgpYyg7OnJKwNzpez+XKnc8c4v7NJo7vKf3habnmCKRL
yEVuQsU1lH71fl6BQlHyBxqJbAV3Hq3g8NyQZbzzPXdSevJB2QVE83IRATddEECH
we1ITul/2/fi2DixFoXdaZxUd9QJ7Z3xIrs88dQ8FGKD5OYNJTo+osf0Z9srZrhs
2DELV7AGWShGCl+zl0dqcV8CAwEAAaMnMCUwDgYDVR0PAQH/BAQDAgWgMBMGA1Ud
JQQMMAoGCCsGAQUFBwMCMA0GCSqGSIb3DQEBCwUAA4IBAQAoaC4zxVScmaazOT+P
BYmxnkgyXnfghje+4X9OZkSqwJBT4qX4hC3ppI1FQbgb9vbF0AabT7tZmn8pdYKR
eowfLvagwgoQm5jJQ1WvB2CIWPozPYPkulNG29e3DBvMEHkyqlVu3xBxHRtBHDIO
JkzrsT5T7+y190JAWKleV4pZ8HpplTe47cC7E8wiHvHvd8a7tAEUd4KJ+oN/b4Ei
r+78ZIlB8/WjXt79wAlhRtx4BcVtJt6a0hPMnqcdsiX0SsrXw9MtPzLuYvqLUOVp
kq6uz8f2qqPIcWLBXg0/1OWp8voZiHGi2zGOqWKrF9ne48dvClXYHpMtW26iSiev
05a/
-----END CERTIFICATE-----
[root@master1 pki]# cat apiserver-kubelet-client.key
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAt/up/hFrJWHlPPzXKMsXcqo2fts8lZU3cNVNshZFIujyYNtC
8ObuQIhqhdtXF2yjCIYdPrsRD3HNoMDpRIw58amV96ejA7KM7X/wLyBsmDMYo5H+
spy9tQTmoaHVst+Cv9Ew3J9PqFe+Quin88NWCljKDs6ckrA3Ol7P5cqdzxzi/s0m
ju8p/eFpueYIpEvIRW5CxTWUfvV+XoFCUfIHGolsBXcereDw3JBlvPM9d1J68kHZ
BUTzchEBN10QQIfB7UhO6X/b9+LYOLEWhd1pnFR31AntnfEiuzzx1DwUYoPk5g0l
Oj6ix/Rn2ytmuGzYMQtXsAZZKEYKX7OXR2pxXwIDAQABAoIBAQCEfFQwYaivdaxW
25ewh3buGkY92W/qI1aWCPP3DvRgLDEFsD6nLRRaIiHbHFS9yHwqUjFTD/A8F+5E
GUahFv1O2ZjlirDno7a5+8wgk4+/lePjPemUAyzU4p+Vuu0g7rS/nks6Q/pftjeL
BPCUp5AYyVFPklbLhttuTAIXbm1vSxwZ/HSKn5fhnWvdwN1Jd6iGU5En7XQ5yteS
+szs+DJykzIotMAt9oybvCmd3pW/od0V+4lvuGD79092o+UdQ7vczpqHx3nX0OlV
ByNhFy8pbv2yw0/e86NAvzXcgykN7YWwgy3KOzY4w+SA64RbCXyN085duqKUPE8v
mGS5z/F5AoGBANC2iGHF4xrBnQJUX8ENEyJM1eMEbJRNzCQaeJo2MOVKvk1yqpVL
B3UhnIbRUekSR1IrD72mfmaMxTr+i0e0tN/2n0mRuP//2dkyWS4oFYu7pQwR1g0s
Xo36tLKxLEiV3XEFnUAMA6NHWFgazW76y79eusnP2XJGaD02XhXHxEeNAoGBAOGq
x9KS9ro+IbCPzgecqZIk/TVD89ZjpbVCAiiZv9gdfxMH0qrBBVqVuEkqSE9J/lkb
KgREBzknwXqarniTrIOmTzzSq2hhoADoTL3le7Rz3ON+47nPBhAWbVv91qPf1s23
t0DaXJsjRkQByW0ehIn8iCeVFWVNPuMuHuf7tFubAoGACw3P1VXUvGMKvMfZNnFJ
1SQ6o8ZlNcmVCUh5oLlEB7DYuWNcU4HgyDxafO1zKCP2sQxkzgeWZDoKbCB1IfwZ
JE98ijn0kWJsmEtJW991nKv4htYe/x2deGmRznEBxmphiw3gETdRrgEmVaw9uyX/
Sohq3itq+dluxecuPnsREzUCgYA5r79u69SYXWOdT9V6CqkqS7xSjnFZn5VvlVUZ
7dulsjyWr8xBjCADPPyj72QWqLKVMqV1+7HhAXGrFrl85zsVWEEvKidZAoO1V6yu
amhKA8g2e2xZRjulhyYjeusQbxro8Yqt0GQV4FmI7u//repxn5VqkOisQafOyS5r
XOOI+wKBgDJq1Yuu+tXTR+jKx8MOMO4Mde7EKiAgPpAhKX+5Ot2B+M1vIJ8sSQLI
Qk2rXZh5OJpz3gviQAR7cDVoPhKOj5dyUbqFbJ73I6bzSn5W5w0j3oxA+n4KHXfv
Po8oG4LOiWVhV6l4JTxyOD1HK09ty/bSxfrchMF8mTT12W+90XJ5
-----END RSA PRIVATE KEY-----

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[root@master1 pki]# cat ca.crt ca.key
-----BEGIN CERTIFICATE-----
MIICyDCCAbCgAwIBAgIBADANBgkqhkiG9w0BAQsFADAVMRMwEQYDVQQDEwprdWJl
cm5ldGVzMB4XDTIxMDUwMzA4NDkwM1oXDTMxMDUwMTA4NDkwM1owFTETMBEGA1UE
AxMKa3ViZXJuZXRlczCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBANti
Jd5n5bXH1DHJoaMjqCvzo+c4vGBelbLchXk/zvyJZ6NoAMOtoOEd00/XZiXJKIPA
ZnqmBsfKoWaHtJTX5bK9reWDirO3t6AKLDnm31bDvnf1zsFwvyBStaRANQ4sdNml
BAh5HYivbsn76KJbVMcvR/Hrcrl9SB2XJB2AQPtn8yhk/x1HN4lfkMJUNBNy8n5t
S3RdcgYSTHICAF/1qvIzsMN63DtpHj/K62A5007tWPAx1ZOtap/Zq3U2y97KX1bq
vMRjqr3IWeoY1glZroutcqZhzXvVeJDOCcZU4Q26iE32radEOv4m5odE3H7Db0QZ
X1ST768HdXMkYXBq9bMCAwEAAaMjMCEwDgYDVR0PAQH/BAQDAgKkMA8GA1UdEwEB
/wQFMAMBAf8wDQYJKoZIhvcNAQELBQADggEBAMgG2yQsoGrbJCDOueuVuS2WheDu
VpdBQHtQqJAFJSRCS8iorC19+h1yh18HI5gxy9cPaAMy0Jg3EYpQFjm91AjIXPNB
wchtGSKkPii7czjhWeiuwIl19xIk3ilcWm50HSaZUjs1uBRjLj3l8PE8BHNSaapC
a96AcrZgVkU8Qi6YOiLC9Zh0LbBCVh6HWjQ0bTVuvhuecLyZRiNZ/PEfvhHkD7dR
+DrVph5uG1wf/vjApaBc/MfvLk02Rxu3YGEMlgvNwO1+h9rwjtInCVuR2gxHb2mf
ooDLDvS094upL6DzmvjvFRSZcXIKjIPglZ7EFvZkYf+r52mnZyQ45UOqIps=
-----END CERTIFICATE-----
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEA22Il3mfltcfUMcmhoyOoK/Oj5zi8YF6VstyFeT/O/Ilno2gA
w62g4R3TT9dmJckog8BmeqYGx8qhZoe0lNflsr2t5YOKs7e3oAosOebfVsO+d/XO
wXC/IFK1pEA1Dix02aUECHkdiK9uyfvooltUxy9H8etyuX1IHZckHYBA+2fzKGT/
HUc3iV+QwlQ0E3Lyfm1LdF1yBhJMcgIAX/Wq8jOww3rcO2keP8rrYDnTTu1Y8DHV
k61qn9mrdTbL3spfVuq8xGOqvchZ6hjWCVmui61ypmHNe9V4kM4JxlThDbqITfat
p0Q6/ibmh0TcfsNvRBlfVJPvrwd1cyRhcGr1swIDAQABAoIBABVDXghAabNEuvxY
XqJBQnuAEdLHXPq6MCg113n5BUbUyoa7/db5bS5khaanae8foB2k+EnK7b1PlnUp
kgcbJdg9Ki2kojzpAZMxaTfzeJIgRsW5vWBiXSP04EYbMwk8pdayd8Gae5JT7pkF
IXcbAwyLOJ3qBCSWT/cOPyHc3G+BZcNsxiI+Y45/1wND9m7ZhAK1Hi2c3Fvil9zK
N0UqMB25lGA1JfrrhiJR70BLwQ6PuqrdbkriEg3B2mzrcTWAVaRw6AMEN6qp1VtI
eS86XqppfQ/AYr3x5JejXm/NJusWlOYNyL8/1ZMYhMsSv8xVBipZCUQzJY6bP0Bk
2BchjoECgYEA9/4vnRmsRsWHUC8IQBOlux352Zs6rnbNttHjYzCNx6gHXJngqKGe
2GWnKhR/+UwVfGESPgDYGJicR8KFkvPhRmf1l85Id2tV3xZtgWqs7NO21emUDGdM
gk14WvoOuR+RaJyHfqgHKqKgEte4uSv6U5xL5YQzCy3V8/ljm6aDWJ0CgYEA4nd8
kw+swxtn1B4jlRhOto/NCpB4IBBHA0XCPSEpIDrzf53vEhEGMz0eiHXXdaVPbd13
kMpGSkwUb1rCEEFBorxlfSVUziC7/YW7RXprtpBMuBfUGiKI3BXgE+jTGrOUz952
+E41IaZnjosh8lpUSsD7wiWkNQndw2yw9GENbo8CgYBpY3lCjyV6UflmJwafjHny
4hNK2b//YnebyOiUP48RGSQ/wxkJMN37Yn++z0VvYVkEKZCCDwPGuBw6Fr2DLOdA
b2+cWsrLDS9KBhL1W6svXe2mTIRhHQkTmu6Z4wicvYCi71pZhfi9sqzKNSjIcJsK
KzLJz/uNNaZl70bYX9QTtQKBgQCGjIkV8pUpIiow62smlNeHPa6LnUPRgPo/5n09
xmrhvESZSKMWb8joPmLannDRc9LaKl90Rck3MTZe5mQwNiUh457EmJ5nDSnDuWWH
JPHD+L2sDnQ0xtnbMJ/+FDEARzuduMWkRwroIC6ckOstSx+Tfk7VjXmfDWqVRglo
WBUb3wKBgE8Fvn970GoqdiEJF+SIhEOAPAk5UMx5/Dd5kzSoZggL21umDYVa0xqX
MXYvN2yF0SGvLxjqewcsacEhMiD9RuXyqjjs8MvjPdWiNZavuailf4QvcHwp8MJB
UffsCwXBOGOhLDX56wTKzhstNu0Rd8BXZCrcaFNh4vJ3/gNvKNrt
-----END RSA PRIVATE KEY-----

1
2
3
4
5
[root@master1 pki]# cat front-proxy-ca.crt
-----BEGIN CERTIFICATE-----MIIC0DCCAbigAwIBAgIBADANBgkqhkiG9w0BAQsFADAZMRcwFQYDVQQDEw5mcm9udC1wcm94eS1jYTAeFw0yMTA1MDMwODQ5MDRaFw0zMTA1MDEwODQ5MDRaMBkxFzAVBgNVBAMTDmZyb250LXByb3h5LWNhMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA9+uyxi365UT3pKawVI7g0GKYUYce/jdY3ELiLSYRnHCVmEbKSIVeTdB7VbXQFIMB5p+aZWTgfWvdMOW9dI88HKNtszCsu97OOoO0sKB2Ipdso5utuj4aDvB7j6SUztu/jJUAavnH1aKVRNgn+QmAuSMcujzvyaAAQP8fnMFCSRw/jfrKYlV9E4PgawWzmmEnzuGxbvHiBsQjrtalYzAbnRGbk1pX5tuIc5qJvYdel1ReIt9IJ2BELPDNARK9QMSqFLIhBU1iaPtRSz72bxXaT7D21M3oYifhjNmzokTx7DXDlA4b5pS5byMZAF4AYBPmNkRppPGYY1a4cWyrUqRpNQIDAQABoyMwITAOBgNVHQ8BAf8EBAMCAqQwDwYDVR0TAQH/BAUwAwEB/zANBgkqhkiG9w0BAQsFAAOCAQEAF1IlamjA0+o+eb5Hi45p3qbSNMvbfYAwZg350IKcYVpdndR7wMoGFhWZJ8wOWJTNE94hgZ2qsVBjs2Gbst2cp9neK28m/2uDBJgz6OTzDZ8aSQ8zvQoVWoiYKxxNOP5rQOmjwKadg4kTICqs4RkgQxTS3LrhuqmHmXwVTvlqNb9InyJctN+V7ItDEvzYvLBxuYW6f2UKHtlsV/Qk5drBslA5yveZ+QXlNlgx0rzM4BNgeVQfHgTpjRHSLLhpveO0xMVtebln7i4tXNuUGjTgOd9OWwxUja4iTin3MCb8otQDH/xEwmavDkBCu+bAqmPNaVjfVd5+h0DpRsIfla9uvA==-----END CERTIFICATE-----
[root@master1 pki]# cat front-proxy-ca.key
-----BEGIN RSA PRIVATE KEY-----MIIEpAIBAAKCAQEA9+uyxi365UT3pKawVI7g0GKYUYce/jdY3ELiLSYRnHCVmEbKSIVeTdB7VbXQFIMB5p+aZWTgfWvdMOW9dI88HKNtszCsu97OOoO0sKB2Ipdso5utuj4aDvB7j6SUztu/jJUAavnH1aKVRNgn+QmAuSMcujzvyaAAQP8fnMFCSRw/jfrKYlV9E4PgawWzmmEnzuGxbvHiBsQjrtalYzAbnRGbk1pX5tuIc5qJvYdel1ReIt9IJ2BELPDNARK9QMSqFLIhBU1iaPtRSz72bxXaT7D21M3oYifhjNmzokTx7DXDlA4b5pS5byMZAF4AYBPmNkRppPGYY1a4cWyrUqRpNQIDAQABAoIBAF68R0Upfs0rTIIzXAAD1O5sLo5A1twHpEIOoMTl3ibsco2Mx3Fs3TtY5jg7UHb2FLze0i3anVnv5MbxkzK+JRdAcAPgHrFvk1iSyXIQ7vOK722ZaIpZfrWkuWKLXn2pRQngSheWuQDurqFvA99K/VBBlZGpBWwDYvVzR84rnzu1+ht6Duhhc/V4BP5KmRiIKs5SEtLU/w7nEWbhCrGY9SZ4fmgCxlahloRhCD71PLQxMunraA3L47CqshjPm4ylt1J9uAm71hwrby1Q5VXgpU8rz5n5k4VVLHzgQSx+pOWq51c7o7UU6sY4ZpmpNtwEcGsC3XzMywBq9VmCAQMJ6iUCgYEA+XJt5yyMChu4LuUg89Tj6iHt1JKqBxvWjQvd7FcSQtT1yYkx0er9ShPkPSv75yX34dXuWOHPp3FocWmAA9w9HVB8XmhBpfXoDB0wI1o7n/uGGevBasZxEFl4pfc8D9qoPq/qqAYQgzphzkyKLxsYxubnl5yNo9GcHO6l+jo9iOcCgYEA/m8BJKZH6tjXqL+/E1af2b8ZPqDuYSOZkTgh7wu7UMSdwkWEnRJ4fPnunkQlW7m3bu2s1+lUHwgyY8EucEeD+4jRPN5zPV1GiDiYsqXmBcmUtUpaqqjNTFGpGbkPzLXzprSdWwd3u0zwgtALDdhav6JA1iqCkDQSUXRzb2KbbYMCgYAaKfBxIPEHVmT5NjtAmAHX2vsxIrkGydq1LJt4YKGftOqa2vMIy5cJoBB+ghCH7CmV3HSFihnXvENyMdiljwIyAvEojdLk72gJbT5RVvOOEjm8mkfNRUcyqc/HyKjaGNswyA7a1NgCi6saklikHDl7E1kTQ+5vUlsHhdiO6HDv3QKBgQCtBqAoZEwUEVLXl05BwG8EjUiFprt1o9gTQbER91BzJMKEEvKUPrNhijYTuxQMxMdR0J/yVOK4F8Lsw7ro8Dl5HRnt4vlLidslWBe/pcI/vU4720y9Mf4rIH122Ls9457Gh51bAkESRshorUJXMALGv3iILHCN0FuEuUSnQs+gMQKBgQDfWbrsFmDaTvtrF/CekocQOtsOH8tSHIuTrx6KIislSJ/w+gwv/xugheUl5l9p9Pz6beulUINf7S3e5sI6ASa5nJvOMfSAJuzldzDWy8CfllyjXi+qZEmIDELHYjuJs0H2d3dVPM1F5vR8m7F0/99agzmmpHjZi8gOPswHH3Tjmw==-----END RSA PRIVATE KEY-----

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
[root@master1 pki]# cat sa.key
-----BEGIN RSA PRIVATE KEY-----
MIIEpQIBAAKCAQEAu8m0vfJe70JTRZW288FXGUA3DIxPcvEvCll3l1NZ1CabfNki
lW3A0CqGUX2YlPLz/GgFP6PgNNcJR0y9aa6m4QwLFPjpv65LghVtFgsLckgl3DZX
MaEtY6iIENEnrqFRzkGdT3XDYdSZfXORs6HTT+NEcWsFrJaPFrk2/0iLvlFKSV4I
basTLEXj/KDRLToMuxNZMeX+IJyhi9YI7CrgpDAxfJB+usBQVPl6Y4ZU/GmMT3bi
Z7q0NXjSt+9+C4Dt2bLYEpuuxbDVDUEvC+4DOaVP55IVHFk70Y0JwE+xbNnvQkDA
s3zvTo/Ued4u9tIGC9akvNjoL0FBDXyJ7v6xowIDAQABAoIBAAv92G3cwVUz/g9O
fS1Zpk81e45wk046uo9FoU5ngy/5+yngz8WNCagBXyxrAchZL11p4xPqShH1vWDx
NJNAFOYAF+ER+BNGdQnshlfHAsccdlZ2neDMcxKPG4k/YfJT2N578Ci302823UpW
i/JVniHW2HMJq4YW4zJHR4zLvCi9+iLKAWYe3fnjF0OxB0CKpzROQcrV2jYMyLw/
3rxaLJ622S4aNlydkfgGI5tXaZ0abBuI9D45HoxkGVq6UvW3ikTA0aK7fbmWm1H5
pr0M1nO9Ebnq2XnzFChZd92XYZhl8+osw9sSgj17x6m5fjPcxO/5bfdw4xjl9KmM
kpCHxHkCgYEA5GKQ01RPnR1Q8ebSH0eAZUvNTb1Aw6hbz4+UImUlDYTuVKYeGdKh
K+fzHiP50F/6W9l/RwQsR4wLheMQjjAVC67fd3XAC+aDtpUyid0P+C5v3crqg3U6
VYUNa+mnKl7KW9bzkFQcoArjdP5sKdcw/pTglncx2gH0ghZL+t5n+VUCgYEA0n5/
JFSdlLhVtWrBfEbezN+tauBjltf8YhoSXySLDnbyl3kTfWK2UiU0I4NyhezfLiOQ
+dNqaKeNXoU+/okdtT/8RuMisFMTIINgJG/LqUHsvxDQOTZJpsb8RQPJjGPpQ4Wv
jMAgTkk9GCBKkbvMx0/pZaHI6T4uAP/M55KeHxcCgYEAxKfa7R38L92+hY2sASMg
fBj5f6cmzVN7Ow73D2bosOt2DY28/Z9RCO2BesKfqb37ZnuyDQSa3EDK607KQqVE
efrqkYLjC1xCrkVqbyvbRGk4ClNf/DJFOL6JABMBzoow1UQSFoVW4Lh/g45QtPaH
SbAIc4fPdVmZoSpx4mMARMECgYEAlR2tvjP/Sirn9NQC66JdFa/jb1I02th5X5nu
p94AcKfNJYdNSkcSt9DJRdtJ1xw94rapboHZ4PfJi0tDnBfQpuUEN8eSfGztoNvQ
0R8tnOMp7xTfHZiaxn4ymkWbk0v4JLBg84nrmOoDUMMXcHQlFpFC24+n/6vf9S9B
nk9cmtMCgYEAvcMkHKyTF8etT8WkLMYQHCFF6J+1CWWZ4iaVUcuu/kZY2bx5fOa1
4ENzIcEYBaUSrQuIlKN1RtMzl4WlPr5OWNE8W61mpdaTOP2acPyejwGAv4+naejb
6MQWWmQhmzPVsceiKVz9zCsU/+tgikYB1Hgzi3es8t7l2HHY7IHKsjU=
-----END RSA PRIVATE KEY-----
[root@master1 pki]# cat sa.pub
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAu8m0vfJe70JTRZW288FX
GUA3DIxPcvEvCll3l1NZ1CabfNkilW3A0CqGUX2YlPLz/GgFP6PgNNcJR0y9aa6m
4QwLFPjpv65LghVtFgsLckgl3DZXMaEtY6iIENEnrqFRzkGdT3XDYdSZfXORs6HT
T+NEcWsFrJaPFrk2/0iLvlFKSV4IbasTLEXj/KDRLToMuxNZMeX+IJyhi9YI7Crg
pDAxfJB+usBQVPl6Y4ZU/GmMT3biZ7q0NXjSt+9+C4Dt2bLYEpuuxbDVDUEvC+4D
OaVP55IVHFk70Y0JwE+xbNnvQkDAs3zvTo/Ued4u9tIGC9akvNjoL0FBDXyJ7v6x
owIDAQAB
-----END PUBLIC KEY-----

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
注意：/etc/kubernetes/pki/etcd目录下的ca.key和ca.crt不同于/etc/kubernetes/pki中的ca.crt和ca.key
[root@master1 etcd]# cat ca.crt
-----BEGIN CERTIFICATE-----
MIICwjCCAaqgAwIBAgIBADANBgkqhkiG9w0BAQsFADASMRAwDgYDVQQDEwdldGNk
LWNhMB4XDTIxMDUwMzA4NDkwNFoXDTMxMDUwMTA4NDkwNFowEjEQMA4GA1UEAxMH
ZXRjZC1jYTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAMorsnk0NePN
eBU4KEHAXicxWGjDvfP97YoXqwZPGKMnZnCgSY4srcehaatca5bUjoXQGRABtd7G
4QjS9ny2IdkZ3BX0PsWPCfTJb51GM5C9tkXqHG8O/bMvvEd88GPVpOKa3zS+JuSU
h7JQUY7znuF+7HSDwkv3uCNXIzTlQB5MGyKrAD5suoX0Y893t4c+TMDtAFaFvoyF
C/vQAFmS6LWgYoBDQWabeu2ZqoqWp1bZGFGjitUFQiTAOgtiFKyZNJtcVVglNten
DxvpPib0R97nBTjRxCFwEtJGPbps++E4UhYVtj9b6jqKyq9jH/h13pJpopPs8NY5
XY/wiAK3YSkCAwEAAaMjMCEwDgYDVR0PAQH/BAQDAgKkMA8GA1UdEwEB/wQFMAMB
Af8wDQYJKoZIhvcNAQELBQADggEBAJVzeFLomtXB62a3/JBZzjtlTFcAg/2xTxgR
XsXBxoG8A51bqFcsGMdTjmllCAG3FcbxLzs+EdQ5QdIIHDvqGkCZ4JEUU+YyWLXb
j2YZ7kO85uBbw0gY50C/vVx3tbDtt76bR/Q0cqHySlzh/JdNOm9ZY37sY+/u9OJE
XQxYMw9nOGSWHrW1XtCErVXWq3d2QH0JzgCvj9aRt7nPOtzFBUX+fvkemsJ+8l9D
MaF3zpJGdevk5H5a2rCr4oM/UFezwL9HmH+ibl70wDy11idIQkdAYu+8dBbeXGZP
tyHqhBSJge9Oi6bgvNS6fQvOEAflgmRmPa+rMJFS5tyCRJFOCyc=
-----END CERTIFICATE-----
[root@master1 etcd]# cat ca.key
-----BEGIN RSA PRIVATE KEY-----
MIIEogIBAAKCAQEAyiuyeTQ14814FTgoQcBeJzFYaMO98/3tiherBk8YoydmcKBJ
jiytx6Fpq1xrltSOhdAZEAG13sbhCNL2fLYh2RncFfQ+xY8J9MlvnUYzkL22Reoc
bw79sy+8R3zwY9Wk4prfNL4m5JSHslBRjvOe4X7sdIPCS/e4I1cjNOVAHkwbIqsA
Pmy6hfRjz3e3hz5MwO0AVoW+jIUL+9AAWZLotaBigENBZpt67ZmqipanVtkYUaOK
1QVCJMA6C2IUrJk0m1xVWCU216cPG+k+JvRH3ucFONHEIXAS0kY9umz74ThSFhW2
P1vqOorKr2Mf+HXekmmik+zw1jldj/CIArdhKQIDAQABAoIBAAJ7uOx+NK9Apdn0
36G3IDDxDTn0NZAarWFF2ybvr8jJQhveDCk/6T6LgAXH09Z9c+a24KfurXI4FSmL
ldWAUzgcdjSa1G6OzDuCgel3pEiB3AxNzN2cXIdn7bMfGMDRLf5OkrFOKKIkJOqO
zAGqgmgYrATeXXObblqYxmju6/OzTAPbTV6Wn/DWNouoNQu/jWuIVvm70MTZcXKQ
U2UF/ZnGsB0PKov6sXz2sKMb1yC4xXfOdG9uhWLgTmd+7ETRdFCc+Nuu2BcxmwBK
OCDVTqfEKmv/Qx3tDzd8ILzU+gLKw1vYbbBTPZYW3i8aVhBhp6BnxOFx3//PJZS0
L4ZAmFUCgYEA88h6fI59Fm6UnexymAkwpWbct7bTt4Vae1Sh5Gc98crOPr9HPzRA
KK7GbZBDeIbBVO3FEiVBF1ZmnBJ/wMn2GKqlqBfVO/PQEhGr4nigN1cQpxwhqJ2C
dK9XCUqLxP9VVIALOBT4O8vku42iw2JObEoSmqq7Lf6I2V9U+xgZcOMCgYEA1E1e
PHy86KKdWIglp52qD/NsBxcEO5tK6GwaFm3qjMZ5xG42VIQCcnlIZMsbdJjKbQZl
3isrQtlCoYiFivvZIQHLhATwVI61iP+s2PYPiVoZufdDT5wKgu6rtyclUatCqhLE
/wn5fk6z9vjhYcO4I7bh6VBO4ISkTs+wJg8mf4MCgYASzqSkd1mvIVjV1igBErRu
DkF46uHqhp80ZJMYy947iSngLWGRvrY0bUdhrH+IDN1db/qEK9uZsVC5ObQha3NQ
89lT3oLU3TpwKmzYS/YQTuc5/TGbkIs/9UcBsH6X9BrhKf+zk+qSsmgzD/o+mJb0
Q8KrrABEzB5CptgnhvRvgQKBgES8xA0rifJ8bBt1AVQSzTQa6VgmUJ2H+ynjjlLC
xdVMkbJSyM52a2Bq+lCAHmSS7796+dKEAZ7EPzmTvUExp6xzK1SUUMff6NDxjyI0
EPW0sW2vrCCDcjfQVNKZHxEhNRVhvFyi+x+1FbmZ/UctGlqd5OkoslEpQRWvUuYP
s7RHAoGAUlDNQaVNYZZC+heKVqEOnMHDNl1/RdHCeGoMekZZklI9eIdpaGsQkf38
Zbzl//1wgrQm7gW+ayRGWw4WJvnRTp2xY0aIdSjhnrUoWjCGsOMWhDCM4qiQuZdT
I/+xBNP/ghdho6FiN1pFD71NnAOkDpPNZ4XkuNAOhhKEUC+WLt0=
-----END RSA PRIVATE KEY-----
[root@master1 etcd]# cat healthcheck-client.crt
-----BEGIN CERTIFICATE-----
MIIC+zCCAeOgAwIBAgIIXmaLbxJ/6EQwDQYJKoZIhvcNAQELBQAwEjEQMA4GA1UE
AxMHZXRjZC1jYTAeFw0yMTA1MDMwODQ5MDRaFw0yMjA1MDMwODQ5MDVaMEAxFzAV
BgNVBAoTDnN5c3RlbTptYXN0ZXJzMSUwIwYDVQQDExxrdWJlLWV0Y2QtaGVhbHRo
Y2hlY2stY2xpZW50MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAtPxz
xbho/LLxIv3s7LhO/knKOlc/UEt9J/0FlrWhzQRMTUwOXGHgKYXZfYx9Vc0XxUsn
X4YHTNNuh5H6ps/QrVBkzbMRytGzcCmhr2Lymgim1QdSrD3s2A5Jhnhyv6ISXkf7
I4Vx52Gh21698r9KJkzXQoeHCFABdqjFZmdN1HETnGQJx4tSFWI/1gy1d/af3XTv
8OIFHtgO21LwE3PO51uvrhBmkH6EcKn6mikd+qqvERoOz7IrZk54NVivA7ykPJMV
bNuf/wxKJWv8MHRfJ0DAWkVNJxcqcS19gVoaenZMVh71wMK3VdQji7HJFayCe8ig
0MYspJj16P9xNpiPPwIDAQABoycwJTAOBgNVHQ8BAf8EBAMCBaAwEwYDVR0lBAww
CgYIKwYBBQUHAwIwDQYJKoZIhvcNAQELBQADggEBABxcPcvwyE/mKtHt/sgt2veK
GwBy3rvqSIv7yXeh6A4j8cZ5AwNJn483Va6qkuJnc7+eFfydPZgPmCWJ5JDy0LAA
W8/Gy/Q9MJLW/QZ8TyeZ5Ny5jbwXGwF3a2H1hCmGDHm0bKOIg1kClTVFoxIn8RlM
0gkWGjxZ50/8613qwOIz2Lr1VxQr2TcjQCwN+j9ZP/7jeA304k8OnHH9uJnfHJ/3
duRkIGsgzTHiJM6s7dVpG56ay3Tr8vFO0j/XzlgwK+m6qqNayuQOrgXa3eZB0YOu
hsQpi0XBxs1/GIDCKYlVrmP3U2sWtSX/+CqZ8abv+/AIwQYWqFngM8IRLNDN2bo=
-----END CERTIFICATE-----
[root@master1 etcd]# cat healthcheck-client.key
-----BEGIN RSA PRIVATE KEY-----
MIIEpAIBAAKCAQEAtPxzxbho/LLxIv3s7LhO/knKOlc/UEt9J/0FlrWhzQRMTUwO
XGHgKYXZfYx9Vc0XxUsnX4YHTNNuh5H6ps/QrVBkzbMRytGzcCmhr2Lymgim1QdS
rD3s2A5Jhnhyv6ISXkf7I4Vx52Gh21698r9KJkzXQoeHCFABdqjFZmdN1HETnGQJ
x4tSFWI/1gy1d/af3XTv8OIFHtgO21LwE3PO51uvrhBmkH6EcKn6mikd+qqvERoO
z7IrZk54NVivA7ykPJMVbNuf/wxKJWv8MHRfJ0DAWkVNJxcqcS19gVoaenZMVh71
wMK3VdQji7HJFayCe8ig0MYspJj16P9xNpiPPwIDAQABAoIBAAEFk9m/6sfScs4R
xO6pM7j3za56o57ebjx1jzyElf9EUPH2xfX7j3psiQfObT64w7OXcwd1CEGEyBD3
4ARlE/aGh6spoaYVfP/bHFCTLG92MQru2aajSt0FZ6DcuTkfvx7NJTvUGwqFYJaO
eGAQeGiy8lwry7VeTkPPPB4R4zyZzGX5UoxI3qd+ffQ7kDCPocDgWxio6TZyjaLZ
Sj/felD9mth28IgToRJmVgH7ZZog81gxTv1pSofCcRtjT3zNH3n2kVR4zMFxXpfh
DwKdCnzt1Jv0Hs/PFvJPxK9MDw49S6lhN7tgUbhoON7wqvC0CSQretelwDjZWVRI
J1rtSgECgYEAz//rSUCAwYD2ynk/eqFRlhgloTCOquYipGCdojGbh5uj7AKrc8T8
Y+9fe/rbFVDOtYh6GZJghl7p5KTU0Td6NvwMs+gT4e7m3/hiz8jsW19G+W8AxYVG
y5OSm9fiyReZrw7DMVuz3fRcidivr+RBOcNvuUwI1PFjASJUNF/JGL8CgYEA3sCk
rArnUg7IjcTrYX+W+5TNQDXxMSbho6DQOFIeuHEibdOsN0fwCPXwREiJ0wYwwAHy
KrWDgFLUEDkMQVpd6QqG3rlGM4RMIr0wsBc8h0LpfbpUmw3RO00yaIkf5T6j8psp
LokAQKl2t1adKjvQaGeodqbse0NrzObaiZVTqYECgYBxb+NEGfeekNUHa8Tg/mXe
c+Dh3feQ4N33w/F0aZWnCY0GxBX5l28GmZ/7n74oC+AQRRRCKgCWh+ELn5GpYJY4
spHC9EkTqRUlBPPu2md9FaNBmfZTwvHvSNZmRAEdJs/cFzMBEkAwRnrJevGl/dhM
xneCGSOf7t3N2okN30dvRQKBgQC5248KpYZg50jbUUT8ctLtUzj2rIt0cXavaoyR
kaNkTbFmZck5zuIu99Xjg4rL8kxWyMjgbdctCO88If1hwh69RTVHPNugPHCyQ50O
MDUmvuPHLeNOBHdhvYWjx1Y/lsaAtInl9BWr3jnZu4EjLgk0M9lSNvD14ElgC/an
+Vp3AQKBgQCHsT/bi7f8efrRhwVXE3Vs1zULTesr9QRWz5EOd/l3AhawYt4ntrKG
7XYORKtvIHsN8/1Xxd8euG0fec0kKmnFLT/LRShG1AfcH87hw6mLfvVFuBhmpaPb
zr71f6PJ2oMFTXNutrVY1dg6Su2fQjF01eXYwTfrVtL3ShI6EmMN9g==
-----END RSA PRIVATE KEY-----
[root@master1 etcd]# cat peer.crt
-----BEGIN CERTIFICATE-----
MIIDFDCCAfygAwIBAgIICCVcX9SOfGUwDQYJKoZIhvcNAQELBQAwEjEQMA4GA1UE
AxMHZXRjZC1jYTAeFw0yMTA1MDMwODQ5MDRaFw0yMjA1MDMwODQ5MDRaMBIxEDAO
BgNVBAMTB21hc3RlcjEwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDV
LT+aoq/aHNPtcg5bRo1yewrTOSP8Y/q24E9bl+eNYx4wI/PmyQhPxoi3o61R598p
WOTDt6fkOLhSR6o+4ZDhDege+rHfeZ4afwCXkOO5hAanN7YedqJljiahuv5fPPGd
be1tRwRLXK8KcHtYI06wP97QFjoALshixKCJK53vjH9+KcTDqJDNt20FTSuUZB5z
QCvK2Hy8+CtwaxmJqDbjq1CX1q75HnvCENHQ0StZKJRhzu0S6fT2xxwo58YMcVUM
tSkVoW8if++BE2h8GB/UcuQFisc6f3Ps/fvrLrOUhWww32xeGFFGDtttyZ6qt5g8
XVImUUhH7iU2aI0rr2TjAgMBAAGjbjBsMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUE
FjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwOwYDVR0RBDQwMoIHbWFzdGVyMYIJbG9j
YWxob3N0hwTAqEqAhwR/AAABhxAAAAAAAAAAAAAAAAAAAAABMA0GCSqGSIb3DQEB
CwUAA4IBAQCVo26/7HNrnQ3kEb8vr6ME4nHkswLJrIwqe0bemNePqBpZFdeQIImS
M/kWPDt9rgdhgAuABUz8UbIxxz6zOwfpMEAjMqu/EVcnxD4a26Bpma7S7BUaiVXH
GORLMJn6y54dI+Fs5gvDIKk69ueuHmd8nX/z2cMRgNToTVCGaRHqInaV75vZXaB+
g4hLl3HrCnU+toqcmJ0ENy/k6+HDZ6jl1FH8mrj7Xu8uwvHE39tkUodPG+y+AWBa
bEcoME1aMcld/I55jMq4gJuEzH2rUdCJw7u9+Lv4Jx3OlhZeoNXSH/uNjMxR/cv5
VMw8Ekta5MOQ9MtgaoTS8p26th0bFTsC
-----END CERTIFICATE-----
[root@master1 etcd]# cat peer.key
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEA1S0/mqKv2hzT7XIOW0aNcnsK0zkj/GP6tuBPW5fnjWMeMCPz
5skIT8aIt6OtUeffKVjkw7en5Di4UkeqPuGQ4Q3oHvqx33meGn8Al5DjuYQGpze2
HnaiZY4mobr+XzzxnW3tbUcES1yvCnB7WCNOsD/e0BY6AC7IYsSgiSud74x/finE
w6iQzbdtBU0rlGQec0Aryth8vPgrcGsZiag246tQl9au+R57whDR0NErWSiUYc7t
Eun09sccKOfGDHFVDLUpFaFvIn/vgRNofBgf1HLkBYrHOn9z7P376y6zlIVsMN9s
XhhRRg7bbcmeqreYPF1SJlFIR+4lNmiNK69k4wIDAQABAoIBAEuZ0na6v3awxo/s
5R6FtOAmtr4WA6ccpet5PWuUQbAouKoF9hegr+vq0s2dpHfprYDyX57xYP9VBjlX
5Q6L3F+UGP/zlGVWsjVfWQxne/ts0Rc4cMP4+rrdYOH2eQO5j05vj8Yza1h2tDUV
kwi87MkgvZo6Z7Ns4+/zH6PF7irnmP1hwkgwPZQ8aGys/SjDMGYo/r6SS872I4go
/I80AuE8OIxvkSt0M2McvtJxoy1BdMY5FTheJkTVQg1lQJsFVicLv11Qql02I38u
eI/+jjW/VDkJlp2QxVaAh0ZKyEJQNxBHbmEiZuomPovtZGvAPZoU1RkSw6UN5R0O
FpcIF9ECgYEA4e+q0D2+OJFsbvxqBpoDPBYs6Onjboz7sUBVAHVe2NvpB4Nw5nsd
tJwx5kGDeo0ABlACVzslmZlGUICnEk4KGiwDkuy8DKmHhzBV0M8Mi9VuhHXN+4aV
2b8Y8+wIP3XQR0WWX+gHfQsvwjmuYefkaCzJ/hIxTOavlsyRD2+40/8CgYEA8Yrw
5K9NY9bv8Fe8YATLXCtoBOprFURXeVjxzuIZGcU9sd1jwsaB+CBLxD8tuwf7gVF2
/IbF5FTOjGePnDxYGujHi4ev1eJfvPVoin9YNw1XUCi7R49DS3SQwBtTJQBeSldP
fvZPeqz4KO4vzwWFkHqFnQSYj66BZATehbfsnx0CgYABJB+9u4IZcQqWKOo0LFT1
2brSVlQSu92NkKCdRvp6p+muYwiP8XE990f9PLl4RfwJDCBm5mKTOwXy5CNz4TcF
2NEPzehJPBX2JdVZH6KVljdfreSjb5OULPXoTXnhMCwkIALZayeWhxbvqTDrR6uM
pyVCBj9/fu7GGTRmWo8ZawKBgQC8vjBs0lsr+Am4Cibl9Pkfxb9bj/4rOSMNbKZP
Xjf0/j6uXOwWiF2JEVuDN0c5zgwGyiyrOXkraeWYq1f54uGJ7Xn4GwgYnvLmyfFt
wAKjyiX/OkTVryoLrUNrCi8XS8liWAWDlV8X4k9sVGtBXvQ2qLb9sliwddEf4fos
DUO2NQKBgDI424TXg6VmGOVBcYyxc2t+Q155u675aC40CDIU/Olev8oIgcv9VSie
01BZNDLPoY+N5DdQxEf7Z6BtBeOrwax0KIu0YPsunef6q4aqUxRrkpZhwLoZOnFX
WcVxMBYbCgi305LRq8xYffkp2CbkRY8SPRJ2+xR4JMxQSZSgJICA
-----END RSA PRIVATE KEY-----
[root@master1 etcd]# cat server.crt
-----BEGIN CERTIFICATE-----
MIIDFDCCAfygAwIBAgIISEsLZ8pQBn8wDQYJKoZIhvcNAQELBQAwEjEQMA4GA1UE
AxMHZXRjZC1jYTAeFw0yMTA1MDMwODQ5MDRaFw0yMjA1MDMwODQ5MDRaMBIxEDAO
BgNVBAMTB21hc3RlcjEwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDI
cZwVY1owRrx3Gw43HcxSj8eULupWx1U99+eS54BcFoyY57rwCyL3jbPXDmv1dili
RnLPeAJmbRgtY2q2/2BHAp3c8Uz2y+OK2pSdo5giWm/Xio+++S3I7hanhg68HzDx
o/oizCSZ40DPyRE9pMkgsIRmxLQFnLENuby5w8/cTyM3XdfsZl7mPnRvlnEqvSKS
U0EH722VV+nzagath1xcW+q6YW34g8PRkP1x/U5h1vUch+ZcmarR5oP8NBYaZ+P5
vUp54m8MYUMzIae2BA8LaHrTR3YGDaJiQvUq1tWkmc3Lu8Yn53ciYIKjZPmt4gLa
D4z/g9h6Glhf4bC7ufudAgMBAAGjbjBsMA4GA1UdDwEB/wQEAwIFoDAdBgNVHSUE
FjAUBggrBgEFBQcDAQYIKwYBBQUHAwIwOwYDVR0RBDQwMoIHbWFzdGVyMYIJbG9j
YWxob3N0hwTAqEqAhwR/AAABhxAAAAAAAAAAAAAAAAAAAAABMA0GCSqGSIb3DQEB
CwUAA4IBAQBV723E89RJpLH3QLNgiNU3AEXW+qRJ+1wMOdF33X9ExEhFNPqofjSx
h+timy22AJ9xFKSKIXL/ZEhSff4u3yg0xpEtpmx/lPquN4w27d16H2qPk72Tbl9/
gwoKyl0qDYGkhOsnf4L3oFVg3c8xynn2VTZl4p5VnRJwPETJoKVME7YRMz2xNvvs
gwkqm/u3ktH0hrdS3jUtzkgZLBD7iSFHrMUV/jetLKliTBIP5v1ZStQPprgz55Db
mE107Q2npubxuHF0cPLcPWd5K0igMSgzujZIf9Pe1bO9blxjhbDQHmfvzEpHygcj
zXMi2XoIsawXlcaMMQNbCqLbeIeKDzON
-----END CERTIFICATE-----
[root@master1 etcd]# cat server.key
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAyHGcFWNaMEa8dxsONx3MUo/HlC7qVsdVPffnkueAXBaMmOe6
8Asi942z1w5r9XYpYkZyz3gCZm0YLWNqtv9gRwKd3PFM9svjitqUnaOYIlpv14qP
vvktyO4Wp4YOvB8w8aP6IswkmeNAz8kRPaTJILCEZsS0BZyxDbm8ucPP3E8jN13X
7GZe5j50b5ZxKr0iklNBB+9tlVfp82oGrYdcXFvqumFt+IPD0ZD9cf1OYdb1HIfm
XJmq0eaD/DQWGmfj+b1KeeJvDGFDMyGntgQPC2h600d2Bg2iYkL1KtbVpJnNy7vG
J+d3ImCCo2T5reIC2g+M/4PYehpYX+Gwu7n7nQIDAQABAoIBAAEph3ooRVGaV2Vp
Zr+zEIg6BTI6w2kVZs0hLtqPNRNTniUU0uSpa957l9tbXgziToMfXXMOgxUM9OLu
fKPq/yfqP/gT/hpAPGWFtu7jD/LDC3r4drToxPcxSjhWcqdsluAPz1d8T4oE409R
HyR4XCIwY9Qkt9aAfhZSSWHaXM4uNKju2fMIr8dEf6F7iazqU+ziYwpLC5QzMWd5
BCIvT95eSNzaBx5kunFFRUSEGh1e2lrWLEP6jD+xULUI6hWKSLQBV9EPwVzwax9f
TAS3/U0VAcpDSat3LXBheCSgd6btXv1BOTlGNAV9vEWjisKdSF1GsUpo3ex5OxxU
EHgE7wECgYEA7J5hbe24MbJPF4yJsjC8lSkqgQGk85l9JCeu8LuG7DXEuqIr6IlW
rwEveTvY42viYTf5LqikKaQ5dlRKdBi2PL7UDTnf2A20ZOgUMoF7f376GsCsuep+
MOKcdB7Bft9lOdf6Lo2P+66yPrDDF+ylQGdIY/2kW7F+O5TYMjh0LzECgYEA2Nyv
BQT9H8KRyglWEjVIvnJhY/IF2M7fFNeS7hAEcban39WWjTwUQ/j+y8QKZJRK/otG
kIbyqBcQfUBrkuEb7nIfQQUDprIFwMrFHESyUNkGClU/KLyseeFlej7fQZ7KMSwz
y9CfXgQDTyX1Jl2A0OSXntVNvz+/bJWyub2csC0CgYEArdNYPdqiMxgL1H/w9A+r
qmR4jhc4J6C9dx8T/FO3NbX2VSkn2odyP9Q+HPDjT4cE4mitTSKknta/Q/d+TrWM
wylpPGIk2GKRAIQhuky2/h24/IhJG7dxhtYjG4cwnNTeV1UbvLFQchOPbFCMsfmu
GJcHbjV6VcYZtwmMnbAtYjECgYA7gKHNIMdLNZnG87TYHiKtjrjGMZwFFw4Cq/u2
slJl2RZKxlIewoNU+zb+NfYcDsxc914PPdfK4zk1BL3/eSCu1kVZE8Uisen+MiTP
UtISeNm9cBJ6XPp+Hqg3WJTtbmJQB67Wl5GCvFskFmgjdLhpmK85d5Fzjkw5wQFf
EXWyqQKBgHHgW02OikysXXwtW9rb+xAzP7gfI2jFSsqV5DeLnjhFd952JIn6WJa5
Ercujh9UAR4Gy7lBWWYsp/2hR1OX5hk4WsPmH7/iGG0zdvYKDEnm8Nr/4wPd7YU0
TYQ0ayrqvptmyZzo5687Gie9TW0NLi3pRzcZ8o3mPcYvluGgBq8z
-----END RSA PRIVATE KEY-----

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
1、开机加载lvs模块
[root@master1 ~]# vi /etc/sysconfig/modules/ipvs.modules
#!/bin/sh
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
[root@master1 ~]# cat /etc/hosts
127.0.0.1
localhost localhost.localdomain localhost4 localhost4.localdomain4
::1
localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.56.101 master1 www.mt.com
192.168.56.102 master2
192.168.56.103 master3
2、安装keepalive-所有master都安装
yum install keepalived haproxy -y
cat > /etc/keepalived/keepalived.conf <<EOF
! Configuration File for keepalived
global_defs {
router_id k8s
}
vrrp_script check_haproxy {
script "killall -0 haproxy"
interval 3
weight -2
fall 10
rise 2
}
vrrp_instance VI_1 {
state MASTER
#除了第一个为MASTER，其他为BACKEND
interface en0s8
#注意替换
virtual_router_id 51
priority 250
#不同的节点设置不同的vip
advert_int 1
authentication {
auth_type PASS
auth_pass ceb1b3ec013d66163d6ab
}
virtual_ipaddress {
192.168.56.211
#地址注意替换
}
track_script {
check_haproxy
}
}
EOF
systemctl enable
keepalived ; systemctl start
keepalived; systemctl status
keepalived
尝试停掉k8s-master-01的keepalived服务，查看vip是否能漂移到其他的master，并且重新启动k8s-master-01的keepalived服务，查看vip是否能正常漂移回来，证明配置没有问题。
3、安装haproxy
cat > /etc/haproxy/haproxy.cfg << EOF
#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global
# to have these messages end up in /var/log/haproxy.log you will
# need to:
# 1) configure syslog to accept network log events.
This is done
#
by adding the '-r' option to the SYSLOGD_OPTIONS in
#
/etc/sysconfig/syslog
# 2) configure local2 events to go to the /var/log/haproxy.log
#
file. A line like the following can be added to
#
/etc/sysconfig/syslog
#
#
local2.*
/var/log/haproxy.log
#
log
127.0.0.1 local2
chroot
/var/lib/haproxy
pidfile
/var/run/haproxy.pid
maxconn
4000
user
haproxy
group
haproxy
daemon
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
mode
http
log
global
option
httplog
option
dontlognull
option http-server-close
option forwardfor
except 127.0.0.0/8
option
redispatch
retries
3
timeout http-request
10s
timeout queue
1m
timeout connect
10s
timeout client
1m
timeout server
1m
timeout http-keep-alive 10s
timeout check
10s
maxconn
3000
#---------------------------------------------------------------------
# kubernetes apiserver frontend which proxys to the backends
#---------------------------------------------------------------------
frontend kubernetes-apiserver
mode
tcp
bind
*:16443
option
tcplog
default_backend
kubernetes-apiserver
#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
backend kubernetes-apiserver
mode
tcp
balance
roundrobin
server
master1
192.168.54.101:6443 check
server
master2
192.168.54.102:6443 check
server
master3
192.168.54.103:6443 check
#---------------------------------------------------------------------
# collection haproxy statistics message
#---------------------------------------------------------------------
listen stats
bind
*:1080
stats auth
admin:awesomePassword
stats refresh
5s
stats realm
HAProxy Statistics
stats uri
/admin?stats
EOF
systemctl start haproxy;systemctl enable haproxy;systemctl status haproxy
#三个节点配置文件一样

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1、master1上进行初始化
[root@master1 ~]# kubeadm config
print init-defaults > kubeadm-config.yaml #然后修改kubeadm-config.yaml
[root@master1 ~]# cat kubeadm-config.yaml
[root@master1 ~]# cat kubeadm-config.yaml
[root@master1 ~]# cat kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta2
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 192.168.56.101
bindPort: 6443
nodeRegistration:
criSocket: /var/run/dockershim.sock
name: master1
---
apiServer:
certSANs:
- master1
- master2
- master3
- reg.mt.com
- 192.168.56.101
- 192.168.56.102
- 192.168.56.103
- 192.168.56.211
- 127.0.0.1
- www.mt.com
extraArgs:
authorization-mode: Node,RBAC
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
controlPlaneEndpoint: "192.168.56.211:16443"
dns:
type: CoreDNS
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.18.0
networking:
dnsDomain: cluster.local
podSubnet: 10.244.0.0/16
serviceSubnet: 10.96.0.0/12
scheduler: {}
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: "ipvs"

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
[root@master1 ~]# kubeadm config images pull --kubeconfig ./kubeadm-config.yaml
#镜像可以提前下载
[root@master1 ~]# kubeadm init --config kubeadm-config.yaml
W0507 18:29:39.557236
29338 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
[init] Using Kubernetes version: v1.18.0
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [master1 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master1 master2 master3 reg.mt.com www.mt.com] and IPs [10.96.0.1 192.168.56.101 192.168.56.211 192.168.56.101 192.168.56.102 192.168.56.103 192.168.56.211 127.0.0.1]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [master1 localhost] and IPs [192.168.56.101 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [master1 localhost] and IPs [192.168.56.101 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "admin.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
W0507 18:29:42.986846
29338 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
W0507 18:29:42.991544
29338 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0507 18:29:42.992043
29338 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 15.055860 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.18" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node master1 as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node master1 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: abcdef.0123456789abcdef
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:
kubeadm join 192.168.56.211:16443 --token abcdef.0123456789abcdef
--discovery-token-ca-cert-hash sha256:62d2014ce2211235ac0bcd8195d76f9ac6e15ce27bbb229f8776dea9f2e5d364
--control-plane
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.56.211:16443 --token abcdef.0123456789abcdef
--discovery-token-ca-cert-hash sha256:62d2014ce2211235ac0bcd8195d76f9ac6e15ce27bbb229f8776dea9f2e5d364

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
安装网络
kubectl apply -f
https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
kubectl get cs验证cs状态,kubectl get pods --all-namespaces查看集群pod是否被正常调度。验证
[root@master1 ~]# kubectl
get cs
NAME
STATUS
MESSAGE
ERROR
scheduler
Healthy
ok
controller-manager
Healthy
ok
etcd-0
Healthy
{"health":"true"}
[root@master1 ~]# kubectl
get pods -A
NAMESPACE
NAME
READY
STATUS
RESTARTS
AGE
kube-system
coredns-7ff77c879f-h6ptq
1/1
Running
0
10m
kube-system
coredns-7ff77c879f-pw97s
1/1
Running
0
10m
kube-system
etcd-master1
1/1
Running
0
11m
kube-system
kube-apiserver-master1
1/1
Running
0
11m
kube-system
kube-controller-manager-master1
1/1
Running
0
11m
kube-system
kube-flannel-ds-m8s9l
1/1
Running
0
80s
kube-system
kube-proxy-wfrvj
1/1
Running
0
10m
kube-system
kube-scheduler-master1
1/1
Running
0
11m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
# 1、证书拷贝
[root@master1 pki]# ssh root@master2
mkdir /etc/kubernetes/pki/etcd -p
[root@master1 ~]# scp /etc/kubernetes/admin.conf root@master2:/etc/kubernetes/
admin.conf
100% 5455
5.6MB/s
00:00
[root@master1 ~]# scp /etc/kubernetes/pki/{ca.*,sa.*,front-proxy-ca.*} root@master2:/etc/kubernetes/pki
ca.crt
100% 1025
868.7KB/s
00:00
ca.key
100% 1679
2.1MB/s
00:00
sa.key
100% 1675
1.3MB/s
00:00
sa.pub
100%
451
518.4KB/s
00:00
front-proxy-ca.crt
100% 1038
1.7MB/s
00:00
front-proxy-ca.key
100% 1679
3.1MB/s
00:00
[root@master1 ~]# scp /etc/kubernetes/pki/etcd/ca.* root@master2:/etc/kubernetes/pki/etcd/
ca.crt
100% 1017
1.1MB/s
00:00
ca.key
100% 1675
2.8MB/s
00:00
# 2、master2-join操作
[root@master1 ~]# kubeadm token create --print-join-command
#在master1上执行，获取加入集群命令
W0508 10:05:18.251587
12237 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
kubeadm join 192.168.56.211:16443 --token mb0joe.3dh8xri1xxdf2c89
--discovery-token-ca-cert-hash sha256:62d2014ce2211235ac0bcd8195d76f9ac6e15ce27bbb229f8776dea9f2e5d3
需要带上参数--control-plane表示把master控制节点加入集群
[root@master2 ~]# kubeadm join 192.168.56.211:16443 --token mb0joe.3dh8xri1xxdf2c89
--discovery-token-ca-cert-hash sha256:62d2014ce2211235ac0bcd8195d76f9ac6e15ce27bbb229f8776dea9f2e5d3 --control-plane
#命令缺少参数--apiserver-advertise-address，我本机环境为双网卡一个nat一个桥接。k8s内部通信为192.168.56网段
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[preflight] Running pre-flight checks before initializing the new control plane instance
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [master2 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master1 master2 master3 reg.mt.com www.mt.com] and IPs [10.96.0.1 10.0.2.15 192.168.56.211 192.168.56.101 192.168.56.102 192.168.56.103 192.168.56.211 127.0.0.1]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [master2 localhost] and IPs [10.0.2.15 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [master2 localhost] and IPs [10.0.2.15 127.0.0.1 ::1]
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Valid certificates and keys now exist in "/etc/kubernetes/pki"
[certs] Using the existing "sa" key
[kubeconfig] Generating kubeconfig files
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Using existing kubeconfig file: "/etc/kubernetes/admin.conf"
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
W0508 10:07:34.128720
30961 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
W0508 10:07:34.132698
30961 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0508 10:07:34.133621
30961 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[check-etcd] Checking that the etcd cluster is healthy
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.18" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
[etcd] Announced new etcd member joining to the existing etcd cluster
[etcd] Creating static Pod manifest for "etcd"
[etcd] Waiting for the new etcd member to join the cluster. This can take up to 40s
{"level":"warn","ts":"2021-05-08T10:07:48.851+0800","caller":"clientv3/retry_interceptor.go:61","msg":"retrying of unary invoker failed","target":"passthrough:///https://10.0.2.15:2379","attempt":0,"error":"rpc error: code = DeadlineExceeded desc = context deadline exceeded"}
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[mark-control-plane] Marking the node master2 as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node master2 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
This node has joined the cluster and a new control plane instance was created:
* Certificate signing request was sent to apiserver and approval was received.
* The Kubelet was informed of the new secure connection details.
* Control plane (master) label and taint were applied to the new node.
* The Kubernetes control plane instances scaled up.
* A new etcd member was added to the local/stacked etcd cluster.
To start administering your cluster from this node, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Run 'kubectl get nodes' to see this node join the cluster.
# 3、master3-join操作
[root@master3 ~]# kubeadm join 192.168.56.211:16443 --token mb0joe.3dh8xri1xxdf2c89
--discovery-token-ca-cert-hash sha256:62d2014ce2211235ac0bcd8195d76f9ac6e15ce27bbb229f8776dea9f2e5d3 --control-plane --apiserver-advertise-address 192.168.56.103
...
[control-plane] Creating static Pod manifest for "kube-scheduler"
W0508 10:10:19.785375
30434 manifests.go:225] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC"
[check-etcd] Checking that the etcd cluster is healthy
error execution phase check-etcd: etcd cluster is not healthy: failed to dial endpoint https://10.0.2.15:2379 with maintenance client: context deadline exceeded
To see the stack trace of this error execute with --v=5 or higher
到这里失败了，意思为etcd集群状态异常导致。
[root@master1 ~]# kubectl describe configmaps kubeadm-config -n kube-system #在master1上检查
Name:
kubeadm-config
Namespace:
kube-system
Labels:
<none>
Annotations:
<none>
Data
====
ClusterConfiguration:
----
apiServer:
certSANs:
- master1
- master2
- master3
- reg.mt.com
- 192.168.56.101
- 192.168.56.102
- 192.168.56.103
- 192.168.56.211
- 127.0.0.1
- www.mt.com
extraArgs:
authorization-mode: Node,RBAC
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controlPlaneEndpoint: 192.168.56.211:16443
controllerManager: {}
dns:
type: CoreDNS
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.18.0
networking:
dnsDomain: cluster.local
podSubnet: 10.244.0.0/16
serviceSubnet: 10.96.0.0/12
scheduler: {}
ClusterStatus:
----
apiEndpoints:
master1:
advertiseAddress: 192.168.56.101	#这里有master1和master2的，但是没有master3的
bindPort: 6443
master2:
advertiseAddress: 10.0.2.15
bindPort: 6443
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterStatus
Events:
<none>
[root@master1 ~]# kubectl exec -it etcd-master1
-n kube-system /bin/sh
# export ETCDCTL_API=3
# alias etcdctl='etcdctl --endpoints=https://127.0.0.1:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key'
# etcdctl member list
181ffe2d394f445b, started, master1, https://192.168.56.101:2380, https://192.168.56.101:2379, false
dfa99d8cfc0ee00f, started, master2, https://10.0.2.15:2380, https://10.0.2.15:2379, false
问题在于：master2的etcd应该注册的ip为192.168.56.102(master1-3都是多网卡，注册了其他网卡)
1、master1上kubectl delete master2
2、在master2的初始化参数加上"--apiserver-advertise-address 192.168.56.102" 重新init，并根据报错删除对应文件和
3、验证etcd集群健康
# export ETCDCTL_API=3
# alias etcdctl='etcdctl --endpoints=https://192.168.56.101:2379,https://192.168.56.102:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key'
# etcdctl member list
181ffe2d394f445b, started, master1, https://192.168.56.101:2380, https://192.168.56.101:2379, false
cc36adc51c559f97, started, master2, https://192.168.56.102:2380, https://192.168.56.102:2379, false
# etcdctl endpoint health
https://192.168.56.101:2379 is healthy: successfully committed proposal: took = 9.486454ms
https://192.168.56.102:2379 is healthy: successfully committed proposal: took = 9.691437ms
# etcdctl endpoint status
https://192.168.56.101:2379, 181ffe2d394f445b, 3.4.3, 2.6 MB, true, false, 15, 18882, 18882,
https://192.168.56.102:2379, cc36adc51c559f97, 3.4.3, 2.6 MB, false, false, 15, 18882, 18882,

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
# 1、pod创建和测试
[root@master1 ~]# kubectl
create deployment nginx --image=nginx
[root@master1 ~]# kubectl scale deployment nginx --replicas=3
[root@master1 ~]# kubectl
get pods -o wide
NAME
READY
STATUS
RESTARTS
AGE
IP
NODE
NOMINATED NODE
READINESS GATES
nginx-f89759699-5p4dr
1/1
Running
0
24m
10.244.2.2
master3
<none>
<none>
nginx-f89759699-czvpd
1/1
Running
0
20m
10.244.0.8
master1
<none>
<none>
nginx-f89759699-dc5p9
1/1
Running
0
23m
10.244.1.4
master2
<none>
<none>
问题：在master1ping master2和3上的nginx pod不通。原因在于这里没有指定使用哪一张网卡作为内部通信用的网卡使用
[root@master1 ~]# ps -ef |grep flannel
root
6715
6685
0 14:38 ?
00:00:00 /opt/bin/flanneld --ip-masq --kube-subnet-mgr
[root@master1 ~]# kubectl
edit ds/kube-flannel-ds -n kube-system
...
containers:
- args:
- --ip-masq
- --kube-subnet-mgr
- --iface=enp0s8
command:
- /opt/bin/flanneld
...
修改完后可以ping 通
2、svc测试
[root@master1 ~]# kubectl
expose deployment
nginx --port=80 --type=NodePort
[root@master1 ~]# kubectl
get svc/nginx
NAME
TYPE
CLUSTER-IP
EXTERNAL-IP
PORT(S)
AGE
nginx
NodePort
10.106.130.76
<none>
80:31254/TCP
38
[root@master1 ~]# curl
10.106.130.76:80 -Is
HTTP/1.1 200 OK
Server: nginx/1.19.10
Date: Sat, 08 May 2021 07:18:40 GMT
Content-Type: text/html
Content-Length: 612
Last-Modified: Tue, 13 Apr 2021 15:13:59 GMT
Connection: keep-alive
ETag: "6075b537-264"
Accept-Ranges: bytes
[root@master1 ~]# ipvsadm -Ln -t 10.106.130.76:80
#在其他节点上也一样
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port
Forward Weight ActiveConn InActConn
TCP
10.106.130.76:80 rr
-> 10.244.0.8:80
Masq
1
0
1
-> 10.244.1.4:80
Masq
1
0
1
-> 10.244.2.2:80
Masq
1
0
1
3、dns测试
[root@master1 ~]# kubectl
get svc/kube-dns -n kube-system
NAME
TYPE
CLUSTER-IP
EXTERNAL-IP
PORT(S)
AGE
kube-dns
ClusterIP
10.96.0.10
<none>
53/UDP,9153/TCP
21h
[root@master1 ~]# echo "nameserver 10.96.0.10" >> /etc/resolv.conf
[root@master1 ~]# ping nginx.default.svc.cluster.local
-c1
PING nginx.default.svc.cluster.local (10.106.130.76) 56(84) bytes of data.
64 bytes from nginx.default.svc.cluster.local (10.106.130.76): icmp_seq=1 ttl=64 time=0.019 ms
--- nginx.default.svc.cluster.local ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.019/0.019/0.019/0.000 ms

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189

> 修改前，kube-dns这个svc，ipvs对饮过的是10.244.0.5(这个ip也不对)
[root@master1 ~]# kubectl
get svc/kube-dns -n kube-system
NAMESPACE
NAME
TYPE
CLUSTER-IP
EXTERNAL-IP
PORT(S)
AGE
kube-system
kube-dns
ClusterIP
10.96.0.10
<none>
53/UDP,53/TCP,9153/TCP
4d17h
[root@master1 ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port
Forward Weight ActiveConn InActConn
TCP
10.96.0.1:443 rr
-> 192.168.56.101:6443
Masq
1
1
0
TCP
10.96.0.10:53 rr
-> 10.244.0.5:53
Masq
1
0
0
TCP
10.96.0.10:9153 rr
-> 10.244.0.5:9153
Masq
1
0
0
UDP
10.96.0.10:53 rr
-> 10.244.0.5:53
Masq
1
0
0
[root@master1 ~]# kubectl
get pods -n kube-system -o wide
|grep dns
coredns-7ff77c879f-nnbm7
1/1
Running
0
5m2s
10.244.1.9
master2
<none>
<none>
[root@master1 ~]# kubectl delete pod/coredns-7ff77c879f-nnbm7 -n kube-system
pod "coredns-7ff77c879f-nnbm7" deleted
[root@master1 ~]# kubectl
get pods -n kube-system -o wide
|grep dns
coredns-7ff77c879f-d976l
1/1
Running
0
19s
10.244.2.10
master3
<none>
<none>
[root@master1 ~]# ipvsadm -Ln
#后面的ip仍然没有变化
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
-> RemoteAddress:Port
Forward Weight ActiveConn InActConn
TCP
10.96.0.1:443 rr
-> 192.168.56.101:6443
Masq
1
1
0
TCP
10.96.0.10:53 rr
-> 10.244.0.5:53
Masq
1
0
0
TCP
10.96.0.10:9153 rr
-> 10.244.0.5:9153
Masq
1
0
0
UDP
10.96.0.10:53 rr
-> 10.244.0.5:53
Masq
1
0
0
使用的是kubeadm安装的集群，尝试删除Kube-proxy组件仍然不行
[root@master1 ~]# kubectl logs kube-proxy-fhxsj -n kube-system #报错如下
...
E0513 02:10:16.362685
1 proxier.go:1950] Failed to list IPVS destinations, error: parseIP Error ip=[10 244 0 5 0 0 0 0 0 0 0 0 0 0 0 0]
E0513 02:10:16.362698
1 proxier.go:1192] Failed to sync endpoint for service: 10.96.0.10:9153/TCP, err: parseIP Error ip=[10 244 0 5 0 0 0 0 0 0 0 0 0 0 0 0]
[root@master1 ~]# kubectl
logs kube-apiserver-master1 -n kube-system
#apiserver报错如下
E0513 01:12:19.425042
1 controller.go:152] Unable to remove old endpoints from kubernetes service: no master IPs were listed in storage, refusing to erase all endpoints for the kubernetes service
I0513 01:12:20.278922
1 controller.go:130] OpenAPI AggregationController: action for item : Nothing (removed from the queue).
I0513 01:12:20.278948
1 controller.go:130] OpenAPI AggregationController: action for item k8s_internal_local_delegation_chain_0000000000: Nothing (removed from the queue).
I0513 01:12:20.292422
1 storage_scheduling.go:143] all system priority classes are created successfully or already exist.
I0513 01:12:35.872070
1 controller.go:606] quota admission added evaluator for: endpoints
I0513 01:12:49.649488
1 controller.go:606] quota admission added evaluator for: endpointslices.discovery.k8s.io
I0513 01:56:44.648374
1 log.go:172] http: TLS handshake error from 10.0.2.15:23596: tls: first record does not look like a TLS handshake
I0513 01:57:55.036379
1 controller.go:606] quota admission added evaluator for: events.events.k8s.io
影响：pod在不删除的情况下不影响，新申请的pod也不影响。只影响pod和svc创建后。pod被删除后ipvs不会更新，会导致访问不到svc。
临时解法：删除svc(对应的lvs规则也会被清理)。重新建立
根本原因为：Kubernetes 使用的 IPVS 模块是比较新的，需要系统内核版本支 持更新kernel
1)当前环境信息
[root@master1 ~]# uname -r
#本次测试环境kernel版本和ipvs版本信息
3.10.0-1160.el7.x86_64
[root@master1 ~]# modinfo ip_vs
filename:
/lib/modules/3.10.0-1160.el7.x86_64/kernel/net/netfilter/ipvs/ip_vs.ko.xz
license:
GPL
retpoline:
Y
rhelversion:
7.9
srcversion:
7C6456F1C909656E6093A8F
depends:
nf_conntrack,libcrc32c
intree:
Y
vermagic:
3.10.0-1160.el7.x86_64 SMP mod_unload modversions
signer:
CentOS Linux kernel signing key
sig_key:
E1:FD:B0:E2:A7:E8:61:A1:D1:CA:80:A2:3D:CF:0D:BA:3A:A4:AD:F5
sig_hashalgo:
sha256
parm:
conn_tab_bits:Set connections' hash size (int)
2)更新kernel
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
#注意如果repo文件中enabled=1,gppcheck=1但是gpgkey文件不存在，yum repo list |grep kernel是出不来的，可以尝试修改gpgcheck=0
yum install -y https://www.elrepo.org/elrepo-release-7.el7.elrepo.noarch.rpm
yum install kernel-lt
--enablerepo=elrepo-kernel
[root@master1 ~]# cat /boot/grub2/grub.cfg | grep CentOS
menuentry 'CentOS Linux (5.4.118-1.el7.elrepo.x86_64) 7 (Core)' --class centos --class gnu-linux --class gnu --class os --unrestricted $menuentry_id_option 'gnulinux-3.10.0-1160.el7.x86_64-advanced-f5f7e6ec-62d1-4002-a6d2-f3864485cf02' {
menuentry 'CentOS Linux (3.10.0-1160.el7.x86_64) 7 (Core)' --class centos --class gnu-linux --class gnu --class os --unrestricted $menuentry_id_option 'gnulinux-3.10.0-1160.el7.x86_64-advanced-f5f7e6ec-62d1-4002-a6d2-f3864485cf02' {
menuentry 'CentOS Linux (0-rescue-7042e3de62955144a939ec93d90c2cd7) 7 (Core)' --class centos --class gnu-linux --class gnu --class os --unrestricted $menuentry_id_option 'gnulinux-0-rescue-7042e3de62955144a939ec93d90c2cd7-advanced-f5f7e6ec-62d1-4002-a6d2-f3864485cf02' {
[root@master1 ~]#
grub2-set-default
'CentOS Linux (5.4.118-1.el7.elrepo.x86_64) 7 (Core)'
ELRepo有两种类型的Linux内核包，kernel-lt和kernel-ml。kernel-ml软件包是根据Linux Kernel Archives的主线稳定分支提供的源构建的。 内核配置基于默认的RHEL-7配置，并根据需要启用了添加的功能。 这些软件包有意命名为kernel-ml，以免与RHEL-7内核发生冲突，因此，它们可以与常规内核一起安装和更新。 kernel-lt包是从Linux Kernel Archives提供的源代码构建的，就像kernel-ml软件包一样。 不同之处在于kernel-lt基于长期支持分支，而kernel-ml基于主线稳定分支。
3)验证
reboot
uname -r查看内部已经更新
ipvsadm -Ln也已经变化
其他node节点也同样进行更新操作即可

1
2
3
4
5
6
[root@master1 ~]# kubectl
get cm/kube-proxy -n kube-system -o yaml |grep -i mode
#使用edit kube-proxy的configmap然后删除Kube-proxy重新建立
detectLocalMode: ""
mode: ipvs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
[root@iZvy205vkg85k96l33i7lrZ kubernetes]# journalctl -xe -u kubelet -l
...
May 13 18:33:32 iZvy205vkg85k96l33i7lrZ kubelet[20719]: : [failed to find plugin "flannel" in path [/opt/cni/bin] failed to find plugin "por
May 13 18:33:32 iZvy205vkg85k96l33i7lrZ kubelet[20719]: W0513 18:33:32.703337
20719 cni.go:237] Unable to update cni config: no valid netw
May 13 18:33:33 iZvy205vkg85k96l33i7lrZ kubelet[20719]: E0513 18:33:33.977912
20719 kubelet.go:2187] Container runtime network not ready:
原因为 "kubernetes-cni-0.8.7-0.x86_64" 没有安装
[root@master1 ~]# yum deplist kubeadm kubelet kubectl
已加载插件：fastestmirror
Loading mirror speeds from cached hostfile
* base: mirrors.163.com
* epel: mirrors.bfsu.edu.cn
* extras: mirrors.163.com
* updates: mirrors.163.com
软件包：kubeadm.x86_64 1.21.0-0
依赖：cri-tools >= 1.13.0
provider: cri-tools.x86_64 1.13.0-0
依赖：kubectl >= 1.13.0
provider: kubectl.x86_64 1.21.0-0
依赖：kubelet >= 1.13.0
provider: kubelet.x86_64 1.21.0-0
依赖：kubernetes-cni >= 0.8.6
provider: kubernetes-cni.x86_64 0.8.7-0
软件包：kubectl.x86_64 1.21.0-0
此软件包无依赖关系
软件包：kubelet.x86_64 1.21.0-0
依赖：conntrack
provider: conntrack-tools.x86_64 1.4.4-7.el7
依赖：ebtables
provider: ebtables.x86_64 2.0.10-16.el7
依赖：ethtool
provider: ethtool.x86_64 2:4.8-10.el7
依赖：iproute
provider: iproute.x86_64 4.11.0-30.el7
依赖：iptables >= 1.4.21
provider: iptables.x86_64 1.4.21-35.el7
provider: iptables.i686 1.4.21-35.el7
依赖：kubernetes-cni >= 0.8.7
provider: kubernetes-cni.x86_64 0.8.7-0
依赖：libc.so.6(GLIBC_2.2.5)(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：libdl.so.2()(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：libdl.so.2(GLIBC_2.2.5)(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：libpthread.so.0()(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：libpthread.so.0(GLIBC_2.2.5)(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：libpthread.so.0(GLIBC_2.3.2)(64bit)
provider: glibc.x86_64 2.17-324.el7_9
依赖：rtld(GNU_HASH)
provider: glibc.x86_64 2.17-324.el7_9
provider: glibc.i686 2.17-324.el7_9
依赖：socat
provider: socat.x86_64 1.7.3.2-2.el7
依赖：util-linux
provider: util-linux.x86_64 2.23.2-65.el7_9.1
provider: util-linux.i686 2.23.2-65.el7_9.1

1
2
注释/etc/docker/daemon.json ""exec-opts": ["native.cgroupdriver=systemd"],"

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
[root@master1 test]# docker push www.mt.com:9500/google_containers/flannel:v0.14.0-rc1
The push refers to repository [www.mt.com:9500/google_containers/flannel]
e4c4fde0a196: Layer already exists
8a984b390686: Layer already exists
71b519fcb2d2: Layer already exists
ae1d52bdc861: Layer already exists
2e16188127c8: Layer already exists
815dff9e0b57: Layer already exists
777b2c648970: Layer already exists
v0.14.0-rc1: digest: sha256:124e34e6e2423ba8c839cd34806f125d4daed6d4d98e034a01975f0fd4229b2f size: 1785
Signing and pushing trust metadata
Error: error contacting notary server: tls: oversized record received with length 20527
错误2：
[root@node01 ~]# docker push www.mt.com:9500/google_containers/flannel:v0.14.0-rc1
Error: error contacting notary server: tls: first record does not look like a TLS handshake
