			https://download.csdn.net/download/qcddao4/14801288
		    没积分的关注收藏私信要一下。感谢。

1
2
基于原子的精英板，单片机型号stm32f103zet6.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
 int main(void)
 {
 	u16 t;
	u16 len;
	delay_init();	    	 //延时函数初始化
	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2); //设置NVIC中断分组2:2位抢占优先级，2位响应优先级
	uart_init(115200);	 //串口初始化为115200
 	LED_Init();			     //LED端口初始化
	KEY_Init();          //初始化与按键连接的硬件接口

	TIM1_PWM_Init(100);  //不要传奇数   50  周期是500us   100 周期是1ms
	TIM3_Init() ;     //配置 TIM2_CH1_ETR 为外部脉冲计数  并且使能中断  来一个上升沿进一次中断

 	while(1)
	{
		if(USART_RX_STA&0x8000)
		{
			len=USART_RX_STA&0x3fff;//得到此次接收到的数据长度
			printf("rn您发送的消息为:rnrn");
			for(t=0;t<len;t++)
			{
				USART_SendData(USART1, USART_RX_BUF[t]);//向串口1发送数据
				while(USART_GetFlagStatus(USART1,USART_FLAG_TC)!=SET);//等待发送结束
			}
			printf("rnrn");//插入换行
			USART_RX_STA=0;
		}else
		{
		}

		delay_ms(200);

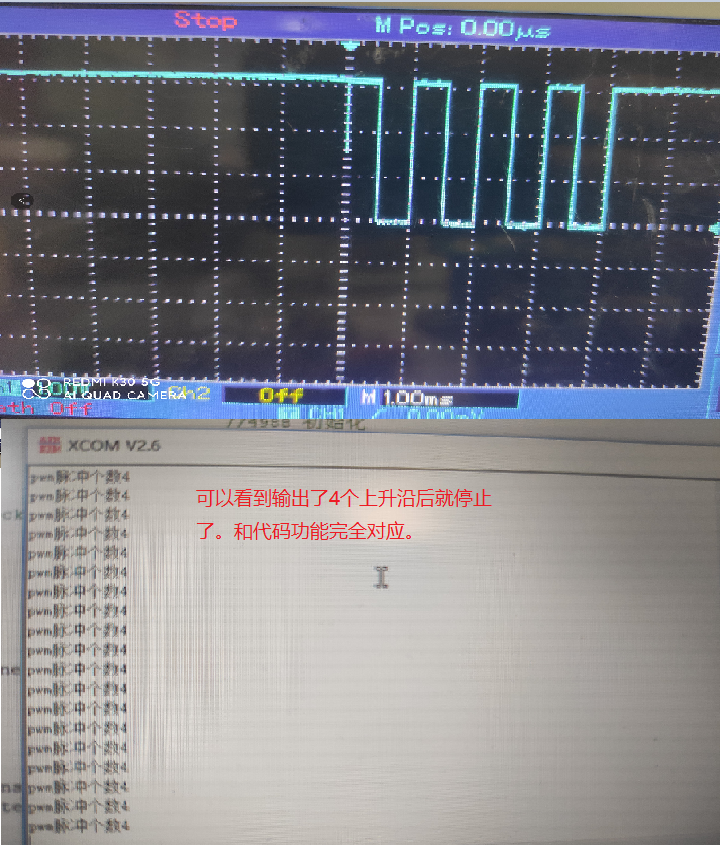

		printf("pwm脉冲个数%d rn",TIM_GetCounter(TIM3));
	}
 }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
void TIM1_PWM_Init(u16 arr )
{
		GPIO_InitTypeDef GPIO_InitStructure;
		TIM_TimeBaseInitTypeDef TIM_TimeBaseInitStructure;
		TIM_OCInitTypeDef TIM_OCInitStructure;

		RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);
		RCC_APB2PeriphClockCmd(RCC_APB2Periph_TIM1,ENABLE);

		GPIO_InitStructure.GPIO_Pin=GPIO_Pin_11 ; //|GPIO_Pin_8;    //11是ch4  8 是ch1
		GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
		GPIO_InitStructure.GPIO_Mode=GPIO_Mode_AF_PP; //复用推挽输出   //
		GPIO_Init(GPIOA,&GPIO_InitStructure);

		TIM_TimeBaseInitStructure.TIM_Period = arr; //设置自动重装载寄存器周期的值
	    TIM_TimeBaseInitStructure.TIM_Prescaler = 719;//设置用来作为TIMx时钟频率预分频值 7199:10k
		TIM_TimeBaseInitStructure.TIM_ClockDivision = 0;//设置时钟分割:TDTS = Tck_tim
		TIM_TimeBaseInitStructure.TIM_CounterMode = TIM_CounterMode_Up;//TIM向上计数模式
		TIM_TimeBaseInit(TIM1, & TIM_TimeBaseInitStructure);

		TIM_OCInitStructure.TIM_OCMode=TIM_OCMode_PWM1;
		TIM_OCInitStructure.TIM_OutputState=TIM_OutputState_Enable;
		TIM_OCInitStructure.TIM_Pulse=arr/2;
		TIM_OCInitStructure.TIM_OCPolarity=TIM_OCPolarity_High;
		TIM_OCInitStructure.TIM_OCIdleState=TIM_OCIdleState_Set;
		TIM_OC4Init(TIM1,&TIM_OCInitStructure);

		TIM_OC4PreloadConfig(TIM1, TIM_OCPreload_Enable);
		TIM_Cmd(TIM1,ENABLE);//ê1?ü?ò??ê§?üTIMxíaéè

		//下面这句是高级定时器才有，输出PWM必须打开
		TIM_CtrlPWMOutputs(TIM1, ENABLE);                             //pwm输出

}
