stm32标准库入门程序（笔记五输入捕获）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

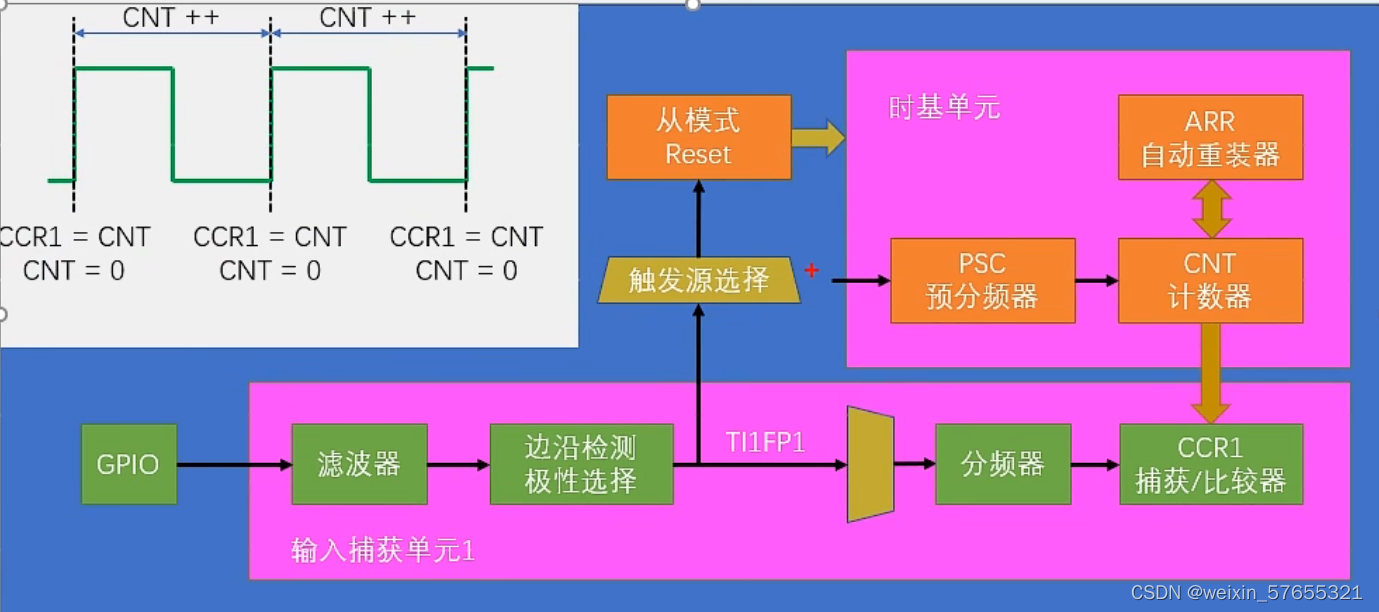

#include "stm32f10x.h"                  // Device header

void IC_Init(void)
{
	RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3,ENABLE);
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);

	TIM_InternalClockConfig(TIM3);

	GPIO_InitTypeDef GPIO_InitStructure;
	GPIO_InitStructure.GPIO_Mode=GPIO_Mode_IPU;
	GPIO_InitStructure.GPIO_Pin=GPIO_Pin_6;
	GPIO_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
	GPIO_Init(GPIOA,&GPIO_InitStructure);

	TIM_TimeBaseInitTypeDef TIM_TimeBaseInitStructure;//时基单元配置
	TIM_TimeBaseInitStructure.TIM_ClockDivision=TIM_CKD_DIV1;
	TIM_TimeBaseInitStructure.TIM_CounterMode=TIM_CounterMode_Up;
	TIM_TimeBaseInitStructure.TIM_Period=65536-1;	//ARR
	TIM_TimeBaseInitStructure.TIM_Prescaler=72-1;//PSC
	TIM_TimeBaseInitStructure.TIM_RepetitionCounter=0;
	TIM_TimeBaseInit(TIM3,&TIM_TimeBaseInitStructure);


	TIM_ICInitTypeDef TIM_ICInitStructure;//输入捕获单元配置
	TIM_ICStructInit(&TIM_ICInitStructure);
	TIM_ICInitStructure.TIM_Channel=TIM_Channel_1;
	TIM_ICInitStructure.TIM_ICFilter=0XF;
	TIM_ICInitStructure.TIM_ICPolarity=TIM_ICPolarity_Rising;
	TIM_ICInitStructure.TIM_ICPrescaler=TIM_ICPSC_DIV1 ;
	TIM_ICInitStructure.TIM_ICSelection=TIM_ICSelection_DirectTI;
	TIM_ICInit(TIM3,&TIM_ICInitStructure);

	TIM_SelectInputTrigger(TIM3,TIM_TS_ITR1);
	TIM_SelectSlaveMode(TIM3,TIM_SlaveMode_Reset);


	TIM_Cmd(TIM3,ENABLE);//开启定时


}
uint32_t IC_GetFreq(void){

	return 1000000/TIM_GetCapture1(TIM3);

}
