概述
【深入解析--eygle】 学习笔记
1.2.3 PGA的管理：
sys@felix SQL>show parameter area_size
NAME TYPE VALUE
------------------------------------ ----------------------------------------------------
bitmap_merge_area_size integer 1048576
create_bitmap_area_size integer 8388608
hash_area_size integer 131072
sort_area_size integer 65536
workarea_size_policy string AUTO
自动化SQL执行内存管理（Automated SQL Execution Memory Management），也称为自动PGA管理，使用这个新特性，Oracle可以在一个总体PGA使用限制下自动管理和调整SQL内存区，从而大大简化了DBA的工作，同时也ᨀ高了数据库的性能。
为实现自动的PGA管理，Oracle引入了几个新的初始化参数：
（1）PGA_AGGREGATE_TARGET 此参数用来指定所有session 总计可以使用最大PGA内存。这个参数可以被动态的更改,取值范围从10M ～（4096G-1 ）bytes。
（2）WORKAREA_SIZE_POLICY此参数用于开关PGA内存自动管理功能，该参数有两个选项：AUTO 和 MANUAL，当 设 置为AUTO时，数据库使用自动PGA管理功能，当设置为MANUAL时，则仍然使用之前手工管理的方式。
缺省的，WORKAREA_SIZE_POLICY参数被设置为AUTO。
sys@felix SQL>show parameterWORKAREA_SIZE_POLIC
NAME TYPE VALUE
---------------------------------------------------------- --------
workarea_size_policy string AUTO
此外需要注意的是，在不同版本中，自动PGA管理的范畴不同：
（1）在Oracle9i中，PGA_AGGREGATE_TARGET参数仅对专用服务器模式下（DedicatedServer）的专属连接有效，但是对共享服务器（Shared Server）连接无效
（2）从Oracle10g开始PGA_AGGREGATE_TARGET对专用服务器连接和共享服务器连接同时生效。
1.2.4 参数的设置与内存分配
工作区性能期望实现如下目标：
workarea execution - optimal >= 90%
workarea execution - multipass = 0%

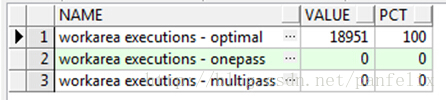

生产系统的PGA性能指标脚本:
SELECT NAME,
VALUE,
100 *
(VALUE / DECODE((SELECT SUM(VALUE)
FROM v$sysstat
WHERE NAME LIKE'workarea executions%'),
0,
NULL,
(SELECT SUM(VALUE)
FROM v$sysstat
WHERE NAME LIKE'workarea executions%'))) pct
FROMv$sysstat
WHERE NAMELIKE 'workarea executions%';
<strong>sys@felix SQL>select description,dest fromx$messages where description like 'SQL Memory%';
DESCRIPTION DEST
-------------------------------------------------- ----------
SQL Memory Management Calculation CKPT
15:26:04 sys@felix SQL></strong>
sys@felix SQL>select * from v$pgastat;
NAME VALUE UNIT
---------------------------------------- ---------- ------------------------
aggregate PGA target parameter 146800640 bytes
aggregate PGA auto target 22099968 bytes
global memory bound 29360128 bytes
total PGA inuse 122360832 bytes
total PGA allocated 144107520 bytes
maximum PGA allocated 163160064 bytes
total freeable PGA memory 11141120 bytes
process count 32
max processes count 36
PGA memory freed back to OS 374669312 bytes
total PGA used for auto workareas 0 bytes
maximum PGA used for auto workareas 6313984 bytes
total PGA used for manual workareas 0 bytes
maximum PGA used for manual workareas 0 bytes
over allocation count 0
bytes processed 232915968 bytes
extra bytes read/written 0 bytes
cache hit percentage 100 percent
recompute count (total) 6004
19 rows selected.
1.2.6 PGA调整建议
伴随自动PGA调整功能的引入，Oracle同时引入相应的动态性能视图用于优化建议，PGA的优化建议通过v$pga_target_advice 和 v$pga_target_advice_histogra提供。v$pga_target_advice视图通过对不同PGA设置进行评估，给出在不同设置下的PGA命中率和OverAlloc等信息。
15:32:23 sys@felix SQL>select PGA_TARGET_FOR_ESTIMATE/1024/1024 PGAMB, PGA_TARGET_FACTOR,
15:37:08 2 ESTD_PGA_CACHE_HIT_PERCENTAGE, ESTD_OVERALLOC_COUNT
15:37:08 3 from v$pga_target_advice;
PGAMB PGA_TARGET_FACTOR ESTD_PGA_CACHE_HIT_PERCENTAGE ESTD_OVERALLOC_COUNT
---------- ----------------- ----------------------------- --------------------
17.5 .125 85 4
35 .25 85 4
70 .5 85 4
105 .75 85 4
140 1 100 0
168 1.2 100 0
196 1.4 100 0
224 1.6 100 0
252 1.8 100 0
280 2 100 0
420 3 100 0
560 4 100 0
840 6 100 0
1120 8 100 0
v$pga_target_advice_histogram 视图可以通过对不同工作区大小的采样评估ᨀ供统计信息
供分析使用。其中几个重要字段有：
（1）LOW_OPTIMAL_SIZE-Histogram评估区间内Optimal下限 (bytes)
（2）HIGH_OPTIMAL_SIZE-Histogram评估区间内Optimal上限 (bytes)
（3）ESTD_OPTIMAL_EXECUTIONS-Histogram评估区间内估计optimal执行次数
（4）ESTD_ONEPASS_EXECUTIONS-Histogram评估区间内估计onepass执行次数
（5）ESTD_MULTIPASSES_EXECUTIONS-Histogram评估区间内估计multipass执行次数
（6）ESTD_TOTAL_EXECUTIONS-Histogram评估区间内估计执行总次数
SELECT pga_target_factor factor,
low_optimal_size / 1024 low,
ROUND(high_optimal_size / 1024) high,
estd_optimal_executions estd_opt,
estd_onepass_executions estd_op,
estd_multipasses_executions estd_mp,
estd_total_executions estd_exec
FROM v$pga_target_advice_histogram
WHERE pga_target_factor = 0.25
AND estd_total_executions > 0;</pre><pre name="code" class="html"><img src="https://img-blog.csdn.net/20140727143007260?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvcGFuZmVsaXg=/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/SouthEast" alt="" />
<span style="font-family: Arial, Helvetica, sans-serif;">
</span><span style="font-family: Arial, Helvetica, sans-serif;"> heap name="pga heap" desc=0xbaf3ca0 --注意这里</span></strong></span> extentsz=0x20c0 alt=216 het=32767 rec=0 flg=3 opc=2
parent=(nil)owner=(nil) nex=(nil) xsz=0xfff0 heap=(nil)
fl2=0x60,nex=(nil), dsxvers=1, dsxflg=0x0
dsx firstext=0xf7fa7720
EXTENT 0 addr=0x7fadf7c72010
Chunk 7fadf7c72020 sz= 65504 free " "
EXTENT 1 addr=0x7fadf7d00010
Chunk 7fadf7d00020 sz= 28920 perm "perm " alo=9384
Chunk 7fadf7d07118 sz= 7656 free " "
Chunk 7fadf7d08f00 sz= 4224 freeable "diag pga " ds=0x7fadf82157e0
Chunk 7fadf7d09f80 sz= 4224 freeable "diag pga " ds=0x7fadf82157e0
/heap
Chunk 7fadf7fd28d0 sz= 7608 perm "perm " alo=7608
Chunk 7fadf7fd4688 sz= 40 free " "
Chunk 7fadf7fd46b0 sz= 80 freeable "dbgdInitEventGr"
Chunk 7fadf7fd4700 sz= 184 freeable "sdbgrf: iosb "
Chunk 7fadf7fd47b8 sz= 80 freeable "skgfzctx "
Chunk 7fadf7fd4808 sz= 376 freeable "PLS cca hpdesc"
EXTENT 18 addr=0x7fadf7fcd860
Chunk 7fadf7fcd870 sz= 20512 perm "perm " alo=20512
EXTENT 19 addr=0x7fadf7fc9958
Chunk 7fadf7fc9968 sz= 16072 perm "perm " alo=16072
EXTENT 20 addr=0x7fadf7fc7868
Chunk 7fadf7fc7878 sz= 3240 perm "perm " alo=3240
Chunk 7fadf7fc8520 sz= 3184 perm "perm " alo=3184
Chunk 7fadf7fc9190 sz= 1088 perm "perm " alo=1088
Chunk 7fadf7fc95d0 sz= 168 perm "perm " alo=168
Chunk 7fadf7fc9678 sz= 48 free " "
Chunk 7fadf7fc96a8 sz= 72 freeable "koh-kghu callh"
Chunk 7fadf7fc96f0 sz= 568 freeable "joxp heap "
EXTENT 21 addr=0x7fadf7fc5778
Chunk 7fadf7fc5788 sz= 4848 perm "perm " alo=4848
Chunk 7fadf7fc6a78 sz= 440 freeable "krbabrPgaRespMs"
Chunk 7fadf7fc6c30 sz= 56 freeable "krbabrPgaReqCtx"
Chunk 7fadf7fc6c68 sz= 424 freeable "krbabrPgaReqMsg"
Chunk 7fadf7fc6e10 sz= 2600 freeable "kjztprq struct"
EXTENT 22 addr=0x7fadf7fc3688
Chunk 7fadf7fc3698 sz= 7720 perm "perm " alo=7720
Chunk 7fadf7fc54c0 sz= 160 freeable "regheapd_kdlwpg"
Chunk 7fadf7fc5560 sz= 88 freeable "KCFIS GCTX "
Chunk 7fadf7fc55b8 sz= 400 freeable "krbabrPgaStbyRe"
EXTENT 23 addr=0x7fadf7fb5e28
Chunk 7fadf7fb5e38 sz= 55328 perm "perm " alo=55328
EXTENT 24 addr=0x7fadf7fb3d38
Chunk 7fadf7fb3d48 sz= 4888 perm "perm " alo=4888
Chunk 7fadf7fb5060 sz= 2992 recreate "KSFQ heap " latch=(nil)
进一步的，可以将某个具体的数据存储结构转储出来（DS），如 以 上 的ds dcd00c0其空间使用的大小为 sz= 14036，首先对空间地址进行一下转换：
select to_number('baf3ca0','xxxxxxxxxx') from dual
15:50:33 sys@felix SQL>/
TO_NUMBER('BAF3CA0','XXXXXXXXXX')
---------------------------------
196033696
15:50:33 sys@felix SQL>
使用如下命令转储固定地址空间的内容：
alter session set events'immediate trace name heapdump_addr level 1, addr n';
以上计算的地址空间可以通过如下命令转储：
SQL> ALTER SESSIONSET EVENTS 'immediate trace name heapdump_addr level 1, addr 196033696';
Session altered.
获取转储文件的脚本：
SELECT a.VALUE || b.symbol || c.instance_name || '_ora_' || d.spid ||
'.trc' trace_file
FROM (SELECT VALUE FROM v$parameter WHERE NAME = 'user_dump_dest') a,
(SELECT SUBSTR(VALUE, -6, 1) symbol
FROM v$parameter
WHERE NAME = 'user_dump_dest') b,
(SELECT instance_name FROM v$instance) c,
(SELECT spid
FROM v$session s, v$process p, v$mystat m
WHERE s.paddr = p.addr
AND s.SID = m.SID
AND m.statistic# = 0) d;
检查这个进程转储文件，可以发现如下Heap地址信息及空间分配：
[oracle@felix ~]$grep heap /u01/app/oracle/diag/rdbms/felix/felix/trace/felix_ora_6443.trc
<strong><span style="color:#ff0000;">HEAP DUMP heap name="pga heap" desc=0xbaf3ca0</span></strong>
parent=(nil) owner=(nil) nex=(nil) xsz=0xfff0 heap=(nil)
Chunk 7fadf7fc96f0 sz= 568 freeable "joxp heap "
Chunk 7fadf7fc54c0 sz= 160 freeable "regheapd_kdlwpg"
Chunk 7fadf7fb5060 sz= 2992 recreate "KSFQ heap " latch=(nil)
Chunk 7fadf7fb5c10 sz= 160 freeable "KSFQ heap descr"
Chunk 7fadf7fb0790 sz= 232 freeable "iovecheapd_kdlw"
Chunk 7fadf7fb0878 sz= 304 freeable "bcheapd_kdlwpga"
Chunk 7fadf7fb09a8 sz= 208 freeable "sioheapd_kdlwpg"
Chunk 7fadf7fb0ad8 sz= 160 freeable "KSZ pga subheap"
Total heap size = 499952
<strong><span style="color:#ff0000;">HEAP DUMP heap name="top call heap" desc=0xbaf94e0</span></strong>
parent=(nil) owner=(nil) nex=(nil) xsz=0xfff8 heap=(nil)
Chunk 7fadf7ccb7d8 sz= 1032 recreate "callheap " latch=(nil)
Chunk 7fadf7cceb78 sz= 4224 freeable "callheap " ds=0xbaf85c0
Chunk 7fadf7ccfbf8 sz= 1032 recreate "callheap " latch=(nil)
Total heap size = 524096
<strong><span style="color:#ff0000;">HEAP DUMP heap name="top uga heap" desc=0xbaf9700</span></strong>
parent=(nil) owner=(nil) nex=(nil) xsz=0xfff8 heap=(nil)
Chunk 7fadf7c62018 sz= 65512 freeable "session heap " ds=0x7fadf7cd5be0
Chunk 7fadf7d10018 sz= 65512 freeable "session heap " ds=0x7fadf7cd5be0
Chunk 7fadf7cf0018 sz= 65512 freeable "session heap " ds=0x7fadf7cd5be0
Chunk 7fadf7ce0068 sz= 65432 recreate "session heap " latch=(nil)
Total heap size = 262048
<strong><span style="color:#ff0000;">HEAP DUMP heap name="pga heap" desc=0xbaf3ca0</span></strong>
parent=(nil) owner=(nil) nex=(nil) xsz=0x1fff0 heap=(nil)
Chunk 7fadf7fc96f0 sz= 568 freeable "joxp heap "
Chunk 7fadf7fc54c0 sz= 160 freeable "regheapd_kdlwpg"
Chunk 7fadf7fb5060 sz= 2992 recreate "KSFQ heap " latch=(nil)
Chunk 7fadf7fb5c10 sz= 160 freeable "KSFQ heap descr"
Chunk 7fadf7fb0790 sz= 232 freeable "iovecheapd_kdlw"
Chunk 7fadf7fb0878 sz= 304 freeable "bcheapd_kdlwpga"
Chunk 7fadf7fb09a8 sz= 208 freeable "sioheapd_kdlwpg"
Chunk 7fadf7fb0ad8 sz= 160 freeable "KSZ pga subheap"
Total heap size = 827504
由上面红色字体可见，在自动管理模式下，PGA,CGA,UGA都是独立分配的。
