我是靠谱客的博主 醉熏裙子，这篇文章主要介绍【STM32】STM32H750VBT6 CubeMX USBFS-UVC设备实现,以及移植问题开发环境CubeMX配置，现在分享给大家，希望可以做个参考。
开发环境
ARM-MDK 5
STM32H750VBT6核心板
CubeMX配置

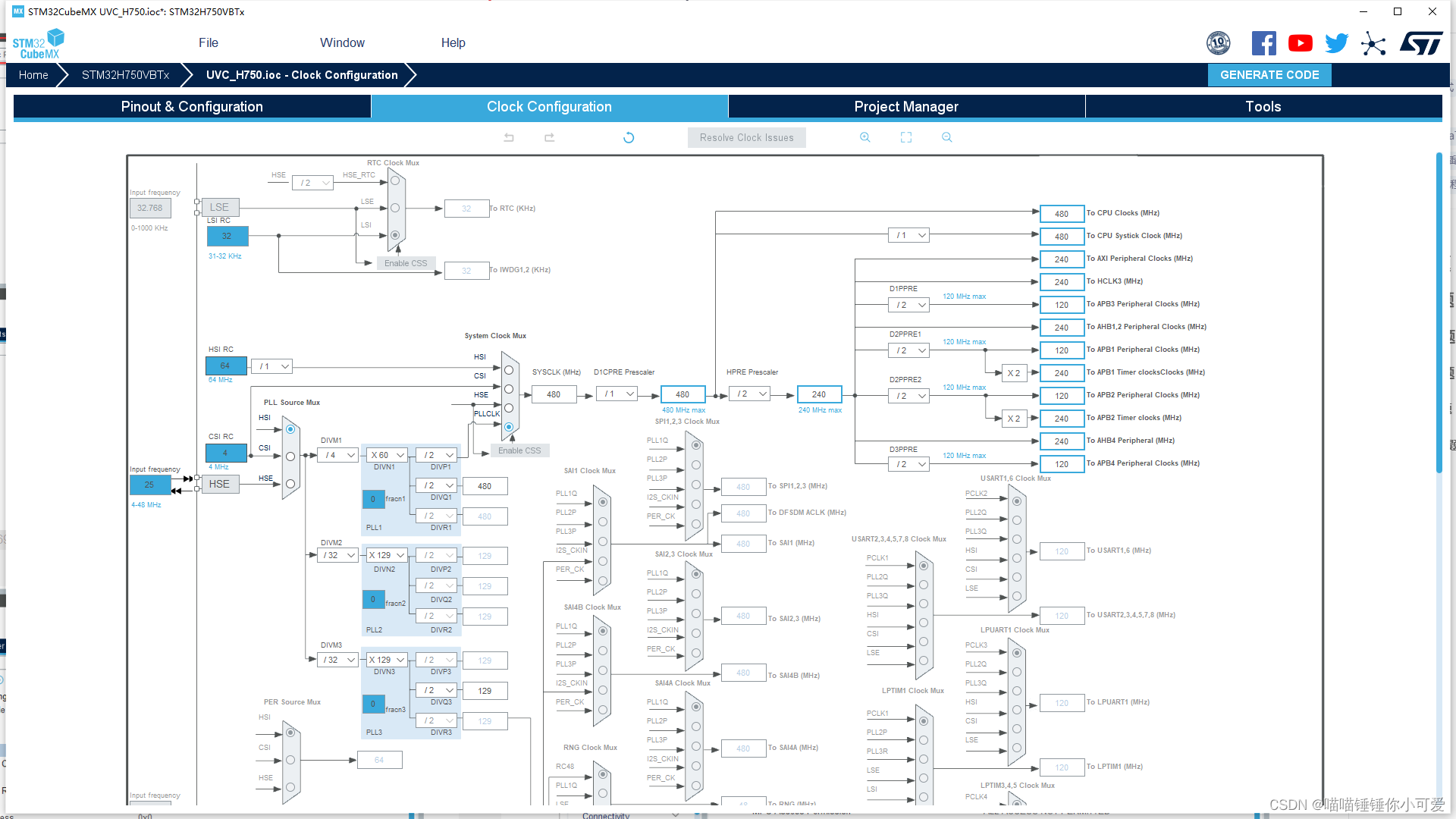

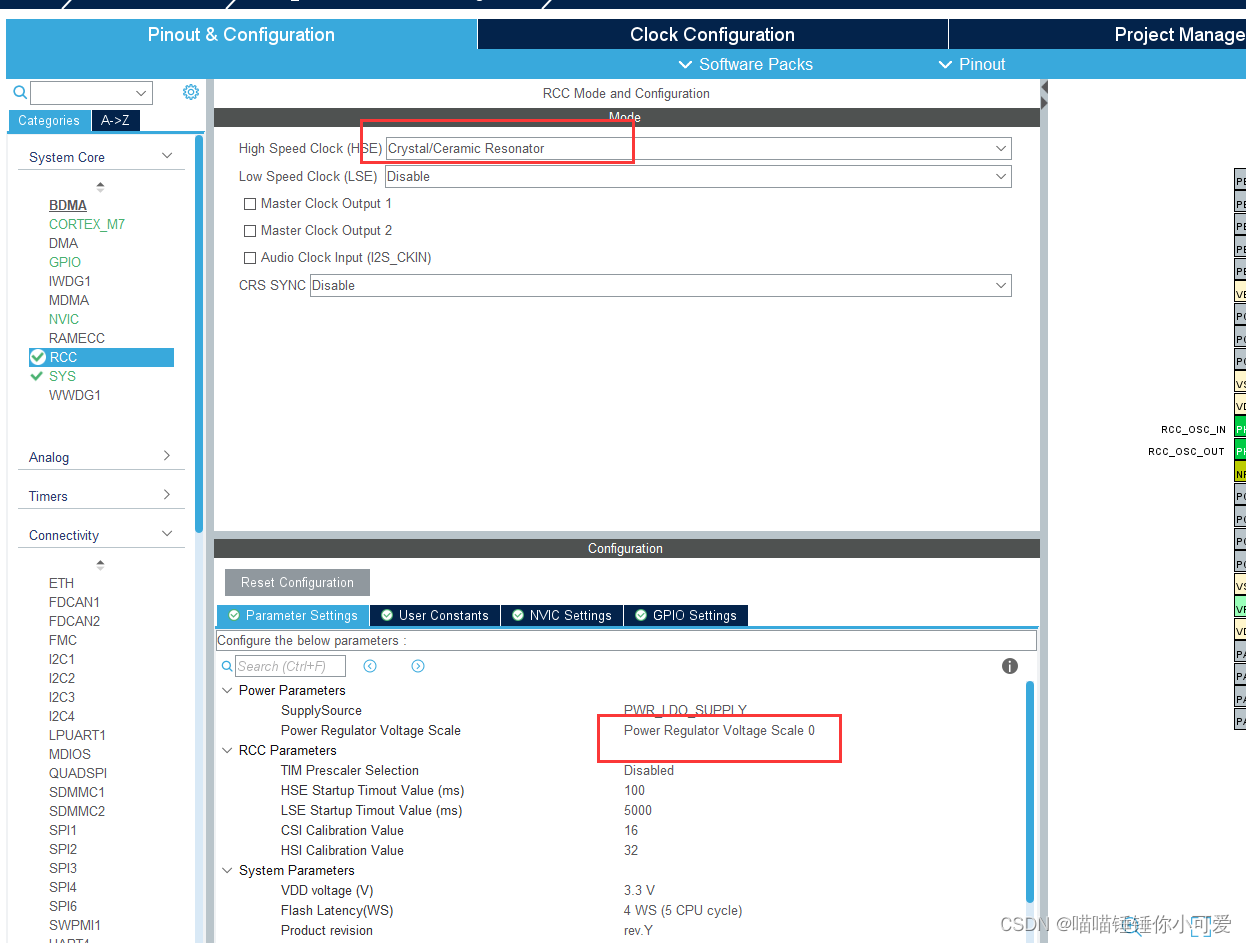

1. 时钟及内存

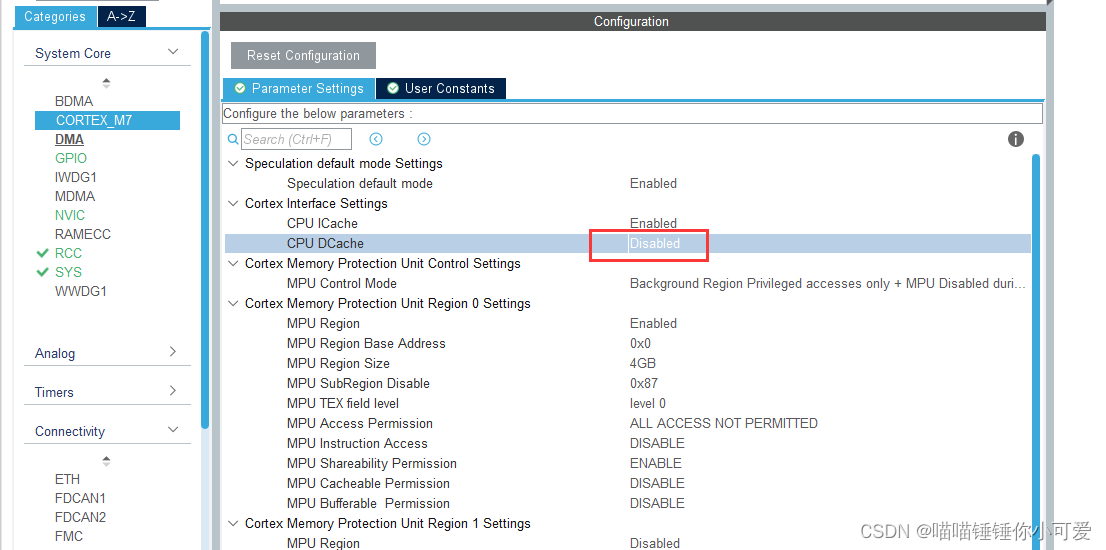

这里没有开启DCache，因为和HAL库这里还有BUG。如果要开启DCache那么就不要Enable internal IP DMA。我看有文章说全速模式就是不能开启DMA的，但是我看不太对。没有DCache时确实能使用DMA，调试看过DMA确实打开了。我觉得有可能和LWIP一样，需要配置MPU。
修改：
参考ST社区的帖子知道：
DTCM, which is not accessible by USB.内存配置问题，You can change the DTCM memory with another one which is accessible by USB.但是文章最后说DCache数据一致性的问题还是没有解决，只能关闭DCache。

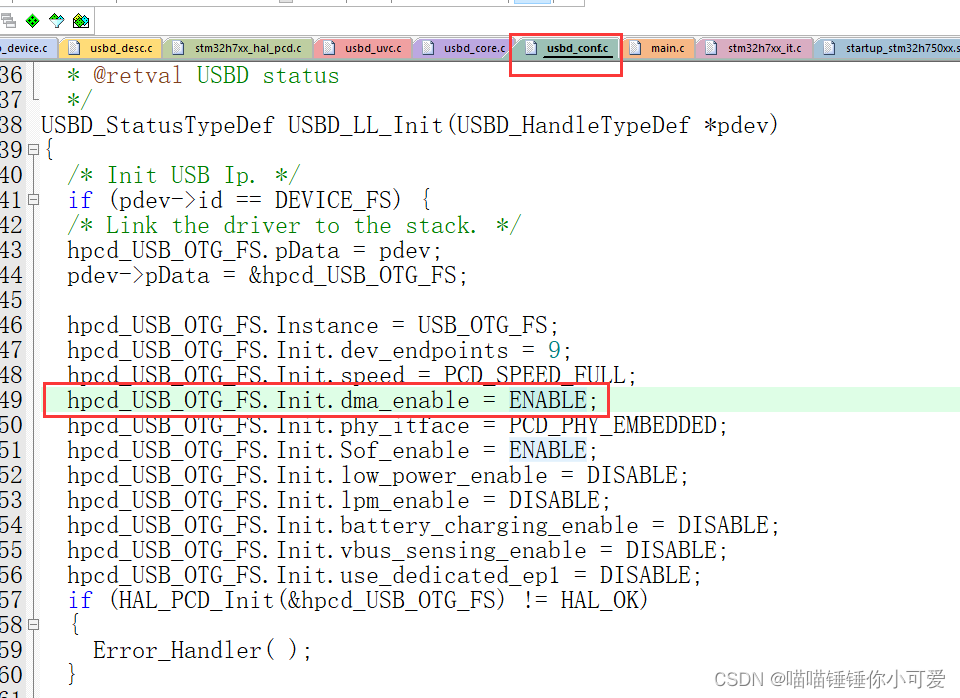

internal IP DMA可以在下图位置使能。
2.配置USB

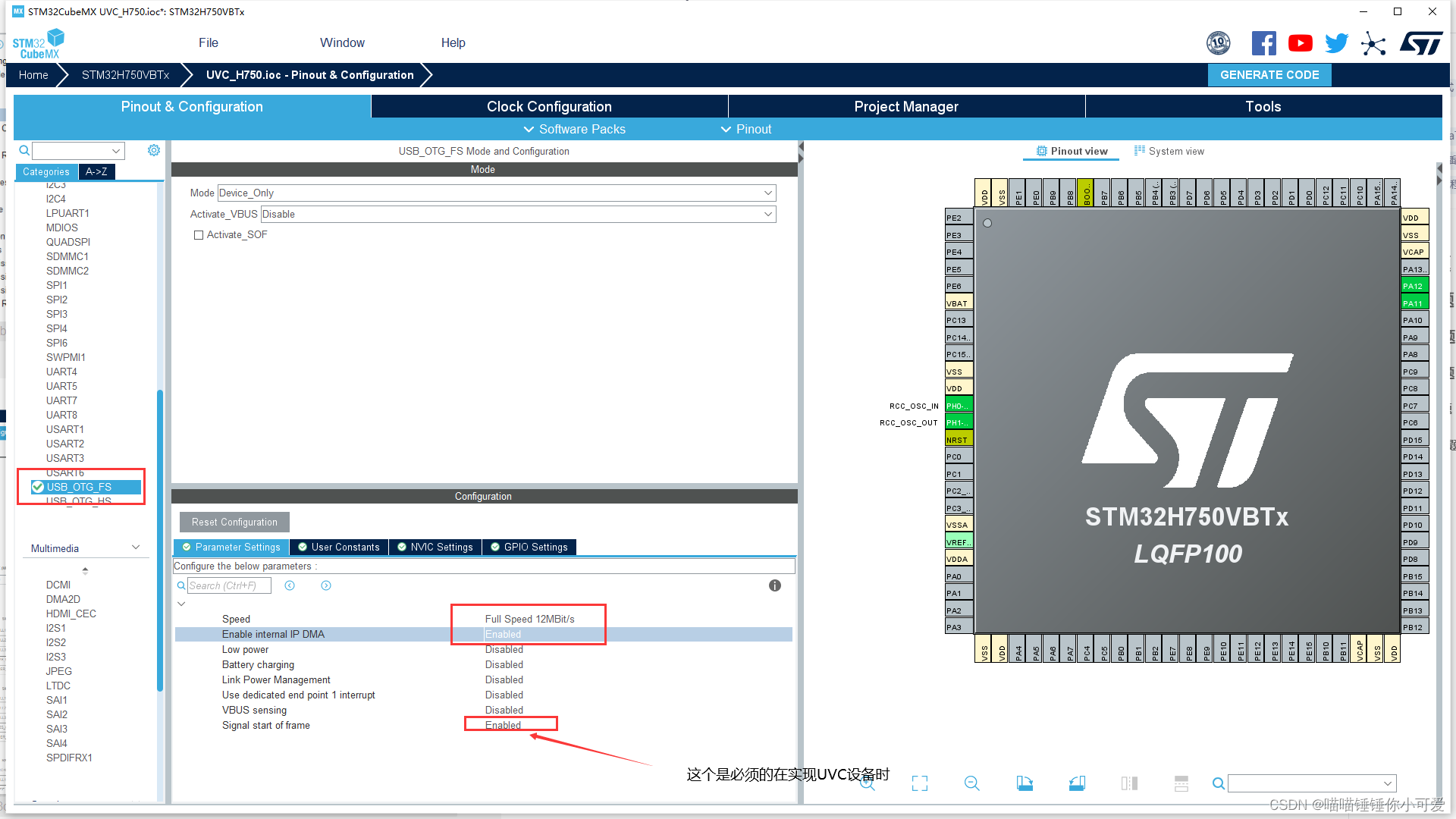

选择CDC设备即可，待会会修改：

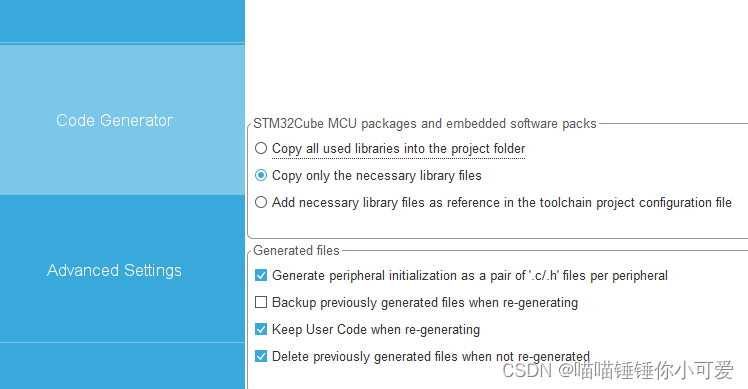

3.生成代码
4.修改代码
usb_uvc代码：
复制代码
1
2git clone https://github.com/MisakaMikoto128/STM32H750_UVC.git

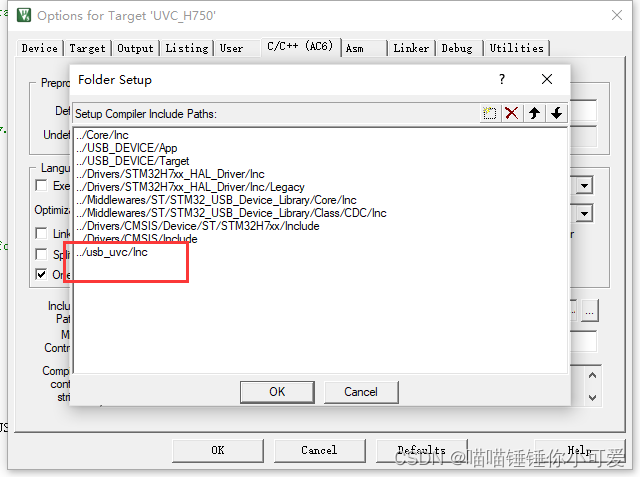

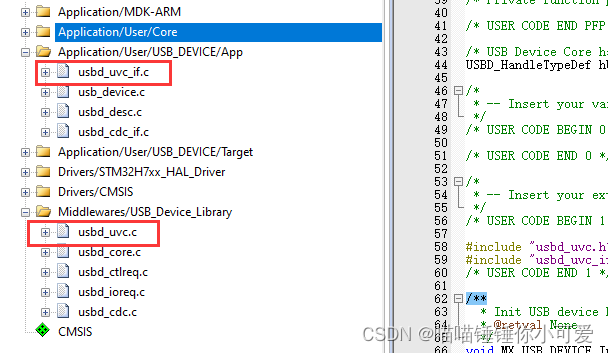

添加usb_uvc下的Inc到包含路径，添加usbd_uvc.c和usbd_uvc_if.c到项目：
- 第一步：
- 第二步：修改usb_device.c如下(已删减)：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36/* Includes ------------------------------------------------------------------*/ #include "usb_device.h" #include "usbd_core.h" #include "usbd_desc.h" /* USER CODE BEGIN Includes */ #include "usbd_uvc.h" #include "usbd_uvc_if.h" /* USER CODE END Includes */ void MX_USB_DEVICE_Init(void) { /* Init Device Library, add supported class and start the library. */ if (USBD_Init(&hUsbDeviceFS, &FS_Desc, DEVICE_FS) != USBD_OK) { Error_Handler(); } if (USBD_RegisterClass(&hUsbDeviceFS, &USBD_UVC) != USBD_OK) { Error_Handler(); } if (USBD_UVC_RegisterCamera(&hUsbDeviceFS, &USBD_UVC_Camera) != USBD_OK) { Error_Handler(); } if (USBD_Start(&hUsbDeviceFS) != USBD_OK) { Error_Handler(); } /* USER CODE BEGIN USB_DEVICE_Init_PostTreatment */ HAL_PWREx_EnableUSBVoltageDetector(); /* USER CODE END USB_DEVICE_Init_PostTreatment */ }
- 第三步：这个步骤很重要，因为HAL库的USB库有些BUG，我拿来一以前的版本反而能够使用，用beyondCompare比较和Keil调试了一早上才找到问题所在(不太熟悉STM32的USB)。直接替换
HAL_PCD_IRQHandler为这里的代码：代码我贴在后面了，有点长。

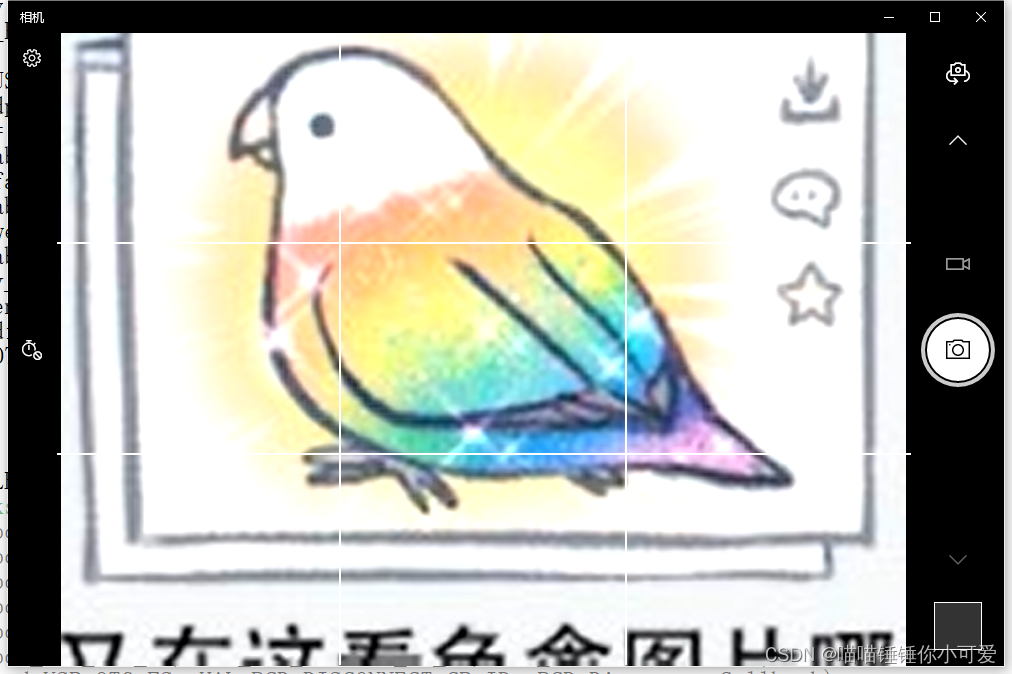

效果图下图：
生成图片数组的工具看这篇文章：
【数字图像处理】YUV格式转化为YUY2
：
HAL_PCD_IRQHandler的代码
