使用lidar_align进行激光雷达与IMU的外参标定（超详细教程）

143 阅读 0 评论 95 点赞

我是靠谱客的博主典雅月饼，这篇文章主要介绍使用lidar_align进行激光雷达与IMU的外参标定（超详细教程），现在分享给大家，希望可以做个参考。

1、下载lidar_align源码

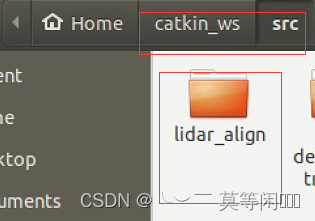

ethz-asl/lidar_align: A simple method for finding the extrinsic calibration between a 3D lidar and a 6-dof pose sensor (github.com)https://github.com/ethz-asl/lidar_align2、解压到ros工作空间目录下的src文件中

不知道如何创建ros工作空间的可以参考我另一篇博客：

ubuntu下如何创建ros工作空间、创建ros功能包、创建ros节点_╰︶￣莫等闲۩۩۩的博客-CSDN博客_ubuntu 创建工作空间https://blog.csdn.net/qq_49959714/article/details/127028396?spm=1001.2014.3001.5501

3、编译

复制代码

1
2
3
sudo apt-get install libnlopt-dev
cd ~/catkin_ws
catkin_make

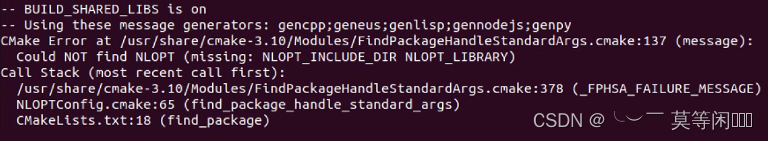

此时编译可能会遇到一些问题，比如：

CNake Error at /usr /share/cnake-3.10/Nodules/FindPackageHandlestandardArgs.cmake:137 (nessage);could NOT find NLOPT (missing: NLOPT_INCLUDE_DIR NLOPT_LIBRARY)
Call stack (most recent call first):
/usr/share/cnake-3.10/NModules/FindPackageHandleStandardArgs.cnake:378(_FPHSA_FAILURENLOPTConfig.cmake:65 (find_package_handle_standard_args)
CMakeLists.txt: 18 (find_package)
-- Configuring incomplete, errors occurred!
see also "/home/findlab/lidar_align-naster/build /CMakeFiles/CNakeoutput.log".See also "/hone /findlab/lidar_align-naster/build/CMakeFiles/CNakeError.log".

解决办法：

在lidar_align-master文件夹中的CMakeLists.txt添加以下代码：

复制代码

1
2
list(APPEND CMAKE_FIND_ROOT_PATH ${PROJECT_SOURCE_DIR})
set (CMAKE_PREFIX_PATH "/usr/local/lib/cmake/nlopt")

最后应该就编译成功了，如果还遇到编译问题，可以参考一下我另一篇博客，里面总结了几个可能遇到的问题解决办法：

(4条消息) ubuntu安装lidar_align时编译出错，激光雷达与IMU标定_╰︶￣莫等闲۩۩۩的博客-CSDN博客https://blog.csdn.net/qq_49959714/article/details/128086217?spm=1001.2014.3001.55014、启动

复制代码

1
2
3
4

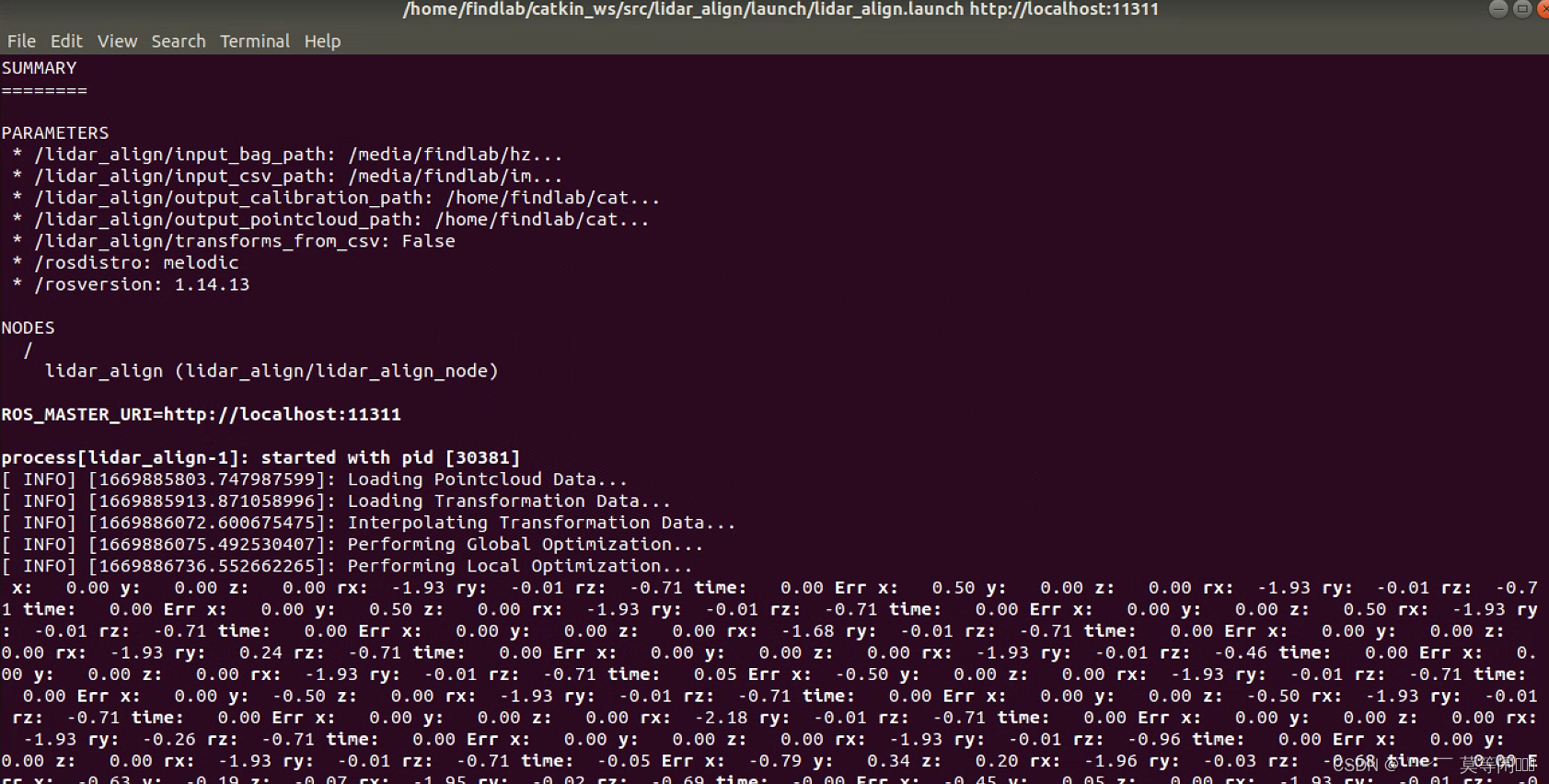

roscore
source devel/setup.bash
roslaunch lidar_align lidar_align.launch

此时可能会遇到一些问题

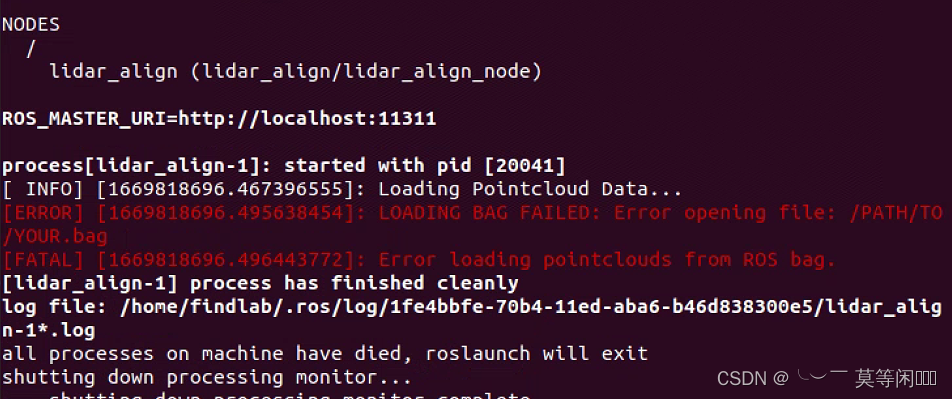

问题1：

解决办法：

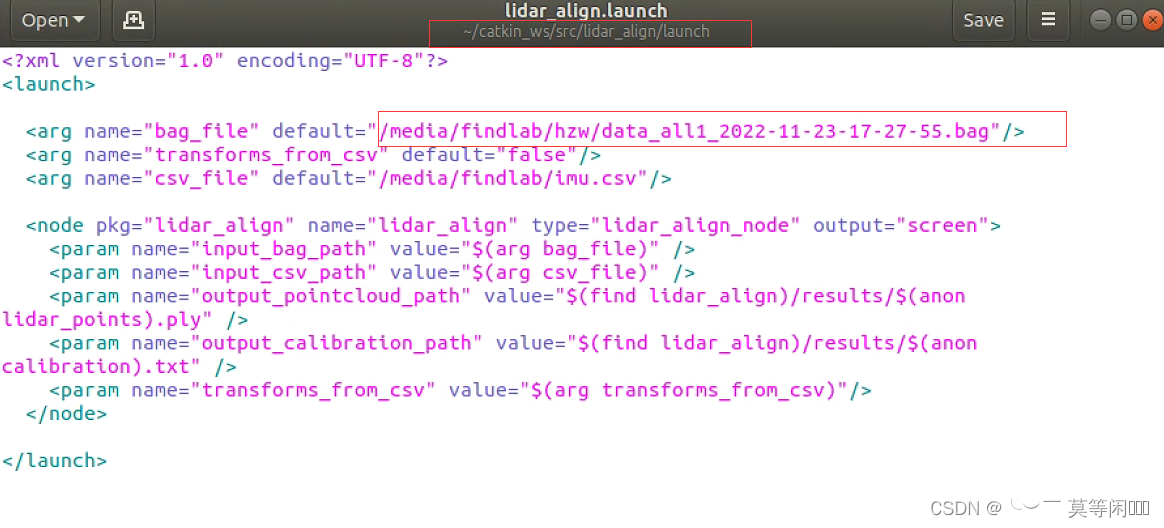

修改launch文件，改为自己的bag路径

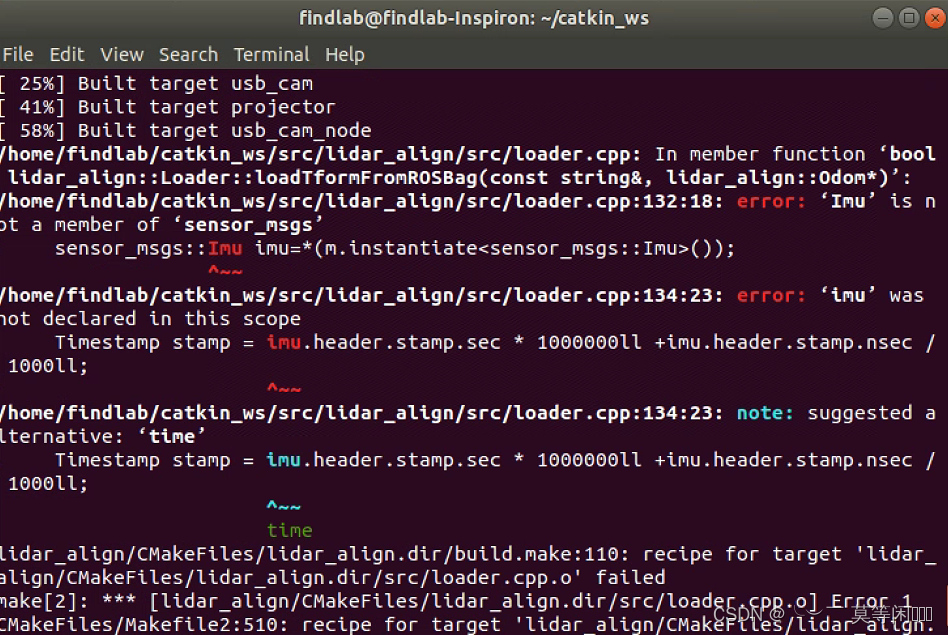

问题2：

解决办法：

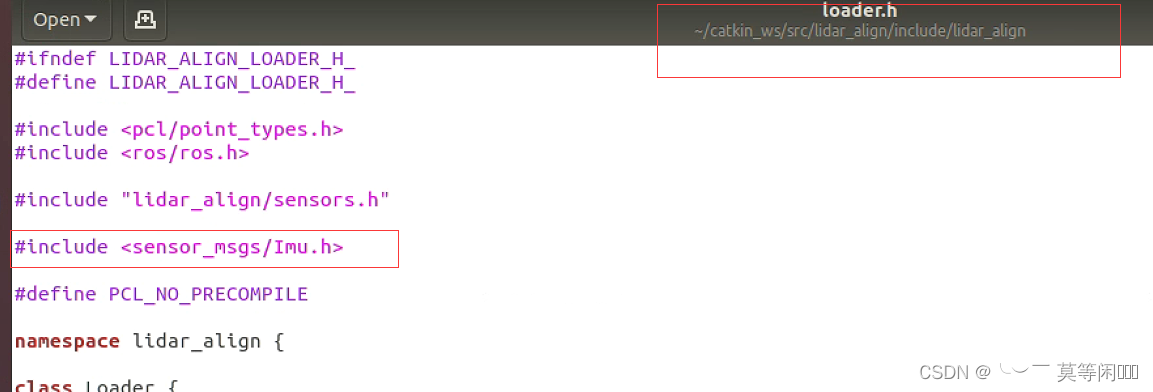

修改loader.cpp文件

将以下代码放到该文件的对应位置，并将odom的代码删除或注释掉

复制代码

std::vector<std::string> types;
types.push_back(std::string("sensor_msgs/Imu"));
rosbag::View view(bag, rosbag::TypeQuery(types));
size_t imu_num = 0;
double shiftX=0,shiftY=0,shiftZ=0,velX=0,velY=0,velZ=0;
ros::Time time;
double timeDiff,lastShiftX,lastShiftY,lastShiftZ;
for (const rosbag::MessageInstance& m : view){
std::cout <<"Loading imu: e[1m"<< imu_num++<<"e[0m from ros bag"<<'r'<< std::flush;
sensor_msgs::Imu imu=*(m.instantiate<sensor_msgs::Imu>());
Timestamp stamp = imu.header.stamp.sec * 1000000ll +imu.header.stamp.nsec / 1000ll;
if(imu_num==1){
time=imu.header.stamp;
Transform T(Transform::Translation(0,0,0),Transform::Rotation(1,0,0,0));
odom->addTransformData(stamp, T);
}
else{
timeDiff=(imu.header.stamp-time).toSec();
time=imu.header.stamp;
velX=velX+imu.linear_acceleration.x*timeDiff;
velY=velX+imu.linear_acceleration.y*timeDiff;
velZ=velZ+(imu.linear_acceleration.z-9.801)*timeDiff;
lastShiftX=shiftX;
lastShiftY=shiftY;
lastShiftZ=shiftZ;
shiftX=lastShiftX+velX*timeDiff+imu.linear_acceleration.x*timeDiff*timeDiff/2;
shiftY=lastShiftY+velY*timeDiff+imu.linear_acceleration.y*timeDiff*timeDiff/2;
shiftZ=lastShiftZ+velZ*timeDiff+(imu.linear_acceleration.z-9.801)*timeDiff*timeDiff/2;
Transform T(Transform::Translation(shiftX,shiftY,shiftZ),
Transform::Rotation(imu.orientation.w,
imu.orientation.x,
imu.orientation.y,
imu.orientation.z));
odom->addTransformData(stamp, T);
}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
std::vector<std::string> types;
types.push_back(std::string("sensor_msgs/Imu"));
rosbag::View view(bag, rosbag::TypeQuery(types));
size_t imu_num = 0;
double shiftX=0,shiftY=0,shiftZ=0,velX=0,velY=0,velZ=0;
ros::Time time;
double timeDiff,lastShiftX,lastShiftY,lastShiftZ;
for (const rosbag::MessageInstance& m : view){
std::cout <<"Loading imu: e[1m"<< imu_num++<<"e[0m from ros bag"<<'r'<< std::flush;
sensor_msgs::Imu imu=*(m.instantiate<sensor_msgs::Imu>());
Timestamp stamp = imu.header.stamp.sec * 1000000ll +imu.header.stamp.nsec / 1000ll;
if(imu_num==1){
time=imu.header.stamp;
Transform T(Transform::Translation(0,0,0),Transform::Rotation(1,0,0,0));
odom->addTransformData(stamp, T);
}
else{
timeDiff=(imu.header.stamp-time).toSec();
time=imu.header.stamp;
velX=velX+imu.linear_acceleration.x*timeDiff;
velY=velX+imu.linear_acceleration.y*timeDiff;
velZ=velZ+(imu.linear_acceleration.z-9.801)*timeDiff;
lastShiftX=shiftX;
lastShiftY=shiftY;
lastShiftZ=shiftZ;
shiftX=lastShiftX+velX*timeDiff+imu.linear_acceleration.x*timeDiff*timeDiff/2;
shiftY=lastShiftY+velY*timeDiff+imu.linear_acceleration.y*timeDiff*timeDiff/2;
shiftZ=lastShiftZ+velZ*timeDiff+(imu.linear_acceleration.z-9.801)*timeDiff*timeDiff/2;
Transform T(Transform::Translation(shiftX,shiftY,shiftZ),
Transform::Rotation(imu.orientation.w,
imu.orientation.x,
imu.orientation.y,
imu.orientation.z));

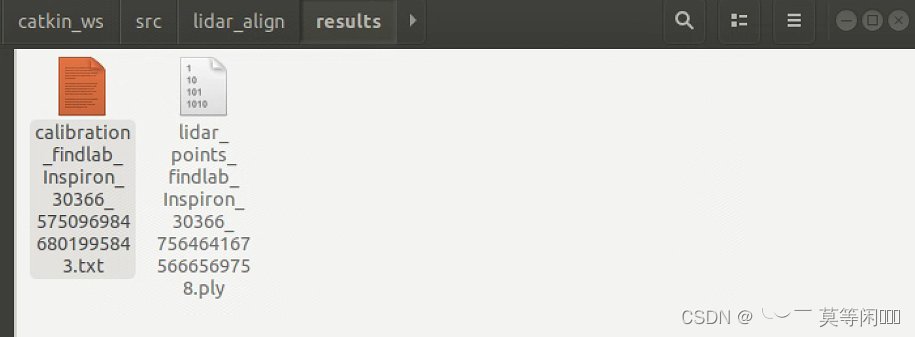

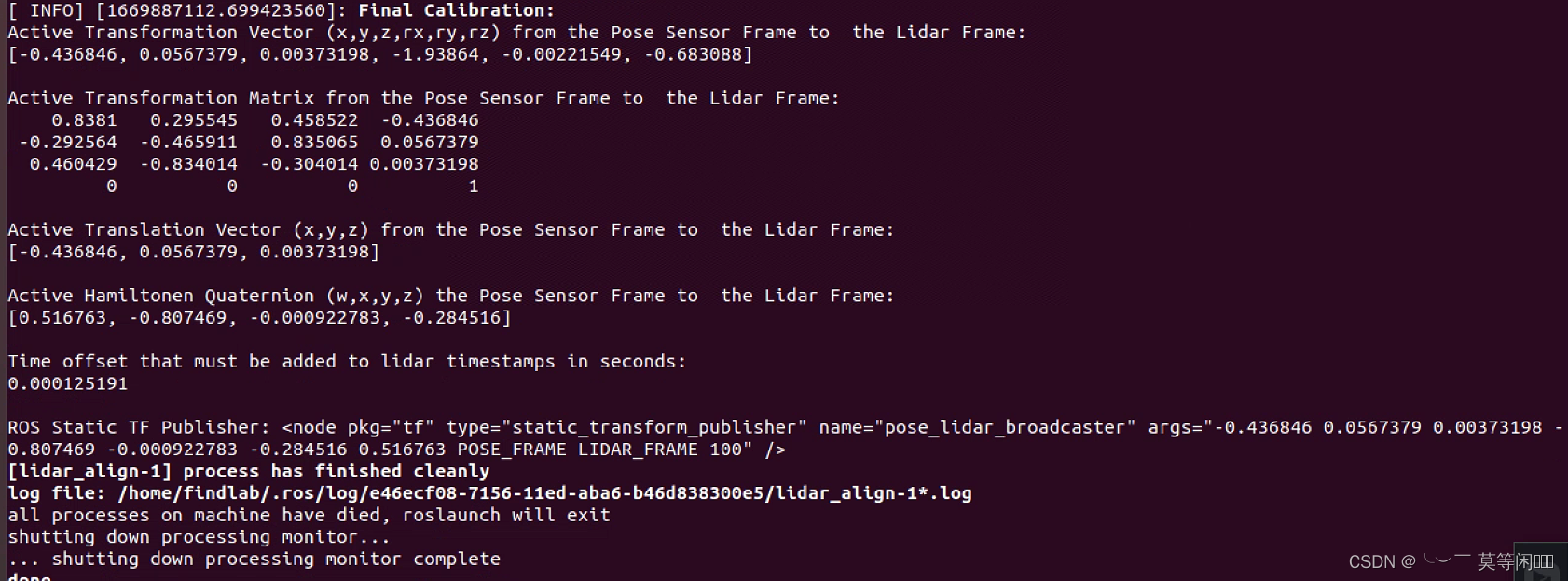

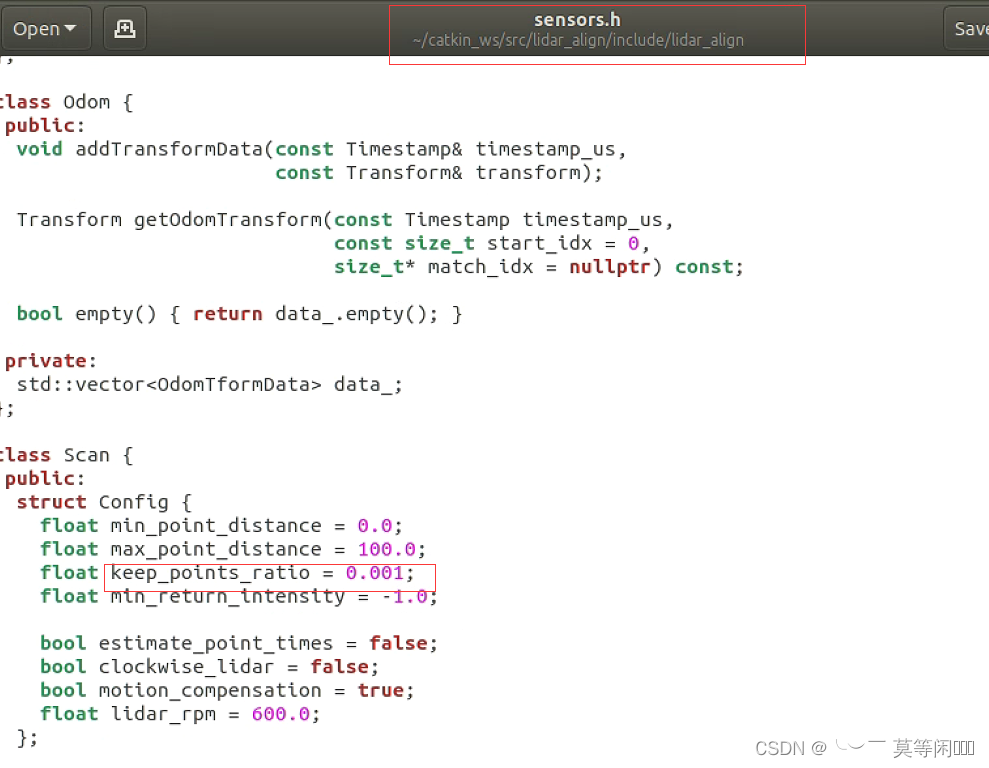

odom->addTransformData(stamp, T);
}
}
