概率约束最优潮流中的最优负载集成控制

80 阅读 0 评论 53 点赞

我是靠谱客的博主眯眯眼果汁，最近开发中收集的这篇文章主要介绍概率约束最优潮流中的最优负载集成控制，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

摘要：全球配电系统运营商（DSOs）预见了分布式能源资源的快速推出。从系统的角度来看，它们可靠和成本有效的集成需要在DSO使用的操作工具中考虑它们的物理特性。本文描述了一种可分解的方法，以利用恒温控制负荷（TCLs）的调度灵活性，以操作具有高渗透水平的光伏资源的配电系统。每个TCL集成都使用马尔可夫决策过程（MDP）进行建模。然后，MDP模型与机会约束最优潮流相结合，考虑光伏资源的不确定性。由于集成优化模型不能通过现有的动态规划方法或现有的求解器来进行有效的求解，本文提出了一种迭代的时空对偶分解算法（ST-D2）。我们在IEEE33总线测试系统上演示了所提出的集成优化和ST-D2算法的优点。

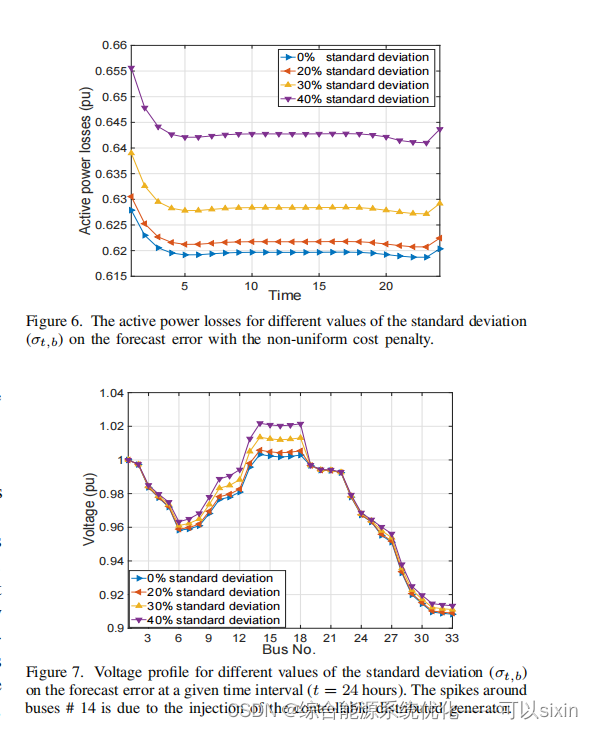

main.jl

using JuMP
using DataFrames
using Requests
Sbase = 100
include("Input.jl") #Input data for the distribution network
include("opf.jl") #opf solution (LinDistflow)
include("mdp.jl") #mdp file


buses, lines, generators, rPTDF =
    load_case_data()
    tic()
    time_det = zeros(4) # getsolvetime(m::Model)

numbuses = collect(keys(buses))
numlines = collect(keys(lines))
gen_set = collect(keys(generators))
gen_bus = []
for g in keys(generators)
    push!(gen_bus, generators[g].bus_idx)
end

T = 24 #Time Horizon
en_price = [91.0777 69.516 96.6204 97.8976 73.4845 50 66 77 80 91 73 68 90 86 54 76 82 91 54 69 82 76 76 82] #Random price for T

bus_MDP = [17 20 23 26] #Location for the mdp ensemble
Np=4 #number of up & down states

load_MDP_o_Pd = zeros(length(bus_MDP))
load_MDP_o_Qd = zeros(length(bus_MDP))

for i=1:length(bus_MDP)
load_MDP_o_Pd[i] = buses[bus_MDP[i]].d_P
load_MDP_o_Qd[i] = buses[bus_MDP[i]].d_Q
end
frac_MDP = linspace(.1,2,8)

load_MDP_p = zeros(length(bus_MDP),T)
load_MDP_q = zeros(length(bus_MDP),T)
cong_price_p = zeros(length(bus_MDP),T)
cong_price_q = zeros(length(bus_MDP),T)

g_uni=1;
g_pen=1*ones(Np*2,Np*2) #replace the factor 1 here with 10 for nonuniform case
g_pen[1,2*Np]=1
for a=1:(2*Np-1)
    g_pen[a+1,a]=1
end

Pt=[0.2  0.5 0.1 0.03 0.02 0.03 0.1 0.02
    0.02 0.2 0.5 0.1 0.03 0.02 0.03 0.1
    0.1 0.02 0.2 0.5 0.1 0.03 0.02 0.03
    0.03 0.1 0.02 0.2 0.5 0.1 0.03 0.02
    0.02 0.03 0.1 0.02 0.2 0.5 0.1 0.03
    0.03 0.02 0.03 0.1 0.02 0.2 0.5 0.1
    0.1 0.03 0.02 0.03 0.1 0.02 0.2 0.5
    0.5 0.1 0.03 0.02 0.03 0.1 0.02 0.2]


U=zeros(Np*2,T)
U_2=zeros(Np*2,T)

load_MDP_pold = ones(length(bus_MDP),T)
load_MDP_qold = ones(length(bus_MDP),T)
priceold = load_MDP_pold
pricenew = load_MDP_qold

rho_final = zeros(Np*2,T,length(bus_MDP))
rho_old = rho_final

N_iter =4;

conv_P=zeros(N_iter,T,length(bus_MDP))
conv_Q=zeros(N_iter,T,length(bus_MDP))

conv_lambdaP=zeros(N_iter,T,length(bus_MDP))
conv_lambdaQ=zeros(N_iter,T,length(bus_MDP))

opf_obj=zeros(N_iter,T)
rho_opt = zeros(T,Np*2)
rho_opt2 = zeros(T,Np*2)
vpbus = zeros(T,33)
#var_P = zeros(T)
v_v = zeros(T)
g_v = zeros(T)
voltage_profile = zeros(T)
losses = zeros(T)

#price =zeros(Np*2)
for iter = 1:N_iter
        #tic()
for i = 1:length(bus_MDP)
    for t=1:T
            price = en_price[t] + cong_price_p[i,t]*load_MDP_o_Pd[i]*frac_MDP'' + cong_price_q[i,t]*load_MDP_o_Qd[i]*frac_MDP''
            println(price)
            U[:,t]=price

    end

            println("****************************")
            println("Cost for iteration $iter = ", U)
            println("****************************")

        rho = CostMDP(Np,T,U,Pt,g_pen)

        load_MDP_p[i,:] = (load_MDP_o_Pd[i]*frac_MDP')*rho
        load_MDP_q[i,:] = (load_MDP_o_Qd[i]*frac_MDP')*rho
        rho_final[:,:,i] = rho
        rho_opt = rho
end
println("U = ", U)
println("g = ", g_pen)

    load_MDP_pold = load_MDP_p;
    load_MDP_qold = load_MDP_q;

        for t = 1:T
for i = 1:length(bus_MDP)
        buses[bus_MDP[i]].d_P = load_MDP_p[i,t]#[:,t]
        buses[bus_MDP[i]].d_Q = load_MDP_q[i,t]#[:,t]
end
        yp, yq, obj_val, vv, gg, voltage_p, v_p_b = opf_RRC(t)
        v_v[t] = vv
        g_v[t] = gg
        opf_obj[iter,t] = obj_val
        voltage_profile = voltage_p
        losses[t] = obj_val
        for i =1:33
        vpbus[t,i] = v_p_b[i]
        end
for i = 1:length(bus_MDP)
        cong_price_p[:,t] = yp[bus_MDP[i]]#*0.0010#*0.1#00
        cong_price_q[:,t] = yq[bus_MDP[i]]#*0.0010#*0.1#00
        println("")
        println("Pd at time $t for iteration $iter at $bus_MDP = ", buses[bus_MDP[i]].d_P*Sbase)
                println("ypg = ", yp[17])

        println("")
        conv_P[iter,t,i] = buses[bus_MDP[i]].d_P#*Sbase
        conv_Q[iter,t,i] = buses[bus_MDP[i]].d_Q#*Sbase
        conv_lambdaP[iter,t,i] = yp[bus_MDP[i]]
        conv_lambdaQ[iter,t,i] = yq[bus_MDP[i]]
end
        end
println("*************************************************")
end
for i=1:length(bus_MDP)
println("Bus $(bus_MDP[i])")
for t=1:T
println("For T = $t")
println("conv_P = ", conv_P[:,t,i])
println("")
println("conv_Q = ", conv_Q[:,t,i])
println("")
println("conv_lambdaP = ", conv_lambdaP[:,t,i])
println("")
println("conv_lambdaQ = ", conv_lambdaQ[:,t,i])
println("")
println("")
end
println("**************************************************")
end
for t=1:T
println("For T = $t")
println("opf_obj = ", opf_obj[:,t])
println("")
end
println("")
println("rho = ", rho_opt)
println("")
for t=1:8
println("state $t = ", rho_opt[t,:])
end
println("")
for t=1:T
println("For T = $t")
println("No. of voltage violated constraints = ", v_v[t])
@printf("%.2f%% of voltage constraints hold  n", ((1-(v_v[t]/(2*500*n_buses)))*100))
@printf("%.2f%% of voltage constraints not hold  n", 100-((1-(v_v[t]/(2*500*n_buses)))*100))
println("")
println("No. of generation violated constraints = ", g_v[t])
@printf("%.2f%% of generation constraints hold n", ((1-(g_v[t]/(4*500*length(gen_bus))))*100))
@printf("%.2f%% of generation constraints not hold n", 100-((1-(g_v[t]/(4*500*length(gen_bus))))*100))
println("")
end
println("Time taken (seconds): ", toq())
println("End")
